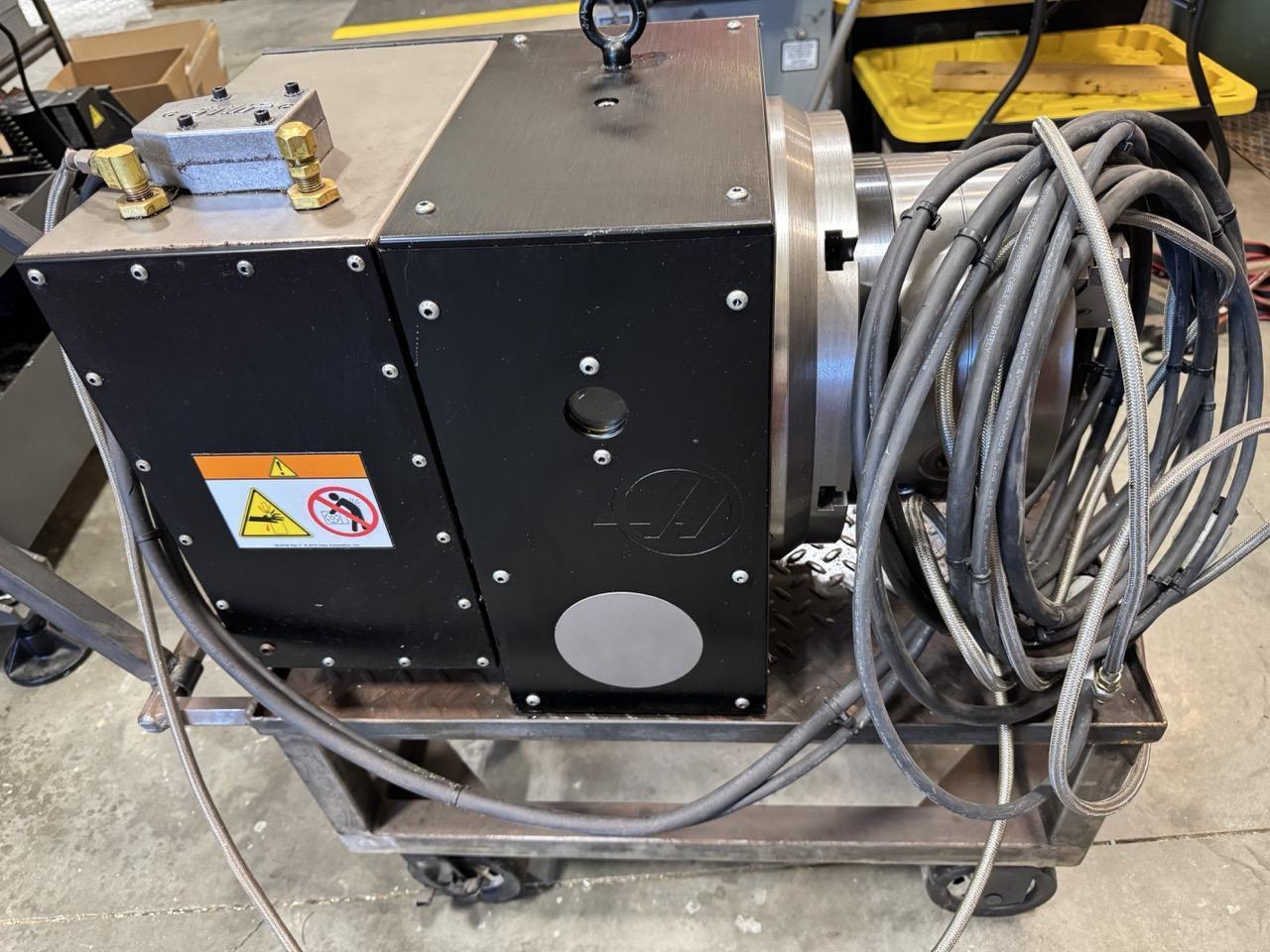

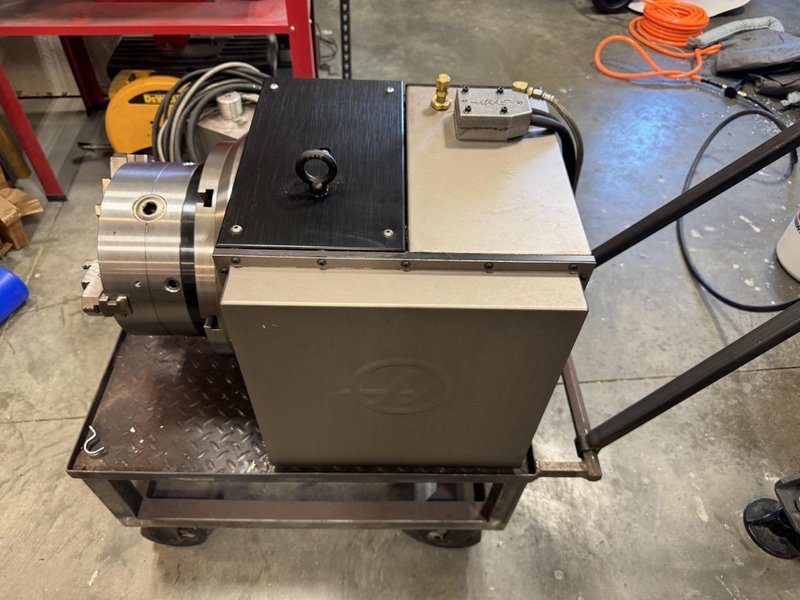

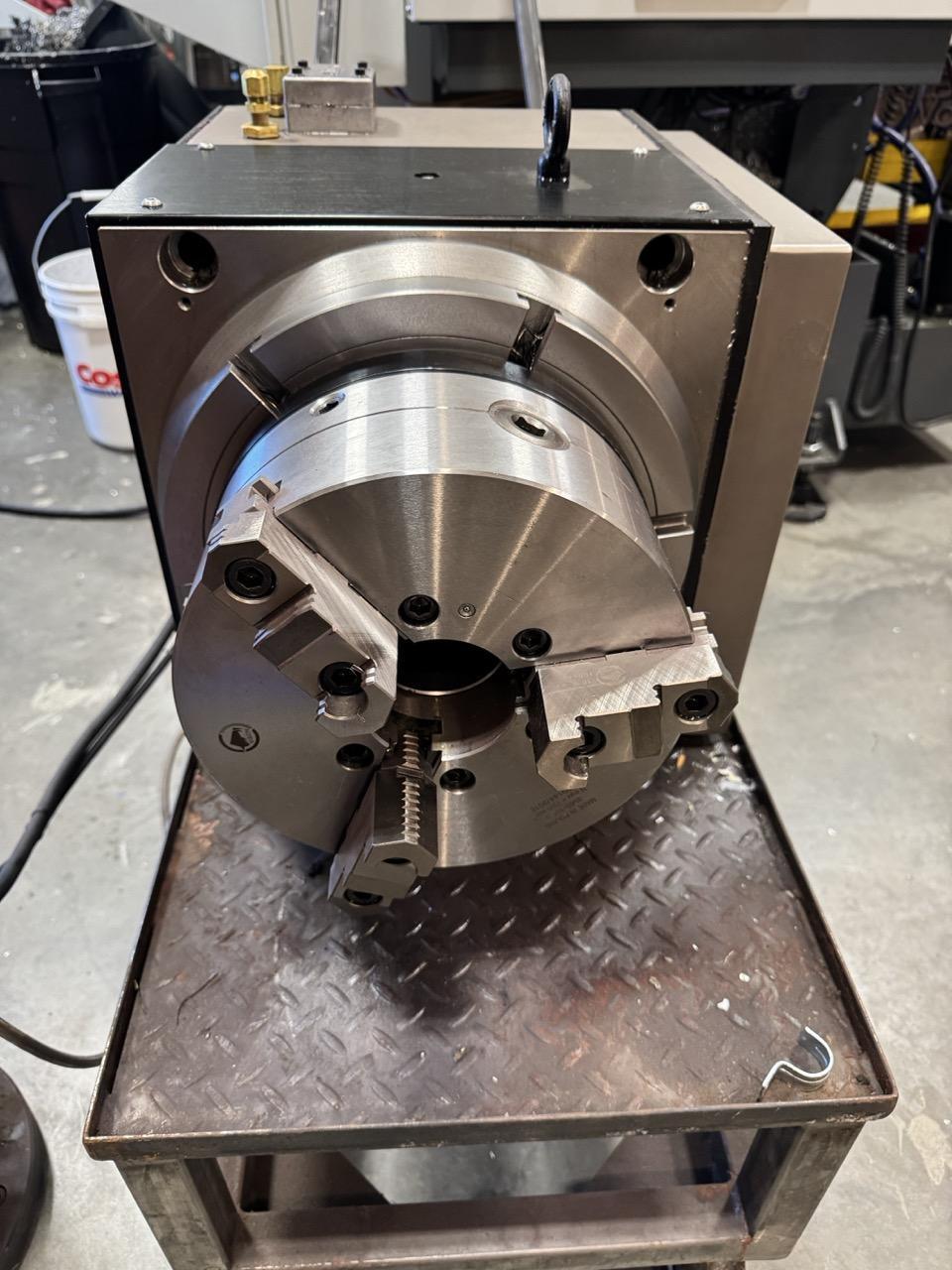

Haas HRT310SP 4th Axis Rotary, 2019 – New 8″ 3-Jaw Chuck and Tombstone Included
Brand
Category
Type
Model
HRT310SP
Stock #
954625
Year
2019
Condition
Not specified
Location
Not specified
|
Platter Diameter: 12.2″
Center Height: 9.0″
Number Of T-Slots: 6 @ 60°
Max Torque (Continuous): 300 ft-lb
Max Brake Torque (100 psi): 500 ft-lb
Max Speed: 75 °/sec
Accuracy (±): 15 arc-sec
Repeatability: 10 arc-sec
Resolution: 0.001°
Runout Max: 0.0010″
Backlash: 30 arc-sec
Worm Gear Diameter: 9.4″
Gear Ratio: 72:1
Max Rotation per Step: 999.999°
Power Requirement: 115 VAC ±10% @ 15 A
Air Pressure Max: 150 psi
Weight: 435 lb (supported); 218 lb (unsupported)
Duty Cycle (Full/Low Speed): 50% / 100%

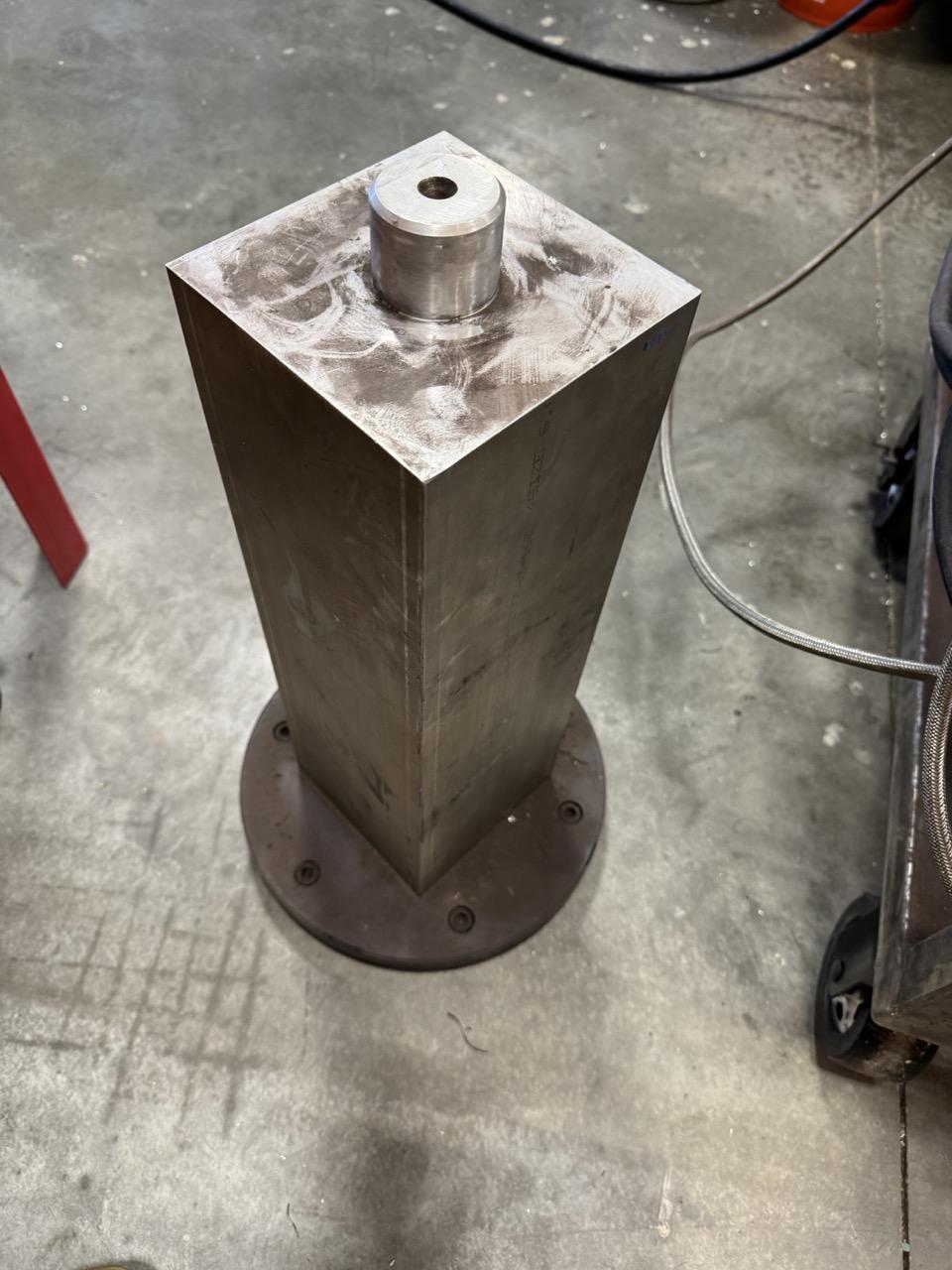

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: 8″ 3-Jaw Chuck (New) Tombstone All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
