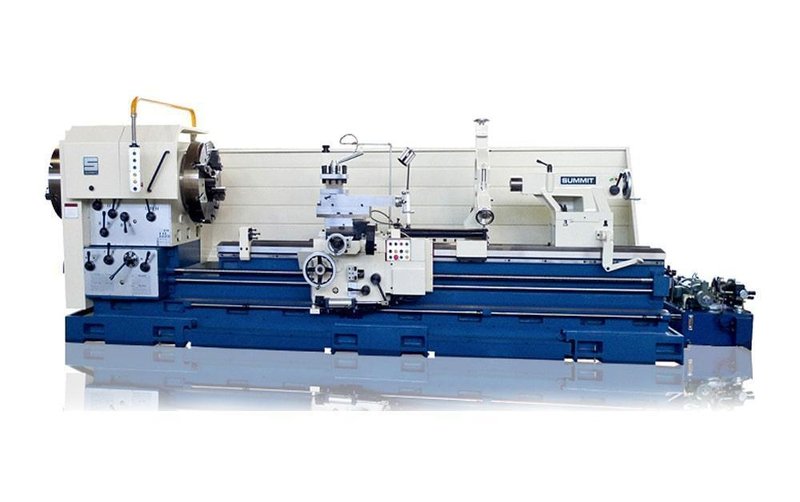

1 - NEW SUMMIT 42 - 6 x 160 VS HOLLOW SPINDLE LATHE
Brand
Category
Type
Model
42-6 X 160 VS
Stock #
87035
Year
Not specified
Condition
New
Location
Oklahoma
|
Specifications:
Capacities
Swing over bed 41.7”
Swing over cross slide 29.5”
Swing over gap 63.4”
Length of gap 22.4”
Work Piece Weights
At The Headstock 4,400 Lbs.
Between Centers 13,200 Lbs.
Between Centers, One Steady Rest 16,500 Lbs.

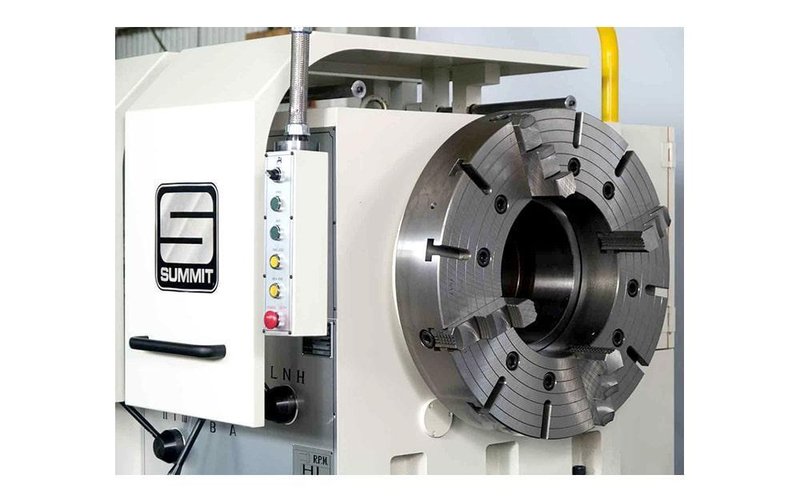

Between Centers, Two Steady Rests 19,800 Lbs. Headstock
Spindle Bore 6.1”
Spindle Nose A 2 - 11
Spindle Speeds; Number Inf. Var.4 Ranges
Spindle Speeds; Range 9 – 600 RPM Quick Change Gearbox
Longitudinal feeds (no.) range (48) .005 - .075 IPR
Cross feeds (no.) range (48) .0025 -0378IPR Threads per inch (no.) range (48) 1 – 16 TPI Metric threads (no.) range (48) 2 – 30
Module threads (no.) range (32) 1 – 15M

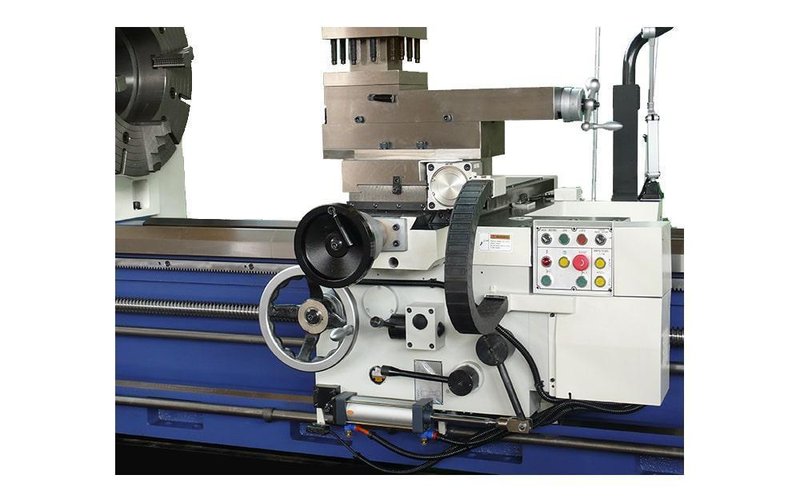

Diametral Pitch (no.) range (48) 2 – 30P Leadscrew (Dia) range (2”) 2 TPI Carriage & Apron
Cross Slide Travel 21.3”
Compound rest travel 11.8” Tailstock
Quill Diameter 4.9”
Quill Travel 11.8”
Quill Taper MT 6
Two Speed 1:1, 4:1
Bed
Width of bed 22”
Hardness of bed (Rockwell C) 42 – 50

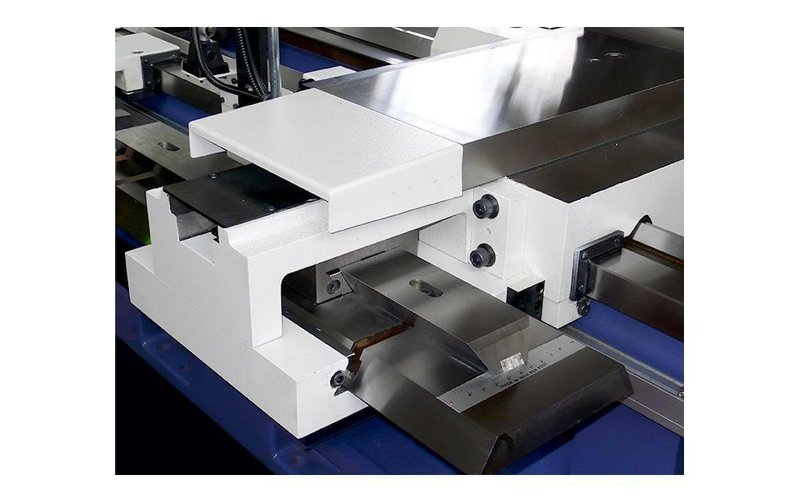

Taper Attachment
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 24”
Motors
Main Drive 30HP
Coolant pump 1/3 HP
Steady and Follow Rest
Standard Steady Rest 5.9” – 14.9”
Follow rest 1.4” – 6.6”
Shipping Data
Overall width 63”
Overall height 93”
Overall length 252”
Weight 26,300 lbs
Electrics 220/440/3/60 Standard Features:
Big 6.1” thru hole
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears Hardened & ground bedways
Forced lubrication to the headstock, carriage
and bedways
Removable gap
Precision (3) bearing spindle
Crossfeed and threading safety interlock
4-way rapid traverse
Two Speed Tailstock
Sliding Front Chuck Guard
Included Accessories:
➢ Standard Steady Rest (5.9” – 14.9”)
➢ Follow Rest
➢ Thread Dial
➢ Coolant System
➢ Taper Attachment
➢ 20” 3 Jaw Chuck
➢ 32” 4 Jaw Chuck
➢ Carriage Stop
➢ Work Light
➢ Full Length Splash Guard
➢ Service Wrenches & Spanners
Options:
Extra Capacity Steady Rest
(11.8” – 20.8”) $6,000
Extra Capacity Steady Rest
(19.6” – 30.7”) $8,000
Rear Spindle Adapter (A2-11)
w/Enclsed Rear Chuck Guard $2,000
Aloris Quick Change Tool Post
w/Holders (2#1, 2#2) $3,750
Newall 2 Axis Digital Readout Installed $7,500 **Installation Assistance TBD
|
