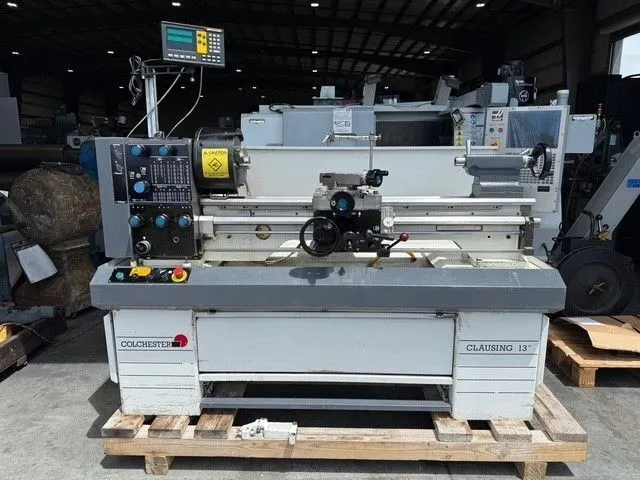

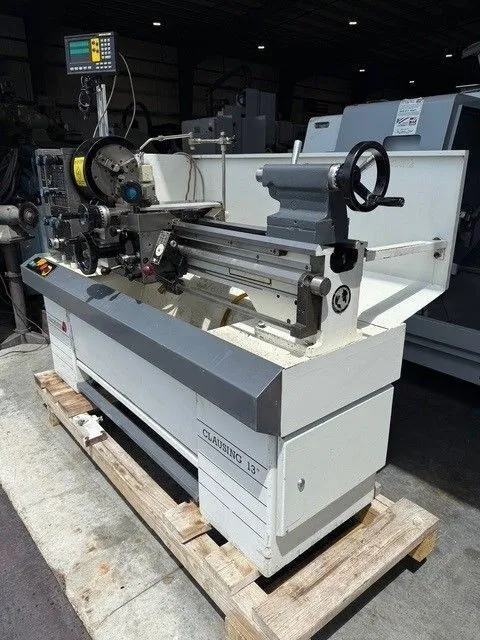

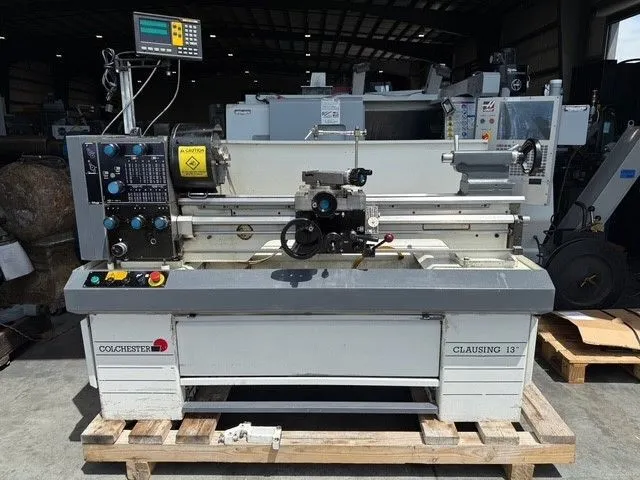

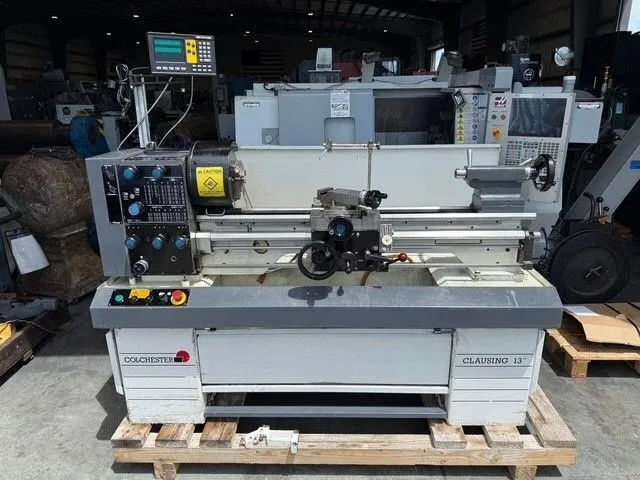

CLAUSING COLCHESTER 13”/18” x 40”cc Lathe 1998’ #7691
Brand
Category
Type
Model
STUDENT 2500
Stock #
7691
Year
Not specified
Condition
Not specified
Location
Not specified
|
CLAUSING COLCHESTER 13”/18” x 40”cc Lathe 1998’ #7691

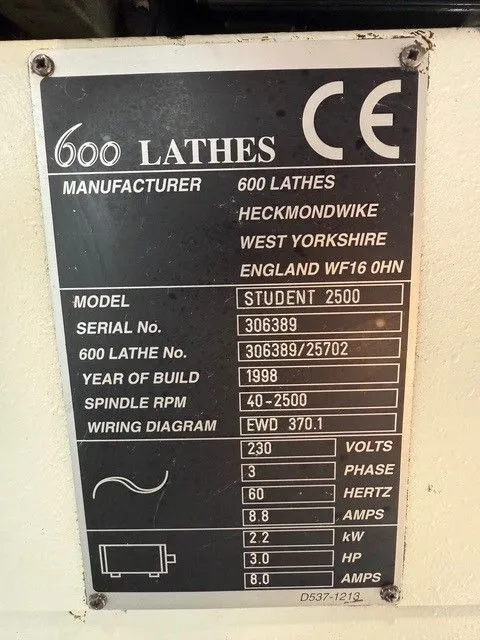

Reference #7691 Model # 2500 Serial # 306389 Year of Manufacture- 1998’ Swing over bed- 13” Swing over gap- 18.8” Swing over cross slide- 8.26” Distance between centers- 40” Bedways width- 8” Spindle bore- 1.5” Spindle nose- D1-4 Spindle nose taper- 3 Morse taper Number of spindle speeds- 12 Spindle speed range- 40 -2500 R.P.M. Travel of cross slide- 7.5” Width of cross slide- 5.5” Travel of top slide- 3.63” Width of top slide- 3.25” Tailstock quill travel- 4.38” Quill diameter- 1.63” Quill taper- 3 Morse taper Longitudinal feeds- Inch-.001” - .080” in/rev mm- .03-2.00 mm/rev Number of inch pitches- 35 Range in inch pitches- 2 – 56 T.P.I Number of metric pitches- 39 Range of metric pitches- .2 – 14mm |
