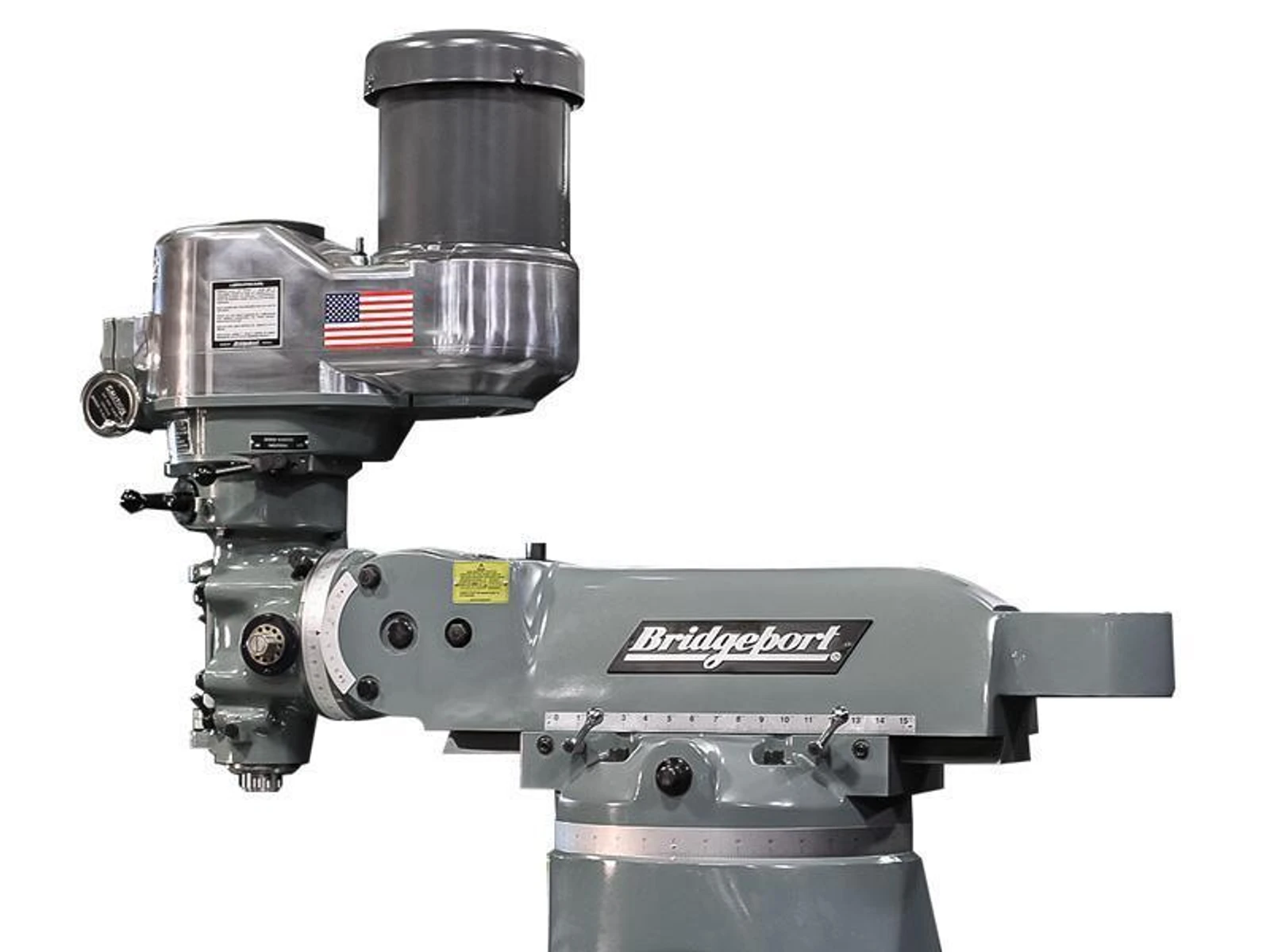

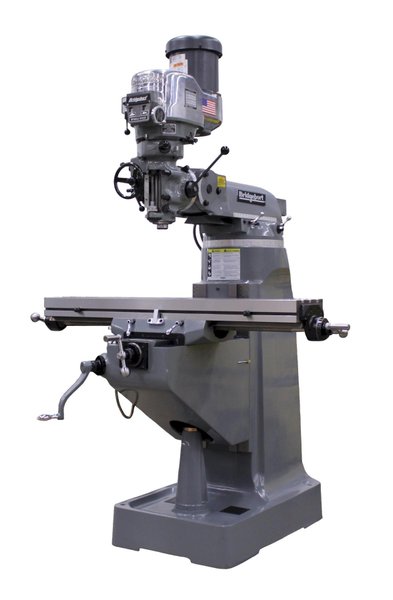

1 - NEW BRIDGEPORT SERIES 1 VERTICAL MILL

Clausing BPS1 Mill Specifications

Table & Ways

Travels                     Table Size                                                                       9” x 49”

                                   Table Height Above Floor (max)                             47.25”

                                   Table Load                                                                      750lbs.

                                   No. of T-slots                                                                 3

                                   T-slot Width                                                                   5/8”

                                   T-slot Center Distance                                               2.5”

                                   Table Ways                                                                     Dovetail

                                   Knee Ways                                                                     Dovetail

                Column Ways

X Longitudinal Table (w/o pwr feed)         Dovetail

36”

                                   X Longitudinal Table (w/pwr feed)                        33”

                                   Y Cross                                                                            12”

                                   Knee                                                                                 16”

                                   Ram                                                                                  12”

                                   Throat Distance (min)                                                6.75”

                                   Throat Distance (max)                                               18.75”

                                   Table to Nose Gauge Line (min/max)                   2.5” / 18.25”

Motors & Spindle                                                                                          Spindle Motor (duty cycle/continuous)    3 Hp / 2Hp

                                   Amp. Draw 208v.                                                         7

                                   Amp. Draw 230v.                                                         7

                                   Amp. Draw 460v.                                                         5

                                   Speed Range High Range                                          500-4200 RPM

                                   Speed Range Low Range                                          60-500 RPM

                                   Main Spindle Taper                                                     R8

                                   Spindle Travel                                                                5”

                                   Quill Feed (in/rev.)                                                      .0015/.003/.006

                                   Quill Diameter                                                             3.375”

Capacities              Power Quill Feed                                                         3/8”

                                   Milling Capacity (mild steel)                                    2 CI/in

                                   Boring Range (mild steel)                                          6” dia

                                   Spindle Diameter                                                         1.875”

                                   Feed Rate Range (X,Y)                                                0.50-35 ipm

                                   Minimum Increment                                                  0.001”

Construction

& Weight                Floor Area                                                                      7 x 10 ft

                                   Height                                                                              87”

                                   Net Weight                                                                     1930 lbs

                                   Shipping Weight                                                           2075 lbs

                                   Input Power                                                                   208/230/460 Volt

                                                                                                                              3 Phase, 50/60 hz

                                                                                                                              4KVA

Standard Equipment

·         Mechanical Variable Speed Drive System

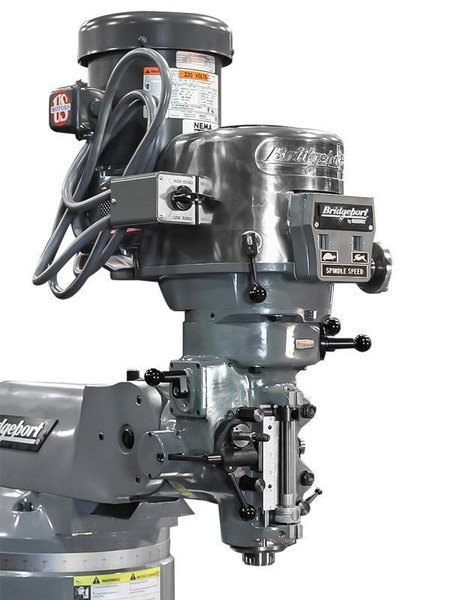

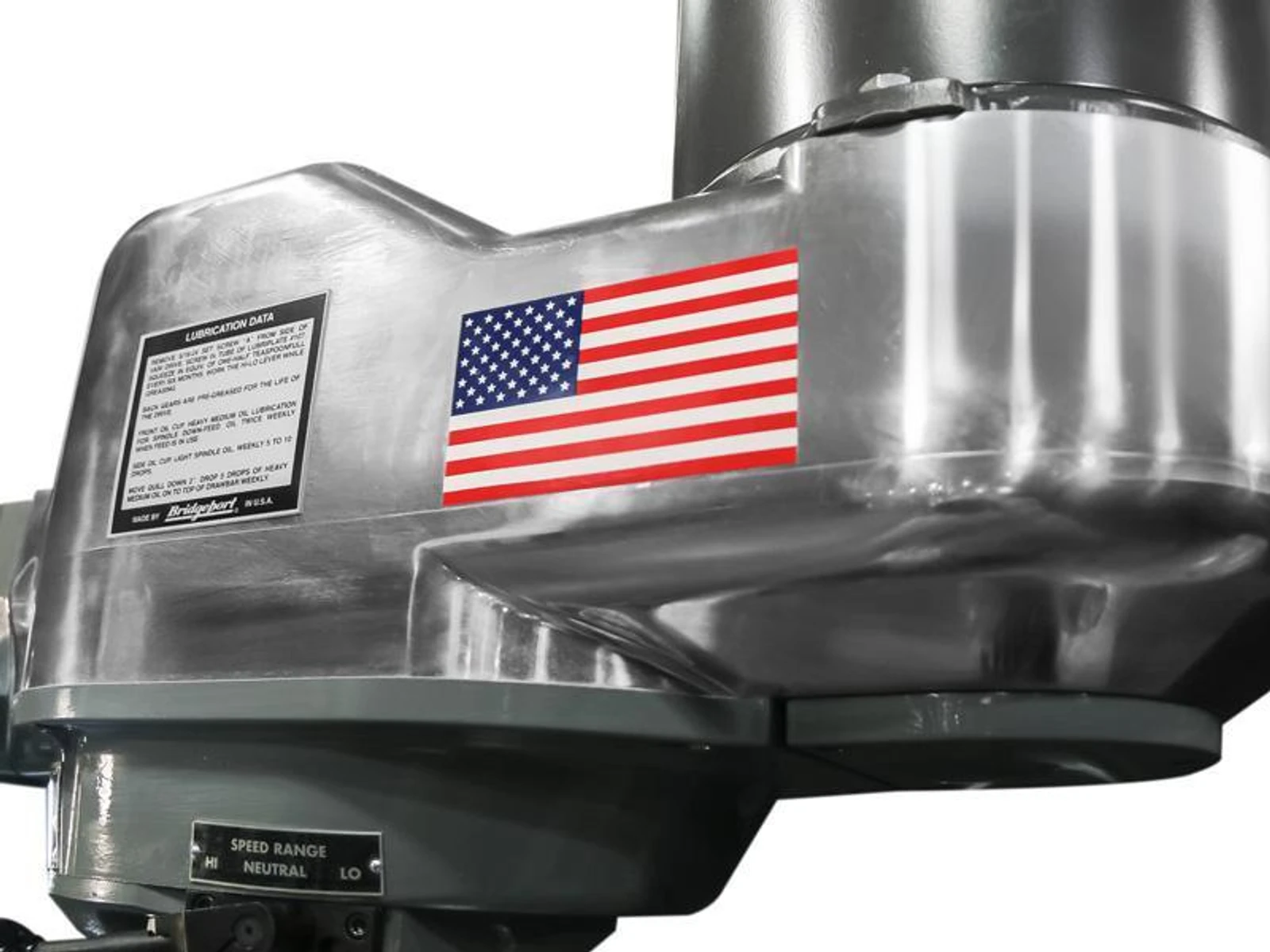

·         Patented 2J Head gives unique air cooling for spindle bearings

·         Hardened & Scraped, X, Y & Z Ways

·         Scraped gibs for alignment

·         T-slots are ground to provide reference edge for positioning your workplace

·         Hardened & Scraped Table Surface

·         Hardened & Ground Spindle

·         Chrome-Plated Ways and Gibs

·         Chromed & Ground Quill

·         Chromed X, Y, & Z Leadscrews

·         Double Nut Leadscrew for backlash compensation

·         ABEC 7/CP4 Spindle Bearings

·         One-piece way wipers

·         7/16”-20 Imperial Drawbar  R8

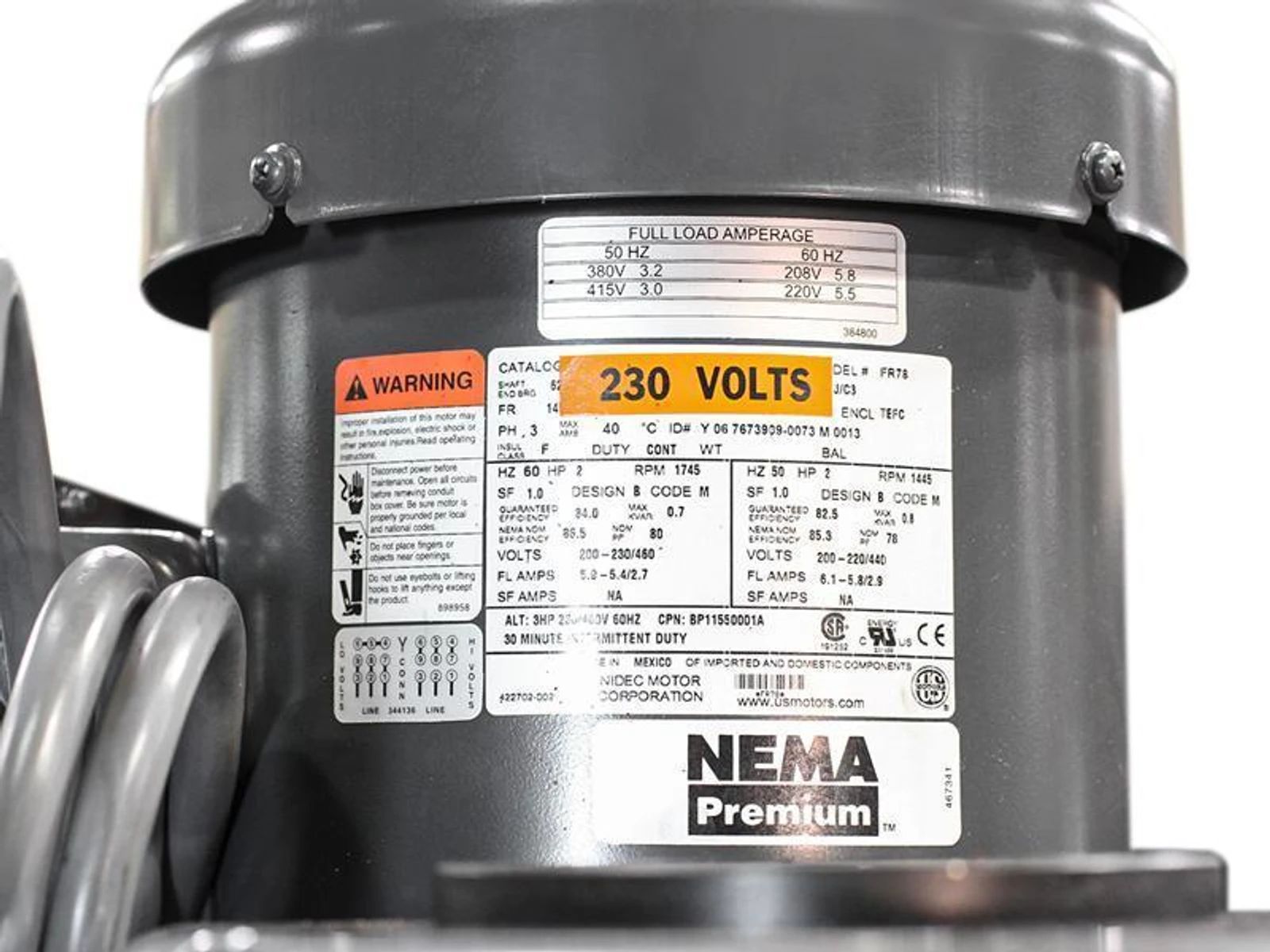

·         3 / 2 Hp AC Motor (3Hp 30 minute duty/ 2Hp continuous)

·         Articulating Head for Compound Angles

·         Worm gear angular positioning of head in two directions

·         Lever-operated manual rapid quill movement

·         Handwheel for fine quill feed

·         Adjustable automatic feed disengagement for quill feed in both directions

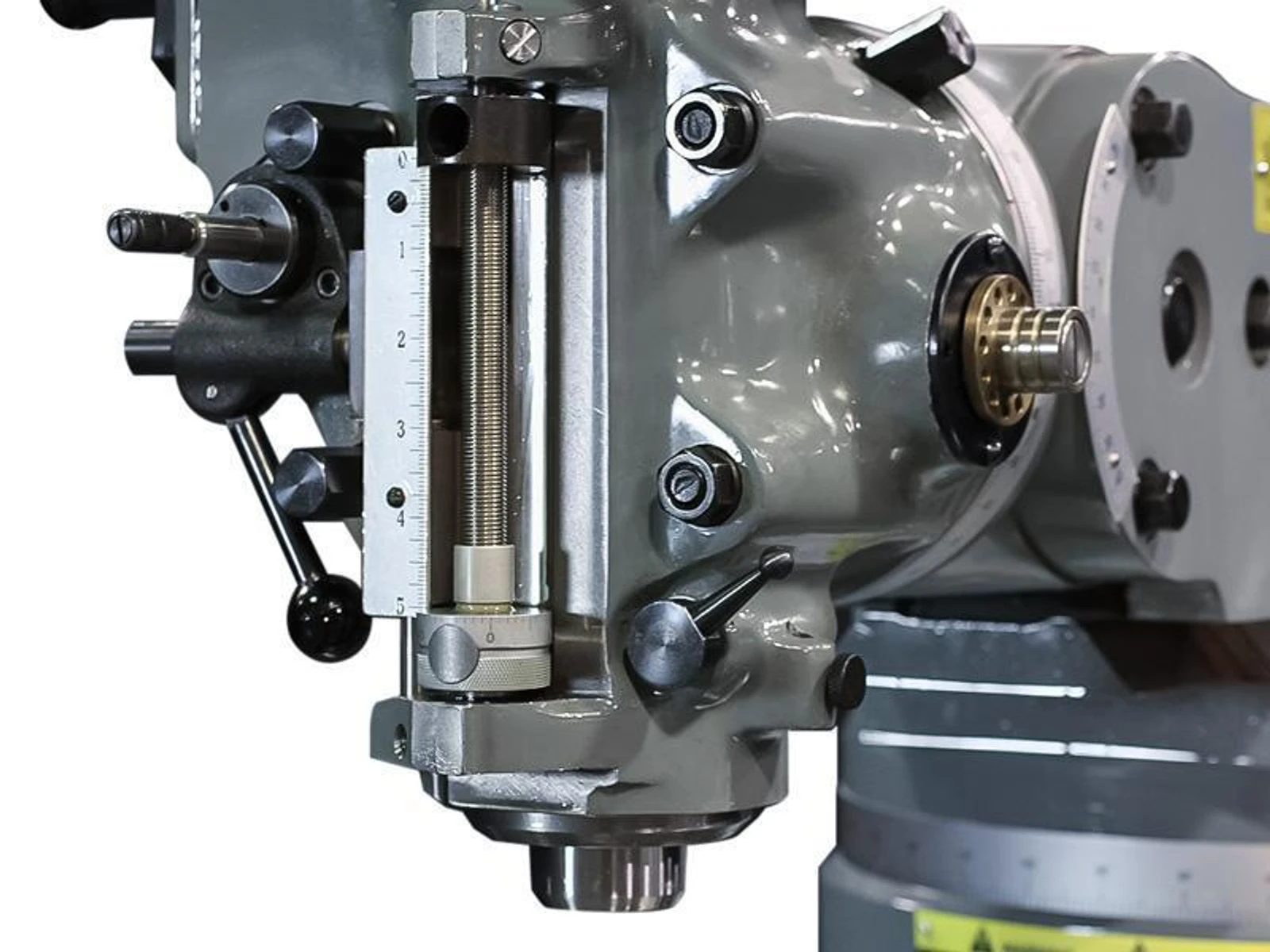

·         Micrometer depth stop

·         Reversing switch for clockwise or counter clockwise operation

·         R8 Spindle taper

·         Spindle Brake (Hand operated)

·         One-shot lubrication

·         Leveling bolts and pads (in tool box)

·         Tool Kit, Test and Accuracy Chart

·         Operations Manual/Parts List

·         Series 1 Standard 208/230 or 460 3 Phase (other voltages require a transformer)

 Investment

Clausing BPS1 w/Mechanical Sheave Pulley Drive

BPS1R08             VS Mill, 9” x 49” Table, R8 Spindle, 3 Hp                             $ 21,800.00

BPS1R08C          VS Mill, 9” x 49” Table, R8 Spindle, 3 Hp                                22,455.00

                             Coolant System in Base and On/Off Switch

BPS1QC30          VS Mill, 9” x 49” Table, NMTB 30 Quick Change SPDL,    $ 22,350.00

                             3 Hp

BPS1QC30C       VS Mill, 9” x 49” Table, NMTB 30 Quick Change SPDL,       23,000.00

                             3 Hp, Coolant System in Base and On/Off Switch

Bridgeport Specific Accessories

BPS031                       Right Angle Attachment R8 (only no support or arbor)    $ 2,250.00

                                    (NOT FOR QUICK CHANGE SPINDLE)

BPS8408                     Air Power Draw Bar R8 (US MFG)                                     1,195.00

                                    Drawbar Installation                                                $ 200.00 NET

BPS100                       Spindle chip guard                                                                   785.00

BPS001                       Coolant Chip Pan                                                                     585.00

BPS040                       4” Column Riser Block Series 1                                              650.00

BPS041                       6” Column Riser Block Series 1                                              700.00

BPS042                       8” Column Riser Block Series 1                                              755.00

BPS050                       Front Accordion & Rear Flat Cover Y-Axis                           240.00

BPSX350                    X-Axis Servo Feed (USA MFG)                                          1,880.00

                                    Power Feed Installation                                            $ 175.00 NET

BPSY350                    Y Axis Servo Feed (USA MFG)                                          2,000.00

                                    Power Feed Installation                                            $ 175.00 NET

BPSK350                    Knee Servo Feed (USA MFG)                                            1,985.00

                                    Power Feed Installation                                            $ 175.00 NET

BPS200                       Accu-Lube System                                                               2,365.00

BPS2VRSP                 Series 1 2 Year Spare Parts 1.5Hp                                           450.00

Special Electrics

BPS-NFPA79-SM      NFPA Special Electrics Knee Mill                                    $ 9,575.00

BPS8408-NFPA         Air Power Drawbar R8 (w/110V Solenoid for air)              1,330.00

                                    (requires BPS-NFPA79-SM)

BPS200-NFPA           Accu-Lube System w/NFPA                                                2,540.00

                                    (requires BPS-NFPA79-SM)

BPSWOL-NFPA        Worklight with Twist Lock Plug                                             580.00

                                    (requires BPS-NFPA79-SM)

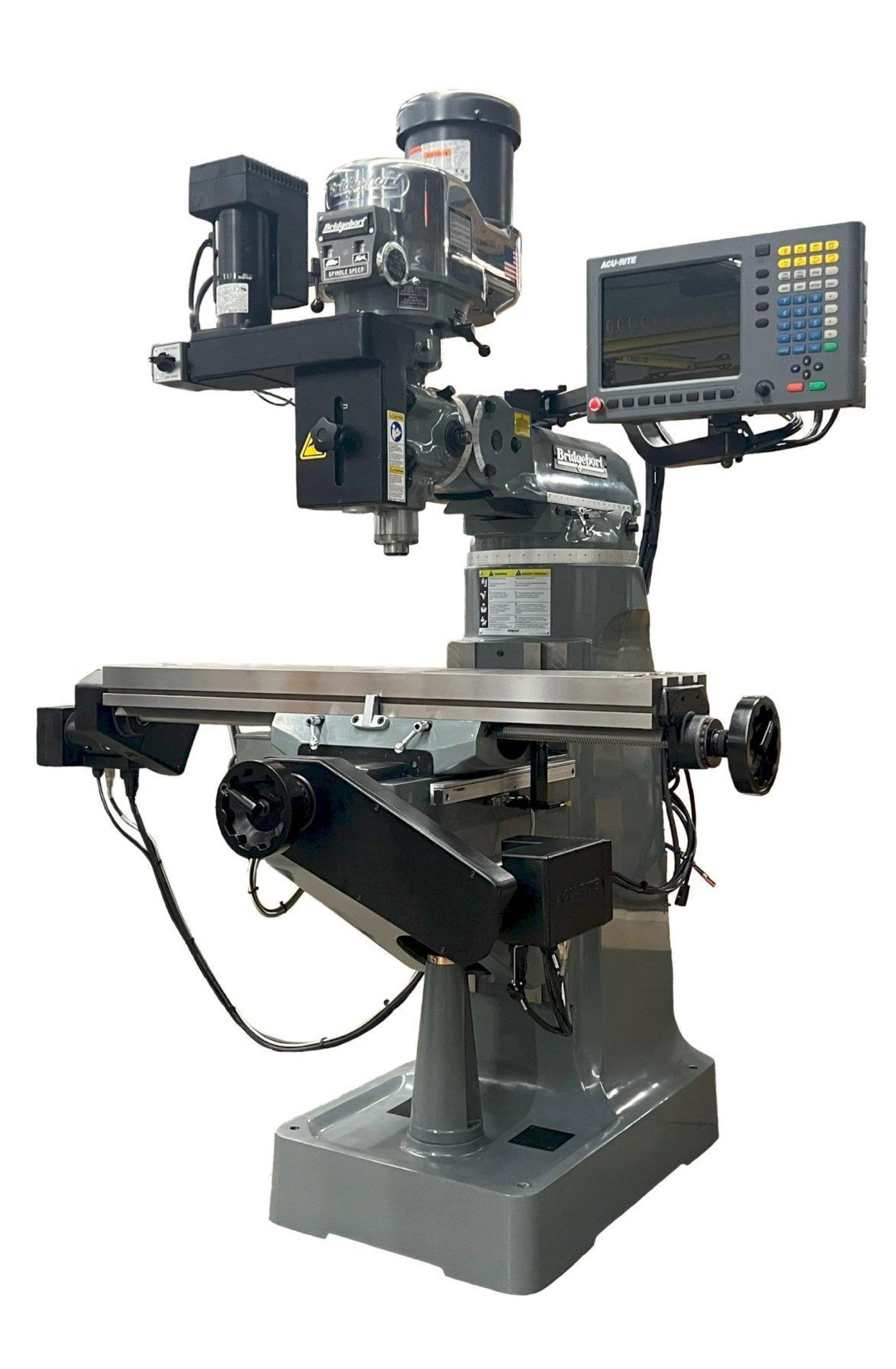

DRO Kits

AR13-35-200M             2 Axis 9”x 49” TBL Acu-Rite 200 DRO                       $ 2,930.00

AR13-35-300M             2 Axis 9”x49” TBL Acu-Rite 300 DRO                           3,300.00

AR4-13-35-200M          3 Axis w/Spindle 9”x 49” TBL Acu-Rite 200 DRO         3,630.00

AR4-13-35-300M          3 Axis w/Spindle 9”x 49” TBL Acu-Rite 300 DRO         4,000.00

AR13-35-16200M         3 Axis w/Knee 9”x 49” TBL Acu-Rite 200 DRO             3,890.00

AR13-35-16300M         3 Axis w/Knee 9”x 49” TBL Acu-Rite 300 DRO             4,260.00

AR4-13-38-16300M      4 Axis w/Knee 9”x 49” TBL Acu-Rite 300 DRO             5,050.00

NW12-36NMS800        2 Axis 9”x 49” Newall NMS800 DRO                          $ 2,930.00

NW4-12-36NMS800     3 Axis w/Spindle 9”x 49” Newall NMS800 DRO            3,630.00

NW16-12-36NMS800   3 Axis w/Knee 9”x 49” Newall NMS800 DRO                3,890.00

NOTE: Acu-Rite edge finder requires 300 DRO kits

                                    DRO 2 Axis Installation                                            $ 350.00 NET

                                    DRO 3 Axis Installation                                            $ 500.00 NET

                                    DRO 4 Axis Installation                                            $ 650.00 NET

General Accessories

2VS020-1                    R8 Milling Chuck Kit w/11 ER Collets                               $ 565.00

Z384-SET-1                R8 Metric Set 2mm by 1mm, 19 Collets                                 425.00

Z384-SET-5                R8 Inch Collet Set 1/8 to 7/8 by 32nds, 25 Collets              1,475.00

Z384-SET-6                R8 Inch Collet Set 1/8 to 7/8 by 1/16ths, 13 Collets               315.00

Z384-SET-7                R8 Inch Collet Set 1/8 to ¾ by 1/8ths, 6 Collets                     230.00

FV-9031G                   R8 to J2 Arbor for FV-9030G                                                 170.00

FV-9033G                   R8 to J6 Arbor for FV-9032G                                                 170.00

FV-9041G                   12pc. R8 Collet Rack                                                                 60.00

FV-9050G                   ½” R8 Shell Mill Holder                                                         100.00

FV-9051G                   ¾” R8 Shell Mill Holder                                                         150.00

FV-9052G                   1” R8 Shell Mill Holder                                                          100.00

FV-9080G                   R8 End Mill Adapter Set 3/16-1 ¼ (8 pcs.)                             320.00

2VS002A                    Central 110v Wiring Point w/6 Plugs & 8’ Power Cord         265.00

2VS010                       52 Piece Clamping Kit                                                             195.00

FV-9010G                   Kurt 6” Vise Only
