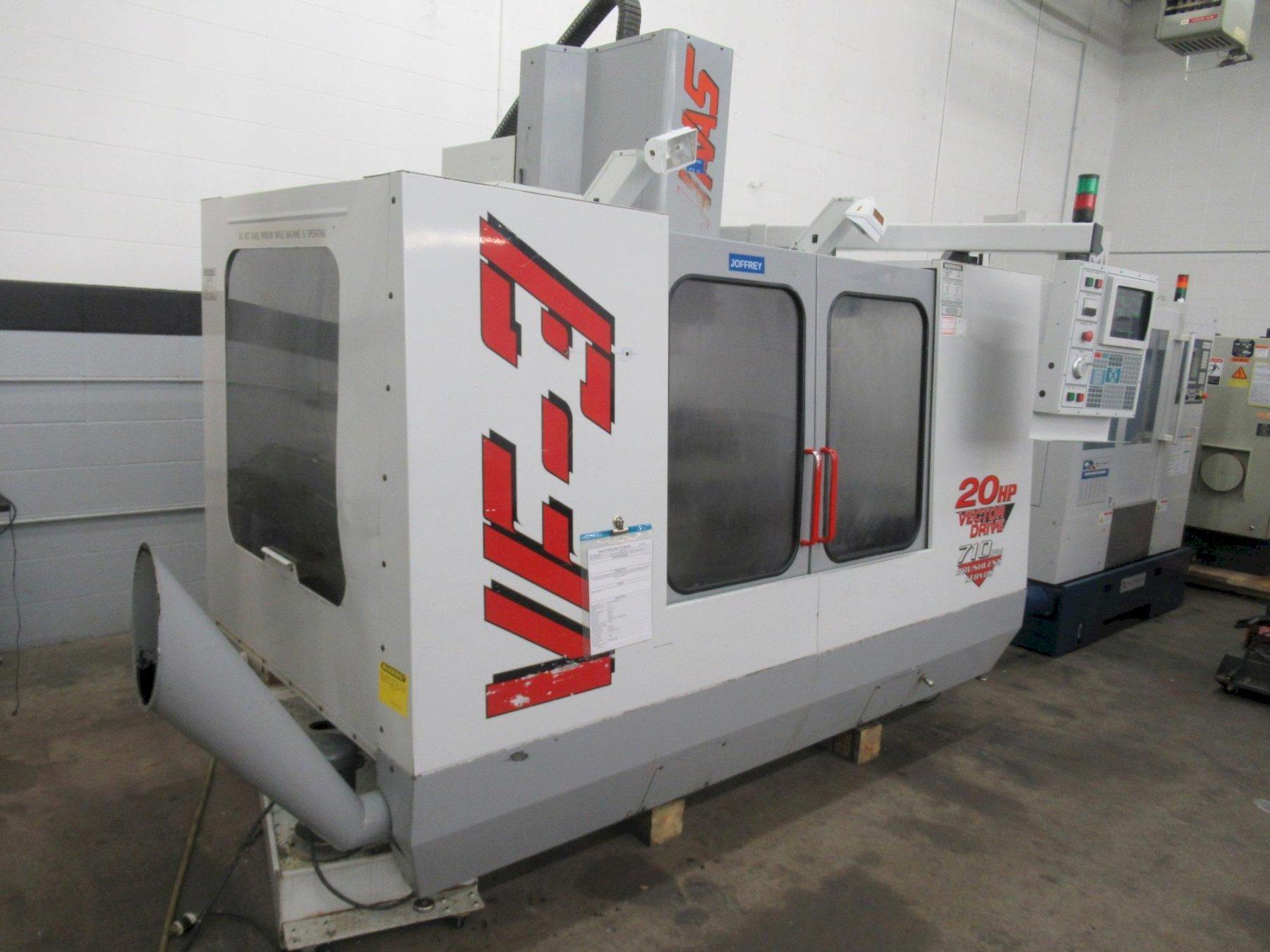

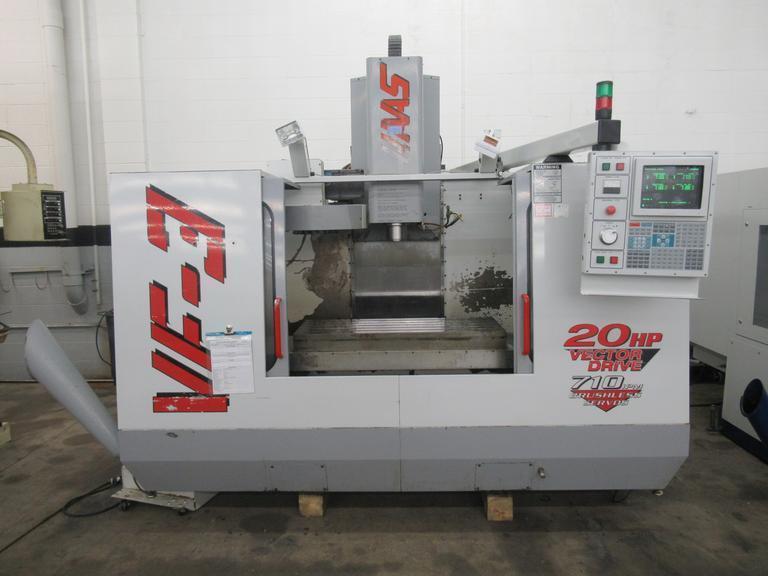

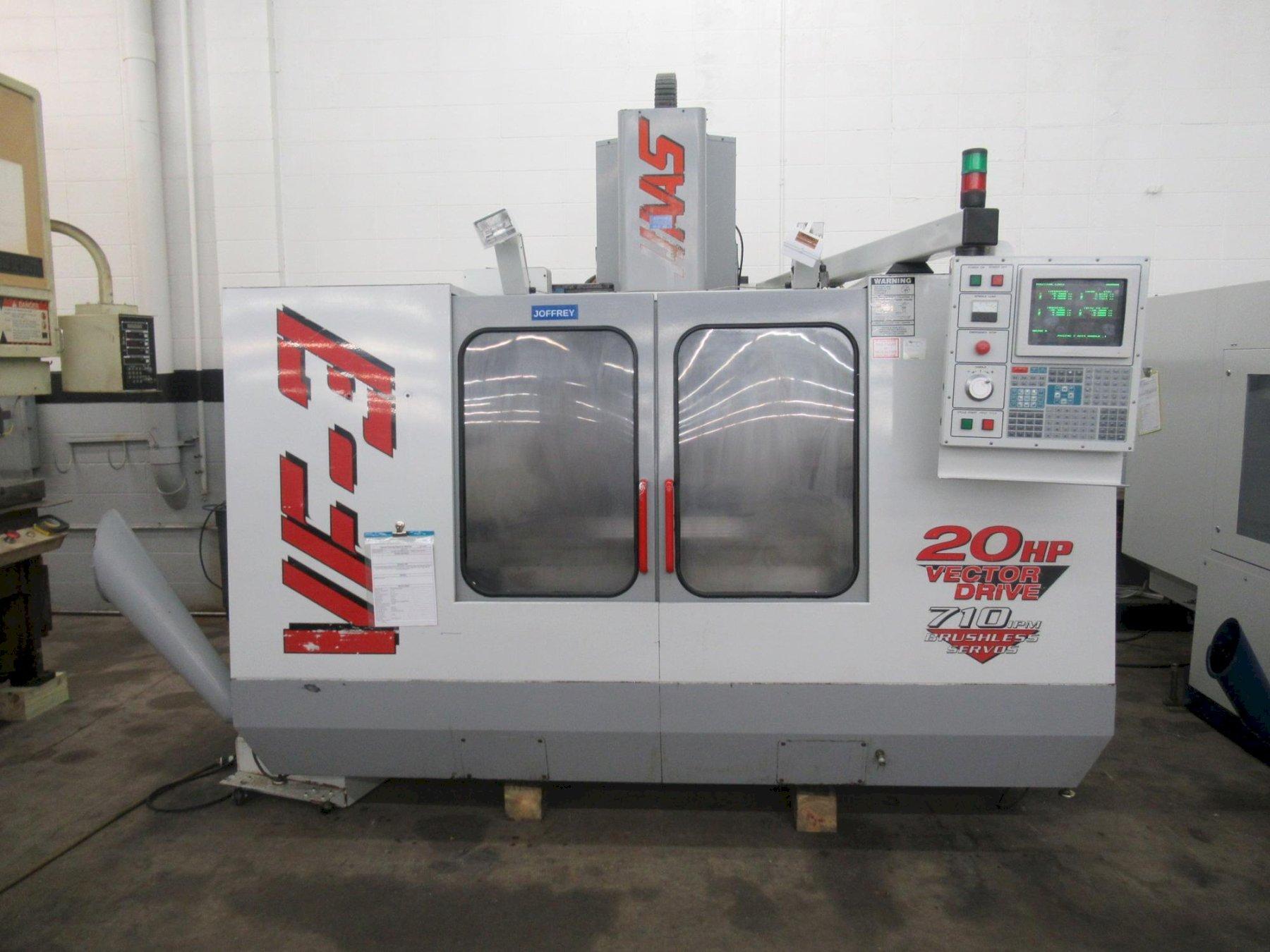

Haas VF-3 Vertical Machining Center, 20 Station Carousel Tool Changer, 7500 RPM CAT-40 Taper Spindle, Coolant System, USB Port
Brand
Category
Model
VF-3
Stock #
6867
Year
1998
Condition
Not specified
Location
Not specified
|

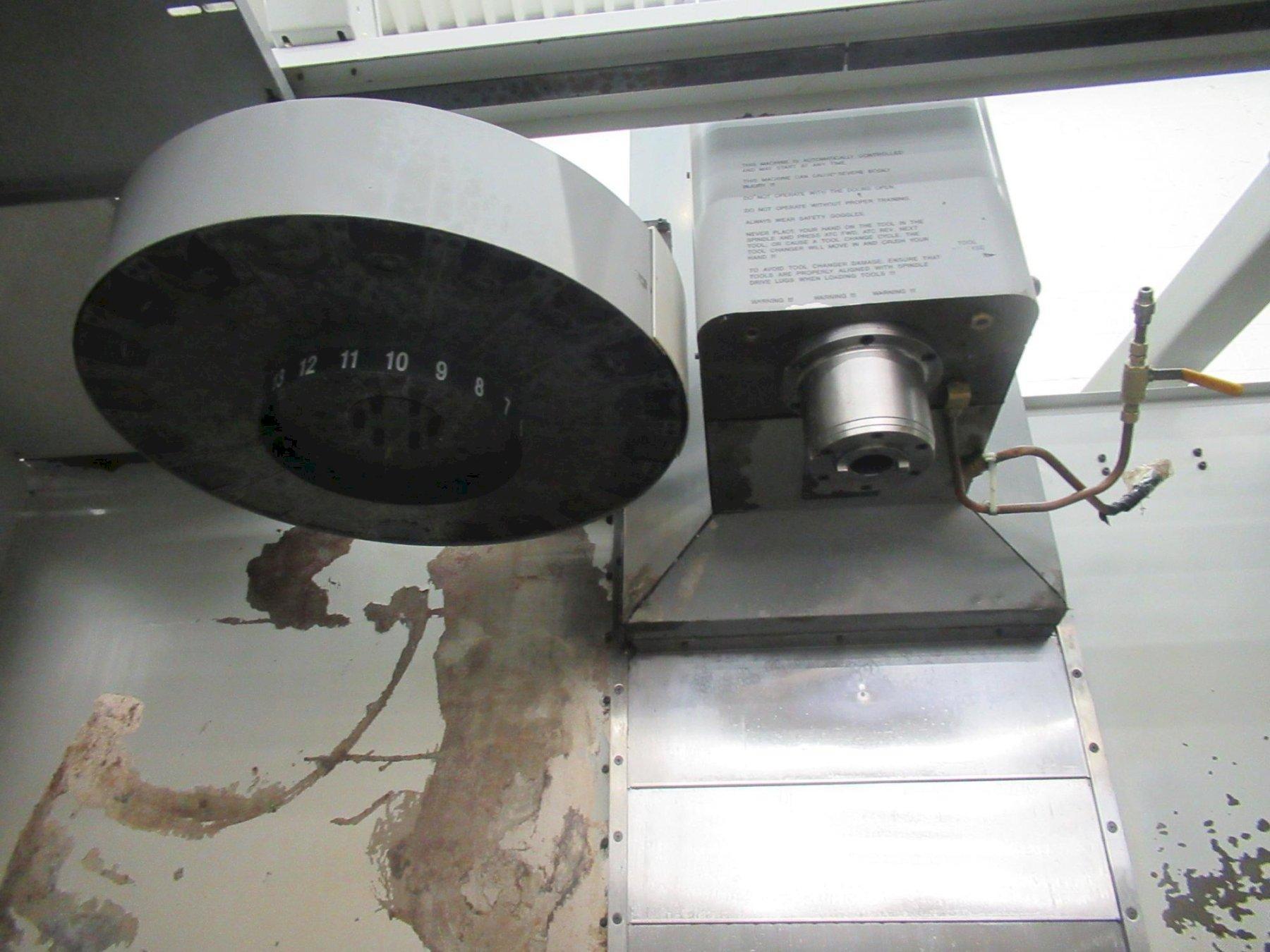

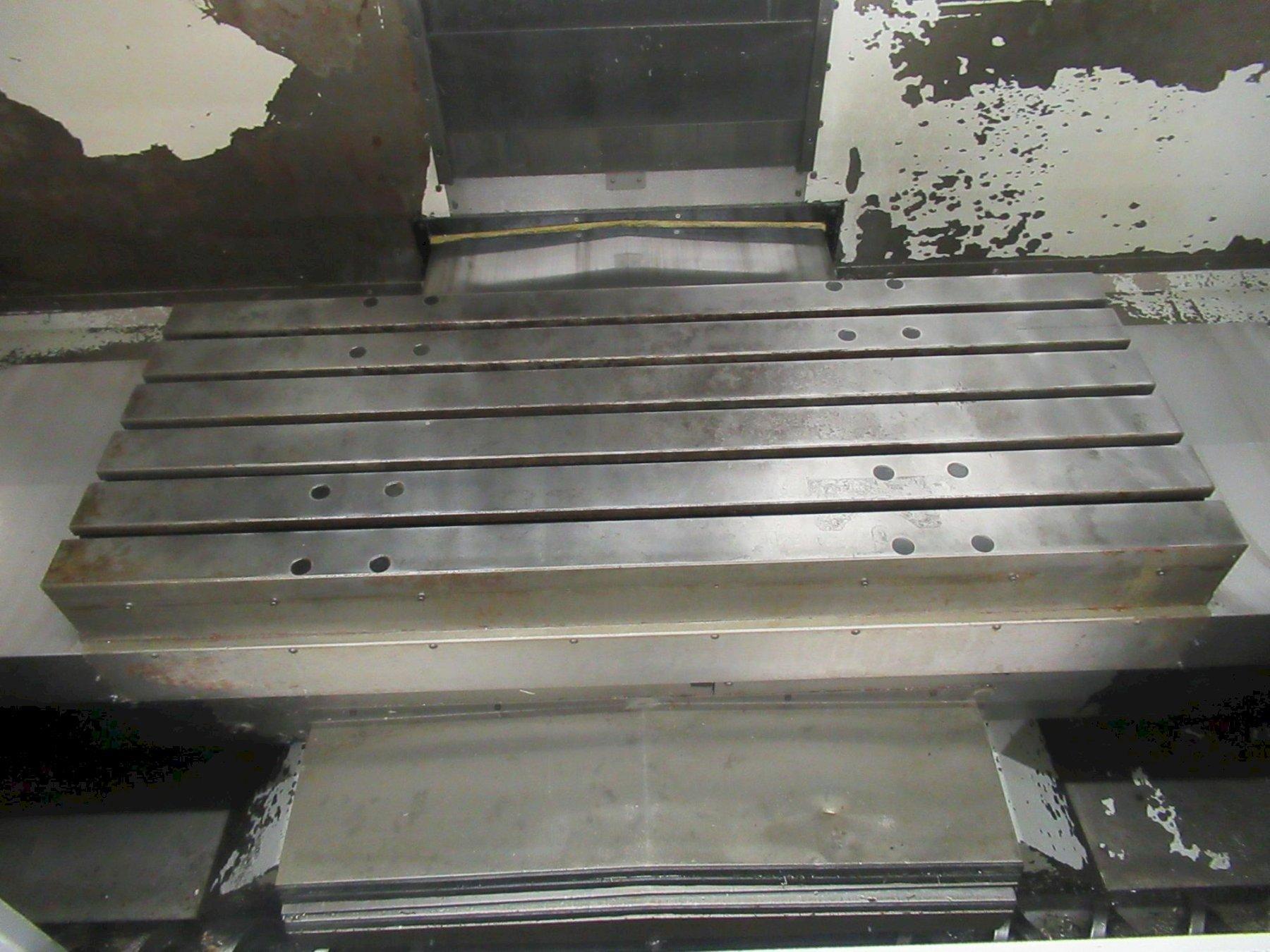

Machine Control: Haas 32 Bit CNC Control Spindle To Table Distance: 4" - 29" Table Size: 48" x 18" Machine Travels (X/Y/Z): 40" x 20" x 25" Table Capacity: 3,500 Lbs. Spindle Taper: CAT 40 Spindle Speeds: 7,500 RPM Transmission: 2-Speed Gearbox Rapid Traverse Rate (X/Y/Z): 710 IPM Tool Changer Style: Carousel Tool Changer Capacity: 20 Stations Tool Change Time: 4.2 Seconds Tool to Tool Max Tool weight: 12 Lbs. Spindle Drive: 20HP Vector Drive Description: Haas 32-Bit CNC Control, Brushless 4th Axis Drive, 20 Station Carousel Tool Changer, 2-Speed Gearbox 7500 RPM CAT-40 RPM 20 HP Vector Drive Spindle, Chip Auger, High Intensity Lighting, Coolant System with Tank and Pump, USB Port, RS232 Port Equipped With: Haas 32-Bit CNC Control, Brushless 4th Axis Drive, 20 Station Carousel Tool Changer, 2-Speed Gearbox 7500 RPM CAT-40 RPM 20 HP Vector Drive Spindle, Chip Auger, High Intensity Lighting, Coolant System with Tank and Pump, USB Port, RS232 Port Electrics: 208/230 Volt 3 Phase |
