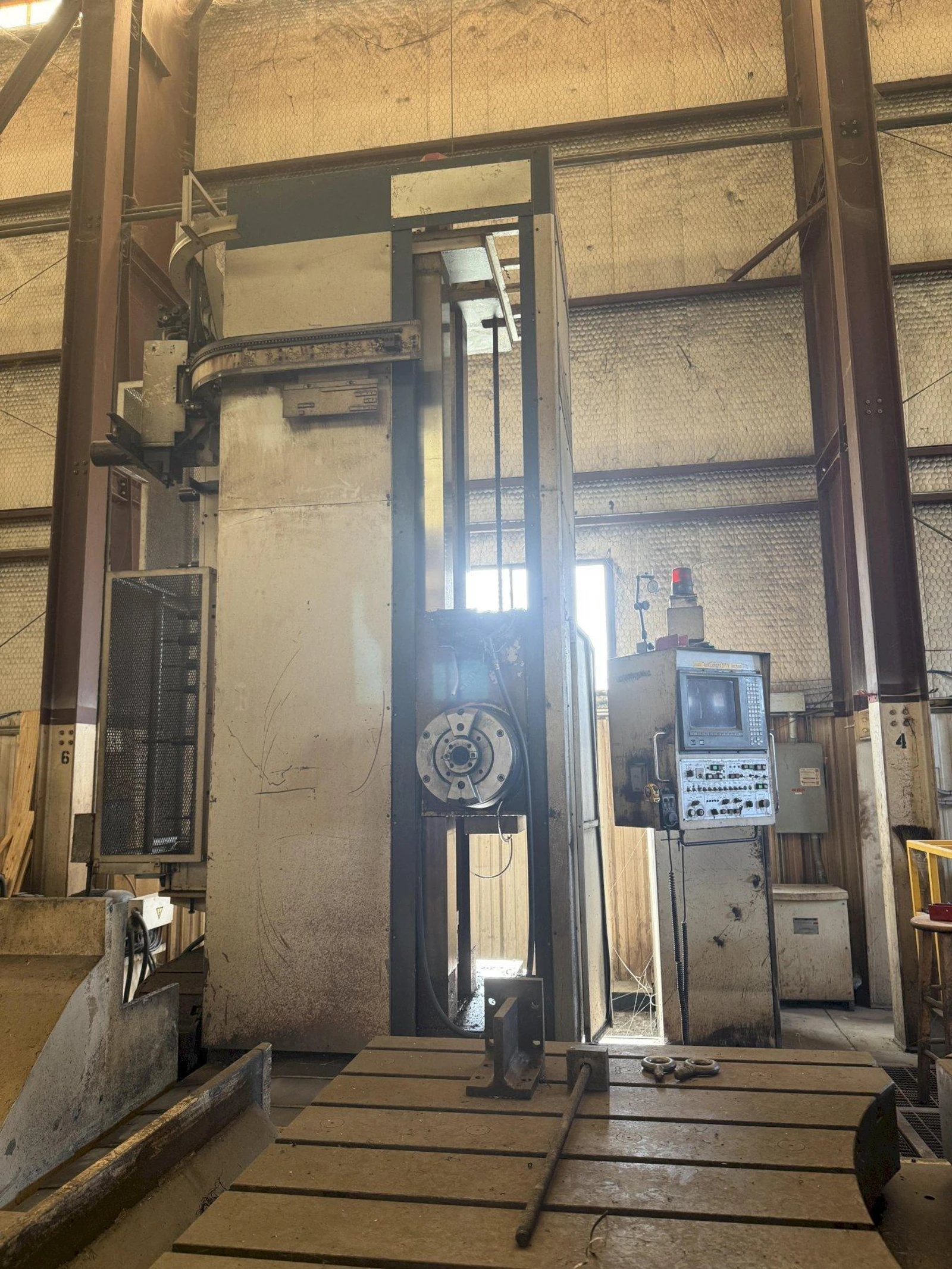

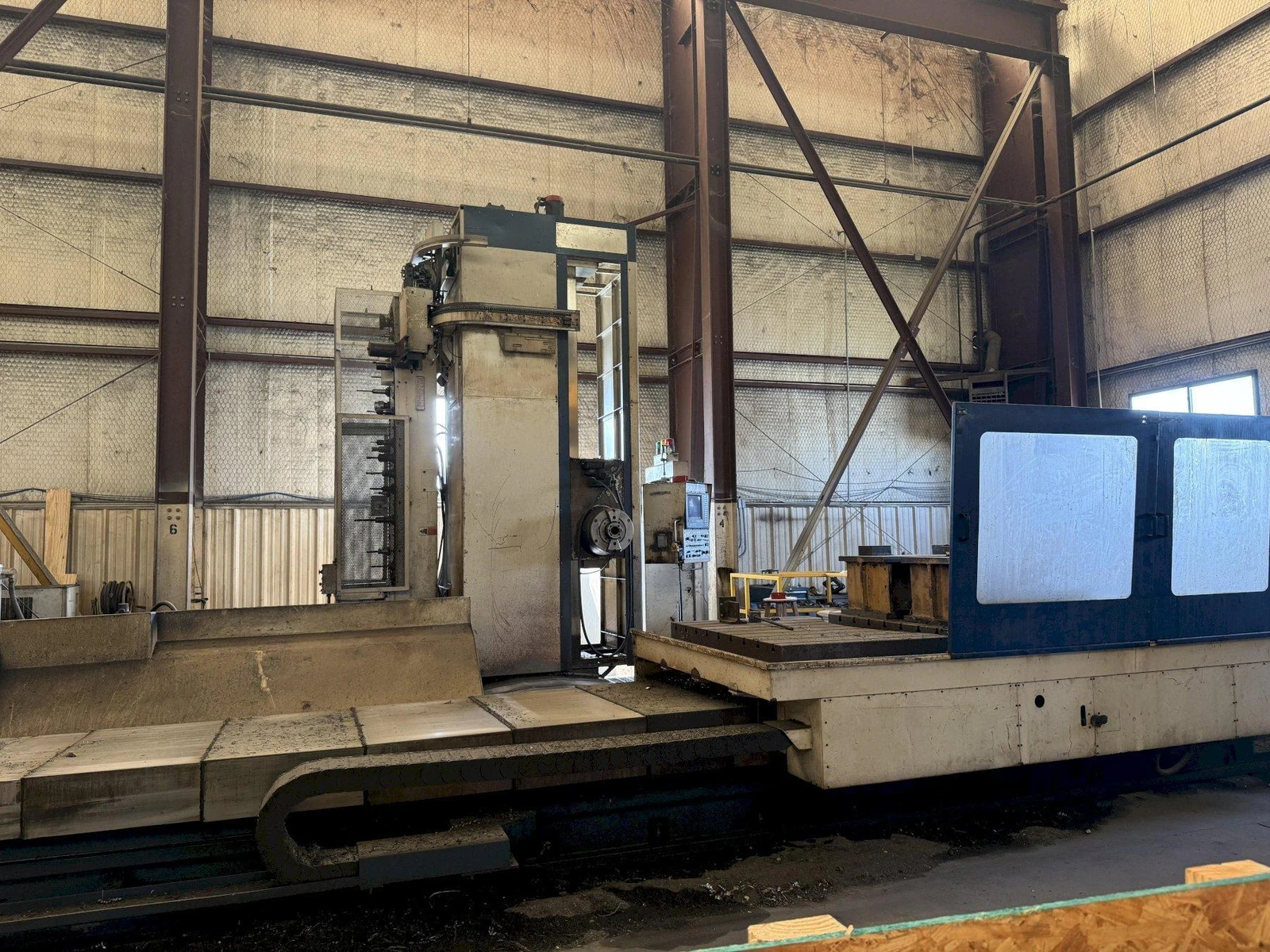

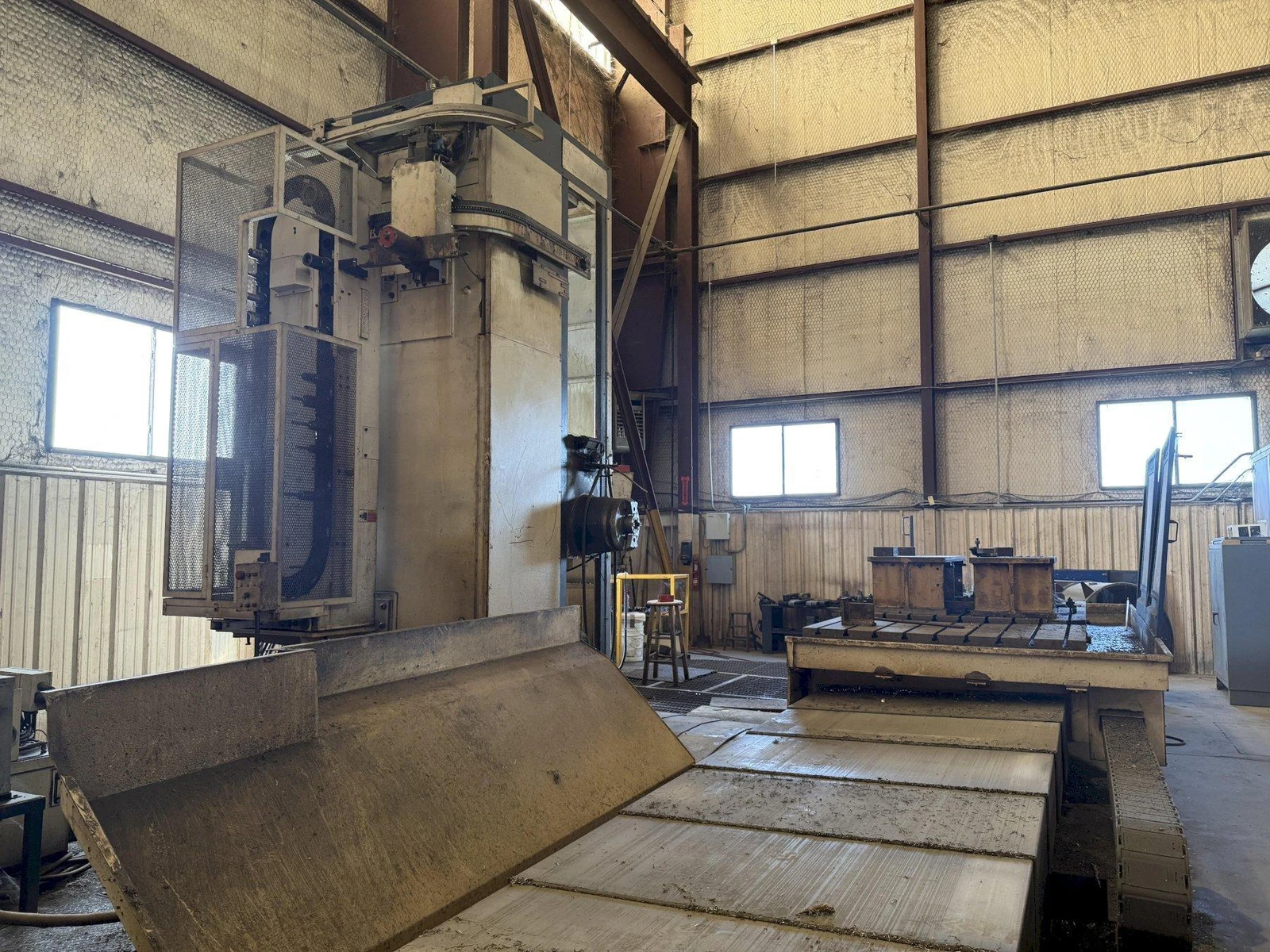

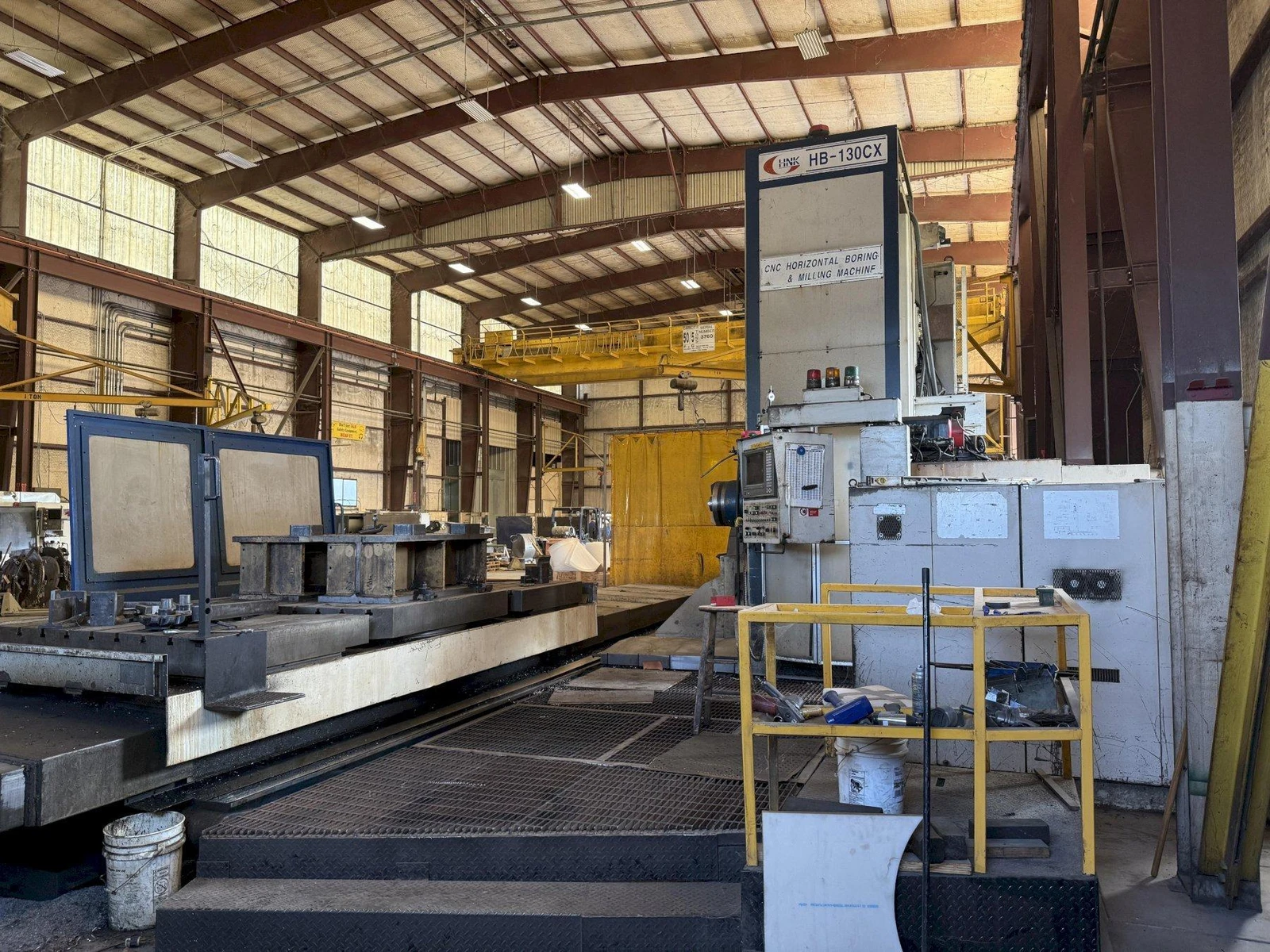

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, 63 x 160 table with built in rotary, FANUC CNC, 40 ATC, CTS

5.1" HNK CNC HORIZONTAL BORING MILL, HBM, 63 x 160 table with built in rotary, FANUC CNC, 40 ATC, CTS

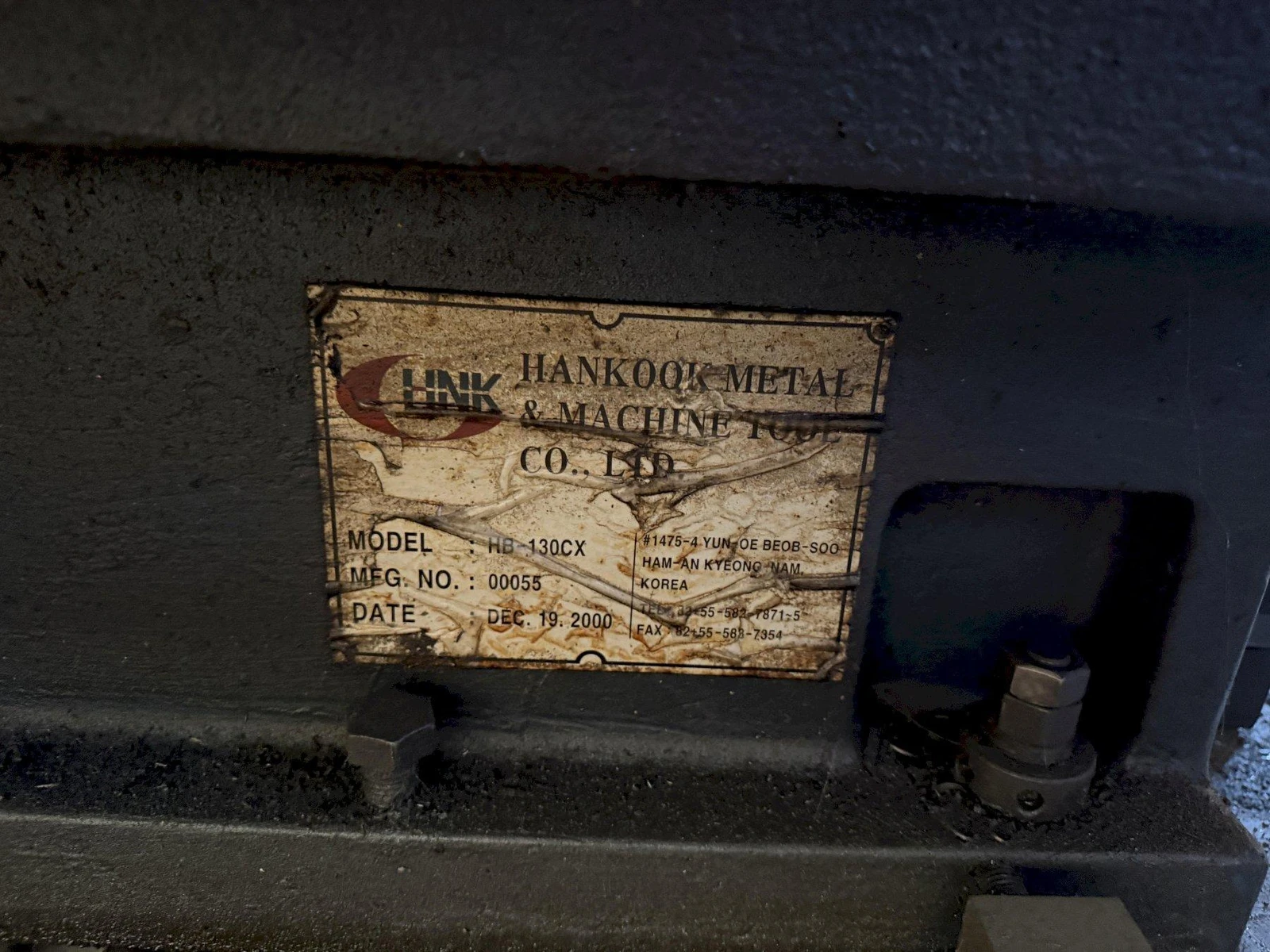

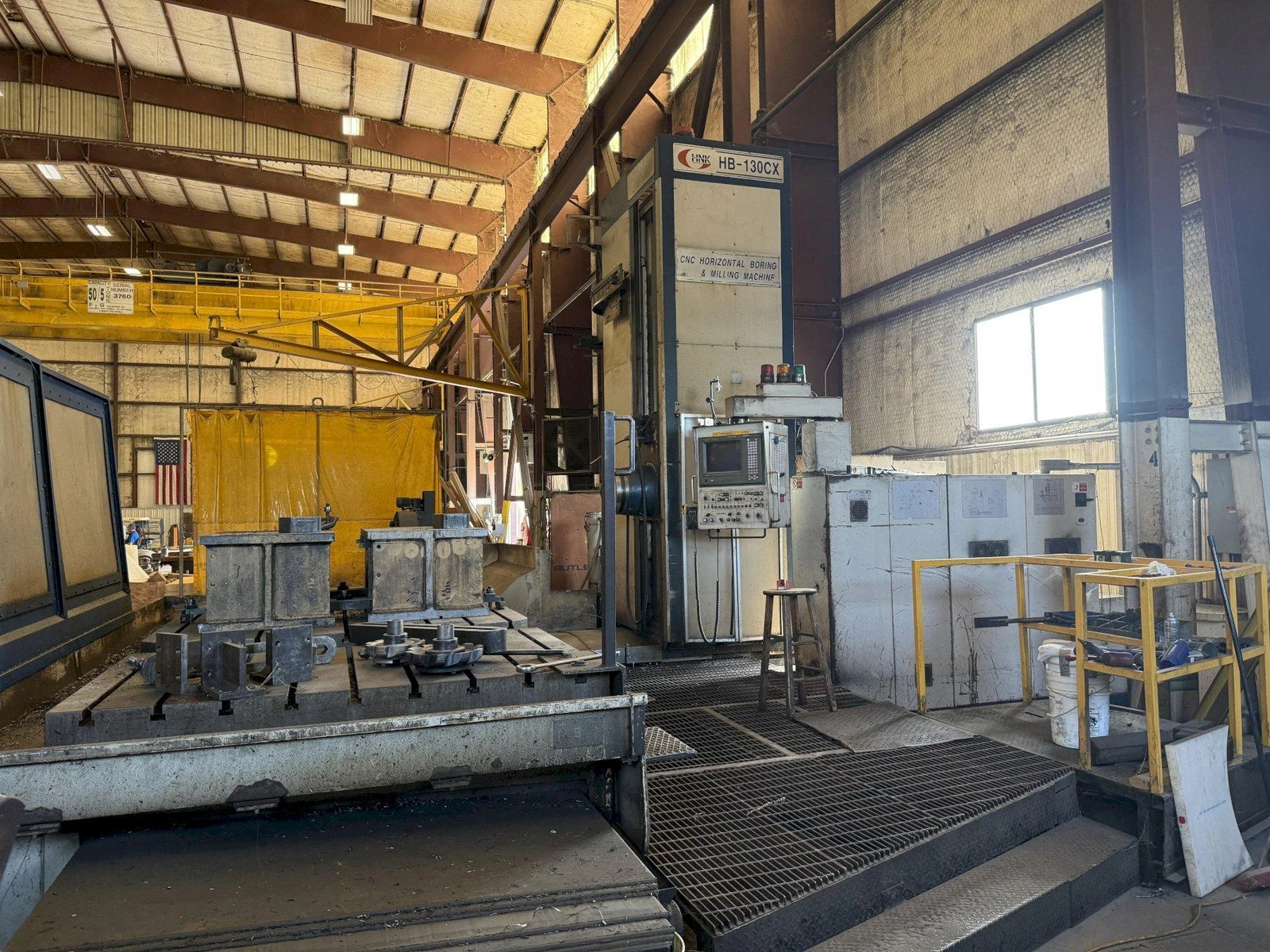

Name: Used HNK HB-130CX For Sale 20829
Brand: HNK
SKU: 20829
Availability: PreOrder

Brand

HNK

Location

Texas

REQUEST FINANCING

Specifications
Files & Videos

BORING SPINDLE DIAMETER: 5.1"
STROKE:
X AXIS: 157"
Y AXIS: 90"
Z AXIS: 51"
W AXIS: 27.5"

DISTANCE FROM SPINDLE NOSE TO CENTER OF TABLE: 30" - 80"
DISTANCE SPINDLE CENTER TO TOP OF TABLE: 0 - 90"

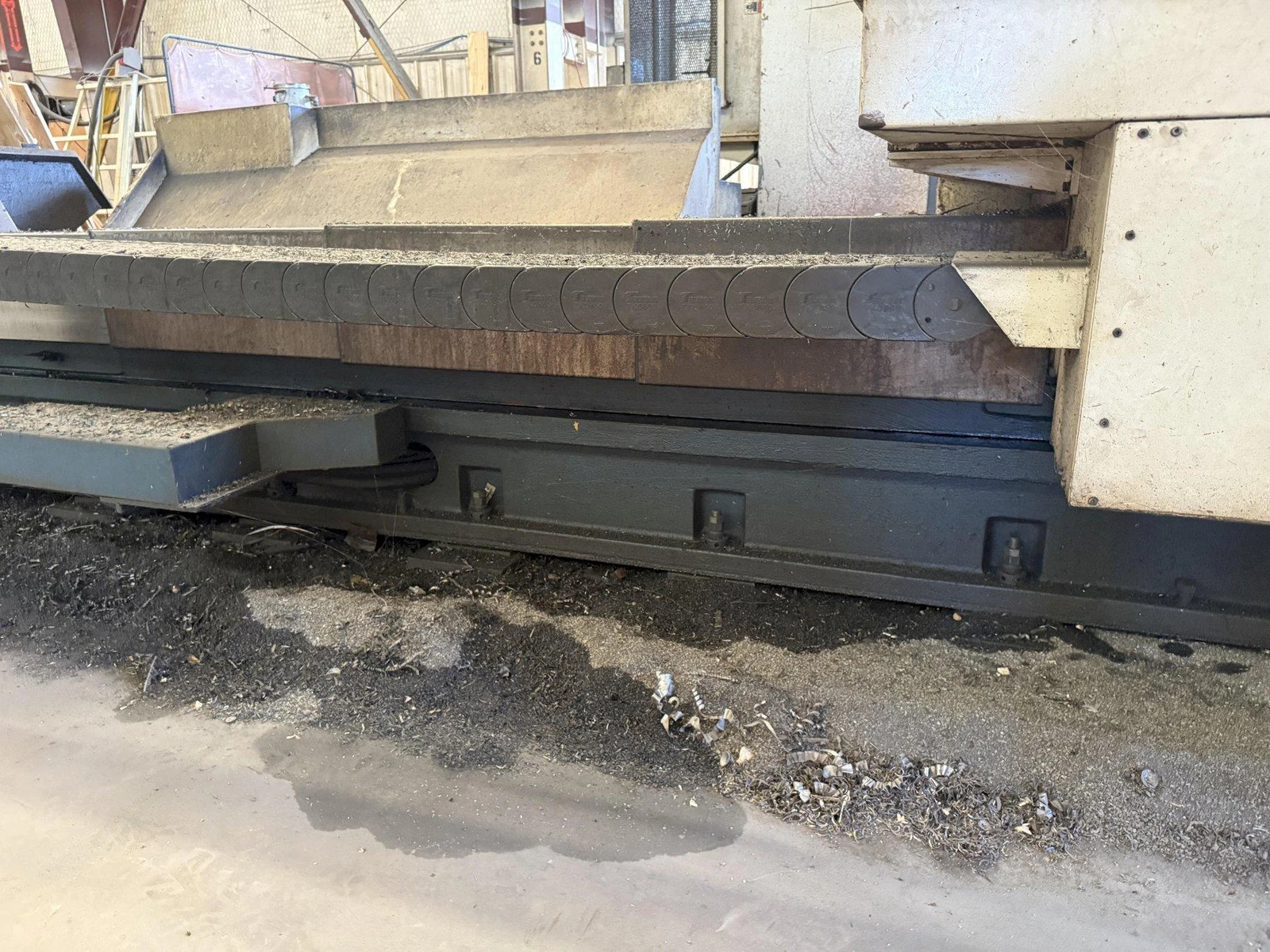

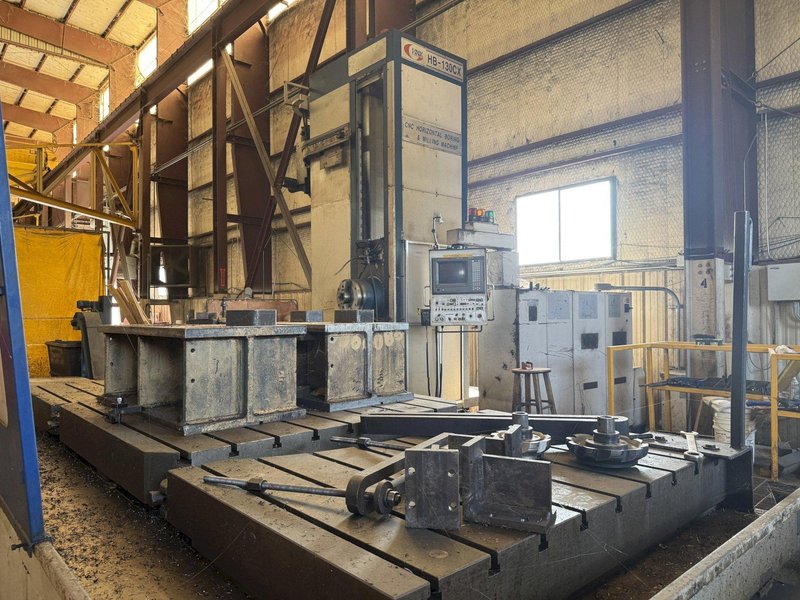

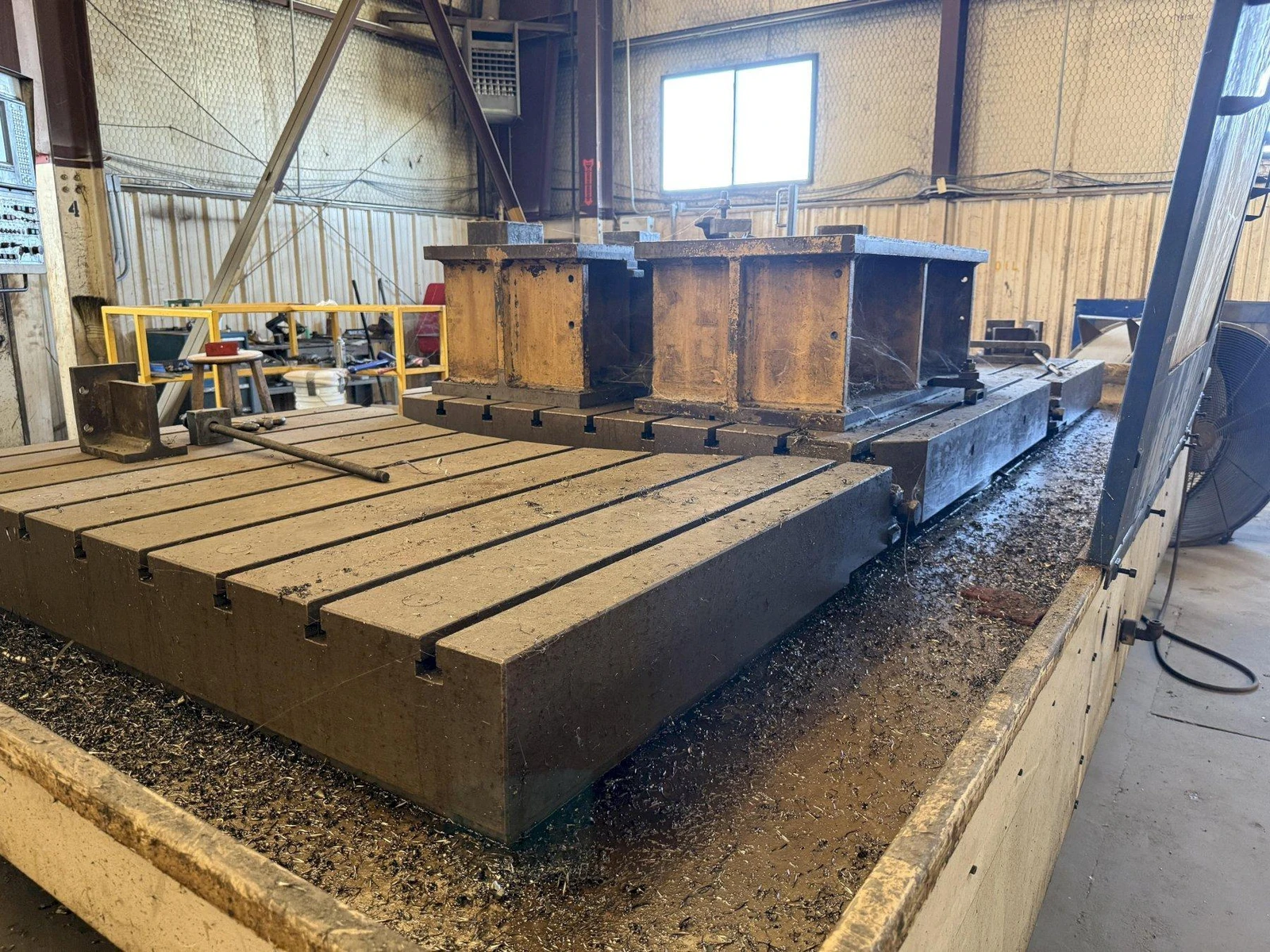

TABLE:
DIMENSION: 63" X 157"
ROTARY TABLE DIMENSION: 63" X 63"
ALLOWABLE LOAD: 33,000 LBS.
ROTARY TABLE ALONE: 22,000 LBS.
ROTARY INDEX: .001 DEGREE WITH 90 DEGREE SHOT PINS

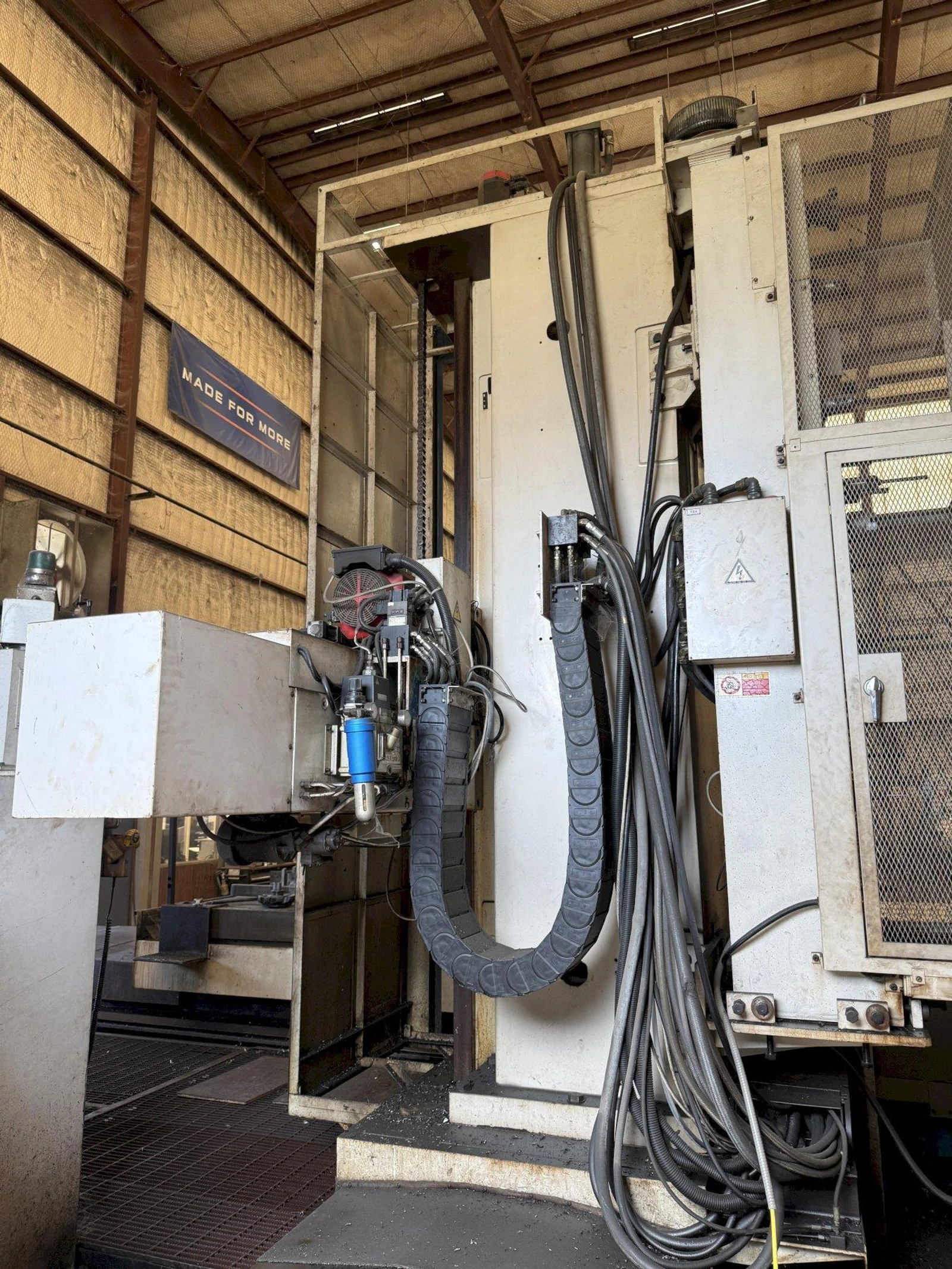

SPINDLE HEAD:
POWER: 35 HP
SPEEDS: 5 - 2500 (3 GEAR RANGES)
SPINDLE TAPER: ISO #50, 7/24 TAPER

MACHINE WEIGHT: 108,000 LBS.
MACHINE DIMENSIONS: 397" X 291" X 193" HIGH

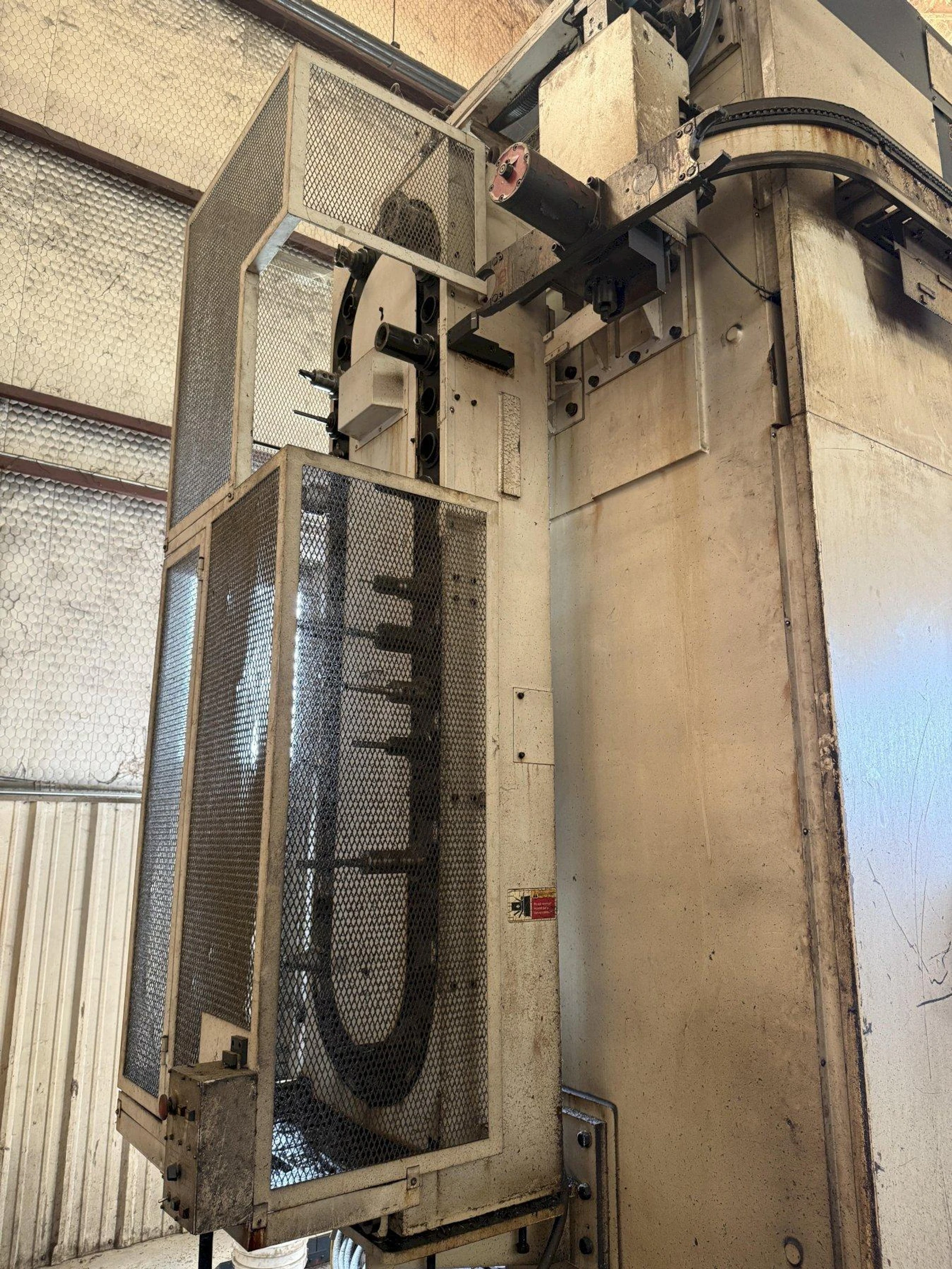

TOOL CHANGER:
40 TOOLS CAPACITY
TOOL SHANK / PULL STUD: CAT 50 / MAX 403 B50T
MAX TOOL WEIGHT: 55 LBS.
MAX TOOL LENGTH IN ATC: 16"

EQUIPPED WITH:

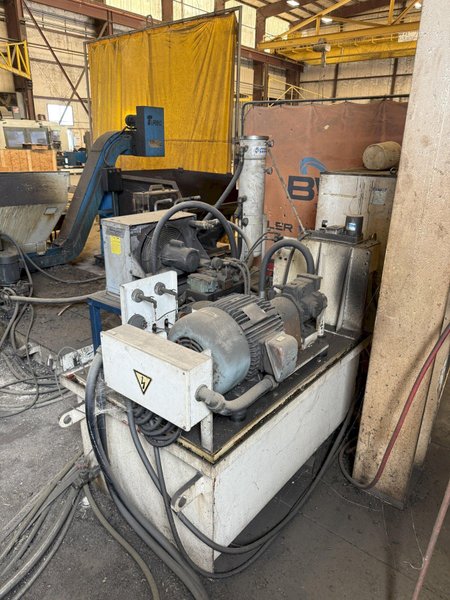

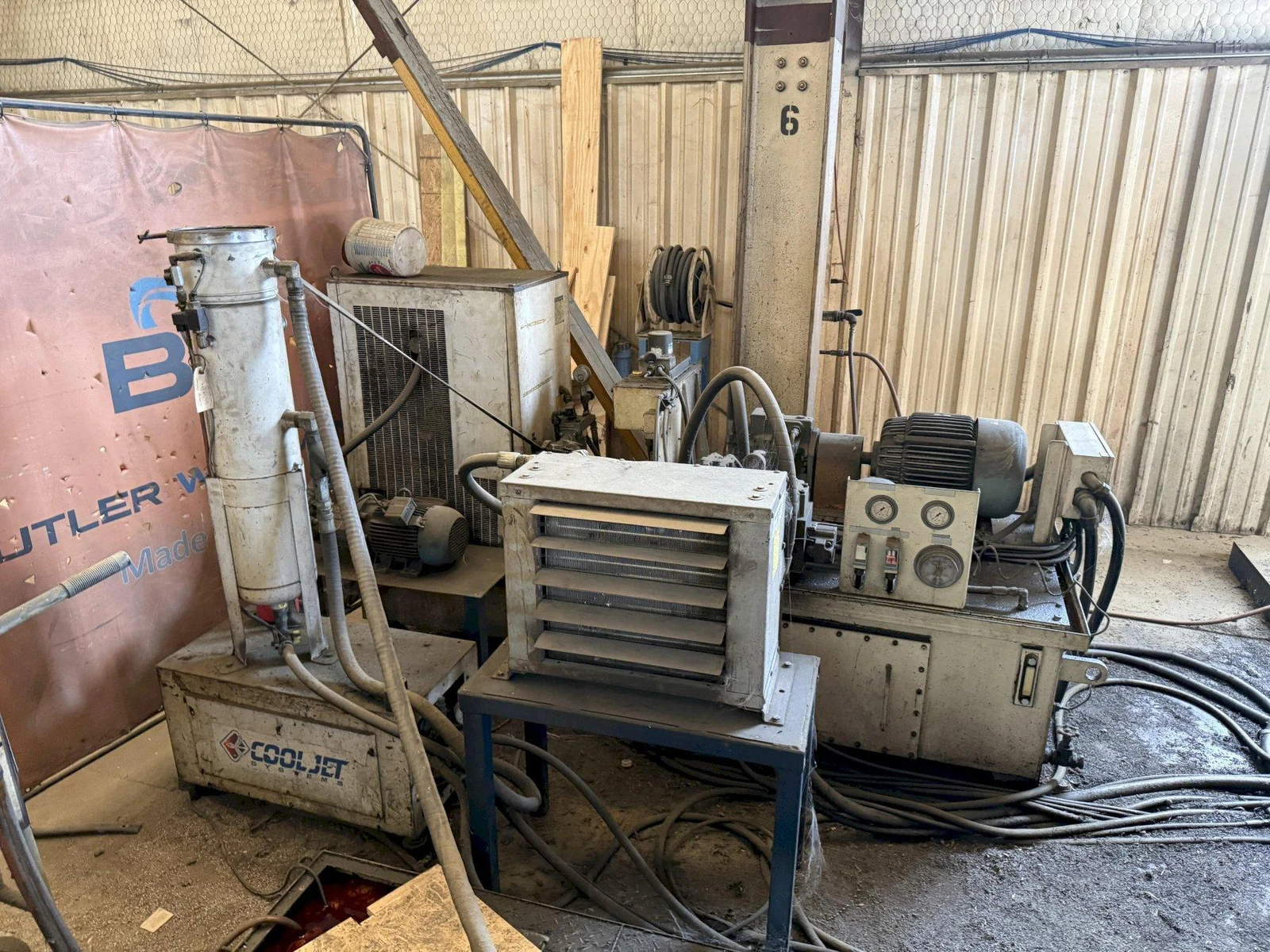

COOLANT THROUGH THE SPINDLE

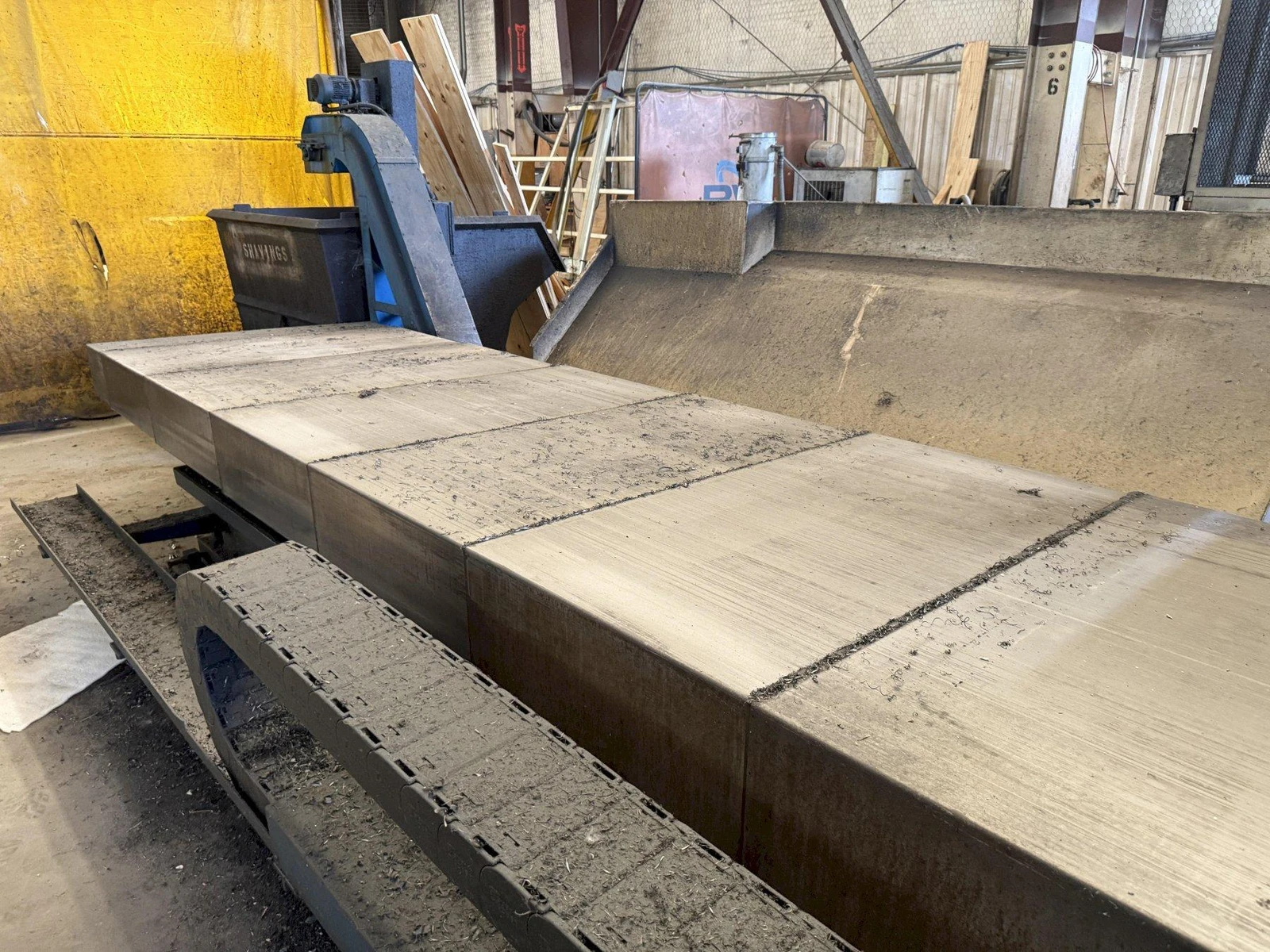

CHIP CONVEYOR

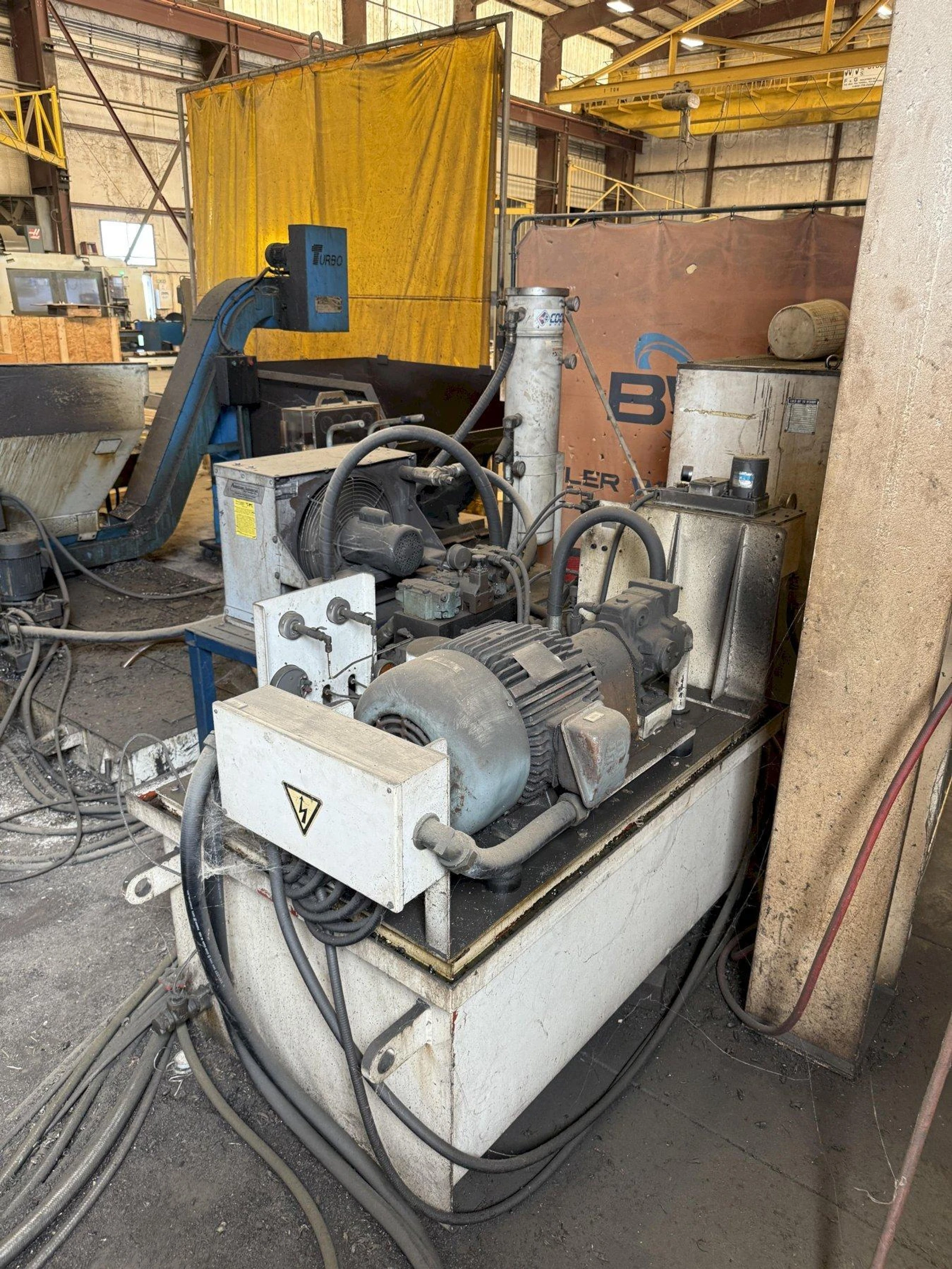

SPINDLE OIL CHILLER

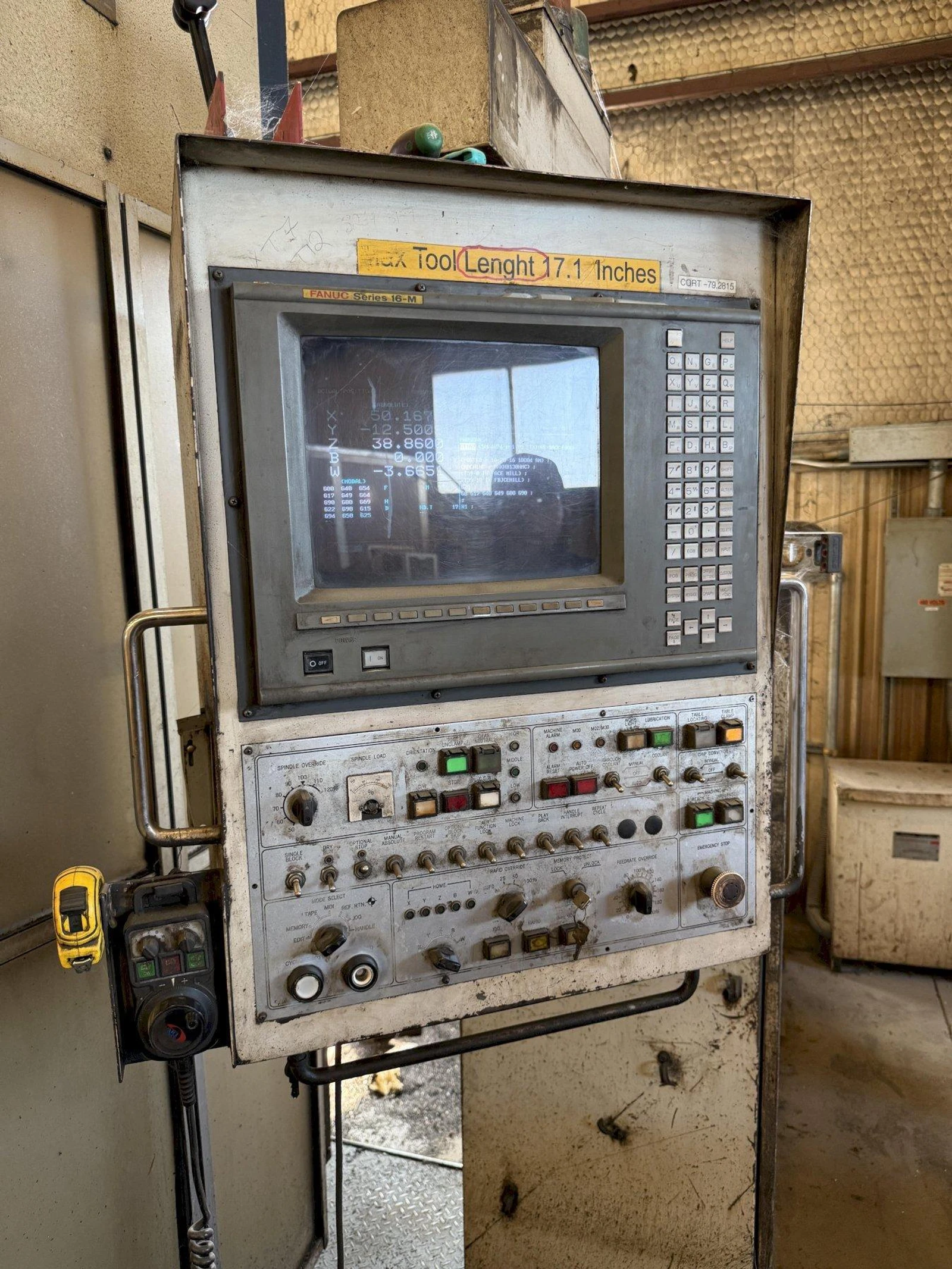

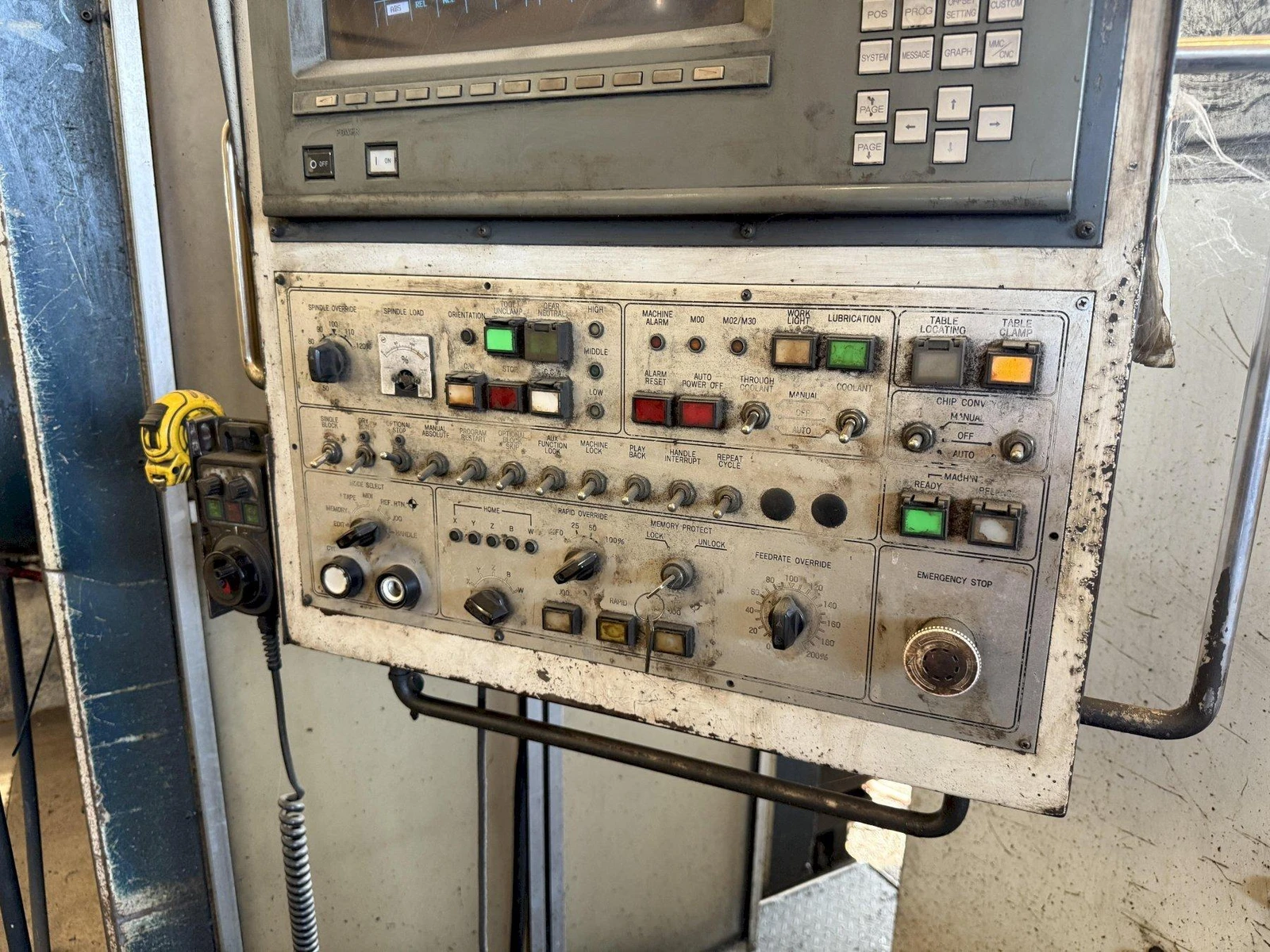

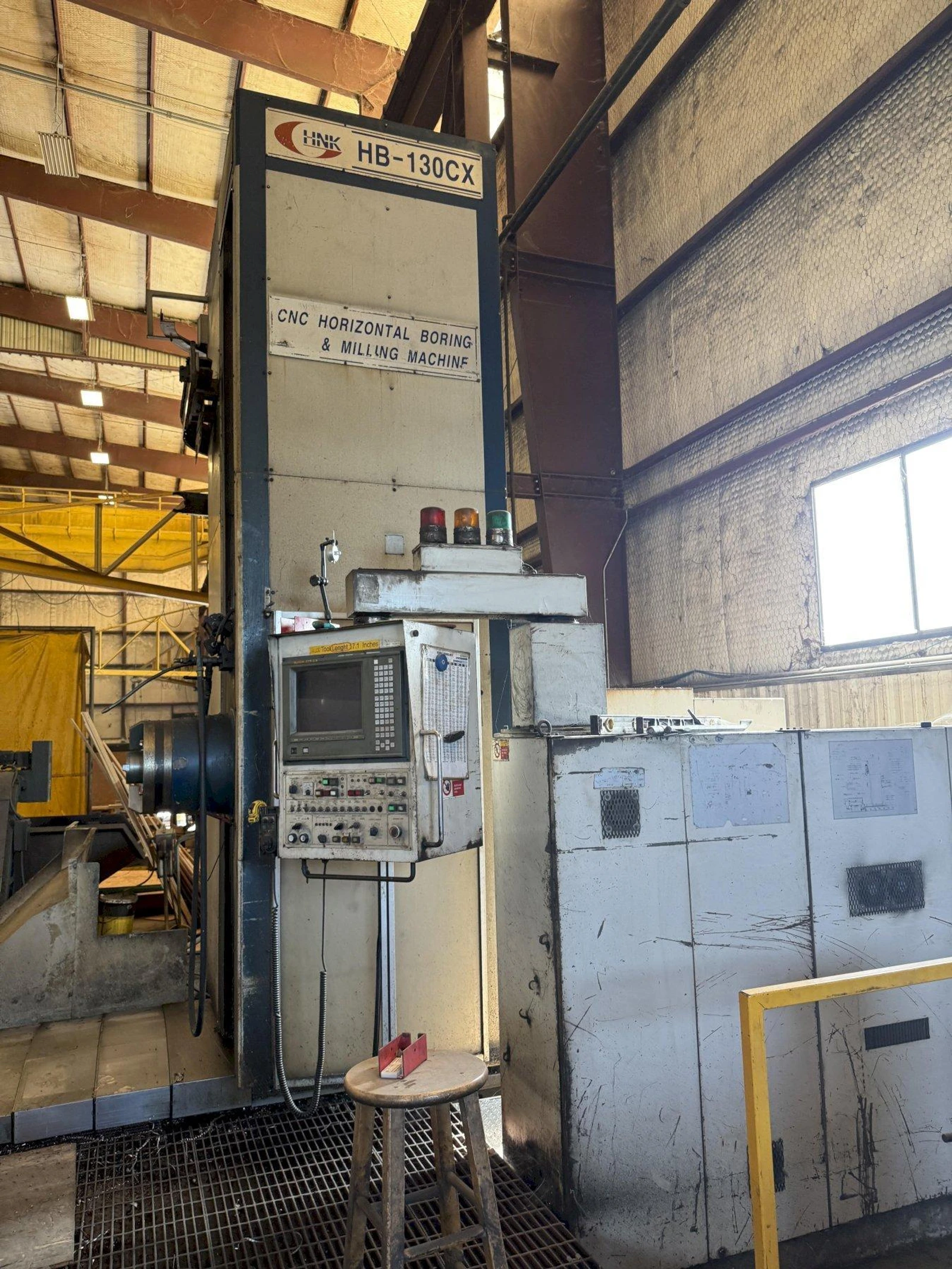

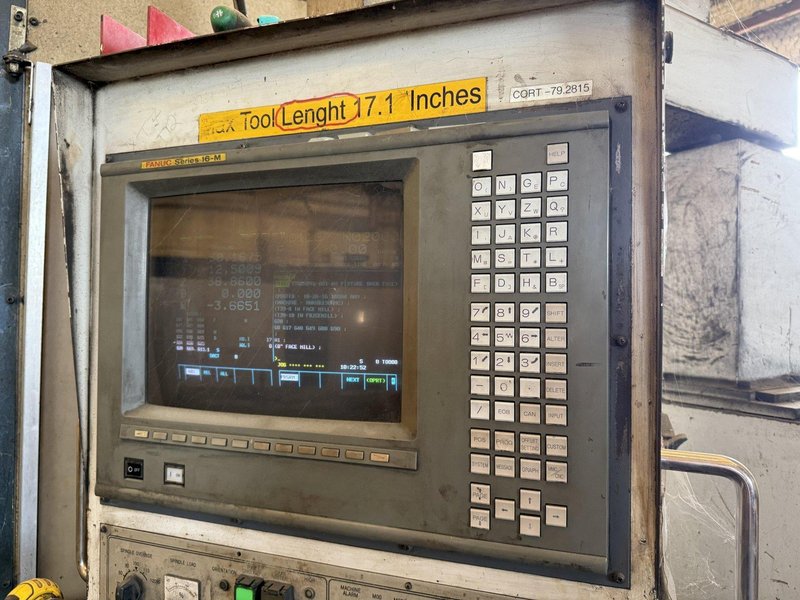

FANUC 16 CNC CONTROL WITHPORTABLE MPG

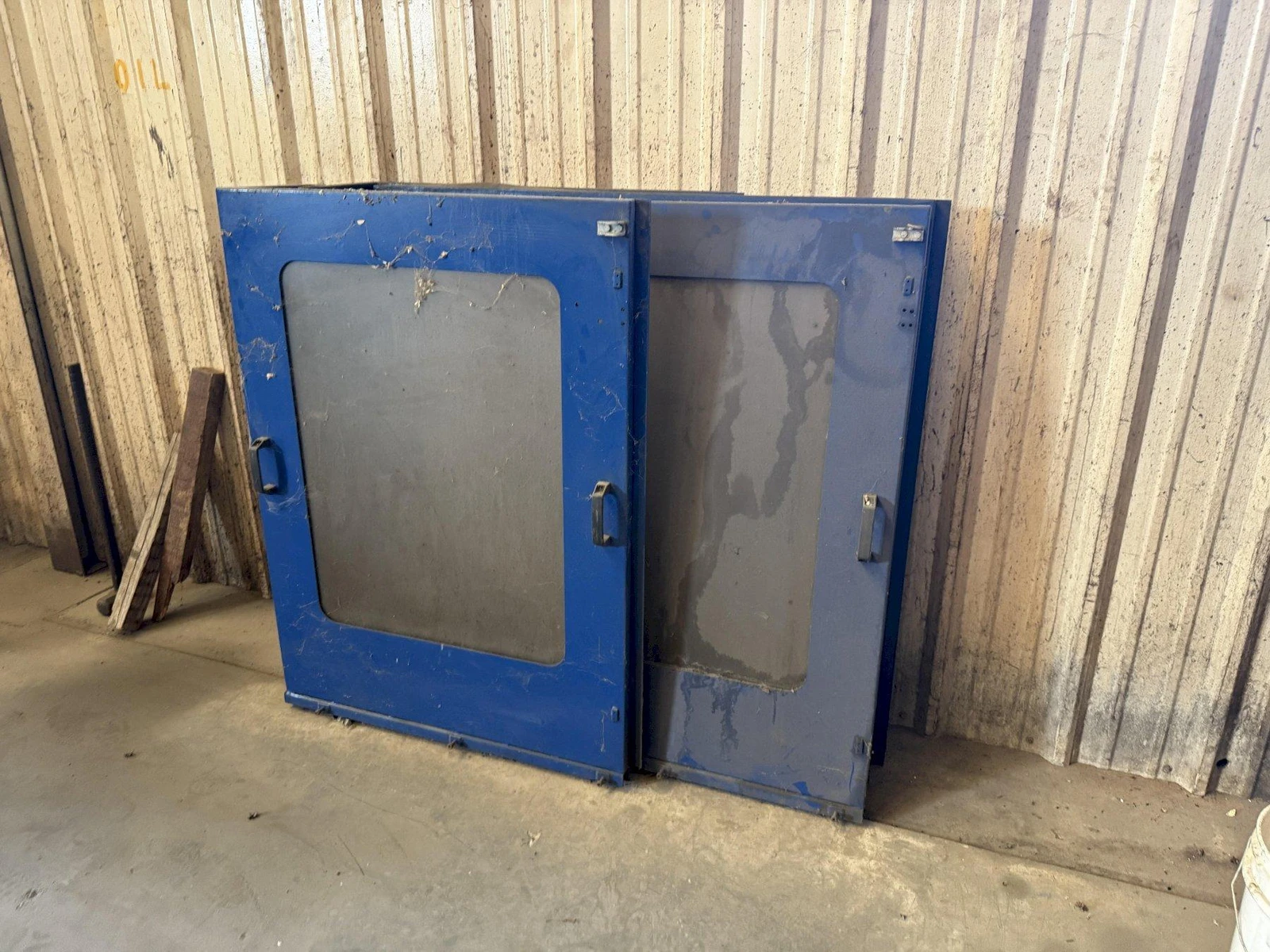

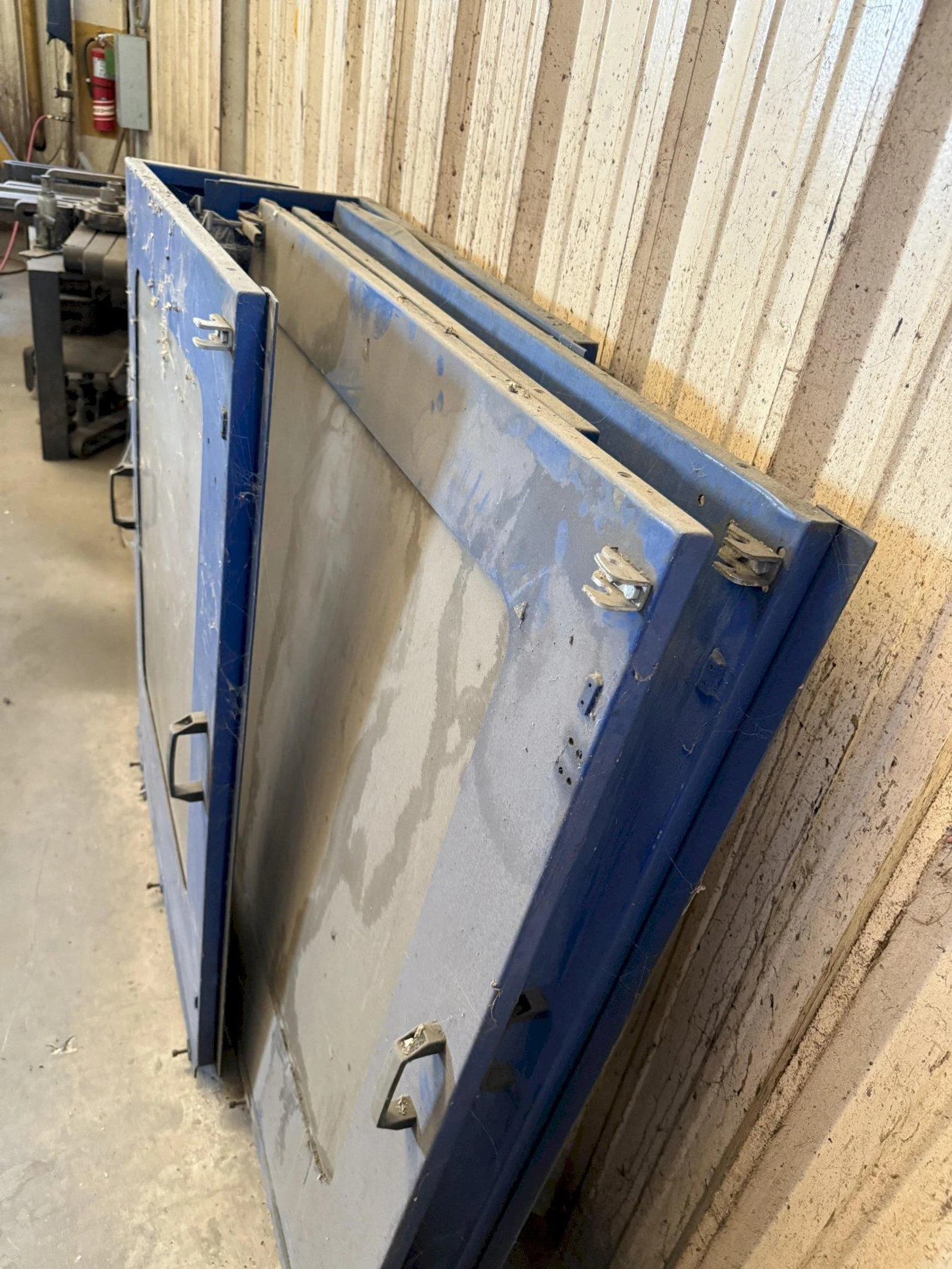

TABLE GUARDING - CURRENTLY REMOVED

** MACHINE SITS FLOOR FLUSH - NO PIT REQUIRED **

B-Axis Rotary Table needs repair.
