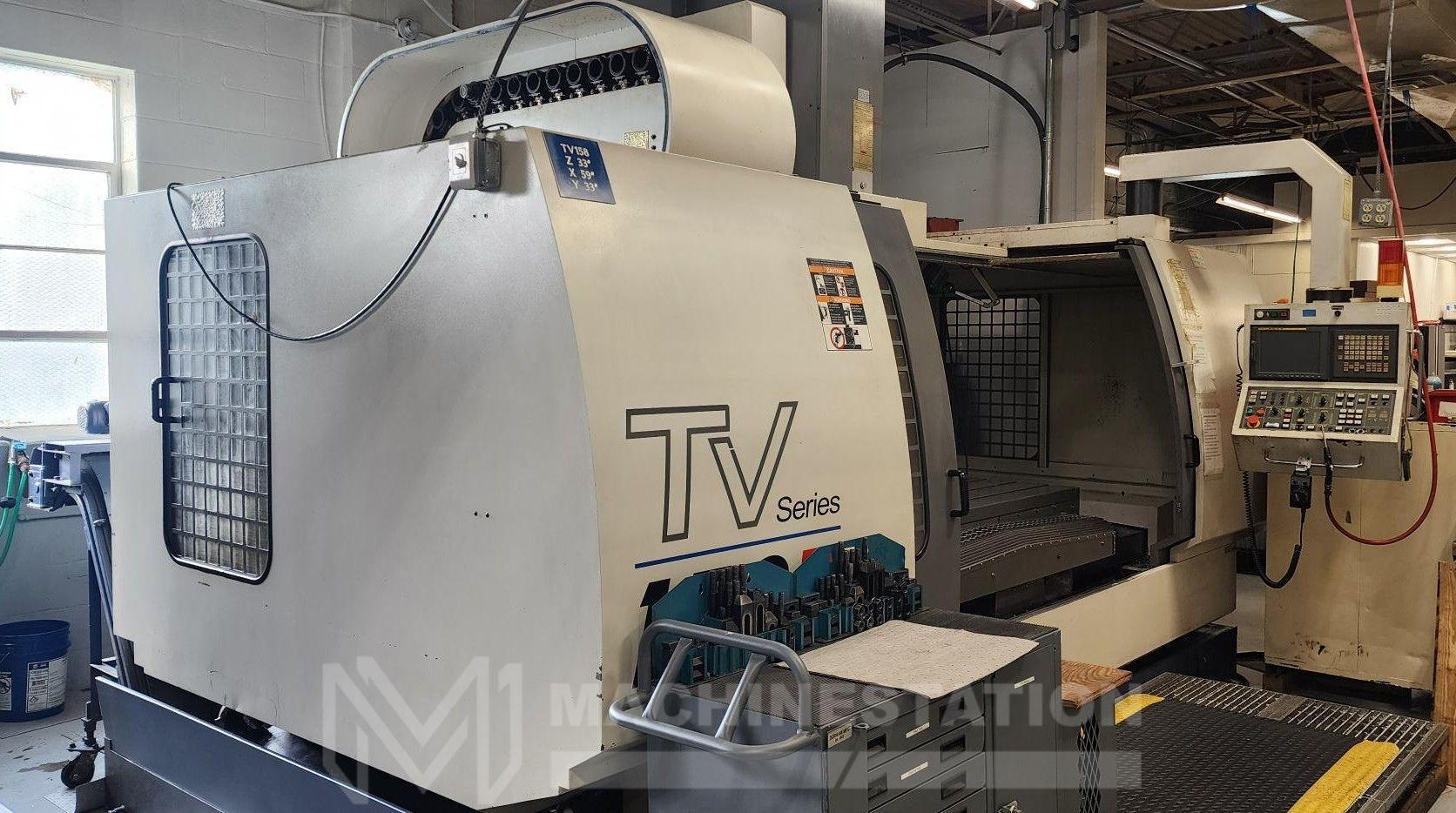

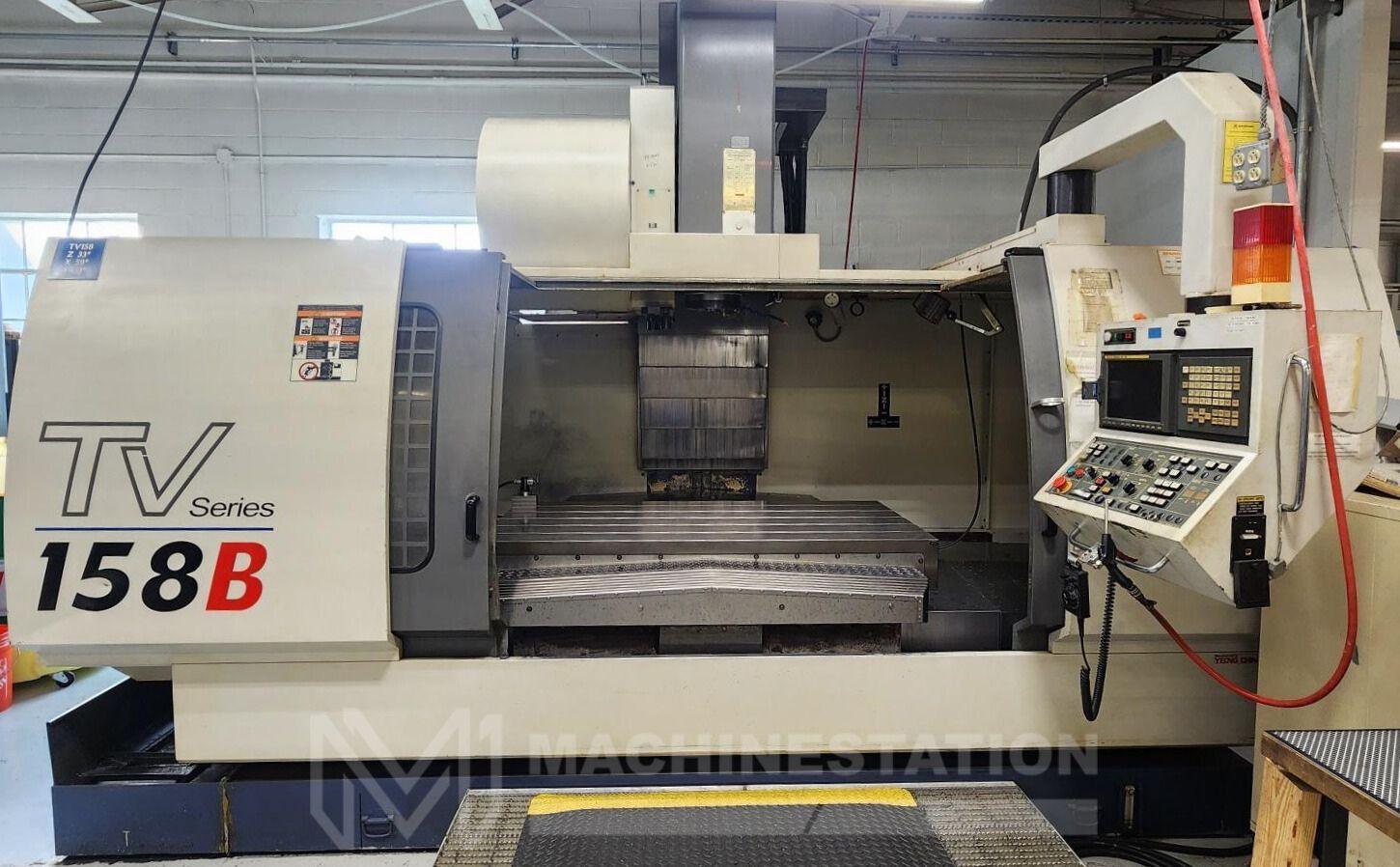

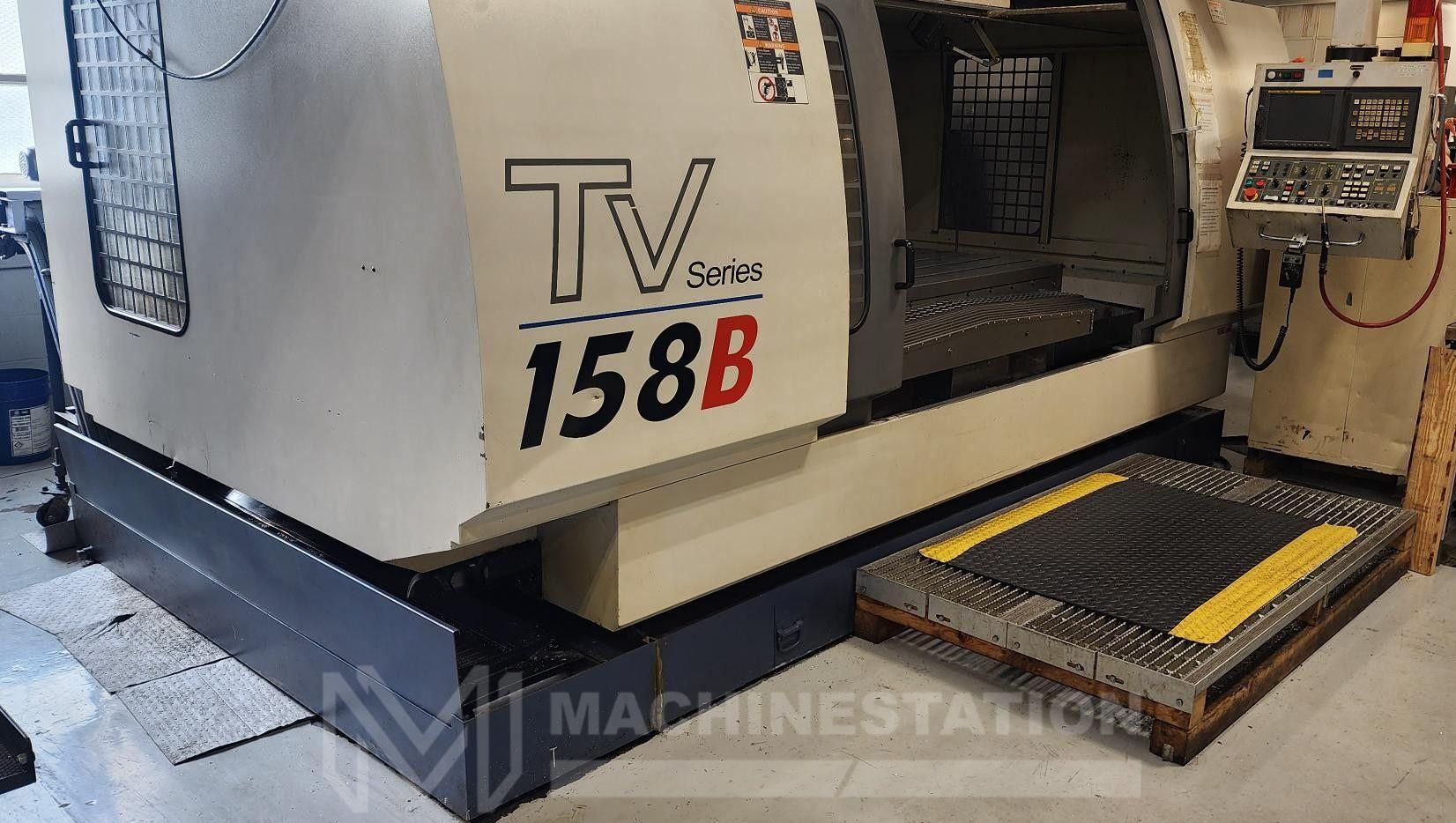

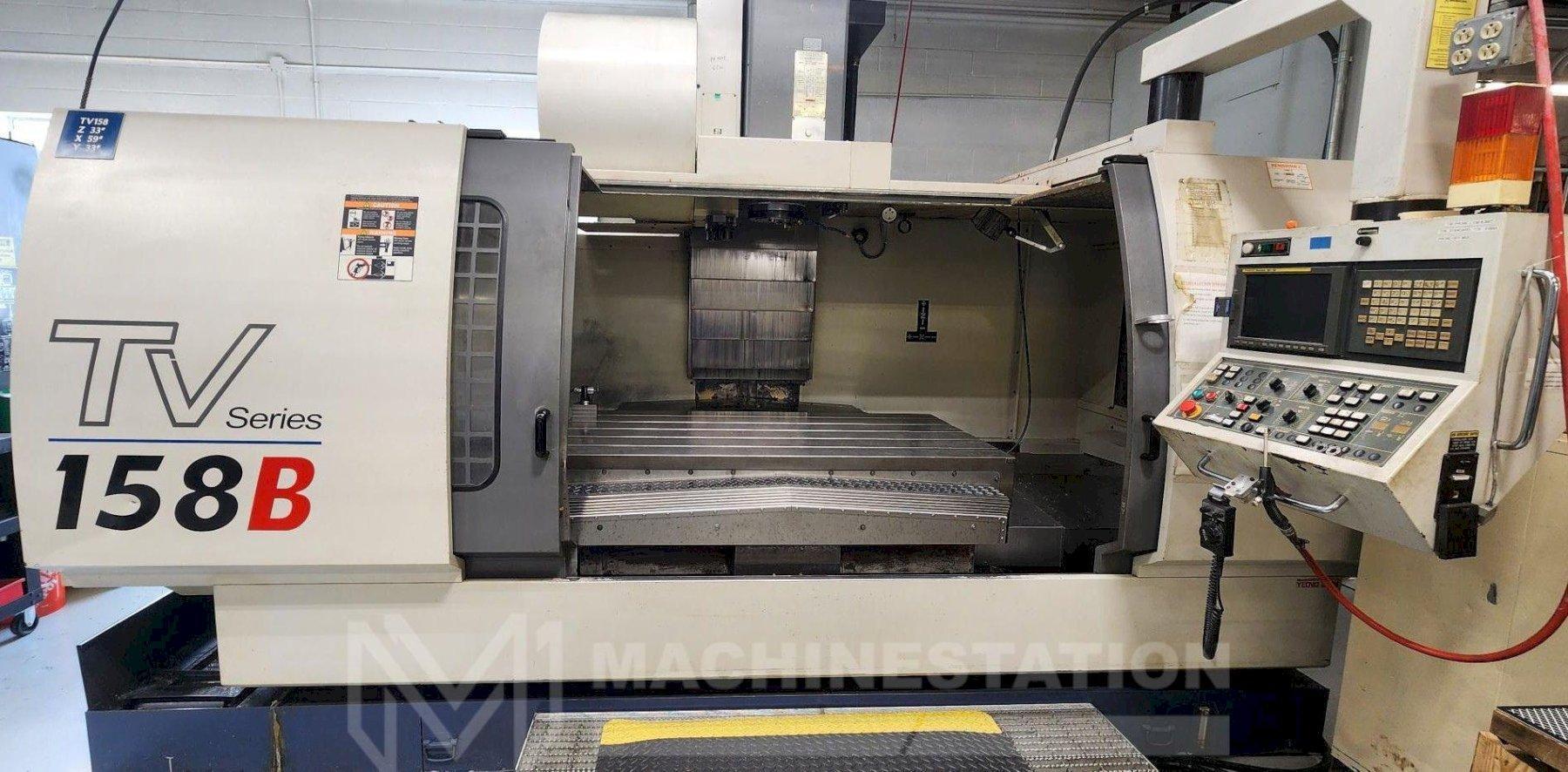

YCM TV-158B CNC Vertical Machining Center – 50 Taper 10000 RPM Mill

YCM TV-158B CNC Vertical Machining Center – 50 Taper 10000 RPM Mill

Name: Used YCM YCM TV-158B For Sale 115092
Brand: YCM
SKU: 115092
Availability: PreOrder

Brand

YCM

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	YCM
Model:	TV-158B
Year:	2004
Condition:	Used – Good

Equipped With:
Fanuc 18i-M series CNC Control
Box Way construction
32 Station Automatic Tool Changer
50 Taper Spindle
10,000 RPM Spindle
Renishaw Probing System (Probe Needed)
Tool Presetter

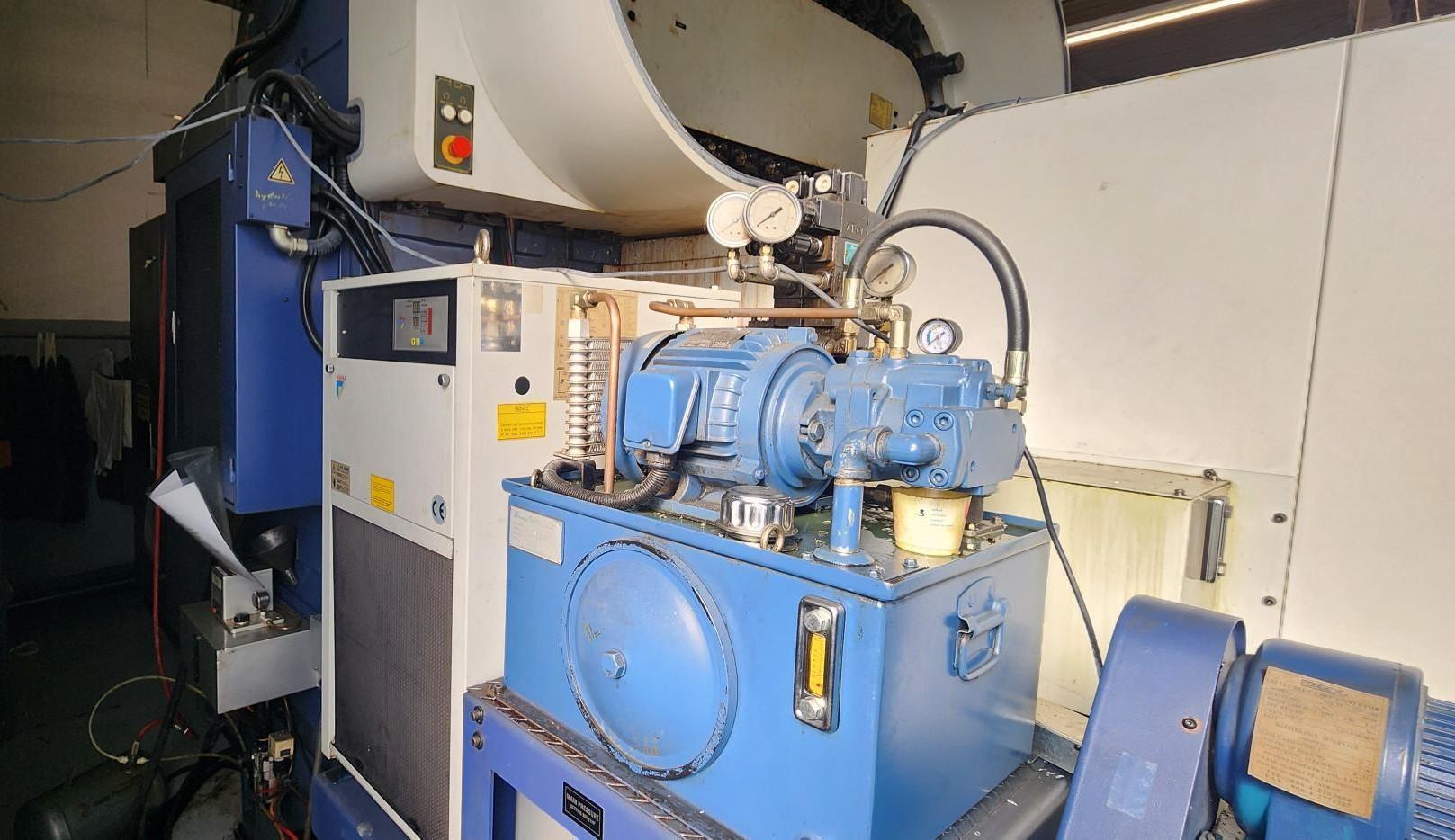

Spindle Chiller Unit
PCMCIA Card Slot
MPG Handwheel Control
Rigid Tapping
Coolant System
Chip Conveyor

Travels:
X-Axis: 59.06″
Y-Axis: 33.86″
Z-Axis: 29.53″
X, Y Axis Rapid Traverse rates: 591 IPM
Z Axis Rapid Traverse rates: 472 IPM
Cutting Feedrate: 197 IPM
Spindle Nose to Table (Min.- Max.): 5.91″ – 35.43″

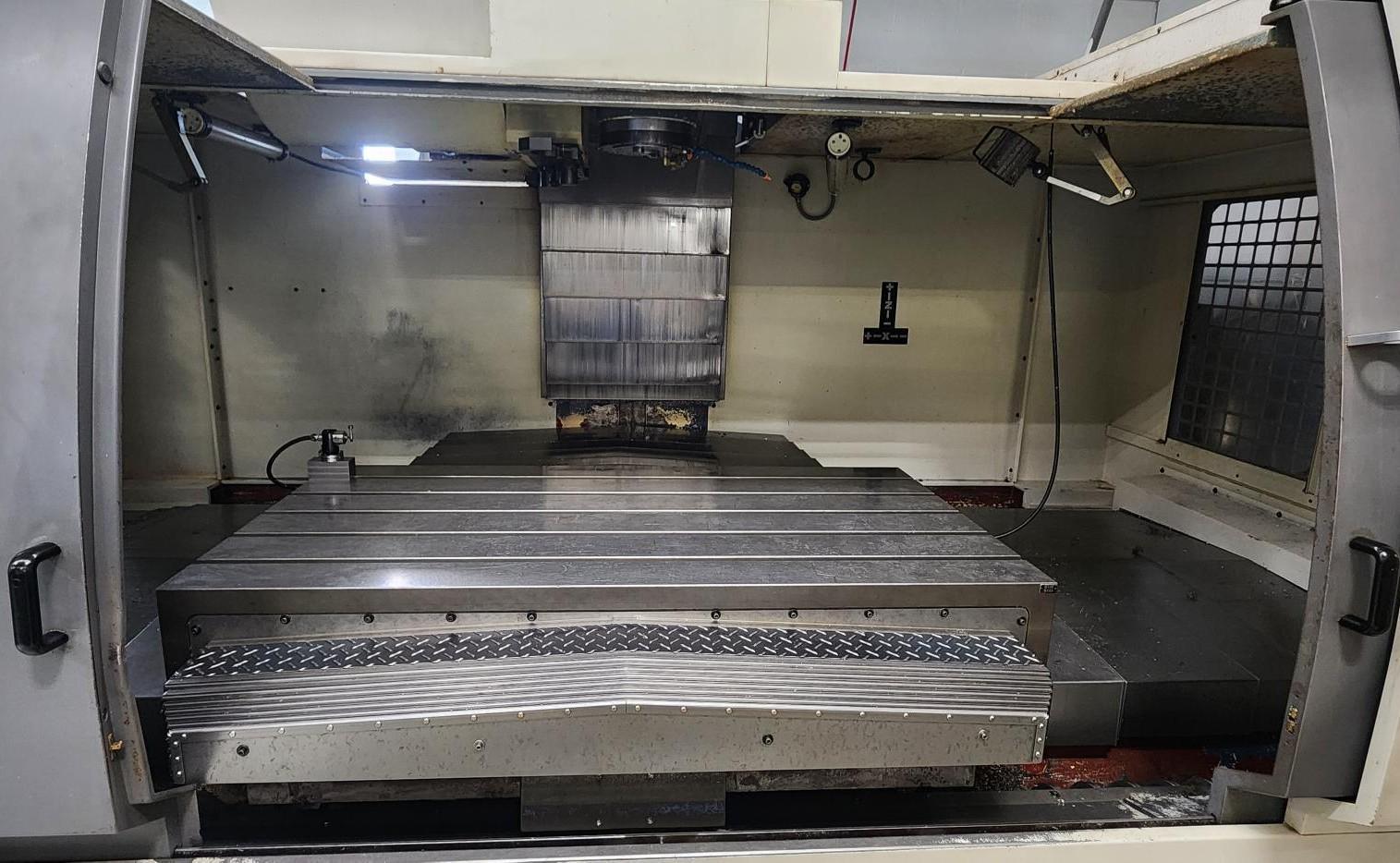

Table:
Length: 66.93″
Width: 33.86″
T-Slot x Size x Pitch: 5 x 0.87″ x 5.91″
Max Weight on Table: 4409 lbs

Spindle:
Taper Size: 50
Speed Range: 10,000 RPM
Spindle Power: 25 HP

Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Length: 13.78″
Max Tool Diameter : 4.33″ – 7.48″

General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 45 kva / 3-Phase
Overall Dimensions: 174″ x 131″ x 121″ High Approx.
Weight: 39,683 lbs. Approx.

No files or videos to display
