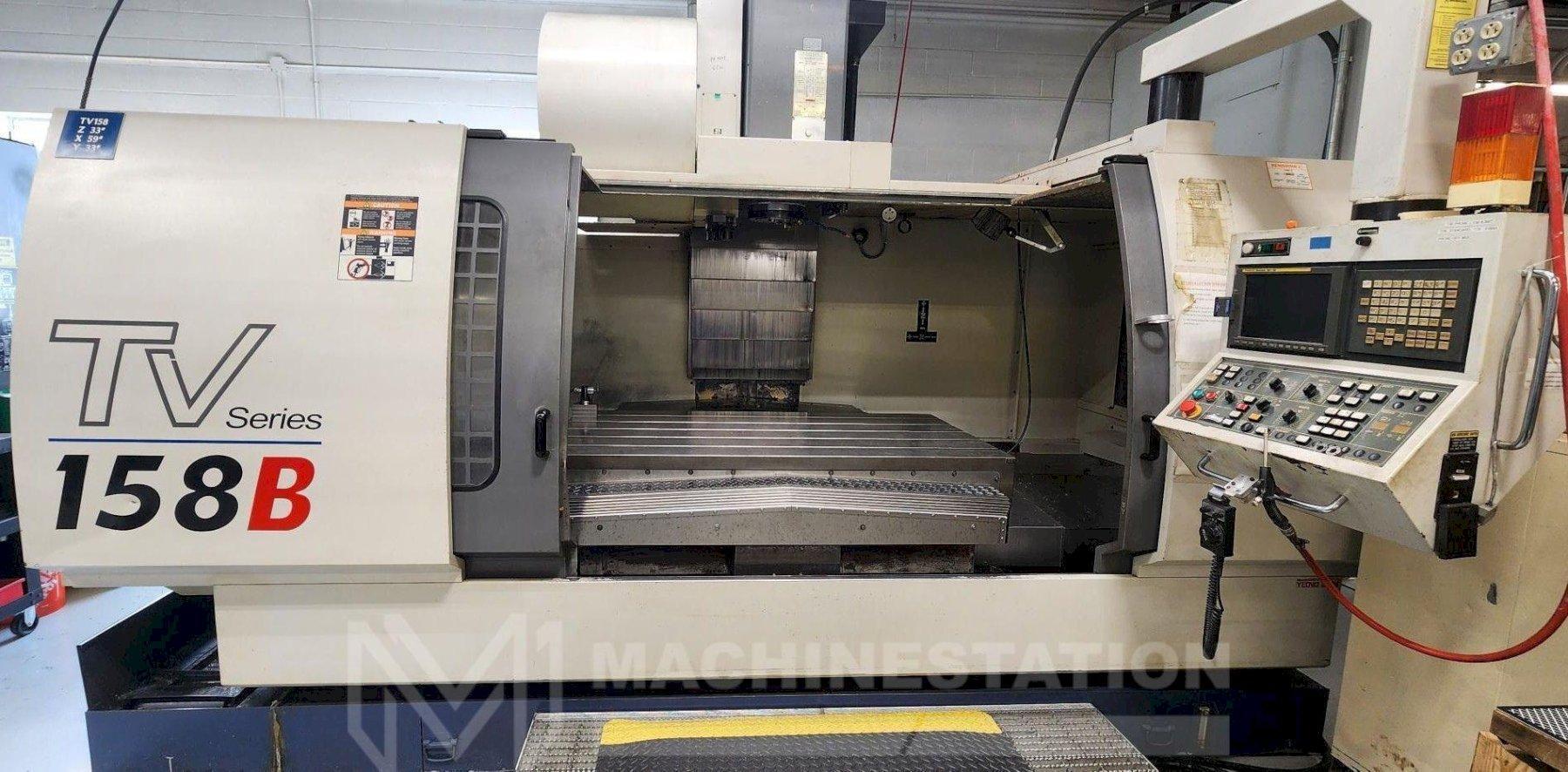

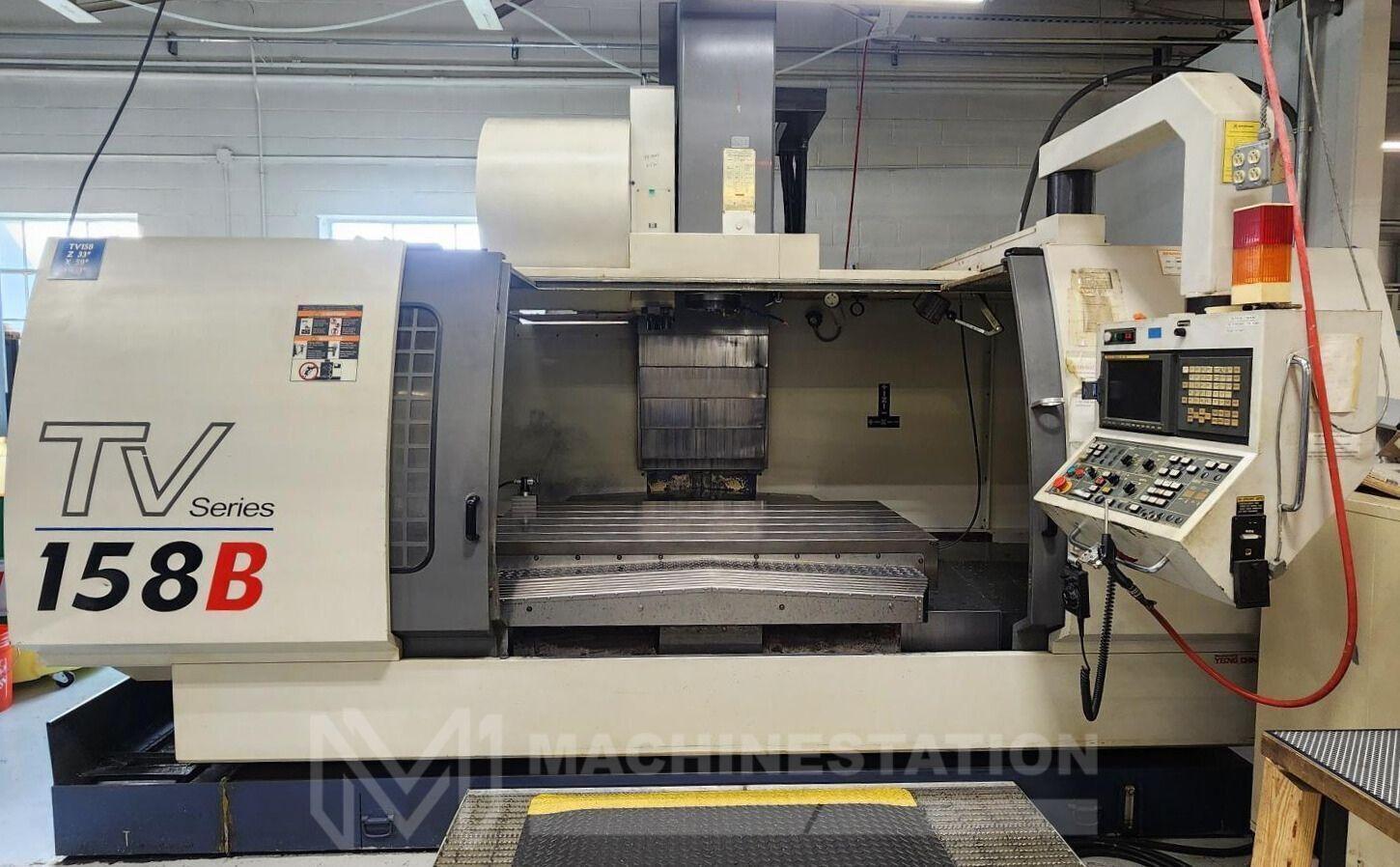

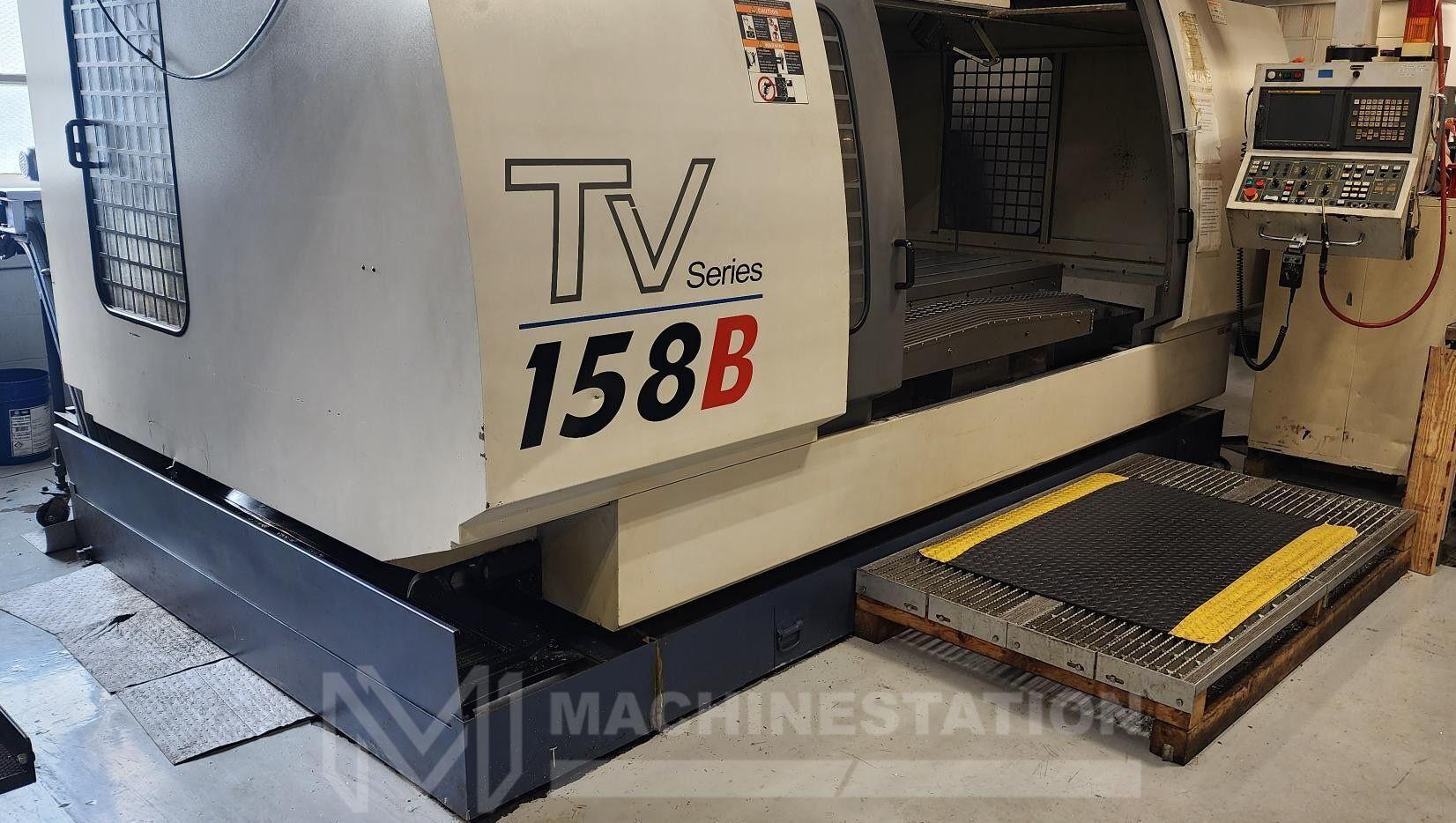

YCM TV-158B CNC Vertical Machining Center – 50 Taper 10000 RPM Mill

Brand
YCM
Category
Machining Centers
Type
Vertical Machining Centers
Model
YCM TV-158B
Stock #
115092
Year
2004
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: YCM
Model: TV-158B
Year: 2004
Condition: Used – Good
Equipped With:
Fanuc 18i-M series CNC Control
Box Way construction

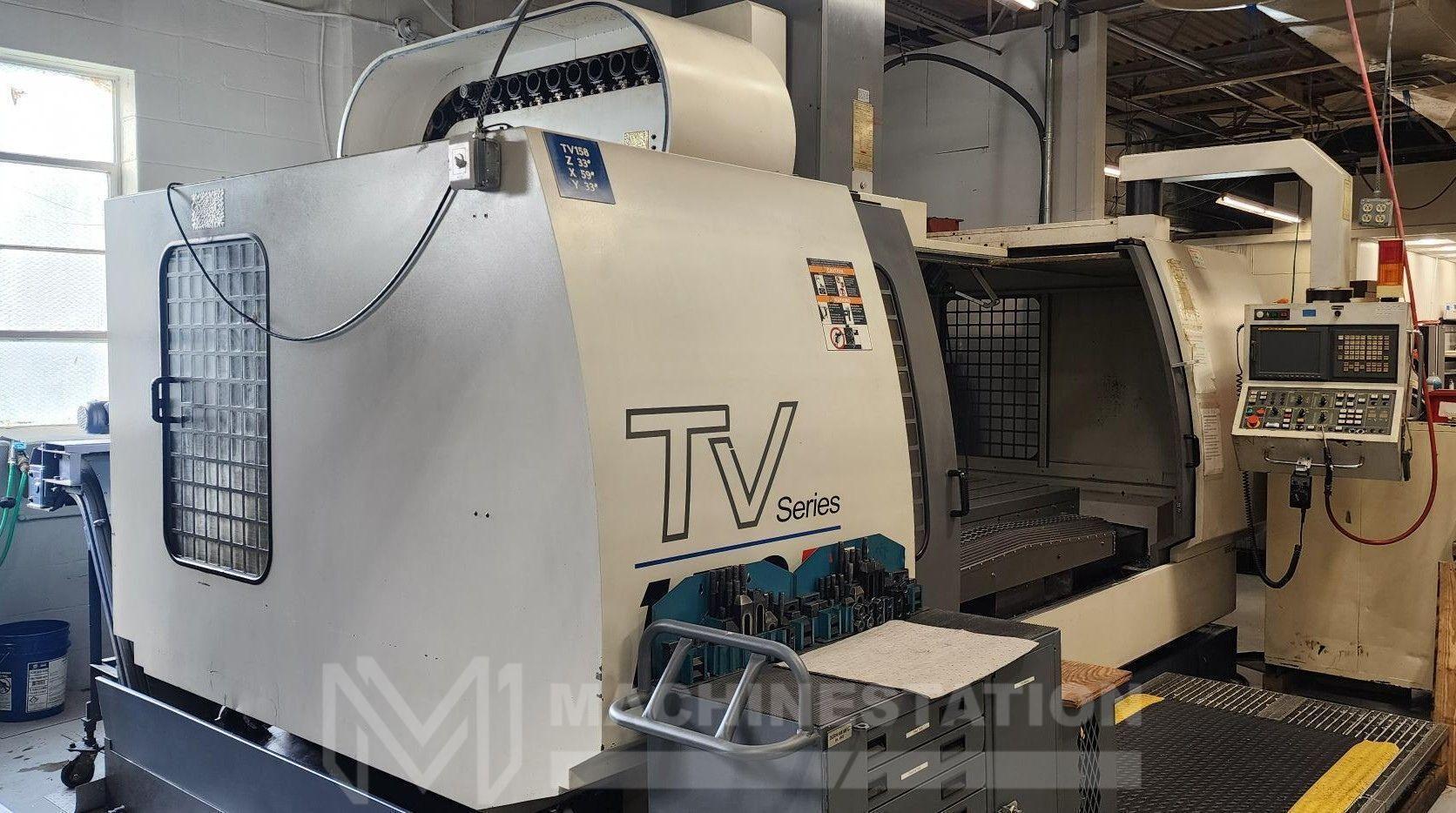

32 Station Automatic Tool Changer
50 Taper Spindle
10,000 RPM Direct Drive Spindle

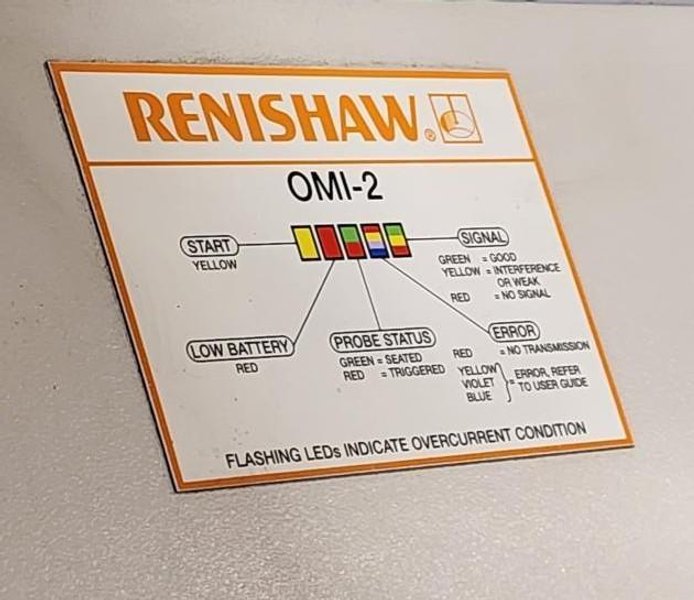

Renishaw Probing System (Probe Needed)
Tool Presetter

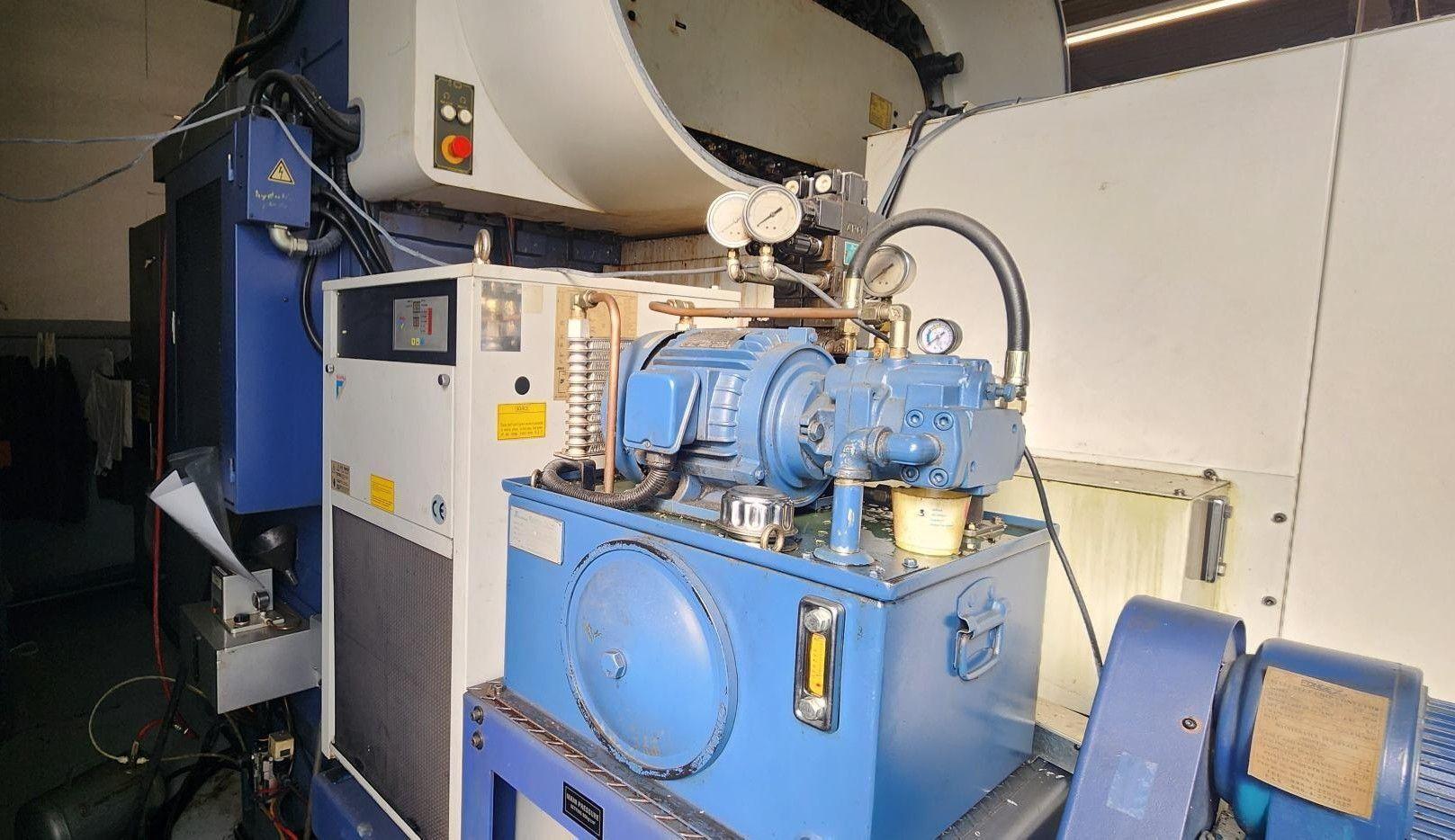

Spindle Chiller Unit
PCMCIA Card Slot
MPG Handwheel Control
Rigid Tapping
Coolant System
Chip Conveyor
Travels:
X-Axis: 59.06″
Y-Axis: 33.86″
Z-Axis: 29.53″
X, Y Axis Rapid Traverse rates: 591 IPM
Z Axis Rapid Traverse rates: 472 IPM
Cutting Feedrate: 197 IPM
Spindle Nose to Table (Min.- Max.): 5.91″ – 35.43″

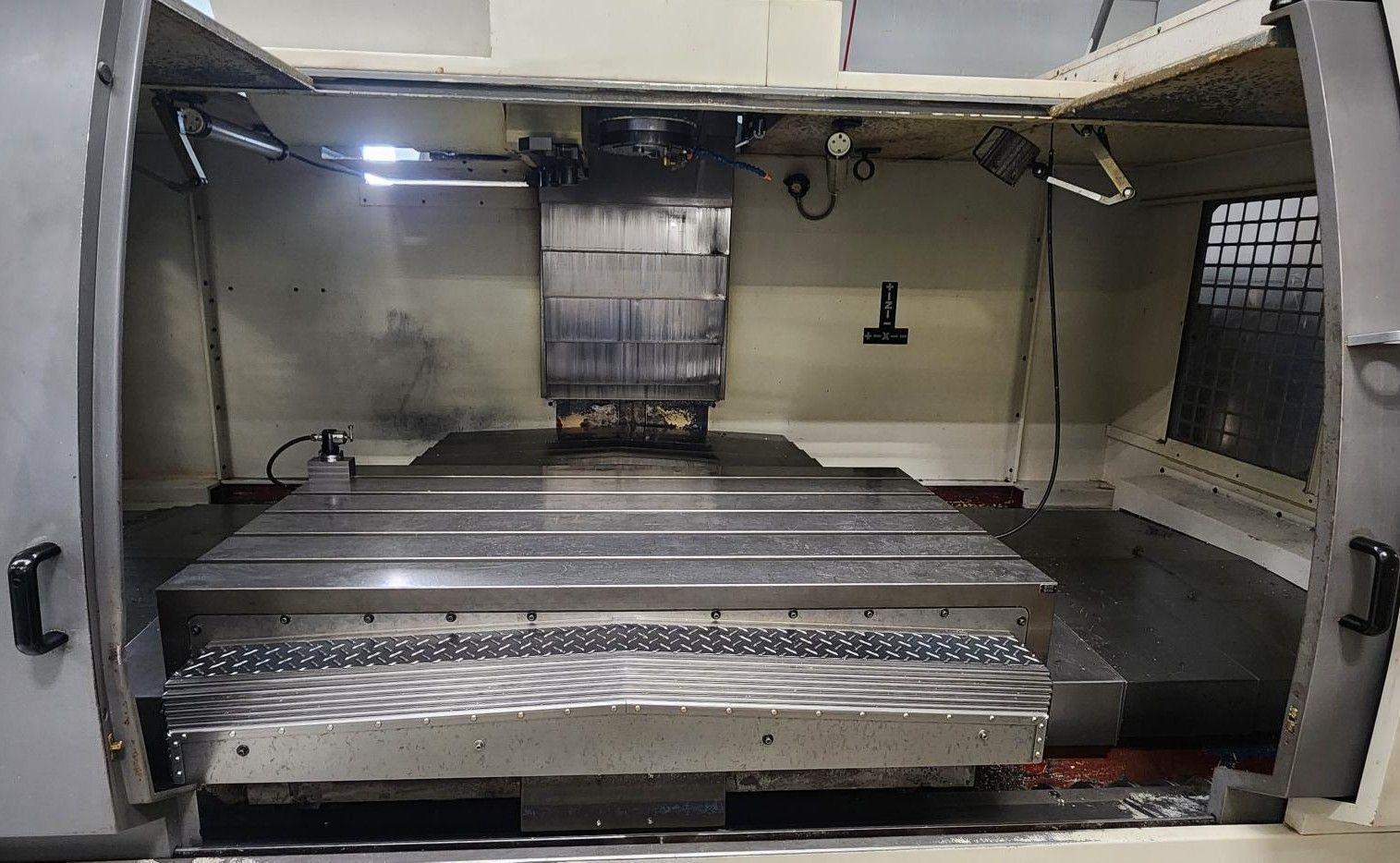

Table:
Length: 66.93″
Width: 33.86″
T-Slot x Size x Pitch: 5 x 0.87″ x 5.91″
Max Weight on Table: 4409 lbs
Spindle:
Taper Size: 50
Speed Range: 45 – 10,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Length: 13.78″
Max Tool Diameter : 4.33″ – 7.48″
General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 45 kva / 3-Phase
Overall Dimensions: 174″ x 131″ x 121″ High Approx.
Weight: 39,683 lbs. Approx.
