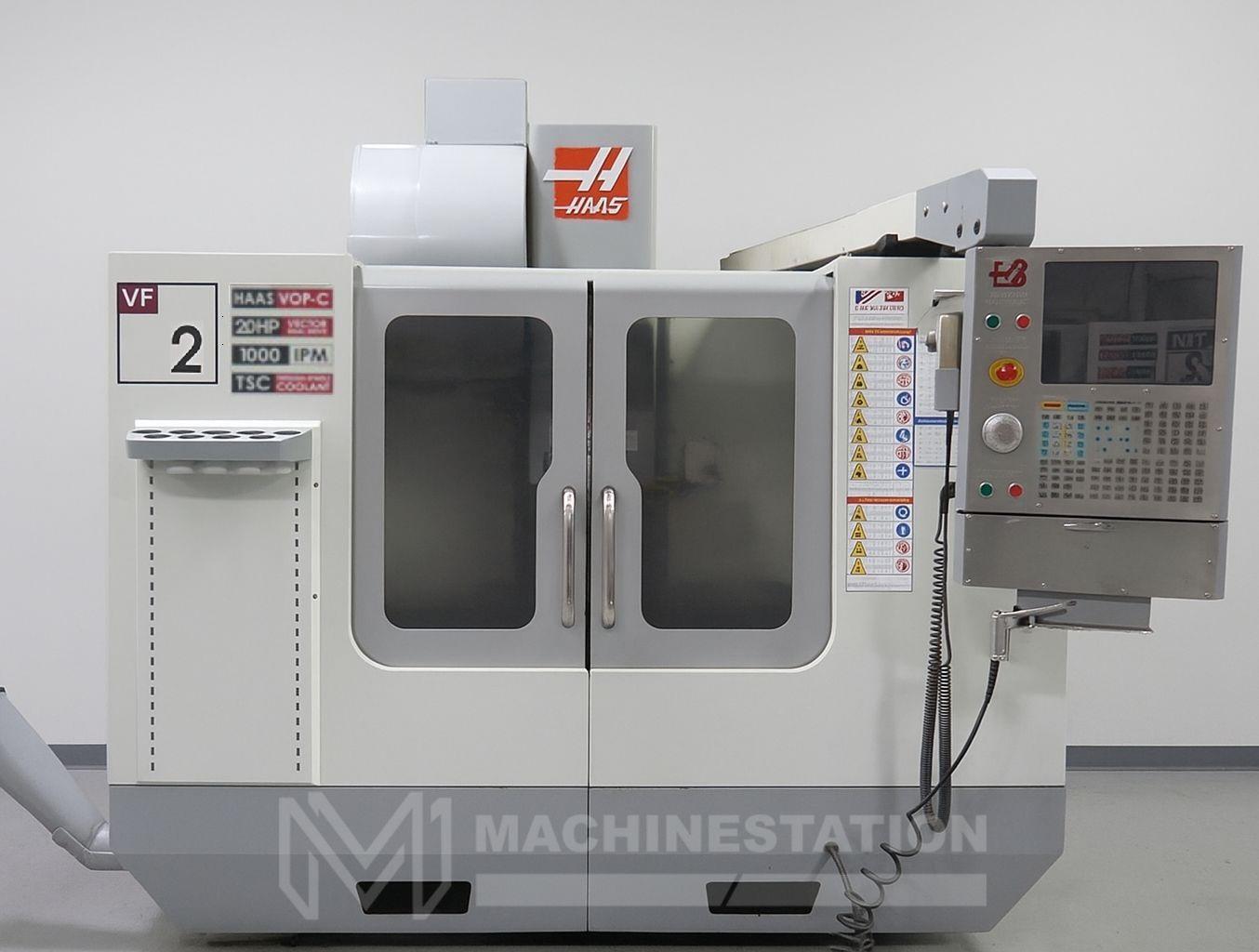

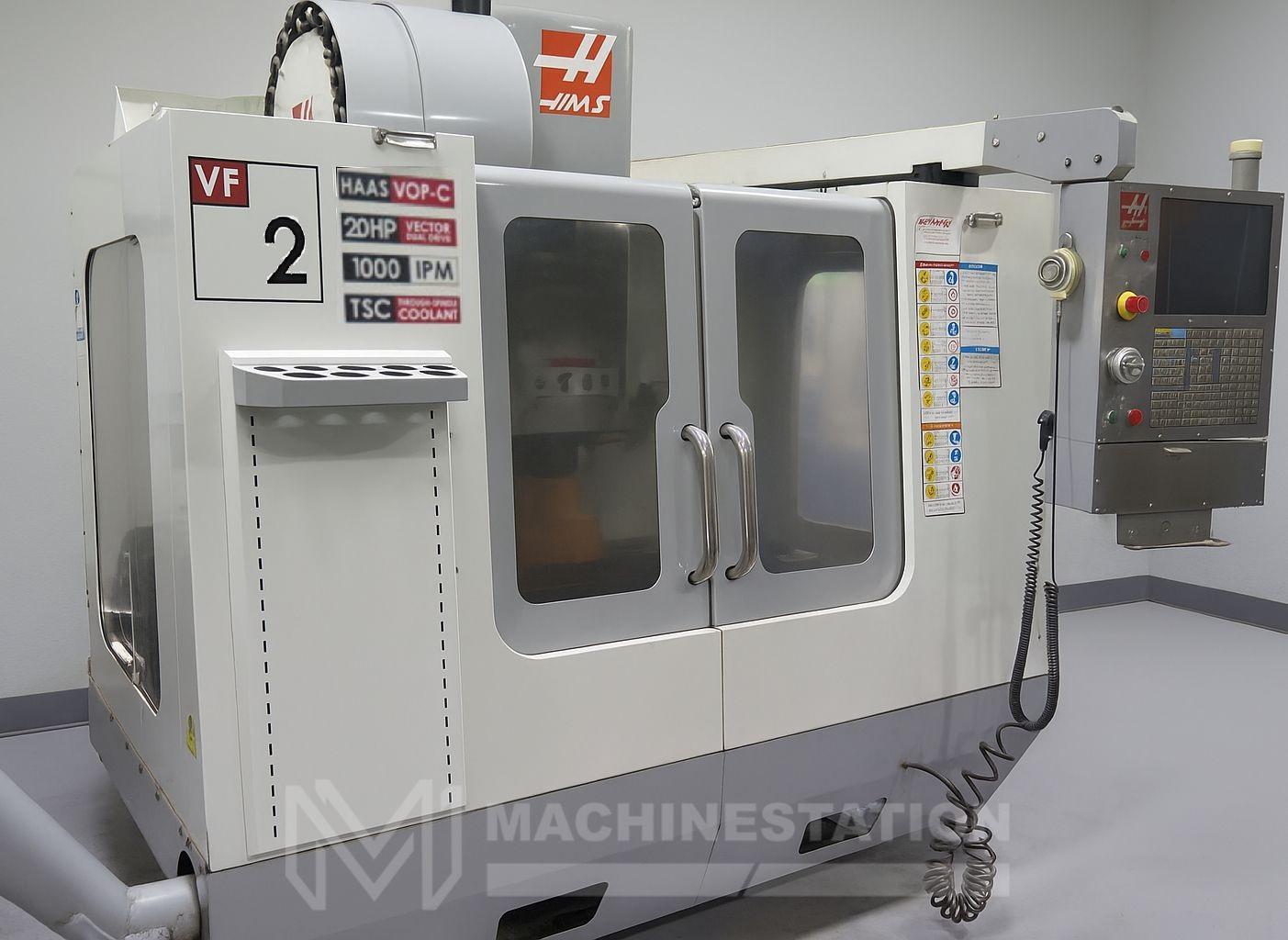

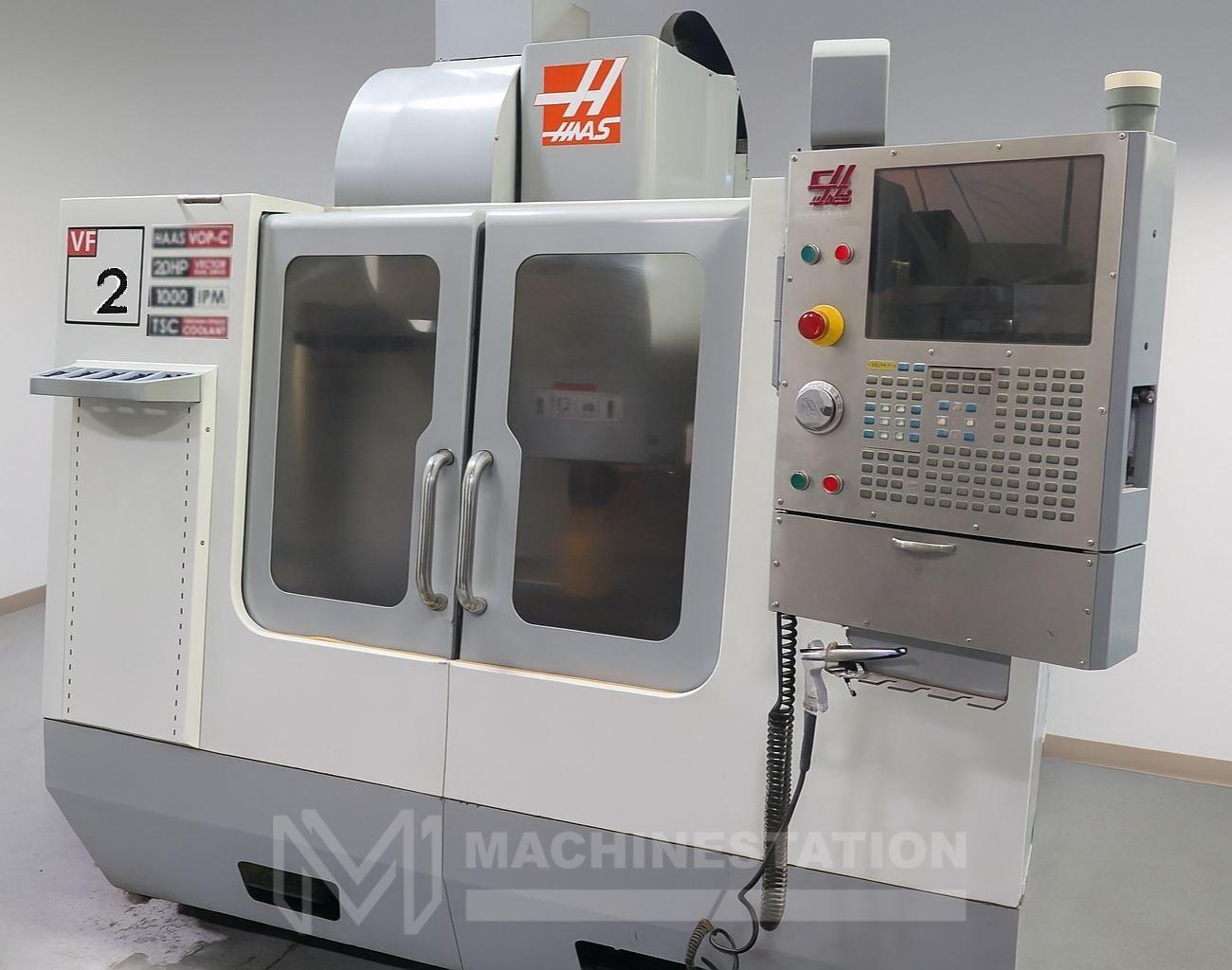

Haas VF-2D CNC Vertical Machining Center – Mill

Haas VF-2D CNC Vertical Machining Center – Mill

Name: Used HAAS Haas VF-2D For Sale 112869
Brand: HAAS
SKU: 112869
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make	Haas
Model:	VF-2D
Year:	2007
Condition:	Used – Good

Features:

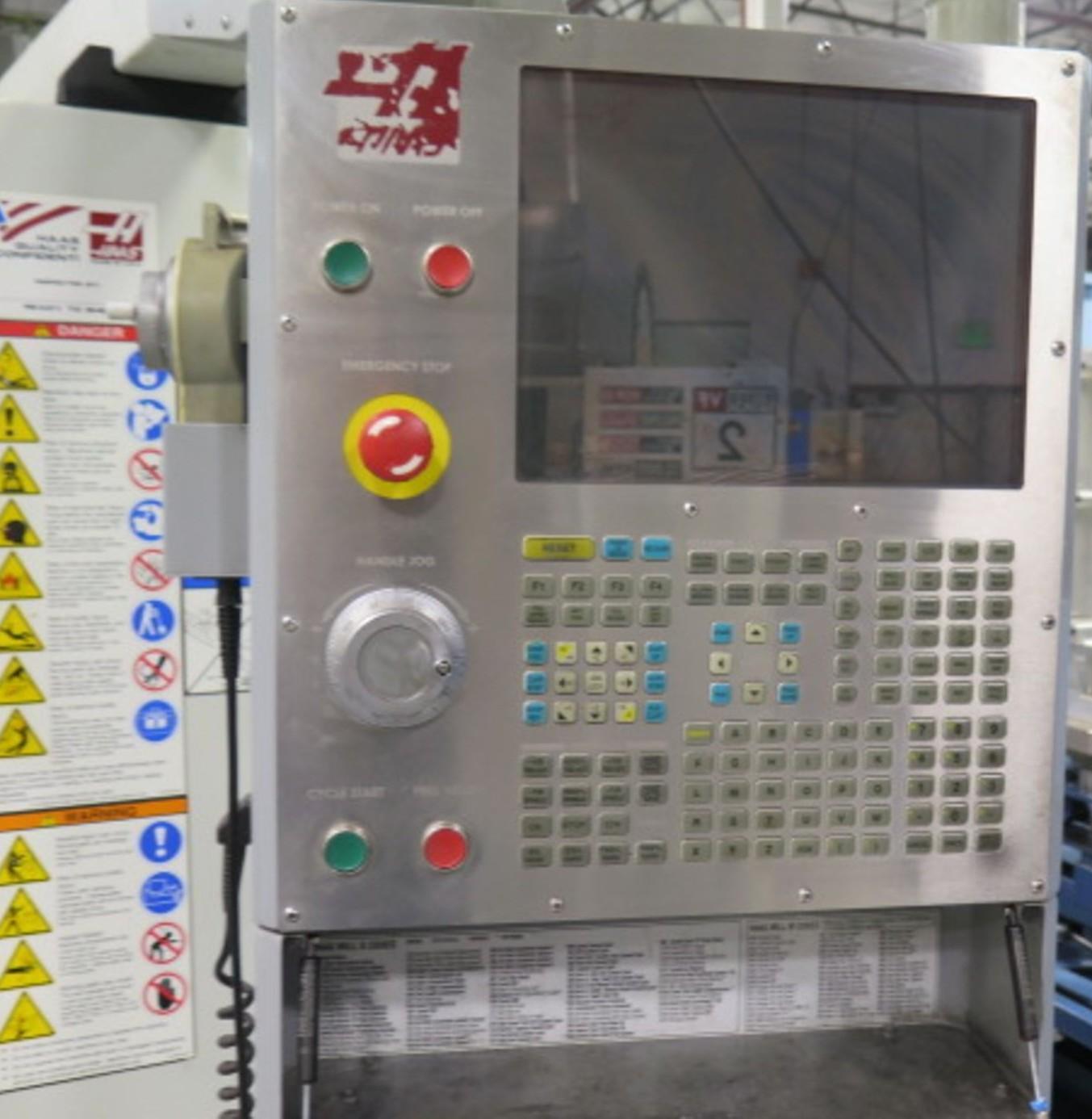

Haas CNC Control
4th & 5th Axis Activated
Haas VOP-C Package
Through Spindle Coolant
20 HP Vector Dual Drive
1000 IPM Rapids
24 Station Side Mount Automatic tool changer
Programmable Coolant Nozzle
MPG Handwheel Control
Coolant System
Chip Auger

Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute

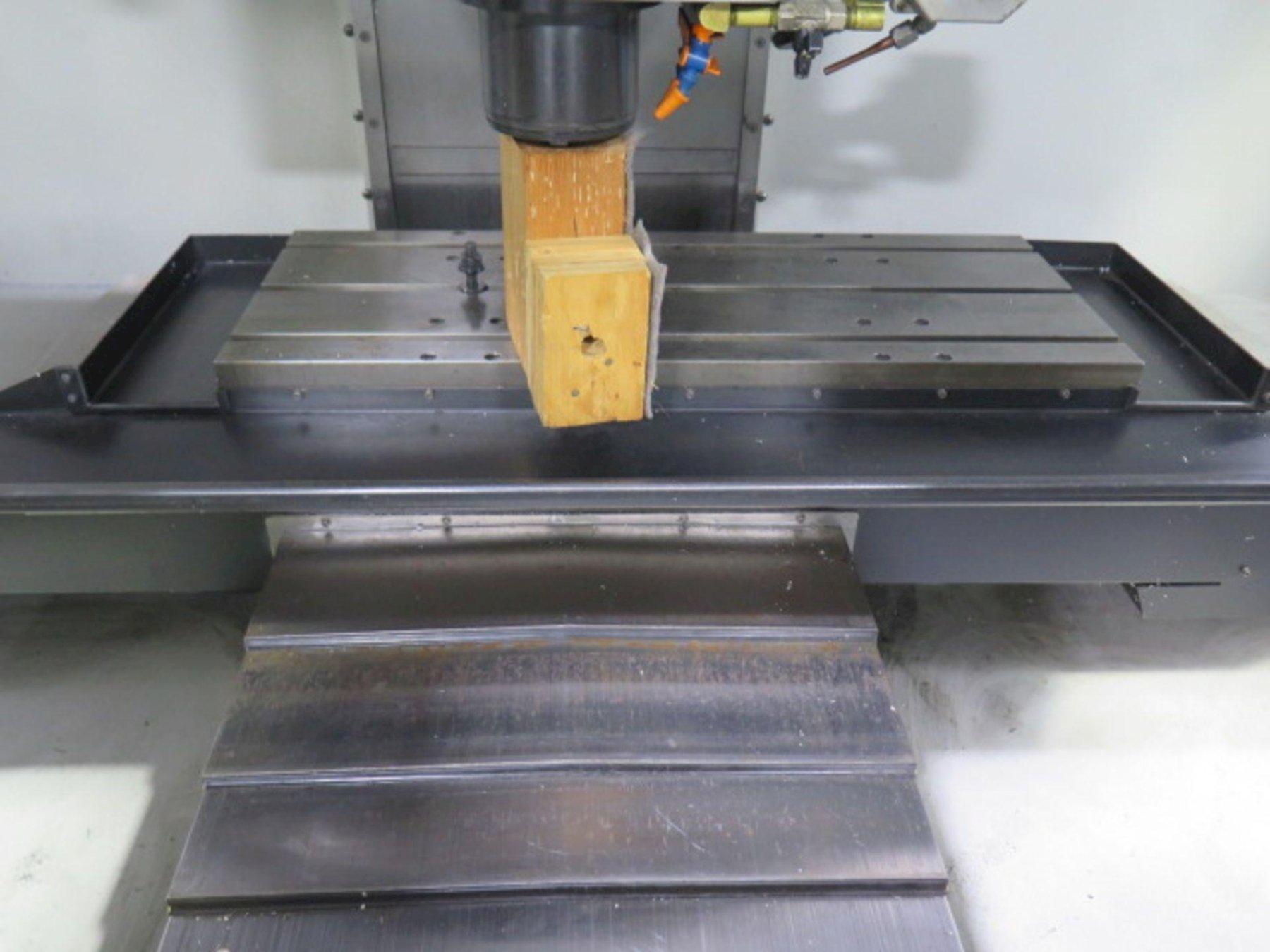

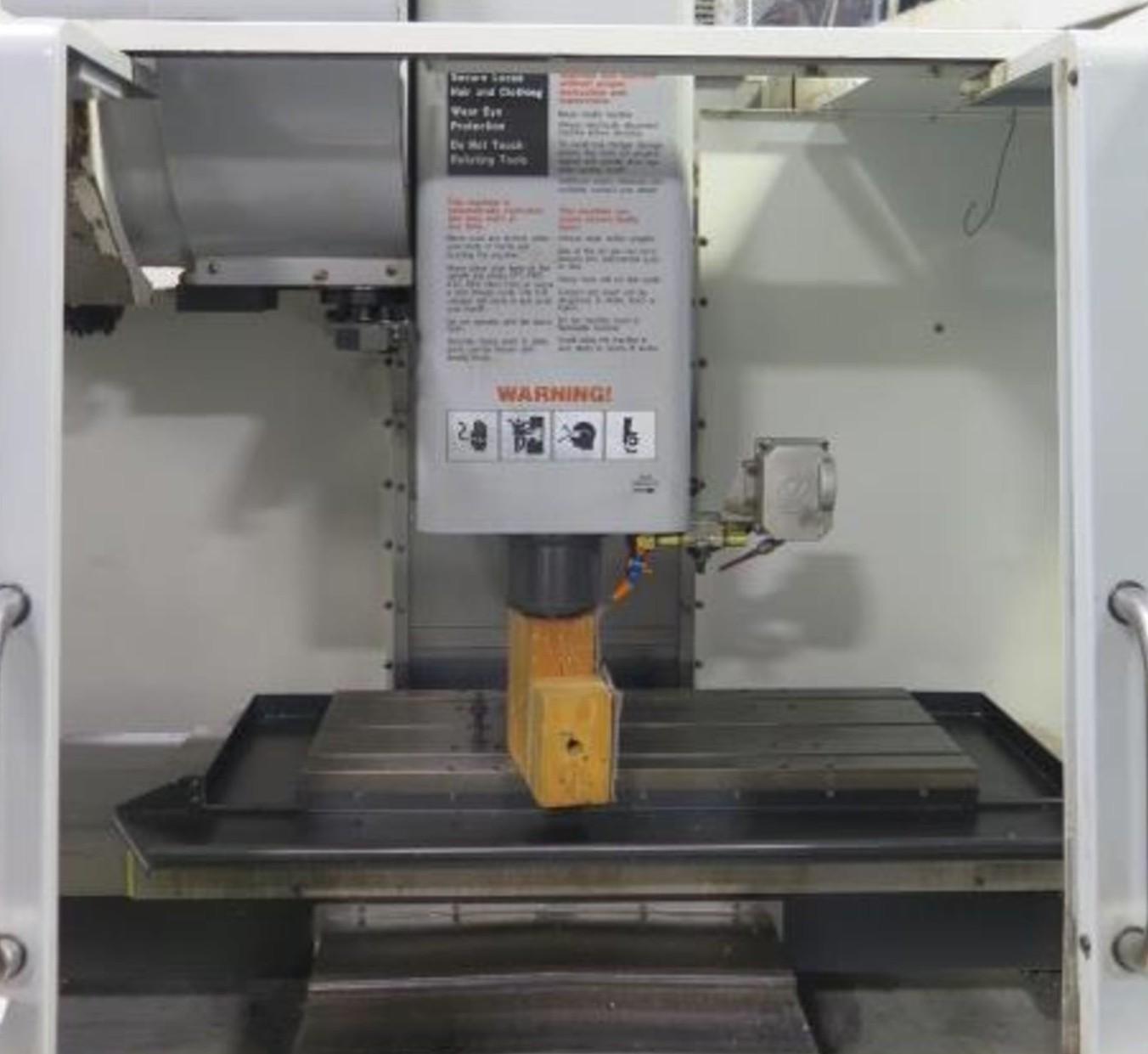

Table:
Length: 36.0″
Width: 14.0″
Max Weight on Table: 3000 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 7,500 RPM
Spindle Power: 20 HP
Vector Drive Max Torque: 90 ft-lb @ 2000 RPM

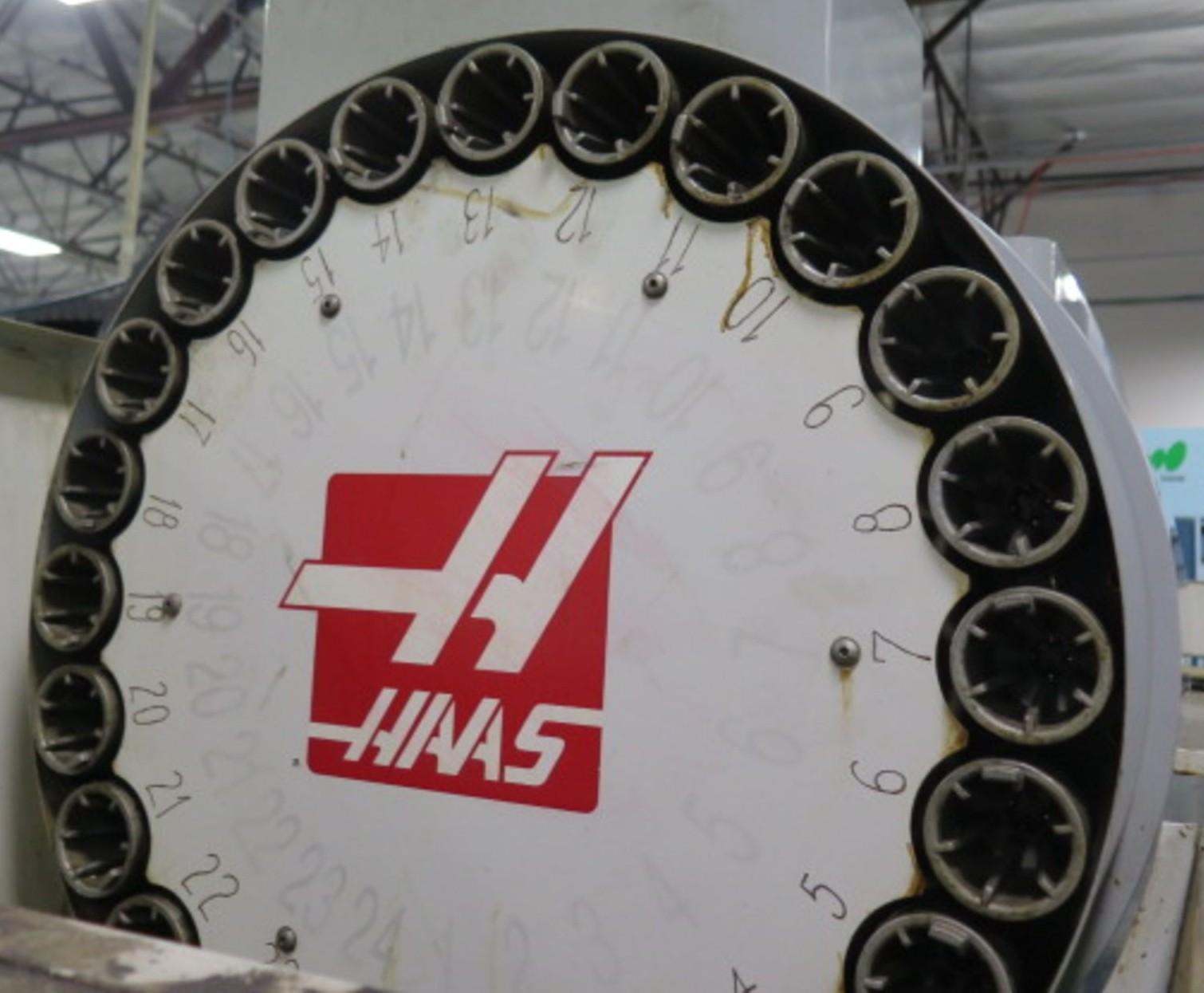

Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 2.8 Seconds

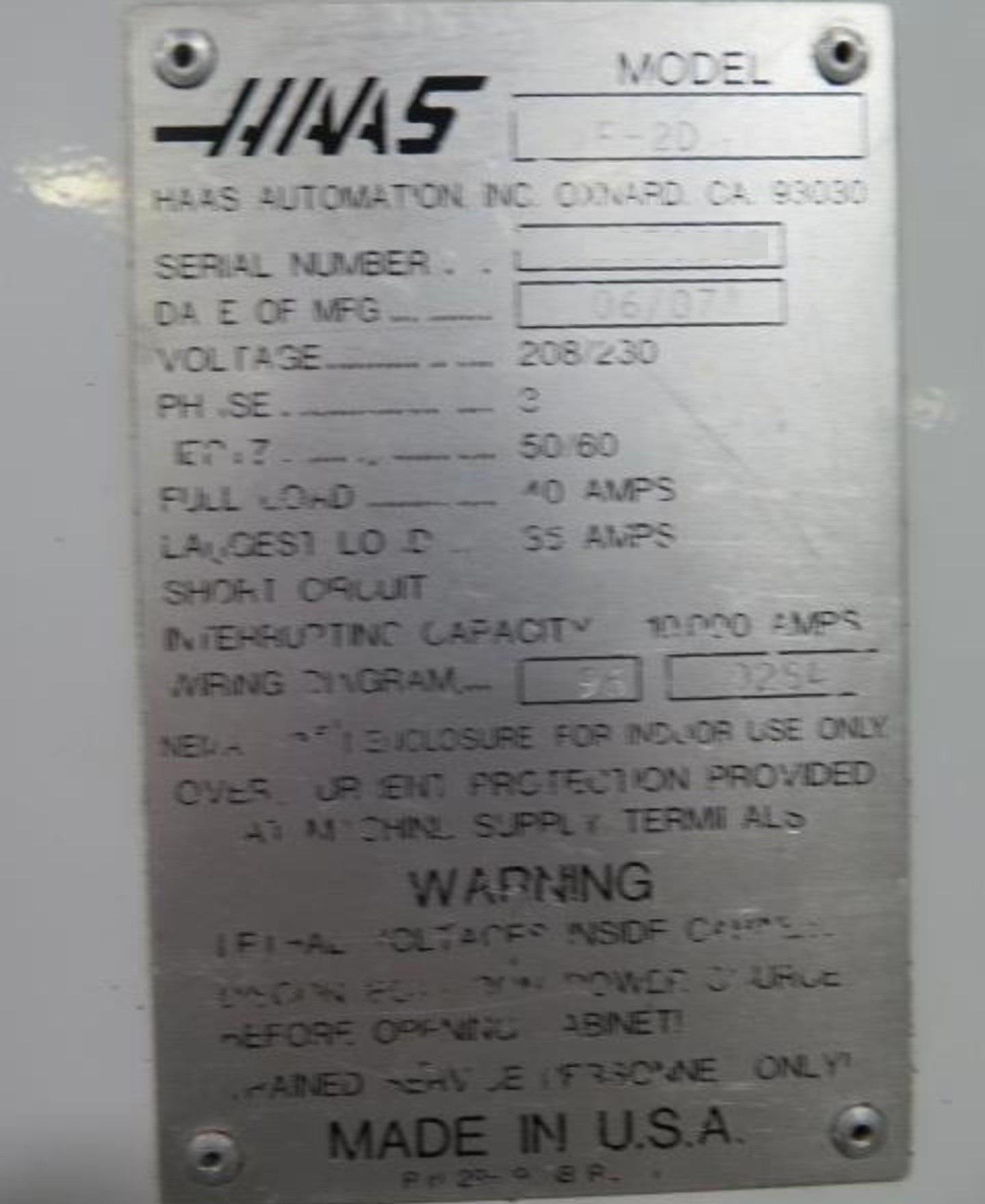

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Machine Weight: 8000 lbs

No files or videos to display
