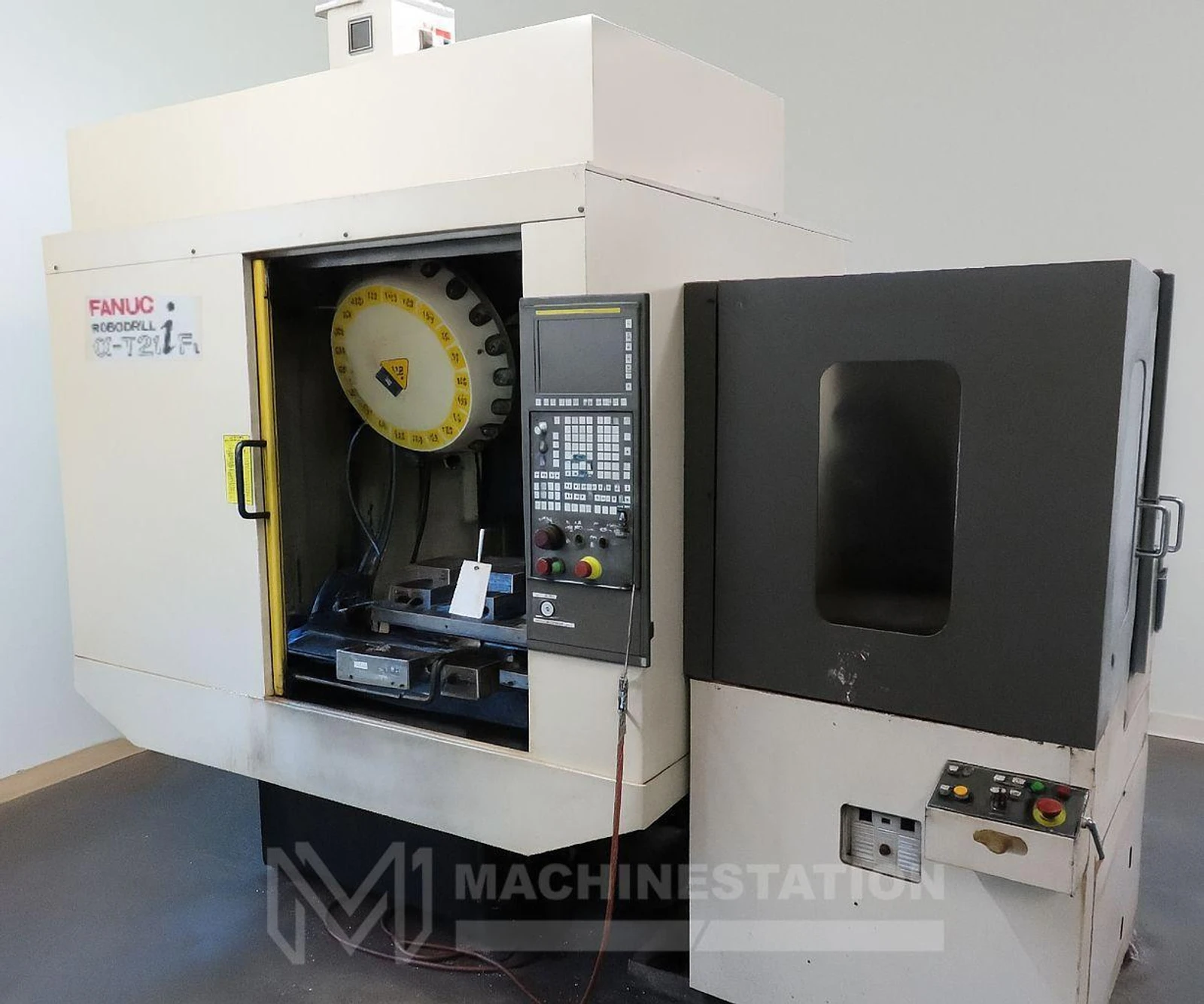

Fanuc Robodrill α-T21iFL CNC Drill Tap Center – Pallet Changer Mill

Fanuc Robodrill α-T21iFL CNC Drill Tap Center – Pallet Changer Mill

Name: Used FANUC Fanuc Robodrill α-T21iFL For Sale 112860
Brand: FANUC
SKU: 112860
Availability: PreOrder

Brand

FANUC

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112860
Make:	Fanuc
Model:	Robodrill α-T21iFL
Year:	2009
Condition:	Used – Good

Features:

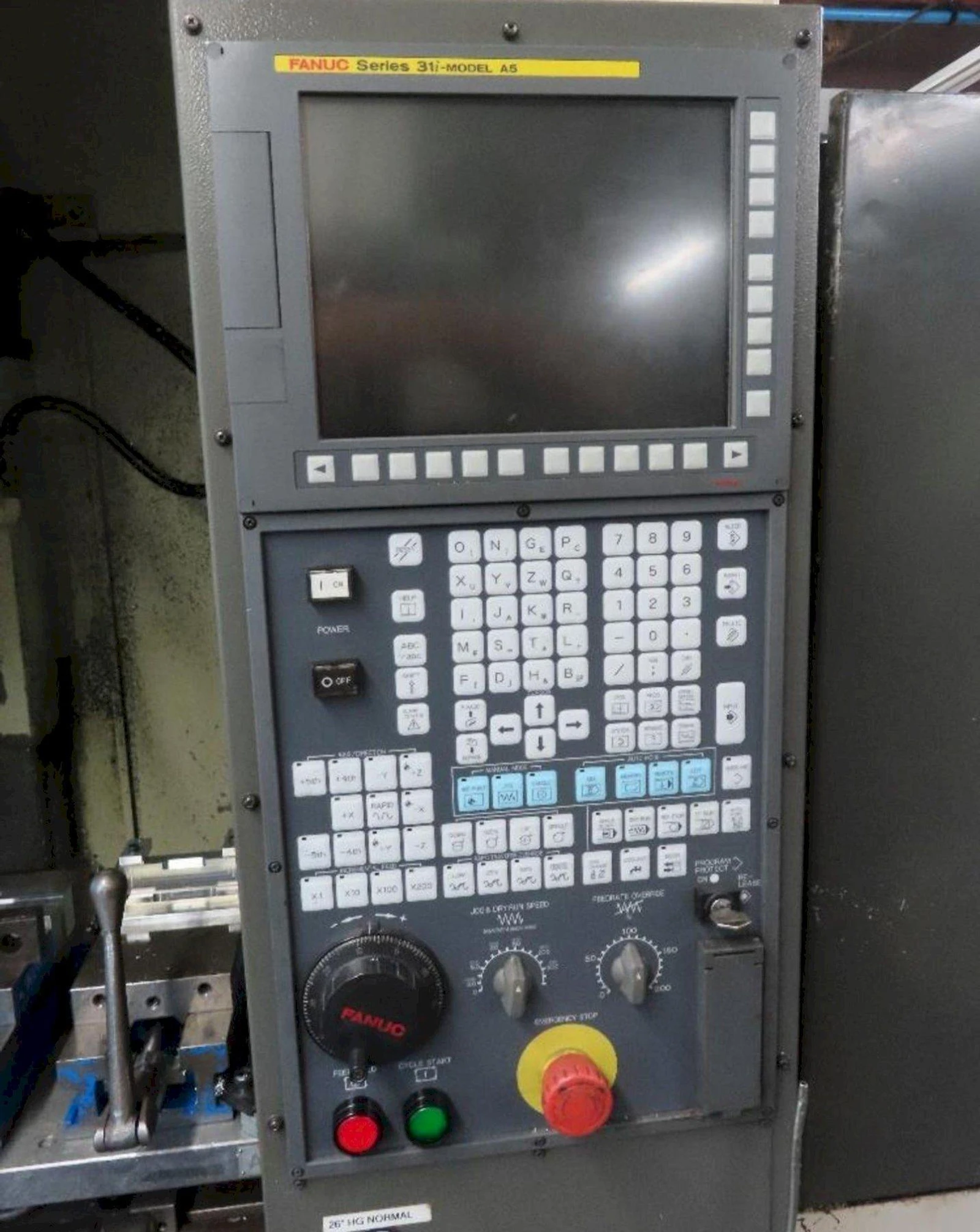

Fanuc 31i-M A5 5 Axis CNC Control

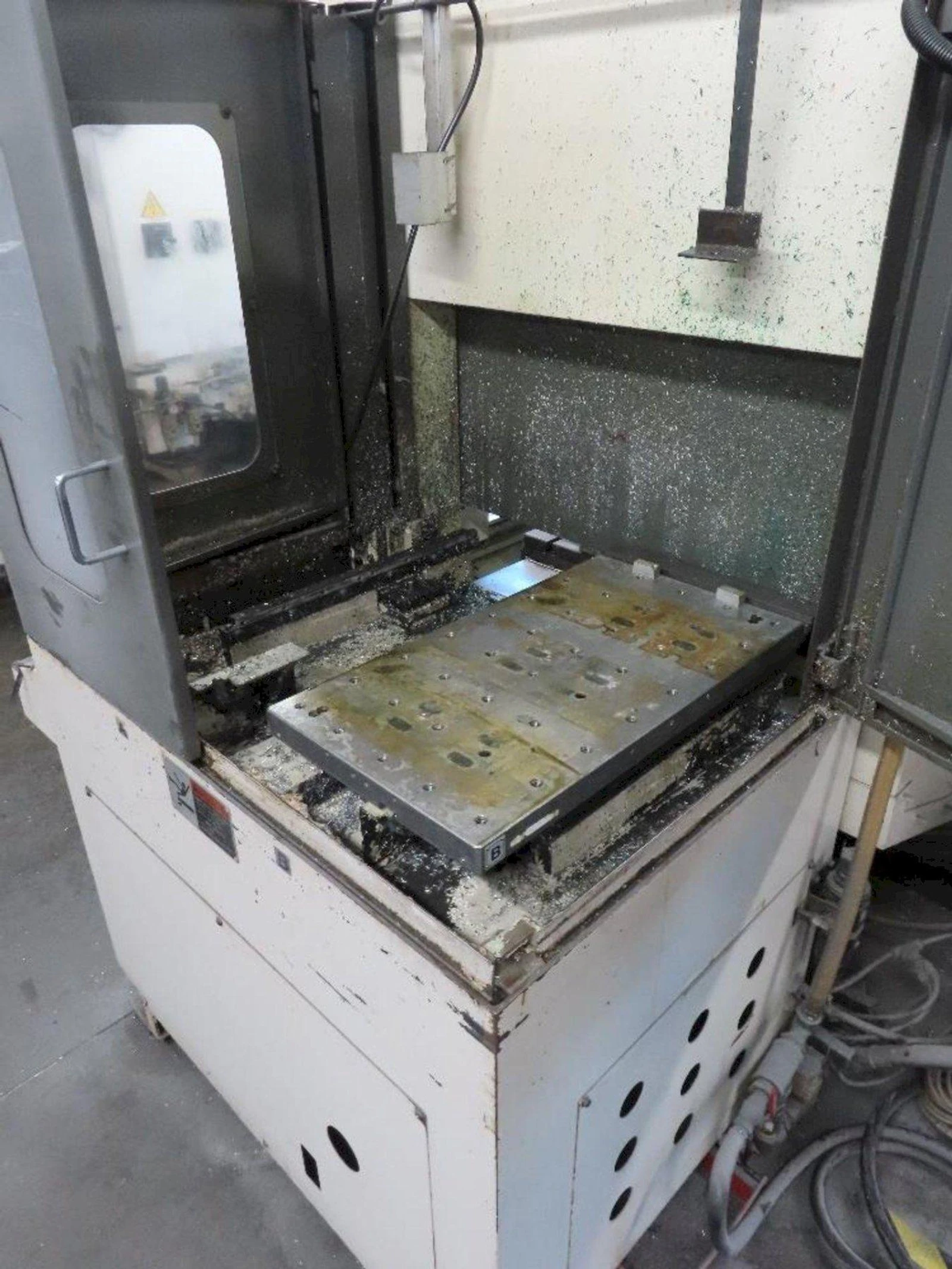

Pallet Changer
10,000 RPM Precision Spindle

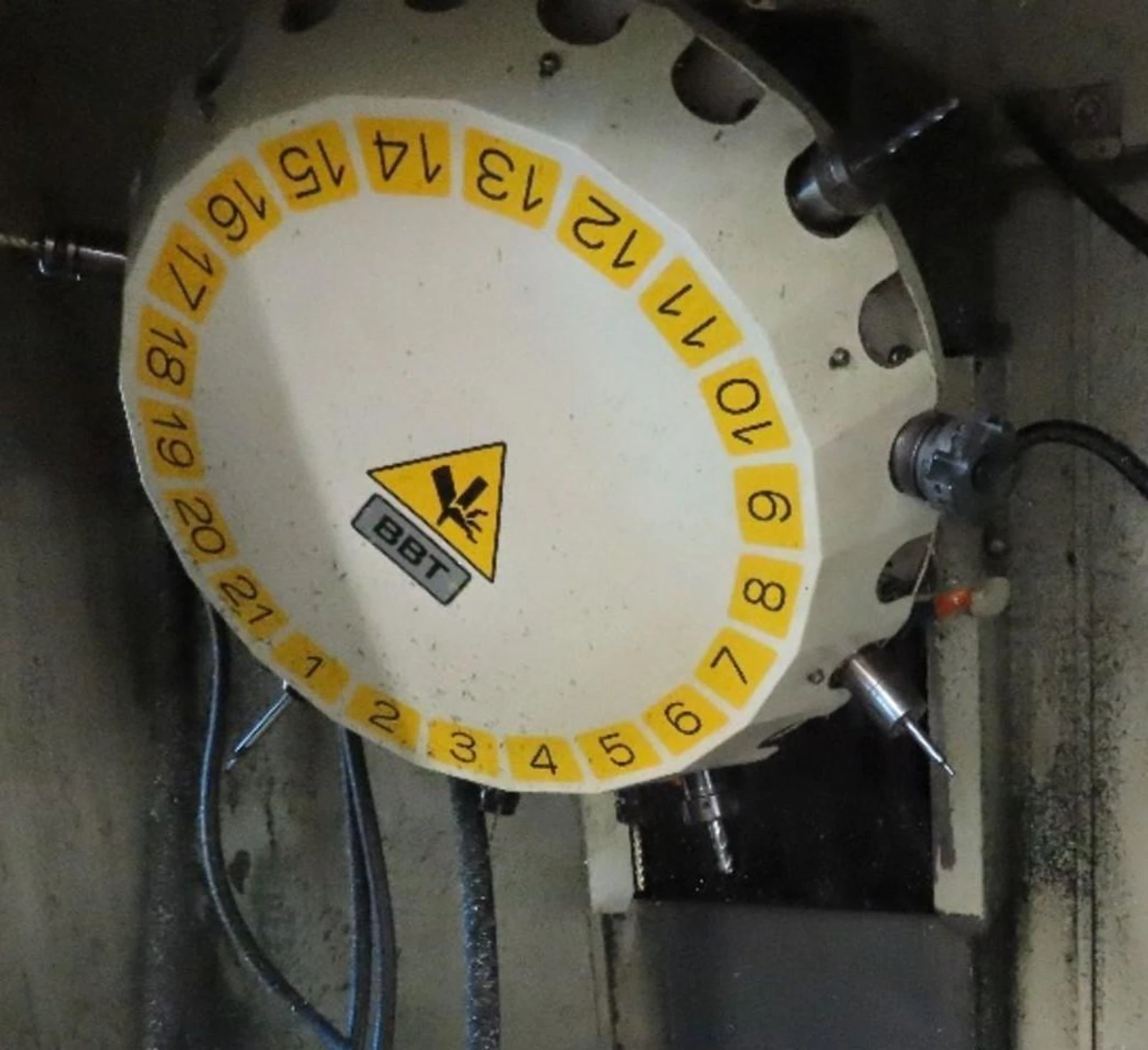

21 Station Automatic Quick Tool Changer
PCMCIA Card Slot
Rigid Tapping
MPG Control
Coolant System

Travels:
X-Axis: 27.5″
Y-Axis: 15.75″
Z-Axis: 13.00″
Rapid Traverse Rates X,Y,Z Axis: 2126 Inch Per Minute
Cutting Feed Rates X,Y,Z Axis: 1181 Inch Per Minute
Distance From Table Top to Spindle End (Min.- Max.): 5.90″ – 18.90″

Table:
Length: 33.5″
Width: 16.1″
Max Weight on Table: 440 Ibs

Spindle:
Spindle: Taper Size: BBT-30
Speed Range: 10,000 RPM
Spindle Power: 7.5 HP

Automatic Tool Changer:
Capacity: 21 Station
Tool Weight: 4.40 lbs
Max Tool Dia: 3.14″
Max Tool Length: 7.87″
Tool Changing Time: 1.2 Seconds

General:
Air Required: 80 psi, 4 scfm

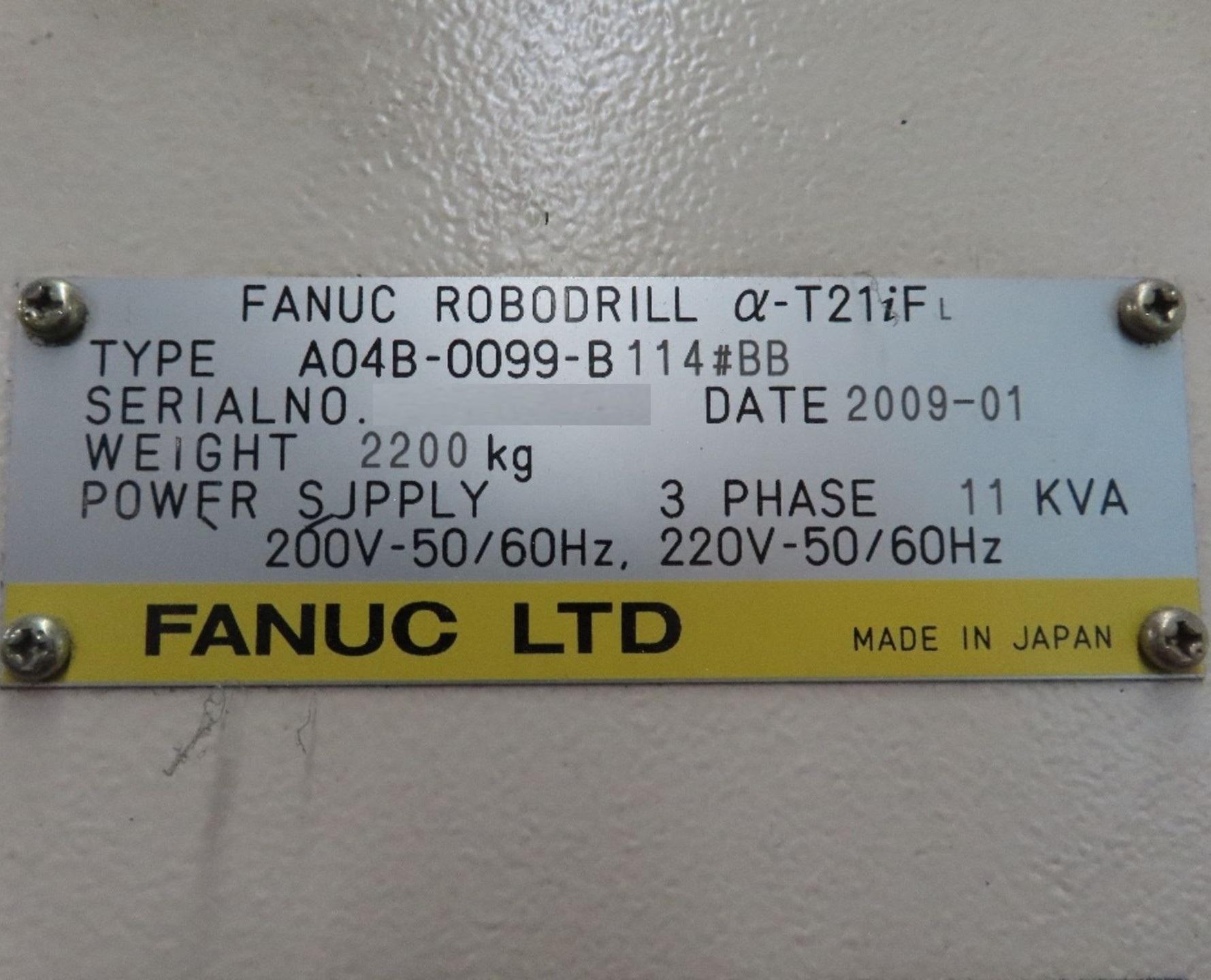

220v / 60 Hz / 3-Phase / 11 kva
Overall Dimensions: 110″ x 80″ x 96″ High Approx.
Weight: 4,850 lbs Approx.

No files or videos to display
