Powermatic Edge Sander Model OES9138
Brand
Category
Model
OES9138
Stock #
4972
Year
2017
Condition
Like New
Location
New York
|

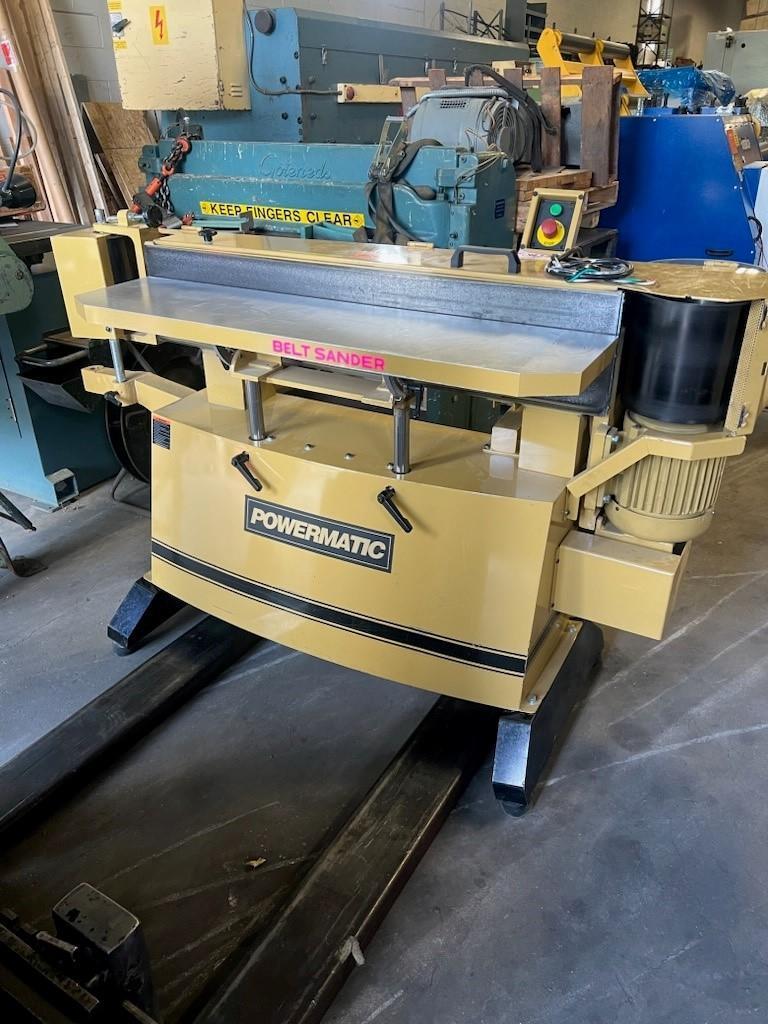

Like New Powermatic Edge Sander
Model OES9138 Stock# 1791293 S/N# YB00854 New: 2017 Electrics: 3HP, 1PH, 230 Volt Belt Size: 9” x 183” Large 11-3/4" x 48" front worktable with 8" vertical travel and 45° tilt, includes miter head for angle work
Large radius end table has 6" vertical travel and 45° tilt for any angle and working height needed
Oscillates 24 cycles per minute for better finish and longer belt life
Precision balanced 9" diameter drive drum
4" diameter rubber coated idler pulley for positive drive and rigid tracking Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
Spring loaded, quick release lever makes belt changes quick and easy
The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces.
It will also tilt negative 5° and out to positive 45° The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports. Overall dimensions: 83” L x 32” W x 50” H
Approx. Weight: 800 lbs. FOB: Ronkonkoma, NY |
