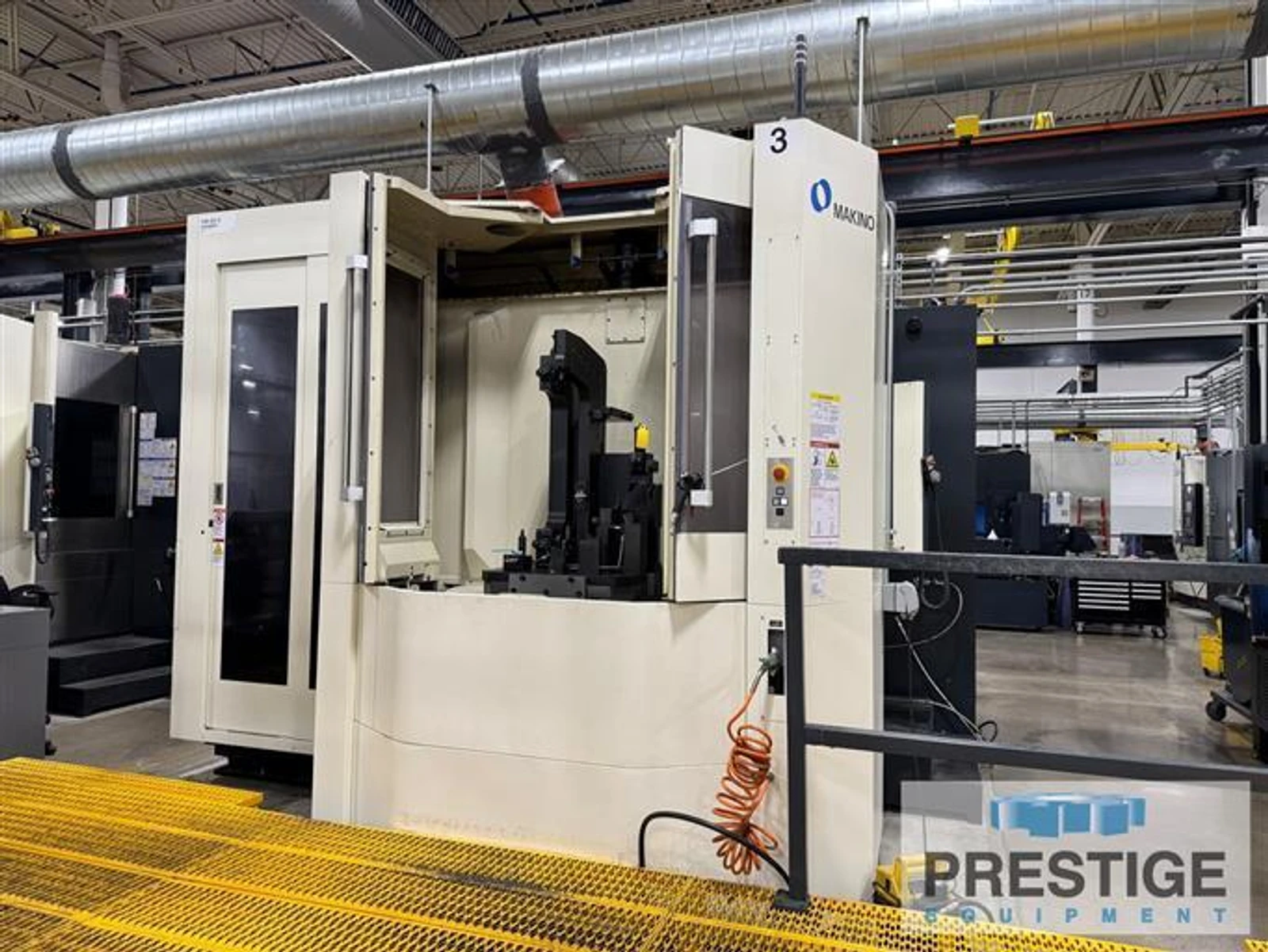

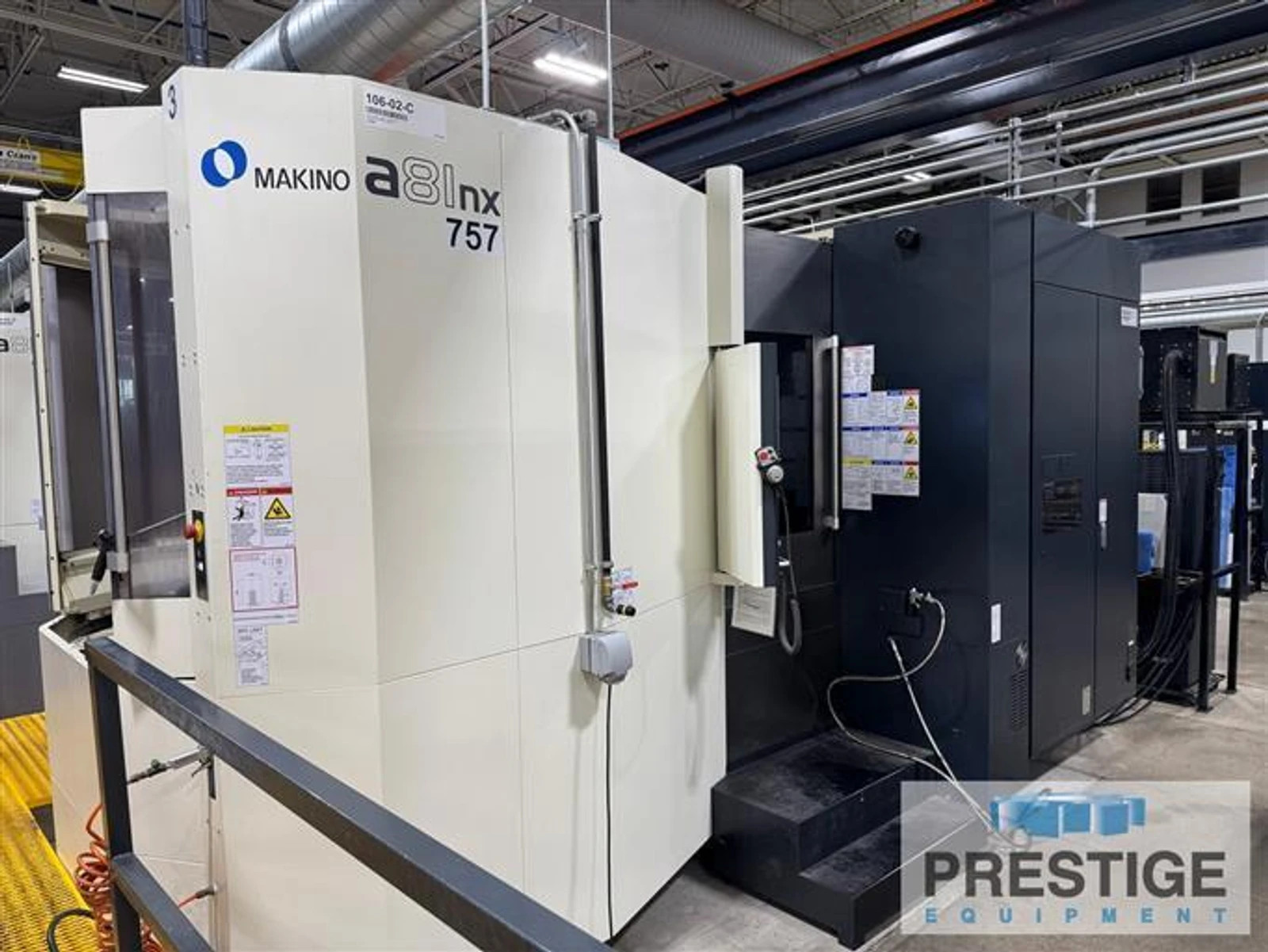

Makino A81NX CNC Horizontal Machining Center

SPECIFICATIONS:
X-Axis Travel 35.43"
Y-Axis Travel 35.43
Z-Axis Travel 40.15"

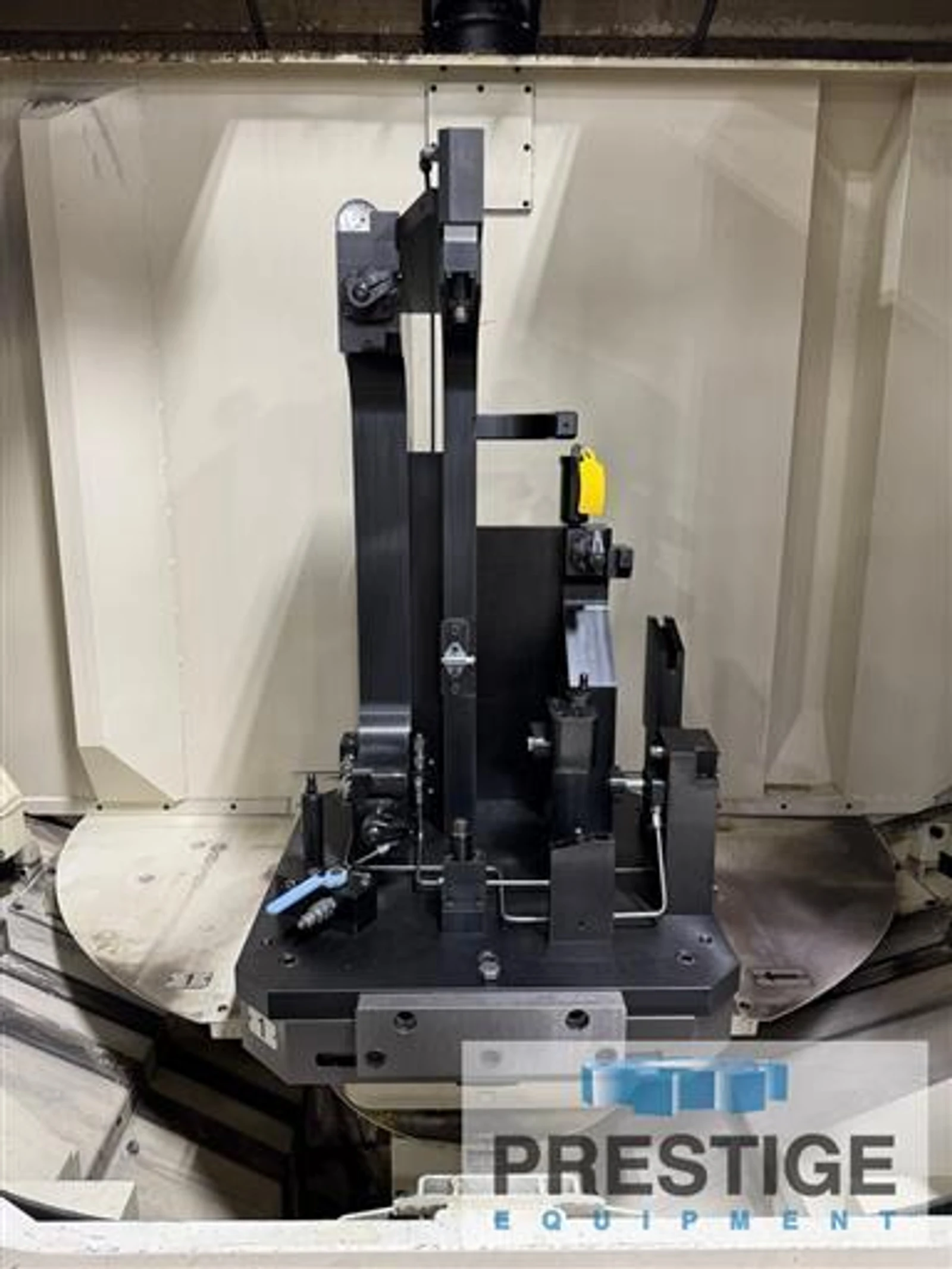

Pallet Size 24.8" x 24.8"
Max. Workpiece Size 39.37" x 51.18"
Pallet Rotation 0.001 Degree
Pallet Work Load Capacity 2,640 Lbs.
Spindle Speed 10,000 RPM
Spindle Motor 50 HP

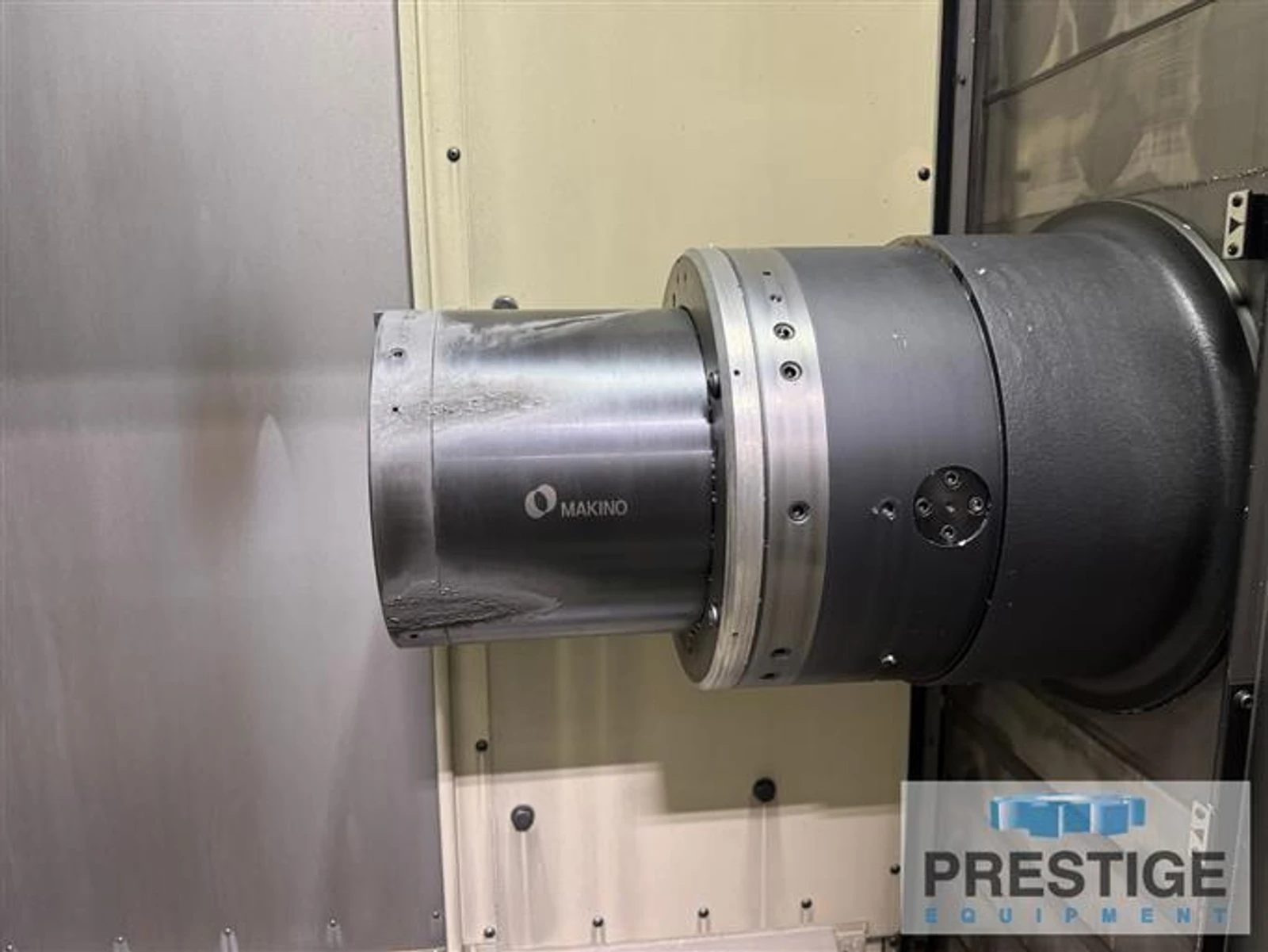

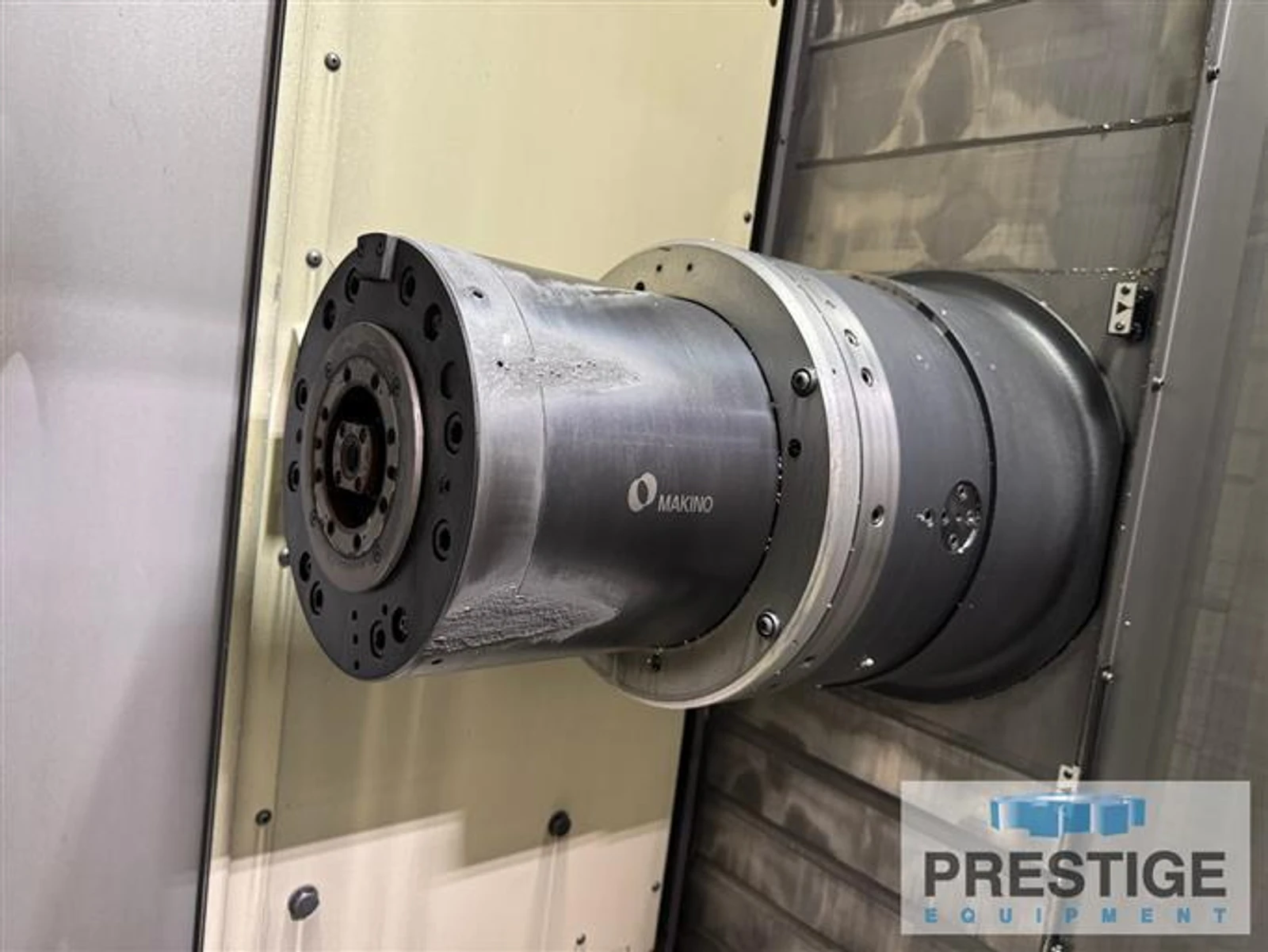

Spindle Taper HSK 100
Tool To Tool 1.7 Seconds
Chip To Chip 3.7 Seconds
Rapid Feed Rate 1968.50 IPM
Max. Tool Length 27.16"
Max. Tool Diameter 14.01"
Max. Tool Weight 66 lbs



Equipped With:

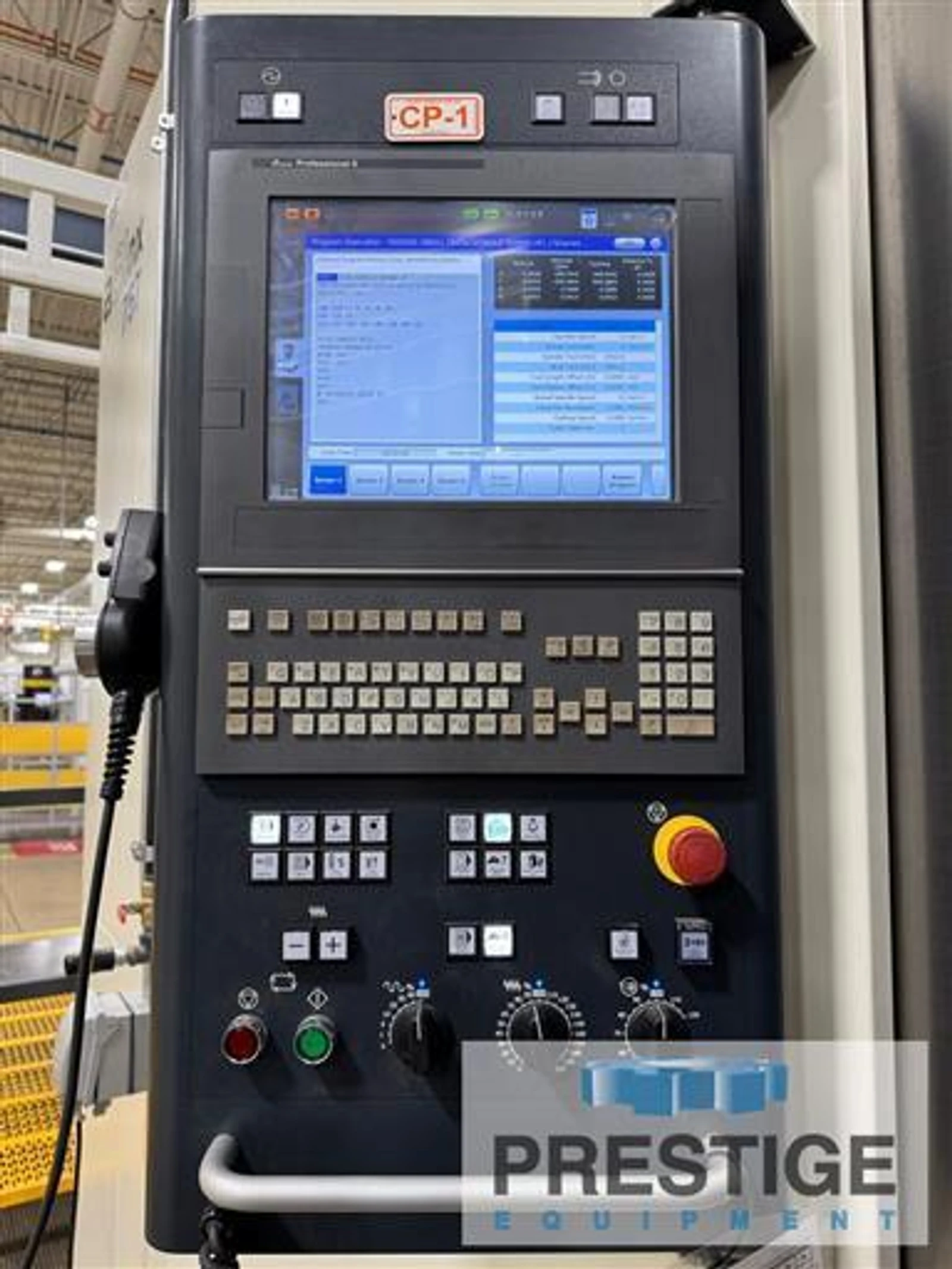

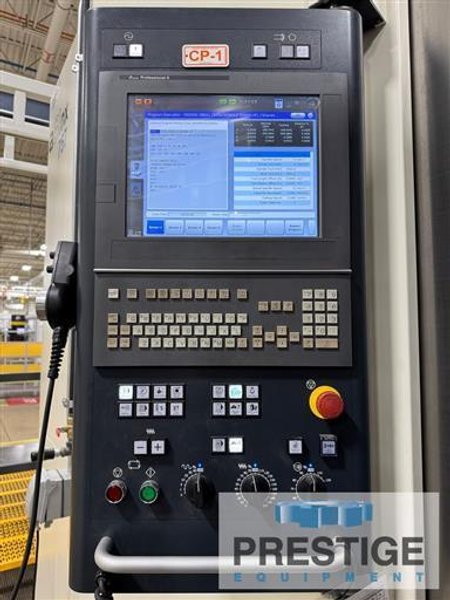

Professional 6 CNC Control

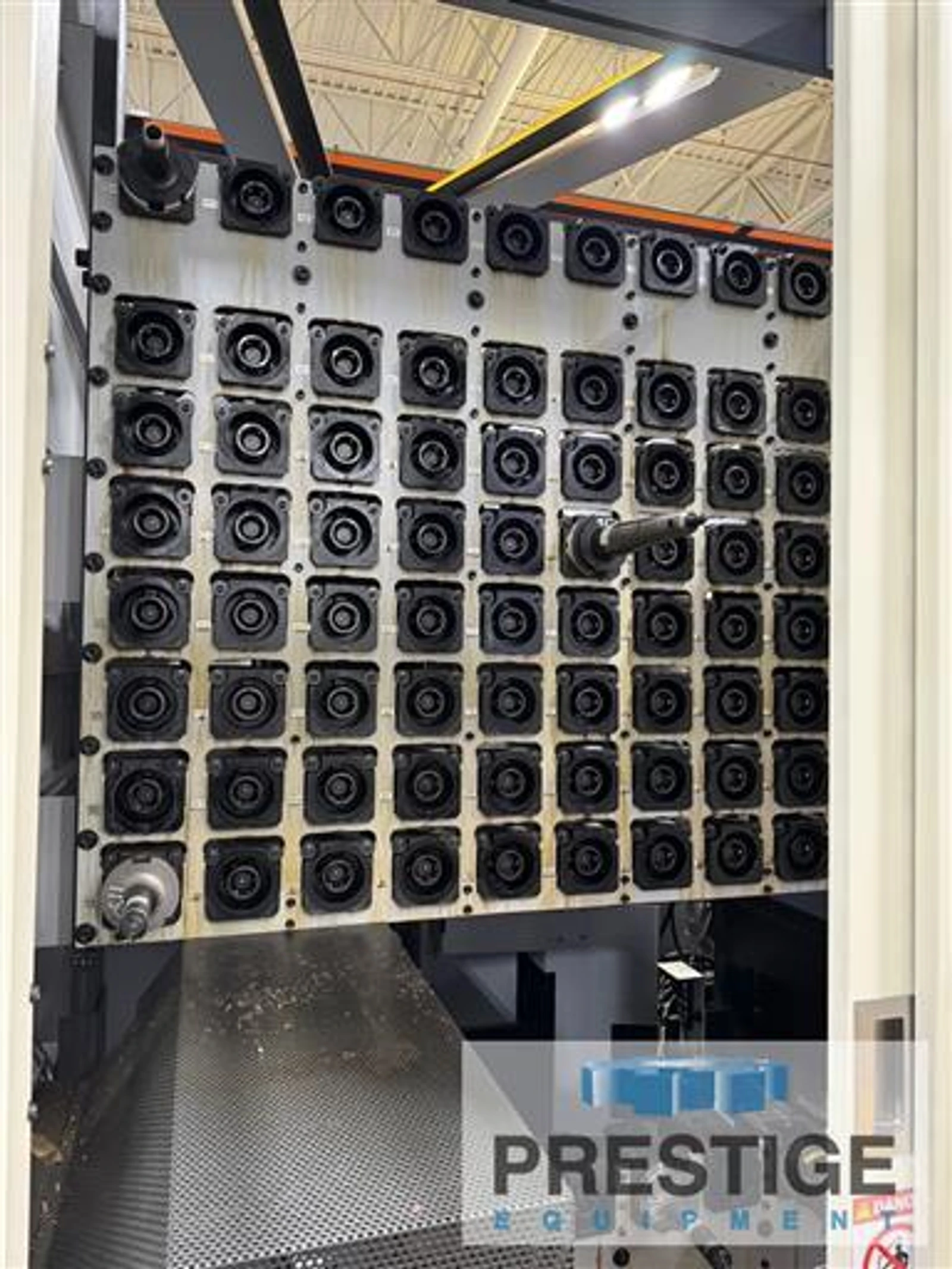

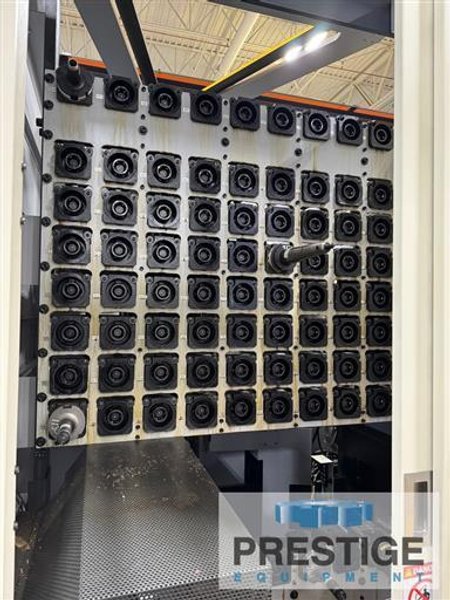

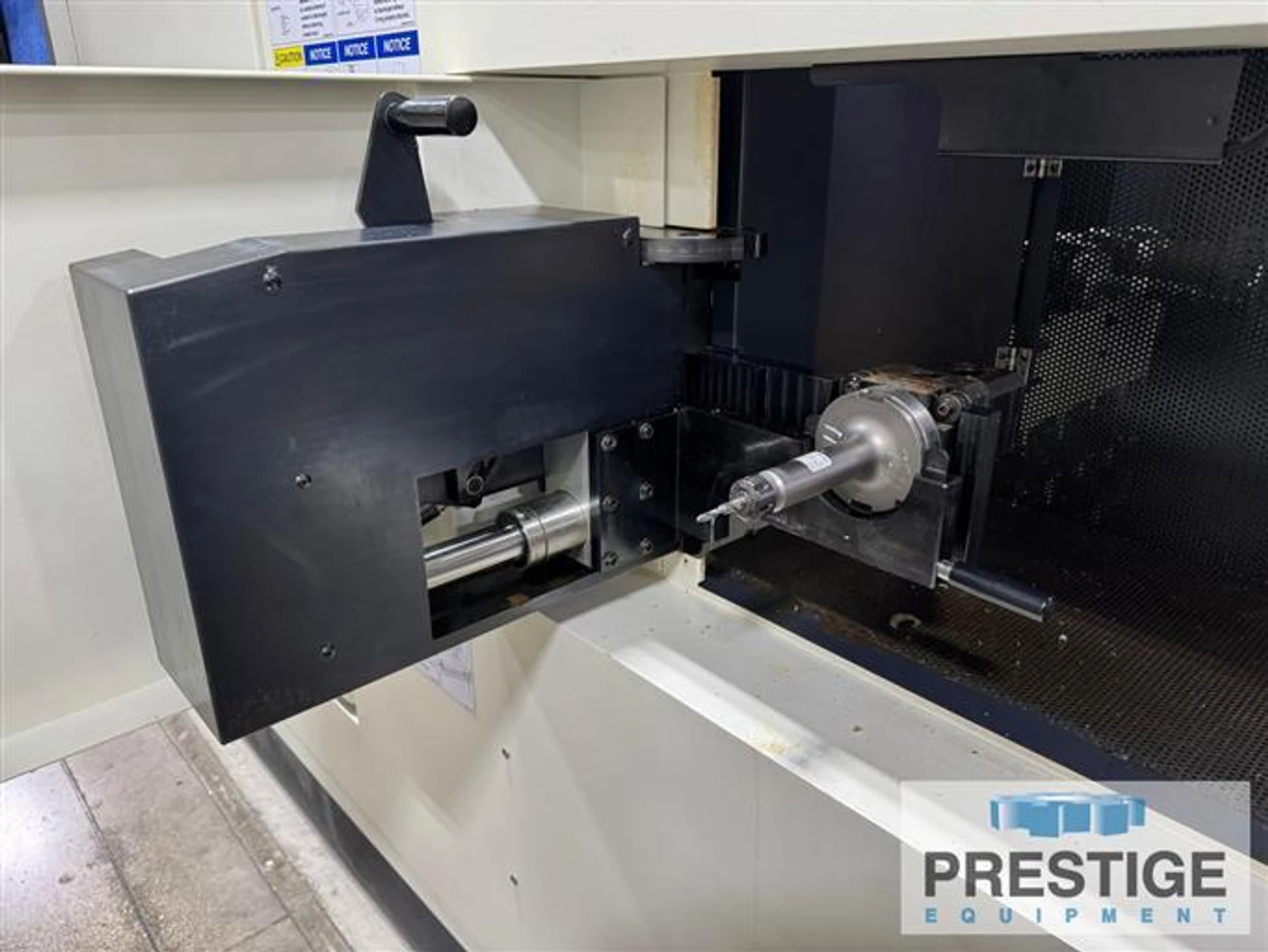

136 Station Automatic Tool Changer
Renishaw RMI-Q

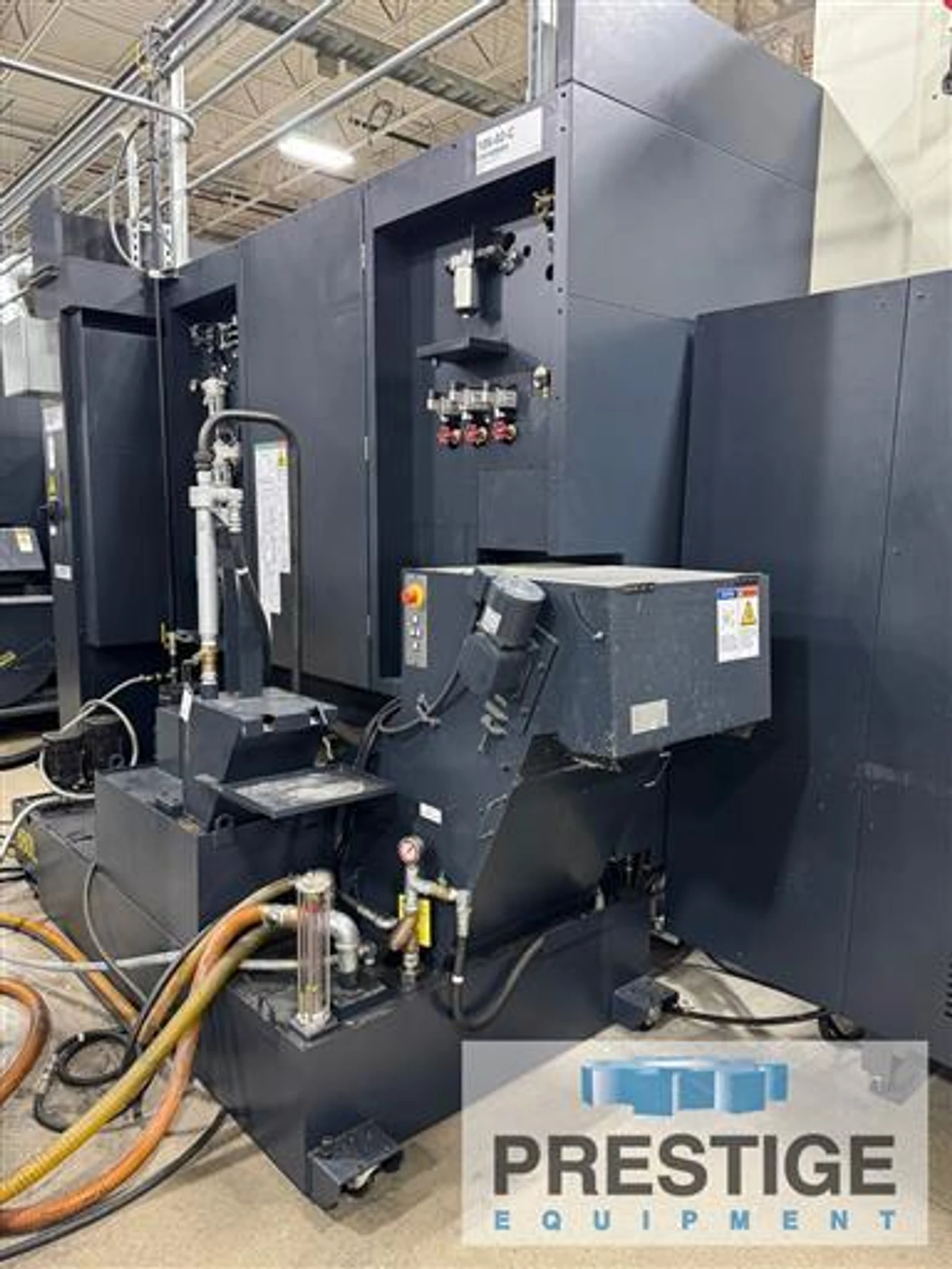

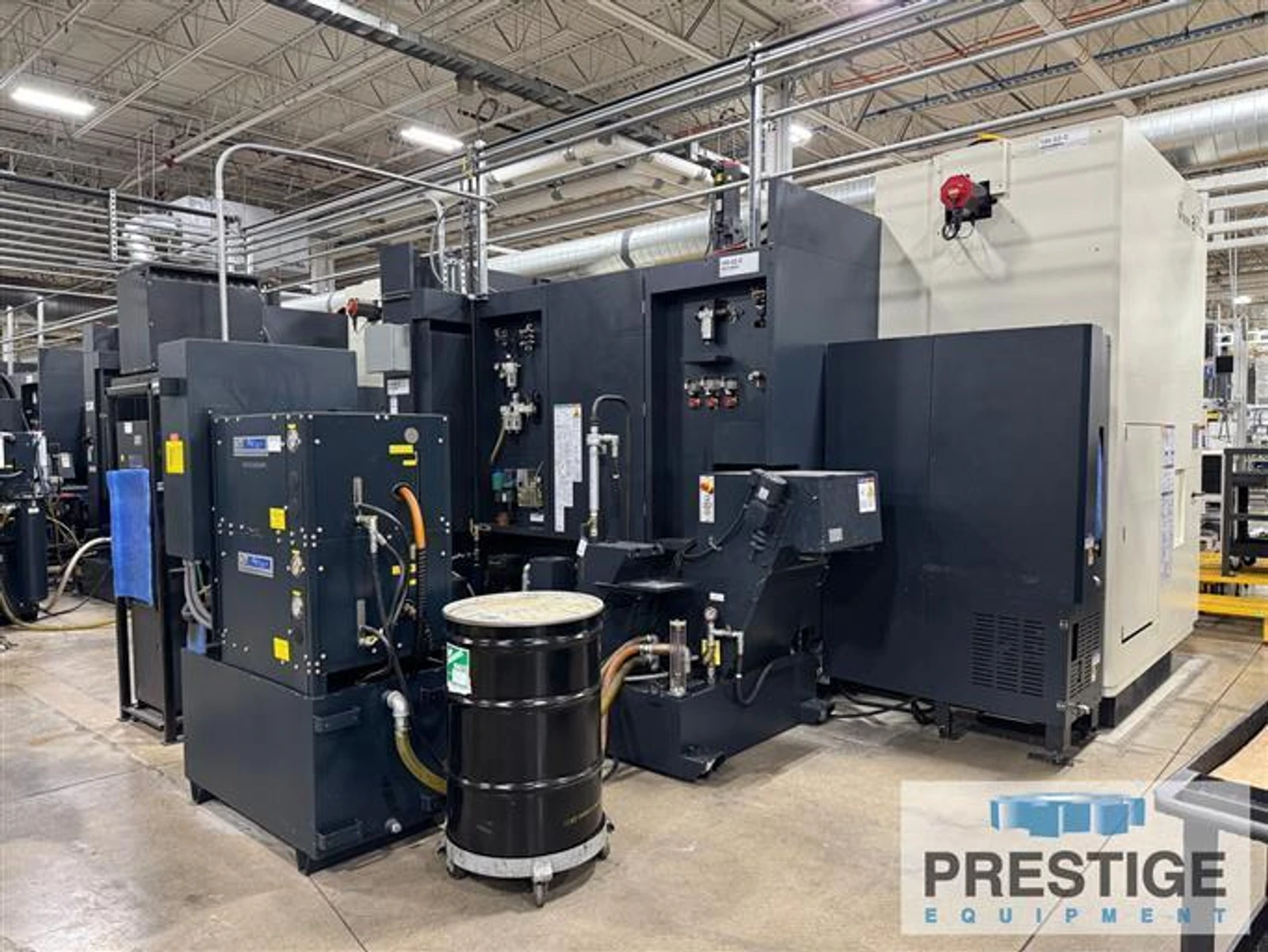

Chip Conveyor with Cyclone Filtration System

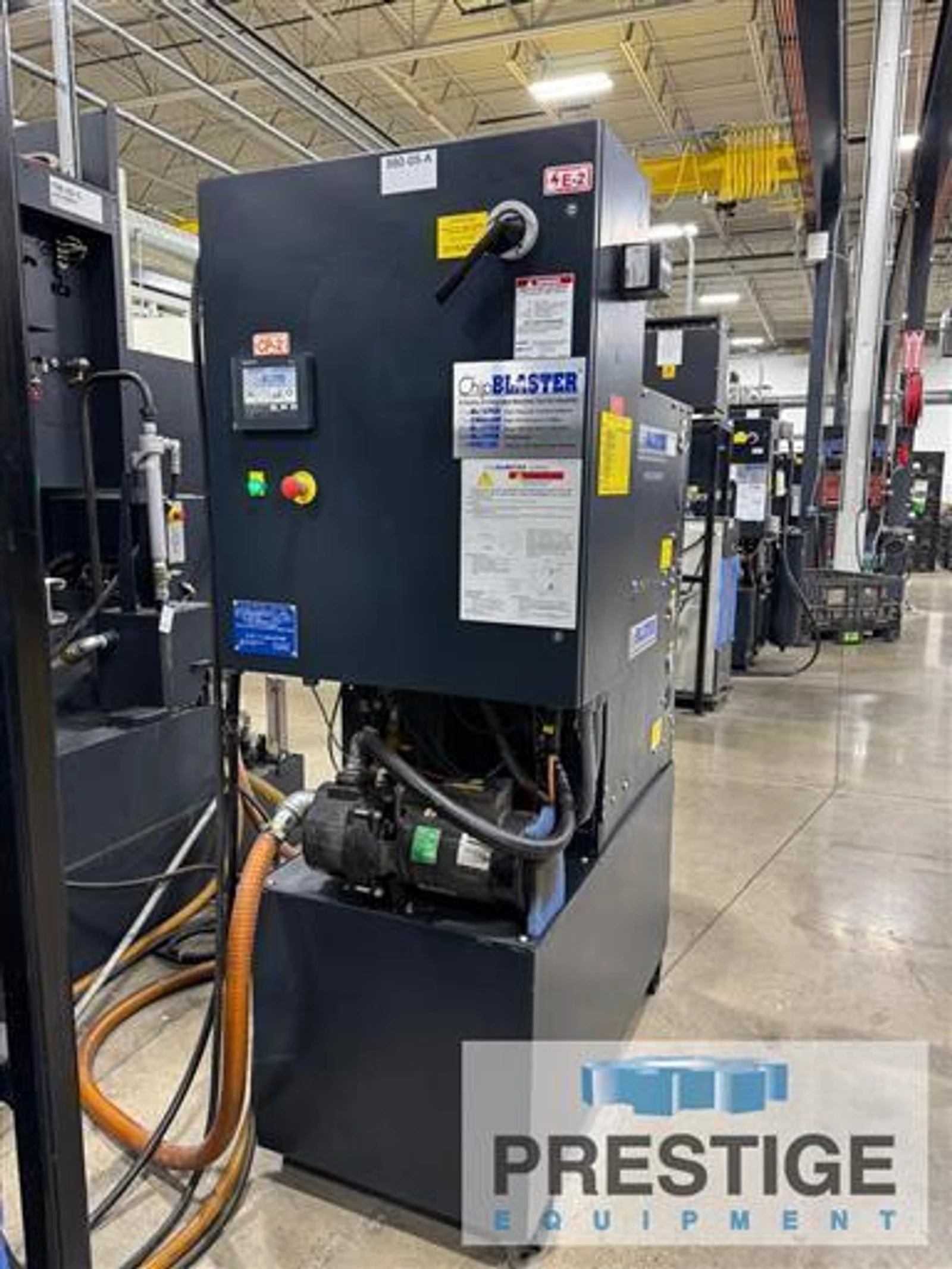

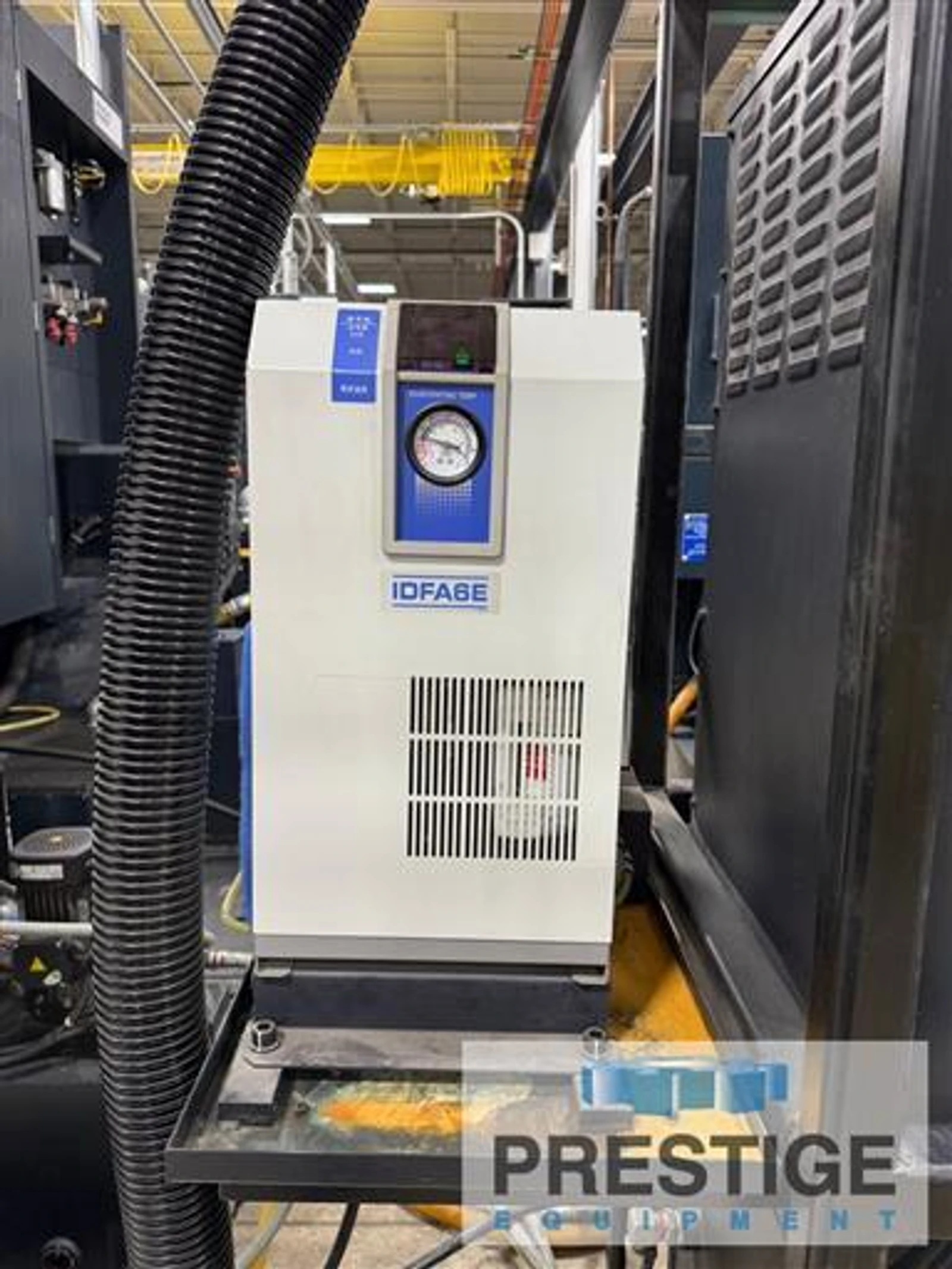

Chip Blaster HV2-60 Chip Blaster SystemSMC IDFA6E Refridgerated Air Dryer
Flood & Shower Type Coolant
Through Spindle Coolant
Oil Chiller Unit
Transformer

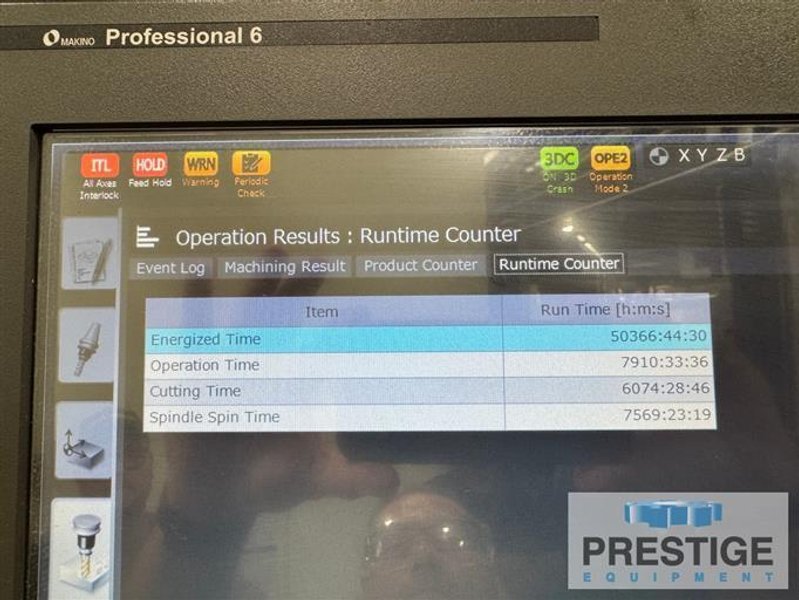

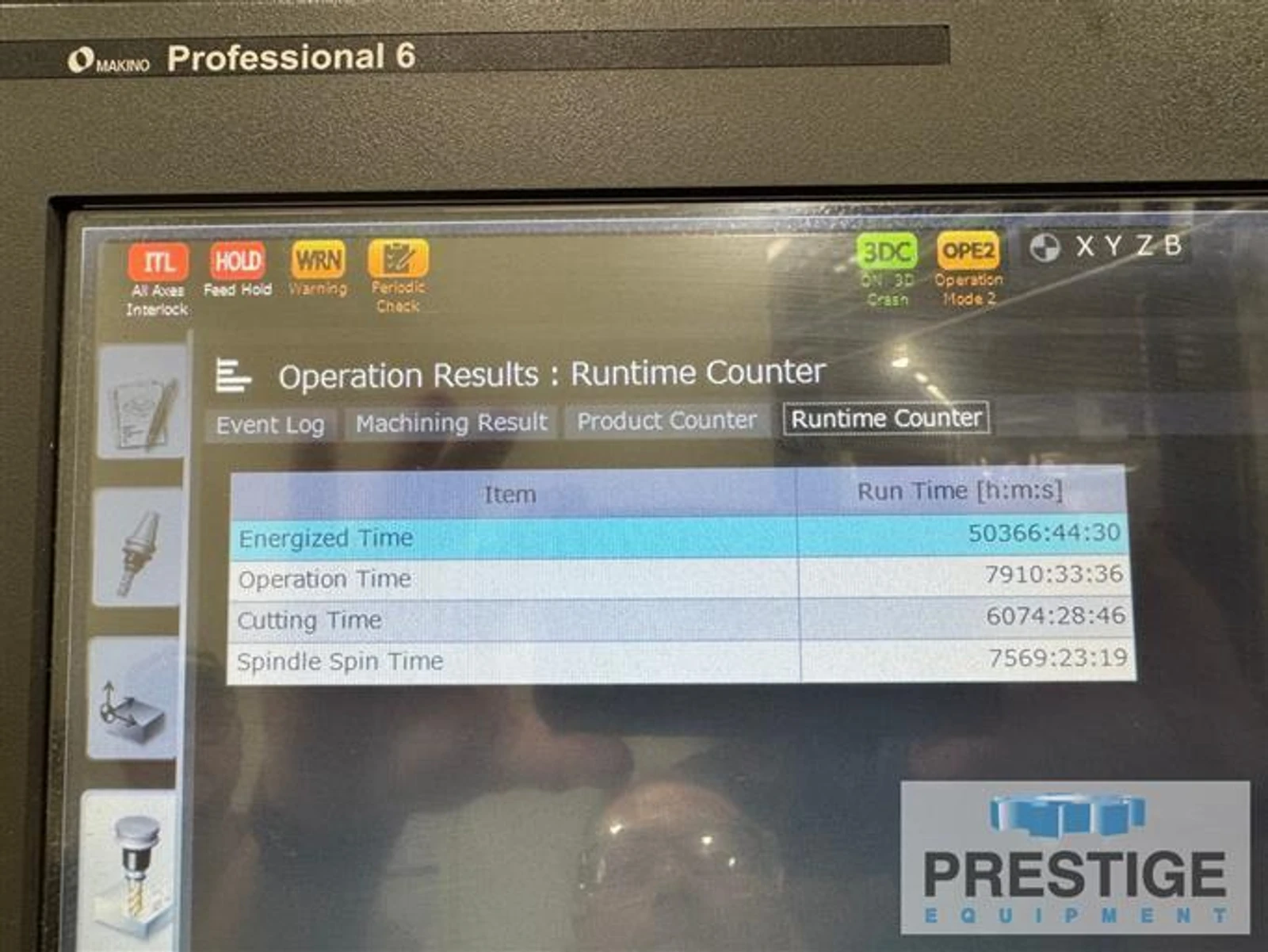

HOURS: 6,074 Cutting Hours


NOTE: Inspect In Plant Under Power
