2005 SODICK AQ750L | EDM, Wire

Name: Used SODICK AQ750L For Sale 33975
Brand: SODICK
SKU: 33975
Availability: PreOrder

Brand

SODICK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

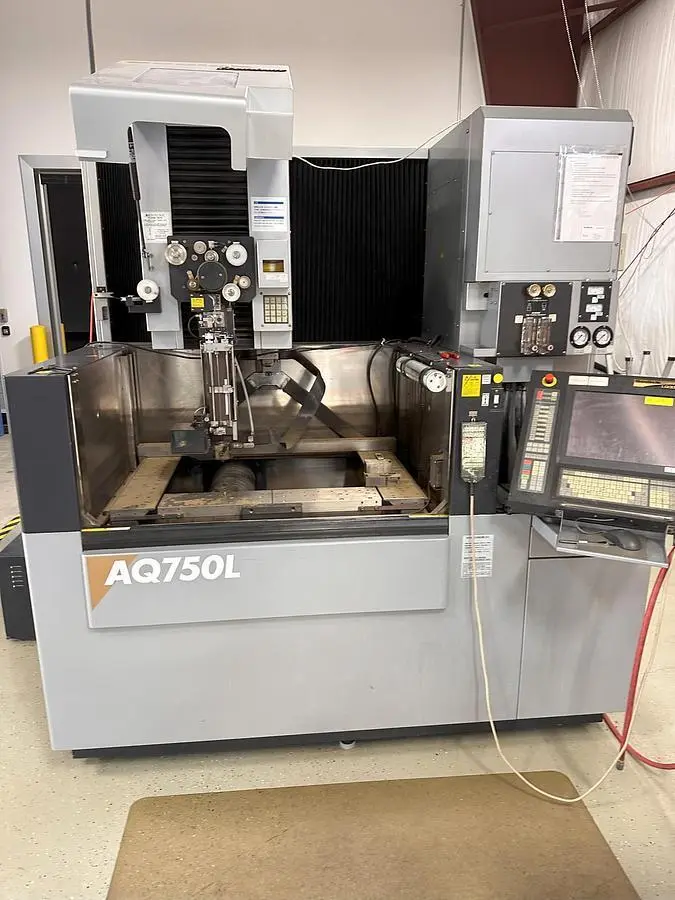

2005 Sodick AQ750L/LQ33W Wire EDM

Specifications

ImperialMetric

X	29.53"	750.06 mm
Y	19.68"	499.87 mm
Z	15.75"	400.05 mm
Auto Threading (Yes/No)	Yes	Yes
Submerged (Yes/No)	Yes	Yes

Equipped With

Sodick AQ750L/LQ33W Wire EDM
New:2005

GENERAL SPECIFICATIONS:
X - Axis Travel: 29.53”
Y - Axis Travel: 19.68”
Z - Axis Travel: 15.75”

U - V Axis Travel: 30.31” X 20.47”
Wire Diameter Range: 0.006” ~ 0.012”
Work Tank Dimensions: 49.7” X 38.31”
Max Workpiece Weight: 3,307 Lbs
Floor to Table Distance: 39.37”
Machine Dimensions: 82.7” X 110.25” X 92.52”
Machine Weight: 11,684 Lbs

Equipped with:

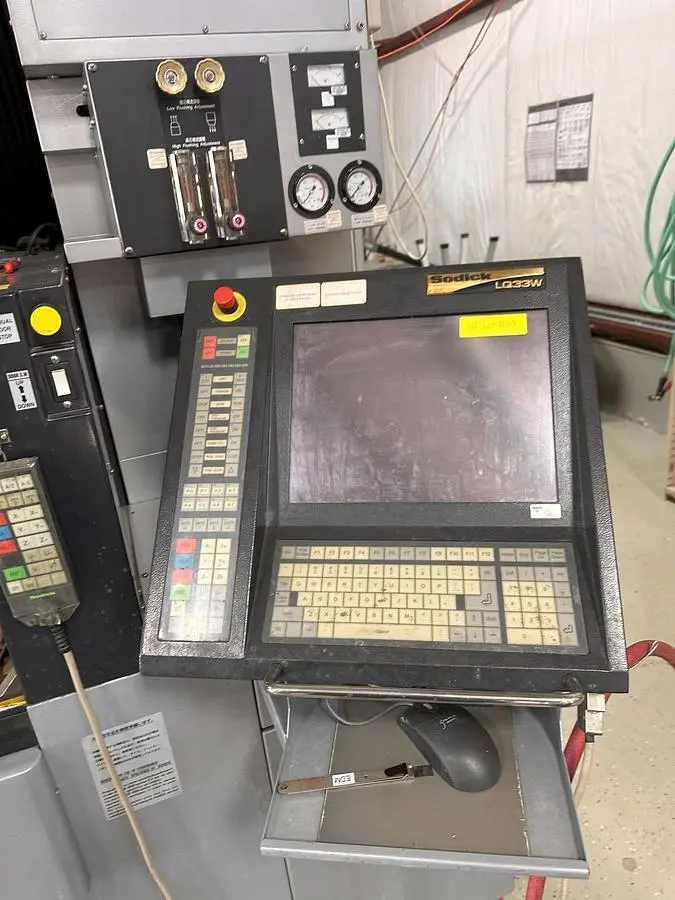

LQ33W CNC Control
Linear Motors (X, Y, U, V Axis)
Premium Circuit

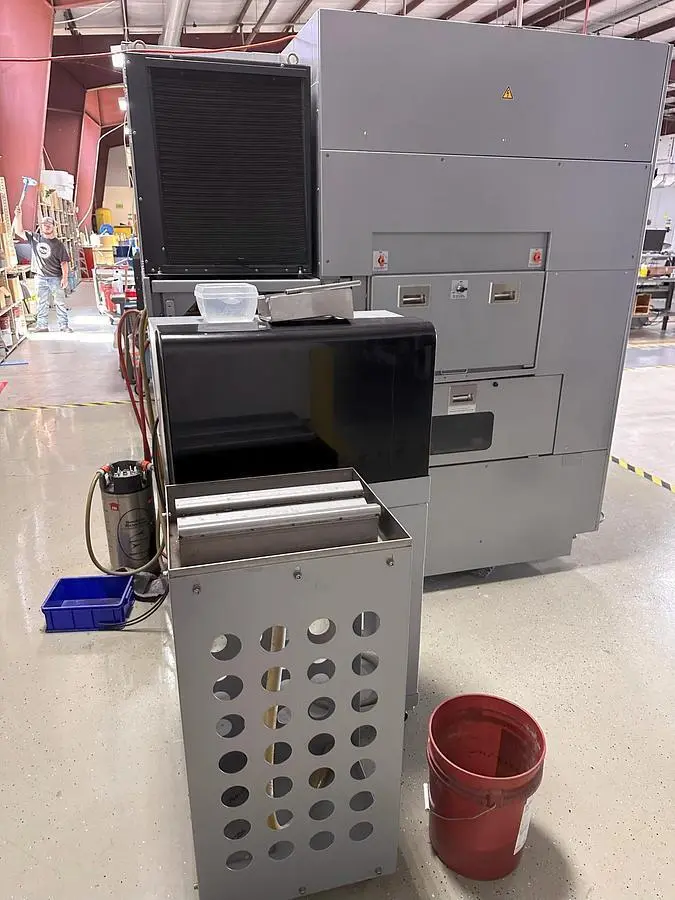

Complete Dielectric Filtration System
Submersible Flushing
AWT and Wire Chopper

No files or videos to display
