1998 Toshiba BTD-110H.R16 | Boring Mills, Horizontal, Table Type

1998 Toshiba BTD-110H.R16 | Boring Mills, Horizontal, Table Type

Name: Used Toshiba BTD-110H.R16 For Sale 33968
Brand: Toshiba
SKU: 33968
Availability: PreOrder

Brand

Toshiba

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

1998 Toshiba BTD-110 R16
55" x 63" Table, CAT 50, 3K RPM, Tosnoc 888, Chip Conveyor & More

Specifications

ImperialMetric

Spindle Size	4.3"	109.22 mm
X-Horiz Tvl of Table	78.7"	1,999 mm
Y-Vert Tvl of Head	59.1"	1,501.1 mm
RPM	3,000 RPM	3,000 RPM
Table-W	55.1"	1,399.5 mm
Table-L	63"	1,600.2 mm
Spindle Tvl.	57.1"	1,450.3 mm

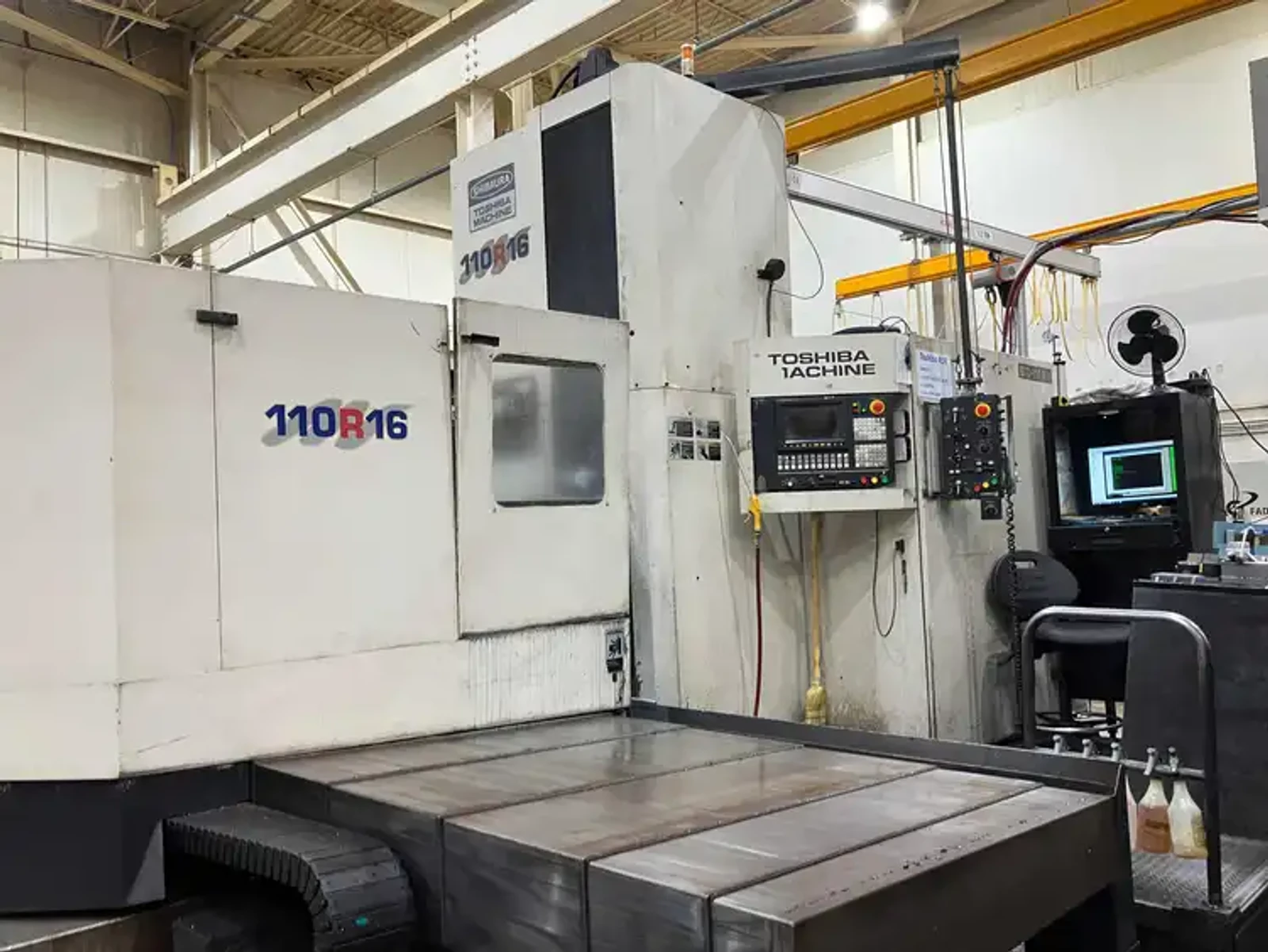

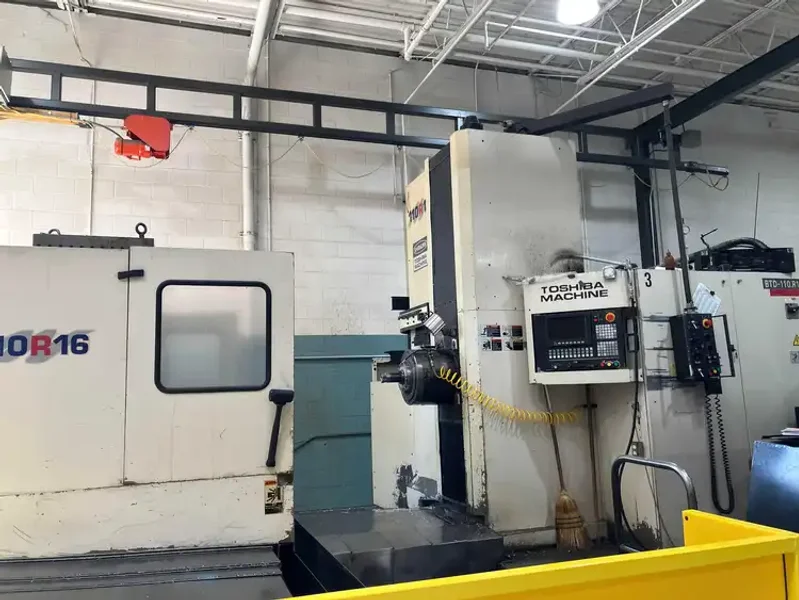

Toshiba BTD 110 R16 4.3" CNC 4-Axis Horizontal Table Type Boring Mill
New: 1998

Specifications:

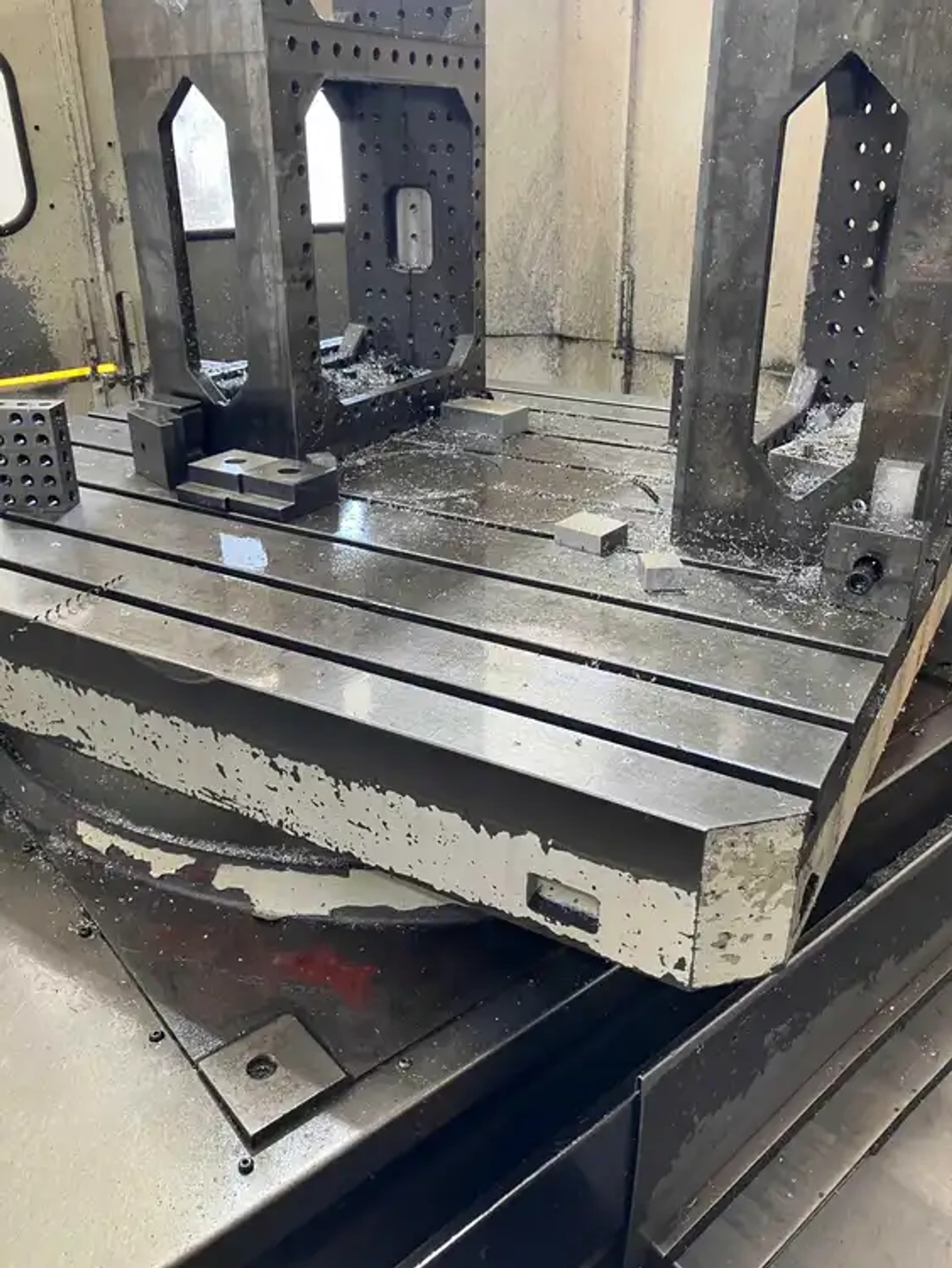

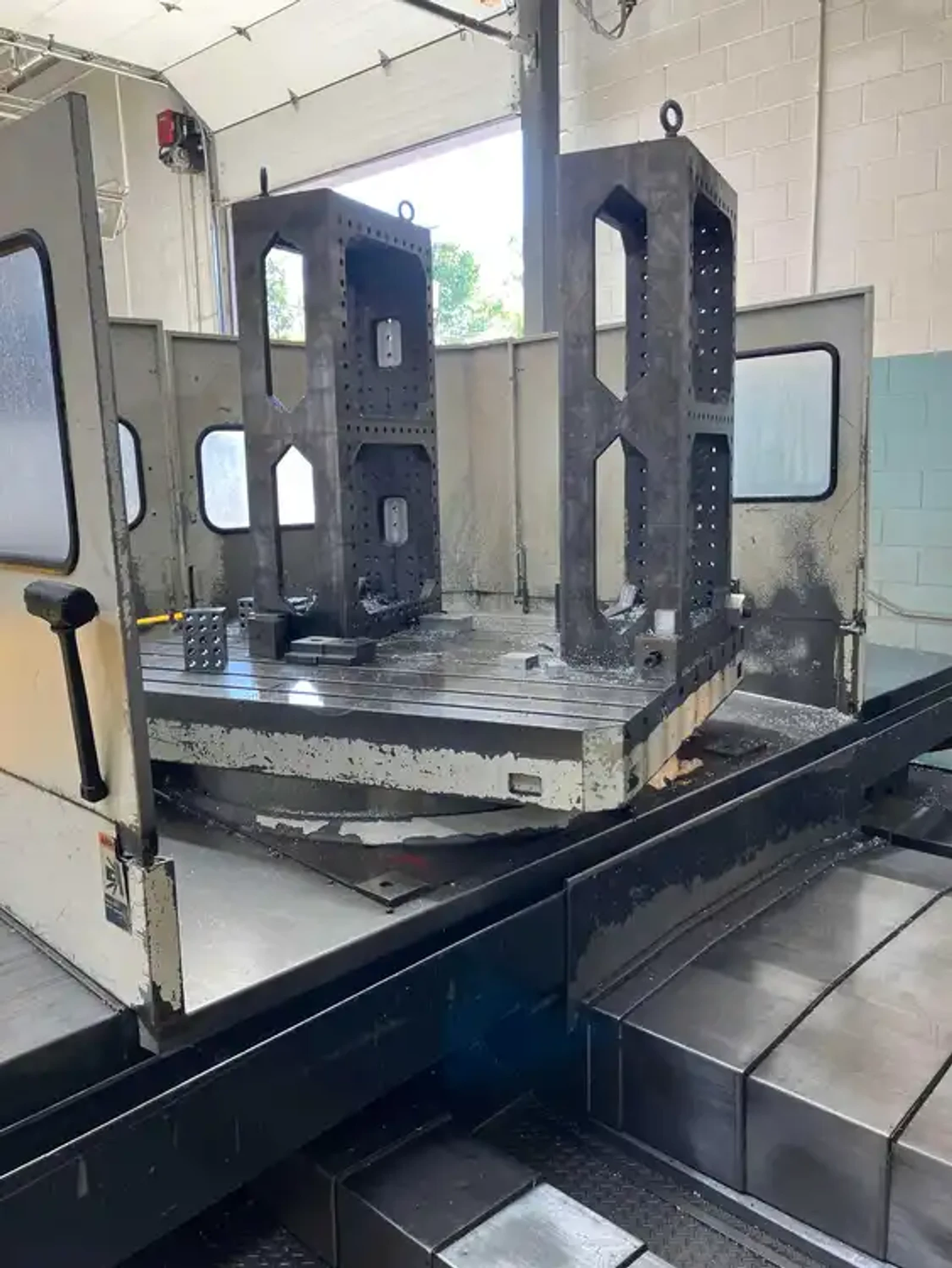

Table Size 55.1" x 63"
Table Load Capacity 20,000 Lbs.

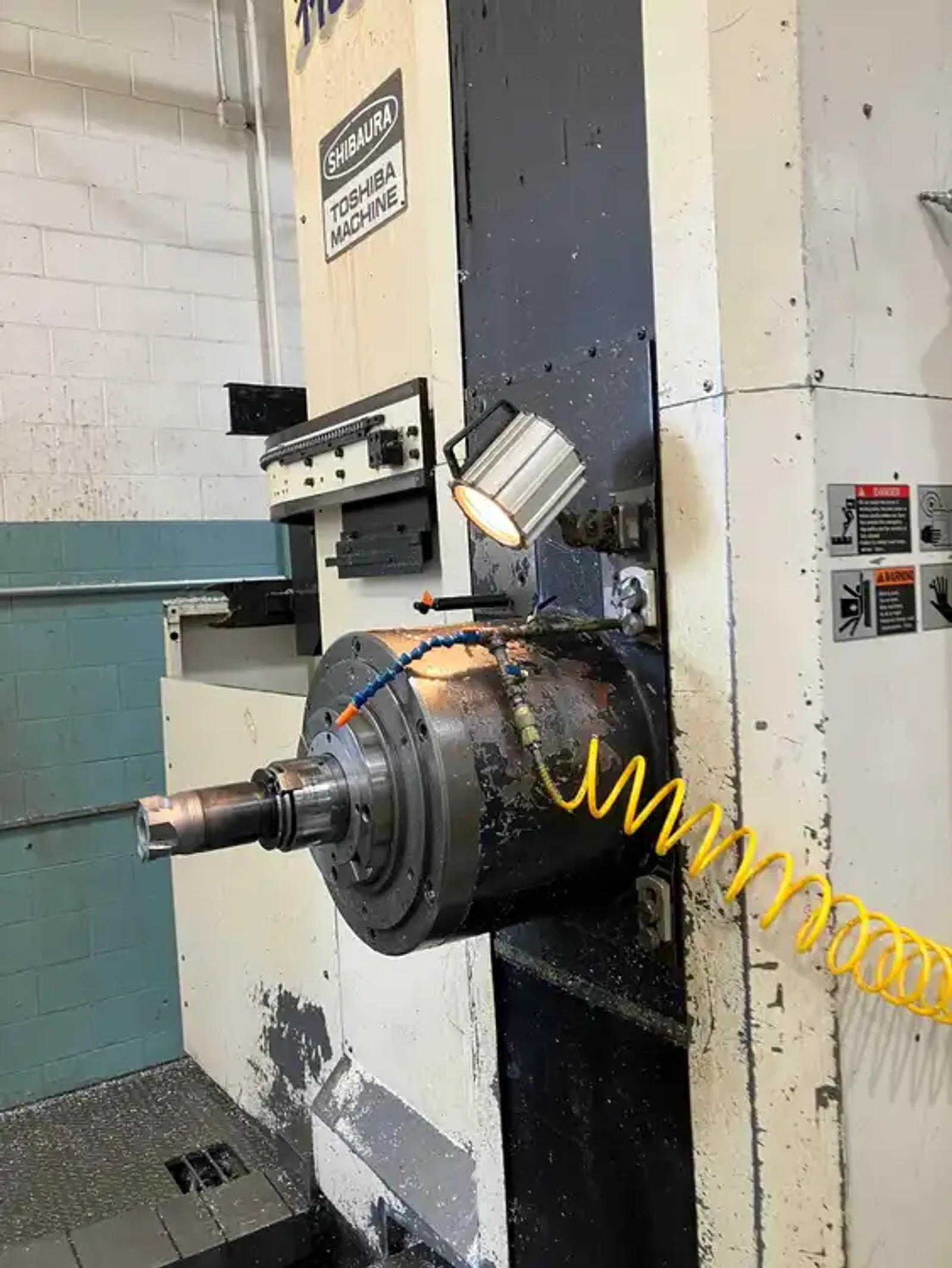

Spindle Diameter 4.3"
Spindle Taper CAT #50
Spindle Speed 3000 RPM
Main Motor 40/30 HP AC
X - Axis Travel 78.7"
Y - Axis Travel 59.1"
Z - Axis Travel 57.1"
W - Axis Travel 19.7"
B - Axis Travel Contouring .001 (360,000)
Cutting Feed Rate .04- 393 IPM
Rapid Feed Rate 472.4 IPM

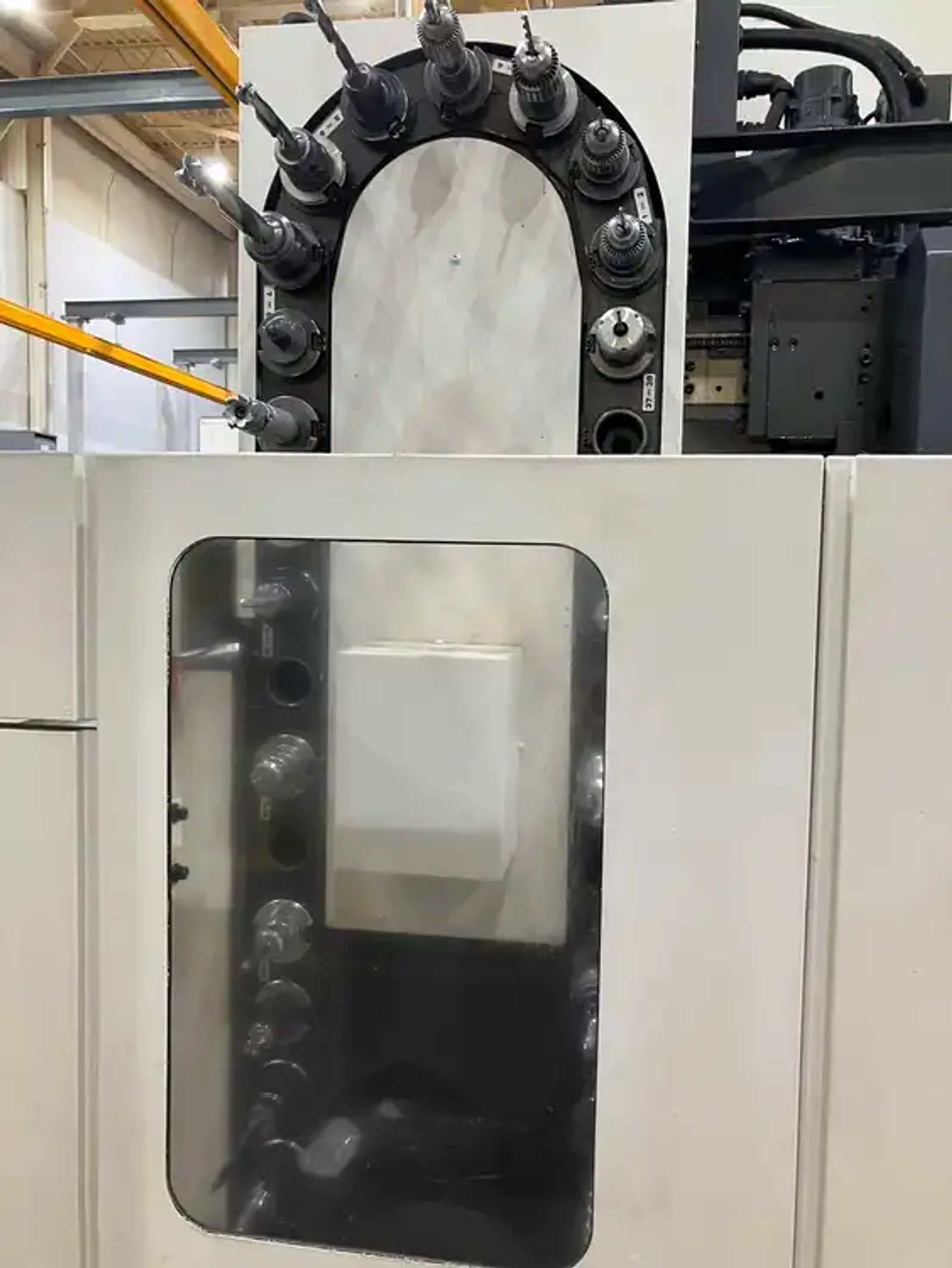

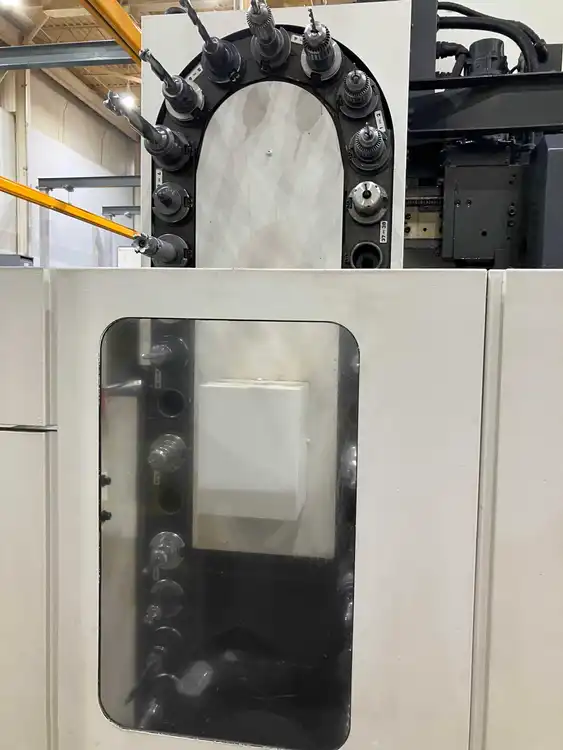

Tool Changer Capacity 38 ATC
Max Tool Dia. 4.9" / 9.4"
Max Tool Length 15.75"
Max.tool Weight 55 LBS.
Machine Weight 66,800 LBS

Equipped With:

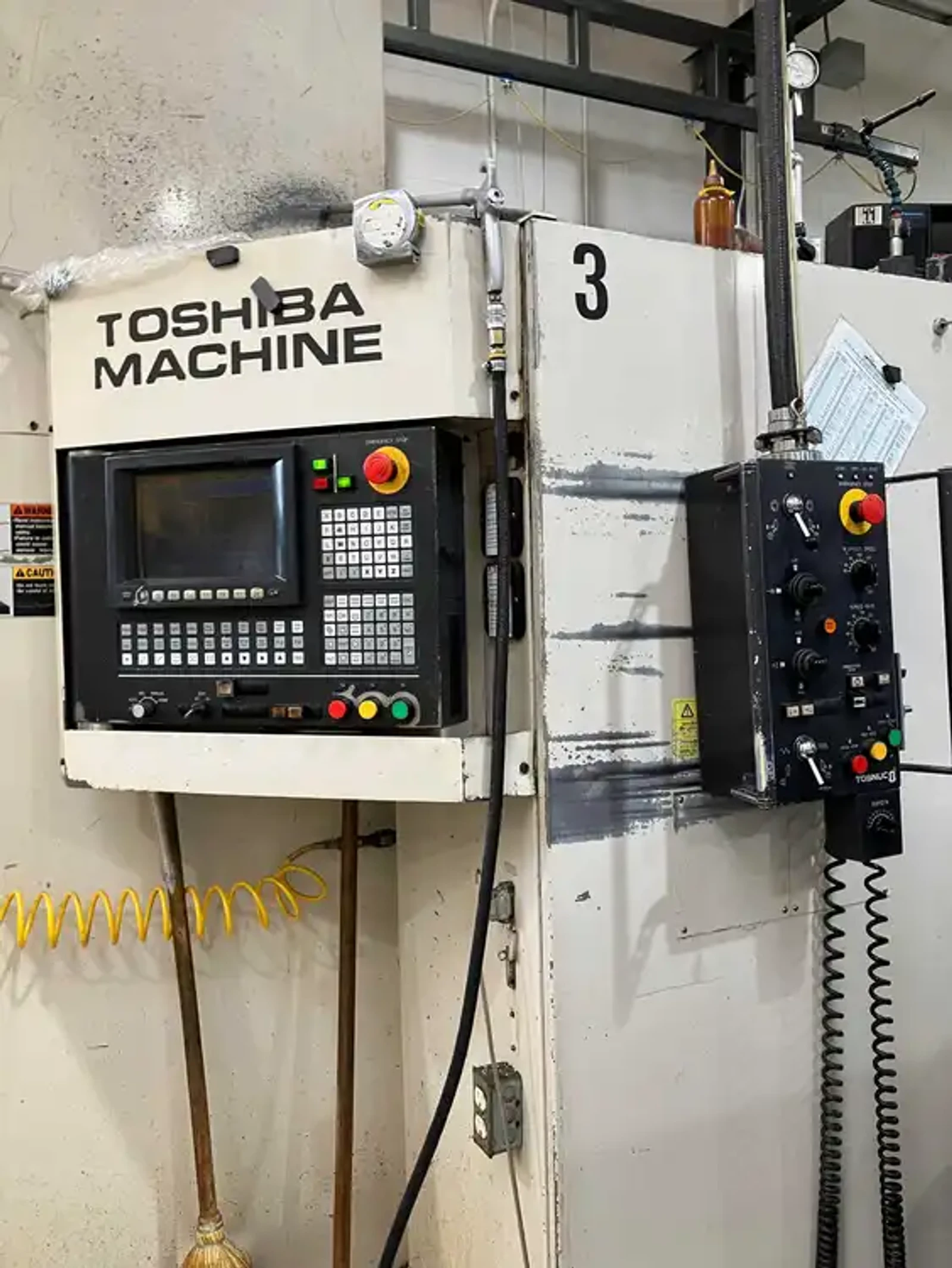

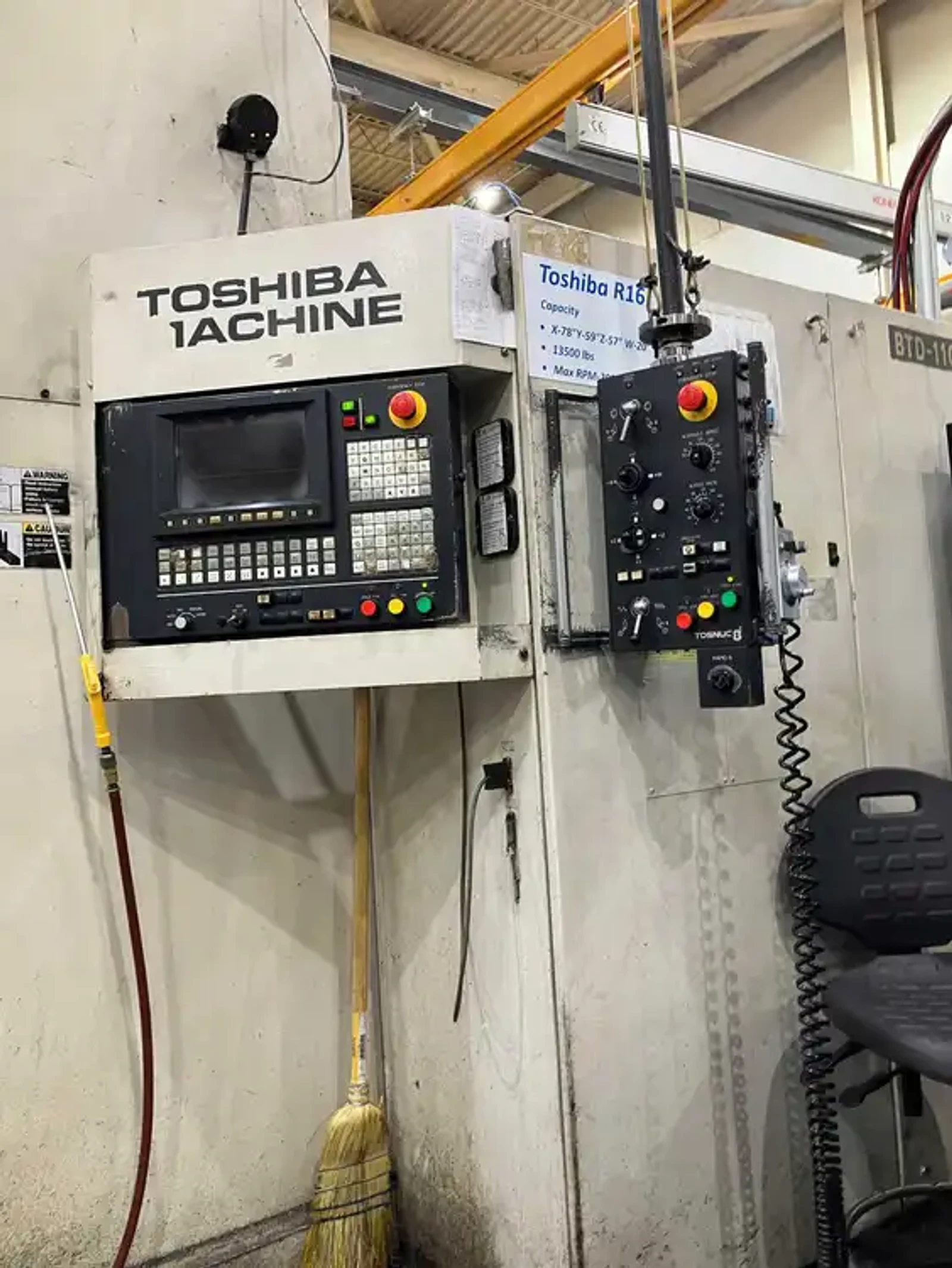

TOSNUC 888 CNC COntrol
Chip Conveyor
Coolant Thru Spindle
Manuals
Operators Platform
Shape Option
Table Enclosures
