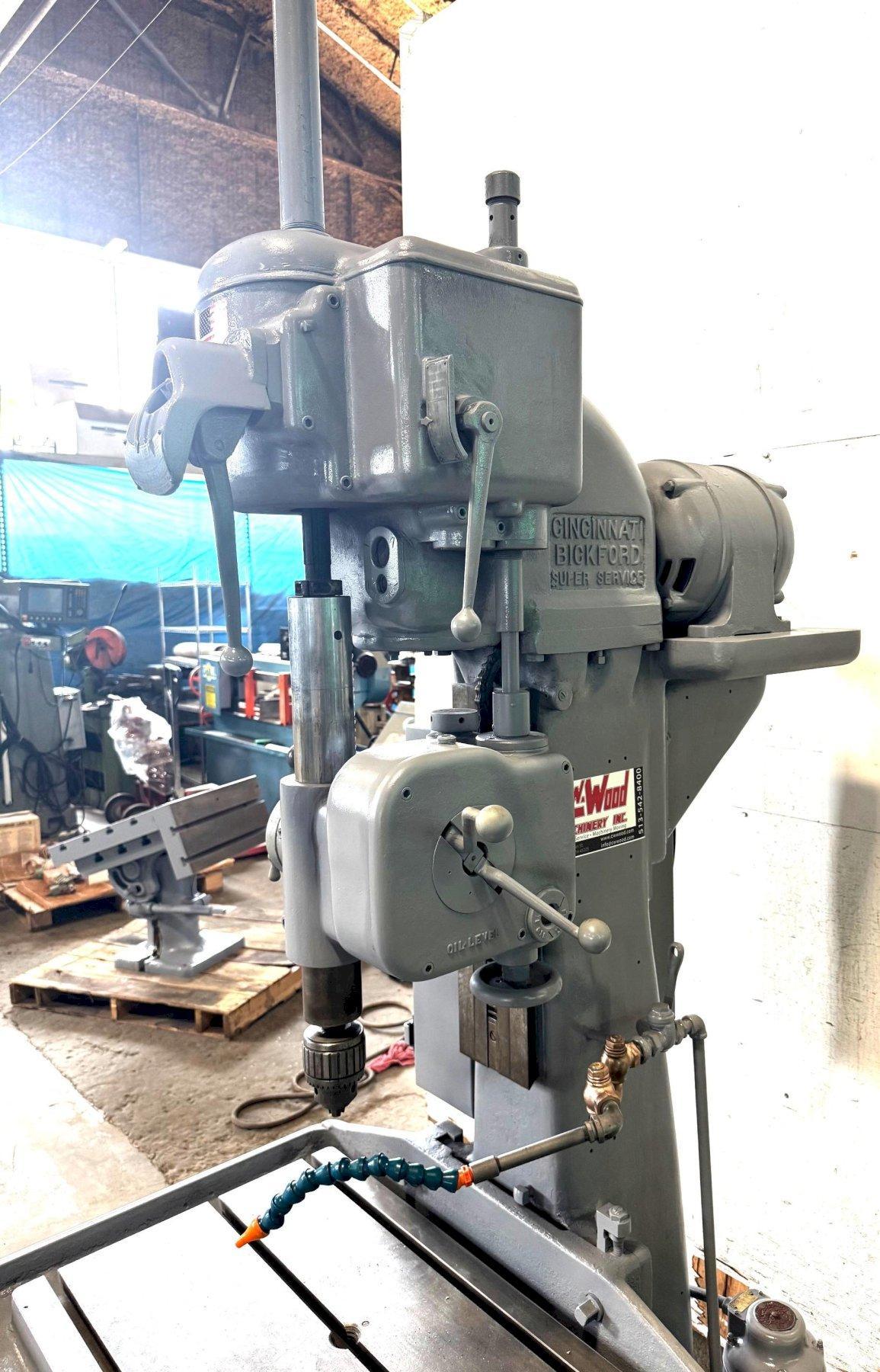

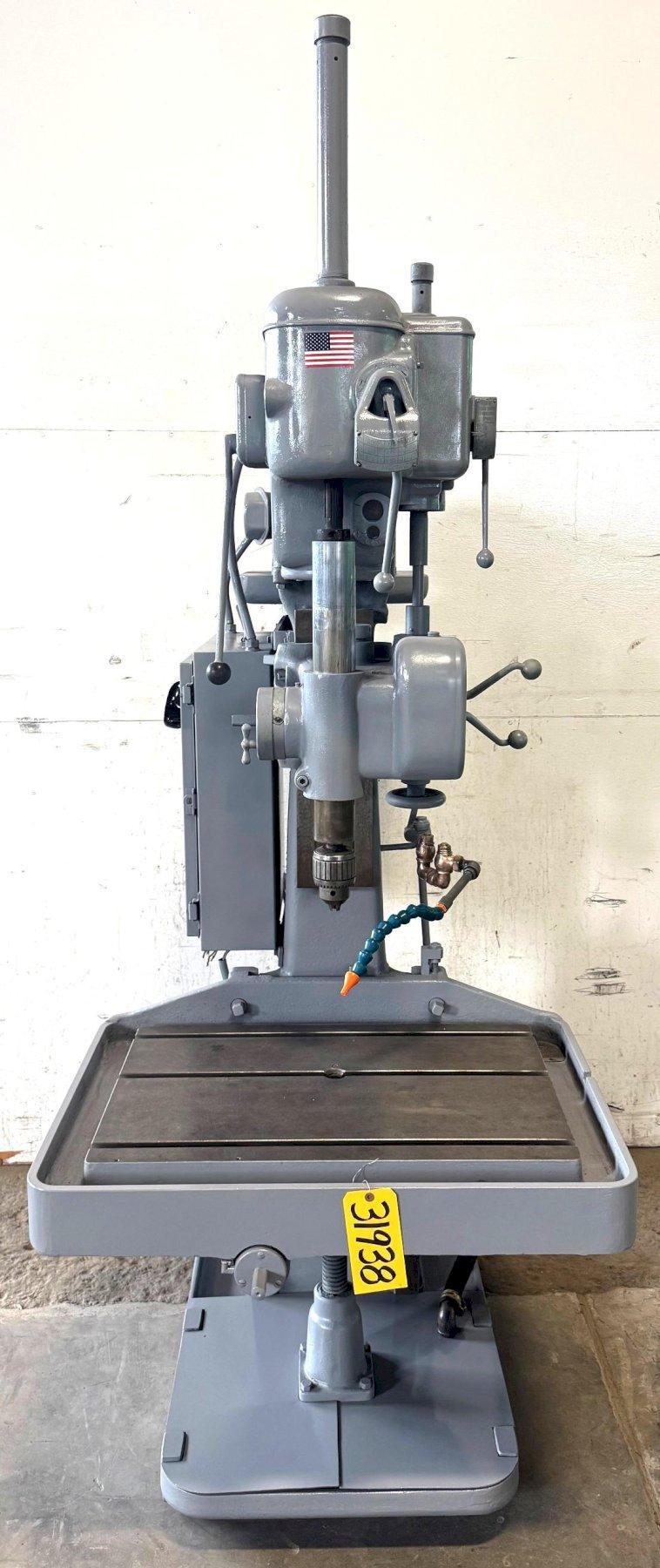

21" Cincinnati-Bickford Single Spindle Drill, 75-1500 RPM, 4 M.T., Coolant, 3 HP, Clean

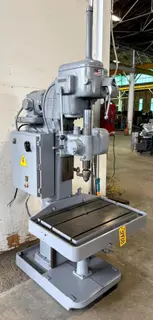

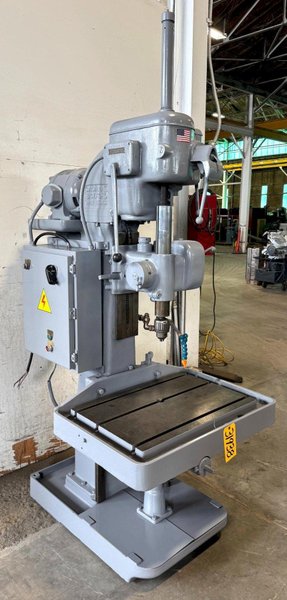

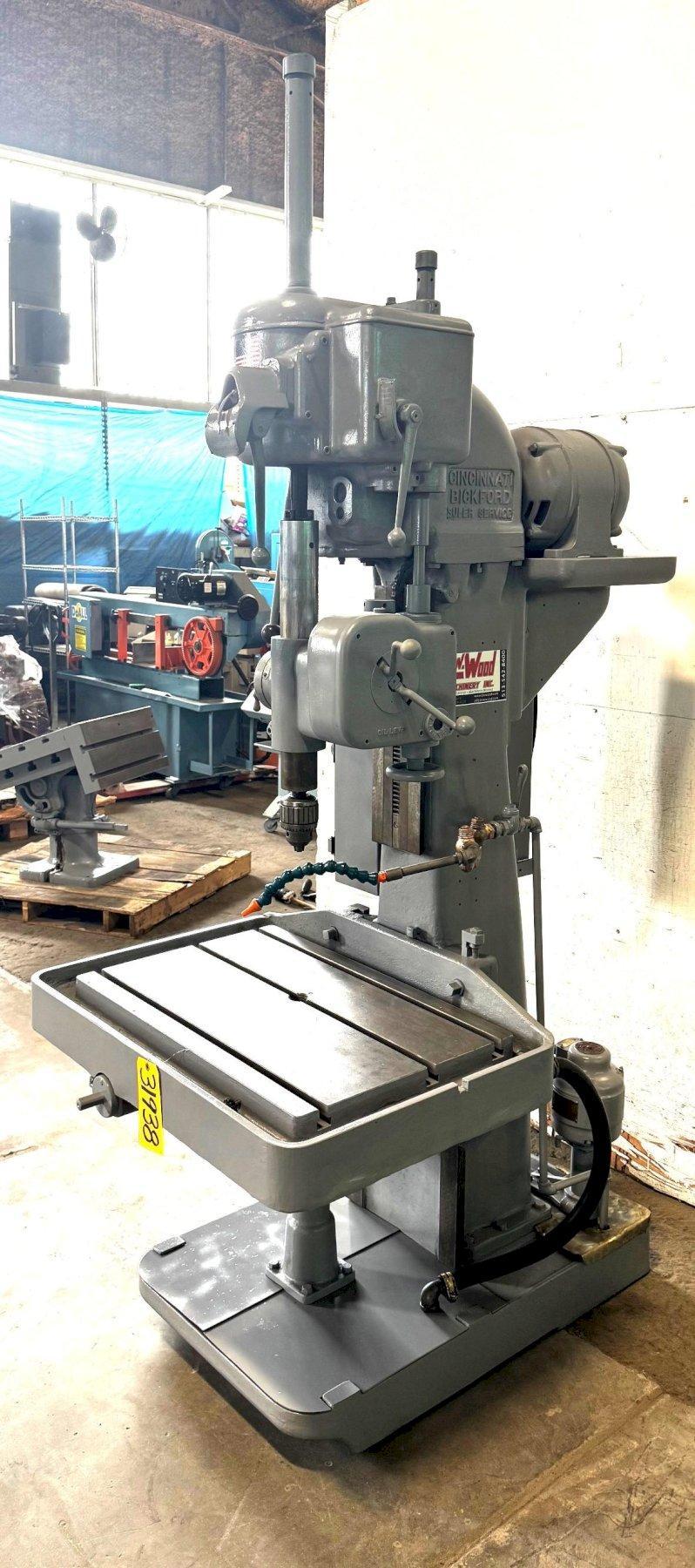

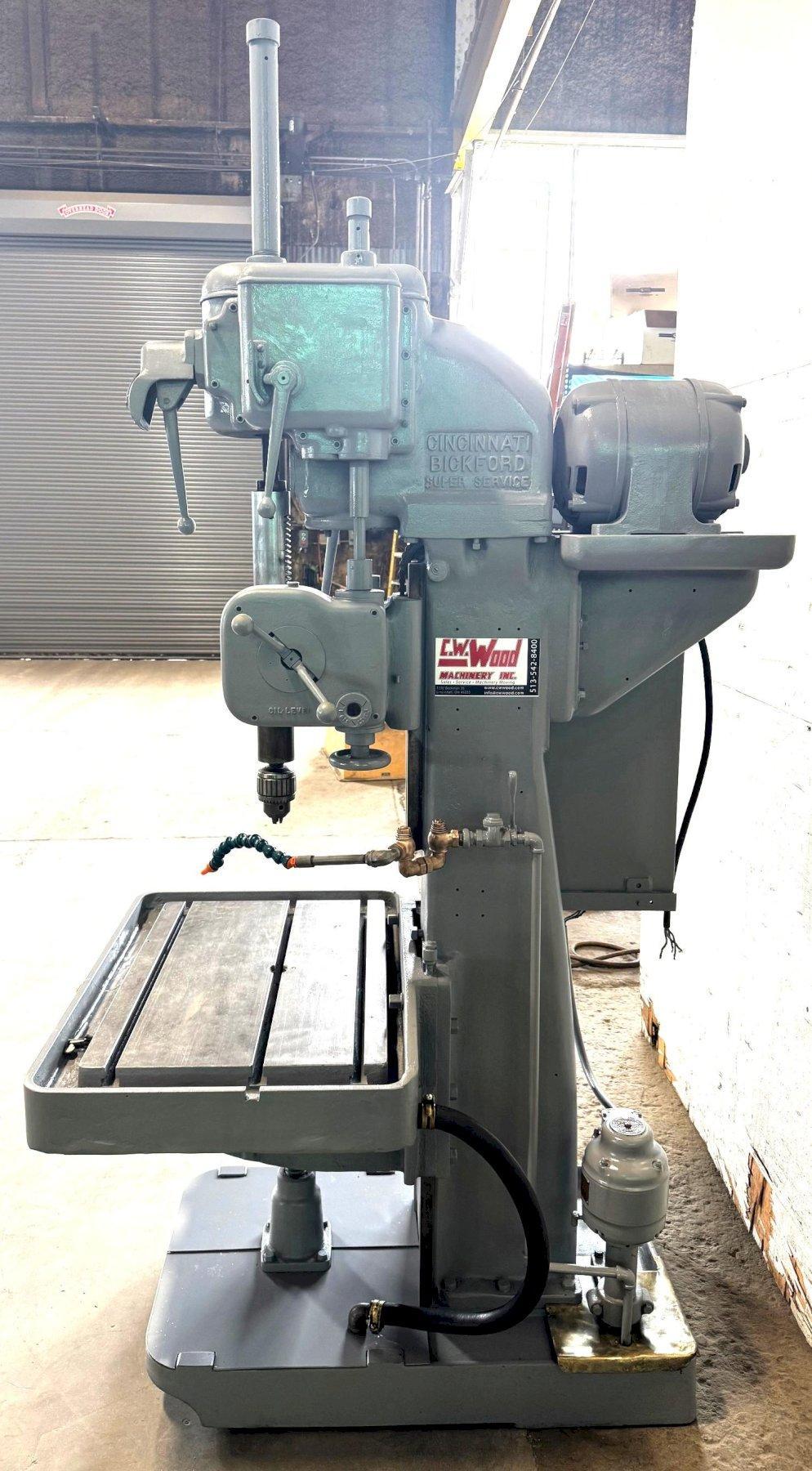

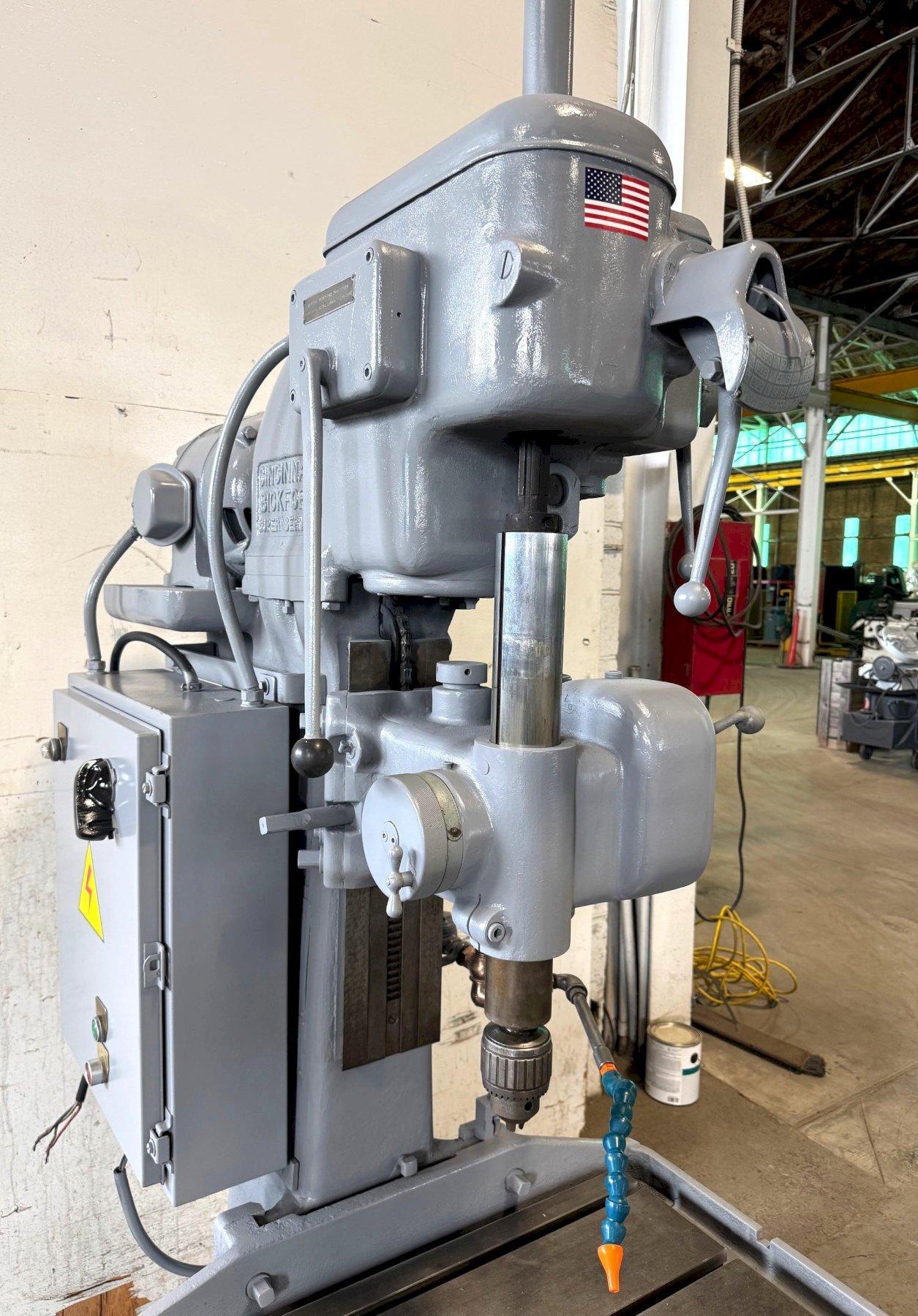

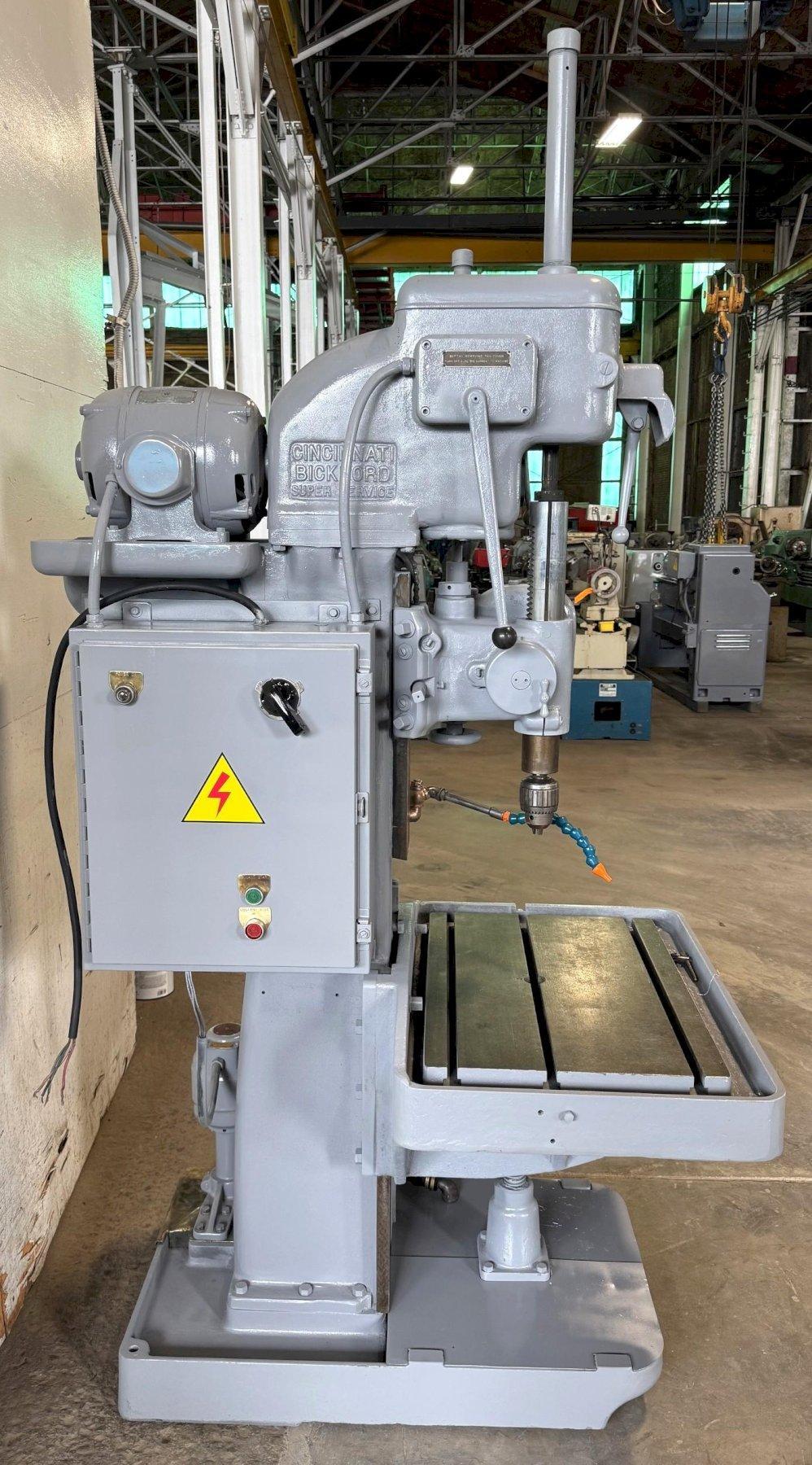

CINCINNATI BICKFORD SINGLE SPINDLE DRILL

MODEL: 21" Super Service
SERIAL NUMBER: 1L 925

GENERAL SPECIFICATIONS

Capacity Swing, Center Of Spindle To front Of Lower Column: 11"
Capacity Swing, Center Of Spindle To front Of Upper Column: 10"
Maximum Distance From Spindle To Finished Surface Of Base: 3'-8-3/4"
Minimum Distance, Spindle To Finished Surface Of Base: 22-3/4"
Maximum Distance From Spindle To Table: 32-1/4"
Minimum Distance, Floor To Table Top, Table In Lowest Position: 17-3/4"
Vertical Adjustment Of Table: 11-1/4"
Vertical Adjustment Of Sliding Head: 12"
Vertical Travel Of Spindle By Power Feed: 9-3/4"
Vertical Travel Of Spindle By Hand Feed: 10"

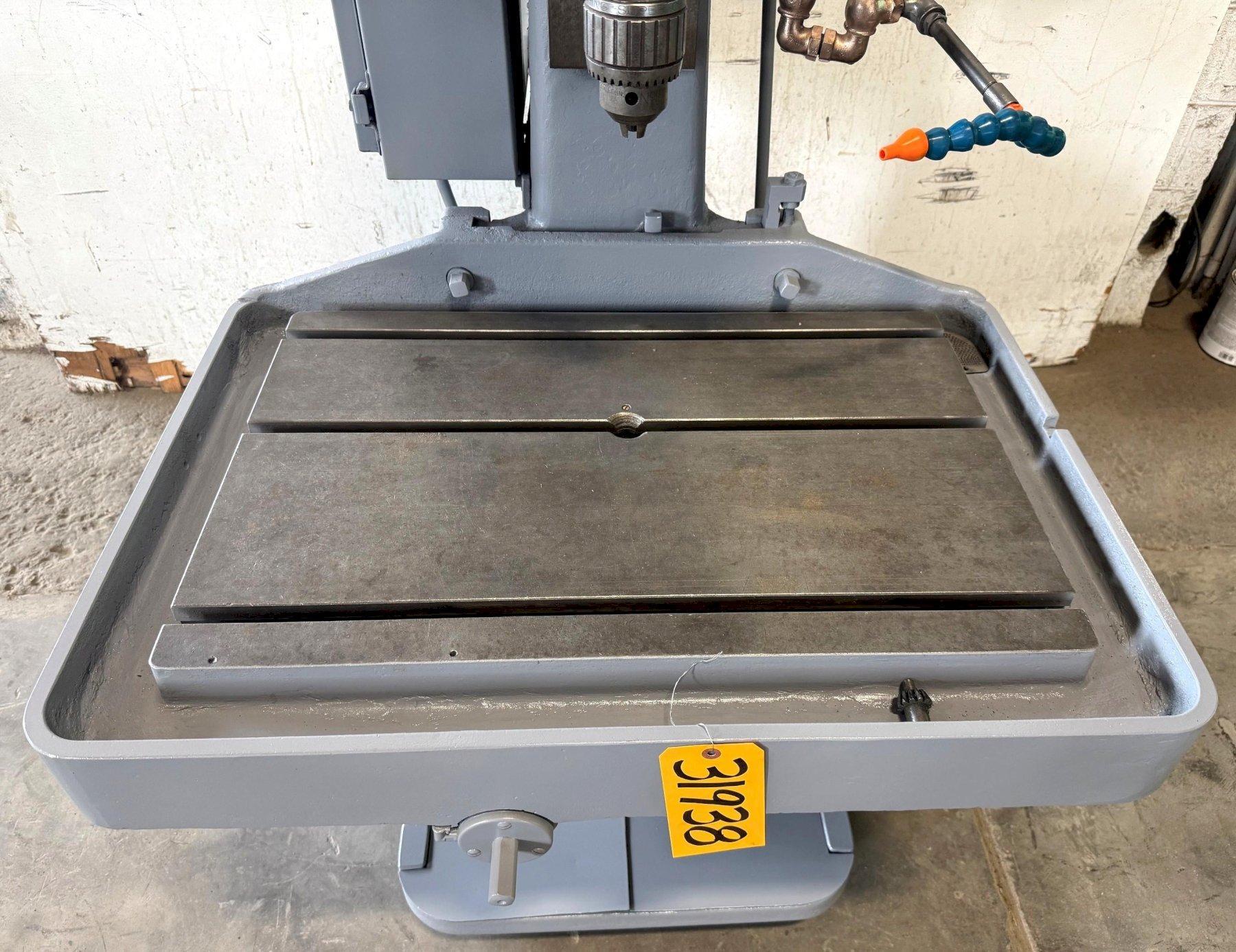

Working Surface Of Table: 16-1/2" x 21"
Height Of Base: 5-1/4"
Feeds: (4) .004", .008", .014", .020"

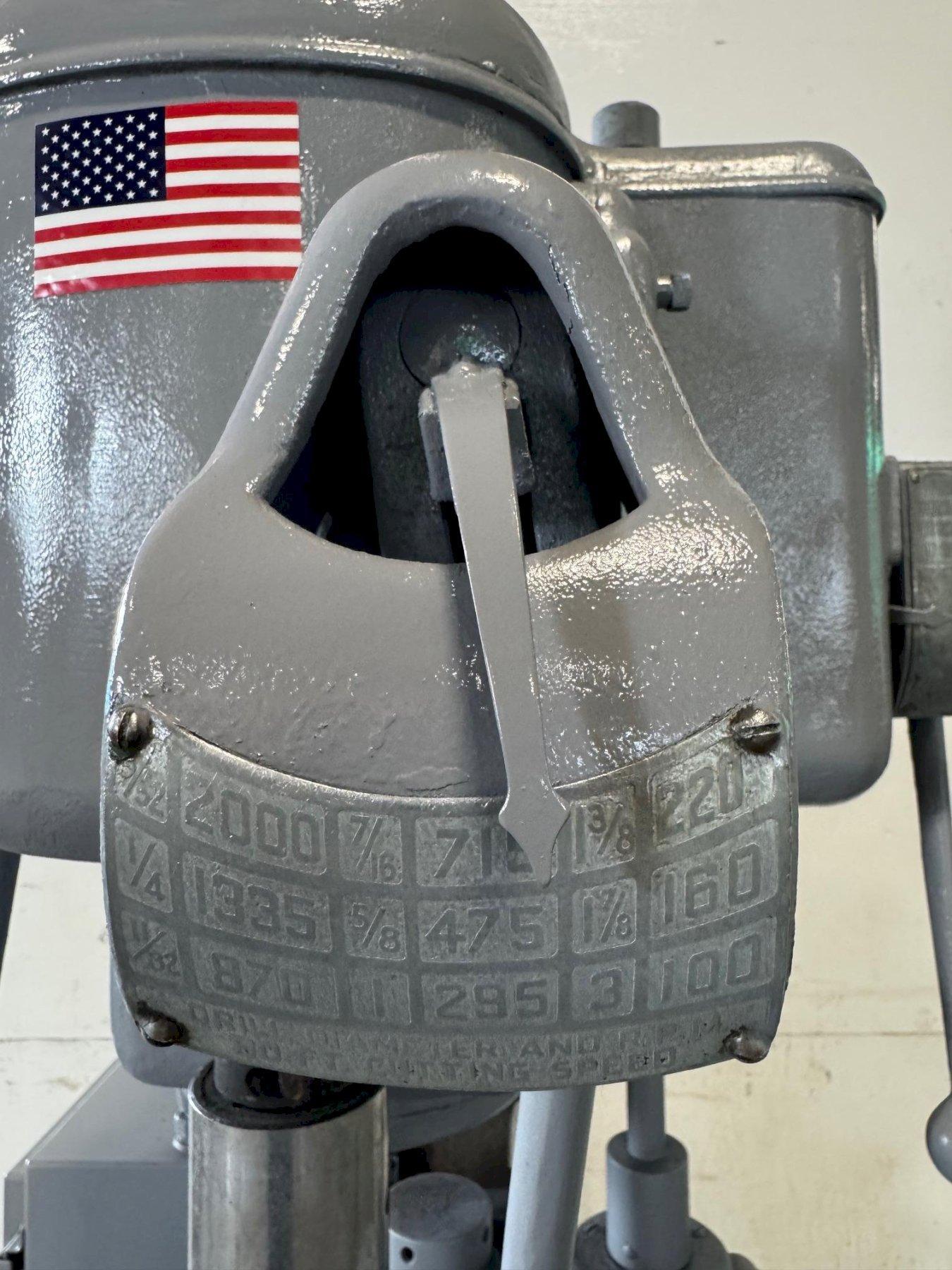

Spindle Speeds: (9) 75 - 1500 RPM
Spindle Taper: No. 4 M.T.

EQUIPPED WITH

3 HP Motor
Coolant Pump

Approximate Weight: 2100 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
