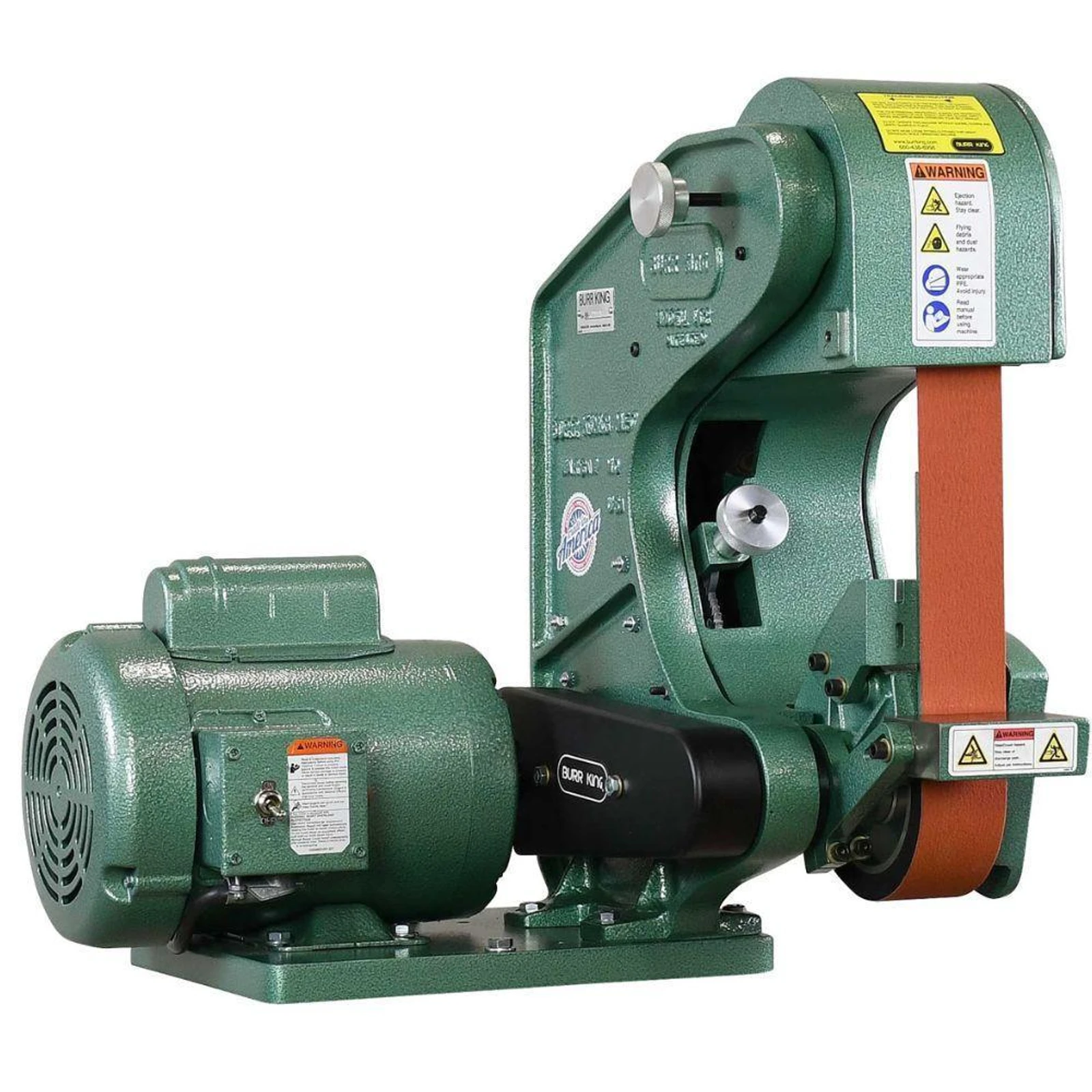

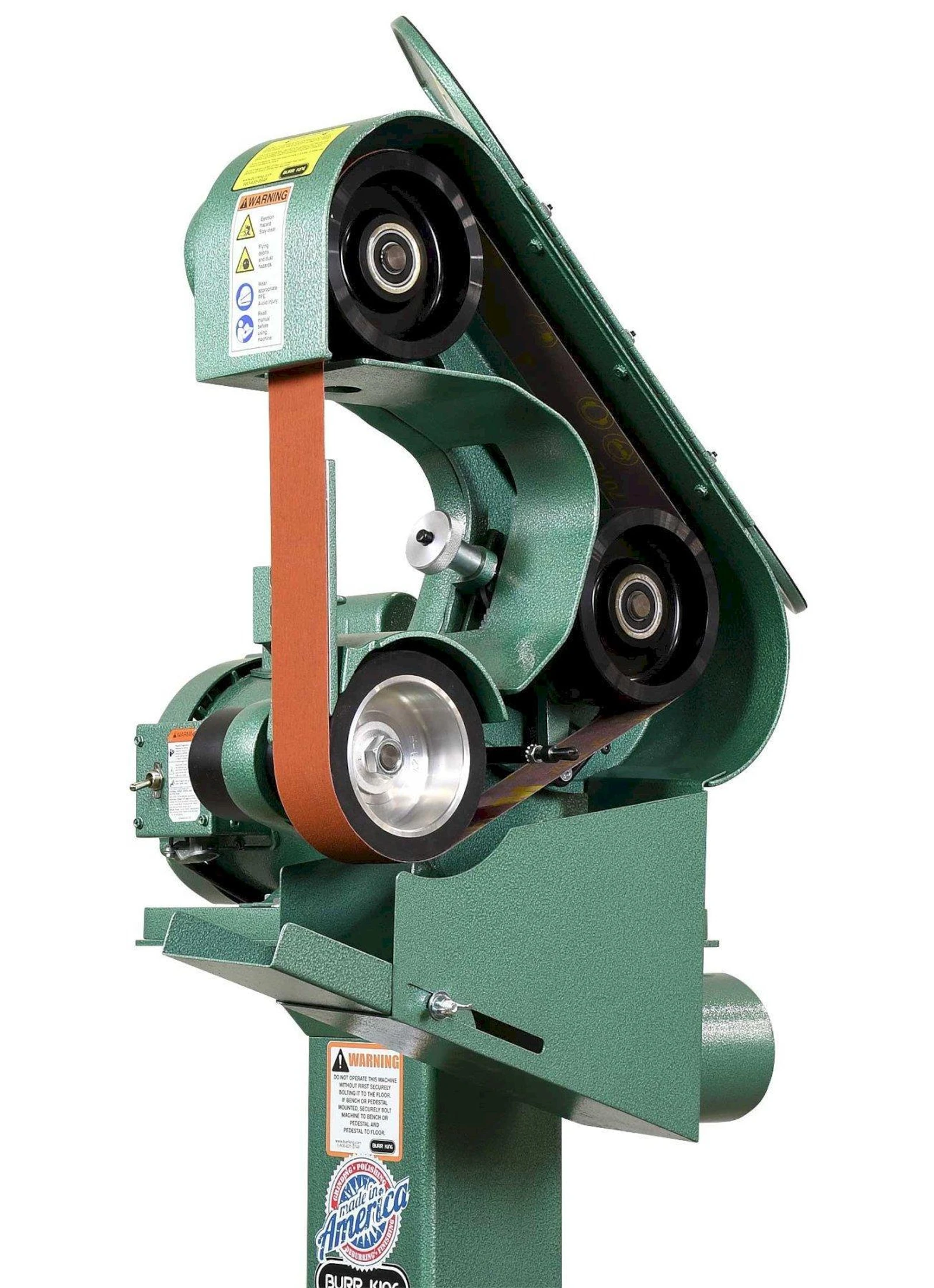

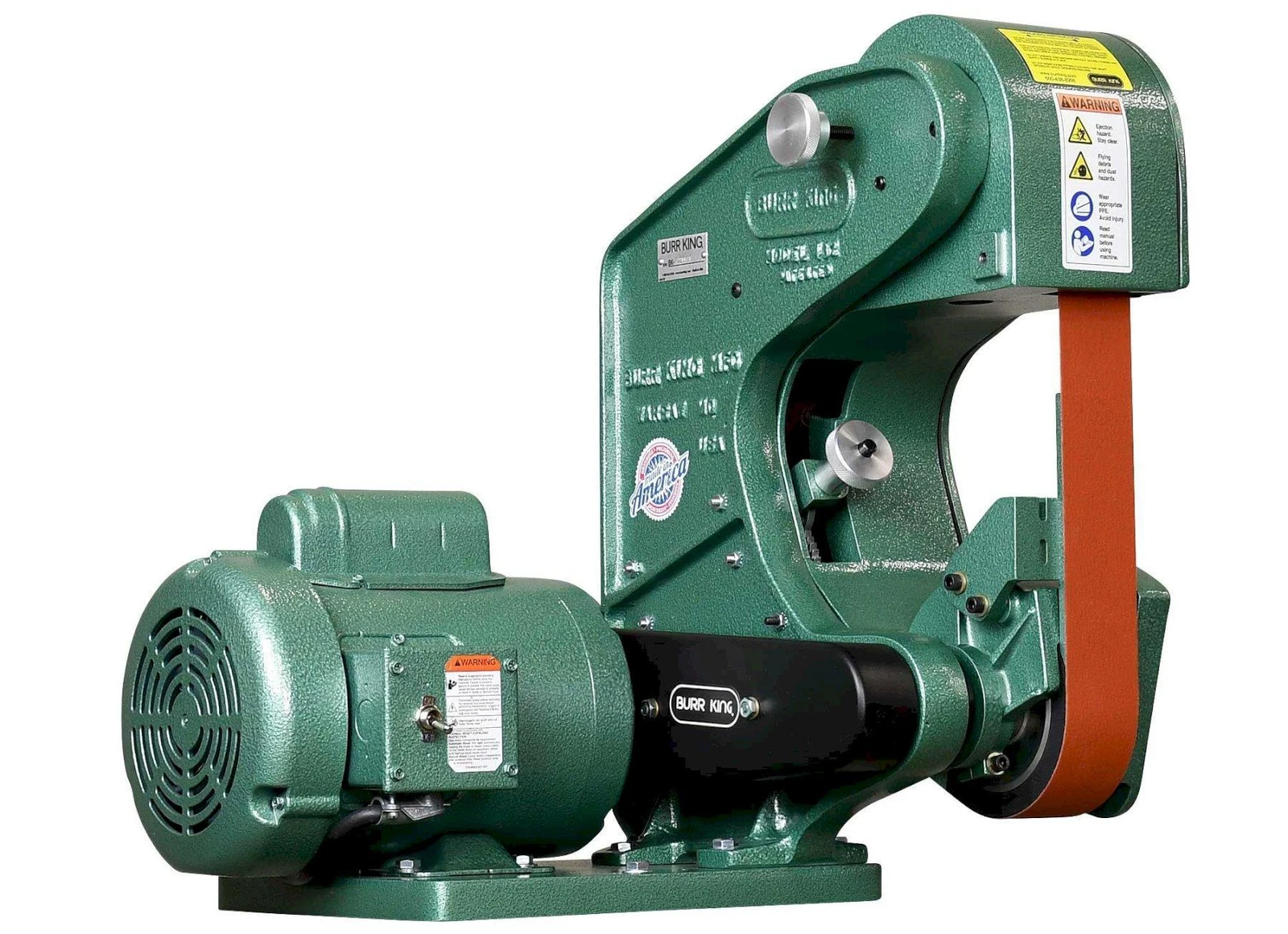

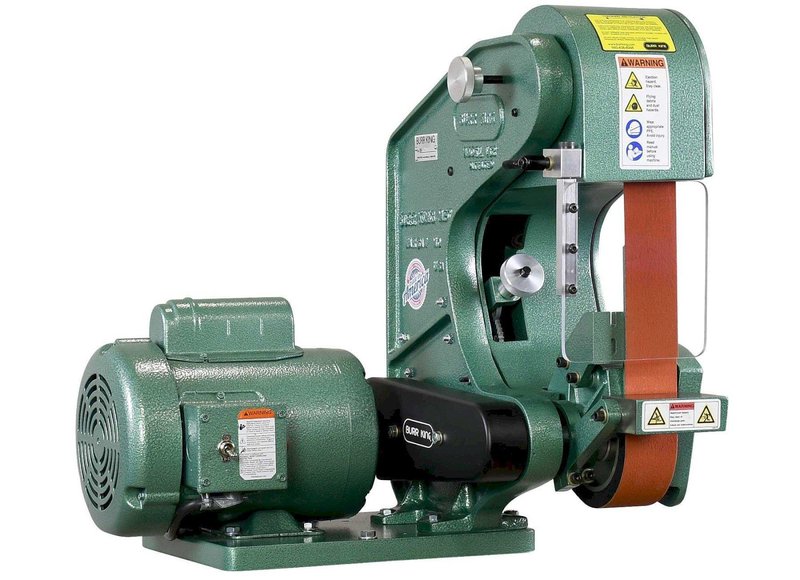

1 - NEW BURR KING 2 X 48 THREE WHEEL BELT GRINDER, MODEL #: 482

Burr King’s family of three wheel grinders provides maximum versatility. Contact wheel, platen, work rest support, and loose belt grinding are precision controlled with positive belt tracking, quick belt change, and linear belt tension.

Constructed of rugged cast aluminum and precision machined components, every Burr King grinder delivers unexcelled grinding performance and reliability.

Available in easily adjusted variable speed and aggressive single speed.

Model 482 can be pedestal or bench mounted and uses a standard 48″ belt up to 2″ wide.

• Contact wheel, platen and workrest support grinding
• Slack belt grinding
• Adjustable belt tension
• Positive belt tracking/patented design
• Quick belt change
• Large throat clearance for enhanced work point access
• Precision machined cast aluminum frame
• Accepts internal grinding attatchments

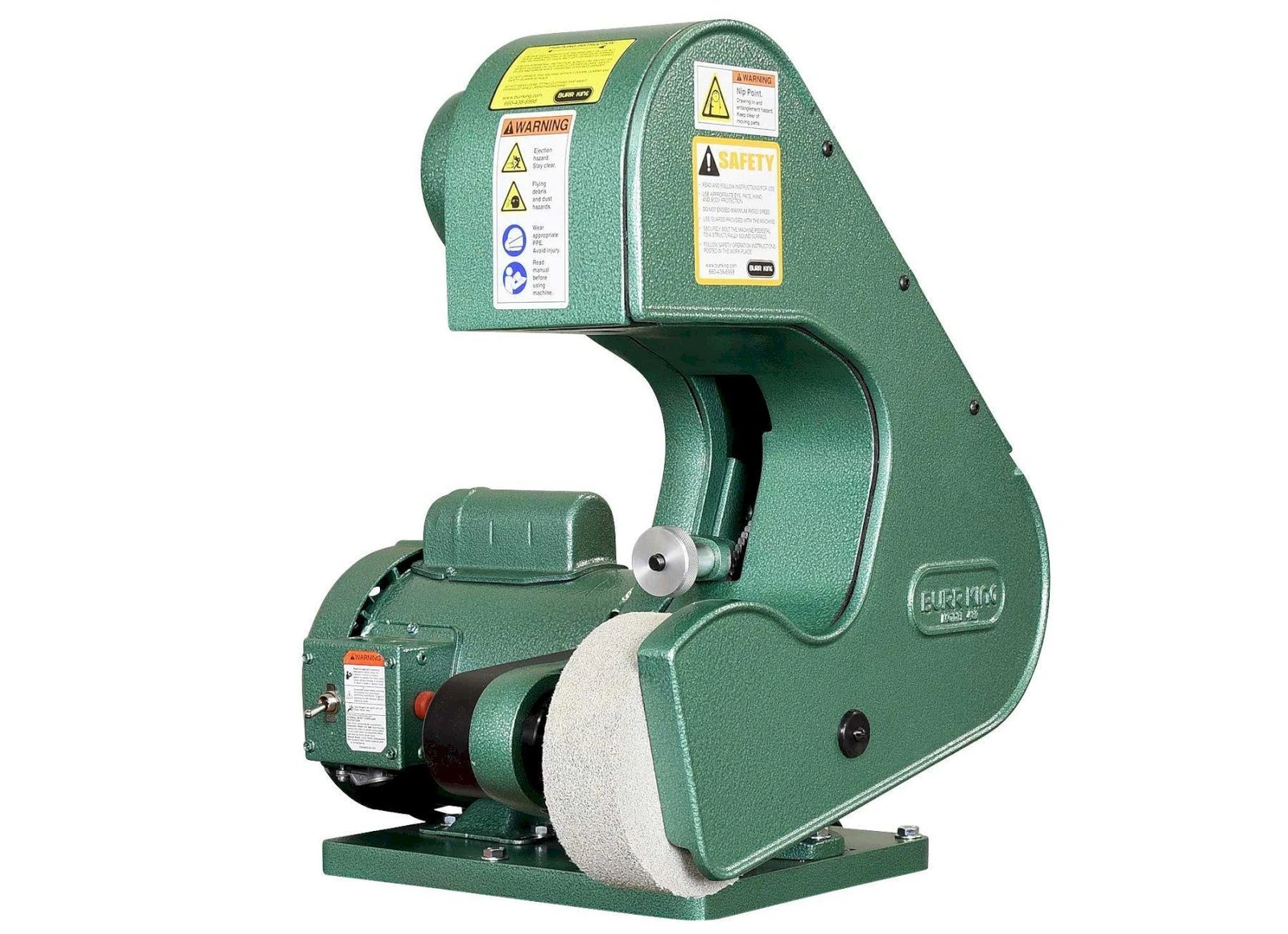

• Accepts nylon, buffing, wire, fiber wheels
  Must remove wheel guard to fit 6″ diameter wheels
• Compact footprint friendly to “cell” manufacturing
• OSHA compliant, enclosed guarding.

Additional Specifications:

• 1 HP / 120 volt / Single Phase
• 6000 SFPM
• Fixed Speed
• 3 Wheels
• 5″ x 2″ Contact Wheel Size
• 55 Duro Contact Wheel Hardness Standard
• Throat Clearance: 7-1/2″
• Belt Tension Quick Change Assembly: Yes
• Positive Belt Tracking Adjustment: Yes
• Overall Height, Width, Depth: 21″ x 20″ x 19″
• Safety Belt Guard: Yes
• Base Area: 10″ x 13″
• Steel Backup Platen: 2″ x 6″ x1/4″
• Adjustable Work Rest: Yes
• Cast Aluminum Construction

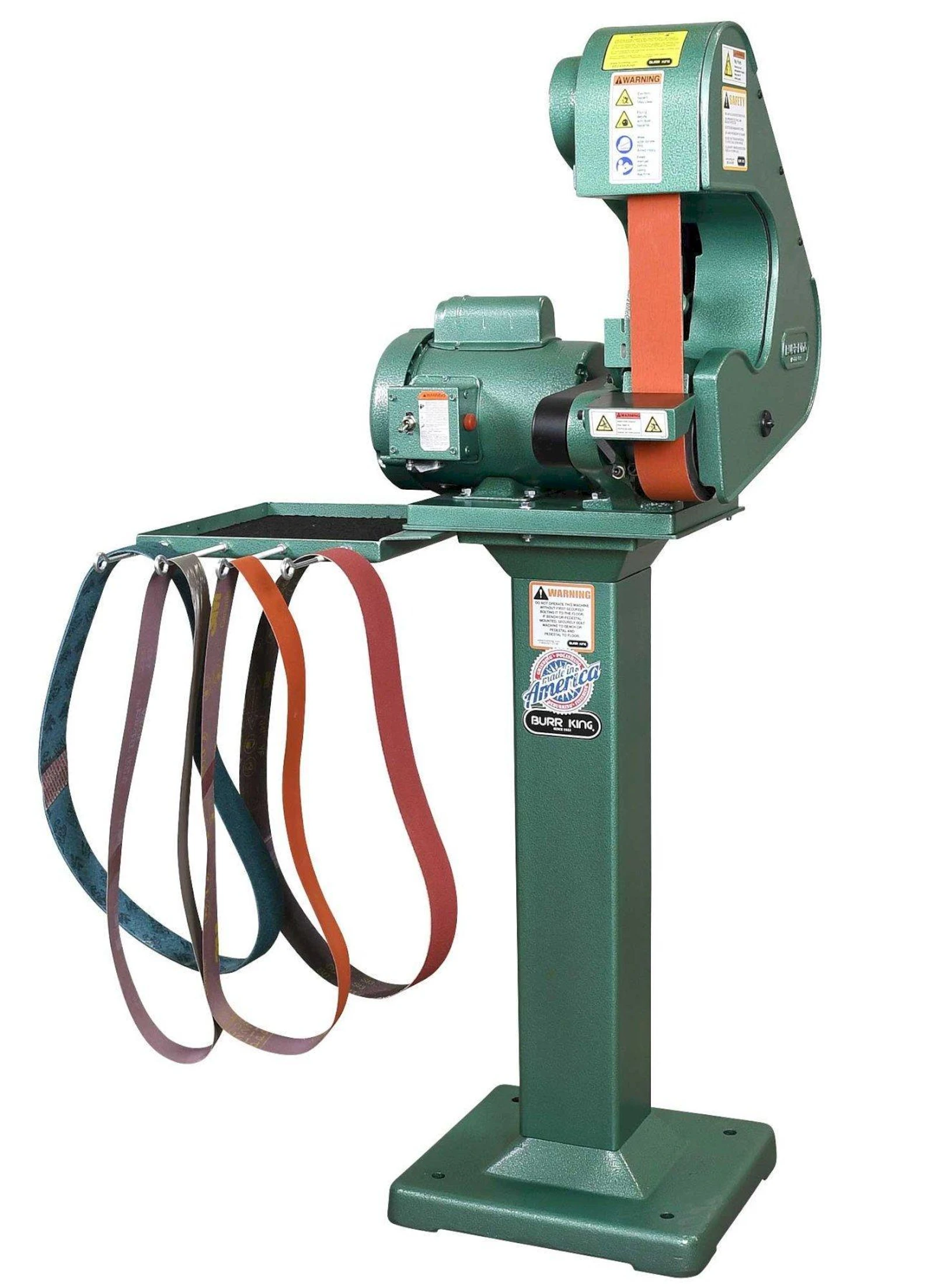

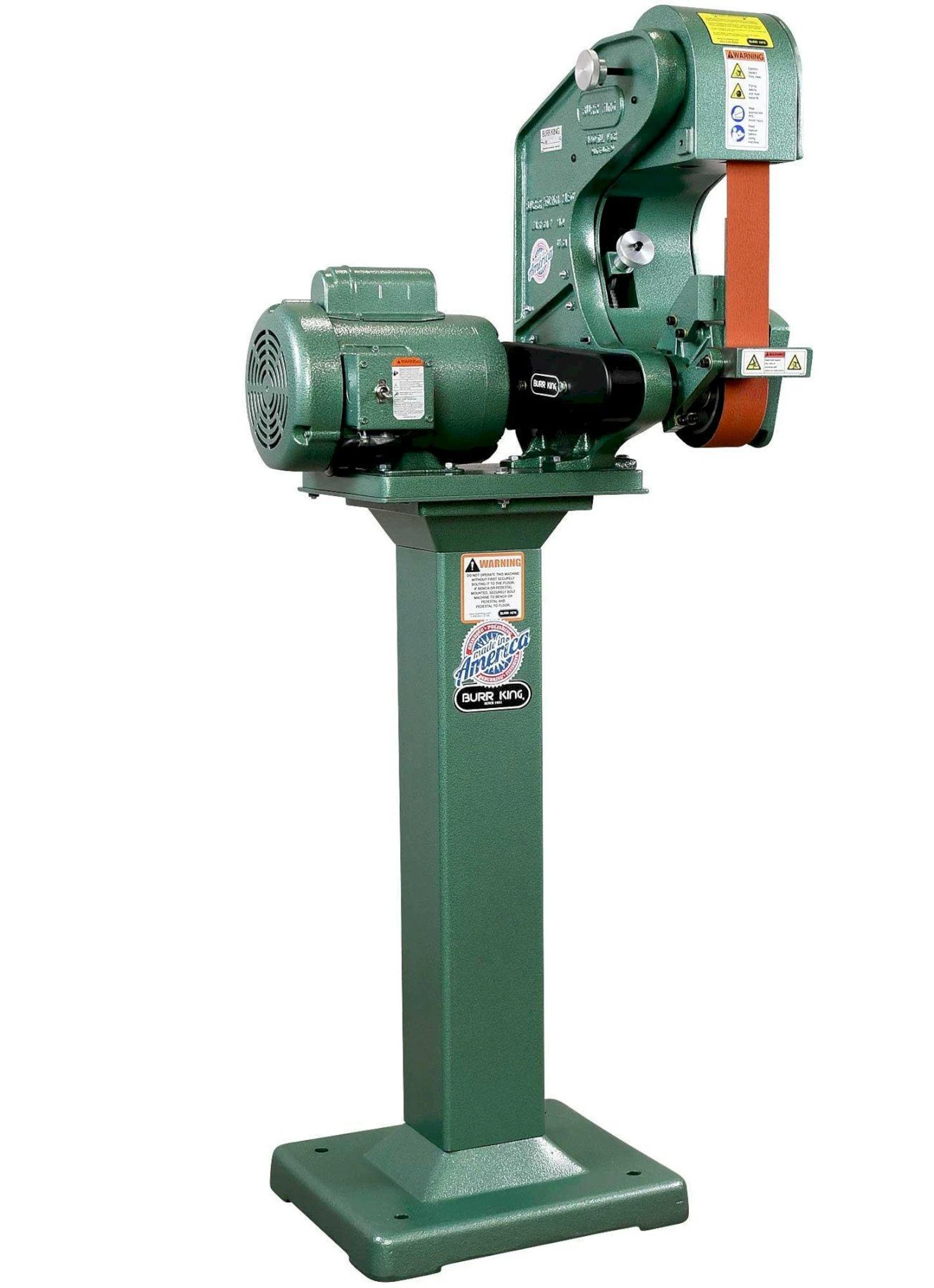

• Mounts on Bench or Pedestal
• Pedestal Included: No
• Main Application: Belt Grinding

• Additional information
