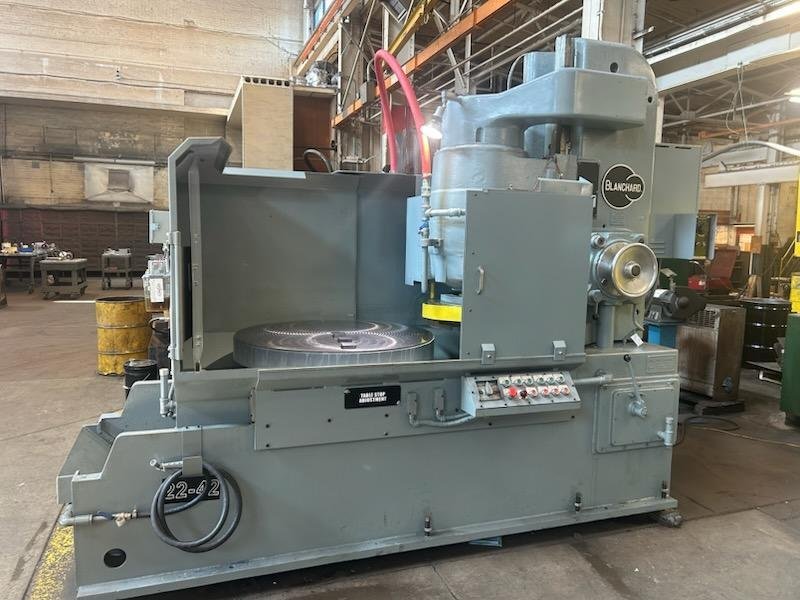

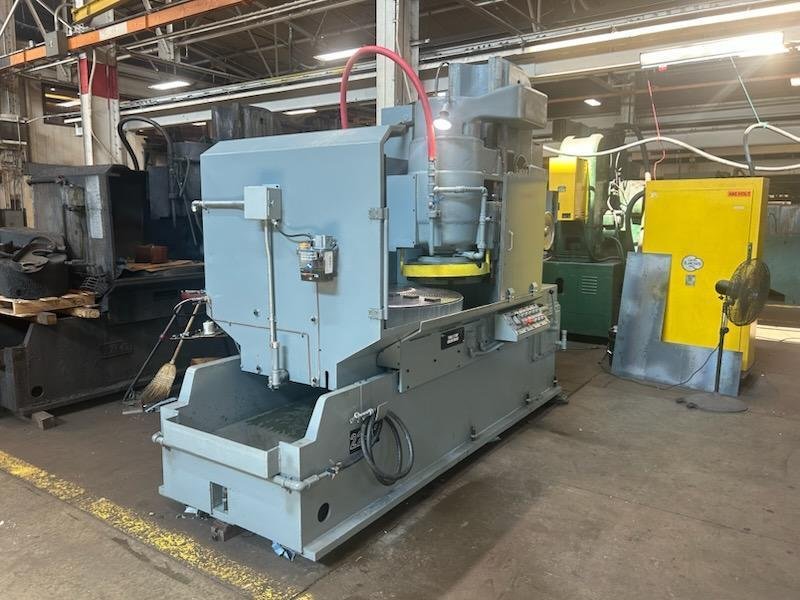

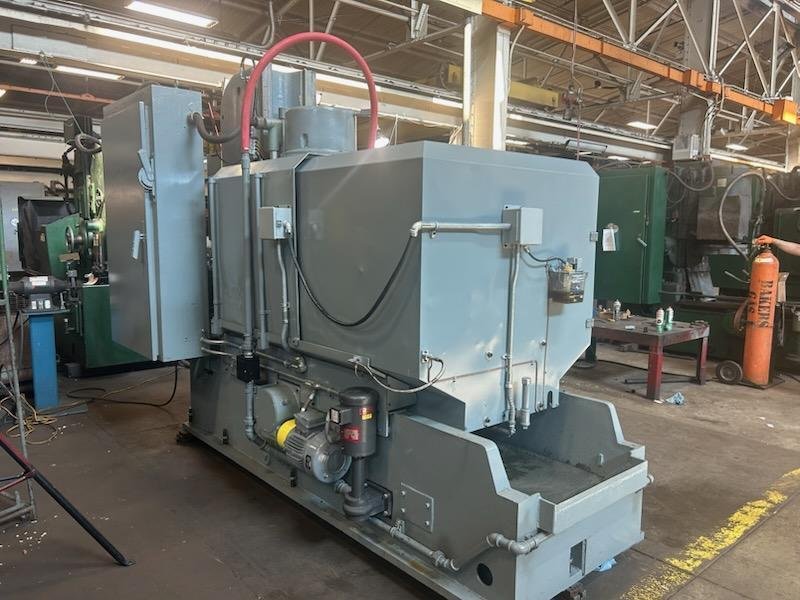

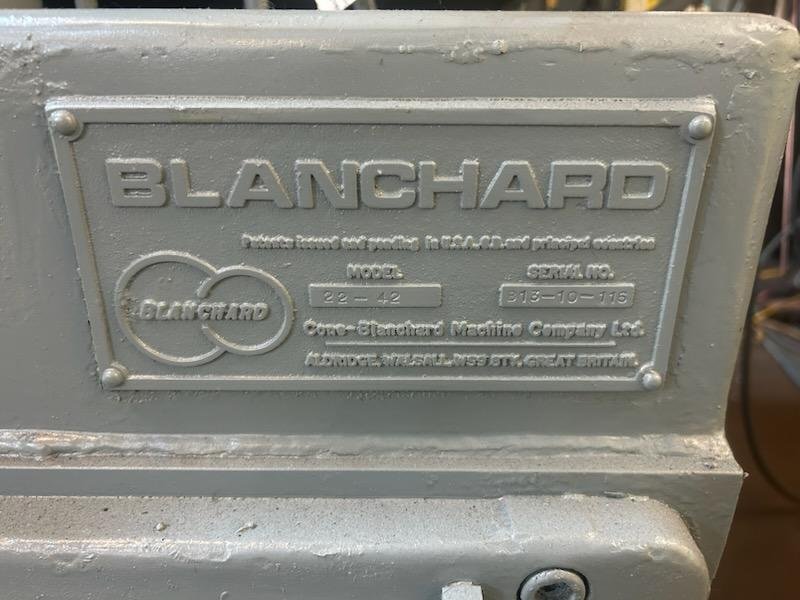

Partial Rebuilt Blanchard #22-42 Vertical Spindle Rotary Surface Grinder, Serial # B13-10-116

Partial Rebuilt Blanchard #22-42 Vertical Spindle Rotary Surface Grinder, Serial # B13-10-116

Name: Partial Rebuilt Blanchard #22-42 Vertical Spindle Rotary Surface Grinder, Serial # B13-10-116
Brand: BLANCHARD
SKU: 17287
Availability: PreOrder

Brand

BLANCHARD

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

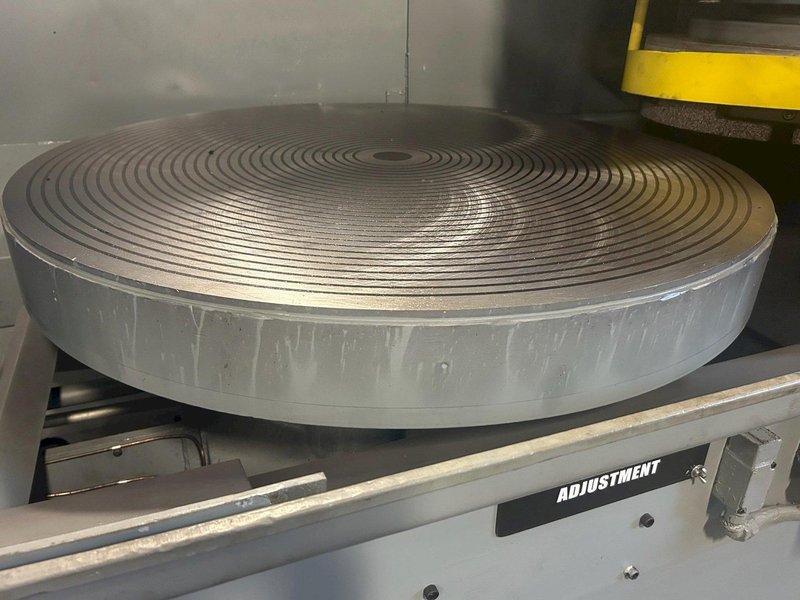

42" Magnetic Chuck Diameter, approx. 1/2" Chuck Life
22" Diameter of Wheel Chuck, Segmented Style
18" Vertical Travel
(6) Ranges of Chuck Speeds 6, 9, 12, 18, 25, 33 RPM
Feed .004 - .080 IPM
50 HP - 3 Phase , 60 Cycle, 480V
Floor Space: 129"L x 60"W
Height: 7'1" Min., 8'2" Approx. Max
Appr0x. 14,500 lbs.

Scope of Work:

Installed New Grease Lune Pump
Upgrade Electrical Panel for Lube System
Added Light to the Hood
New Load Meter
Replaced Electrical Conduit
Upgraded Electrical Boxes for Conduit
All New Lube Lines
Rebuilt Main Spindle Complete
Remove & Adjust Upper Feed Box
Inspected and Cleaned Saddle Transmission
All New Coolant Lines and Ross Valve
New Coolant Pump
New Lube Pump for Saddle
New Machine Ways
Hand Scrape Saddle to Ways
Hand Scrape Table to Magnet
Rebuilt Pinion & Bevel Gear Set for Saddle
Reworked & Replaced Some Water Guards
Repaired Dresser Arm Assembly
New Leveling Pads
Cleaned & Paint
Tram Head to Table
8 Hour Test Run
Grind Flat Parts
