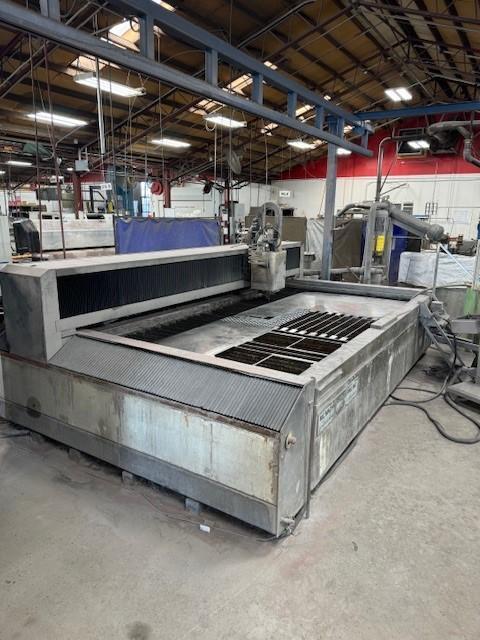

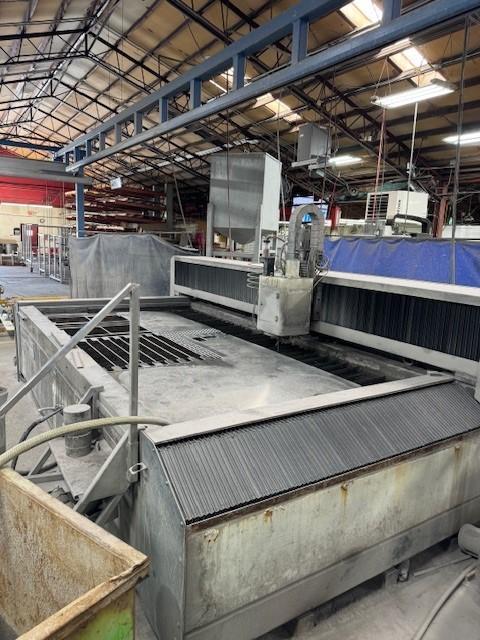

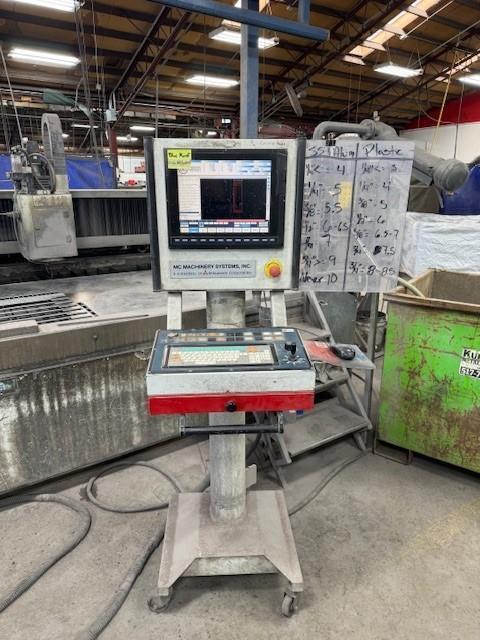

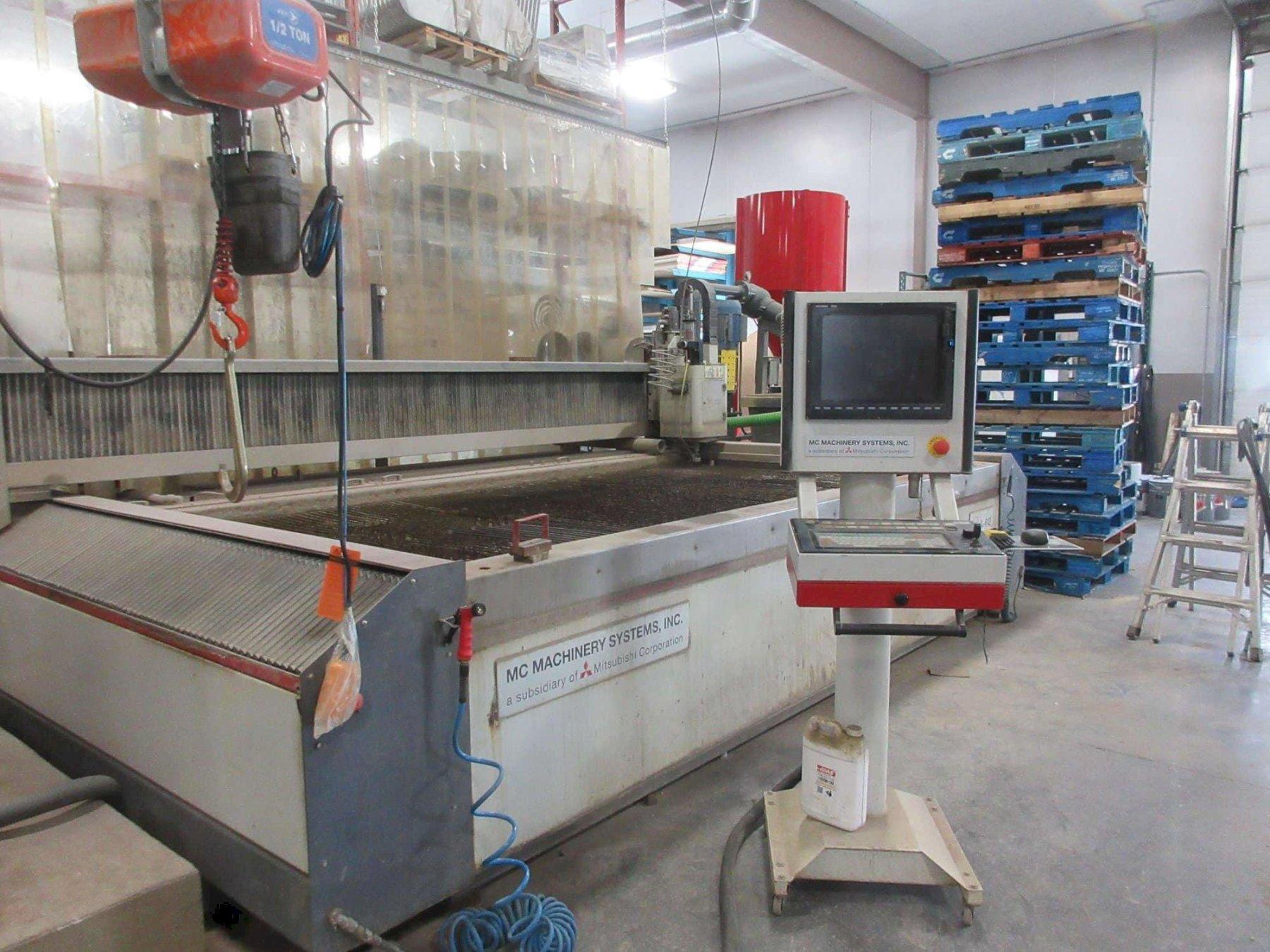

6″ x 12″ Mitsubishi MW-X4-612 Waterjet, 2014 – Streamline Pro-60, Taper Compensating Head, Mitsubishi M730 CNC Controller, Fully Functional, Loaded

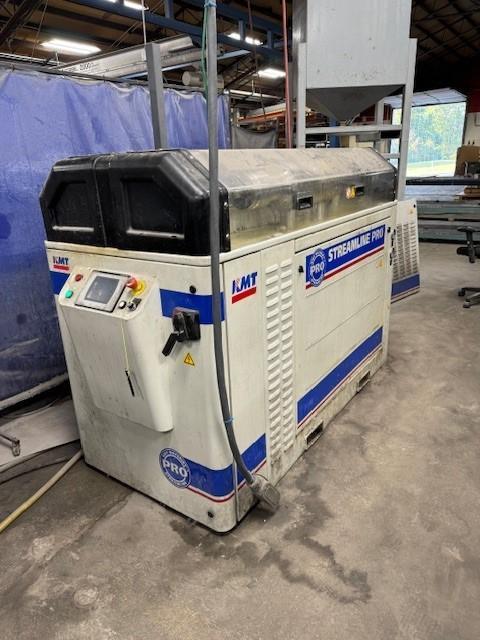

Max. X-Axis Stroke: 144” Max Y-Axis stroke: 72” Z-Axis: 8” Max workpiece Dimension: 146” x 74” x 8” Submerged machining depth: 3” Work tank access: Open Max. Workpiece weight: 300 lbs/ft. Working table height form floor: 31.692” Machine Structure: Bridge/Portal Design, MonoBlock with Tubular Steel Machine weight w/o tank: 9,038.95 lbs. Tank weight: 7,187 lbs. Tank VOlume 1,611 gal. Drive motor type: HF 104S-A48 Rapid travel speed: 800”/min Intensifier pump: Pro-60 Number of intensifiers: 1 Design pressure: 90,000 Motor power: 60 hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Streamline Pro-60 Taper Compensating Head Mitsubishi M730 CNC Controller (2)Seats of Metamation Water CAD Software True Shape Garnet removal system Submerged Cutting Bladder System Adjustable Brasive Regulator 670 lb Pressurized Abrasive Hopper New Diamond Cutting head New Galvanized Slate Tale 2,200 lb of garnet abrasive (3) Focus Tubes Factory Installation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
