Mecalux Automated Stacker Crane System – 5 Cranes, 10 Lanes, 82′ × 78′ Footprint

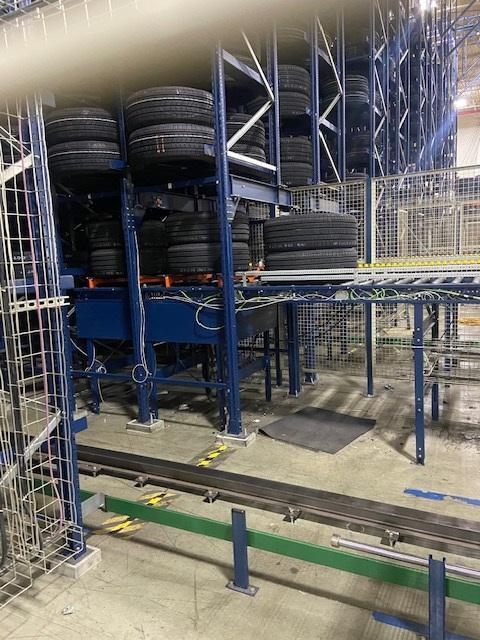

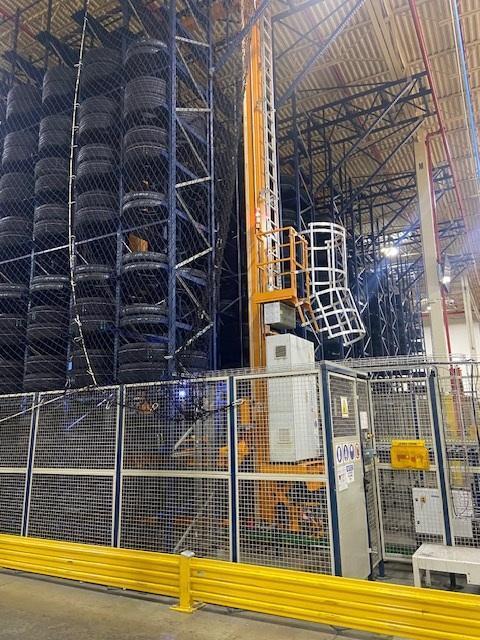

Equipment Overview Heavy-duty Mecalux automated stacker crane system designed for high-density storage and retrieval. Current installation includes five independent pick cranes servicing ten storage lanes. Configured footprint is 82′ × 78′. System is in active operation storing tire inventory but is adaptable for other compatible palletized or large cylindrical products.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications • System Type: Automated Stacker Crane / AS/RS • Number of Cranes: 5 • Number of Lanes: 10 • Current Configuration: Designed for tire storage and retrieval • Footprint: 82 ft × 78 ft • Control Voltage: 480/277 V AC, 3-phase, 60 Hz • Full Load Current: 37.5 A • Largest Motor: 37.5 kVA • Main Fuse or Breaker: 50 A • Max Short Circuit Current: 65 kA @ 480 VAC (RMS Symmetrical) • Main Over Current Protection SCCR: 65 kA @ 600 VAC Max (RMS Symmetrical) • Enclosure Type: Type 12 • Current Use: Storage/retrieval of tire inventory in an industrial warehouse environment • Structure: Heavy-duty steel framing with integrated safety guarding and mesh fencing • Access/Safety: Gated access zones, laddered maintenance platforms, lockout-tagout points • Automation: Industrial PLC-based control system with dedicated control cabinets • Power Supply: Fed from dedicated 480V bus • Mobility: Fixed installation; disassembly required for relocation

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
