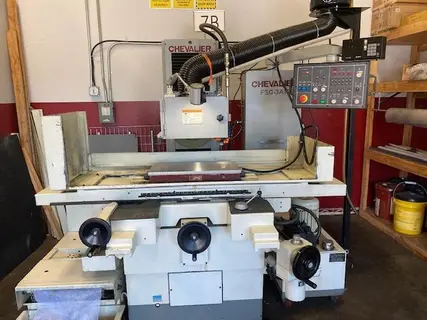

12″ x 24″ Chevalier FSG 3A-1224 CNC Surface Grinder, 2006

Table Size: 12″ x 24″ Max. Grinding Length: 24″ Max. Grinding Width: 12″ Max. Distance from Table Surface to Spindle Centerline: 24.8″ Standard Magnetic Chuck Size: 11 3/4″ x 23 5/8″ Table Speed, Variable: 16~82fpm Crosswise Rapid Travel, Approx.: 56imp Auto Increment: 0.04~0.47″ Crosswise Max. Auto Travel: 14 1/8″ Crosswise Max. Manual Travel: 14 1/2″ Spindle Drive Speed: 60Hz/1,750rpm, 50Hz/1,450rpm Spindle Drive Power Rating: 5HP Hydraulic Drive Power Rating: 2HP Cross feed Drive Power Rating: 0.05HP Elevating Drive Power Rating: 0.25HP Grinding Wheel Diameter: 14″ Grinding Wheel Width: 2″ Grinding Wheel Bore: 5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Sony DRO Paper Filtration System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
