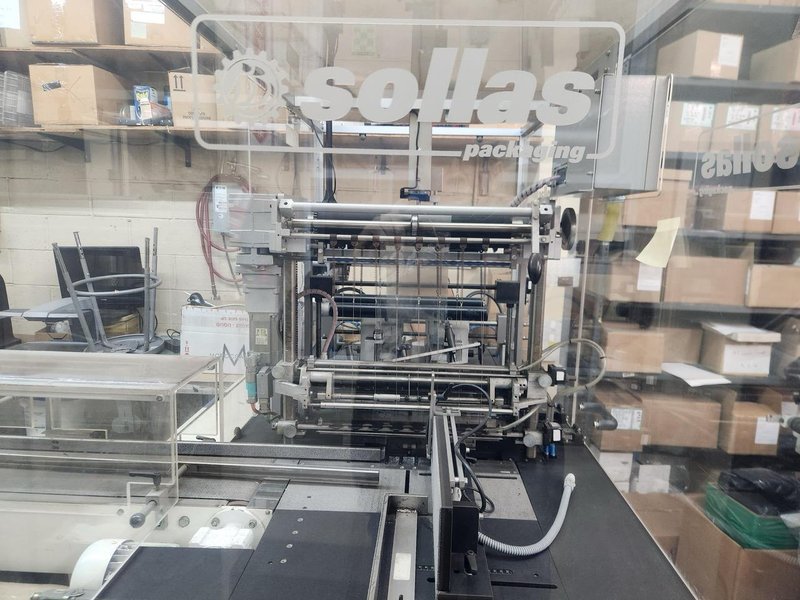

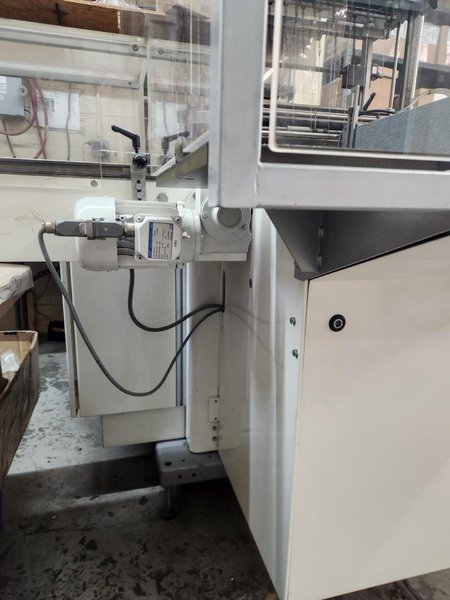

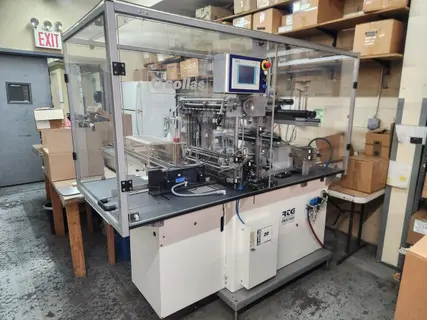

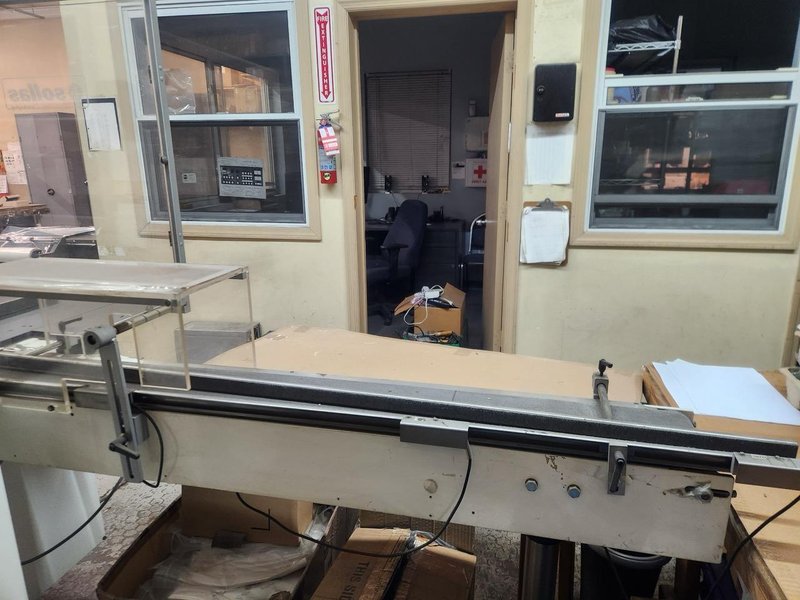

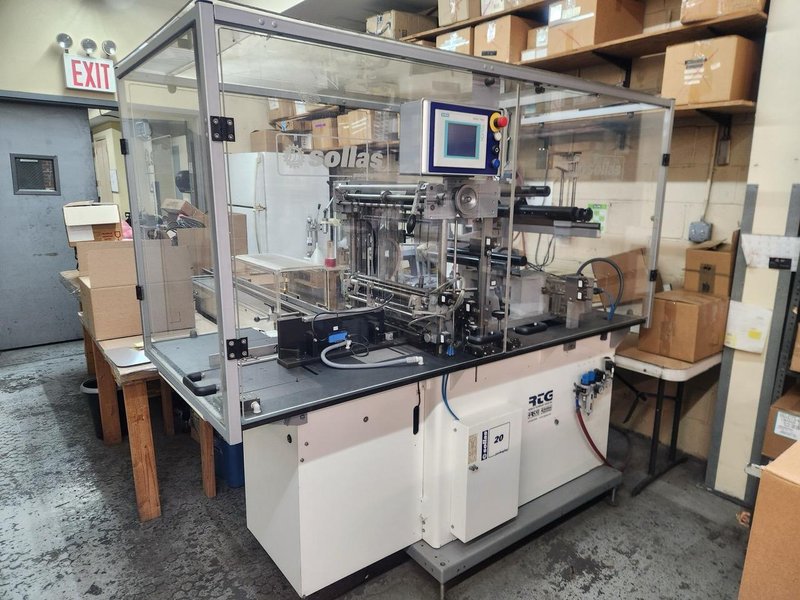

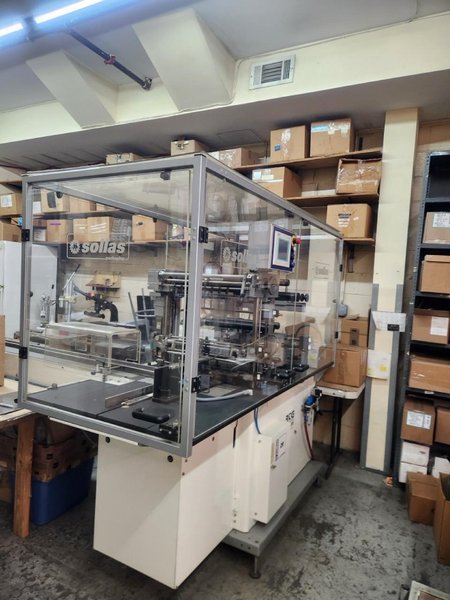

Sollas 20 Right Angled Overwrapping Machine, 2012

Sollas 20 Right Angled Overwrapping Machine, 2012:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Built to wrap the following size range of cartons: – Length: minimum 45mm, maximum 300mm – Width: minimum 40mm, maximum 200mm – Height: minimum 16mm, maximum 96mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Infeed direction of the machine: left hand (90 degree) – Machine Production Capability: Maximum up to 50 cycles per minute. Machine speed is dependent upon the size of the carton weight of the carton, condition of the carton and local conditions. – Film Information: Heat sealable polypropylene. – 230V, 50/60Hz, 3PH – 6 bar air consumption

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: – PLC control with soft touch display – Frequency controller on main drive system – One-sided film reel suspension – Static eliminator – Film adjustment by means of servo – Numeric indication in quick-change devices – Main shaft with type 50 keyed cams – Universal folding street S20 – Conveyor: 1500 x 220 S20 right angles – Pressure rollers on infeed conveyor – Safety guards infeed at right angle – Film slitting device on film reel S20

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
