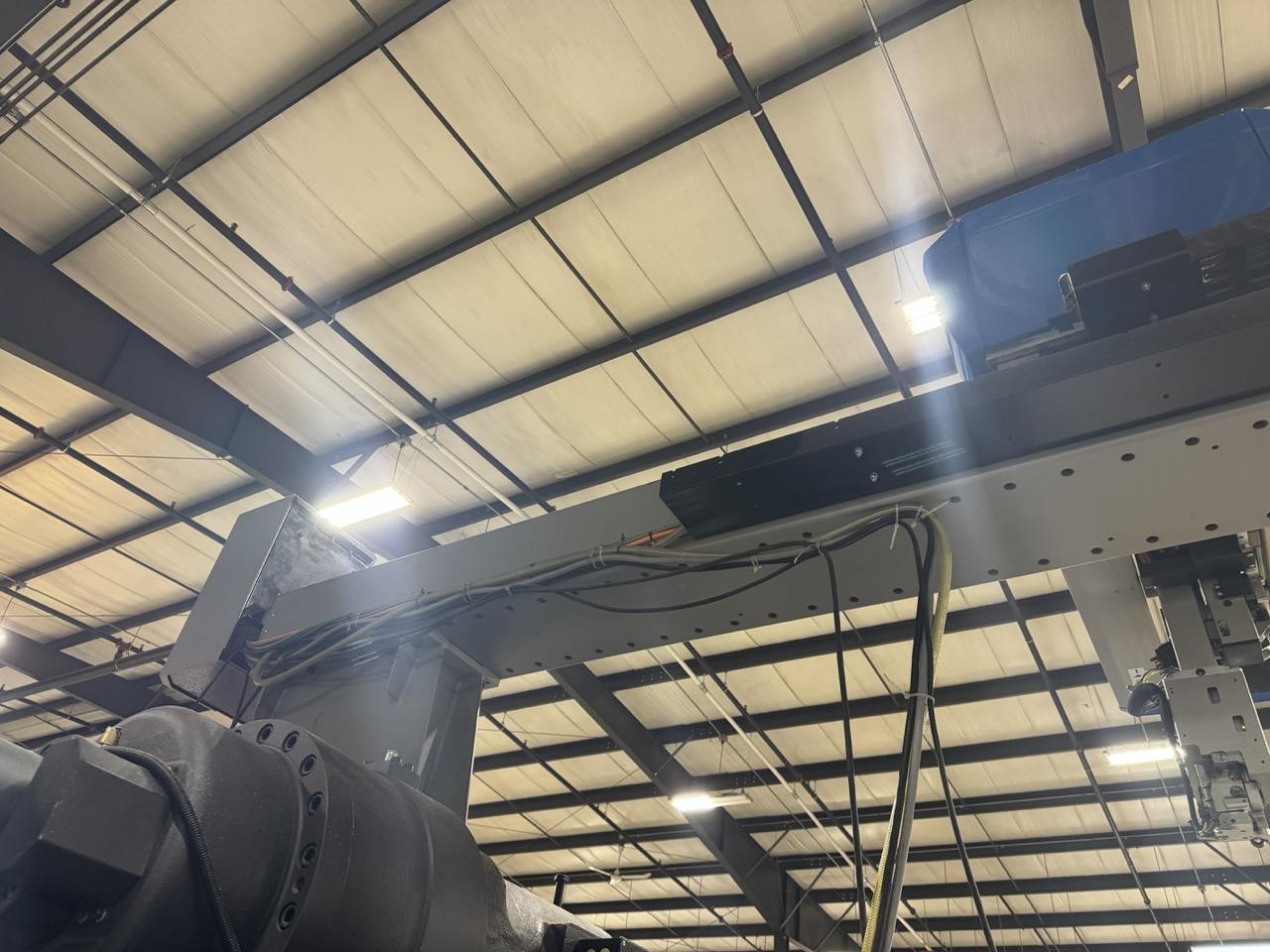

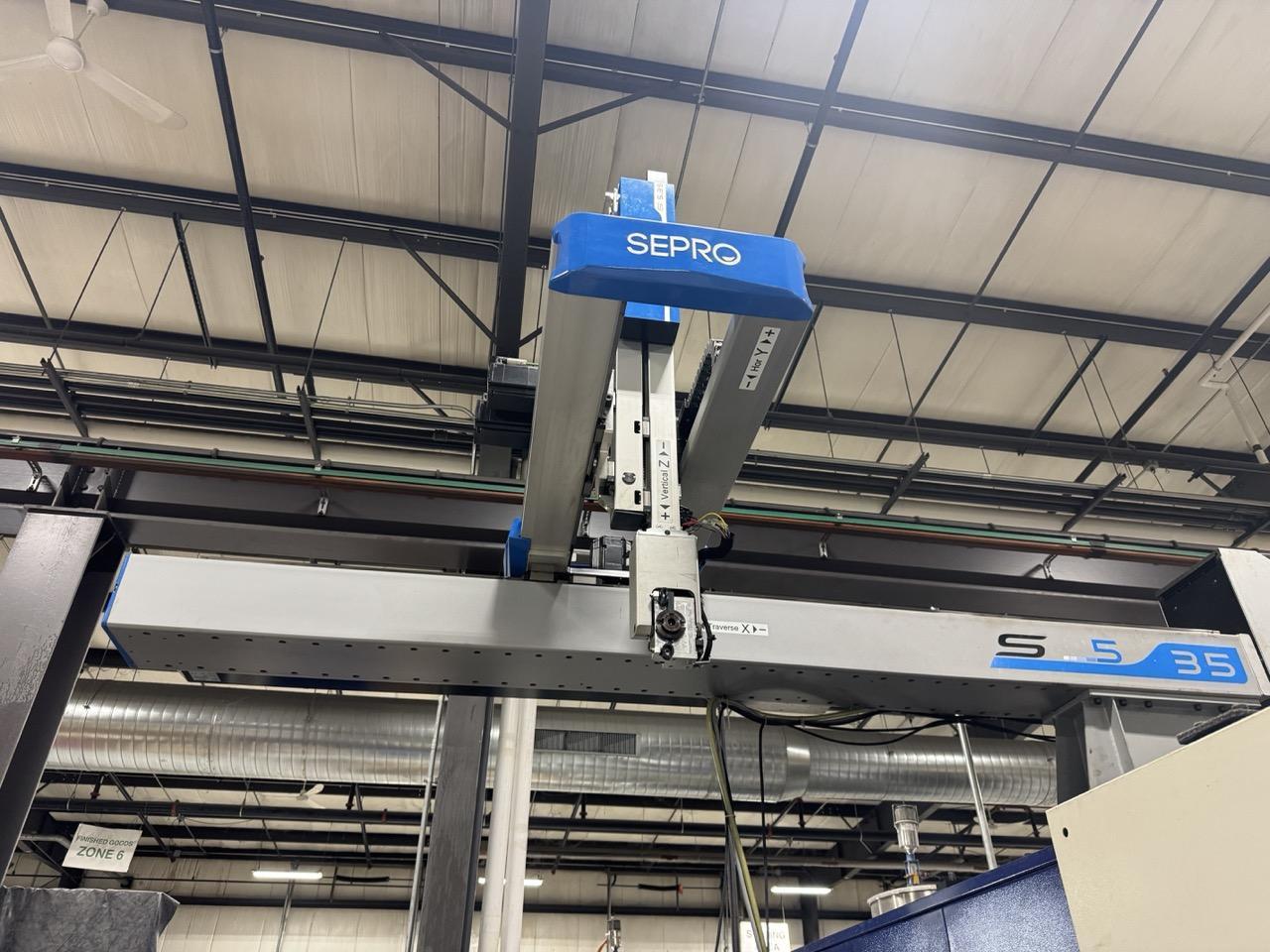

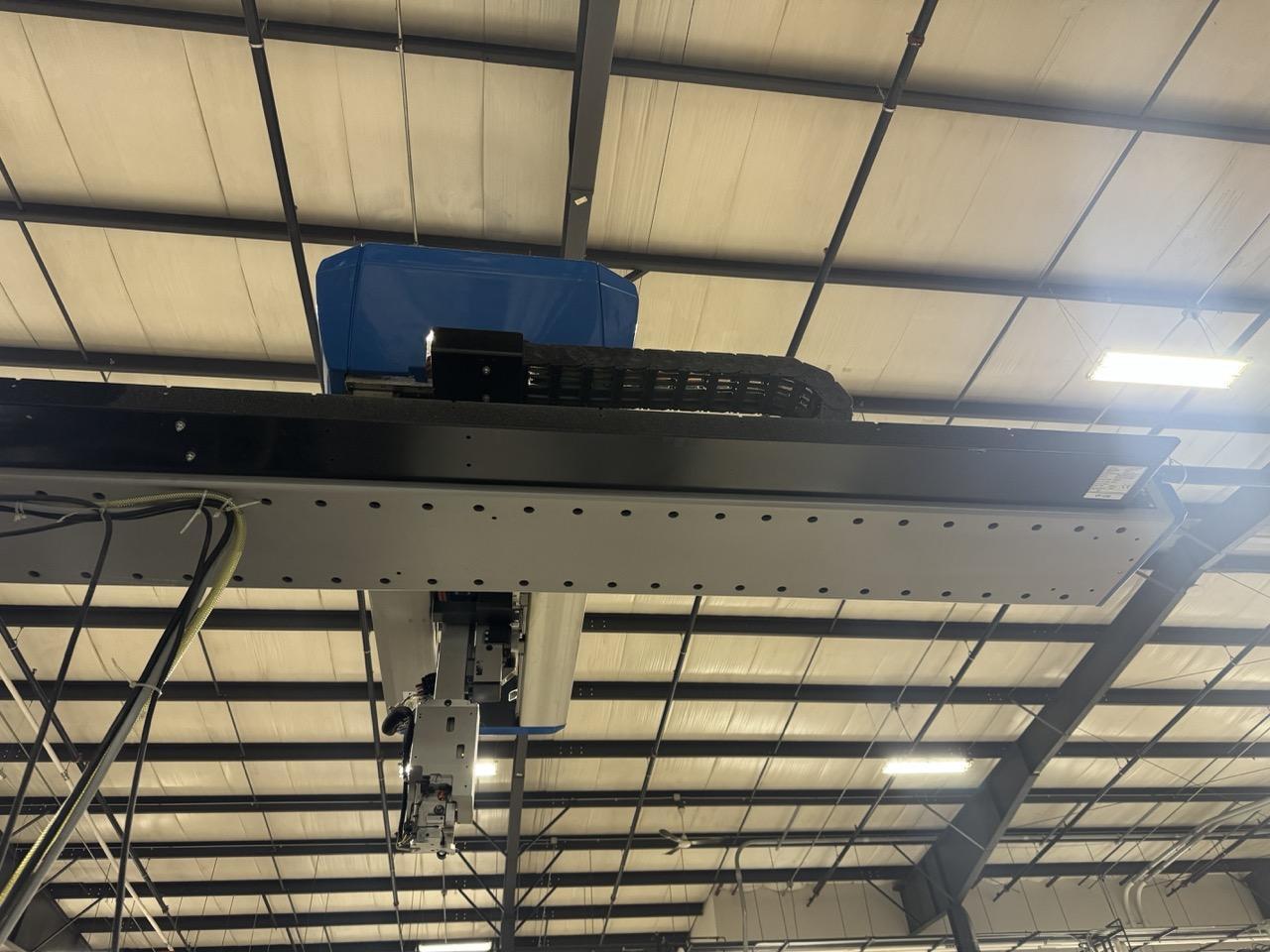

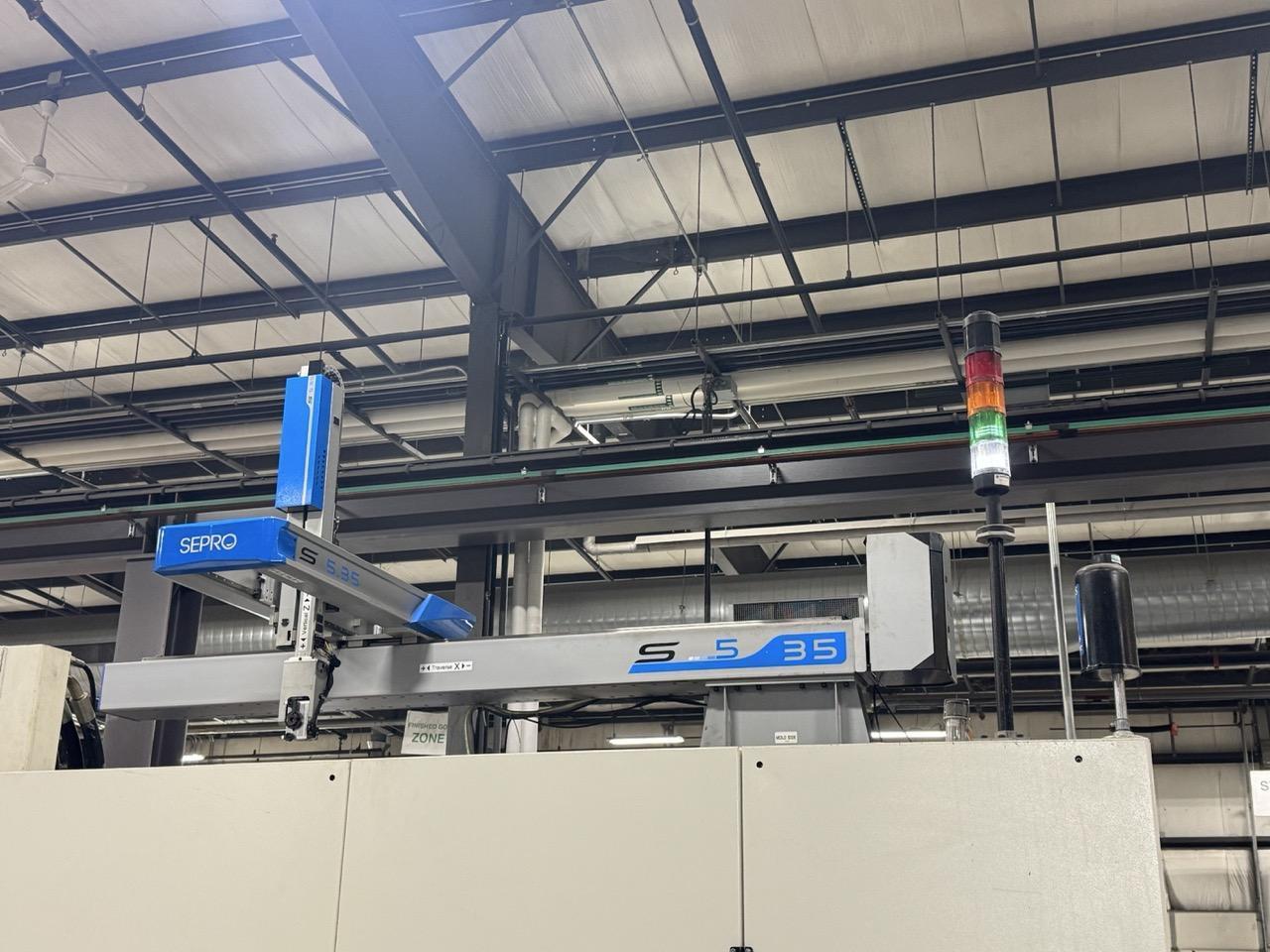

SEPRO Sr S5-35 S3 Trans, 2017

Robot weight: 643Kg Nominal load: 15kg Outer dimensions, Y carriage and Z arm retracted: 3910 x 1880 x 1920 mm Pneumatic operating pressure: ：6 bar 10% Maximum admissible pneumatic pressure: 7 bar Nominal compressed air consumption: 180 I/min Maxinstant compressed air consumption: 620I/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Horizontal Movement of Carraige On Beam X: Stroke: 98.42″ Motorization: Servo-controled brushless Instantaneous linear speed: 3,50 m/s Stop control: PTP linear numerical Display resolution: 0.1 mm Positioning precision DLX: 0.5 mm Placing repeatability rx: 0 . 1 mm Spacer between robot and platen: fixed under beam

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Horizontal Demoulding Movement Y: Stroke: 35.43″ Motorization: Servo-controlled brushless Instantaneous linear speed: Stop control: PTP linear numerical Display resolution: 0.1 mm Positioning precision DLy: 0.5 mm Placing repeatability ry: 0 . 1 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vertical Movement Z Stroke: 70.86″ Motorization: Servo-controlled brushless Instantaneous linear speed: 4,00 m/s Stop control: PTP linear numerical Display resolution: 0 . 1 mm Positioning precision DLz: # 0.5 mm Placing repeatability rz: 0 . 1 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Environment Storage temperature / transport: -25°Cto + 55°C Operating temperature: + 5ºCto + 40°C Relative humidity: 30 to 95% without condensation Maximum altitude: 2000 m Radio frequency in common mode: 10kV Electrostatic discharges: 8kV Rapid transients on power supply: 4kV Rapid transients on inputs/outputs by coupling: 2kV Symmetrical high-energy puises: 1kV Asymmetrical high-energy pulses: 2kV Power transients at 1 Hz: 10 ms Slow voltage variations of 1 volt per second: -15 % to + 1 0 % Acoustic pressure level (weighted continuous decibel A): 70 dBA Cabinet IPK protection: IP22, IK07 Pendant IPK protection: 1P32; 1K06 Touch screen Life time: 1,000, 000 hits (finger); 100,000 hits (character input with 2h pencil hardness) Touch screen chemical resistance: Toluene, Athetone, Gasoline, Machine Oil, Ammonia, Glass Cleaner.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electronic Control System Model: Visual2 Weight of control cabinet: 36kg Outer dimensions: 460×360 x 636 m Operating power supply voltage: 3x400V à 3x480V 1 0 % three-phase w/out neutral Earthing System: TN or TT network Operating frequency : 50/60 Hz Nominal power : 1,5 kVA Maximum power consumption : depends on robot cycle Display : 10.4″ touch screen Internal programs memory storage : 4Go on micro SD card System memory storage : 512MB DDR & 512MB FLASH Processor (1 to 2 CPU cards depending on the configuration) : iMX537 / Cortex A8 / 800 MHz Input / Output interface on the robot : 2 x 16 inputs / 16 outputs modules (digital input, 24 VDC 10mA/ digital static output, 6 to 35 VDC 500mA) Input / Output interface on IMM Interface card : 7 inputs / 8 outputs (digital input, 24VDC 10mA / digital output, 6 to 30VDC 500mA USB Master interface for USB Key : USB Standard V2.0 USB Slave interface for PC link : USB S t a n d a r d V2.0 IMM link interface (real-time and digital) : Connection to EUROMAP 12 standard and AN146 PC link interface : Ethernet 10/100Mb/s

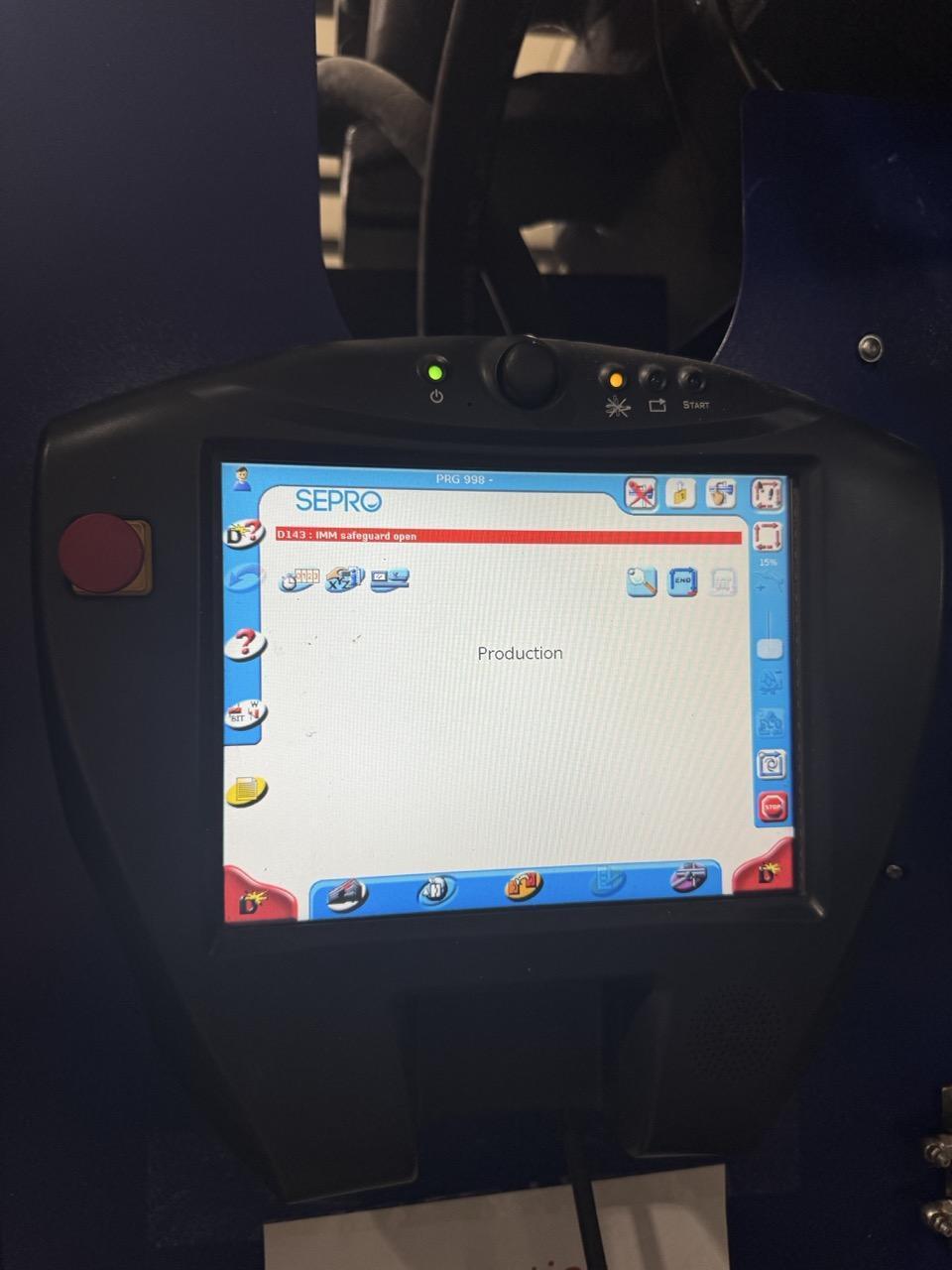

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control Visual 2
