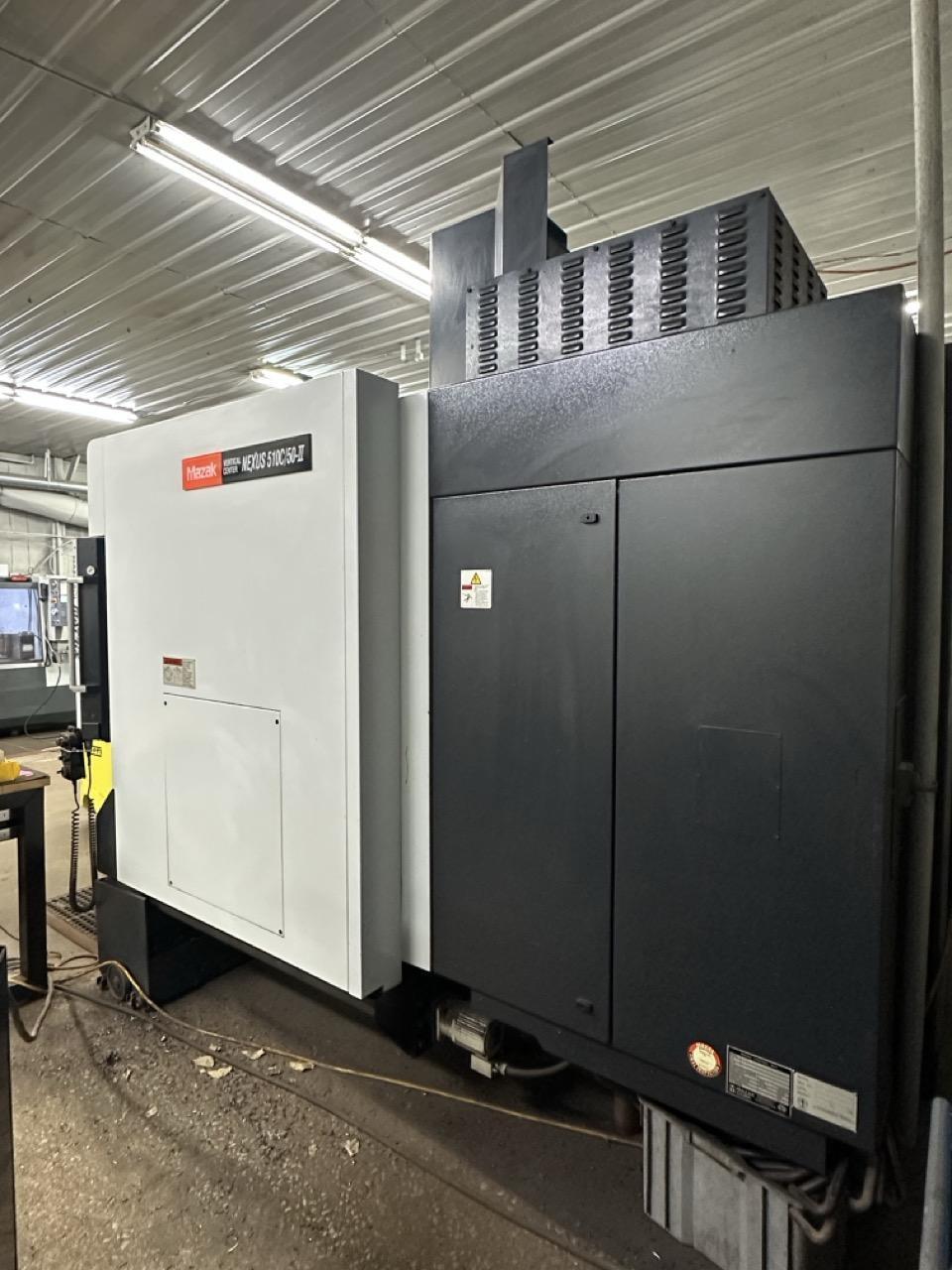

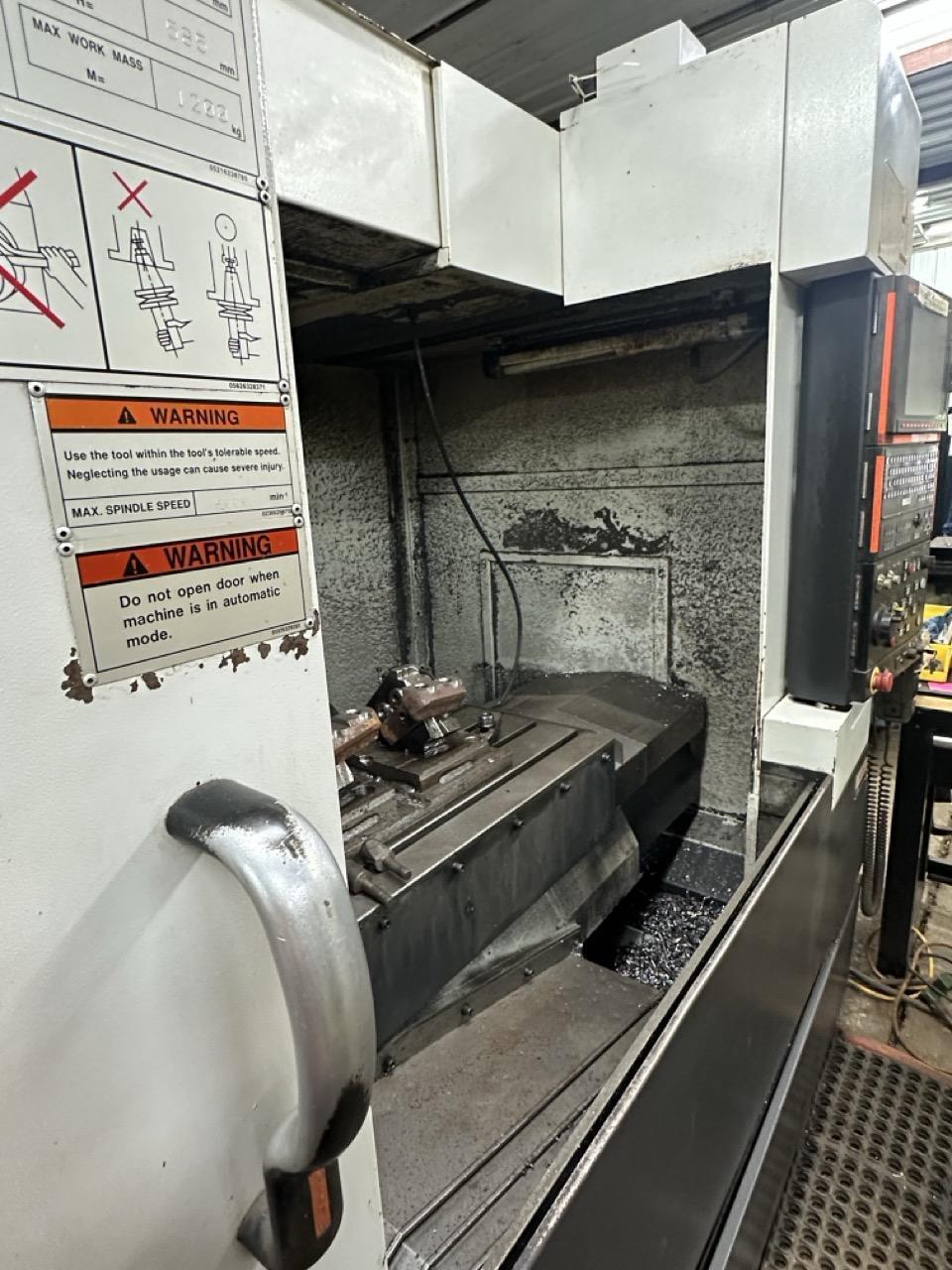

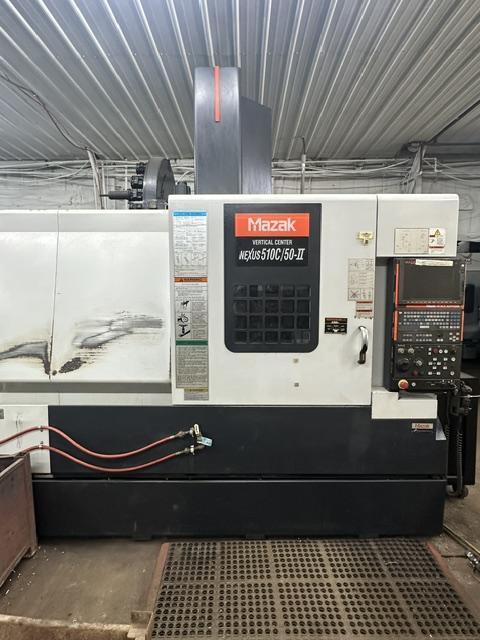

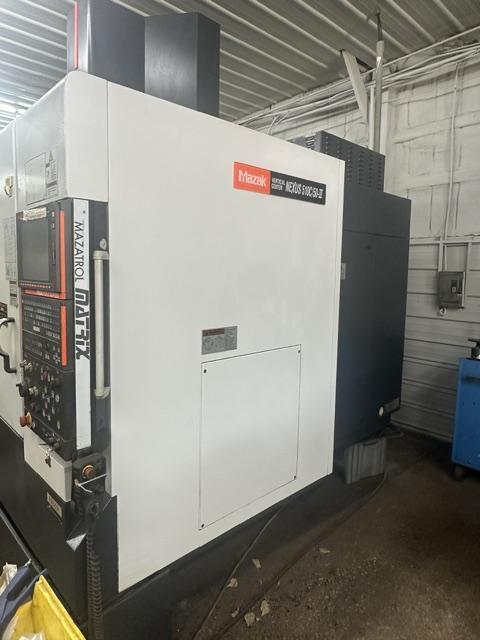

Mazak Nexus 510C/50-II VMC, 2007 – Mazatrol Matrix Control

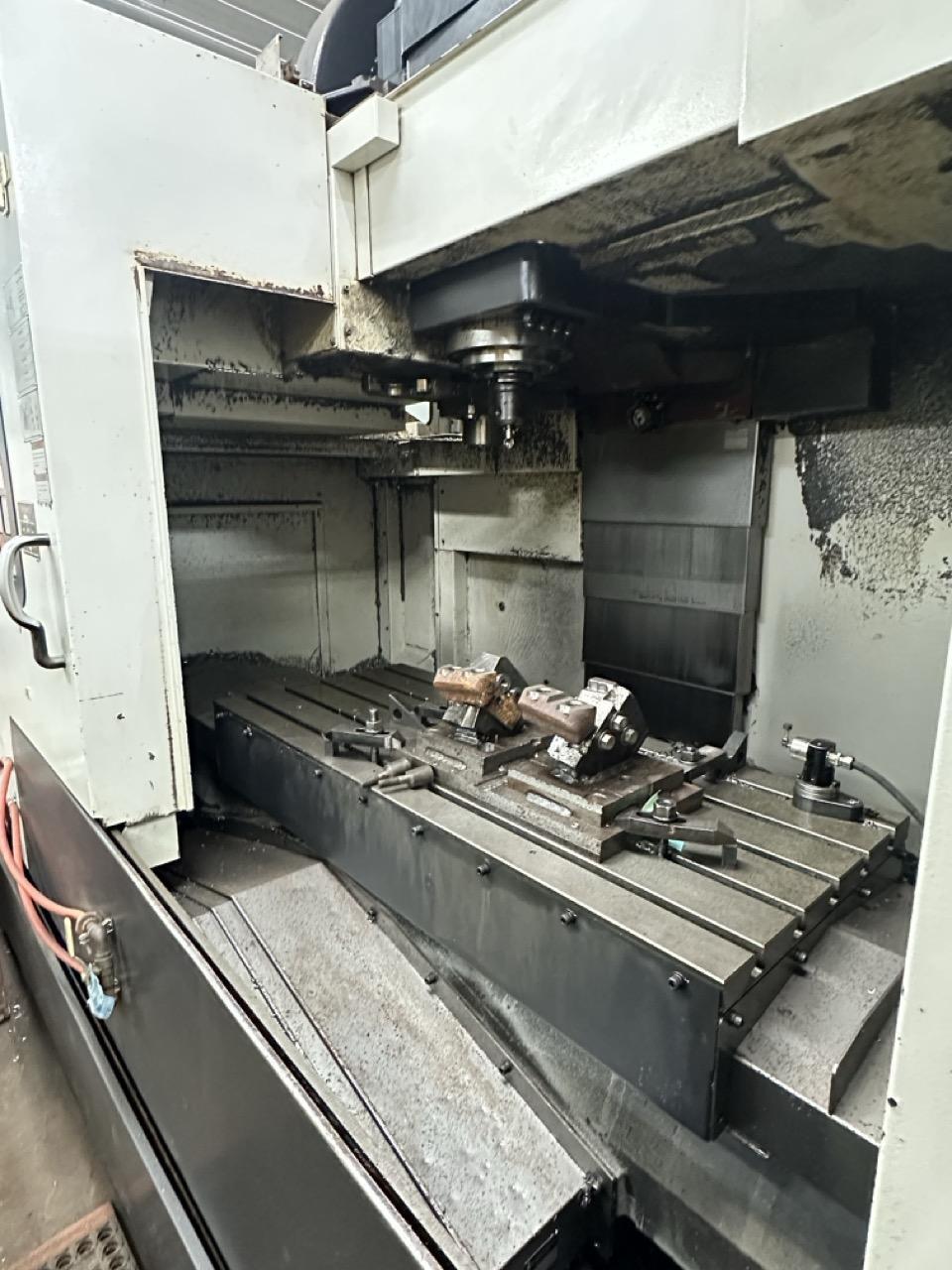

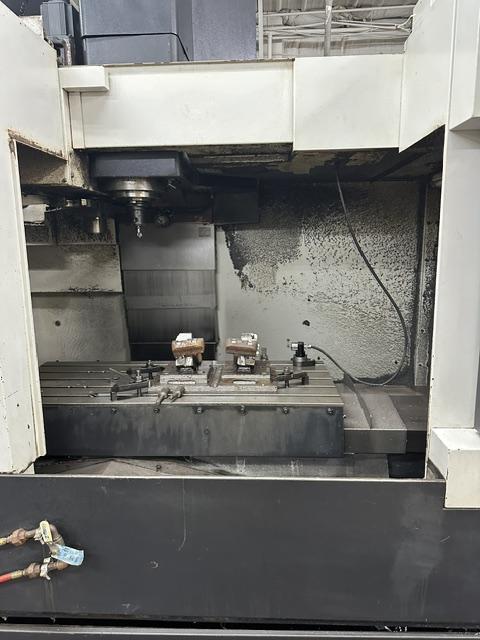

X-Axis Travel: 41″ Y-Axis Travel: 20″ Z-Axis Travel: 20″ Rapid Traverse Rates: 1,417 IPM (X, Y, Z) Cutting Feed Rate: 787 IPM (Approx.) Table Size: 51.18″ × 21.65″ Table Load Capacity: 2,640 Lbs Spindle Taper: CAT 40 Spindle Speeds: 6,000 RPM Spindle Motor: 25 HP Tool Changer Capacity: 30 Positions (Side-Mount ATC) Tool Change Time (Chip-to-Chip): 1.3–2.9 Seconds Max Tool Diameter: 4.9″ Max Tool Length: 13.8″ Max Tool Weight: 17 Lbs Spindle Nose To Table Top: 5.9″ – 25.98″ Air Requirement: 80 PSI, 4 SCFM Power Requirement: 220 V, ~35 kVA, 3-Phase Machine Weight: Approx. 15,200 Lbs Overall Dimensions (L×W×H): Approx. 113″ × 111″ × 113″

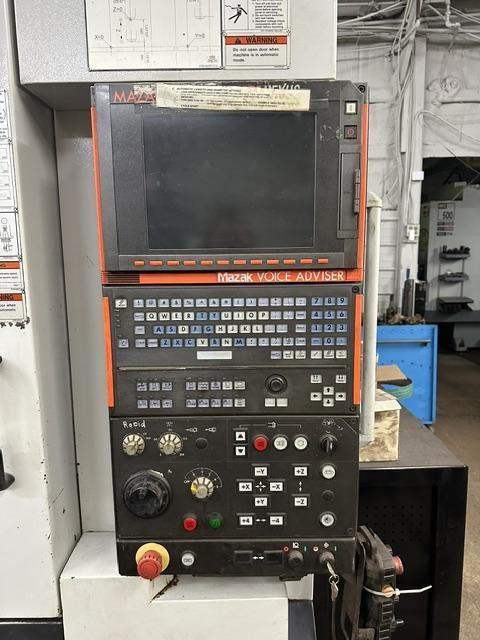

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mazatrol Matrix CNC Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
