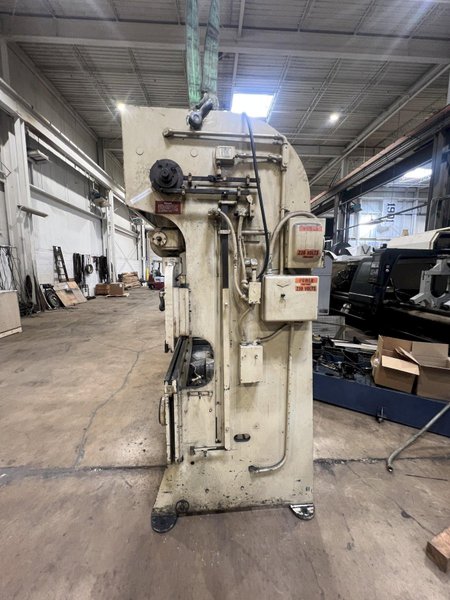

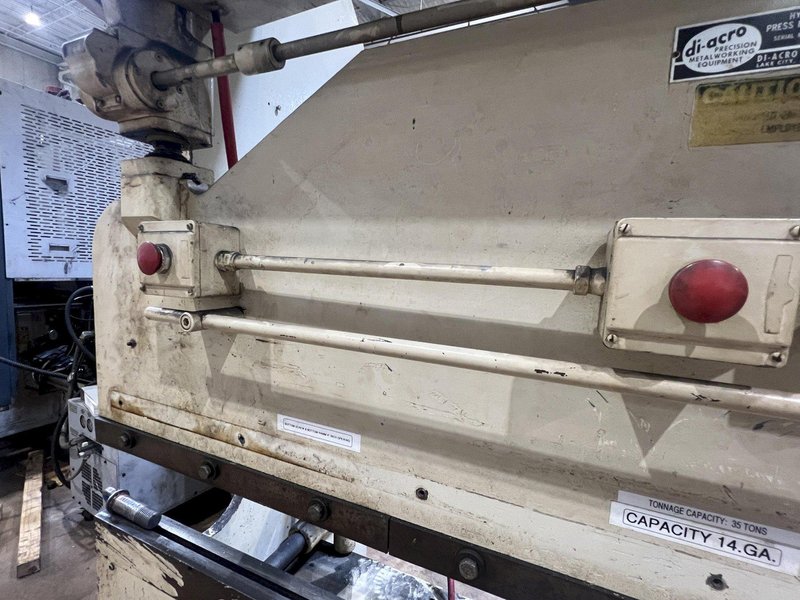

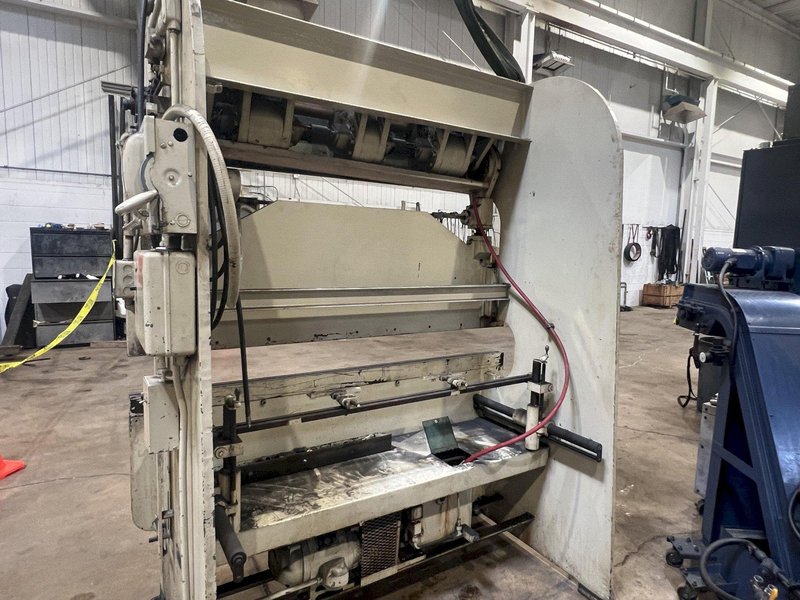

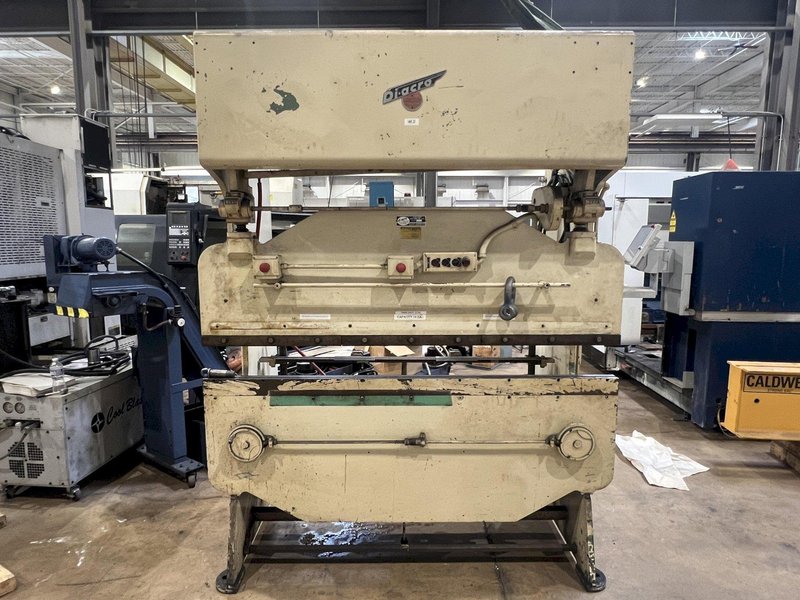

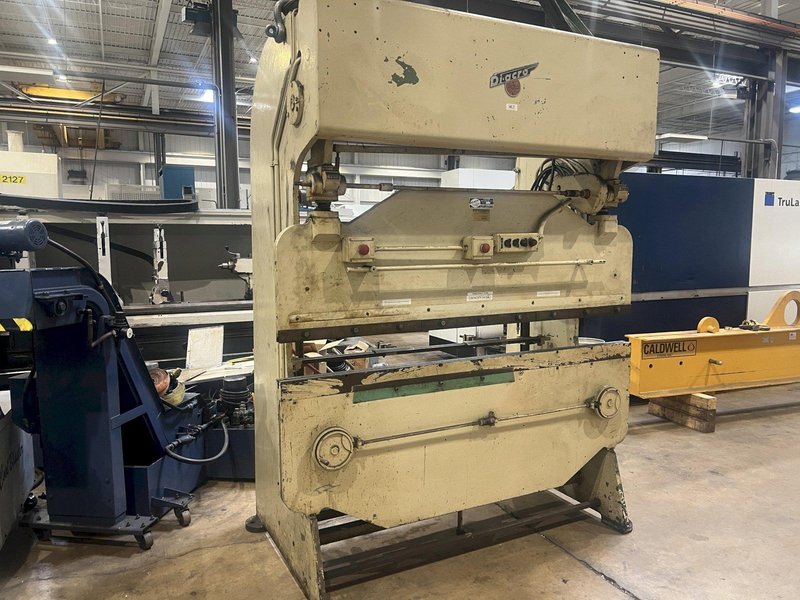

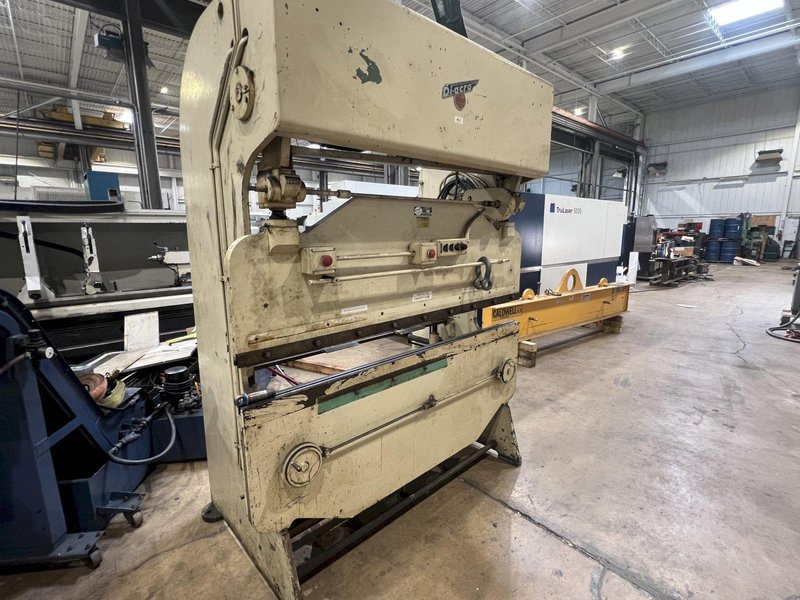

35 TON DI-ACRO MODEL 14-72 HYDRA-MECHANICAL POWER PRESS BRAKE

Brand
DIACRO
Category
Bending & Forming Equipment
Type
Brakes, Hydraulic
Model
14-72
Stock #
20045
Year
1963
Condition
Very Good

Location

Illinois
REQUEST FINANCING
35 TON DI-ACRO MODEL 14-72 HYDRA-MECHANICAL POWER PRESS BRAKE

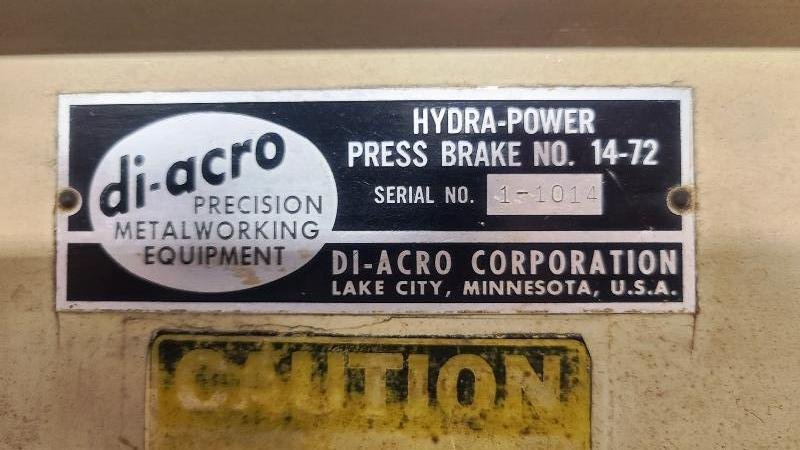

Serial No. 1-1014  New 1963

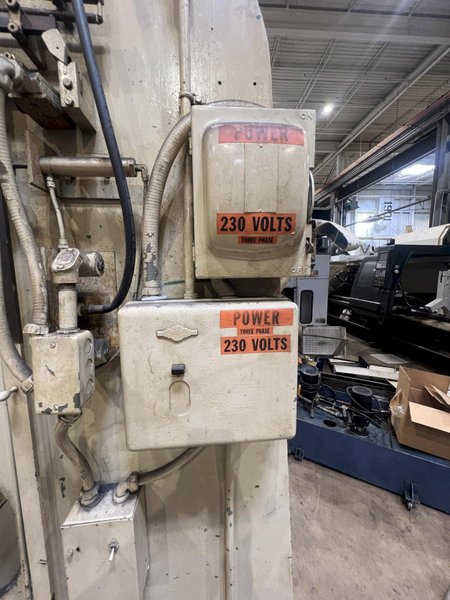

Motor Driven with 3 HP, 3-Phase, 60 Cycle, AC Motor and Controls

SPECIFICATIONS:

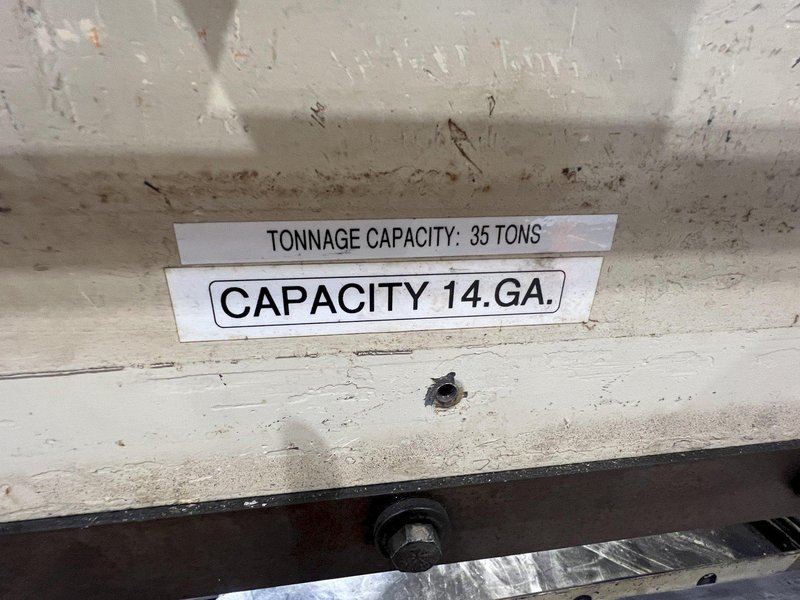

Capacity                                                                     35 Tons
Overall Length                                                           72"
Distance Between Housings                                       62"
Rated Capacity                                                            6' x 14 Ga.
Ram Stroke                                                                  2"
Ram Adjustment                                                          3"
Center of Die to Frame (Throat)                                  9"
Die Space, Stroke Down Adjustment Up                    9"
Distance Floor to Machine Bed:                                 34"
Variable Ram Stoke Speeds                                      7 to 29 SPM

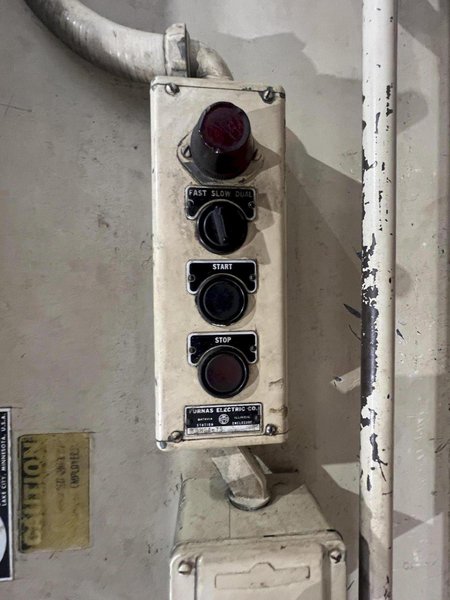

Speed Control Settings                                              Slow – Fast, Dual
Approximate Dimensions                                           100" LR x 62" FB x 92" High
Approximate Weight                                                   5,500 Lbs.
