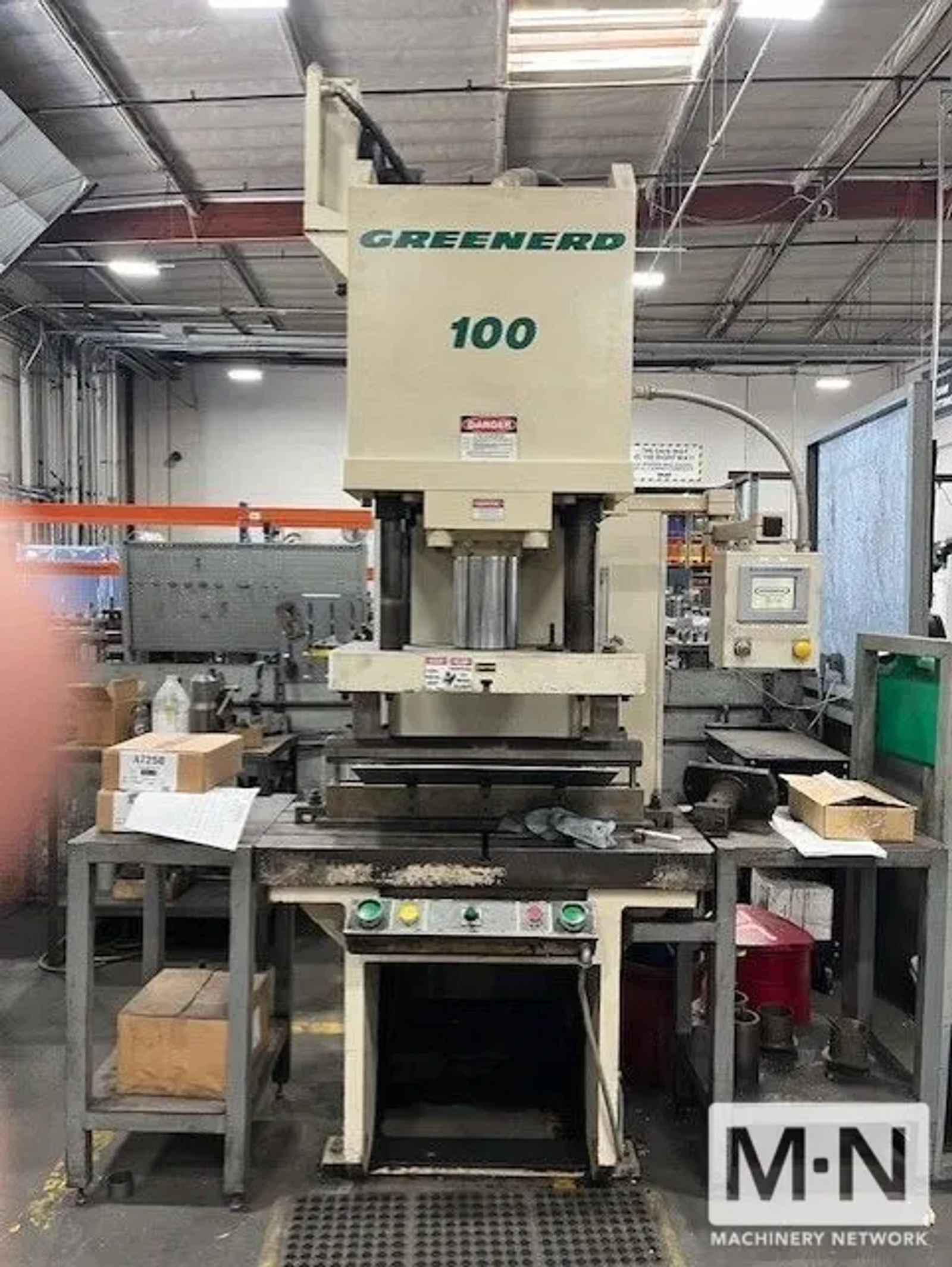

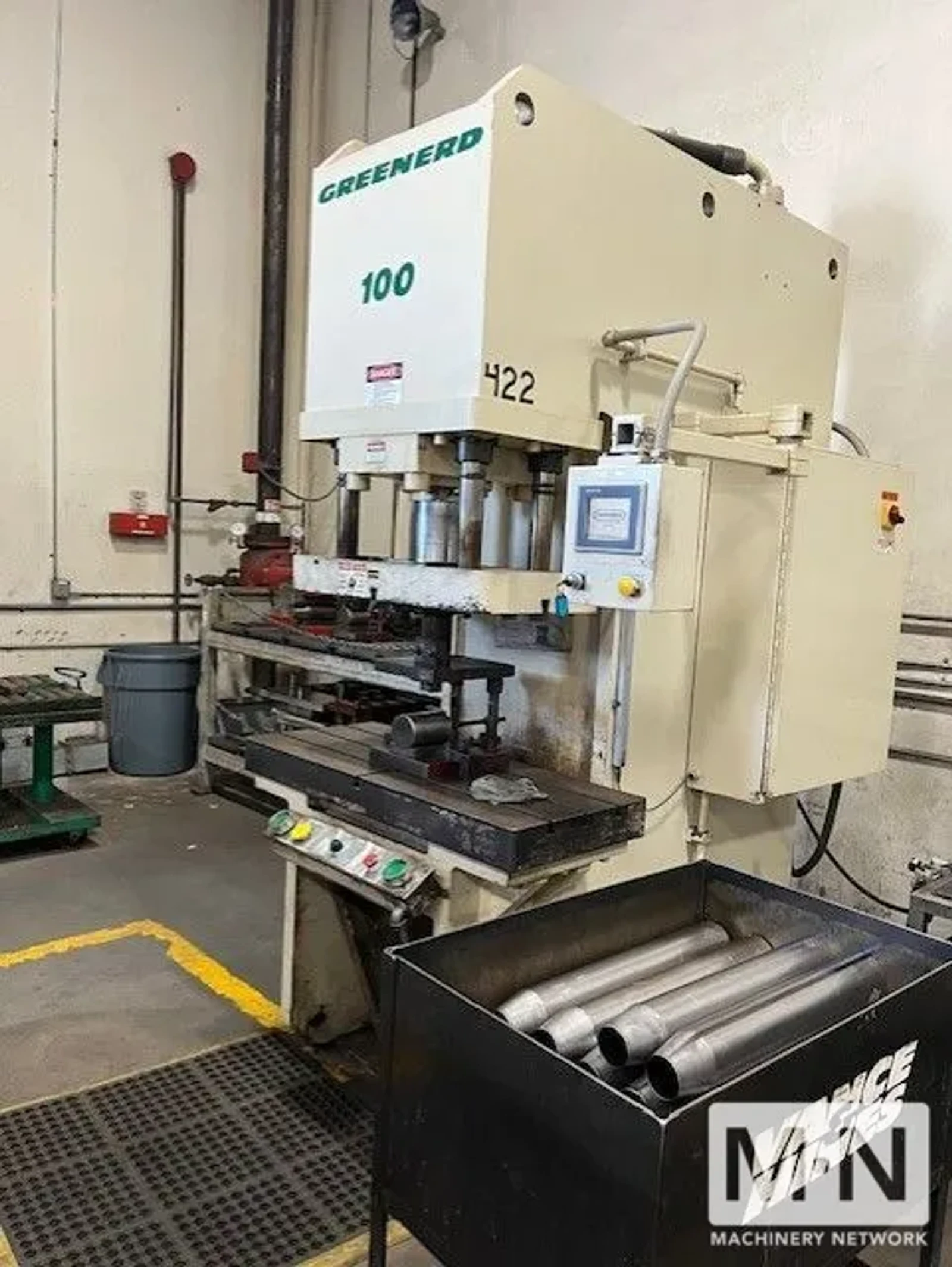

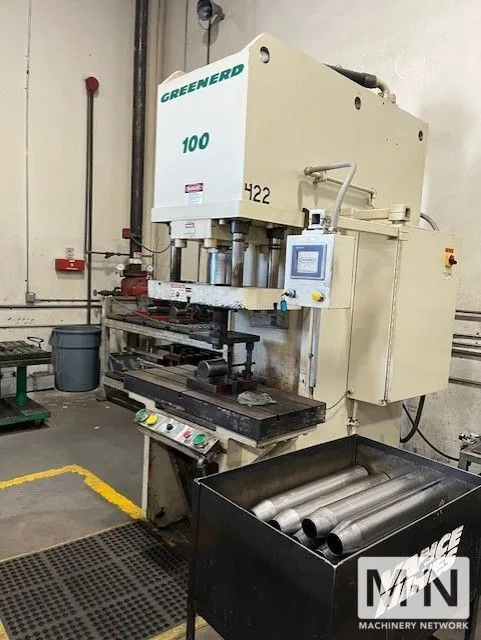

2007 GREENARD HCA-100 75R7 HYDRAULIC C-FRAME PRESS

2007 GREENARD HCA-100 75R7 HYDRAULIC C-FRAME PRESS

Name: Used GREENERD HCA-100-75R7 For Sale 52426
Brand: GREENERD
SKU: 52426
Availability: PreOrder

Brand

GREENERD

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

PRESSES, HYDRAULIC

Manufacturer:

GREENERD

Model:

HCA-100-75R7

Year:

2007

Stock #:

52426

Status:

For Sale

Specifications

TONS OF RAM FORCE ADJUSTABLE FROM 20 TO 100
TABLE DIMENSIONS 46" L-R X 20" F-B
THROAT 13"
DAYLIGHT 24"
STROKE ADJUSTABLE FROM 1" TO MAXIMUM 18"
FLOOR TO TABLE 38"
CLEARANCE BETWEEN RIBS UNDER PRESS BOLSTER 9"
PRESS SIZE 56" L-R x 78" F-B x 129" TALL
GUIDING SYSTEM 4 GUIDE POSTS
UPPER TOOLING PLATE 32" L-R x 18" F-B
HOLE PATTERN IN UPPER TOOLING PLATE (4) 25/32" hOLES, 9' x 16" PATTERN
PUMP CAPACITY 75 GPM & 7 GPM
CYLINDER BORE 10"
RAM DIAMETER 7"
RAM SPEED CLOSE 492 IPM
RAM SPEED PRESS 21 IPM
RAM SPEED OPEN 473 IPM
MAX. SYSTEM PRESSURE 2546
MOTOR 20 HP 1,800 RPM
WEIGHT APPROX, 15,000 LBS

Equipped With:

MECHANICAL DUAL HAND CONTROLS
EMERGENCY STOP
KEYED SECTOR SWITCH FOR RUN OR JOG MODES
SOLID STATE PROGRAMMAVLE LOGIC CONTROLLER
STROKE CONTROL
DISTANCE REVERSAL
PRESSURE REVERSAL
PRE-SLOW DOWN CIRCUIT
AIR-COOLED HEAT EXCHANGER

No files or videos to display
