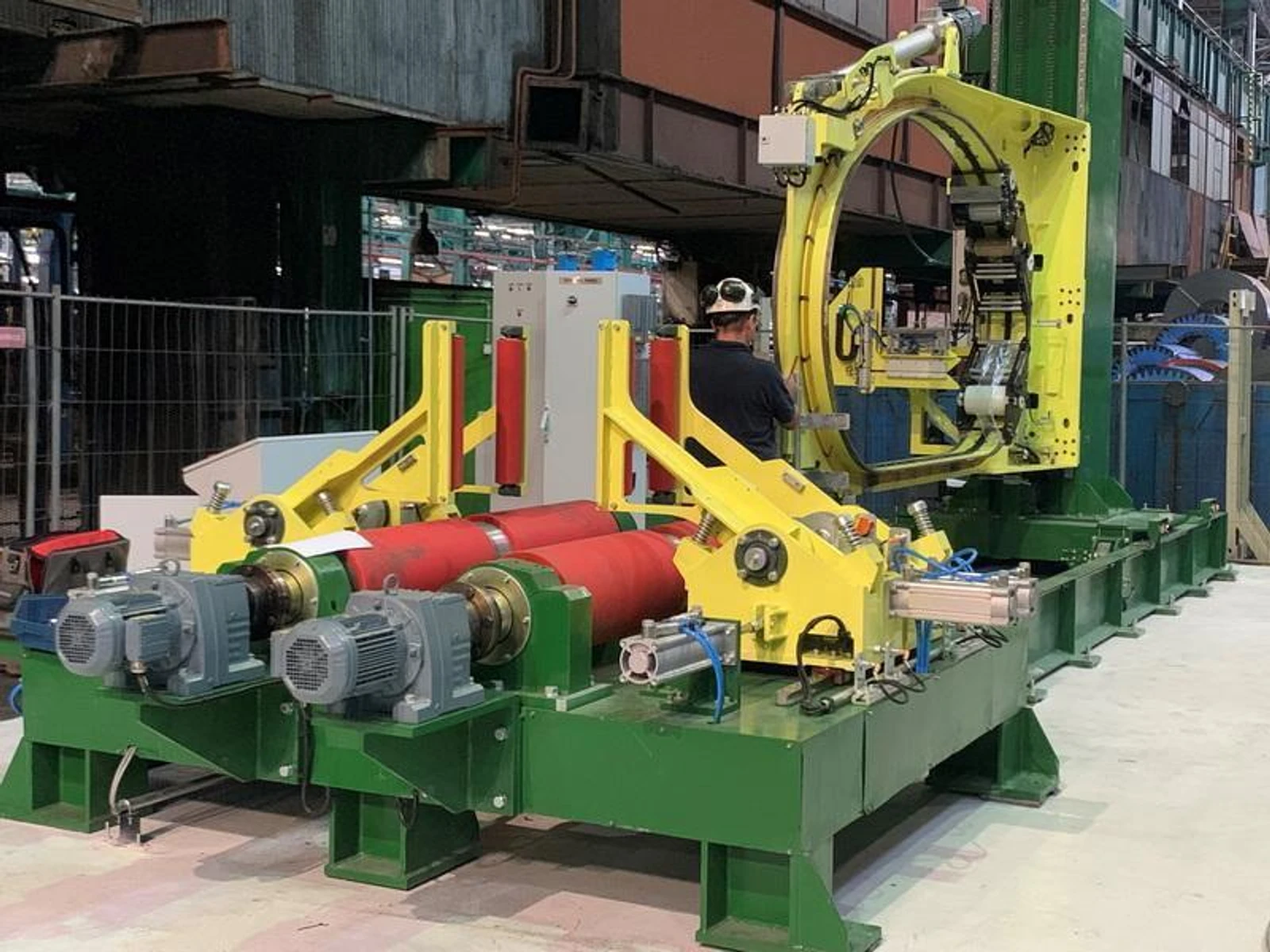

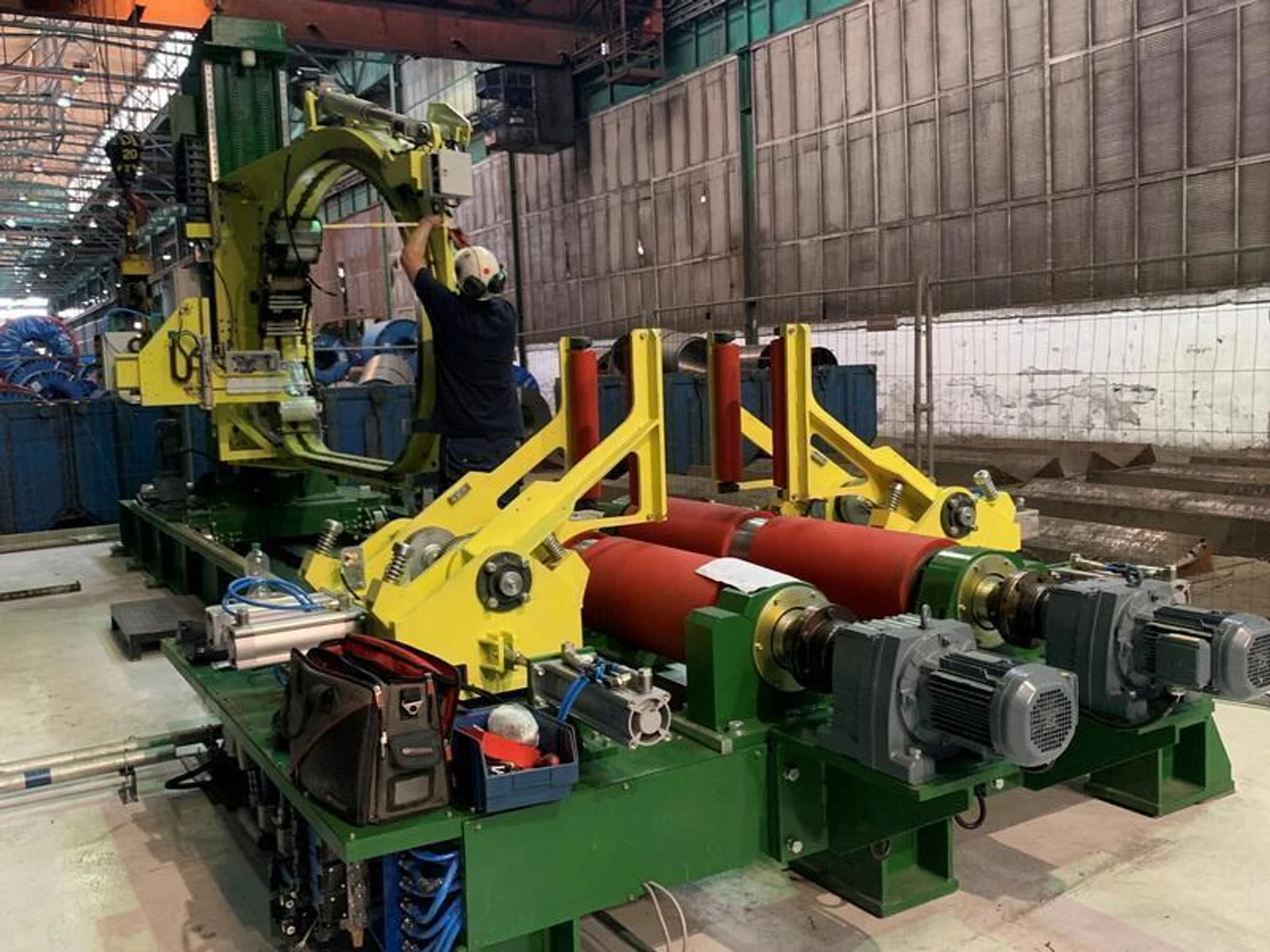

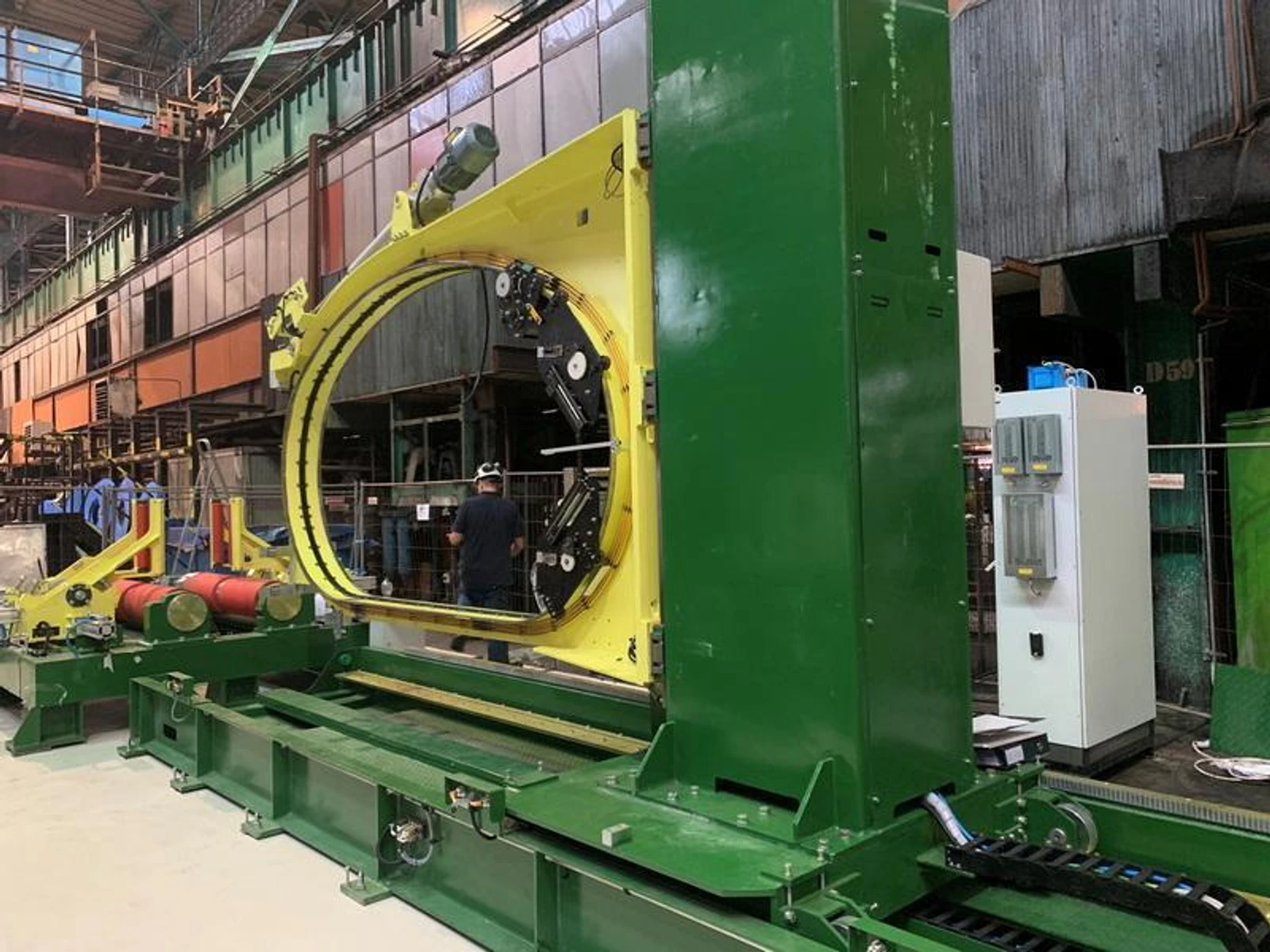

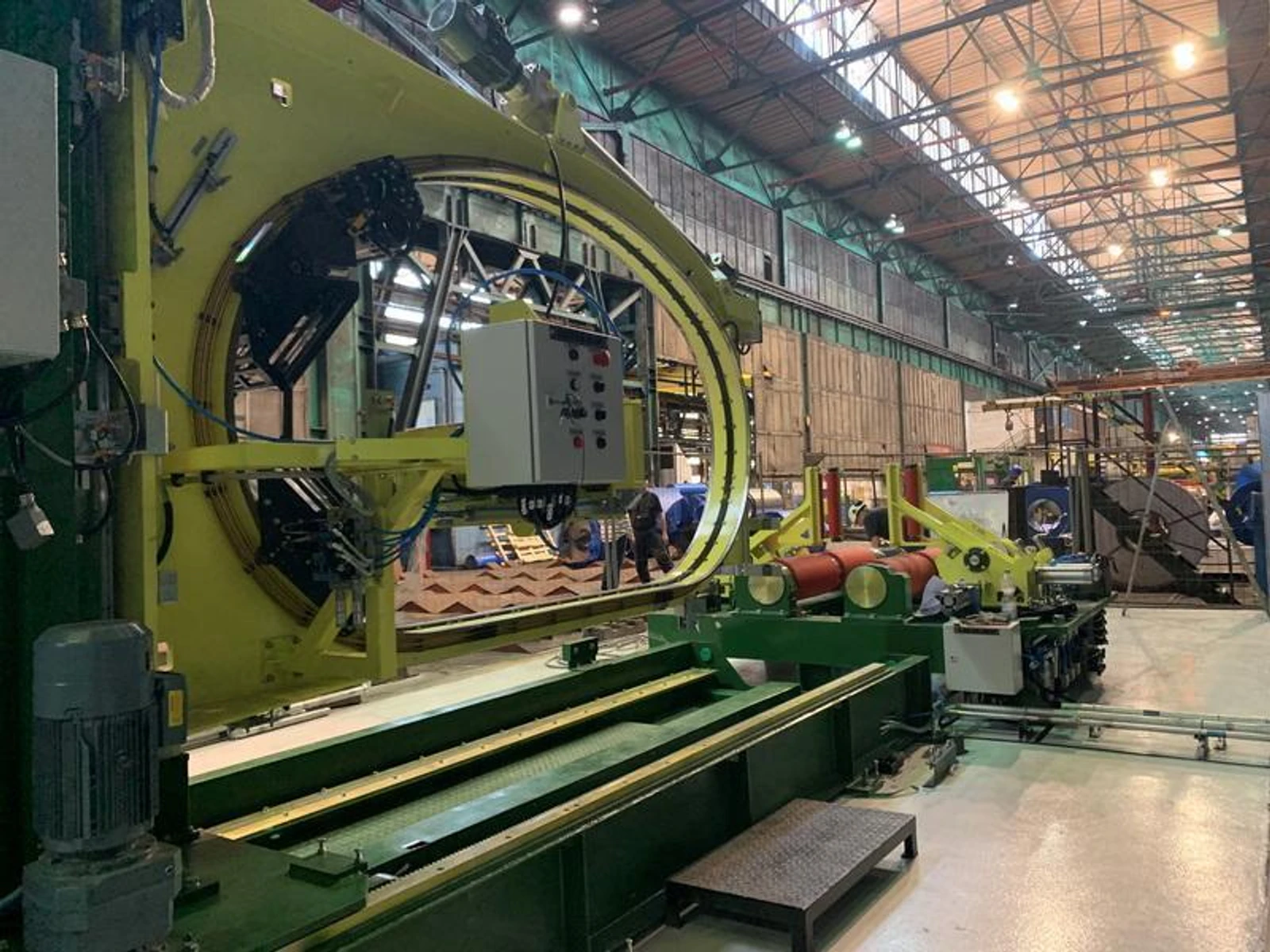

AUTOMATIC COIL WRAPPING MACHINE
Brand
Category
Type
Model
Not specified
Stock #
117028
Year
Not specified
Condition
Used
Location
Michigan
|
Material: Steel Coils, tightly wound with tightly fitted inner winding
OD Range: 600mm-1800mm
Coil ID: 510/610mm
Coil Width Range: 300mm-1800mm
Coil Weight: 1-25 T
Transport: Infeed of coil by existing crane with C-Hook centered on cradle rollers
Coil Transport: Coil Eye Horizontal
Capacity Output: Approx. 230 s/coil with 30% overlap, 16 coils/hr
Material for packaging: customary stretch film, crepe paper with VCI, VCI stretch film
Core–Ø: 76 mm
Roll width: 250 mm
Roll diameter: max. Ø 240 mm)
Film length: 760 m with 50 µm
Film overlap: adjustable
Crepe paper: 70/ 140 gsm s VCI
Average foil consumption is 1.2 kg (30% overlapping), crepe paper 3 kg per Coil with OD 1500 mm, width 1250 mm
ID 610 mm
|
