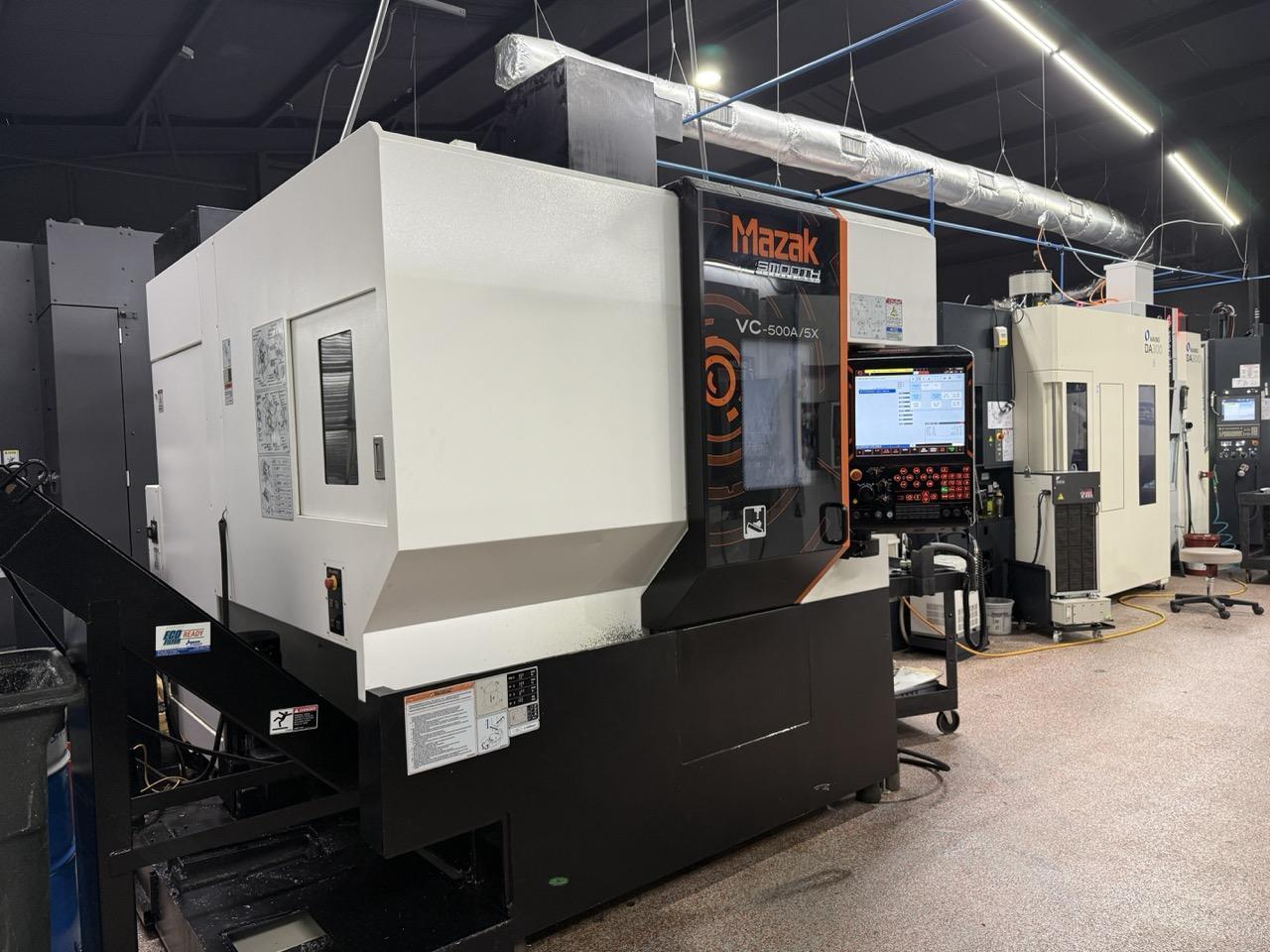

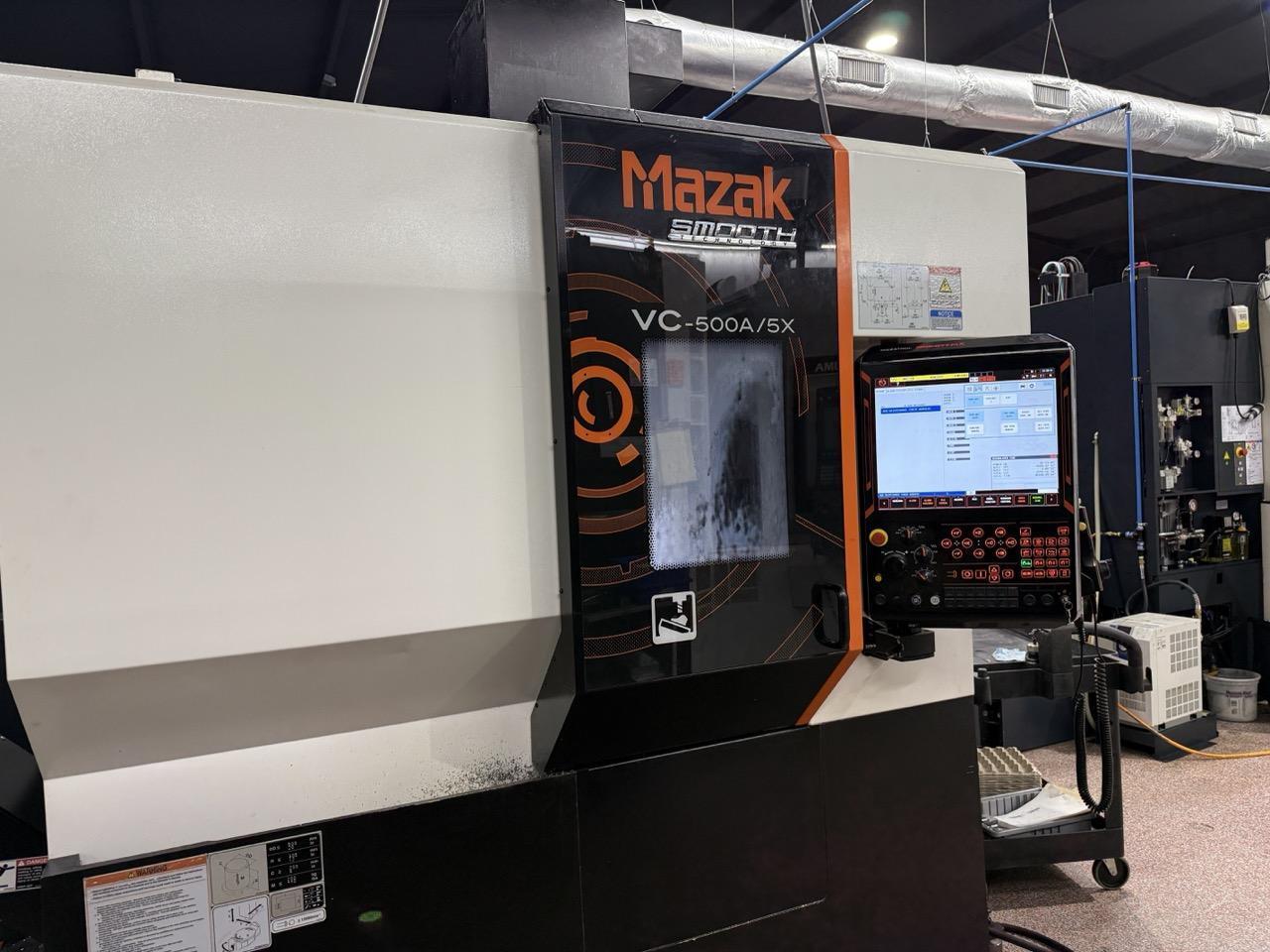

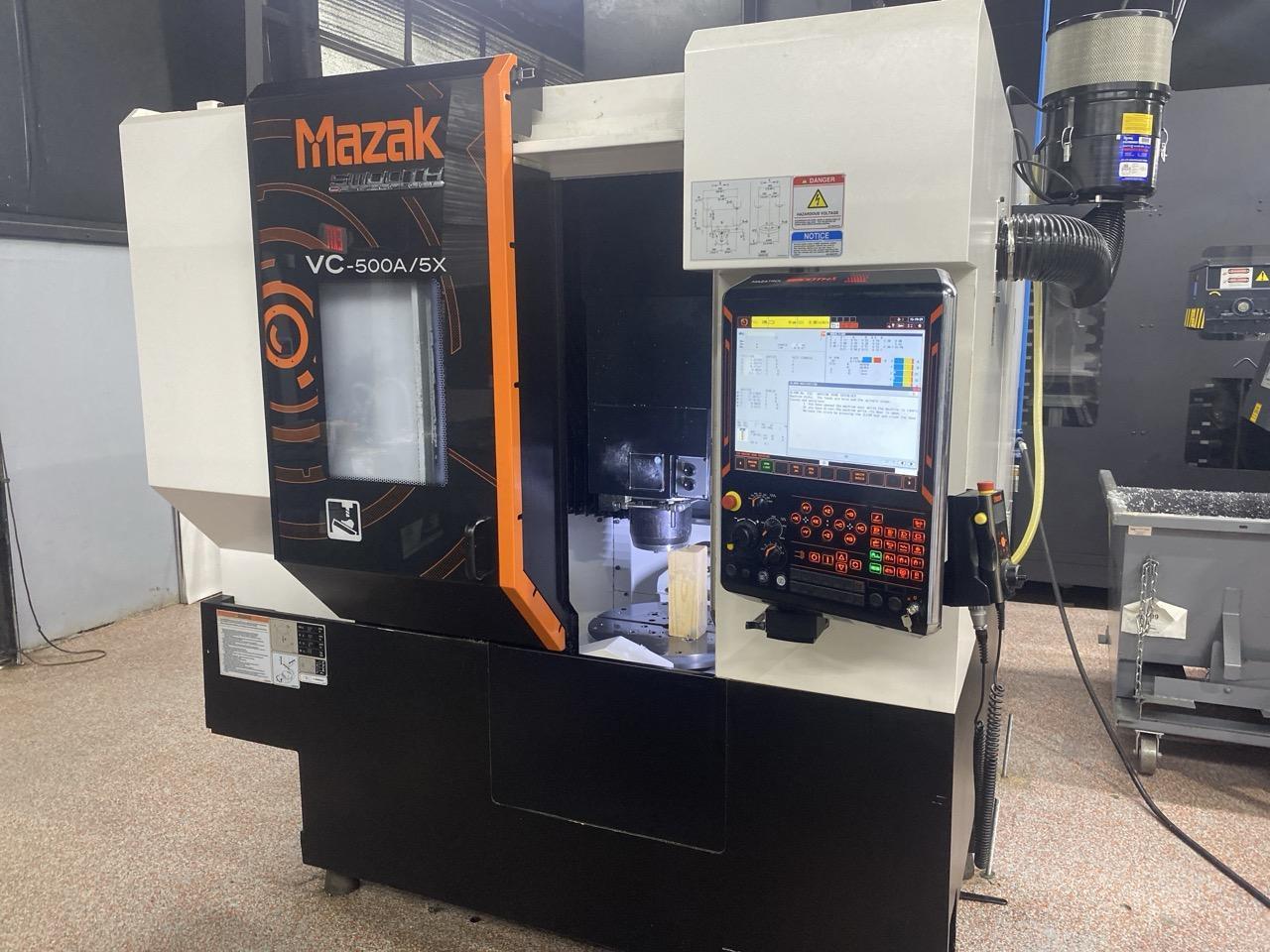

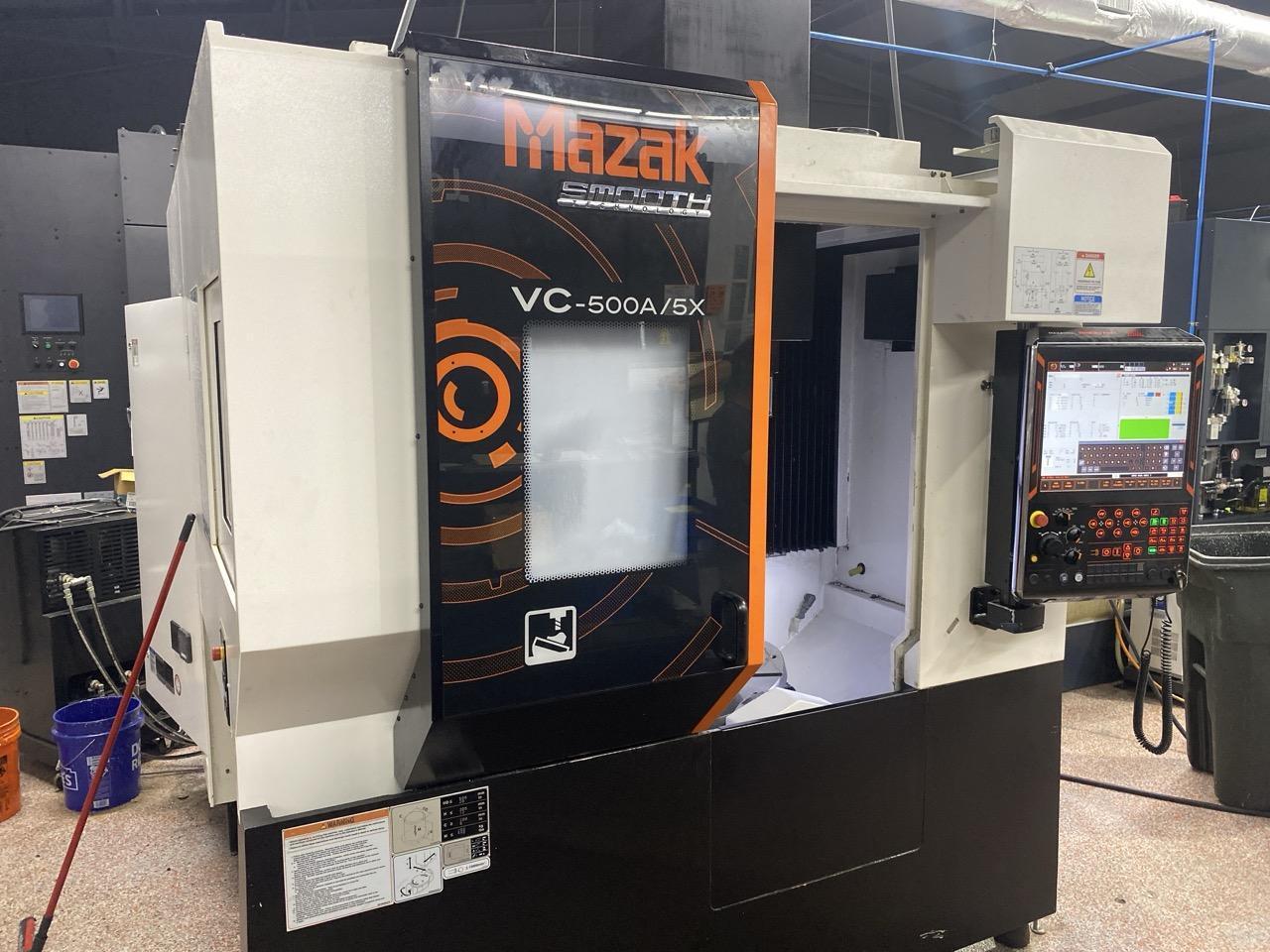

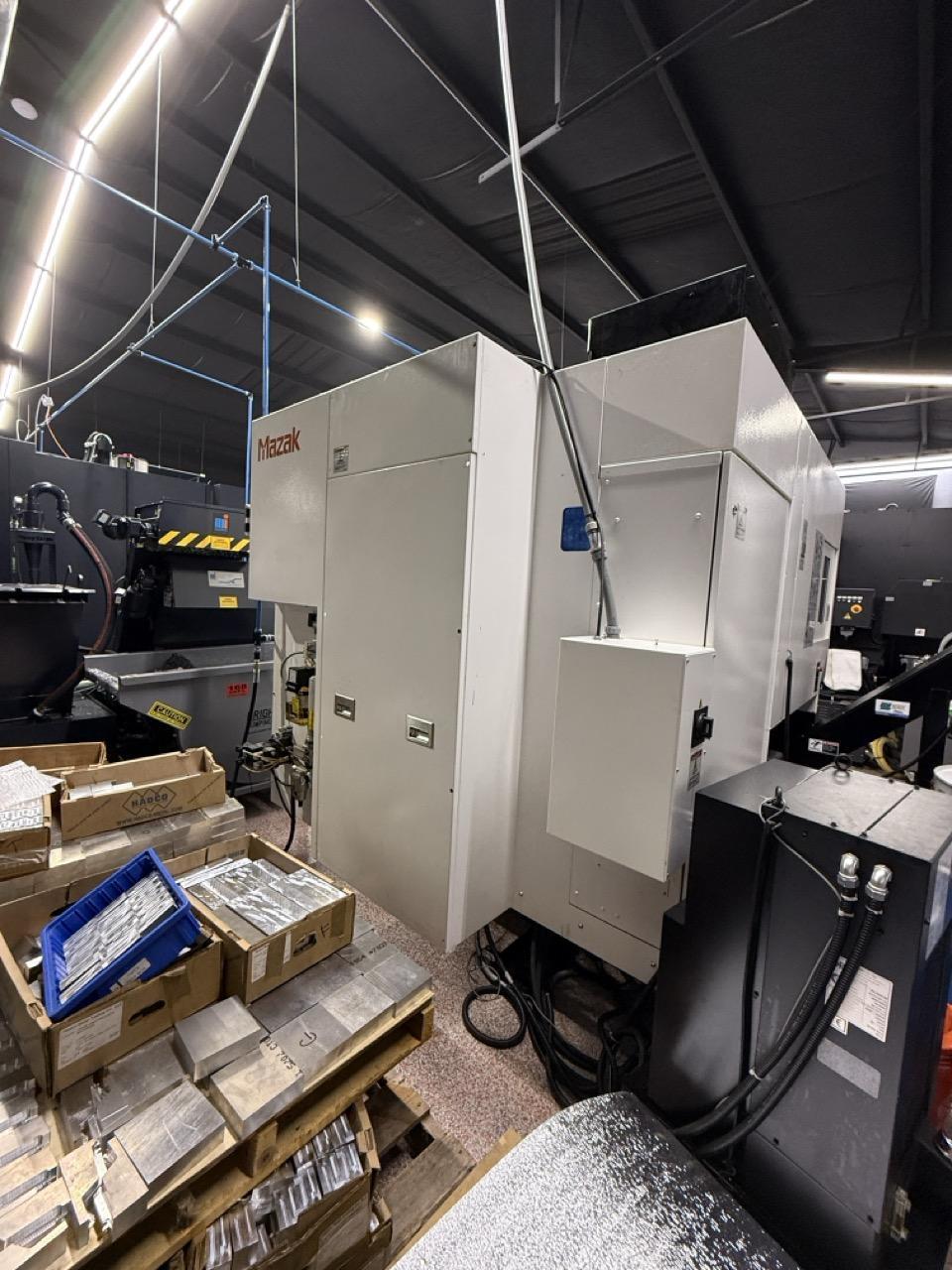

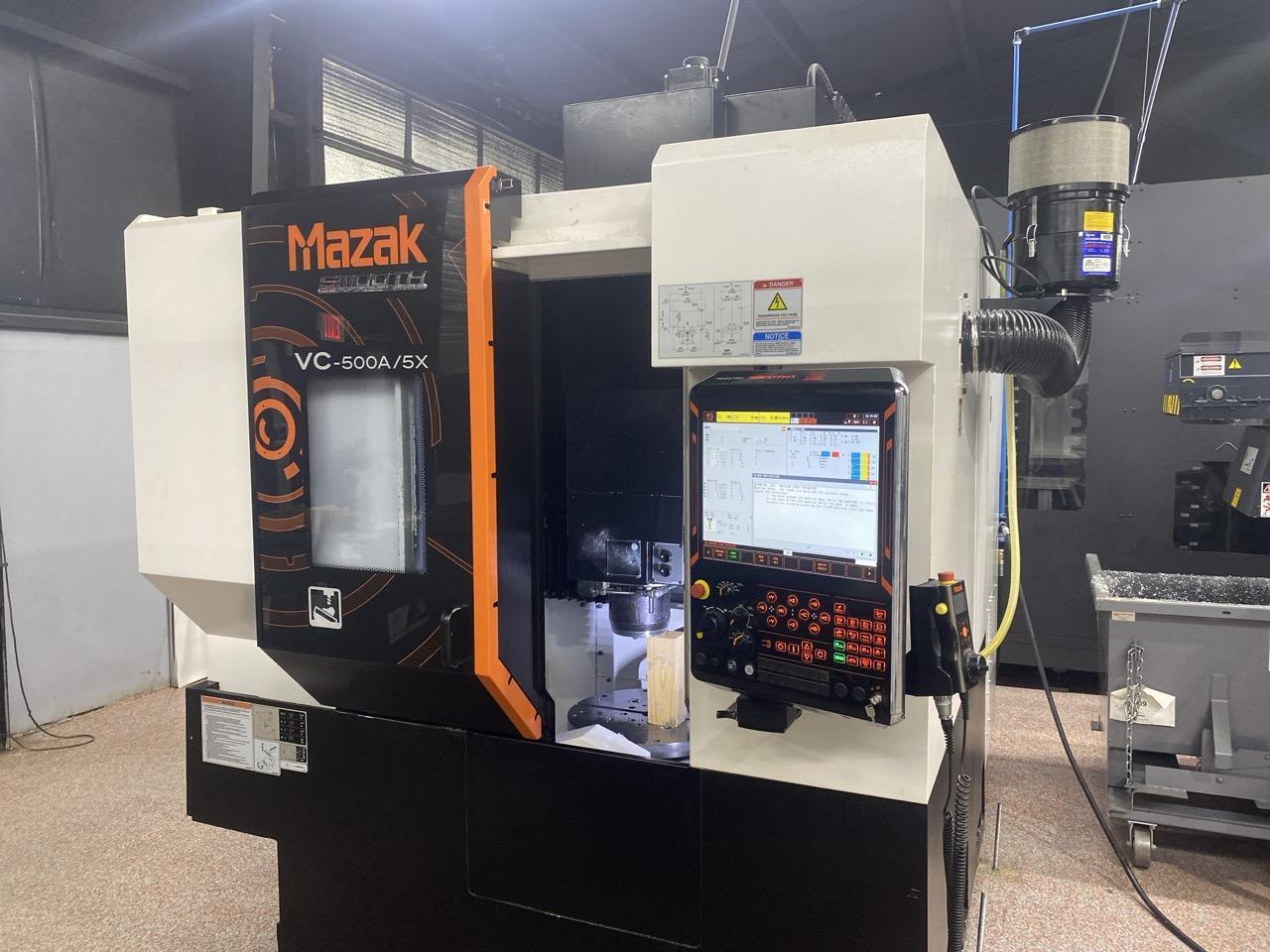

Mazak VC 500A 5-Axis CNC VMC, 2019 – Through Spindle Coolant, Chip Conveyor, Dual Probing Kit

Travels: X-axis: 21.85″ Y-axis: 19.88″ Z-axis: 20.07″ Rapid Rate X Axis: 1,181 IPM Rapid Rate Y Axis: 1,181 IPM Rapid Rate Z Axis: 1,181 IPM Max. Workpiece Diameter: 19.6″ Max. Workpiece Height: 12″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 19.7″ x 19.7″ (500mm Pallet) Max Table Load: 441 LBS

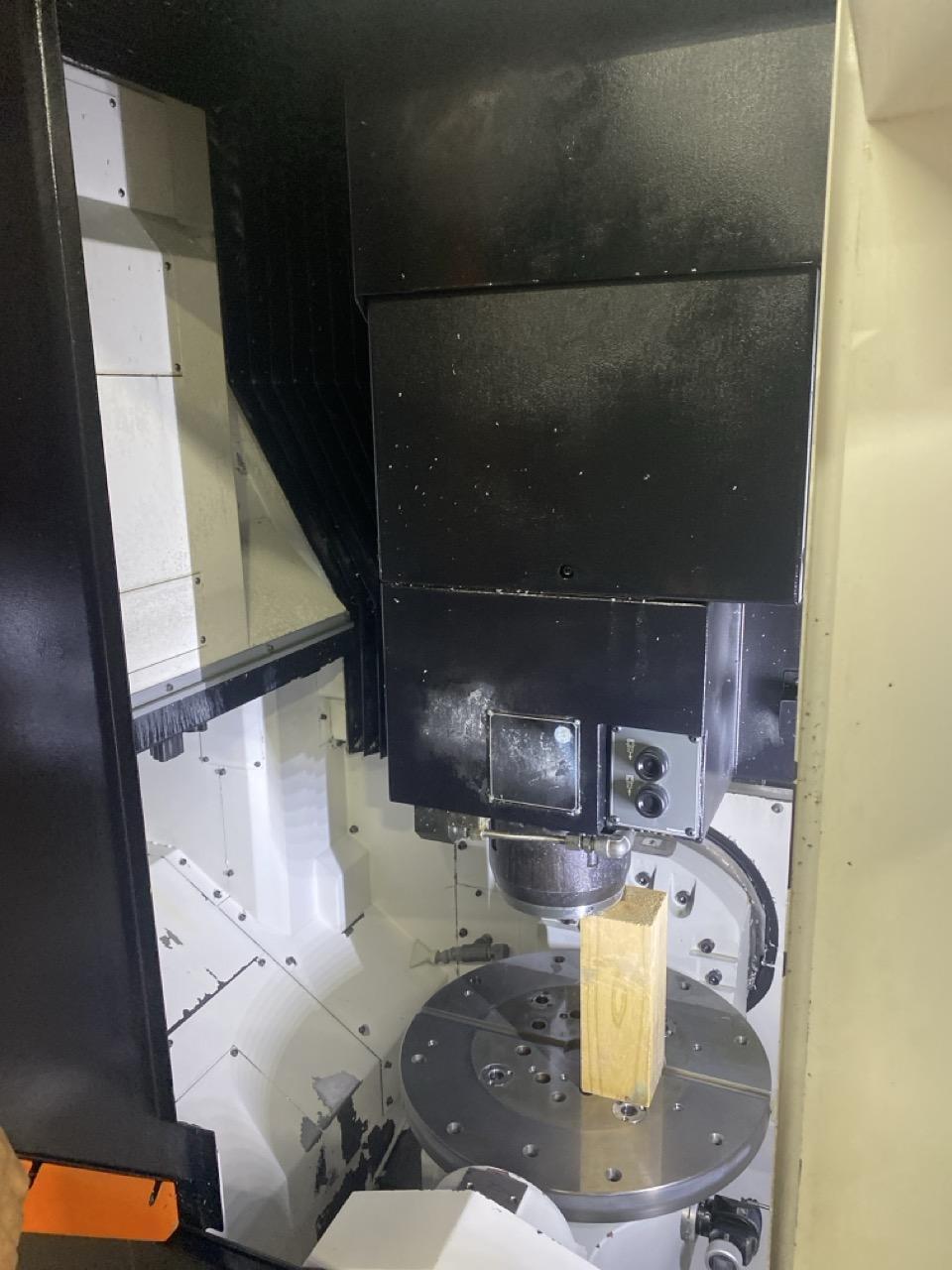

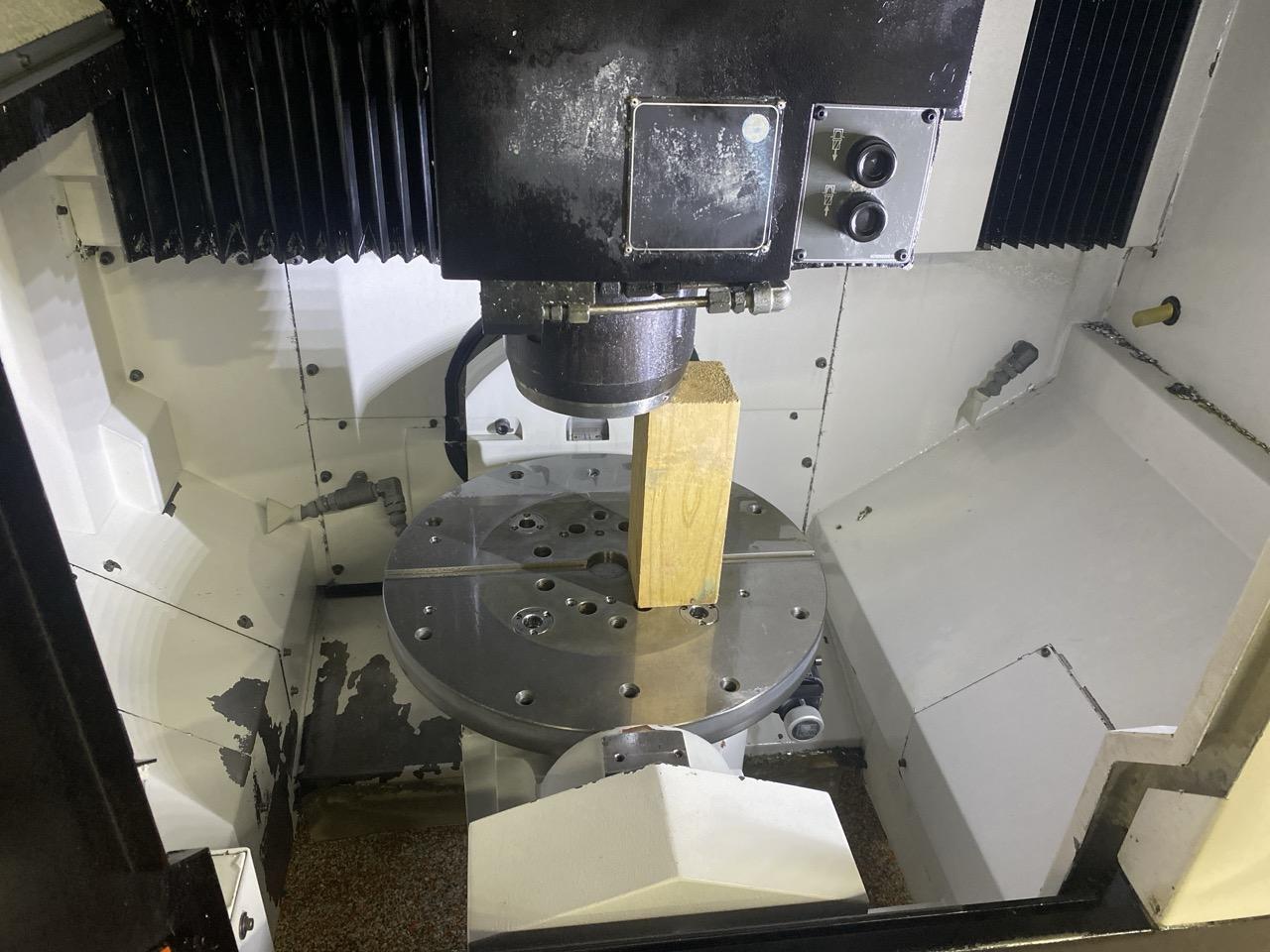

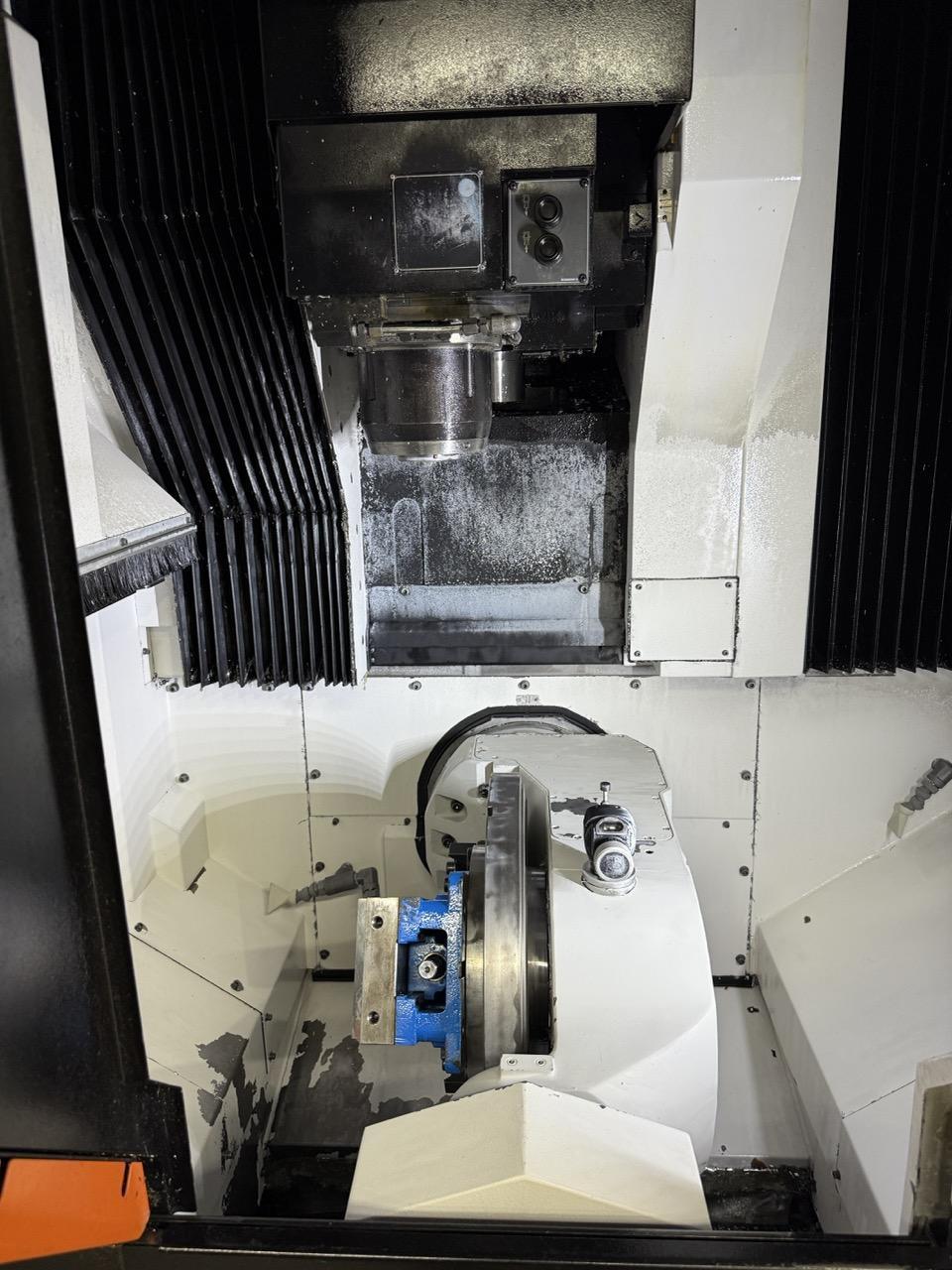

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,5 Axis Table: B Axis: +110 to -110 C Axis: 360 Deg Work Piece 19.68″ Diameter Work Piece 12″ Height

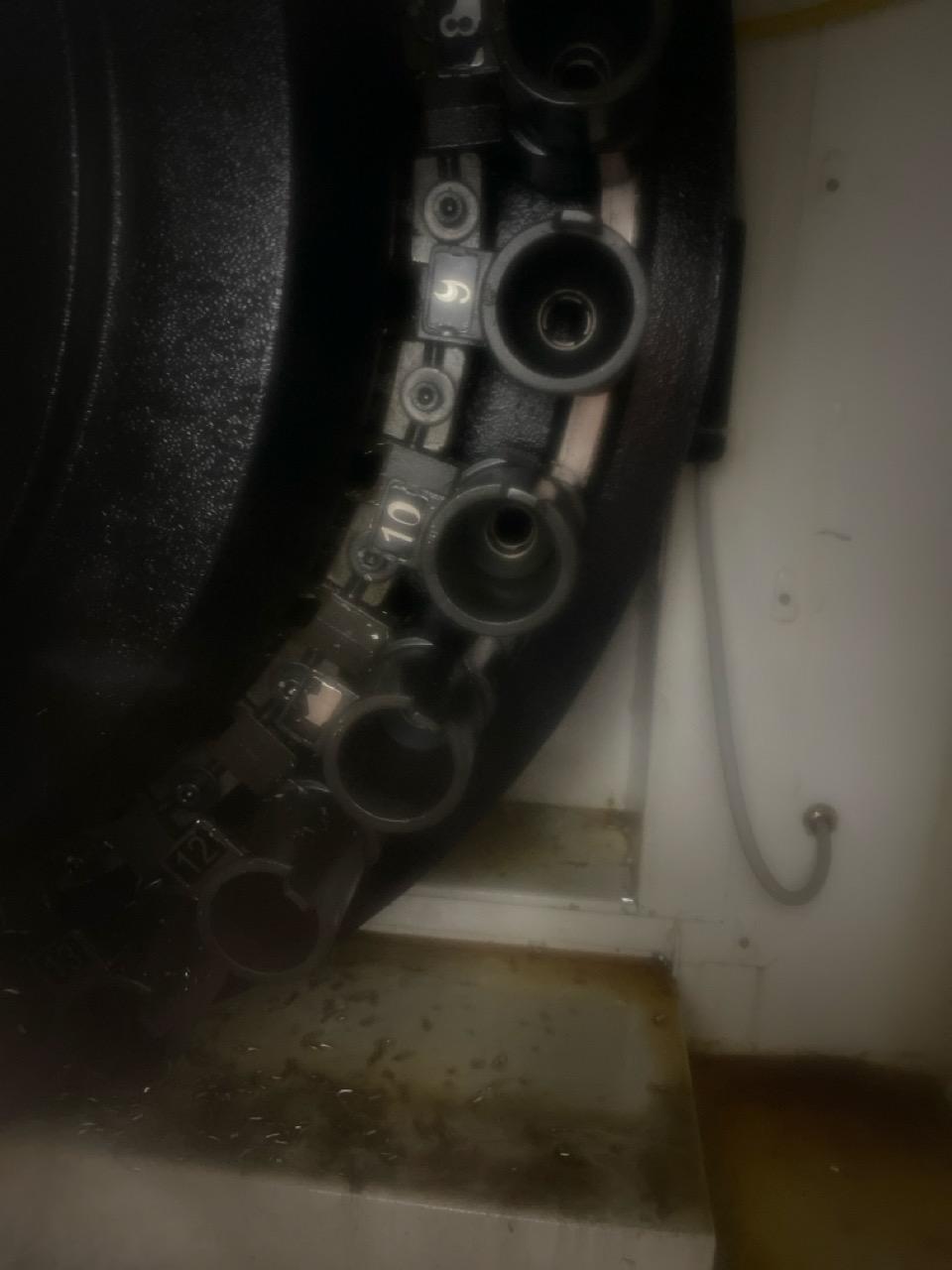

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: Cat 40 Taper Max Spindle Speed: 15,000 RPM Spindle Power: 30 HP Tool Capacity: 30

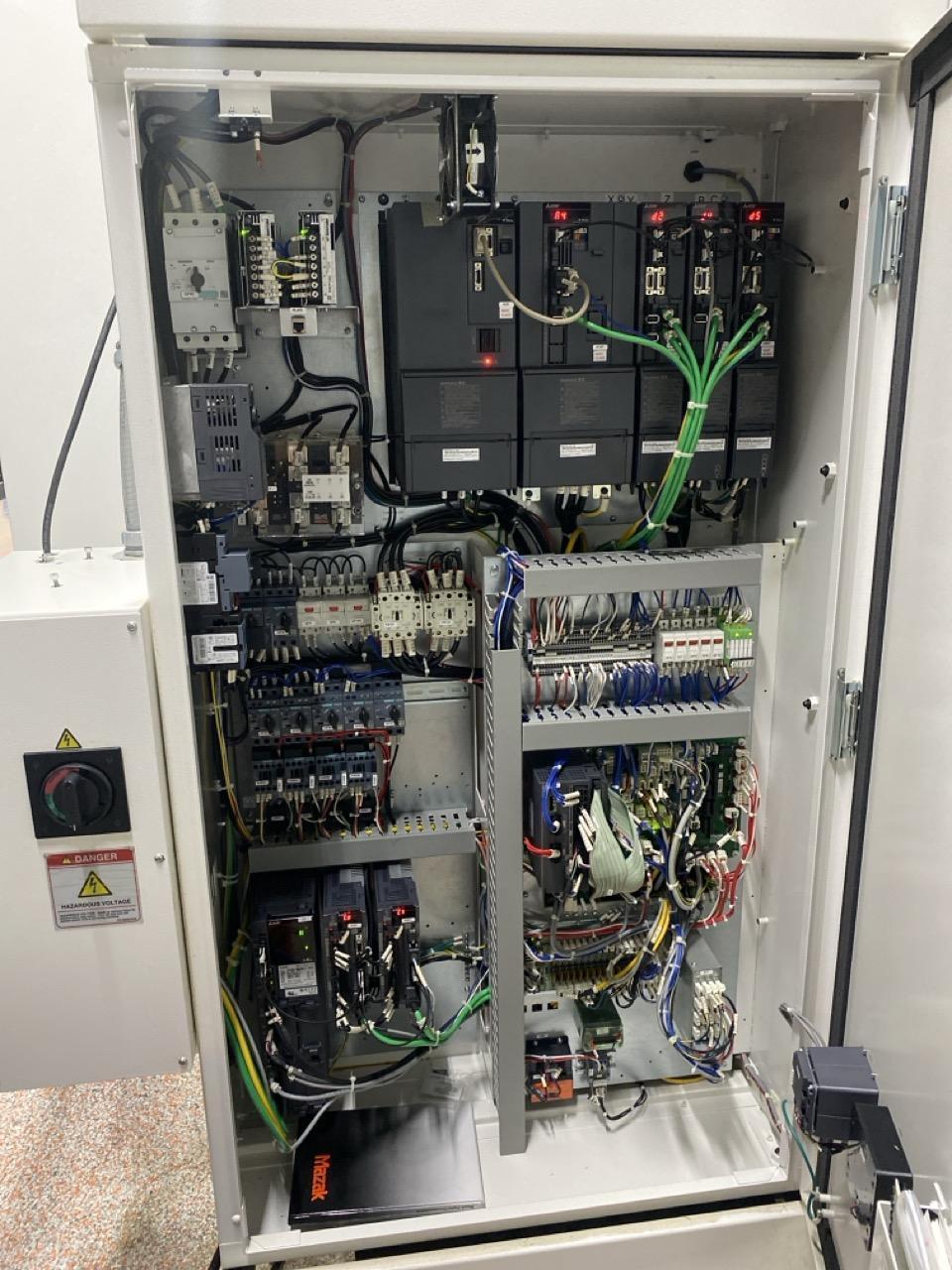

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 118.5″ x 99″ x 118″ Weight: Approx 18,000 lbs Electrical Requirements: 200V/3 Phase

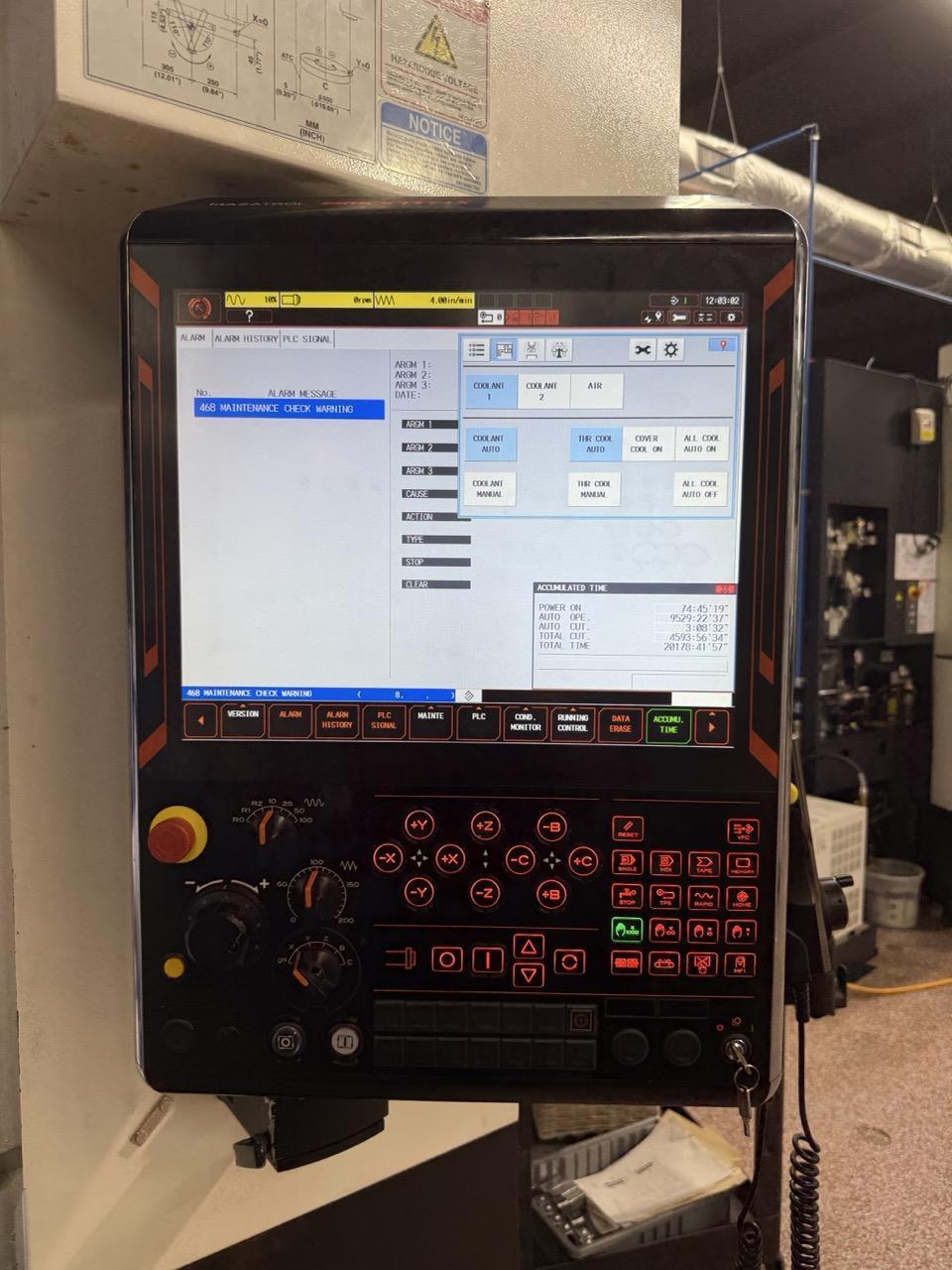

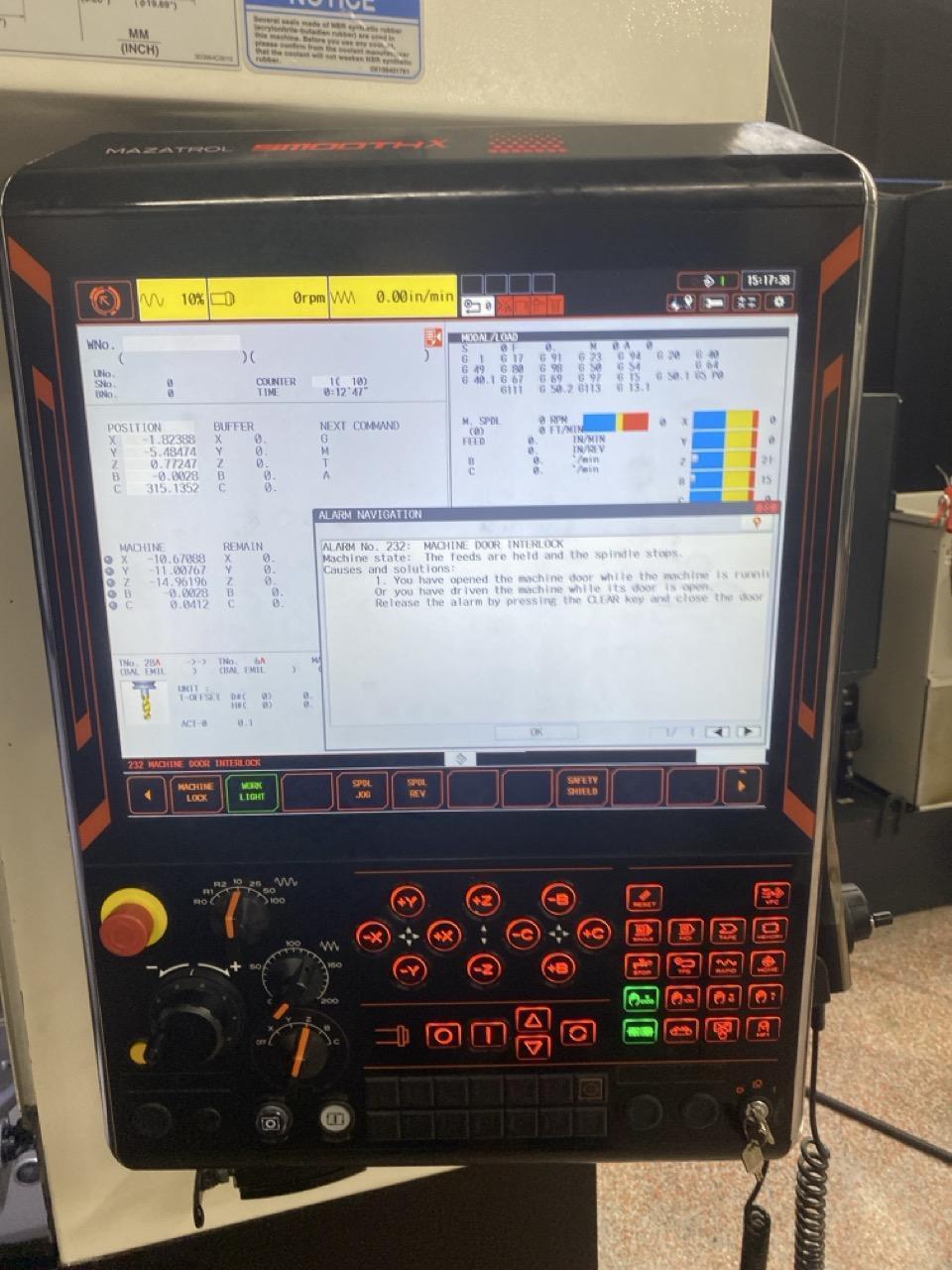

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Through Spindle Coolant CNC Control: Mazatrol SmoothX Chip Conveyor Dual Probing Kit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
