Sentry BCI Basket Erector/Inserter for 6 Pack Glass Beverage Containers into RSC Cases, 2015

Used Sentry BCI Basket Erector/Inserter for 6 Pack Glass Beverage Containers into RSC Cases:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capable of running 4 packs with change parts (not included)

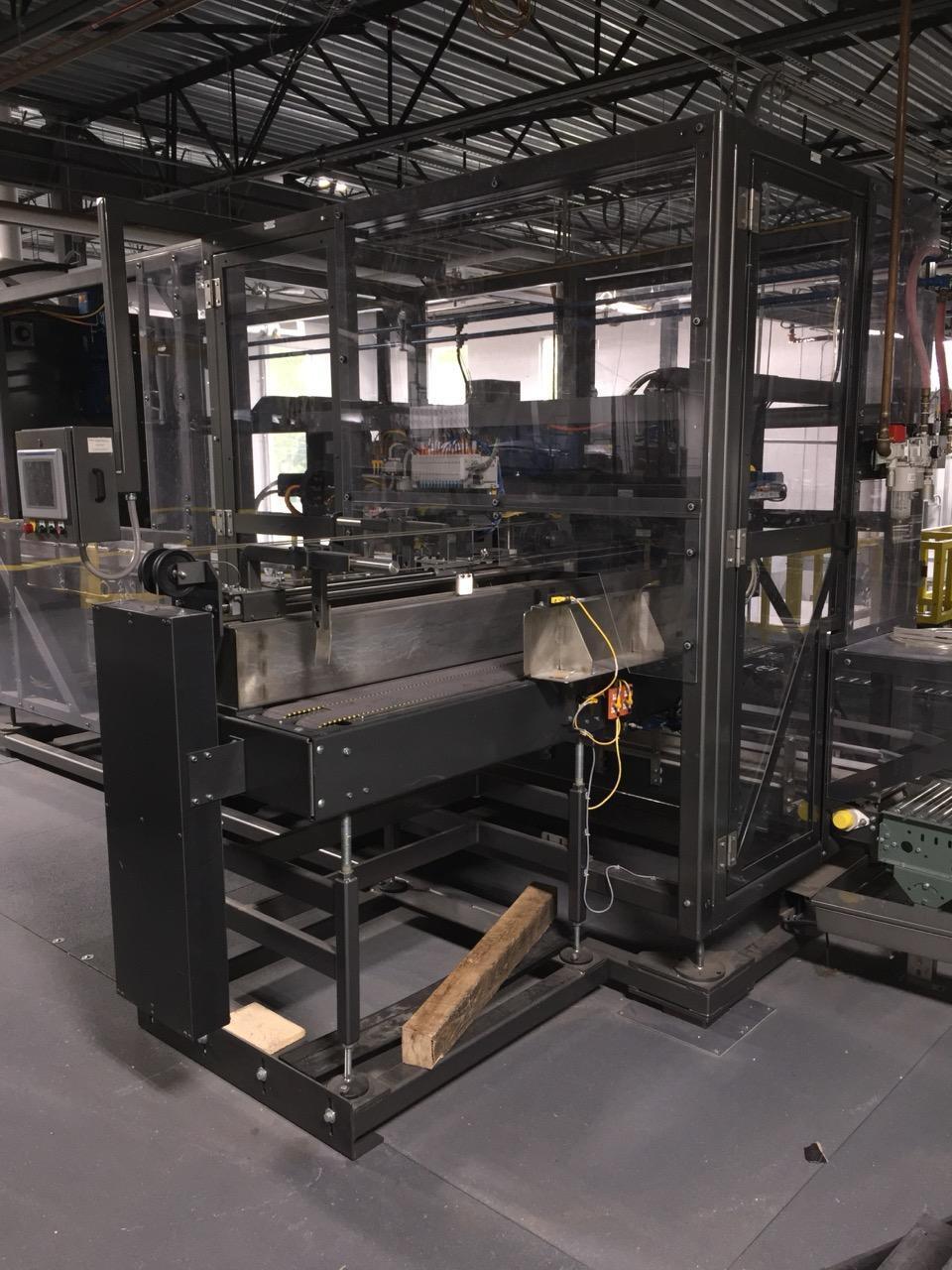

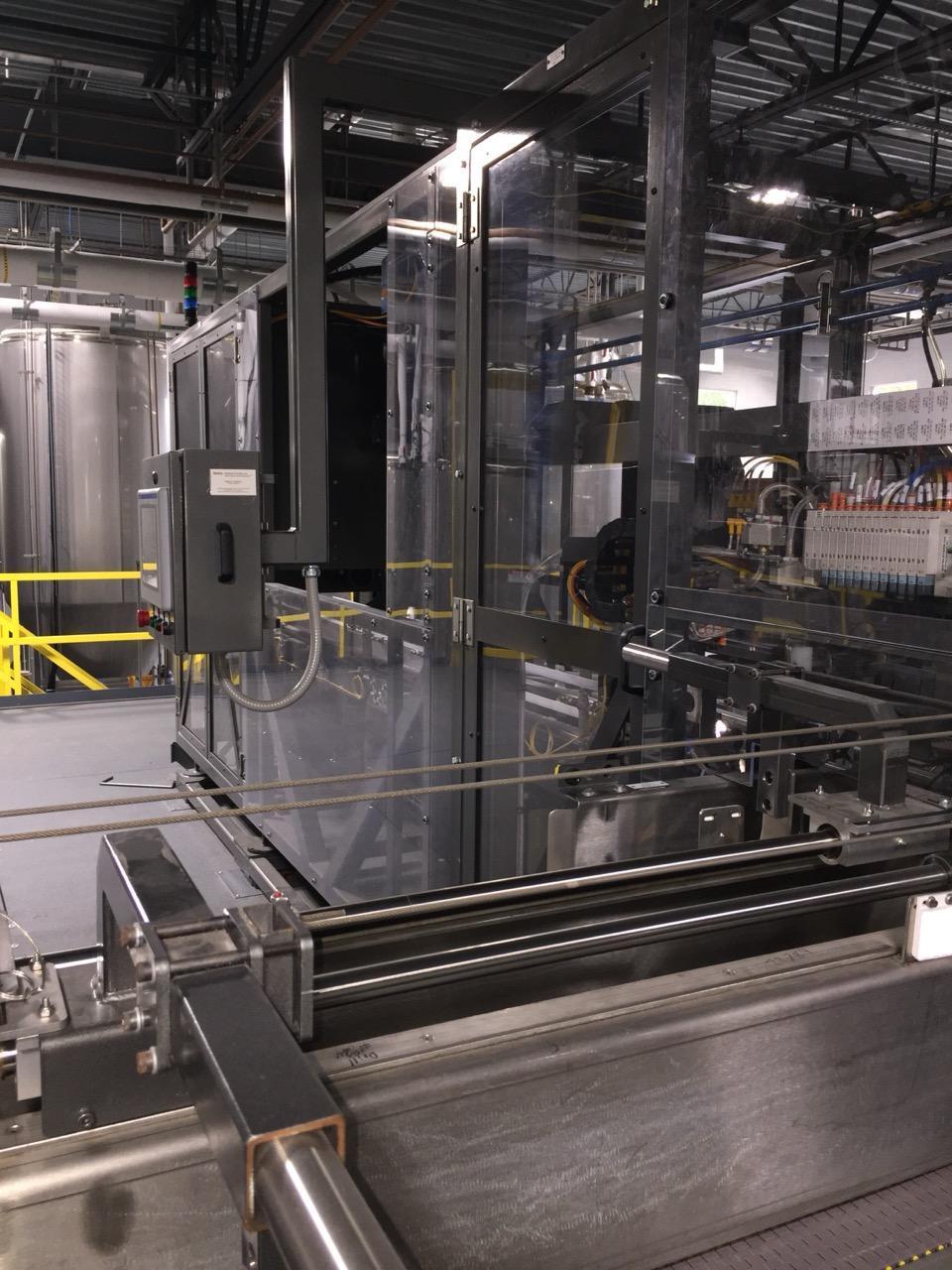

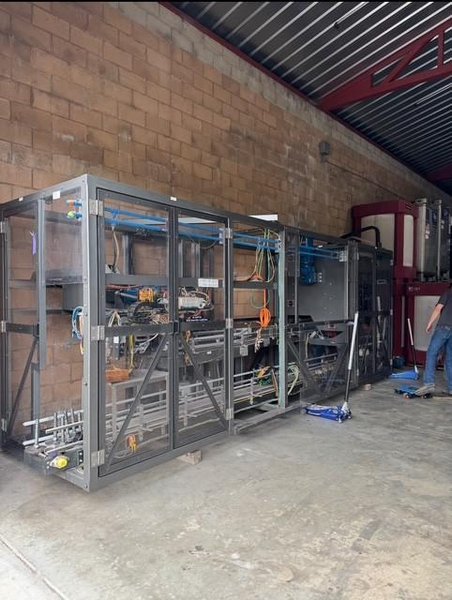

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Single frame, combination-style machine incorporating a Basket Erector and Basket Inserter – Basket Inserter picks 4×6 packs and inserts the baskets into a 4×6 RSC style top load case. Gripper motion all mechanical, using heavy duty components. – Inserter top speed: 20 cases per minute – Basket erector top speed, 6 pack: 100 baskets per minute – Machine general dimensions: 18’-0” long x 5’-0” wide x 7’-0” tall. Approximate weight 3,500 LBS.

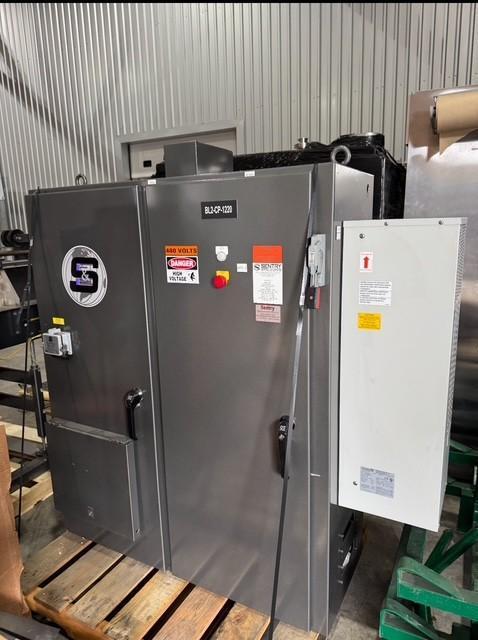

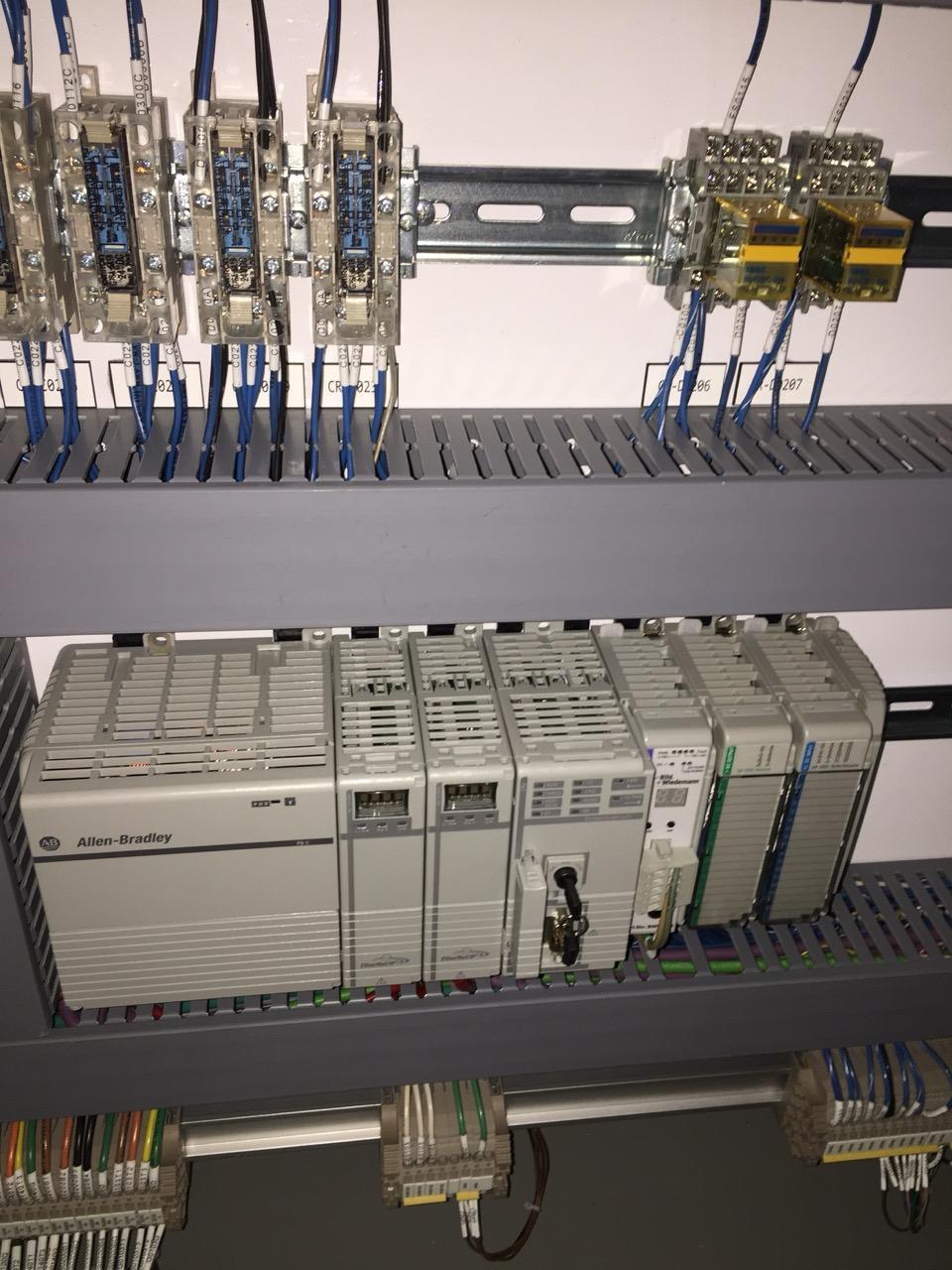

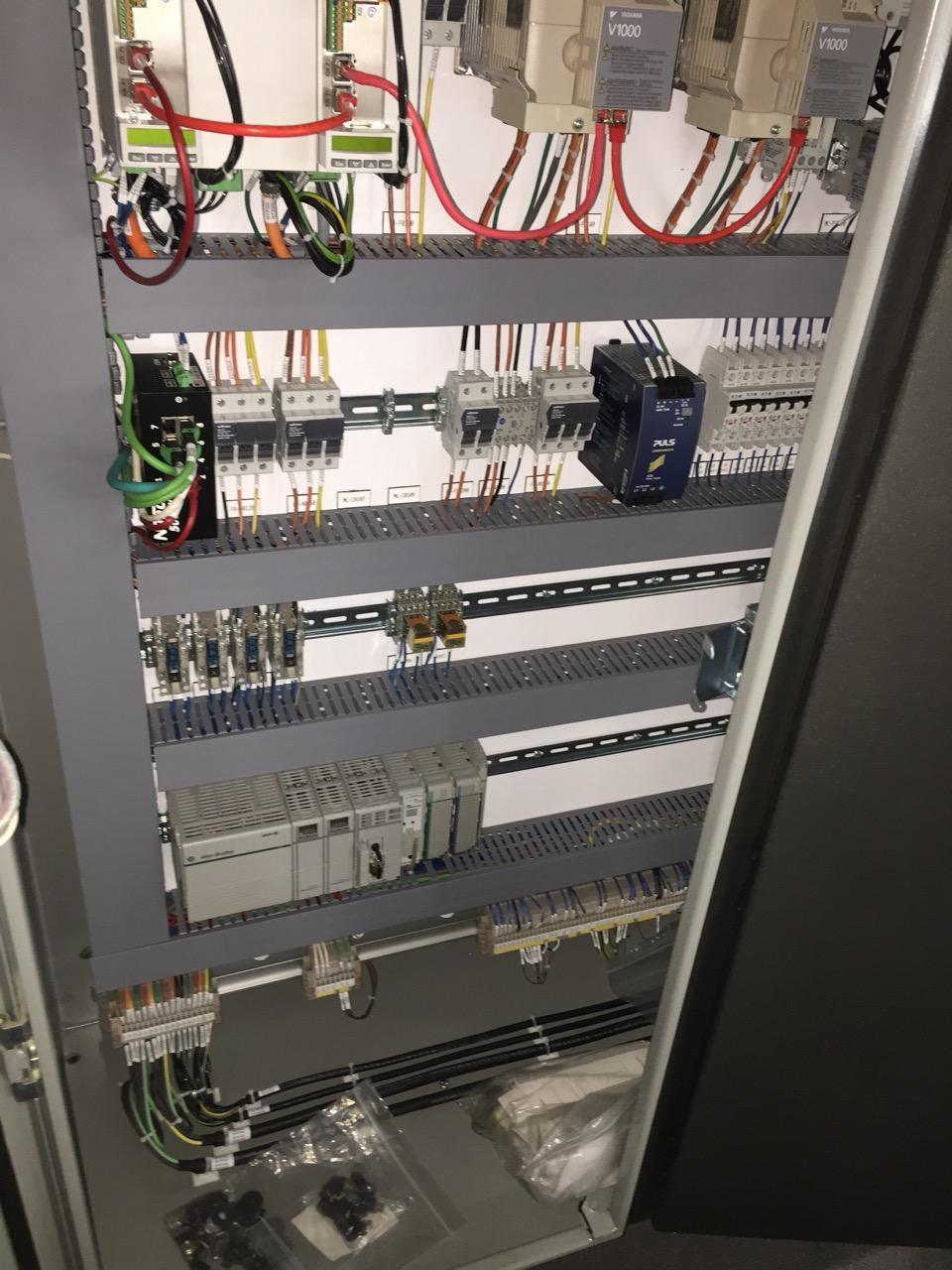

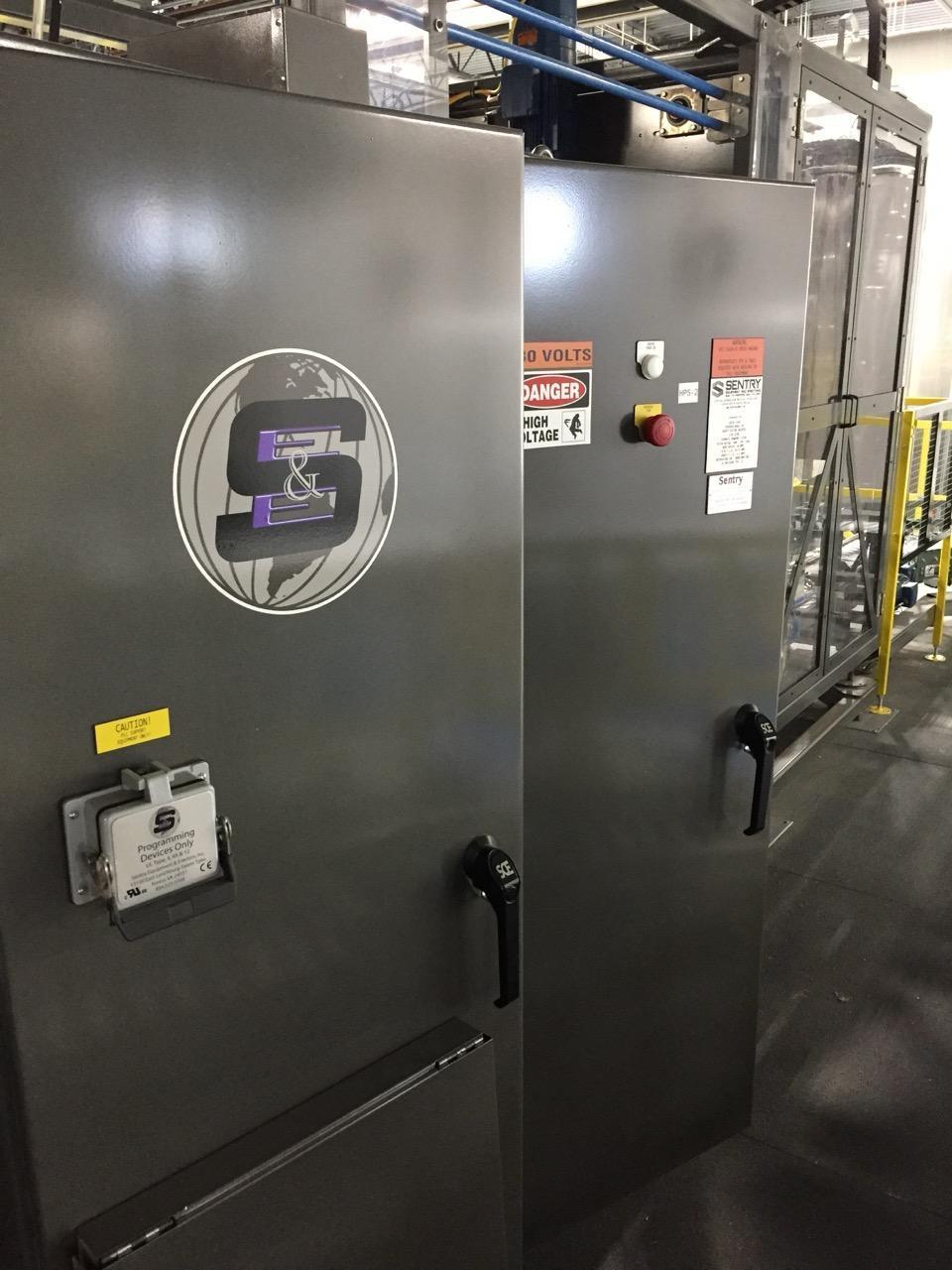

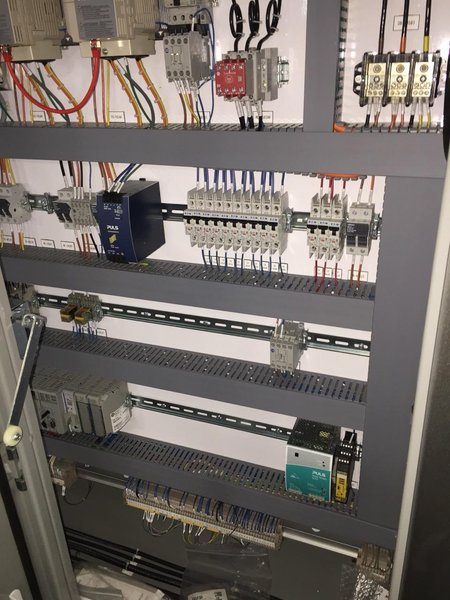

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Machine fully integrated with basket conveyor and case conveyor – All-steel construction Basket Erector and Basket Inserter, welded construction steel Basket Conveyor and Case Conveyor. Above components housed within 3” square welded steel tube frame. All components painted Steel-It Match. – Direct Load Magazine: Complete shipping cases can be loaded into the magazine in one easy motion. Magazine capacity (each) approximately 250-300 baskets – Self-Balancing Basket Conveyor: Continuously monitors basket lanes for equal basket accumulation. – Case Handling Flap Control: Basket inserter case handling fixture includes flap management system which combines 4 flap opening, corner covering and basket funnel guide. – Basket Erector features 3-step pneumatic based intermittent design: Basket pick, basket transfer and basket open/lock. – Equipment features integrated electrical control panel. Operator control via HMI. All electrical control components (PLC, HMI and motor VFD’s) Allen Bradley. – Equipment includes three (3) sliding style access doors. All doors covered by dual channel safety rated door switches and safety control circuit. – Machine equipped with fully integrated, stand-alone control system, allowing fully automated production of baskets, and insertion of baskets into cases. Machine includes outfeed accumulation sensor. – Machine includes by-pass function for operation as “By-Pass Conveyors” for non-basket production (Basket Erector idle and out of production, inserter parked in home position, and case conveyor running).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
