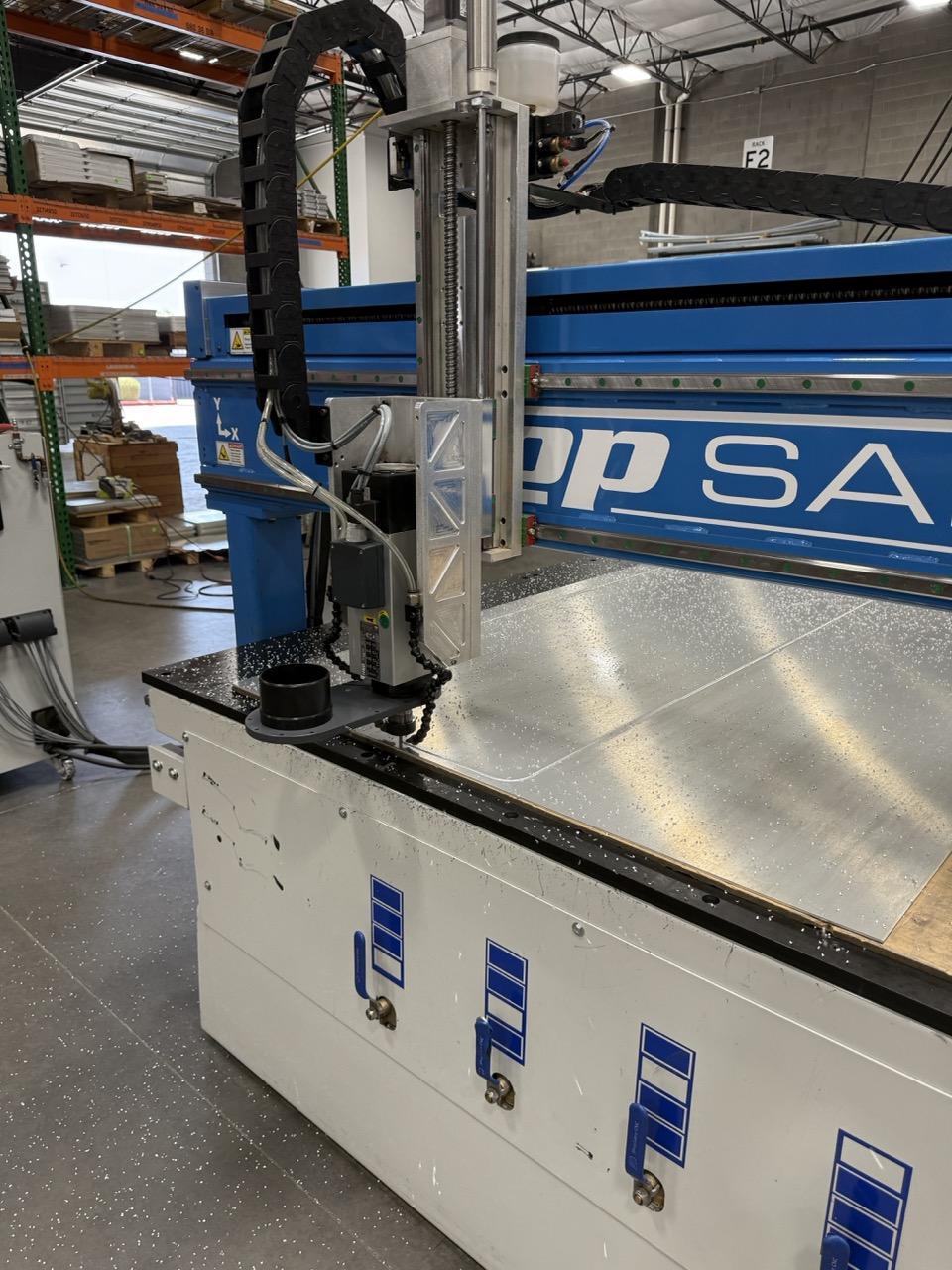

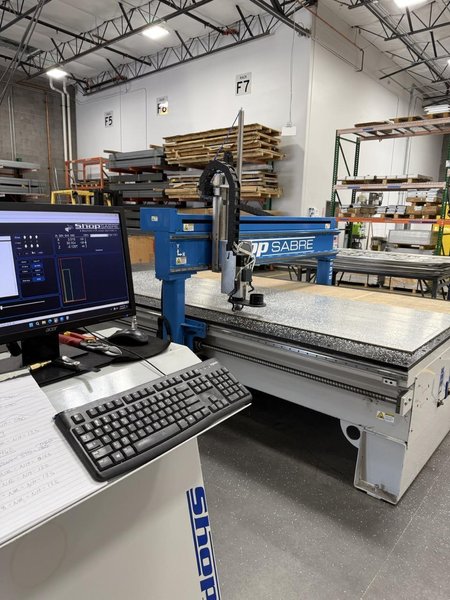

ShopSabre IS-612 Industrial CNC Router System, 2023

Table Size: 72″ x 144″ Cutting Area: 75″ x 146″ Z-Axis Travel: 16″ Spindle: HSD Max Spindle Speed: 18,000 Rapid Speed: 2,100 IPM Cutting Speed: 1,000 IPM Resolution: 0.003″ to 0.005″ Repeatability: ±0.001″ Table Top: Phenolic Footprint: 110″ x 185″ x 98″ Weight: Approximately 3,500 to 4,500 lbs Power Requirements: 20 amp / 220 Volt, 3 Phase (Spindle compatible with 1 or 3 Phase, 200-240V)

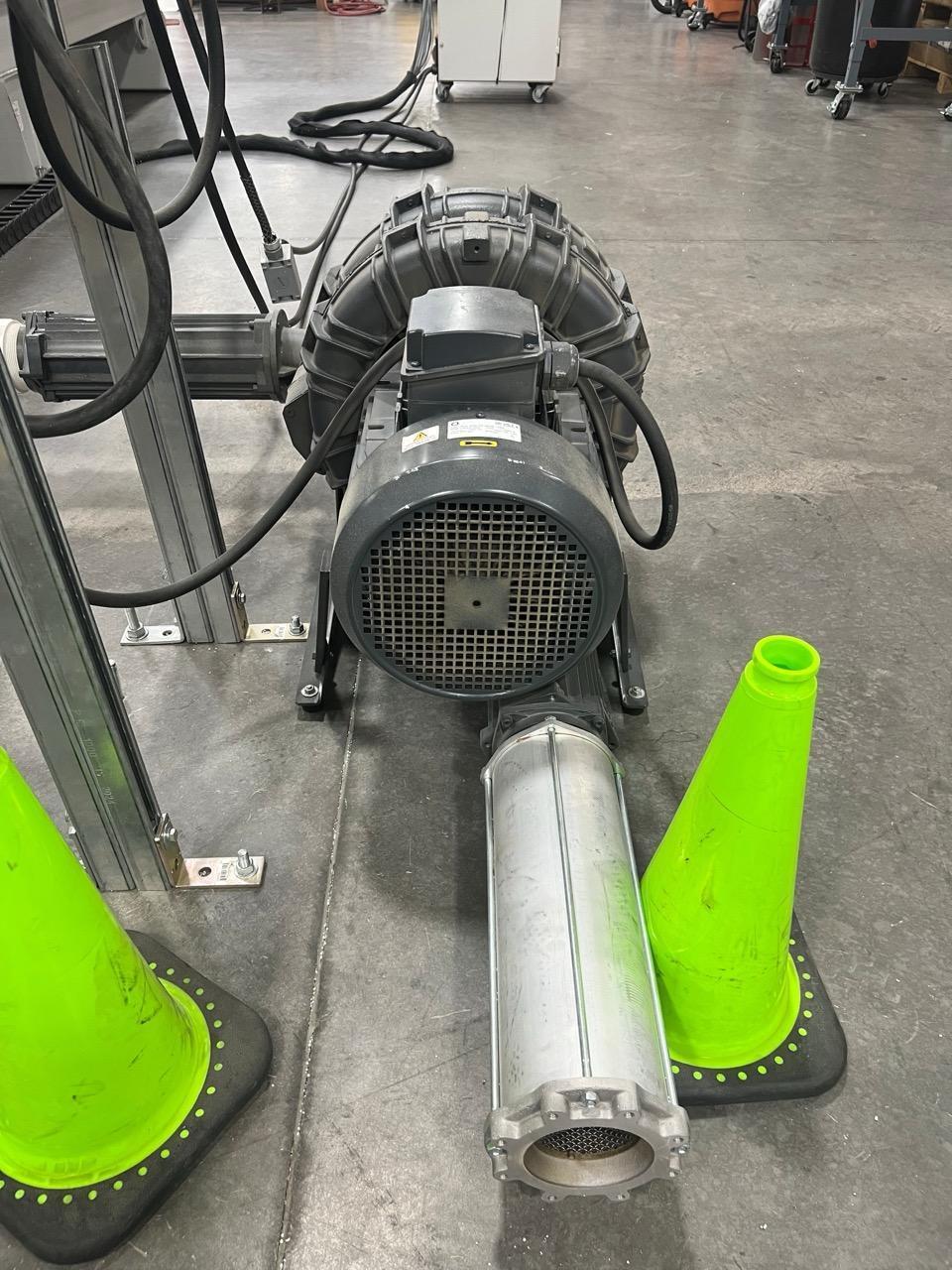

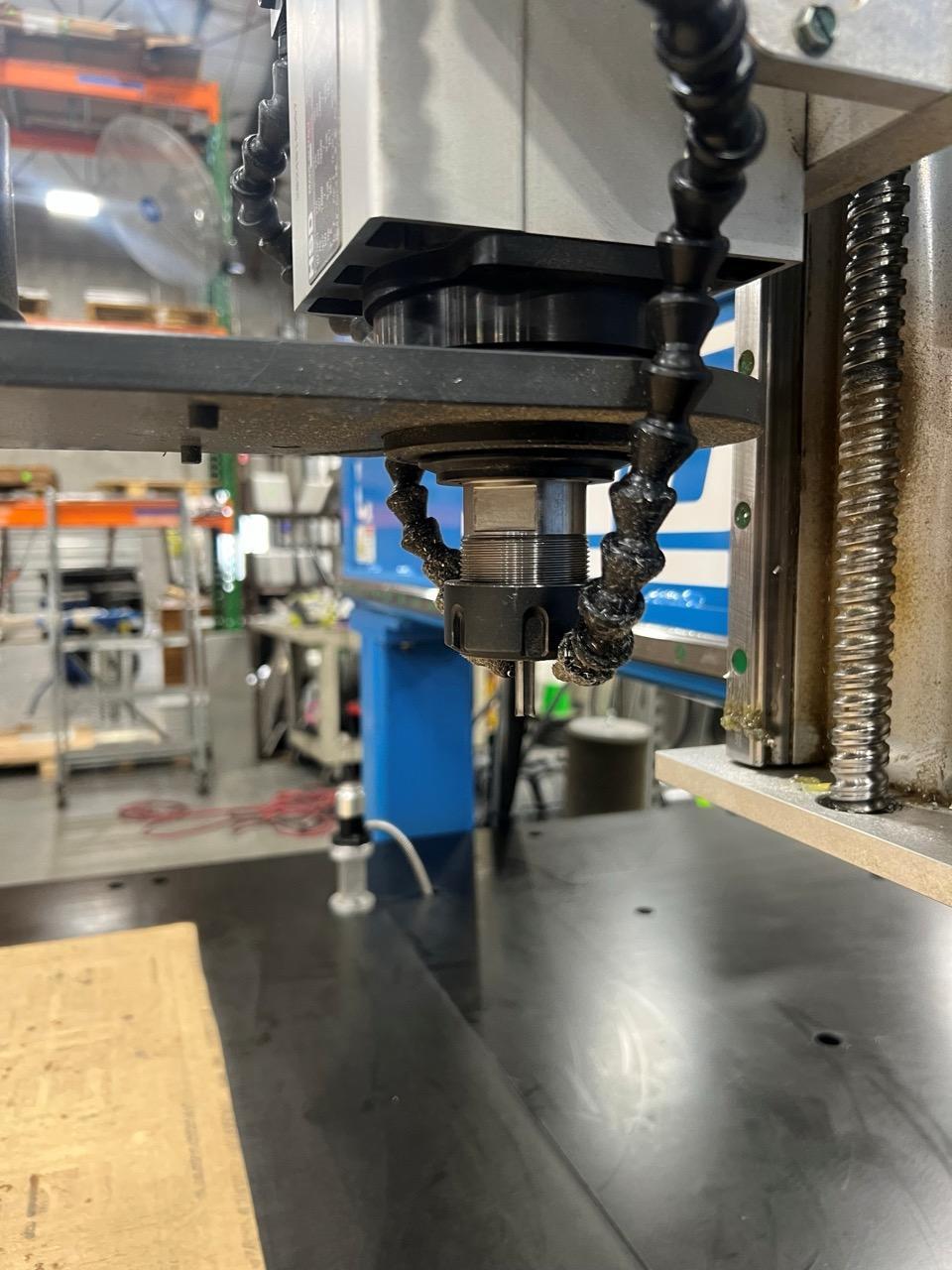

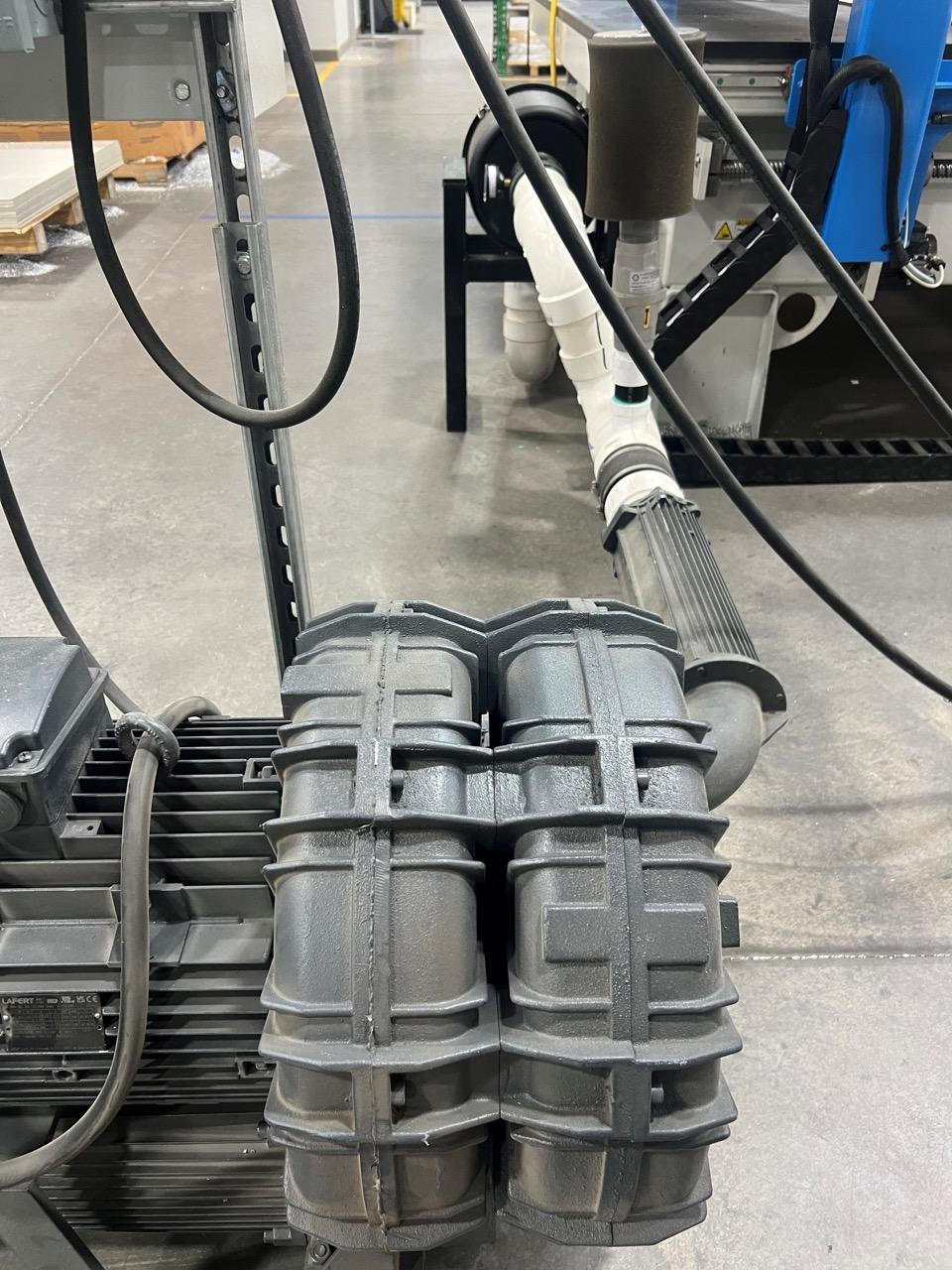

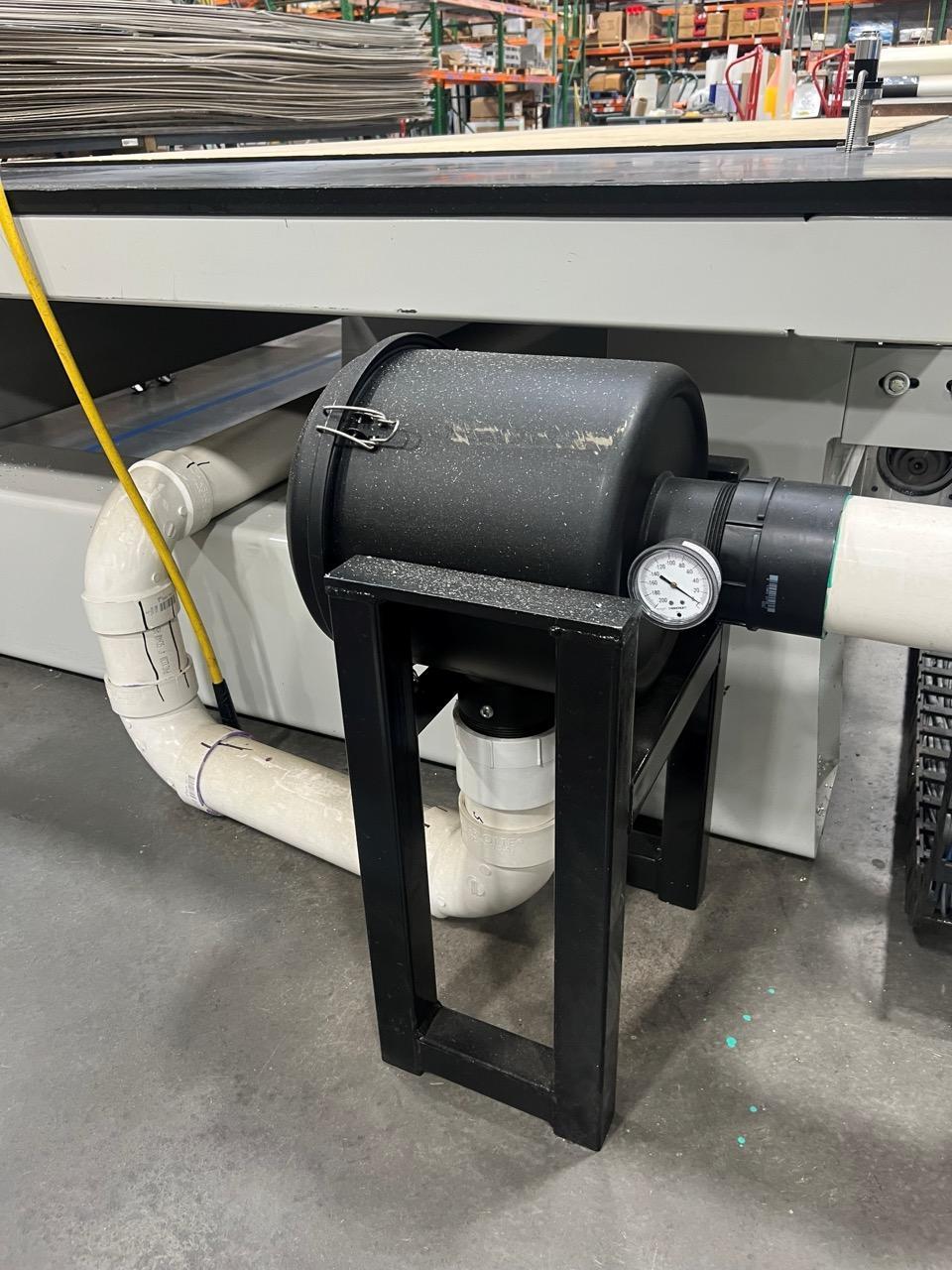

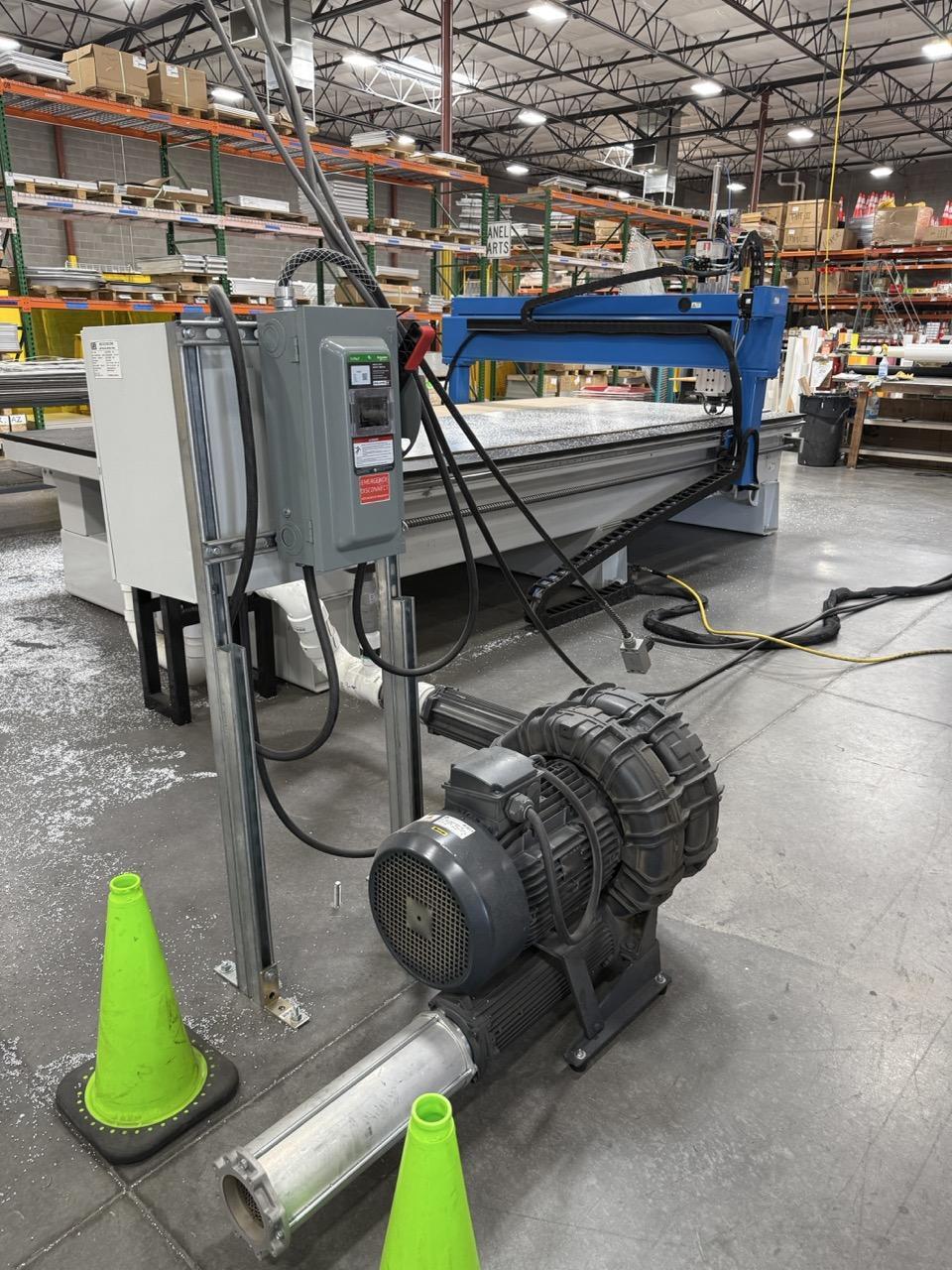

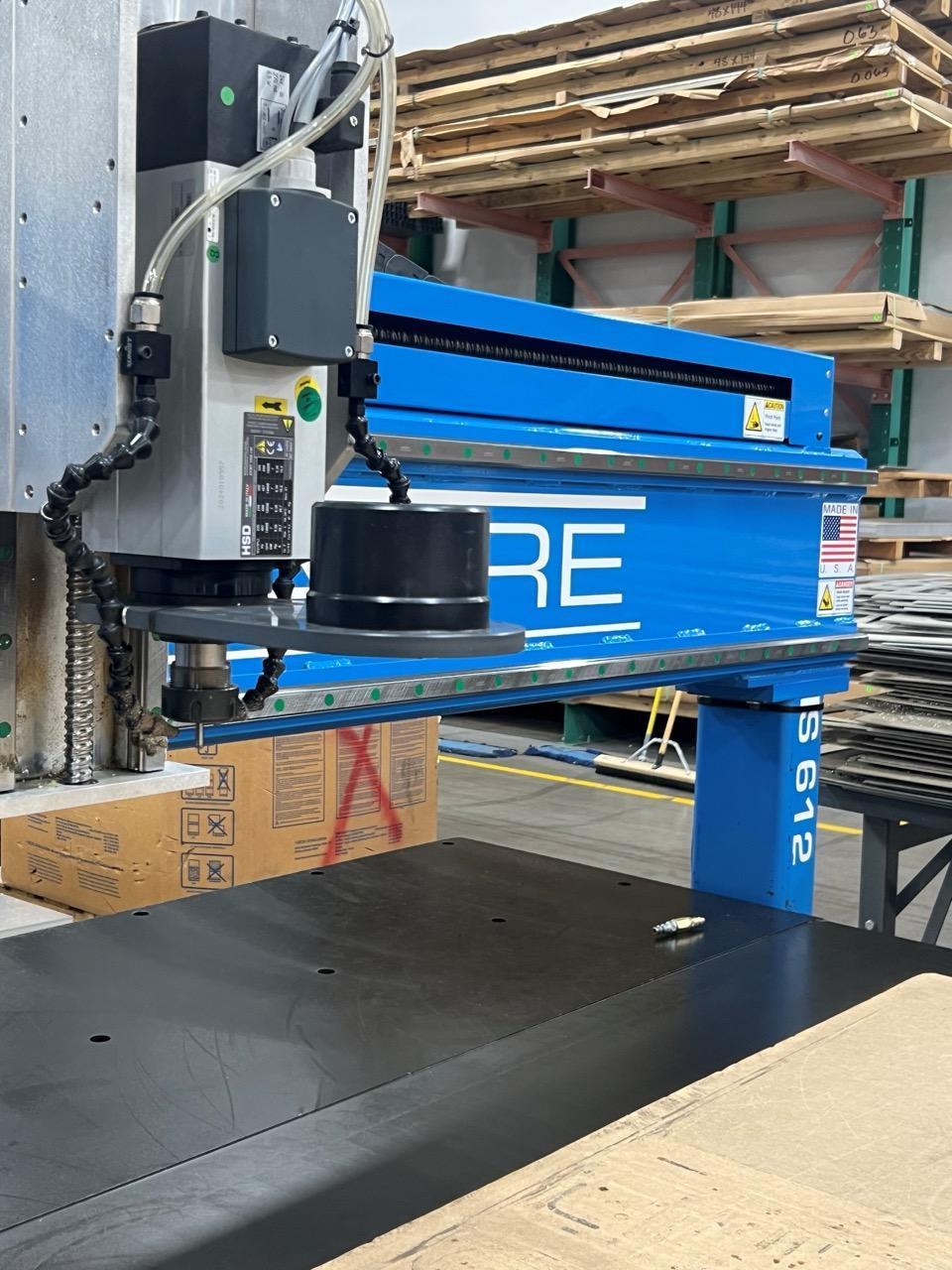

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: -ShopSabre WINCNC Industrial Controller Hardware & Software -ShopSabre Computer System: Full-size desktop, SSD, 8GB RAM, 19″ monitor, keyboard, mouse -Vectric VCarve Pro CAD/CAM Software -7KW (9.3HP) HSD Industrial Electric Fan-Cooled Manual ER32 Spindle with VFD (18,000 max RPM, Mitsubishi VFD for S1 Rated operation) -Automated Software Control for Spindle On/Off via G-Code or manual -Automated Software Control for Spindle RPM via G-Code or manual -Z Axis Air Balancer for locking Z on power down and increased Z-axis speed (ShopSabre Super Z Technology) -Industrial Pop-Up Pneumatic Table Reference Pins (5 total; 3 left side, 2 front) for quick sheet or jig alignment, automated via G-Code -Material Height Touch Pad for independent Z axis zero setting independent of tool length -25HP FPZ Italian Built Regenerative Blower Vacuum System with 4 Zone Vacuum Manifold (14″HG, 467 CFM open flow, 3 Phase power, 208/230/460V)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
