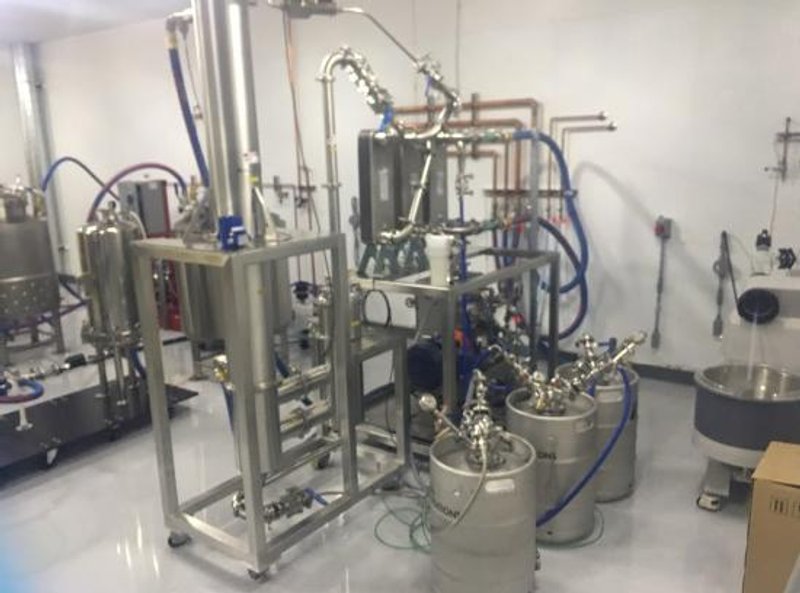

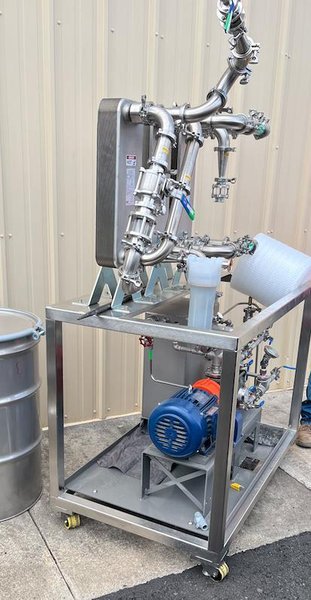

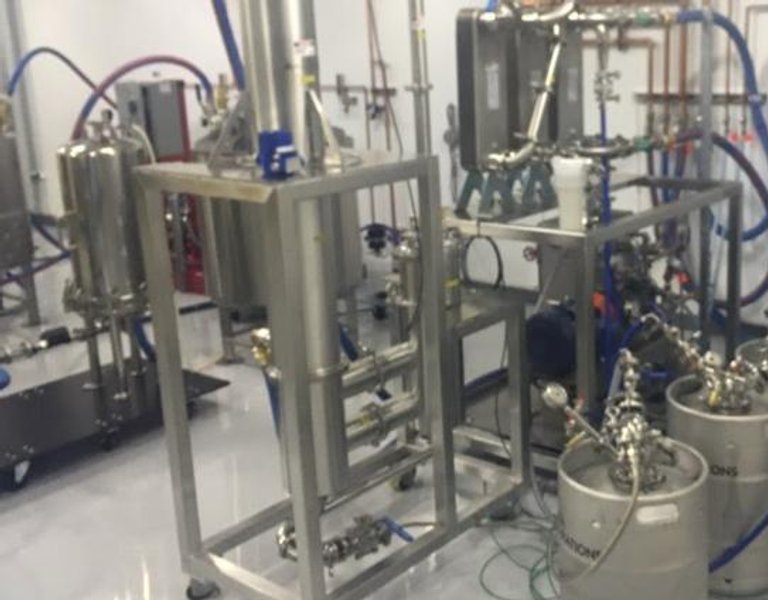

Delta Separations FFE-45 Falling Film Evaporator, 2019

Recirculating Electric Heater

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating Power (Option 1) 94 amps @230V three-phase (option 2) 47 amps @460V three-phase (requires professional installation) Transfer Fluid Flow: 25 GPM (25-40 PSI) Max Temp: 180°F (120°C) Transfer Fluid Line Connections: 1.5” FNPT Dimensions: 33”L x 17”W x 52”H Approx. 255 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,7 ton Water Chiller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,(Option 1) 41 amps @230V, three-phase (Option 2) 16 amps @460V, three-phase (requires Professional installation) Cooling Power: 7 ton Evaporating Temperature: 122°F – 180°F Coolant Line Connections:1” FNPT Dimensions: 34″ W x 61″ L x 49″ H (86cm W x 155cm L x 49cm H) Shipping Weight: 1200 lbs Professional Install sheets from Manufacturer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pump Chiller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,21.2 amps @230V, single-phase Cooling Power: 1.5 ton Coolant Flow: 3.5 GPM Ambient Temperature: -10°F -35°F (Low or High) Dimensions: 30.5”L x 19”W x 26”H Weight: 340lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
