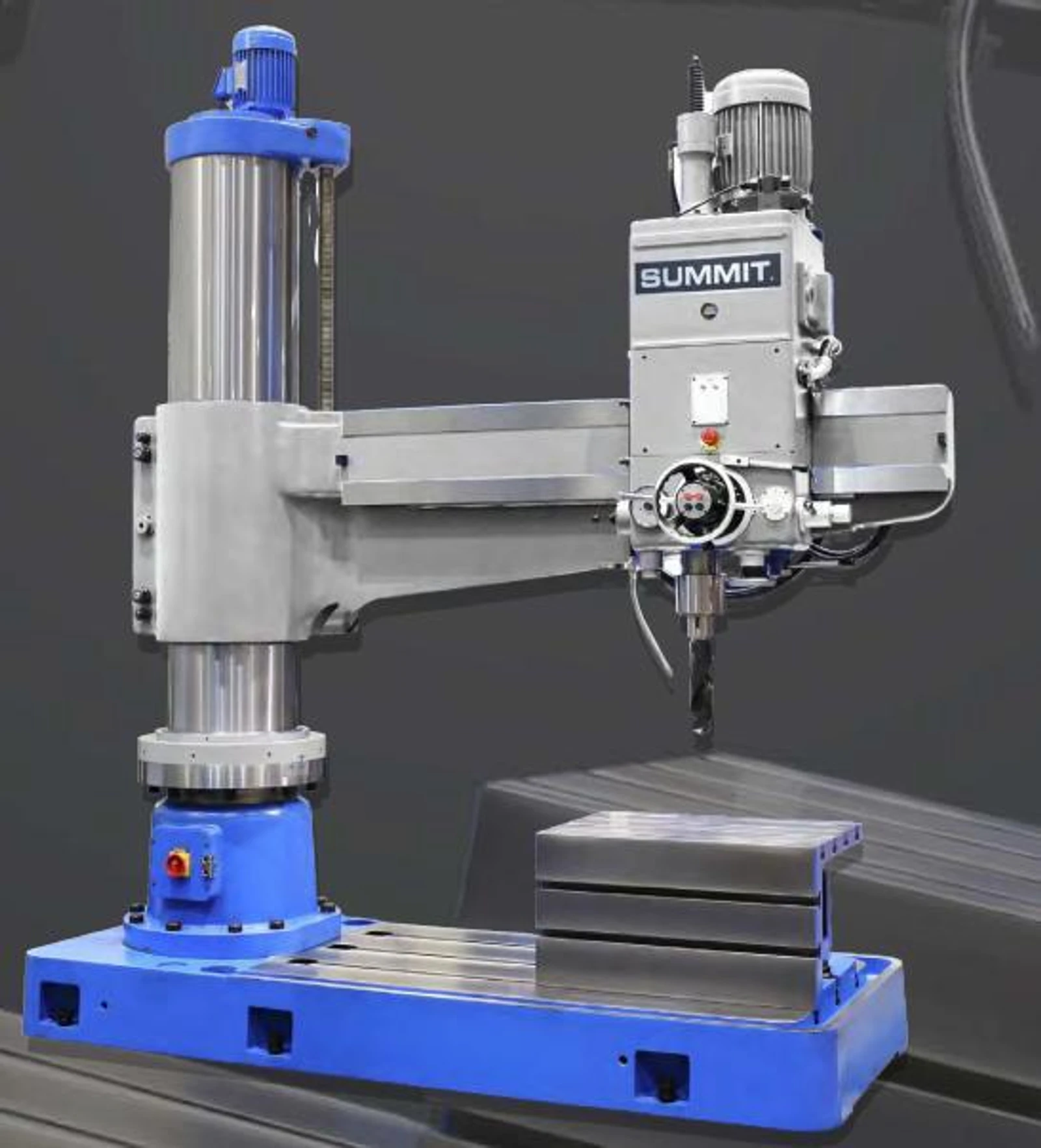

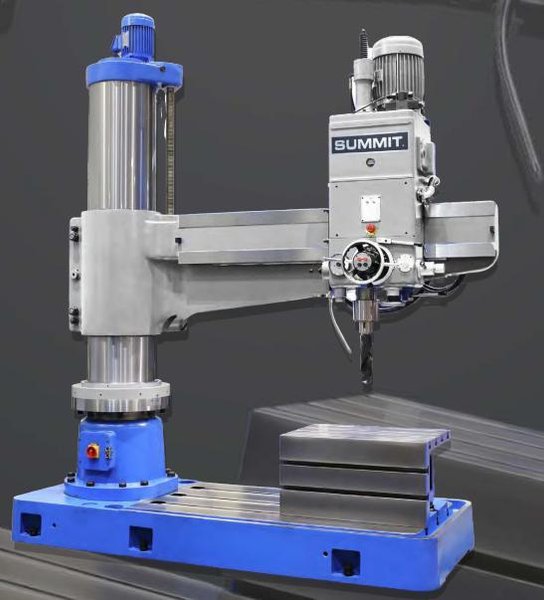

1 - NEW SUMMIT RADIAL ARM DRILL, MODEL #: RD2808
Brand
Category
Type
Model
RD2808
Stock #
87017
Year
Not specified
Condition
New
Location
Oklahoma
|
SPECIFICATIONS:
Drilling capacity: 1.5”
Spindle motor: 2 HP
Distance from spindle axis and column: 7.5” / 28”
Column diameter: 8” Taper in spindle: 4 MT
Spindle travel: 8.25”
Spindle speeds: 6
Range of spindle speeds (RPM): 88 - 1500
Spindle feeds: 3
Range of feeds: (IPR) .003", .0052", .009"
Horizontal traverse of spindle head on arm: 20.5”
Arm elevating motor: 1 HP Hydraulic clamping motor for head and arm: N/A
Coolant pump motor: .1 HP Dimensions (L x W x H): 55” x 31” x 77"
Net weight (approximate): 2,843 lbs. STANDARD FEATURES: • Centralized controls
• Gears and shafts hardened and ground
• Pressurized pump lubrication • Head and arm movement adjustable, anti-friction precision bearings
• Safety limit switches for raising, lowering, locking and reset
• Leveling screws in base
• Hydraulic clamping RD4312 and RD6315
• Manual clamping RD2808
• Large T-slotted base
• Adjustable clutch on feed of the spindle with automatic depth stop
• Oil sight window • Precision spindle and quill unit made of chrome nickel steel, hardened and ground
• Spindle mounted on two anti-friction bearings
• Built-in coolant pump and plumbing
• Hardened and precision ground ways
• Head traverse on roller gibs
|
