HARDINGE CS-51 CNC LATHE: YOBRO #23857

Name: Used HARDINGE CS-51 For Sale 23857
Brand: HARDINGE
SKU: 23857
Price: 7950.00 USD
Availability: InStock

Brand

HARDINGE

Location

Ohio

Price

$7,950.00

REQUEST FINANCING

Specifications
Files & Videos

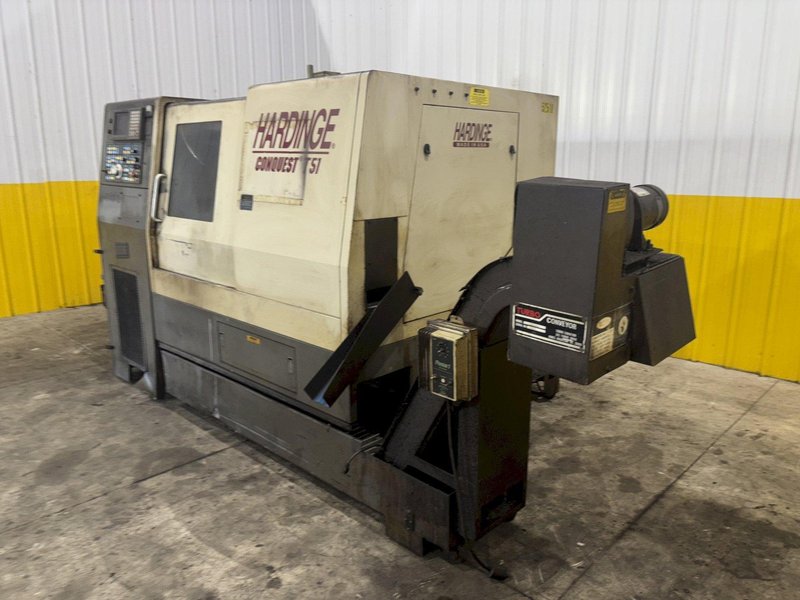

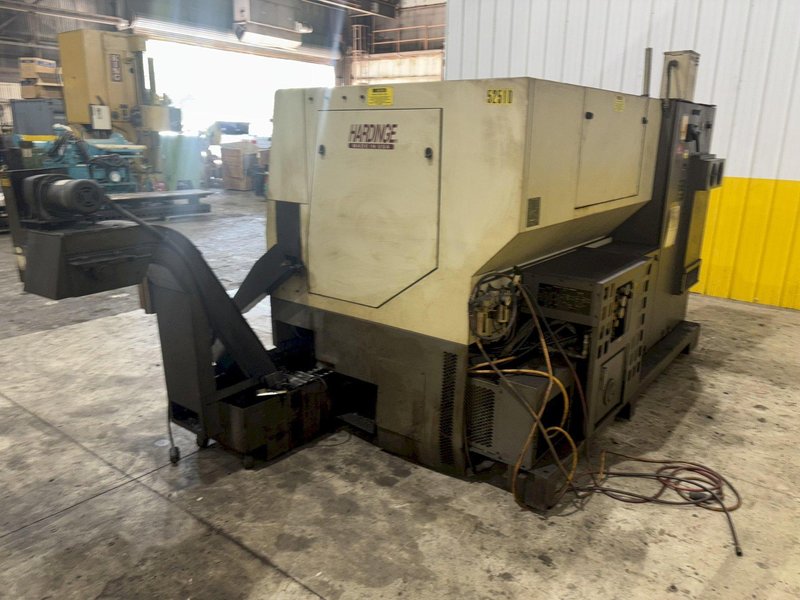

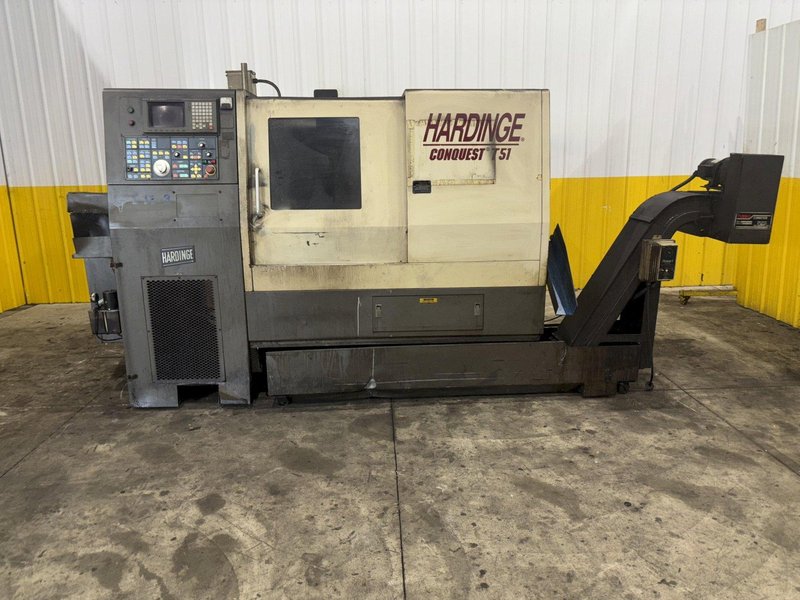

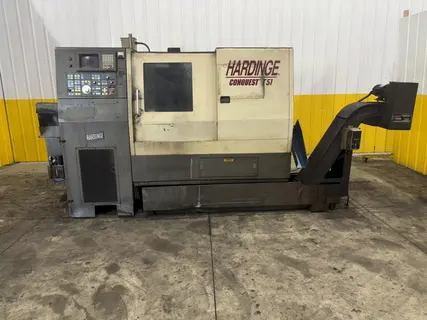

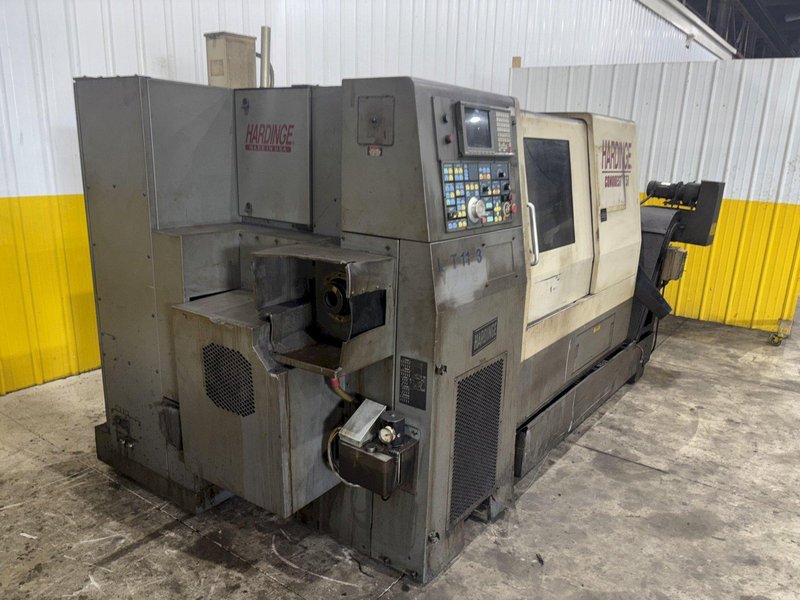

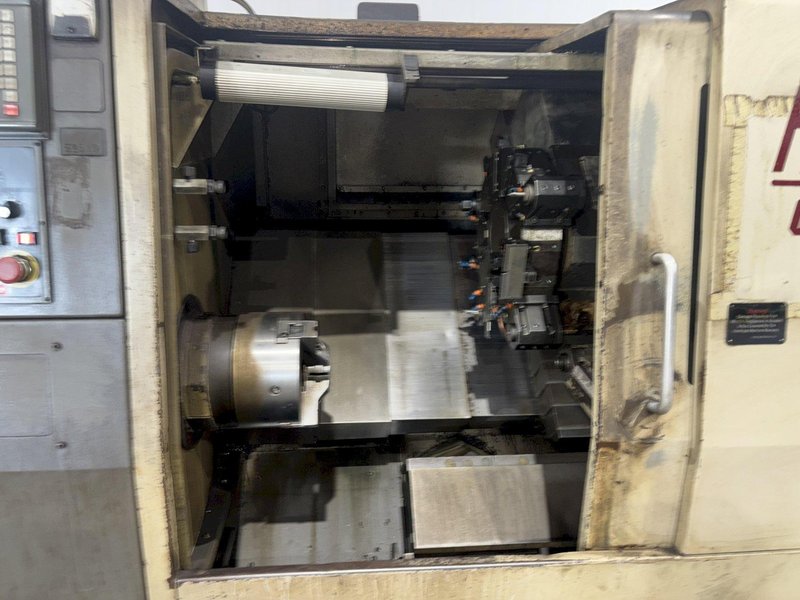

Hardinge Conquest CS-51

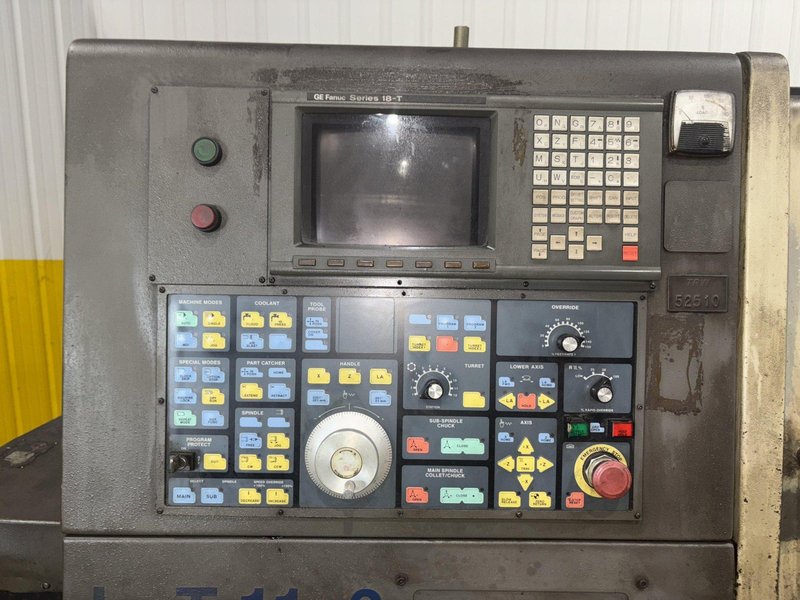

Fanuc CNC Control

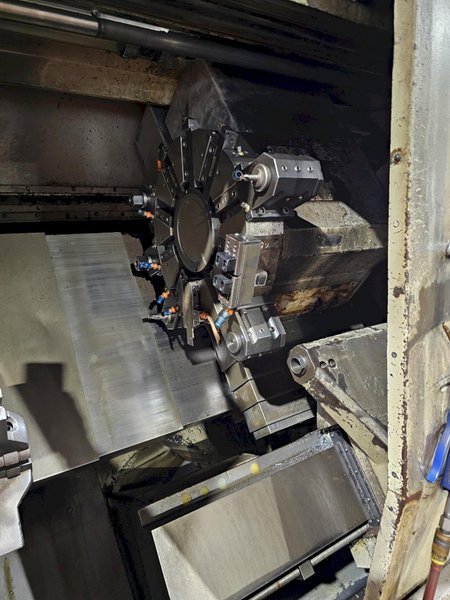

12-Station Turret

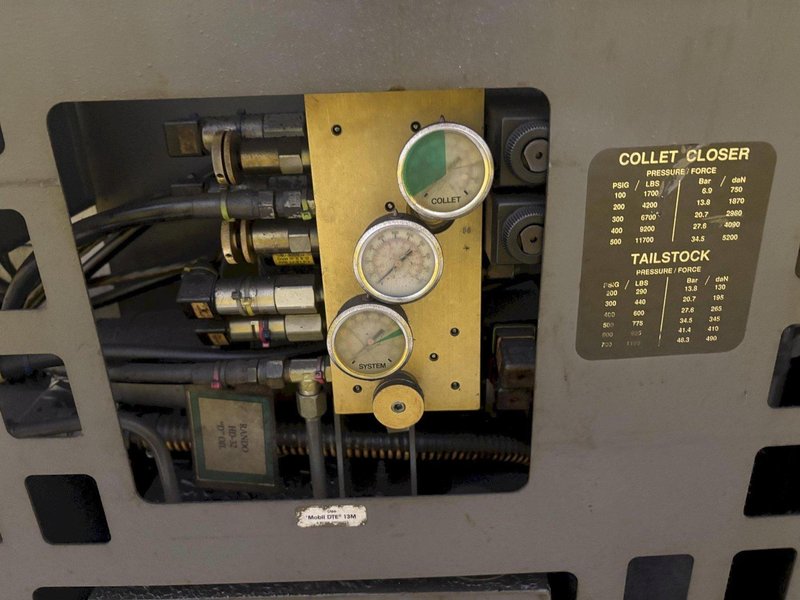

Hydraulic Postioning Tailstock

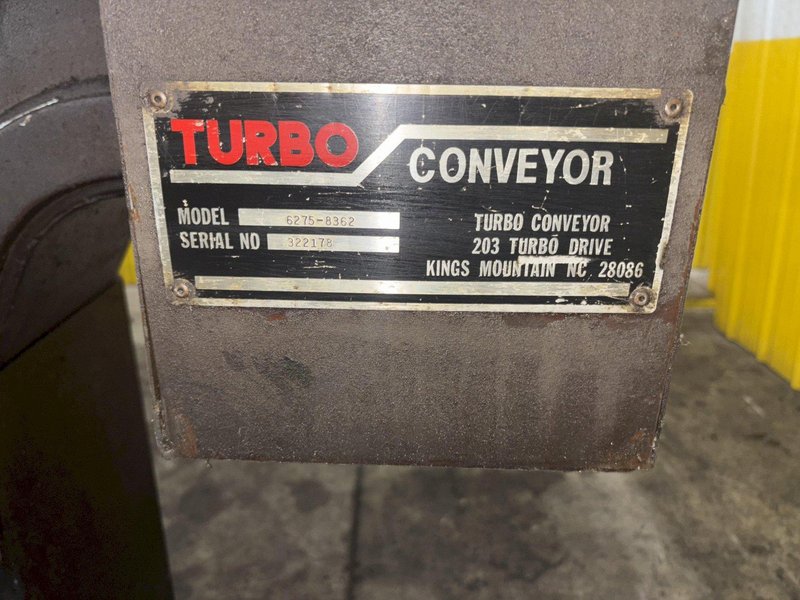

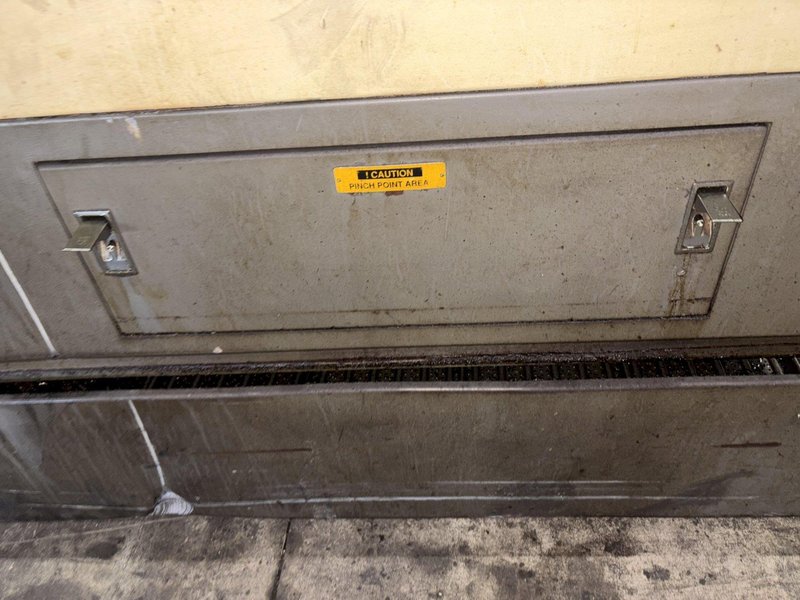

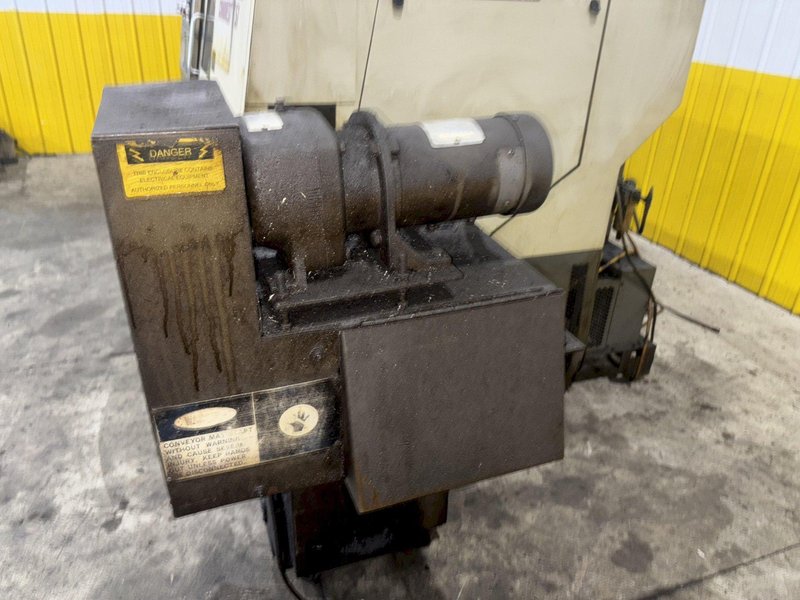

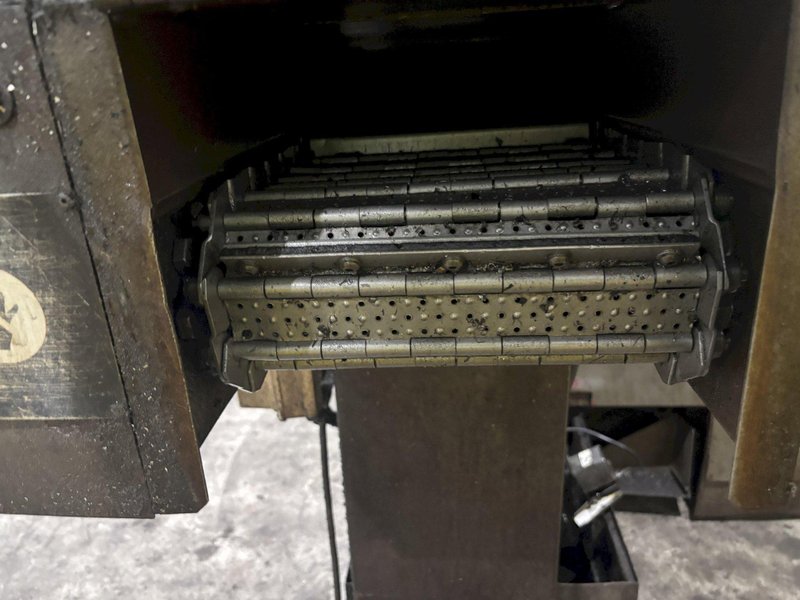

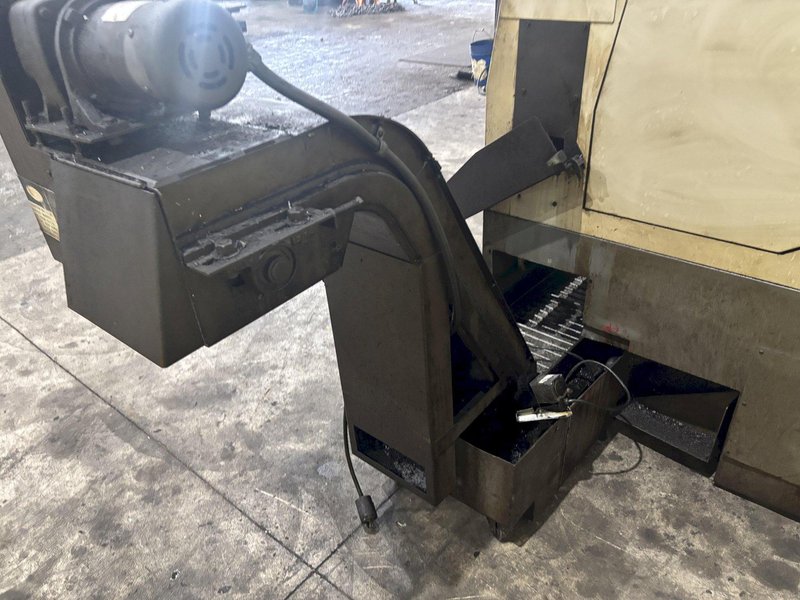

Chip Pan and Chip Conveyor

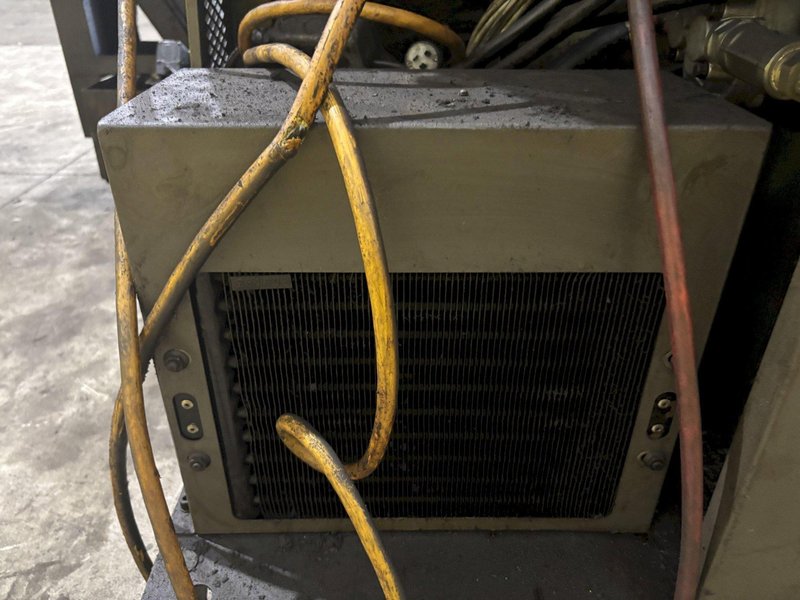

Coolant System

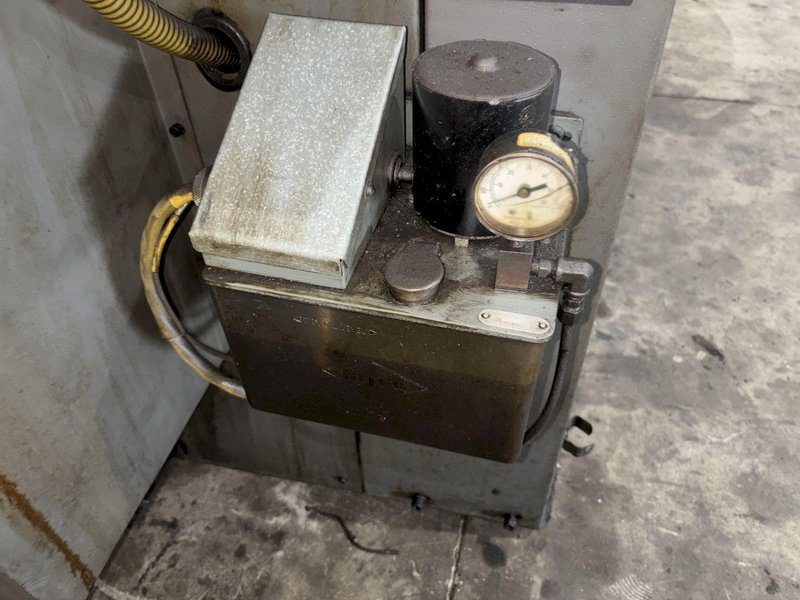

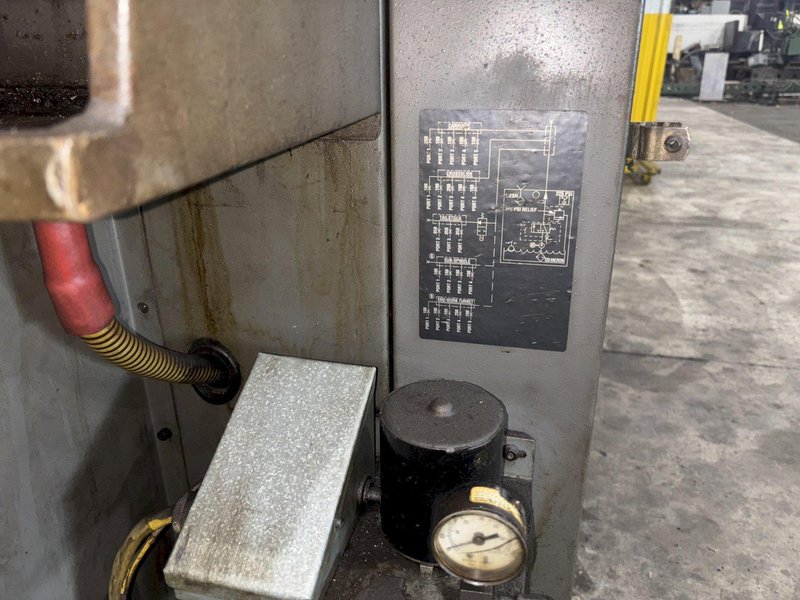

Automatic Lubrication system

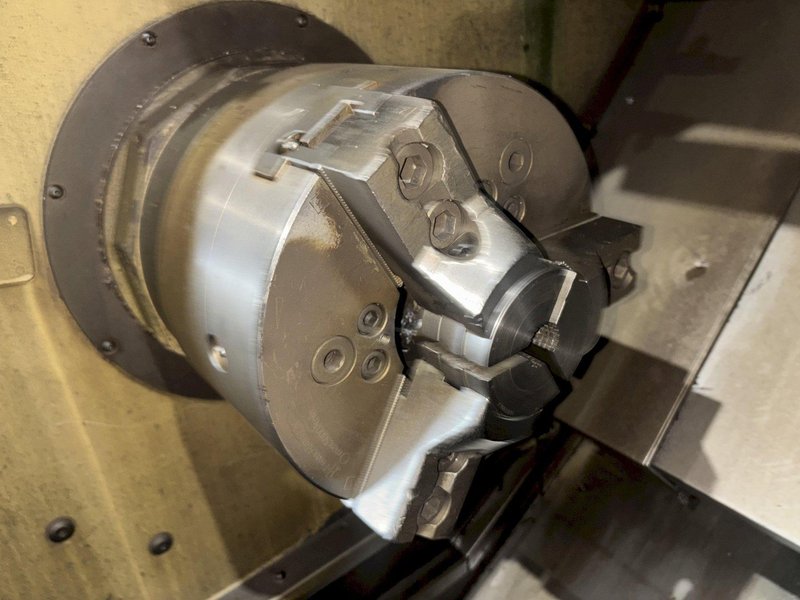

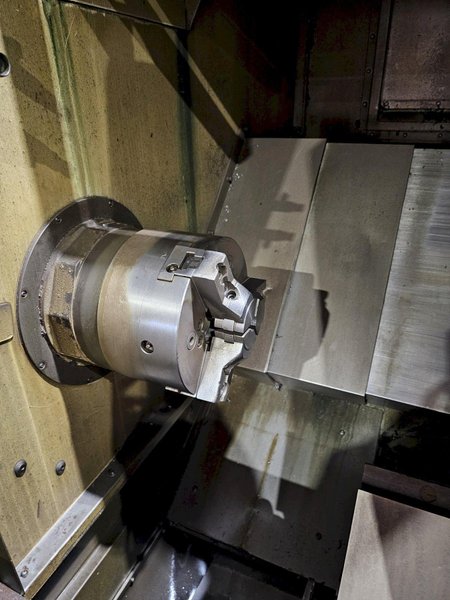

Foot Operated Control for Chuck

Hardinge Conquest CS-51 Specifications:
Max Turning Diameter: 10.63″
Max Turning Length: 19.68″
Max Bar Capacity: 2.05″
Swing Over Slide: 15.78″
Swing Over Bed: 21.65″
Distance Between Centers: 24.29″

Travel:
X Axis Travel: 6.75″
Z Axis Travel: 22.65″
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.05″
Spindle Speed: 4200 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

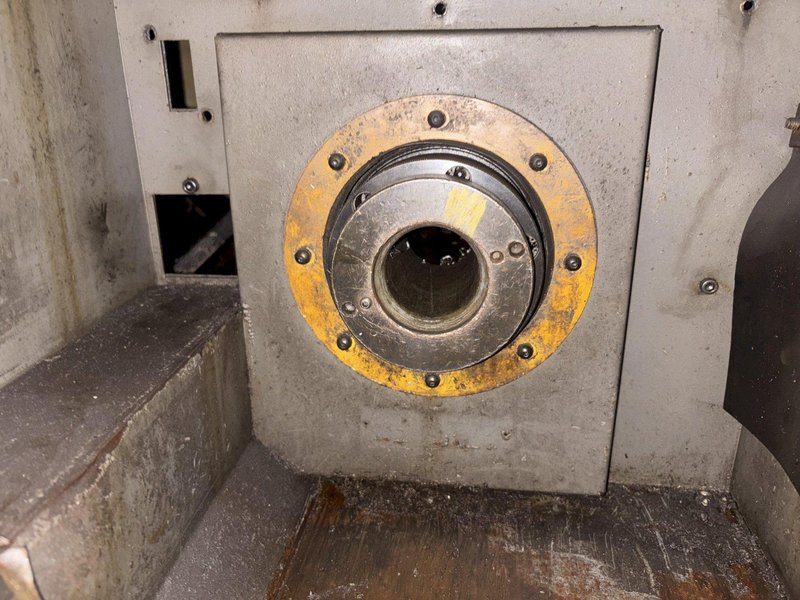

Tailstock:
Tailstock Body Travel: 19.0″
Tailstock Quill Dia.: 3.54″
Tailstock Taper: MT-4

Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
