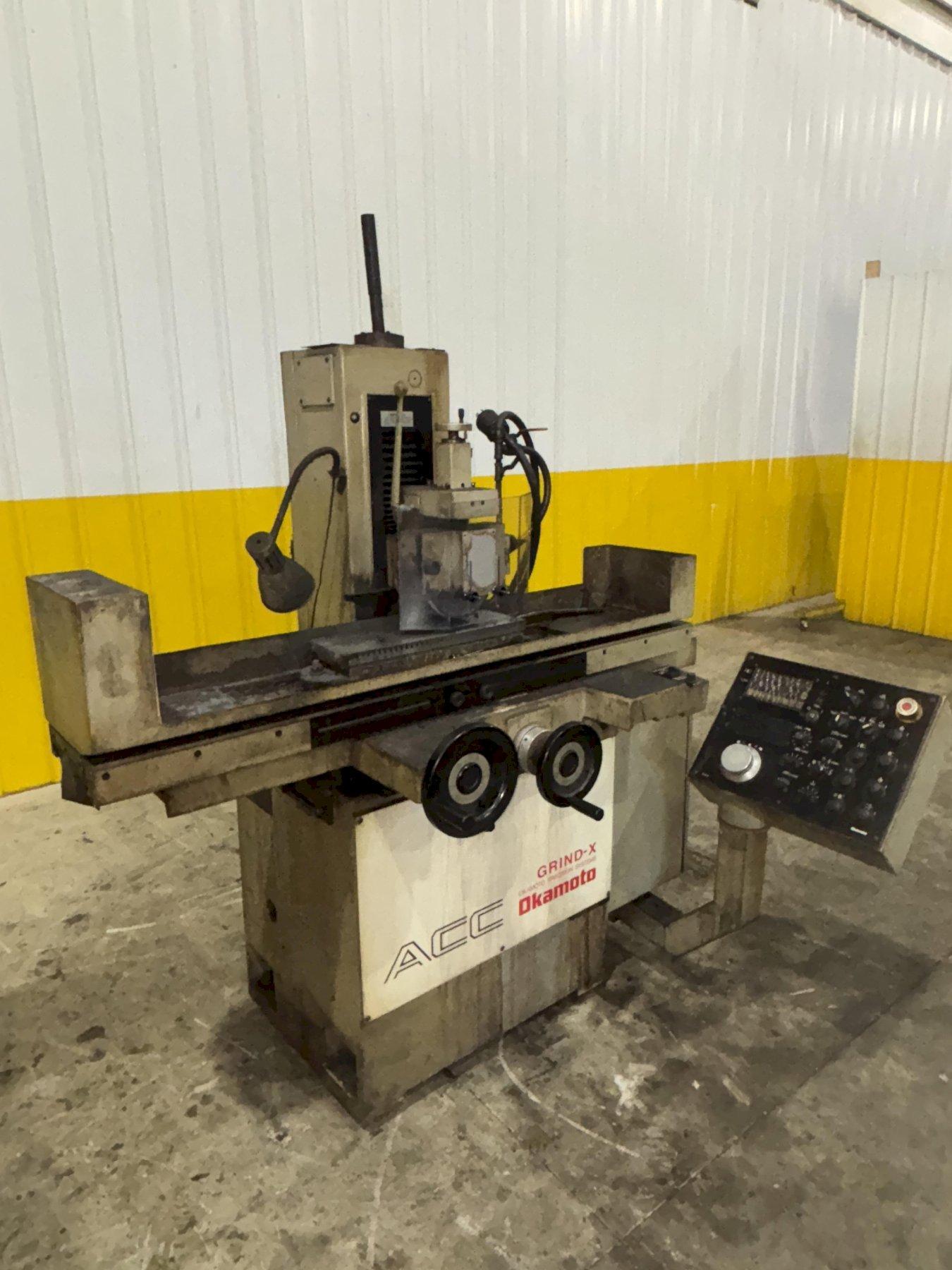

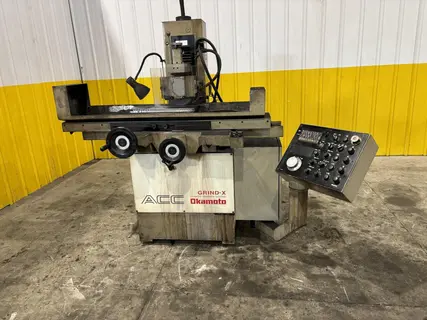

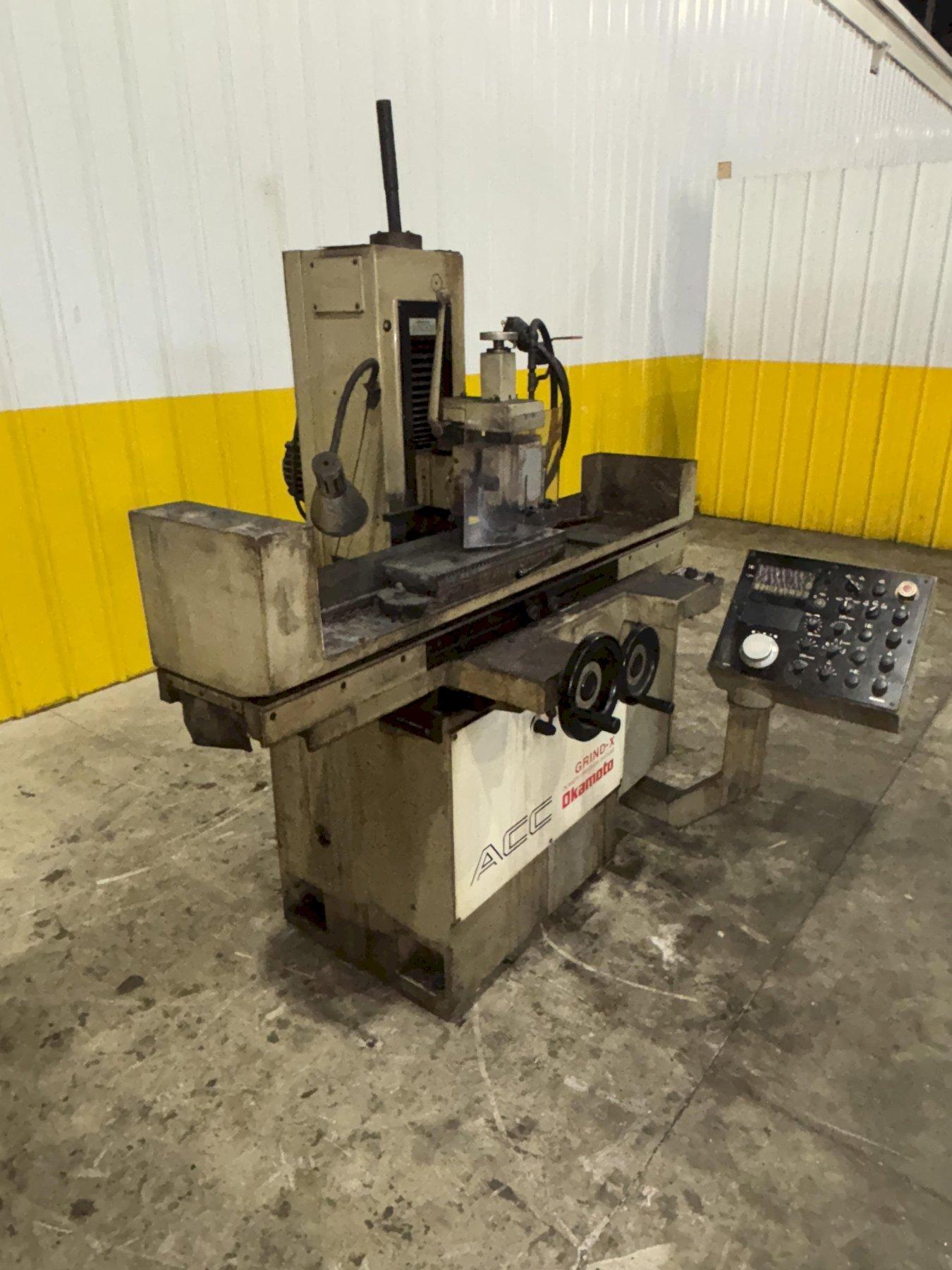

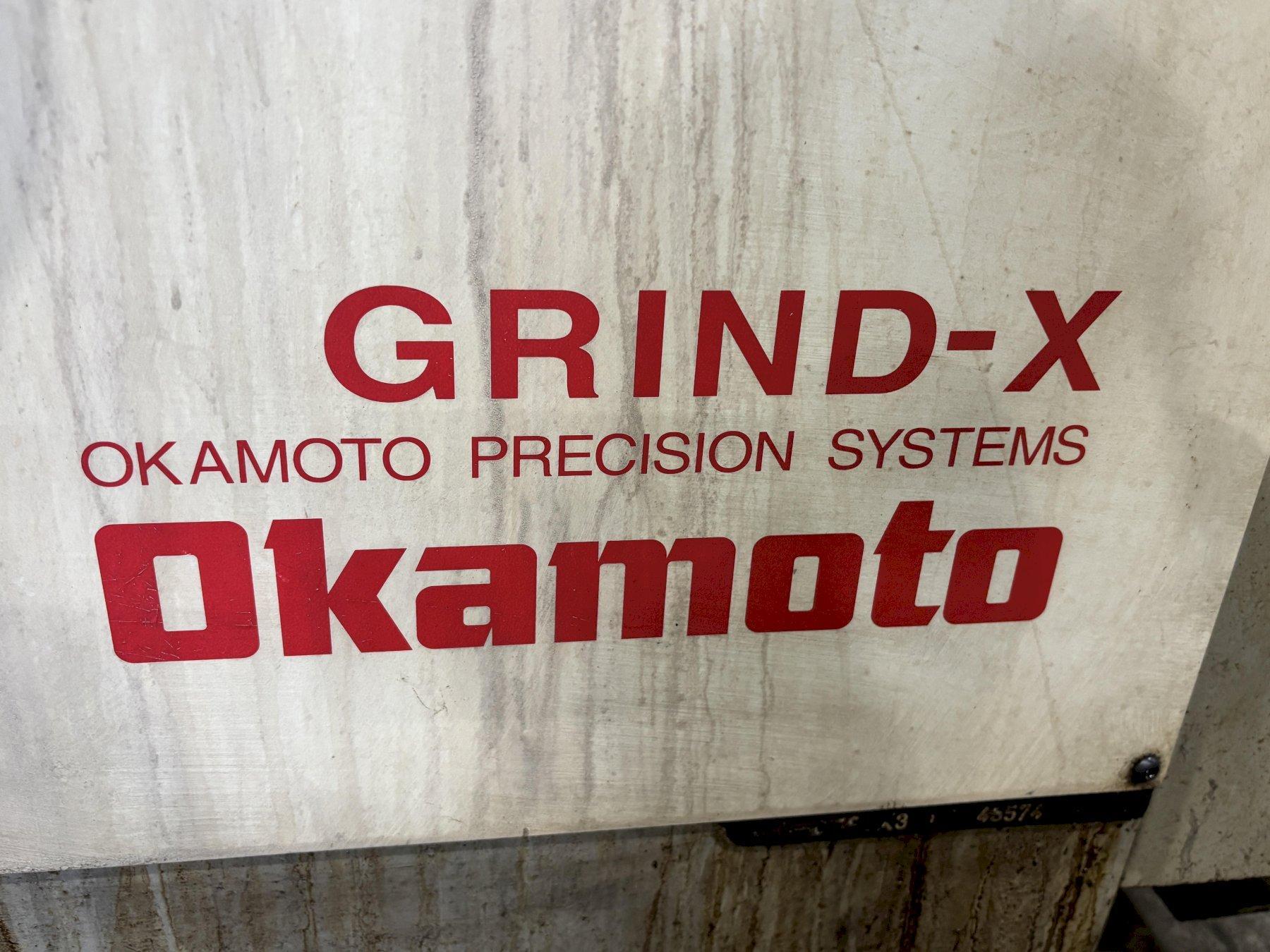

6" X 18" OKAMOTO MODEL # 6.18DX3 AUTOMATIC 3 AXIS HYDRAULIC HORIZONTAL SURFACE GRINDER: YOBRO #23848

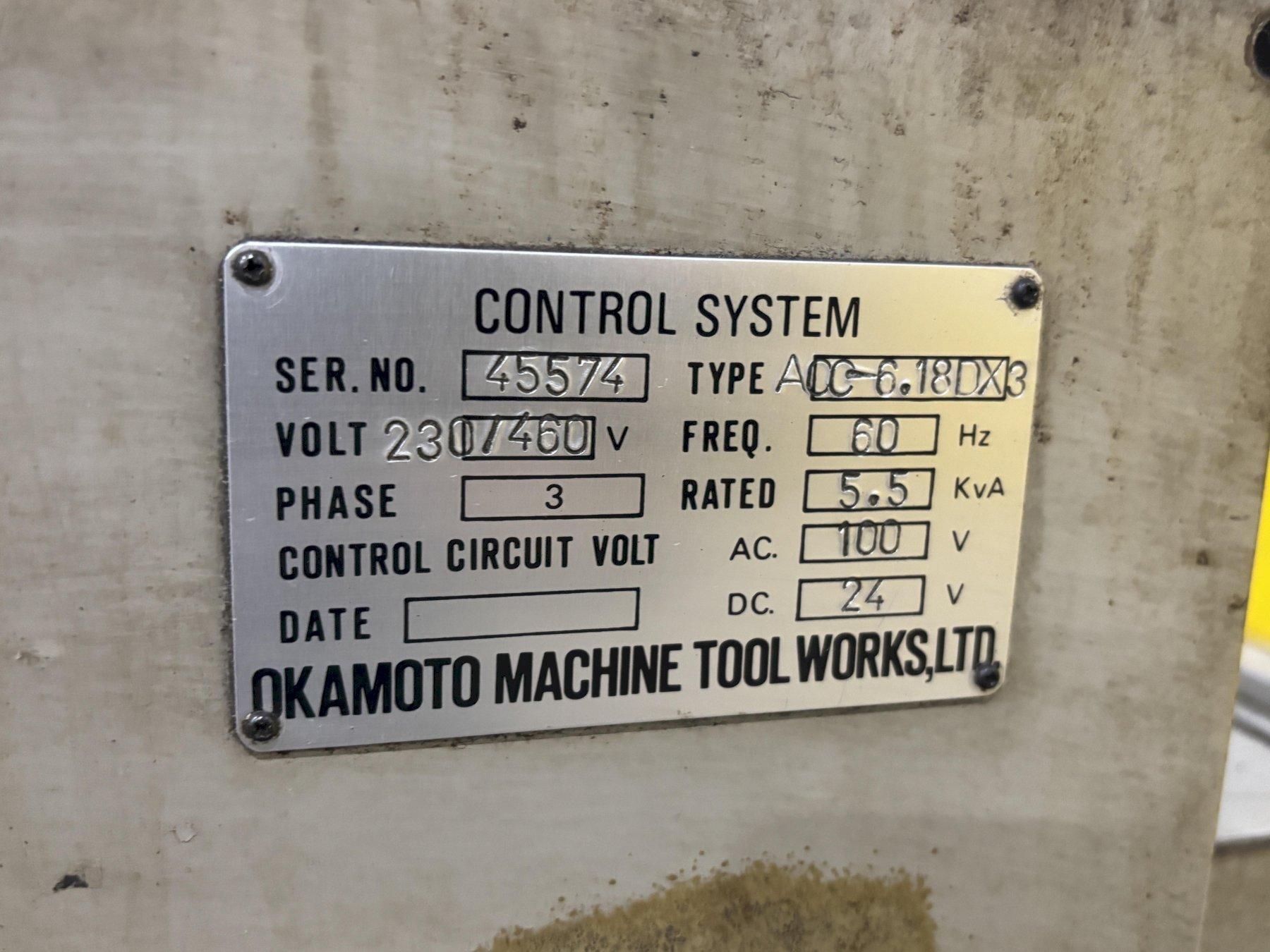

SERIAL 45574
NEW 1997

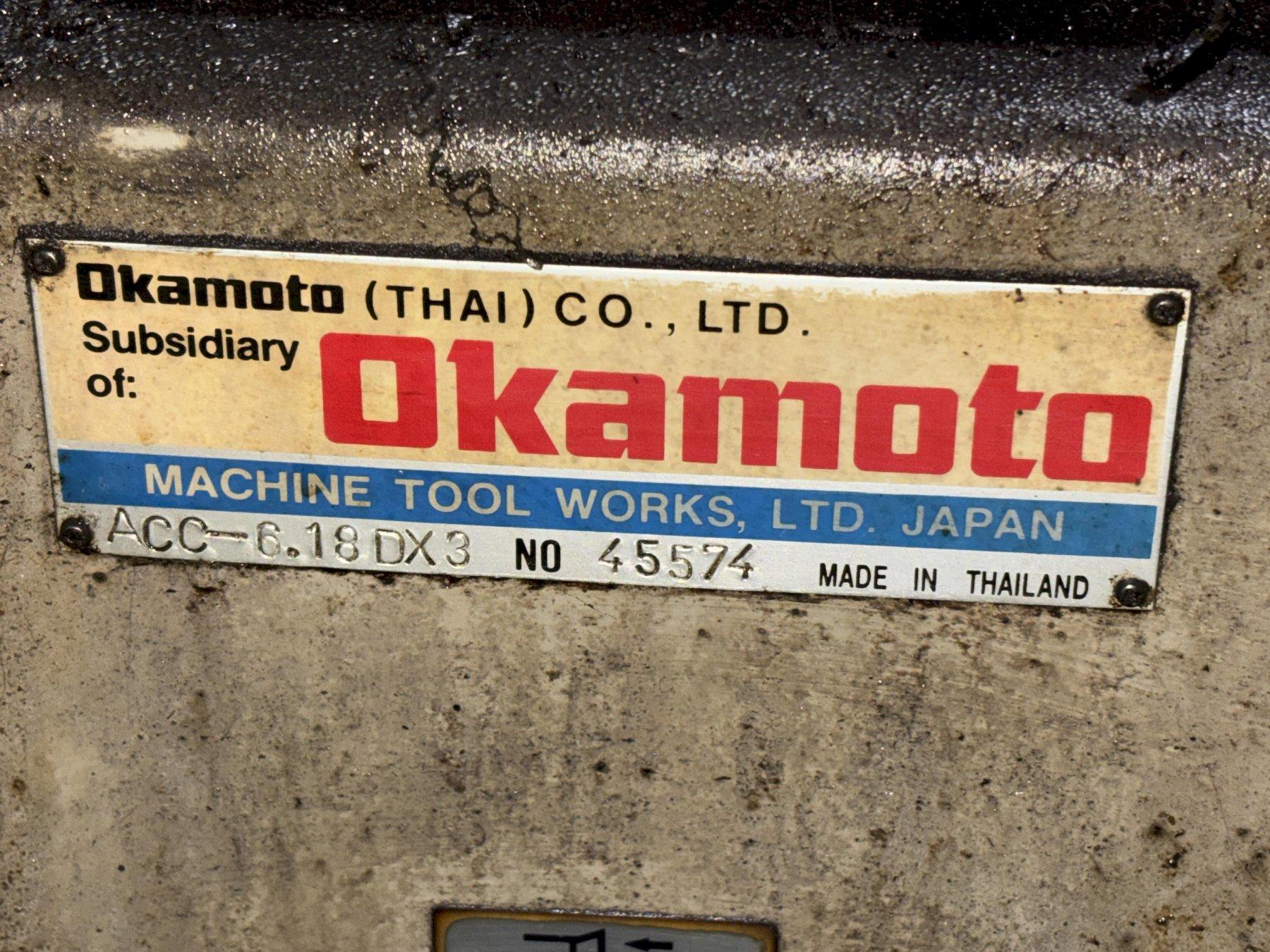

MODEL ACC-6.18DX3

Three Axis Fully Automatic Grinding with Rough/Fine Grinding and Spark-out in Automatic Cycle.

– Maximum Longitudinal Travel…………20.8 inch
– Maximum Cross Travel…………6.9 inch
– Maximum Distance under Wheel (8.0″ to Table Surface)…………11.7 inch
– Magnetic Chuck Size (WxL)…………6 x 18 inch
– Table Load Capacity (Includes Chuck Weight)…………264 Ibs.

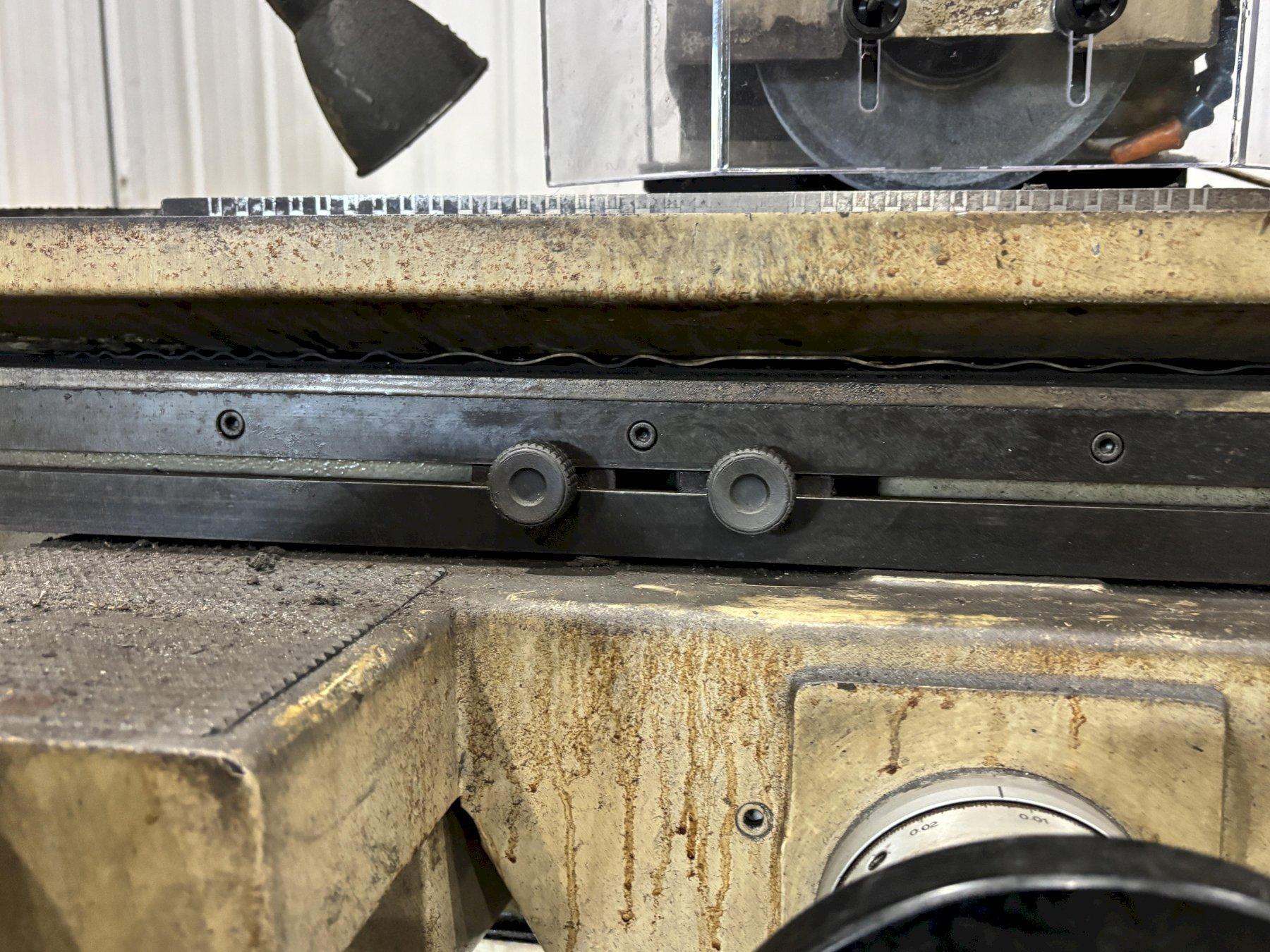

Table:
– T-Slots (No. x Width)…………1 x 0.67″
– Hydraulic Feed Rate…………0.33 – 66 ft/min.

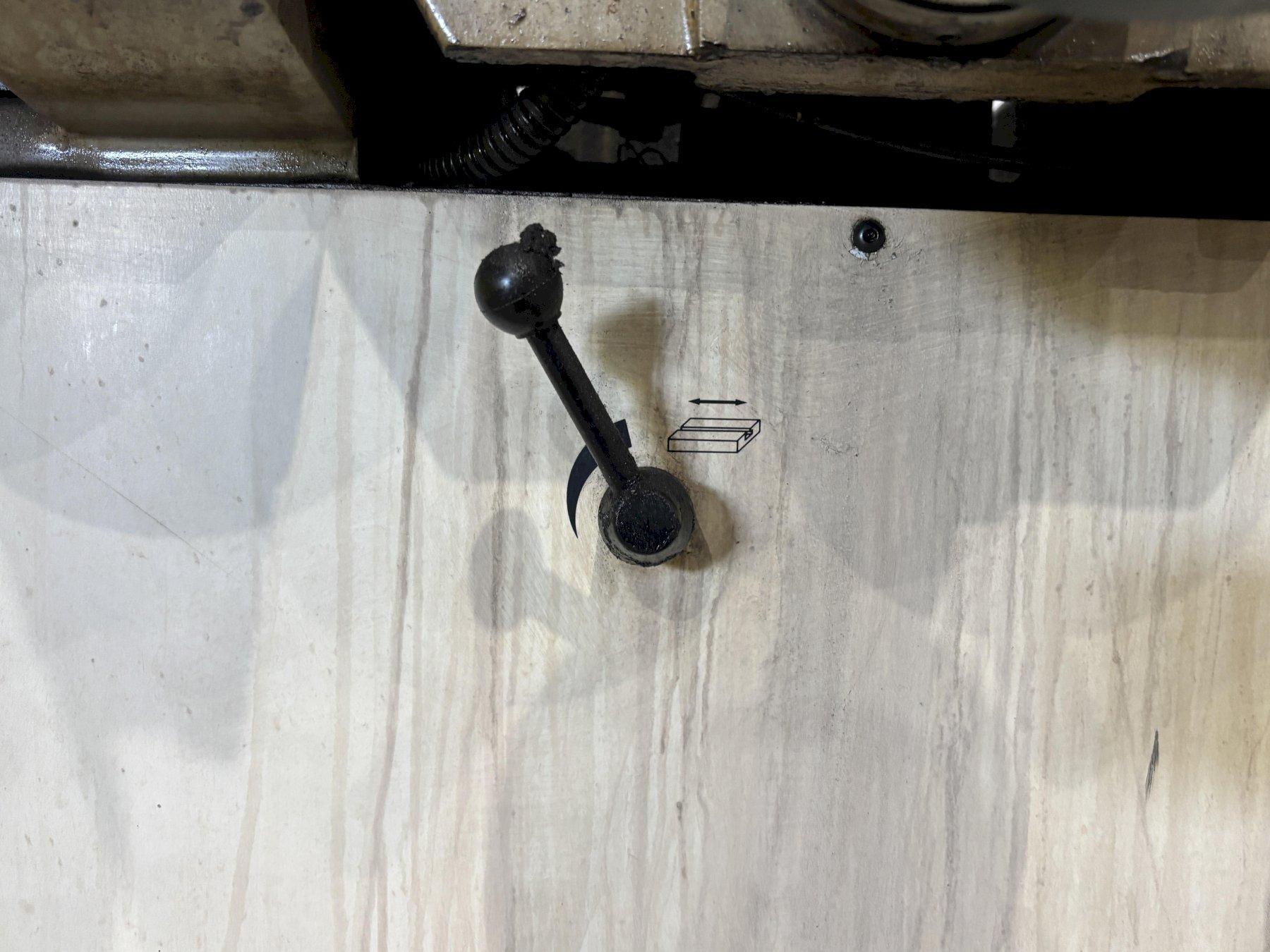

– Hand Feed per Revolution…………4.0 inch

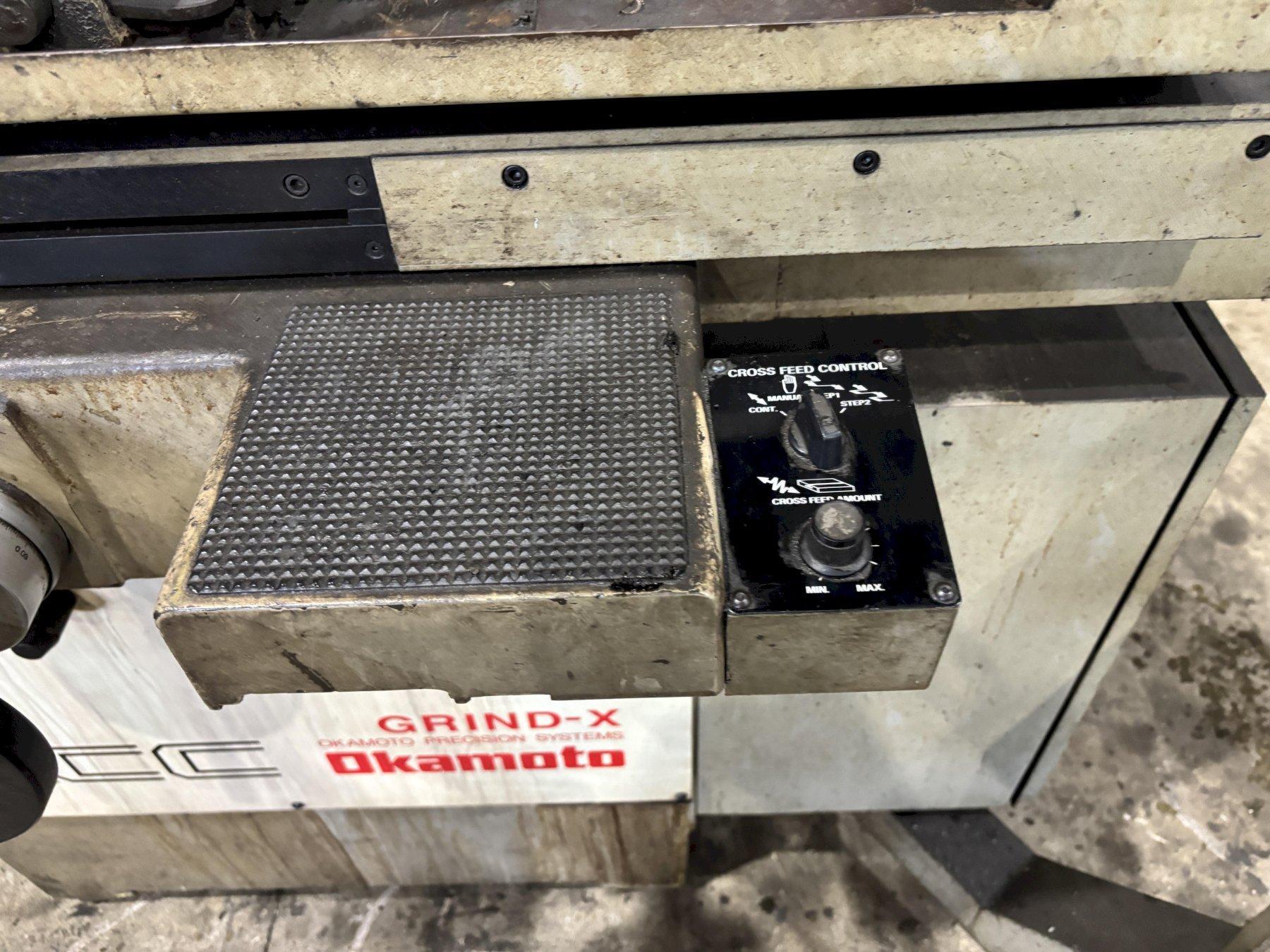

Crossfeed:
– Hydraulic Intermittent Crossfeed…………0.004 – 0.2 inch
– Hydraulic Continuous Crossfeed Rate…………0.5 – 13 .1 ftlmin .
– Crossfeed Per Revolution…………0.100 inch

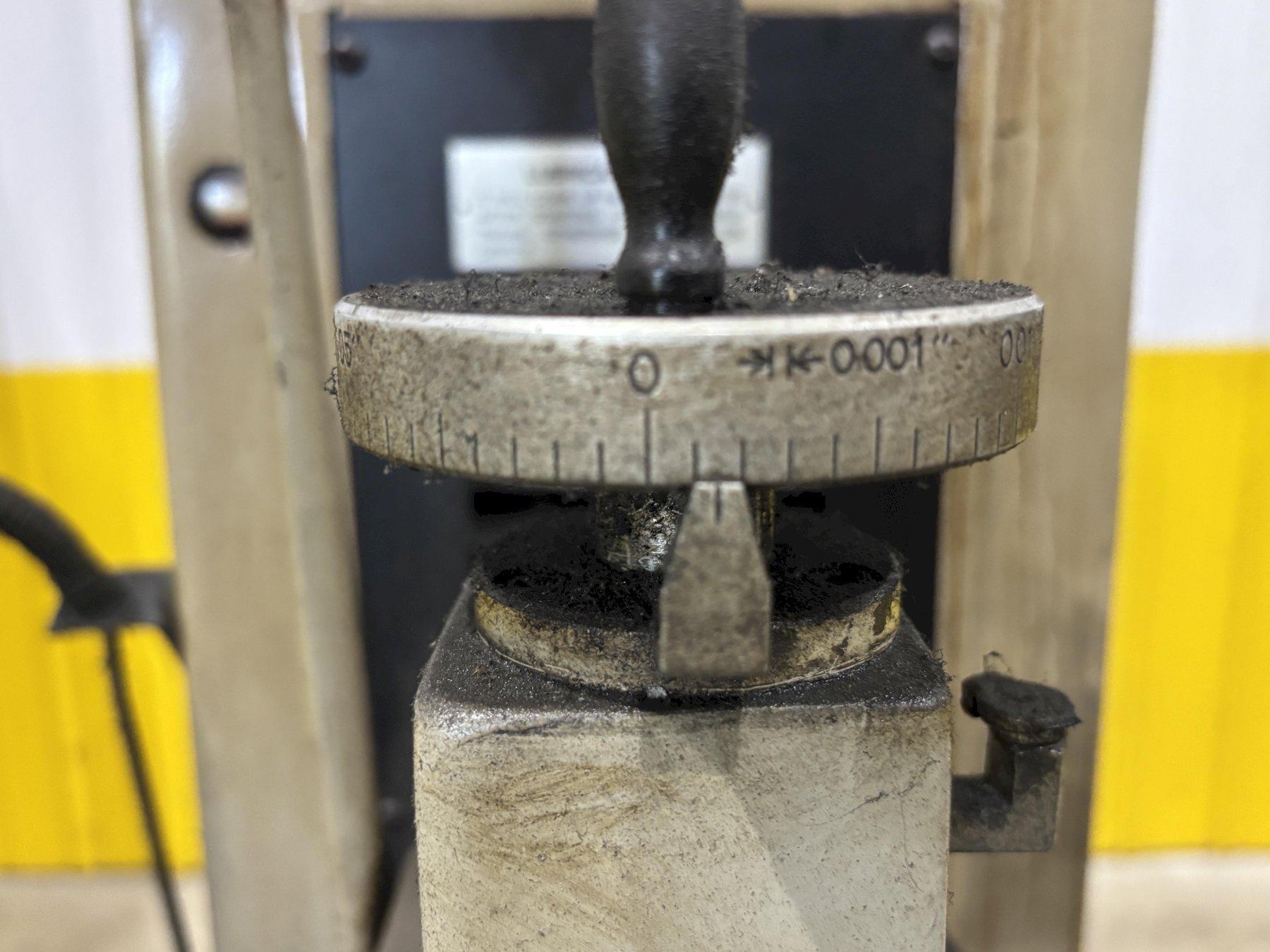

– Handfeed Dial Graduation…………0.0004 inch
Wheelhead:
– Automatic Vertical Feed per Table Stroke…………0.00005 – 0.0015 inch
– Rapid Feed Rate…………15 .7 inch/min

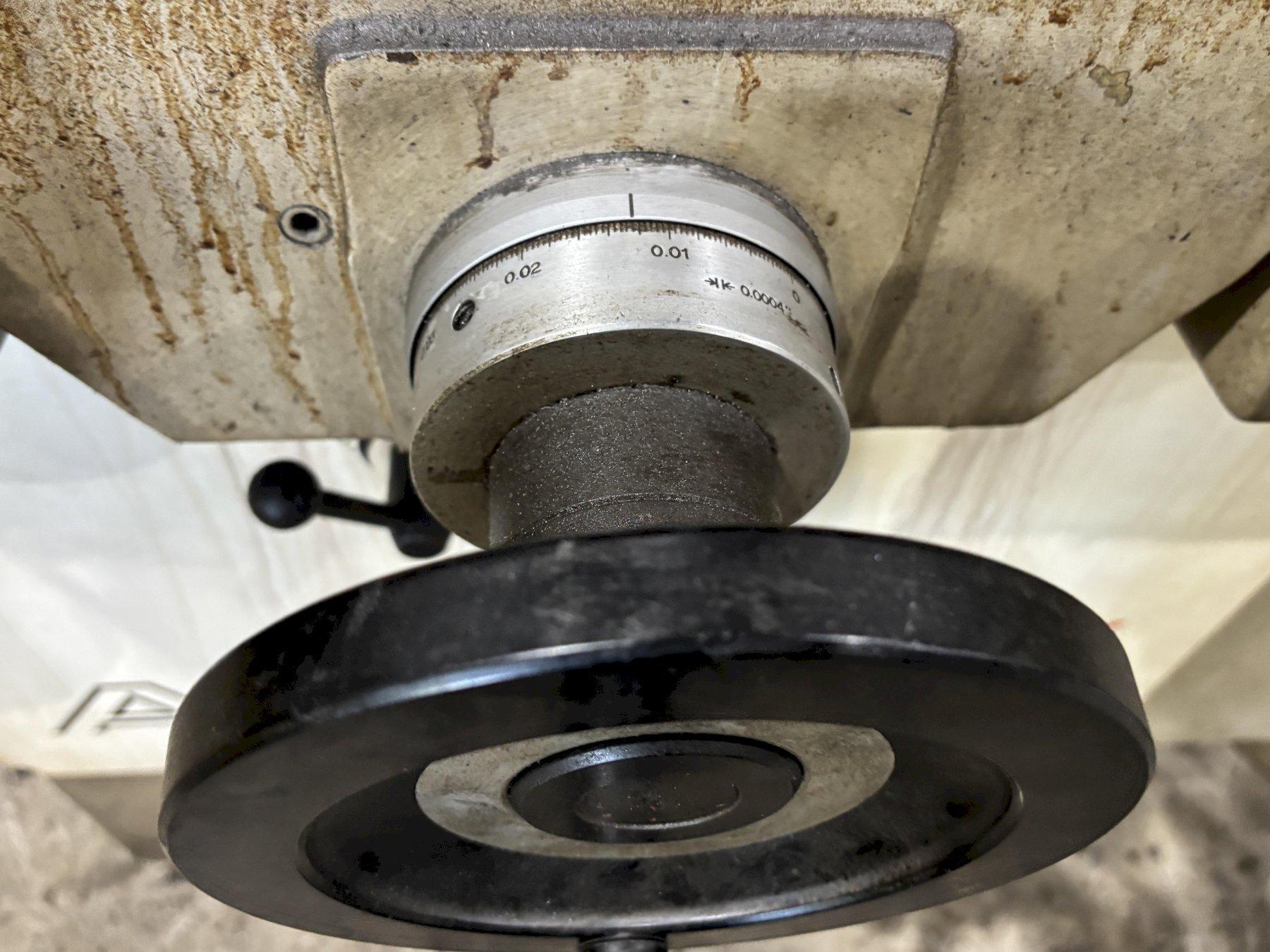

– Downfeed Per Revolution…………0.00 1, 0.0 I 0, 0.05 inch
– Downfeed Per Graduation…………0.00001 , 0.0001 , 0.0005 inch
– Grinding Wheel Size (DxWxB)…………8.0 x 1.0 x 1.25 inch
– Speed…………3,420 rpm

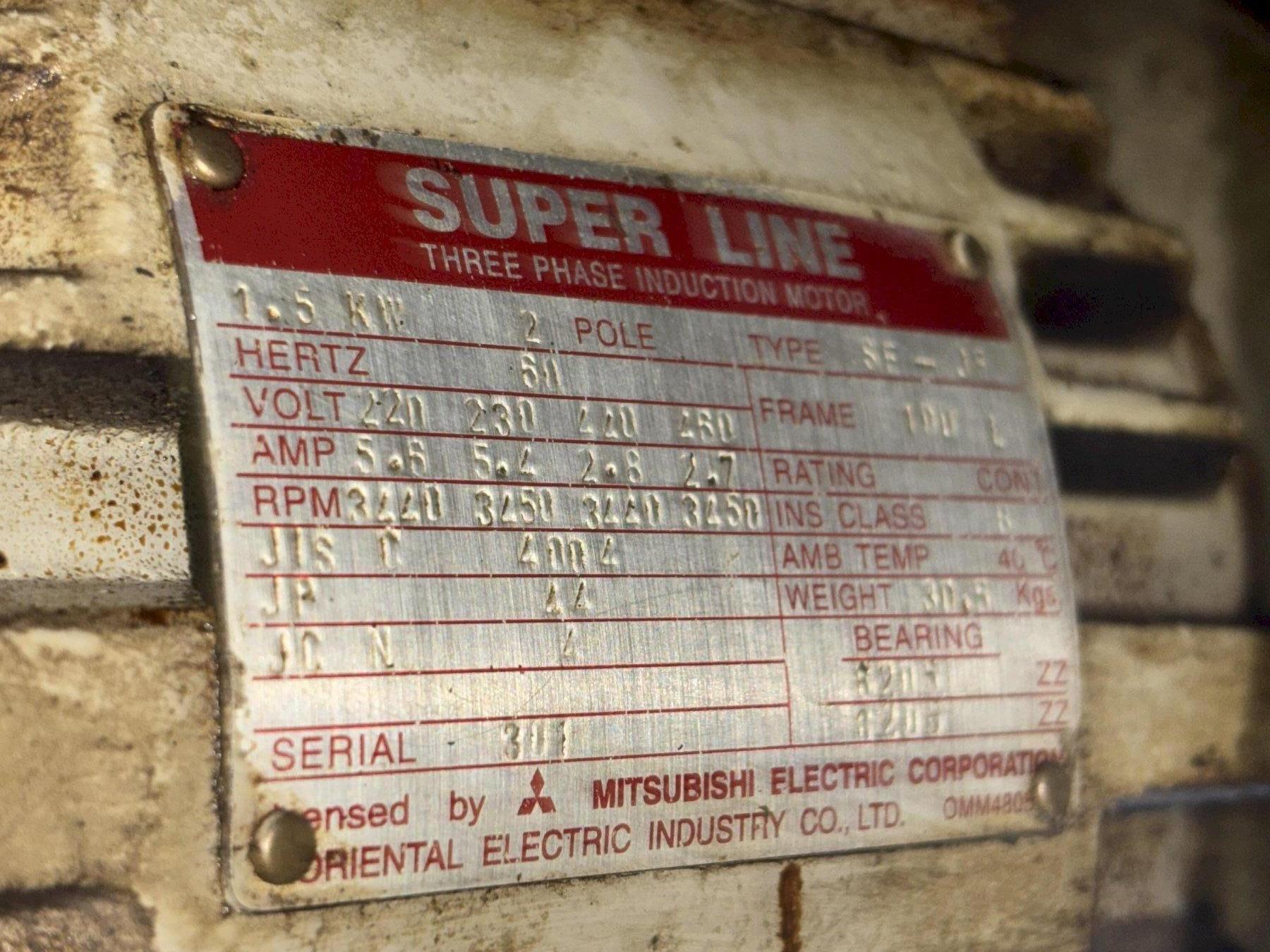

Motors:
– Grinding Wheel Spindle…………2 hp
– Hydraulic Pump…………1 hp
– Crossfeed…………1 hp

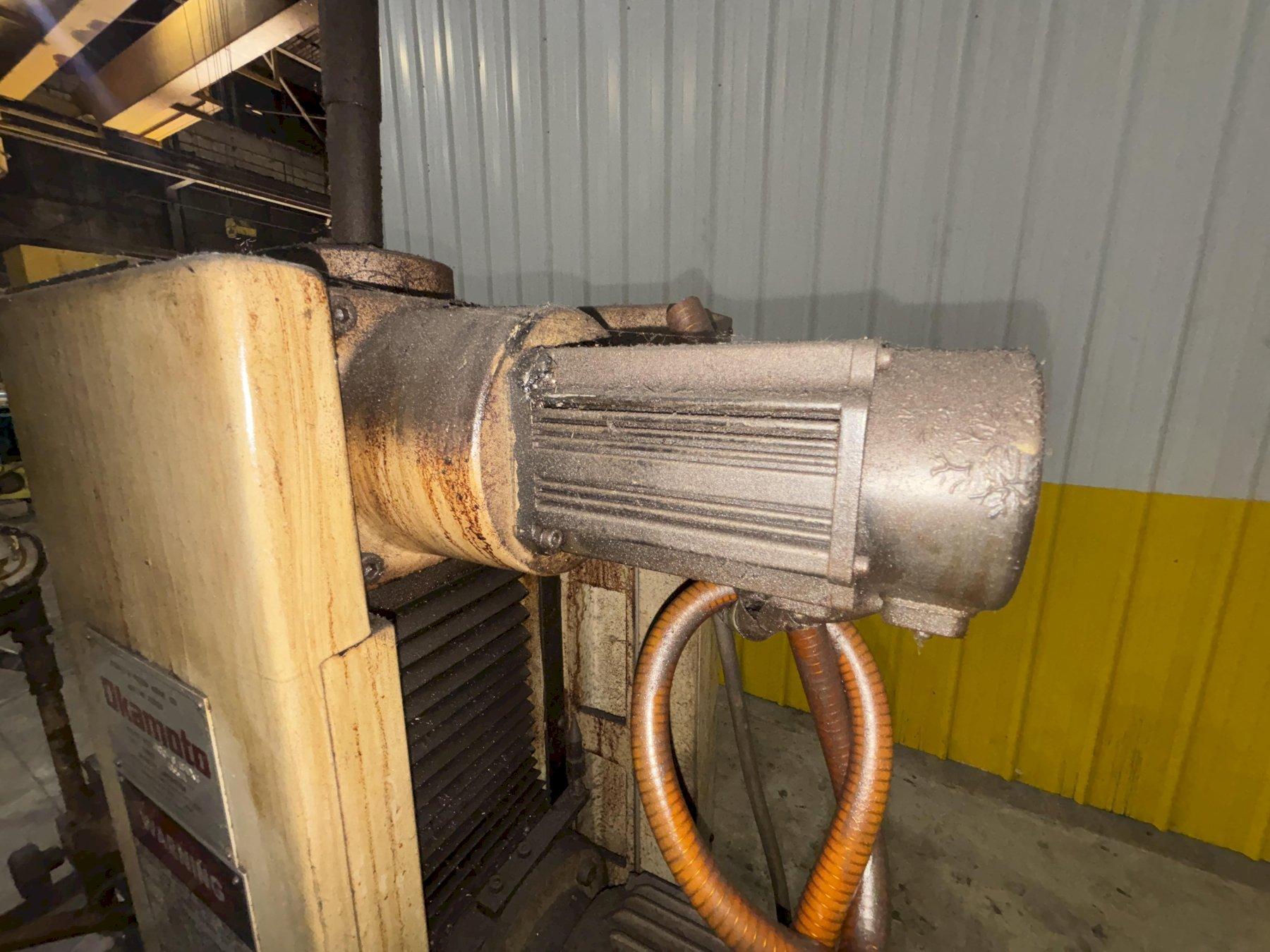

– Vertical Rapid Feed & Downfeed…………0.5 hp AC Servo
Floor space required – catalog…………77″(L-R) x 51″(F-B) x 79″(H)
Net weight – catalog…………2,420 Lbs.

EQUIPPED WITH:

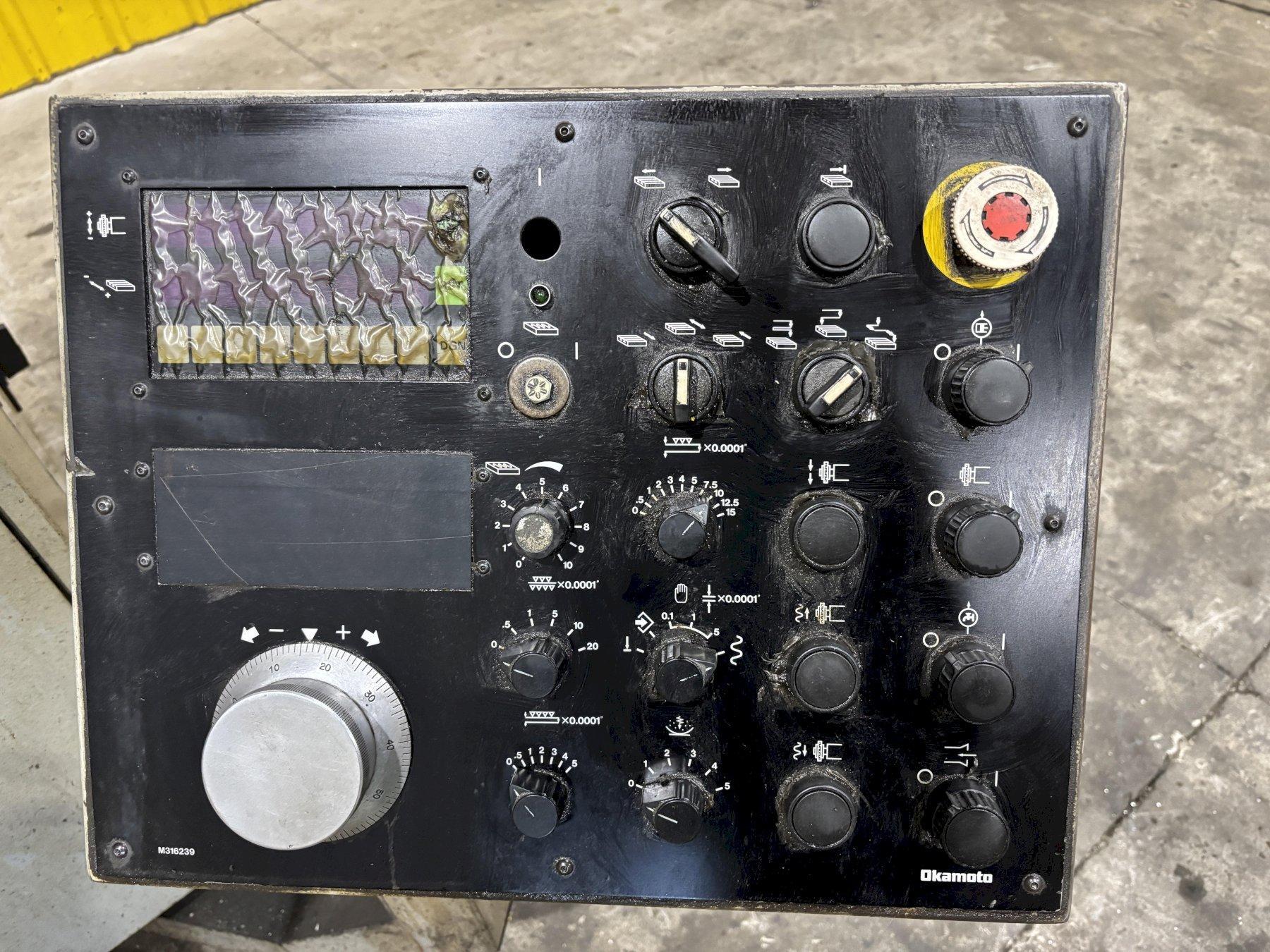

Okamoto MDI controller

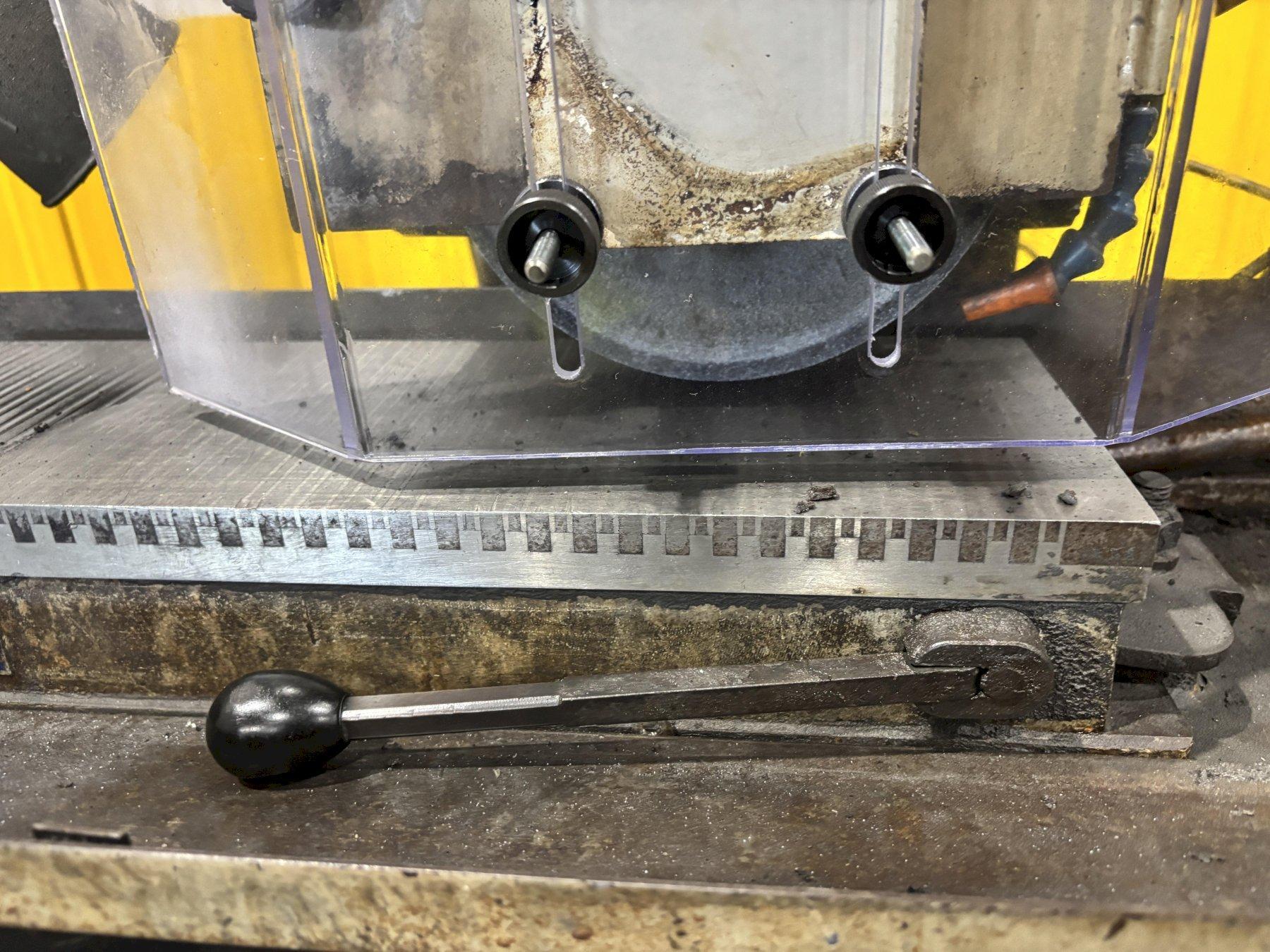

Manual over-the-wheel dresser

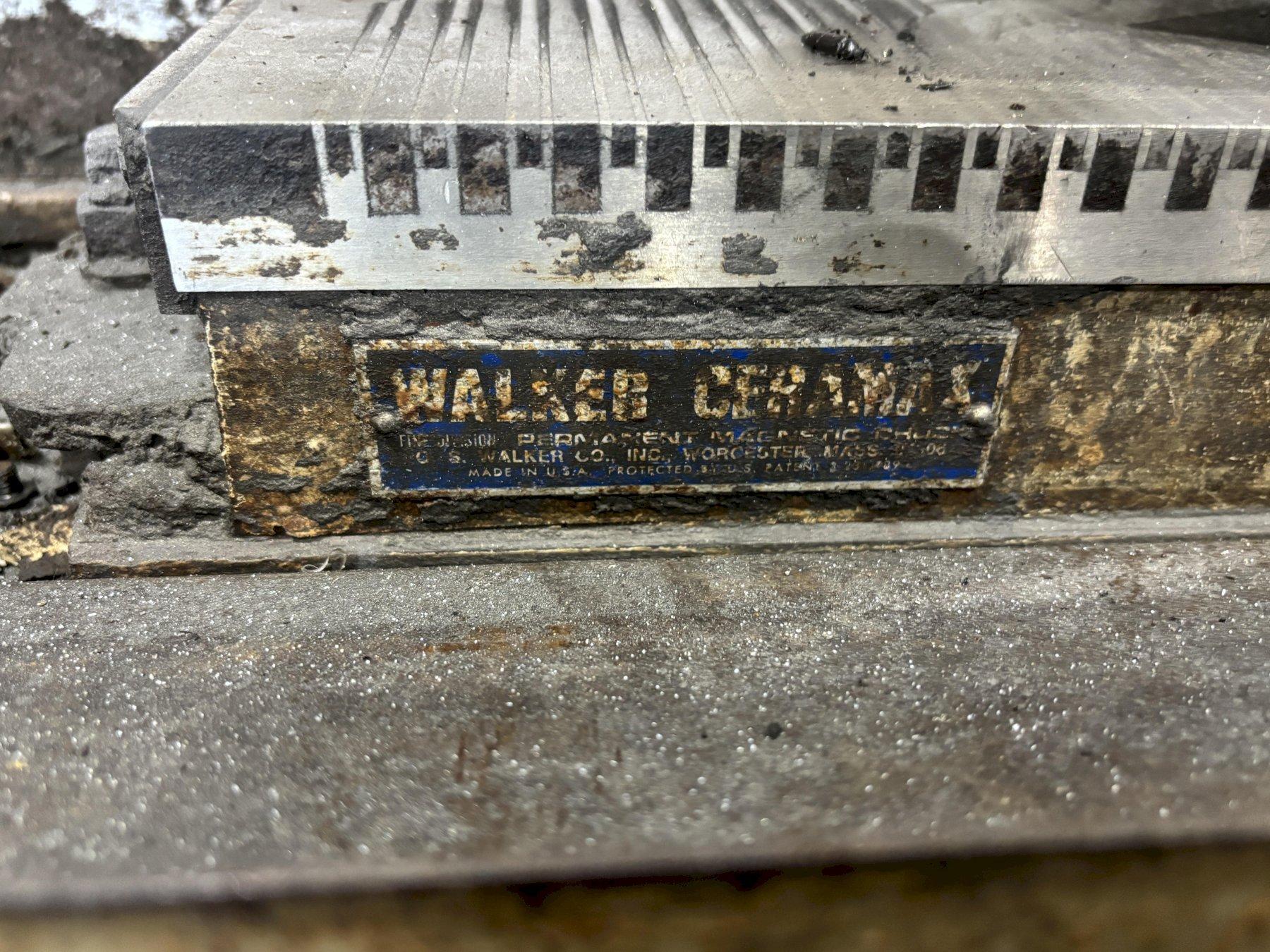

magnetic chuck
17 Gallon coolant system
Built-in chuck controller
Vertical positioning display
Vertical manual pulse generator
Incremental downfeed
