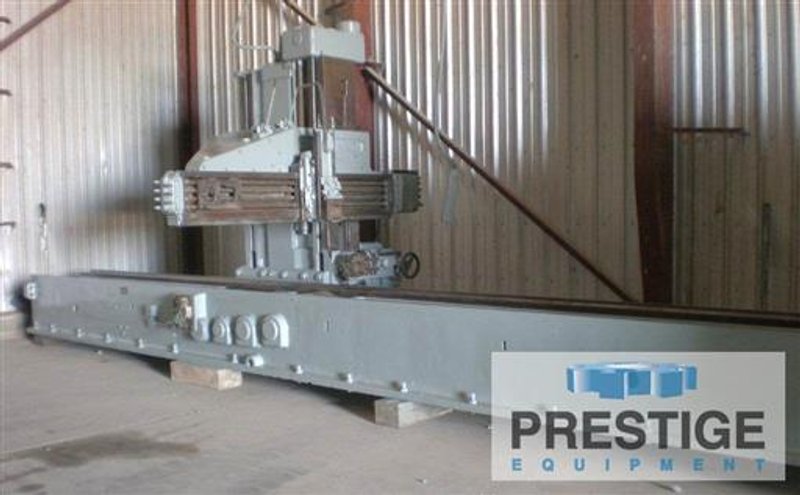

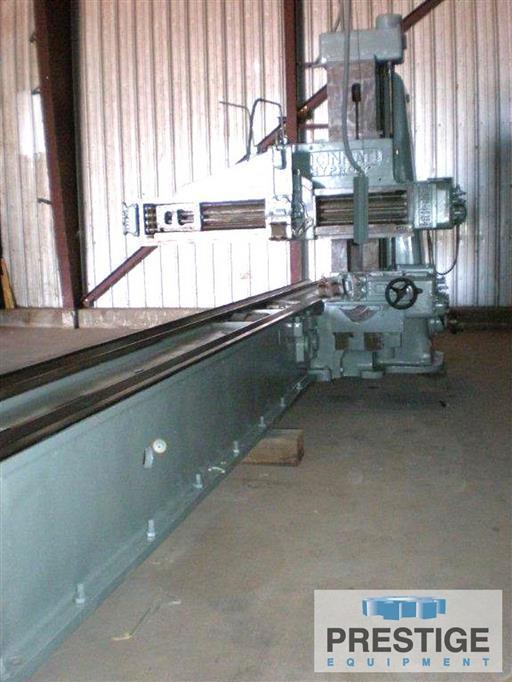

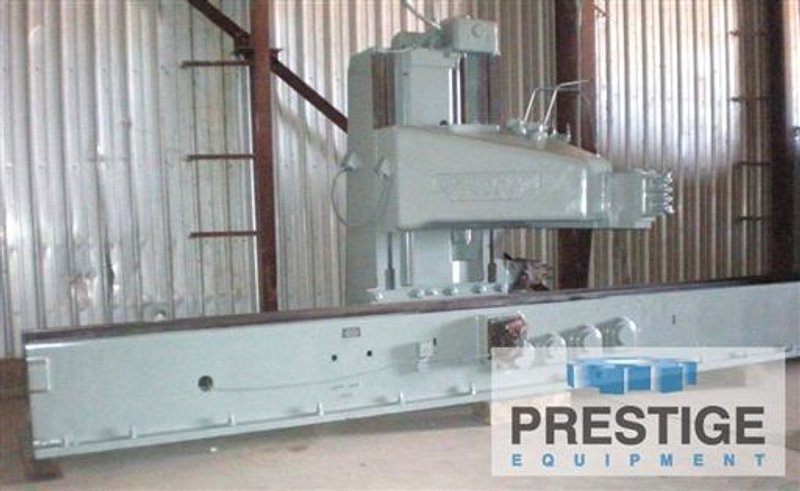

Cincinnati Hypro 36" x 38" x 336" Planer

Specifications:
Area of Table, Working 36" x 324"
Area of Table, Overall 36" x 350"
Maximum Table Stroke................... 324" 324"
Maximum Under Rail..................... 38" 38"
Maximum Planing Width.................. 36" 36"
Vertical Travel of Rail Head Slide..... 15" 15"
Vertical Travel of Side Head........... 12" 12"
All Heads Swivel (left or right)....... 45° 45°



Equipped With:

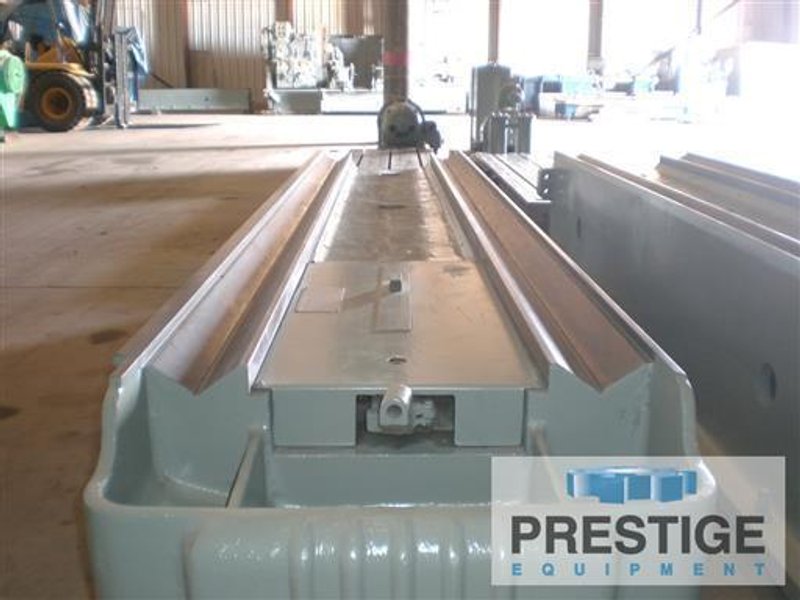

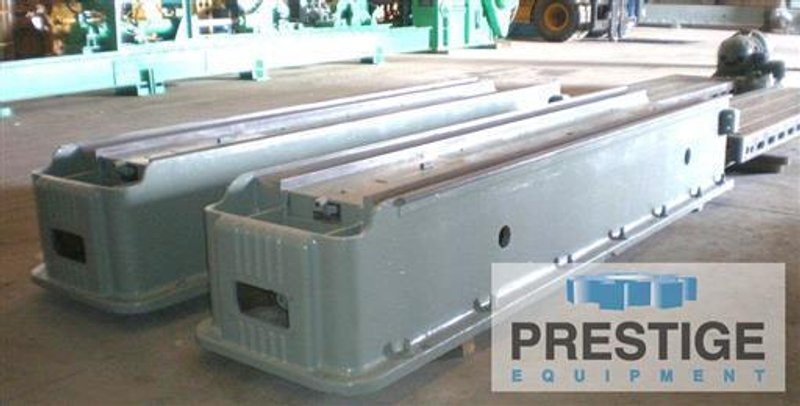

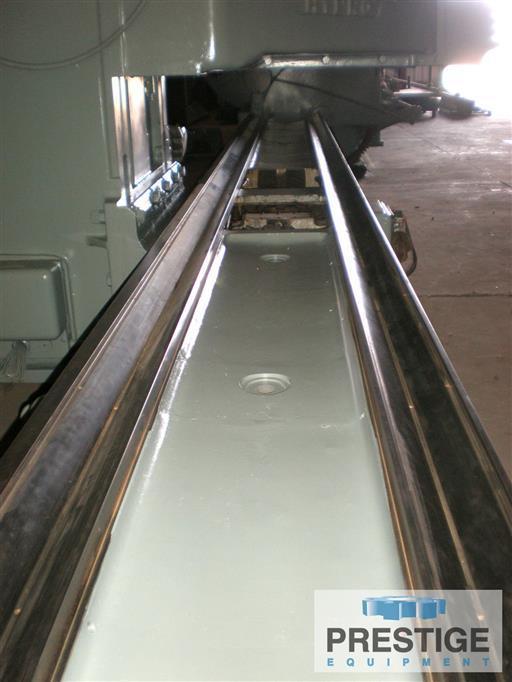

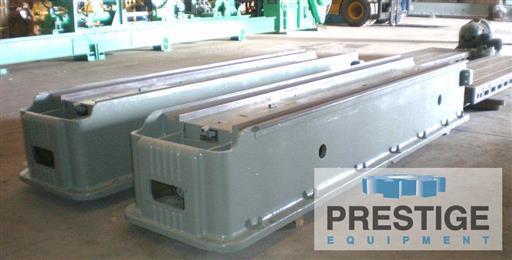

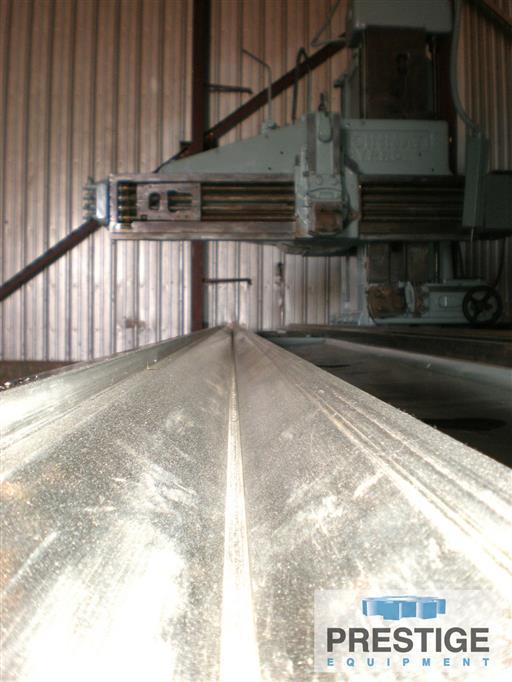

Cast Iron Vee ways for table

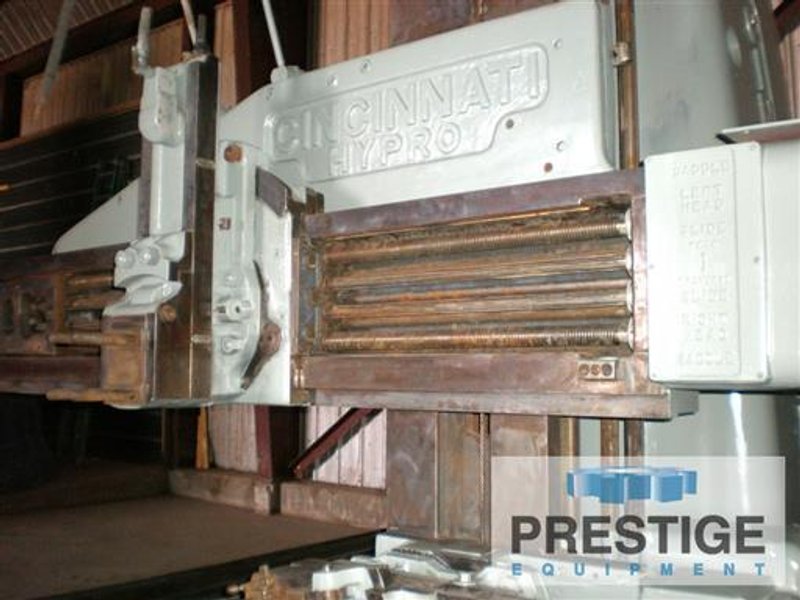

2 Rail Heads, (1 complete w/clapper box, 1 missing parts)
1 Side Head w/clapper box
Auto Recirculating Lube System
Power Feeds and Rapid Traverse on all Heads
Operator's Pendant Control

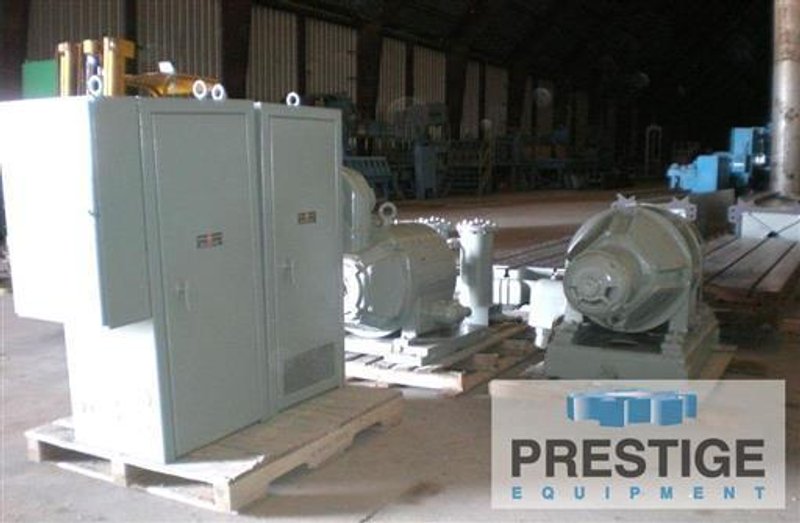

Electrics: All G.E. Drive System
50 HP Motor Generator Set
25 HP D.C. Motor (direct)
220/440VAC / 3 Phase / 60 Hz / 60/120 AMP
1765 RPM / 107/240V / 88/212 AMP / 250-1200 RPM


Dimensions:


Machine Height, w/out Pendant
10' 4"







Width, w/out drive
120"







Length, installed
56' 6"







Length, shipping
29' 2"







Estimated Weight
125,000 lbs
