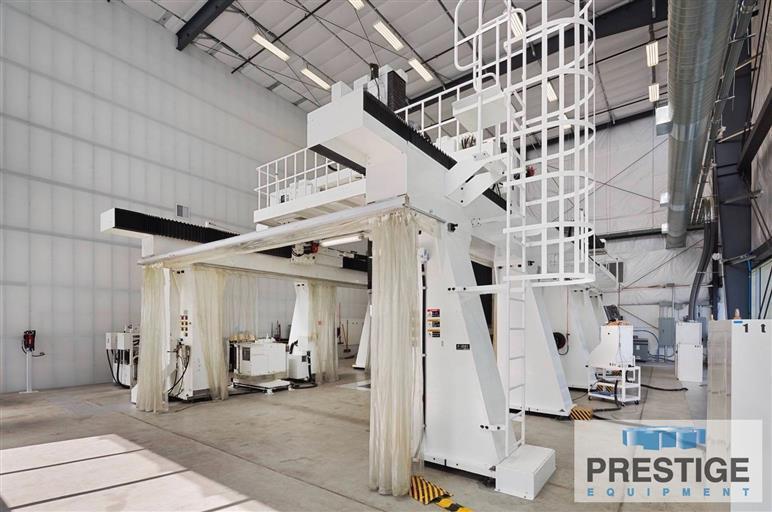

SNK MKS3500 5-Axis CNC Gantry Mill

SPECIFICATION:
X-Axis, Gantry Travel w/ 1 Parked 374"
Y-Axis, Head Horizontal Travel 137.79"
Z-Axis, Ram Stroke 106.29"
B-Axis Rotation +/- 120 Deg.
C-Axis Rotation, +/- 220 Deg.
Distance Between Columns 192.91"
Spindle Speeds 3,000 -15,000 RPM
Spindle Taper #40 ISO
Spindle Motor 20 HP
Machine Footprint, L x W 670" x 374"
Overall Height 338"



Equipped With:
Fanuc 15iMB CNC Control
Twin Gantries & Rams w/ Nutating Heads
Scales on All Axis
(2) 20-Station Automatic Tool Changer
236" x 98.42" Surface Plate


Features: Special control functions for high-speed, high-precision machining
Machine operation smoothing function
Lost motion compensation function
Look-ahead ultra-high speed high-precision control
Nano Interpolation Control
Look-ahead Acceleration Control
Zero tolerance control
Machining mode selection function
High-speed (high-precision) finishing mode
High-quality (high-precision) finishing mode
Semi-finishing mode
Rough cutting mode
User-defined mode
Z-axis descent deceleration function
Automatic corner speed control
Small R deceleration control
Automatic corner detection and exact stop function
High-speed pick feed
Deceleration control by difference in speed between each axis
