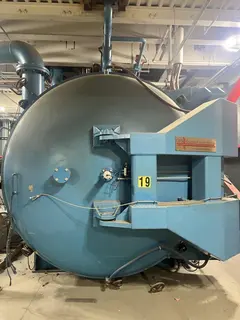

Graphite Furnace Systems Model #19 – Large Format High-Temp Vacuum Furnace with Graphite Insulation and Internal Heating Elements

Equipment Overview This Graphite Furnace Systems vacuum furnace is a heavy-duty, graphite-insulated batch processing system built for ultra-high temperature performance. The interior chamber contains upper and lower graphite panel arrays, vertically suspended heating rods, and precision insulation tilework. Ideal for thermal treatment of composite tooling, carbon fiber, ceramics, or hard metals, the furnace supports consistent temperature distribution and may operate in vacuum or inert gas configurations.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chamber & Heating Zone Chamber Type: Horizontal cylindrical vacuum furnace Internal Chamber Size: 48″ Diameter × 96″ Depth (est. ±2″) Hot Zone Volume: ~100 cu ft (2.8 m³) Heating Elements: Graphite rod, vertically suspended Heating Zones: Likely 3–5 zones (top, side, bottom) Element Configuration: Parallel banks w/ panel baffles Max Temperature: 2200°C – 2500°C (typical for GFS units) Temperature Uniformity: ±5°C – ±10°C (specs TBD without TUS) Thermal Insulation: Graphite tile, rigid pressed construction Hearth: Graphite slab platform on risers

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction & Mechanical Furnace Shell: Welded carbon steel, circular endplate Door Style: Hinged clamshell or swing-latch design Seal: Graphite gasket + groove w/ vacuum flange Cooling: Water line inlets (seen on front/base) Feedthroughs: Thermocouples + electrical (rear piping) Base: Steel frame mount with floor-level piping

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Utilities Electrical Input: 480V / 3Ph / 100–150A (estimated) Power Rating: 150–250 kW (typical for this size) Atmosphere Control: Vacuum or inert (argon/nitrogen) Vacuum System: Not shown – assumed missing Controller: Not visible – standard GFS uses Eurotherm or PLC Chiller Requirement: External closed-loop recommended

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Estimated Performance Cycle Duration: 2–6 hours (application dependent) Heat-Up Rate: 5–15°C/min typical for graphite systems Typical Applications: Graphitization, sintering, carbonization Max Load Weight: ~3000–5000 lb (with uniform load spread)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
