Altendorf F4 Edgebander, 2020

Max edge thickness: 0.12″ Workpiece thickness range: 0.31″ – 1.57″ Minimum workpiece length: 6.3 in Minimum workpiece width: 3.15 in Feed speed: 22.9 ft/min Warm-up time: ~4 minutes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed speed: 23 – 33 feet per minute Glue system: Quick-change overhead glue pot (supports EVA and PUR adhesives)

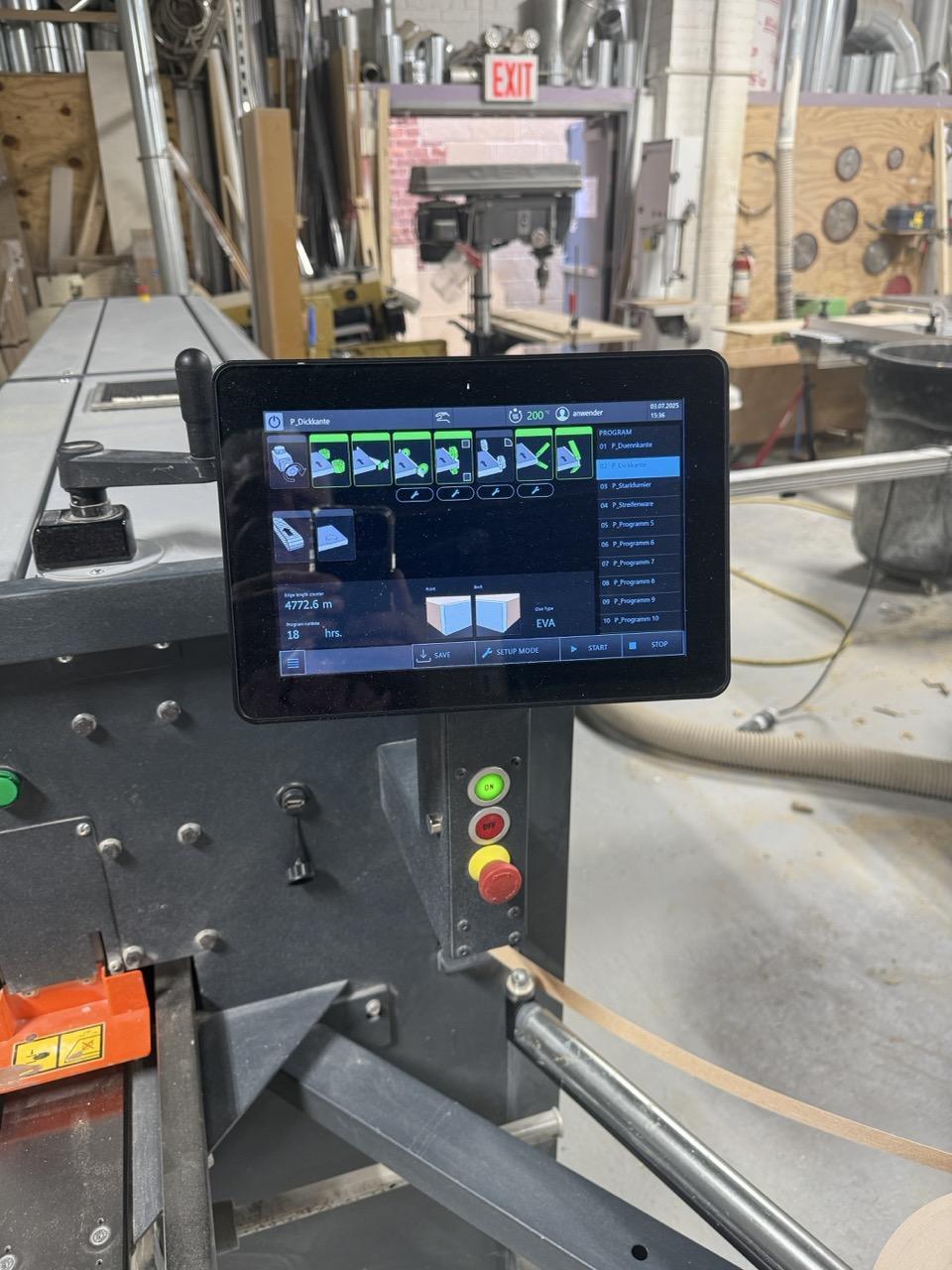

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Glue warm-up time: Approximately 3.5 Minutes Control system: Touchscreen interface

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pre-milling unit: Diamond WhisperCut cutter, removes up to ~0.08 inches End Trimming Unit: Included Top And Bottom Trimming Unit: Included Corner Rounding Unit: Included Worktable Height: ~33.46 to 35.43″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Surface Scraper: Dual-Tracing included Dust extraction port diameter: 5.51″ Power Consumption: Approximately 7.4 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage: 220V, 3-phase, 60Hz Total Power: 7.4 kW (10 HP) Full Load Amps: ~30 amps Air Pressure: 100 PSI Machine Dimensions: 160″ x 52″ x 55″ Machine Weight: 1,640lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional features: Fold-Out Support Plate Central Lubrication System LED Workpiece Tracking at Infeed

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
