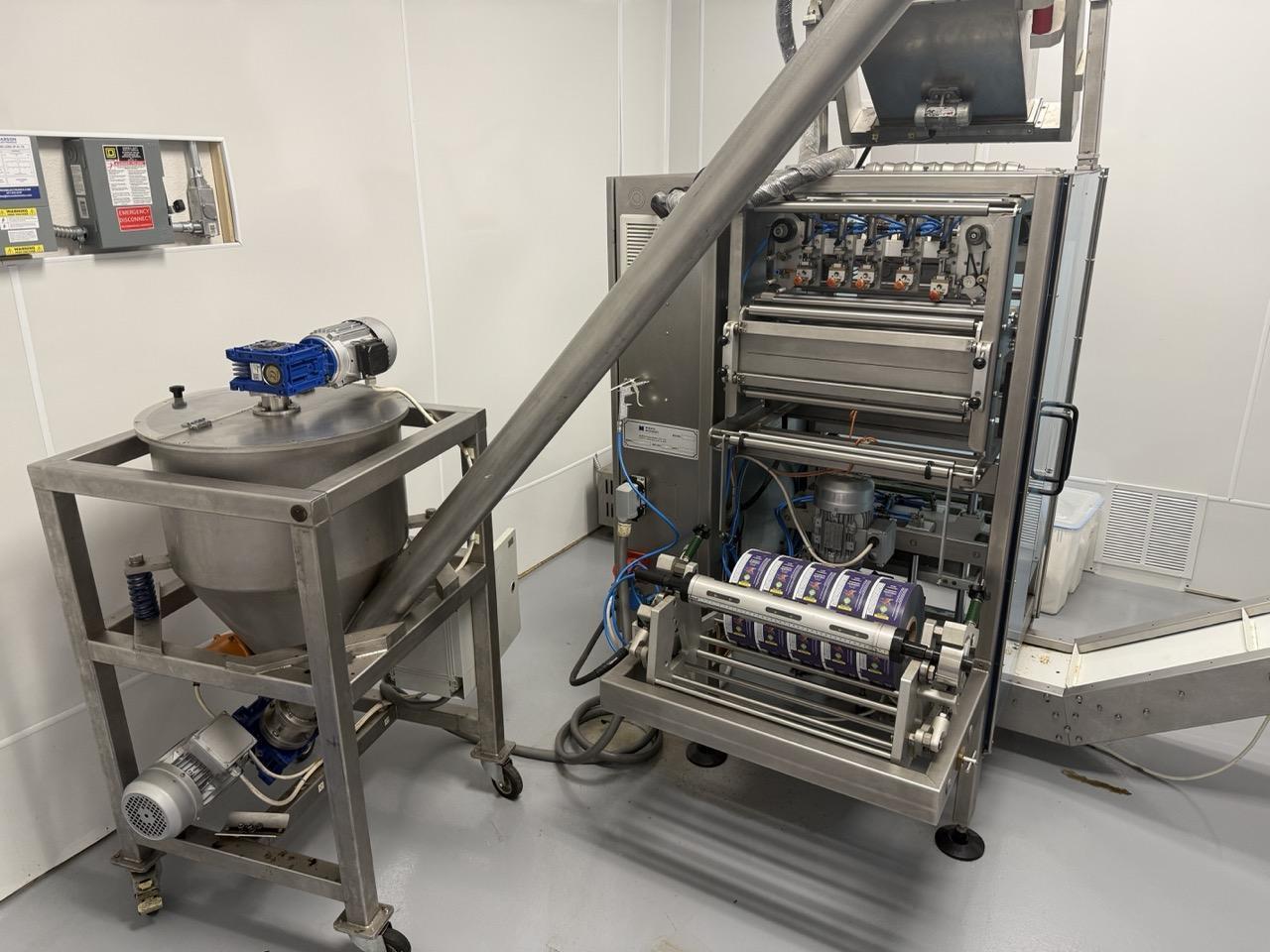

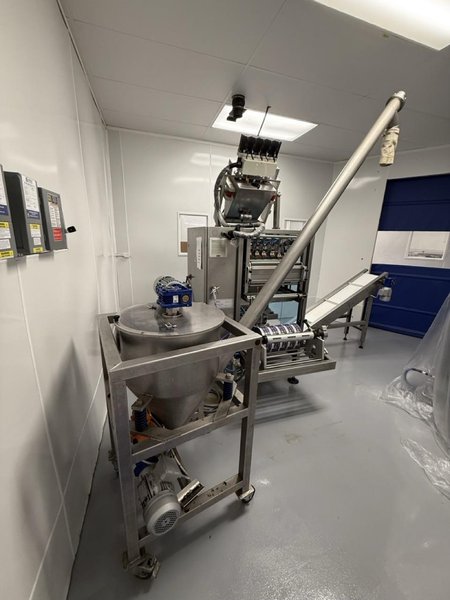

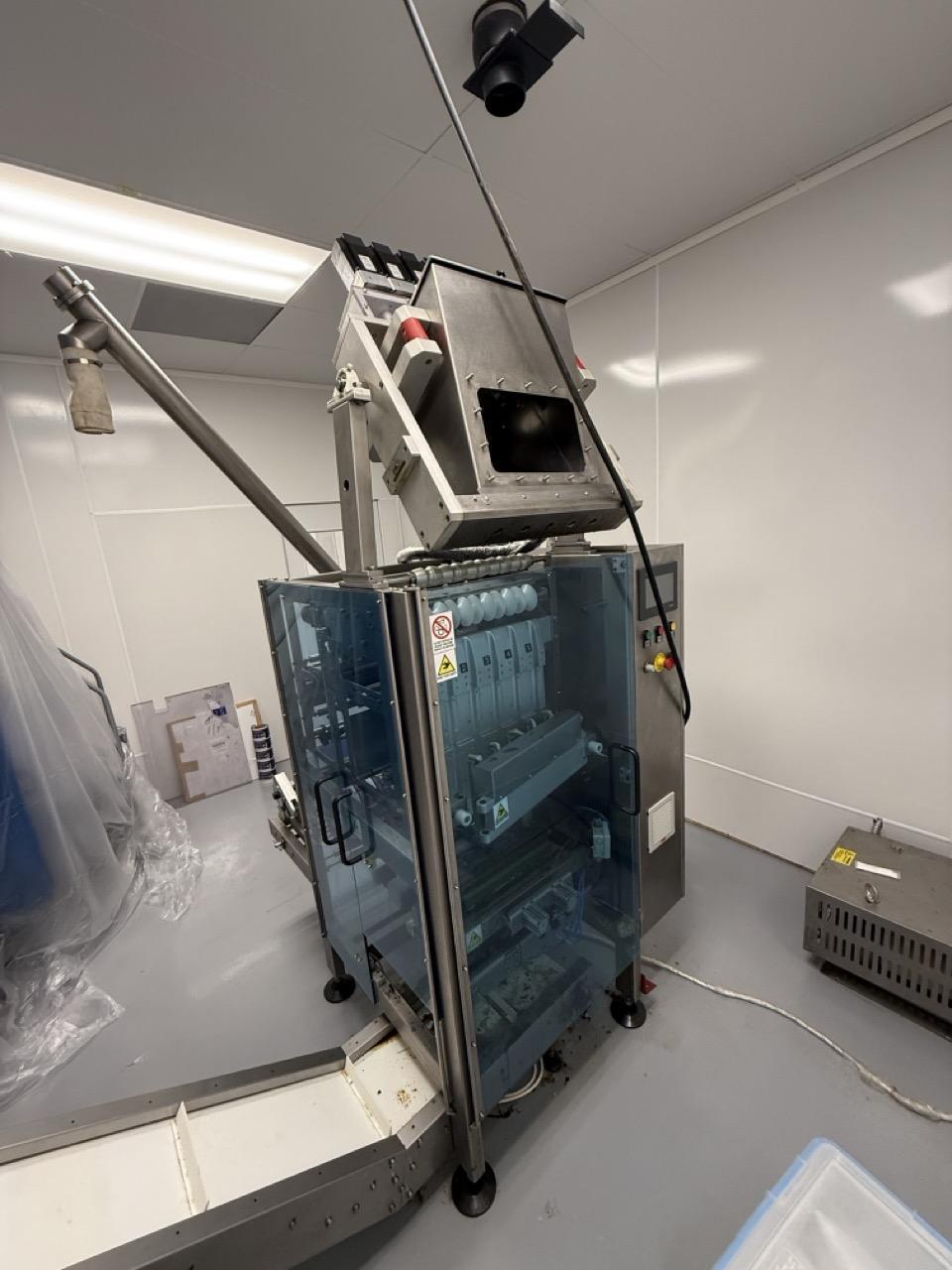

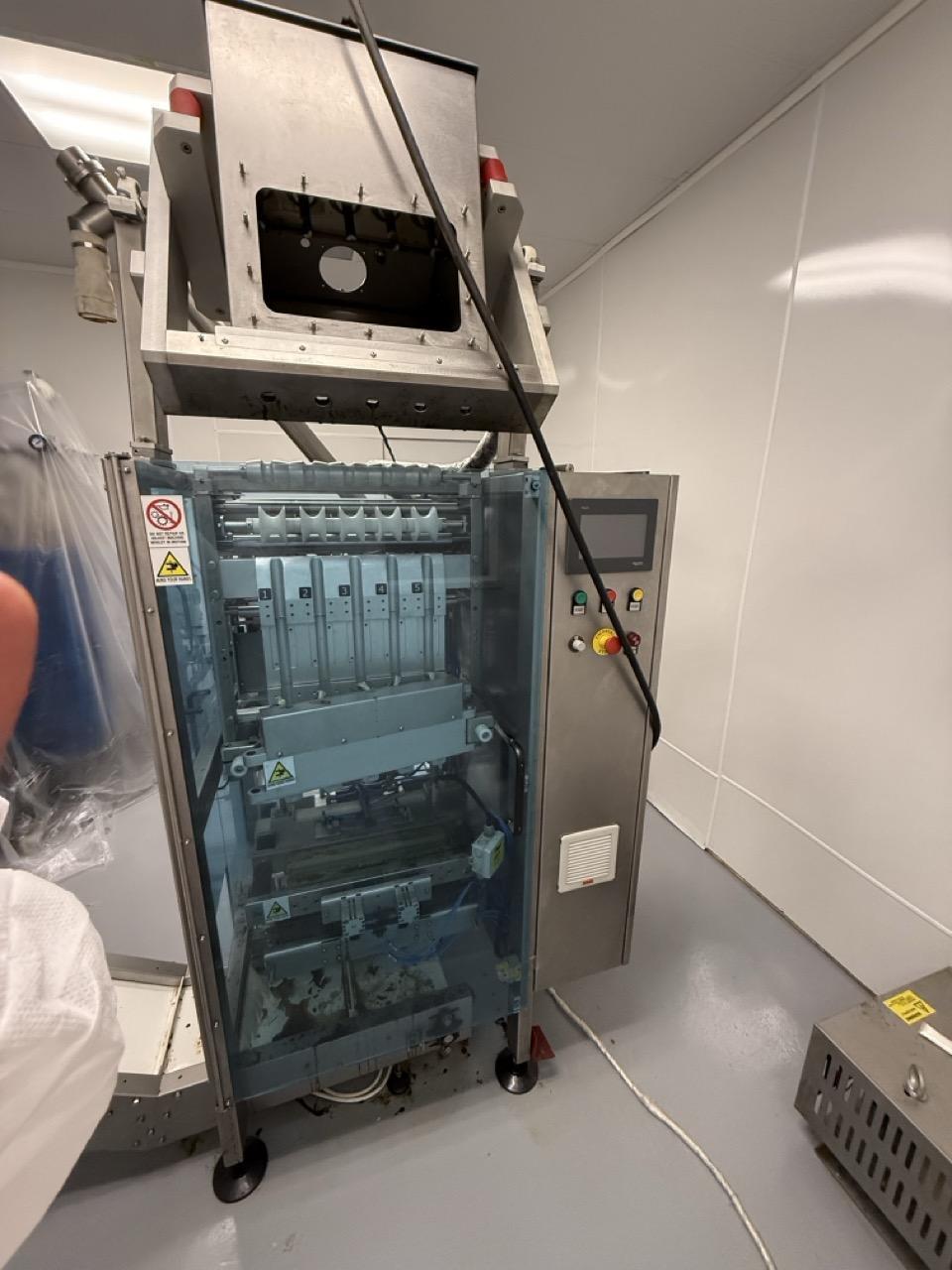

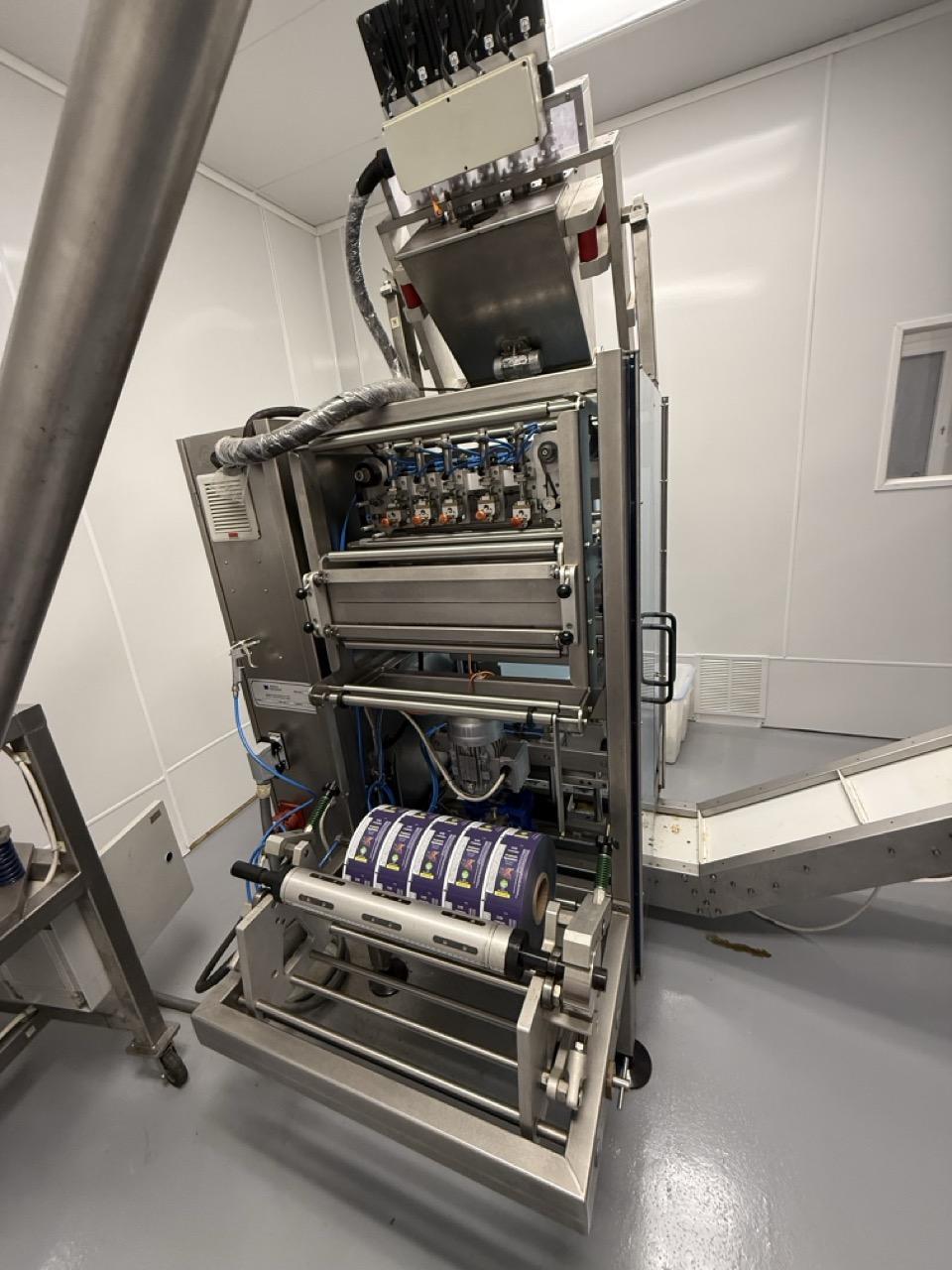

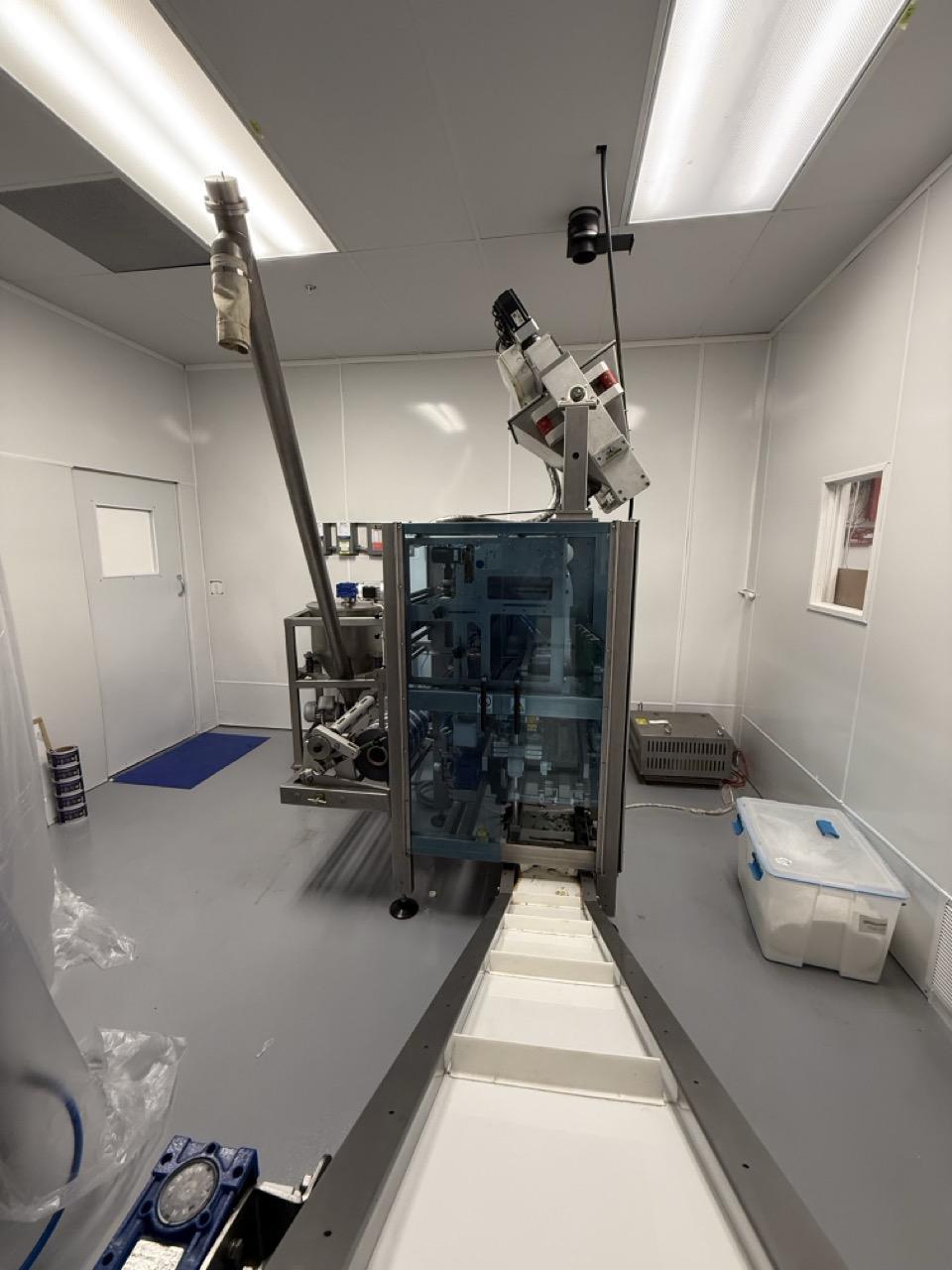

Mamata PSM5-35 5 Lane Vertical Stick Pack VFFS machine, 2023

Used Mamata PSM5-35 5 Lane Stick Pack VFFS machine, 2023:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Previously used for packaging 10-15 gram fill powdered stick packs of electrolyte powder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Maximum cycle rate: 80 cycles per minute – Laminate / Film Specifications: Polyester Laminates (Metallized and Non Metallized), Coated Paper, Aluminum foil – Film Thickness: 60 mic – Type of Sachet: Center Seal Pillow pack – Sachet Dimension (Width x Height): 35mm*125 mm – Seal Width: 10 mm (+/- 6 mm) – Reel Width: 600 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Machine information: – Product weight: 10-15 grams (adjustable) – Stick width: 35 mm (fixed) – Stick length: between 40-200 mm (adjustable) – Maximum capacity: up to 150 pieces/min. (changes according to product) – Cutting type and easy notch: Zigzag Blade inside the Jaw / side – notch and straight sealing – Film width: 240-400 mm. – Maximum film diameter: 400 mm – Film type: heat/sealable – Machine parts: The metal parts of machine made of aluminum and AISI 304, 316 materials

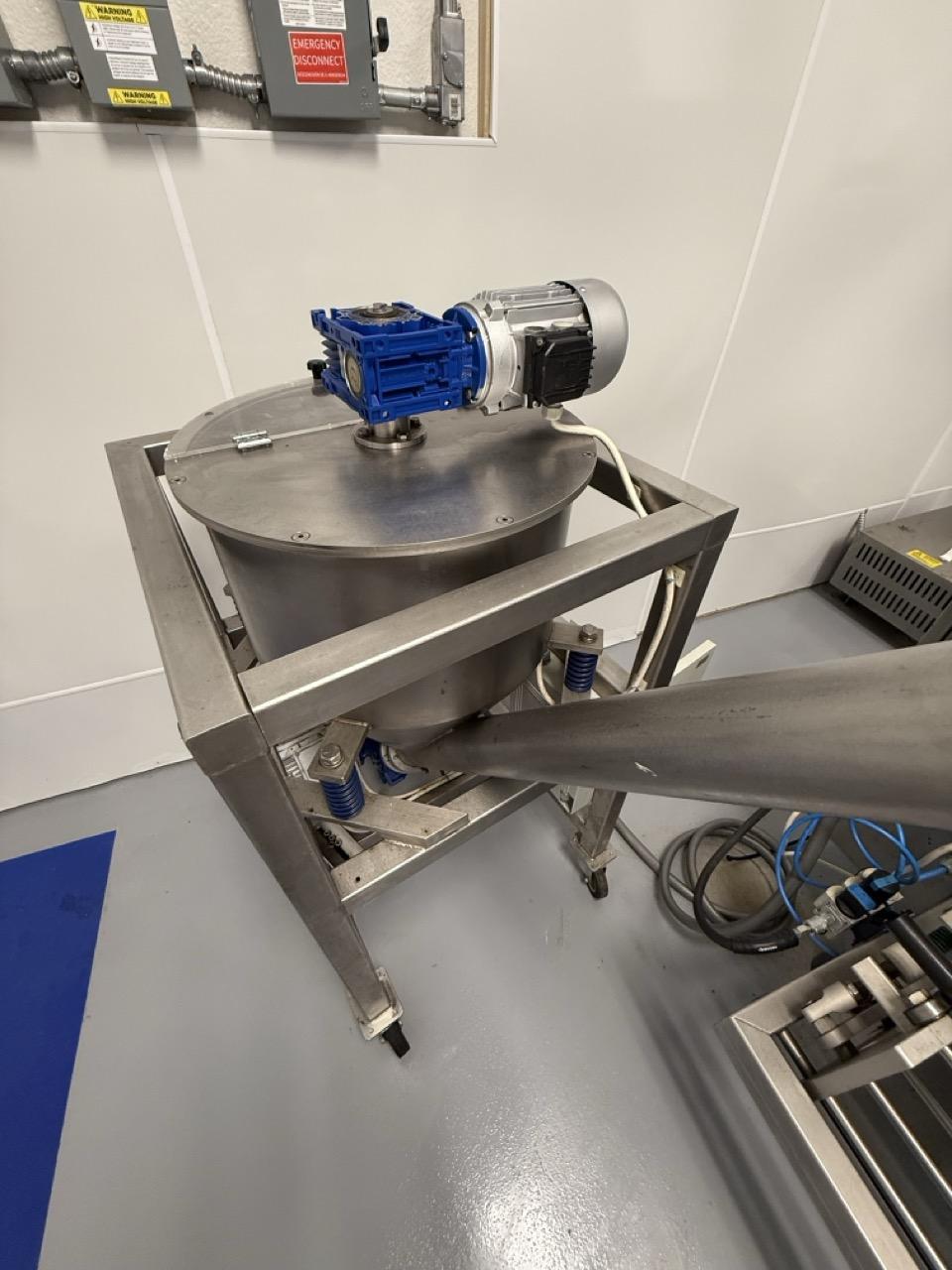

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Custom designed Servo Auger Based Dosing System (5 Lane) Dosing system consisting of: – Stainless Steel Hopper SS with 50 Liter, with visual window – Individual Servo based Auger filling system for non-freeflow powder. – Complete with Electrical, Electronic and Pneumatic Interlocks – Necessary Internal Hoses and Connectors. – Fill Tubes – 1 Set (5 nos) as per your dosage requirement. – Internal piping for dust extraction. (vacuum system not included)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System specifications: – Control: Programmable logic controller with external Panel – Servo based drive – Intermittent motion – Power Supply: AC 3 Phase 415Volt, 50 Hz – Power: 3,87 kW/hour – Air pressure: 6 bar – Air consumption: 300 liter/min. – Machine Size (W x L x H): 1200x1500x2200 mm. (approximately 47.24 x 59.06 x 86.61 inches) – Machine weight: 620 kg (1367 lbs).

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
