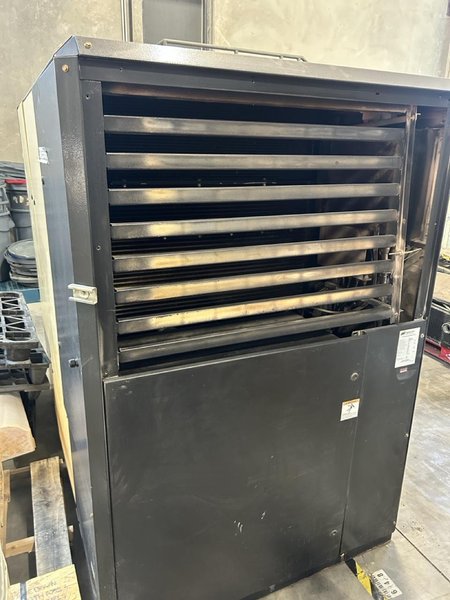

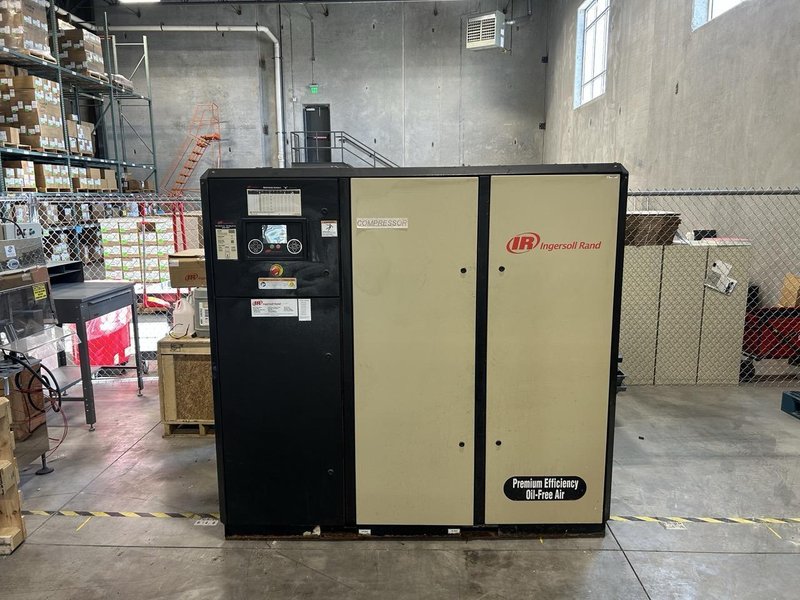

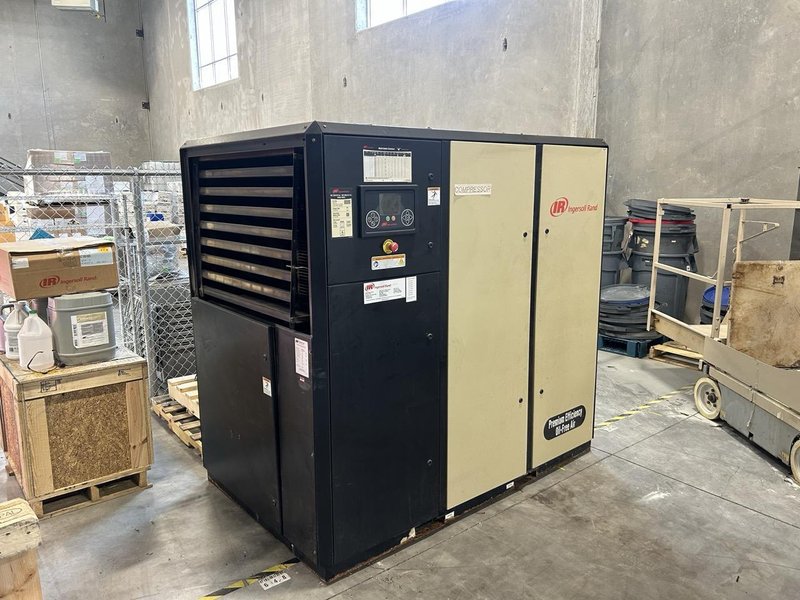

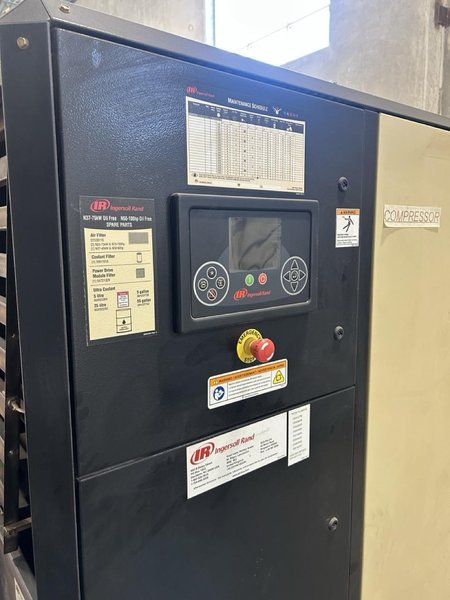

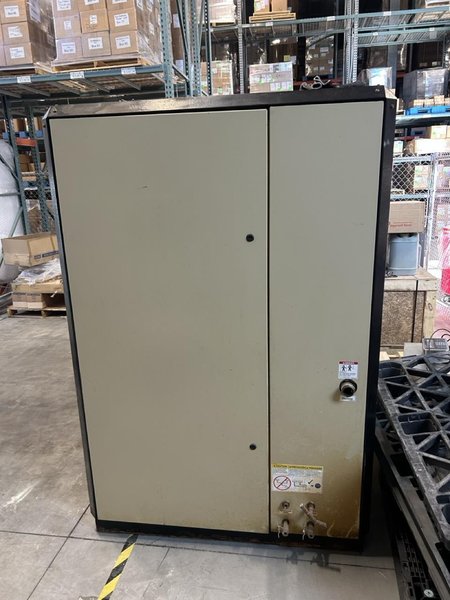

Ingersoll Rand IRN100H‑OF – 100 HP Oil-Free Rotary Screw Compressor, 460V, 3PH, ISO Class 0, VSD Package

Equipment Overview

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The IRN100H‑OF is a 100 HP oil-free rotary screw compressor in Ingersoll Rand’s Nirvana series, delivering up to 435 CFM at ~100 PSIG with ISO Class 0 quality. Includes built-in variable-speed drive, UltraCoat rotors, stainless cold-side piping, and is designed for high-purity compressed air applications such as pharmaceutical and food-grade production environments.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – 100 HP oil-free rotary screw compressor with VSD – 5 HP fan motor; 130A max package load; 125A drive motor current – Max discharge pressure: 155 PSIG – Output: up to 435 CFM at 100 PSIG – 460V, 3-phase, 60Hz power input; control voltage 120V – UL Type 1 enclosure, SCCR 5kA – Stainless steel cold-side piping, aluminum moisture separator – Variable-speed hybrid permanent-magnet motor – UltraCoat rotor protection system – Approx. weight: 4,500 lb; dimensions: 82″L × 52″W × 77″H – Ambient operating rating to 115°F (46°C)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
