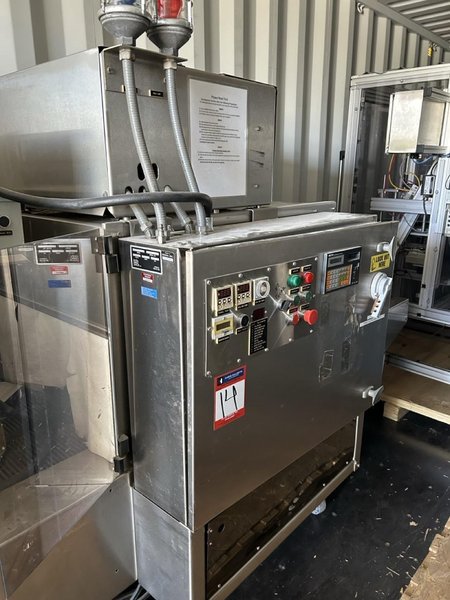

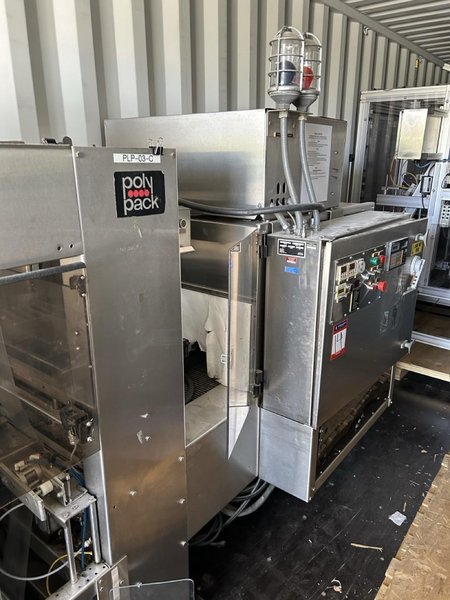

Poly Pack PH16 Automatic Shrink Bundler – Trayless Inline Wrapping System

EQUIPMENT OVERVIEW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Poly Pack PH 16 is a semi-automatic inline shrink bundler designed for moderate-speed bundling of multi-pack consumer goods, bottles, cartons, and other grouped items. With a push-through pneumatic feed and centerfold PE film compatibility, it offers flexible packaging without requiring a fully automated line. Though not integrated with a heat tunnel, it’s compatible with a wide range of external shrink tunnels.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,KEY FEATURES & SPECIFICATIONS MAX BUNDLE WIDTH: 14″ SEALING BAR WIDTH: 16″ FILM TYPE: CENTERFOLD PE SHRINK FILM MAX FILM WIDTH: 24″–26″ OPERATION: SEMI-AUTOMATIC, PUSH-THROUGH FEED CYCLE SPEED: 10–20 BUNDLES PER MIN (PRODUCT DEPENDENT) CONTROL PANEL: ANALOG OR BASIC ALLEN-BRADLEY, DEPENDING ON VINTAGE FRAME: HEAVY DUTY STEEL FRAME WITH LEXAN SAFETY GUARDS GUARDING: INTERLOCKED DOORS, FRONT & REAR ACCESS PANELS BUNDLING TYPE: BULLSEYE SHRINK WRAP, NO PAD HEAT TUNNEL: NOT INCLUDED AIR REQUIREMENTS: 80 PSI @ 4 CFM ELECTRICAL REQUIREMENTS: 208V / 60A / 60HZ DIMENSIONS: APPROX. 120″ L × 48″ W × 60″ H WEIGHT: APPROX. 1,500 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
