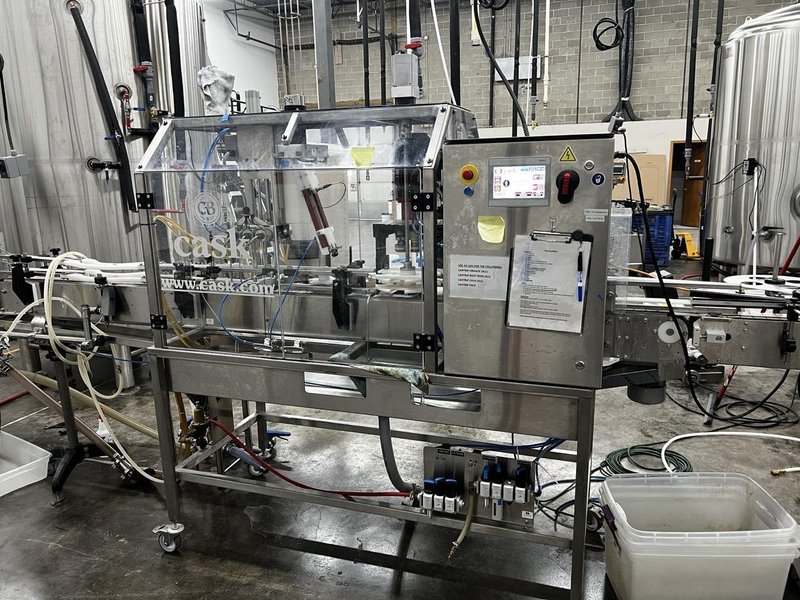

Cask mACS Micro Automated Canning System – 3-Head Filler with Rotary Accumulation Table (15–20 CPM, FESTO Interface)

EQUIPMENT OVERVIEW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,THE CASK MACS IS A COMPACT, HIGH-PERFORMANCE AUTOMATED CANNING SYSTEM DESIGNED FOR CRAFT BREWERIES, RTD PRODUCTS, OR SMALL-BATCH PILOT FACILITIES. IT COMBINES RINSE, FILL, LID DROP, AND SEAMING INTO A SINGLE, SPACE-EFFICIENT FRAME. THIS UNIT INCLUDES A FESTO TOUCHSCREEN INTERFACE, 3-NOZZLE FILL HEADS, A TURRET-STYLE SEAMER, AND A ROTARY ACCUMULATION TABLE FOR INFEED/OUTFEED HANDLING. THE SYSTEM IS ENGINEERED FOR CLEAN OPERATION AND RAPID CHANGEOVER IN HIGH-MIX, LOW-VOLUME ENVIRONMENTS.

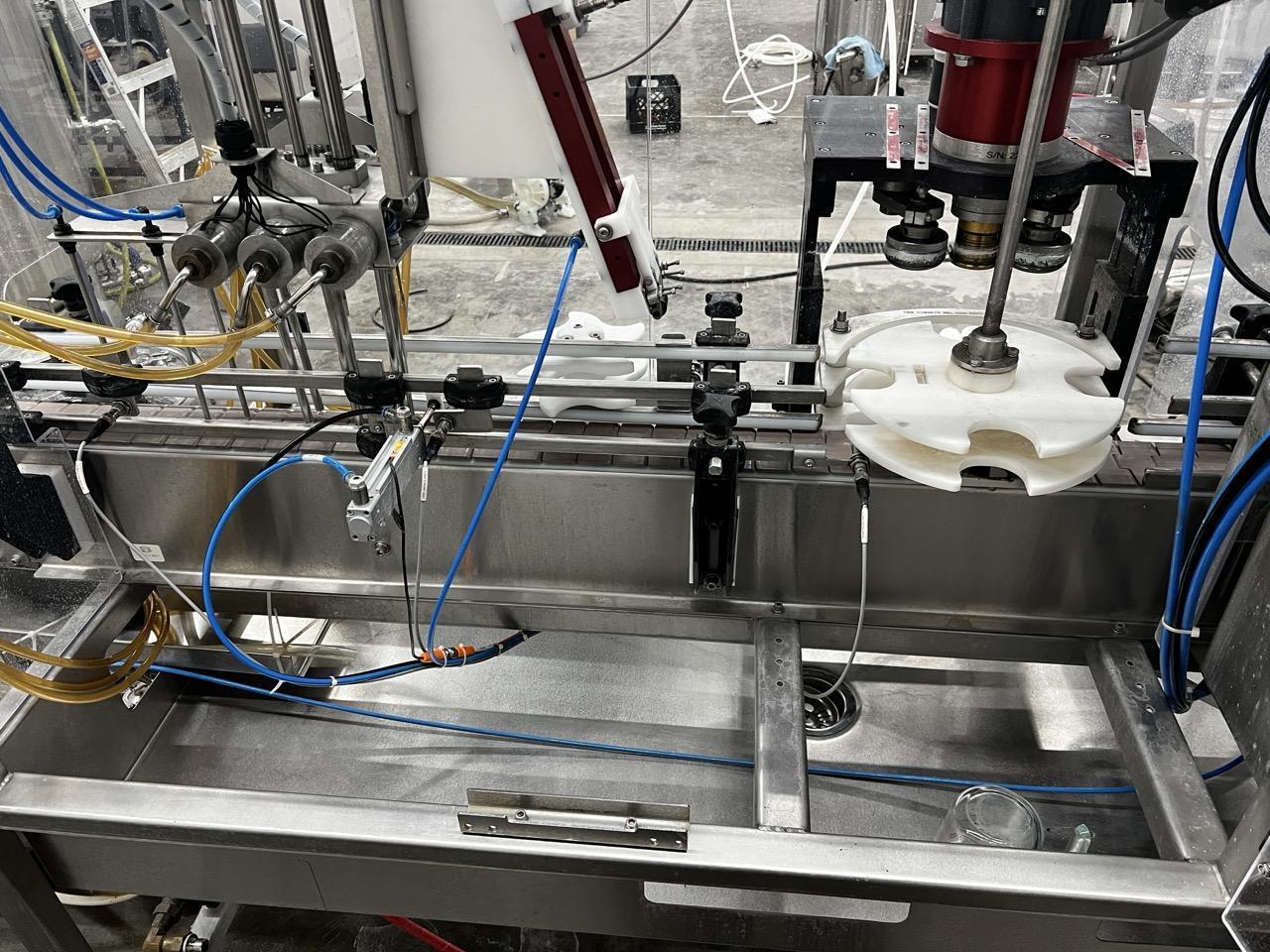

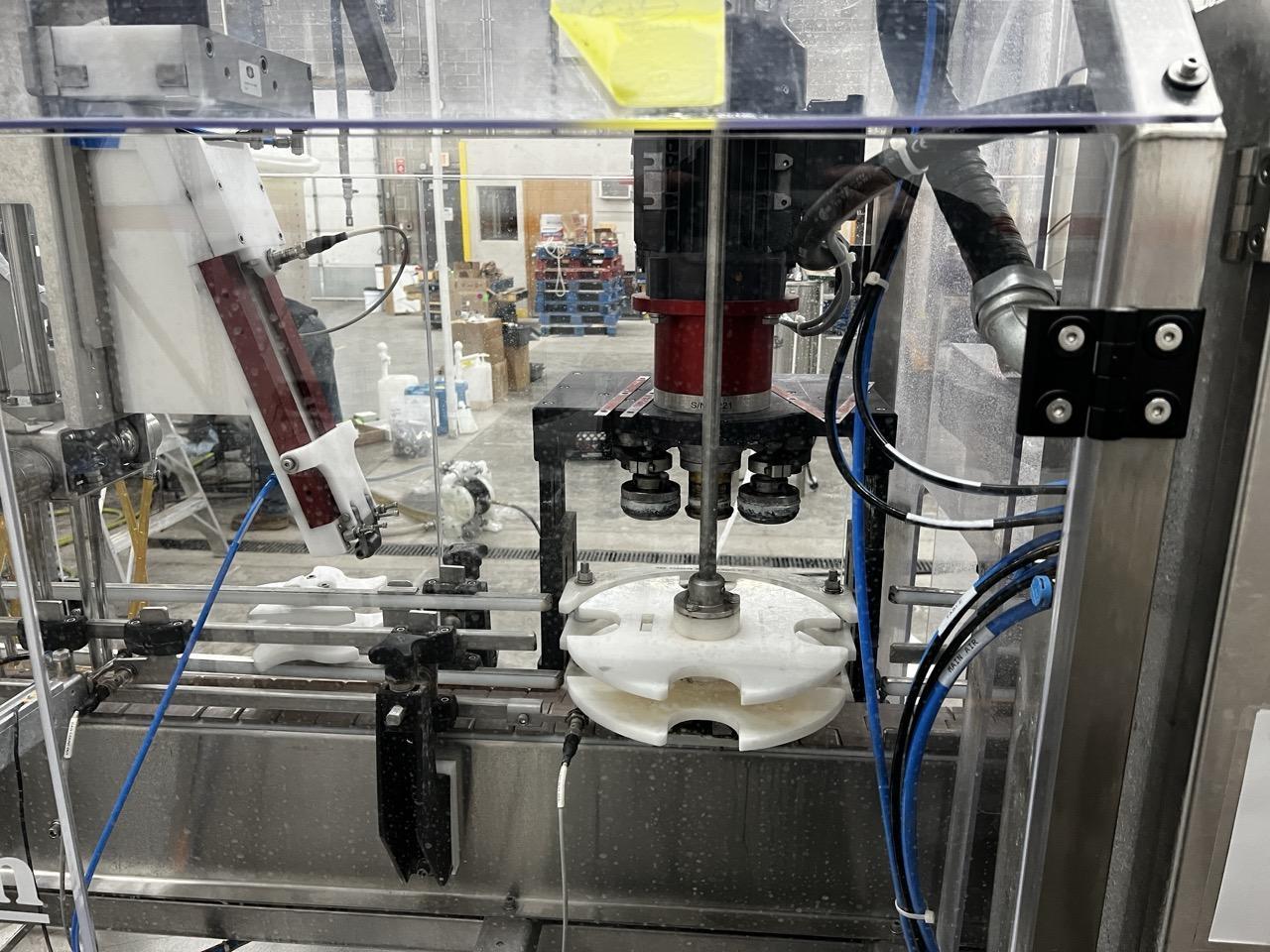

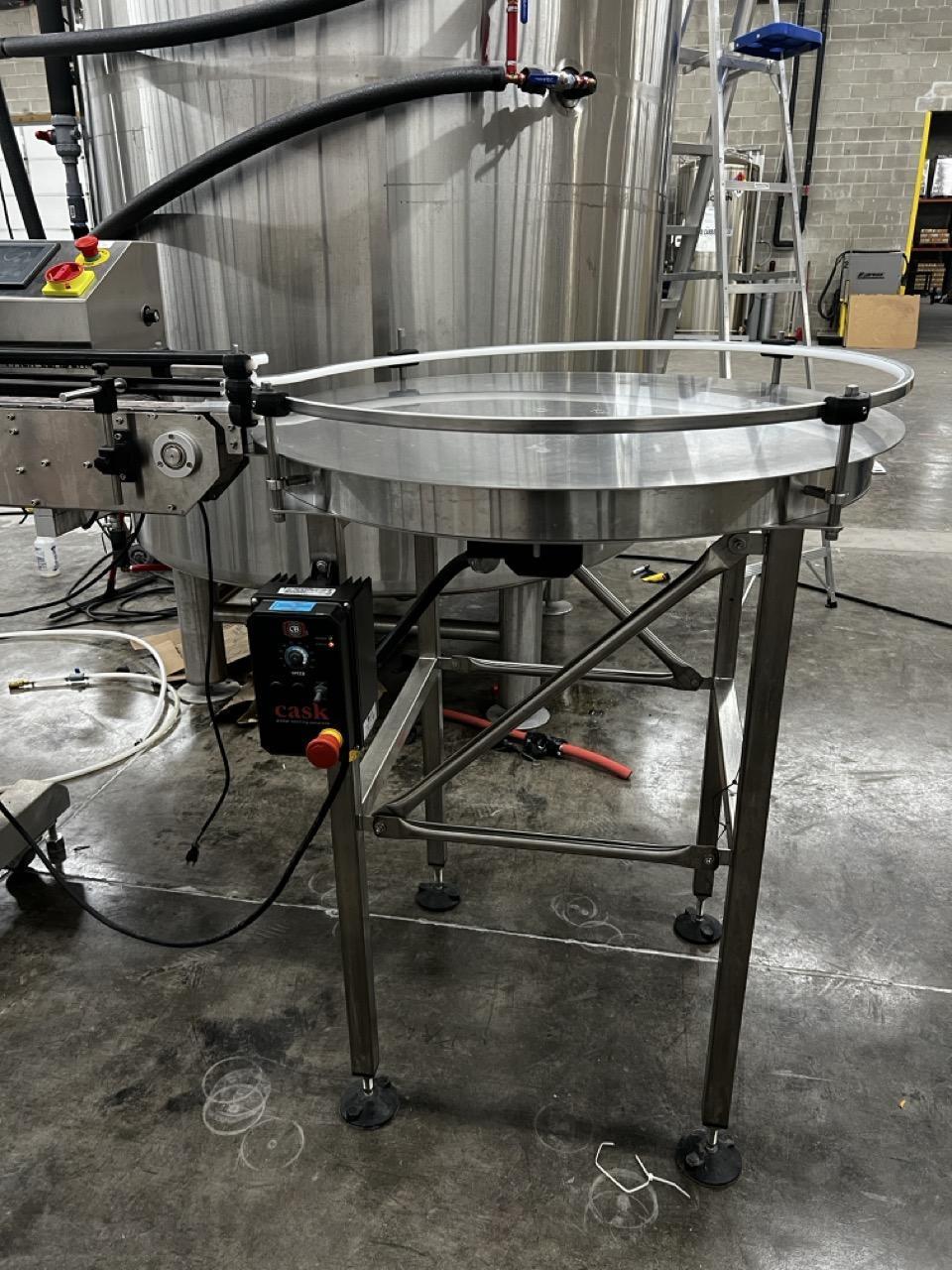

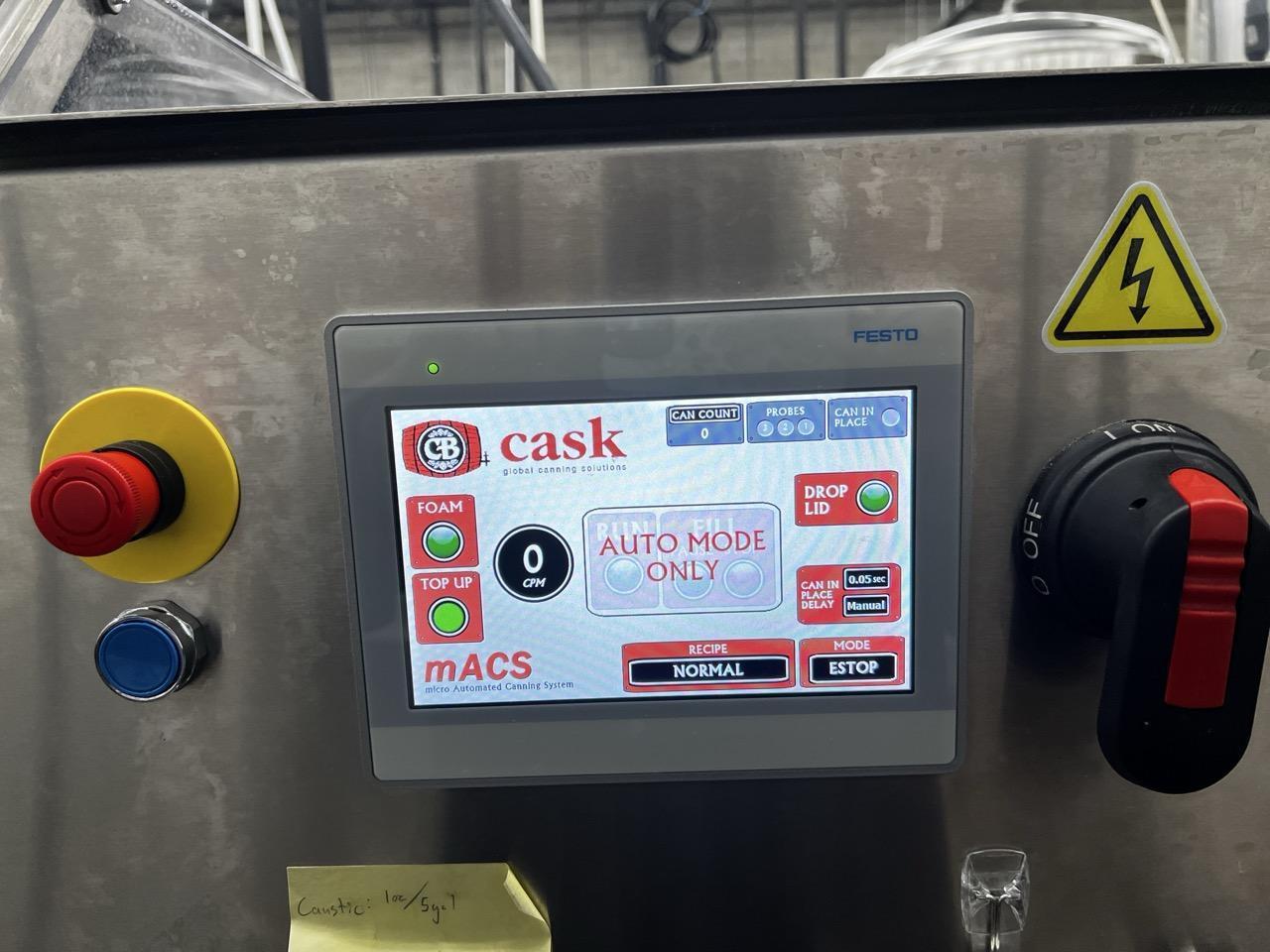

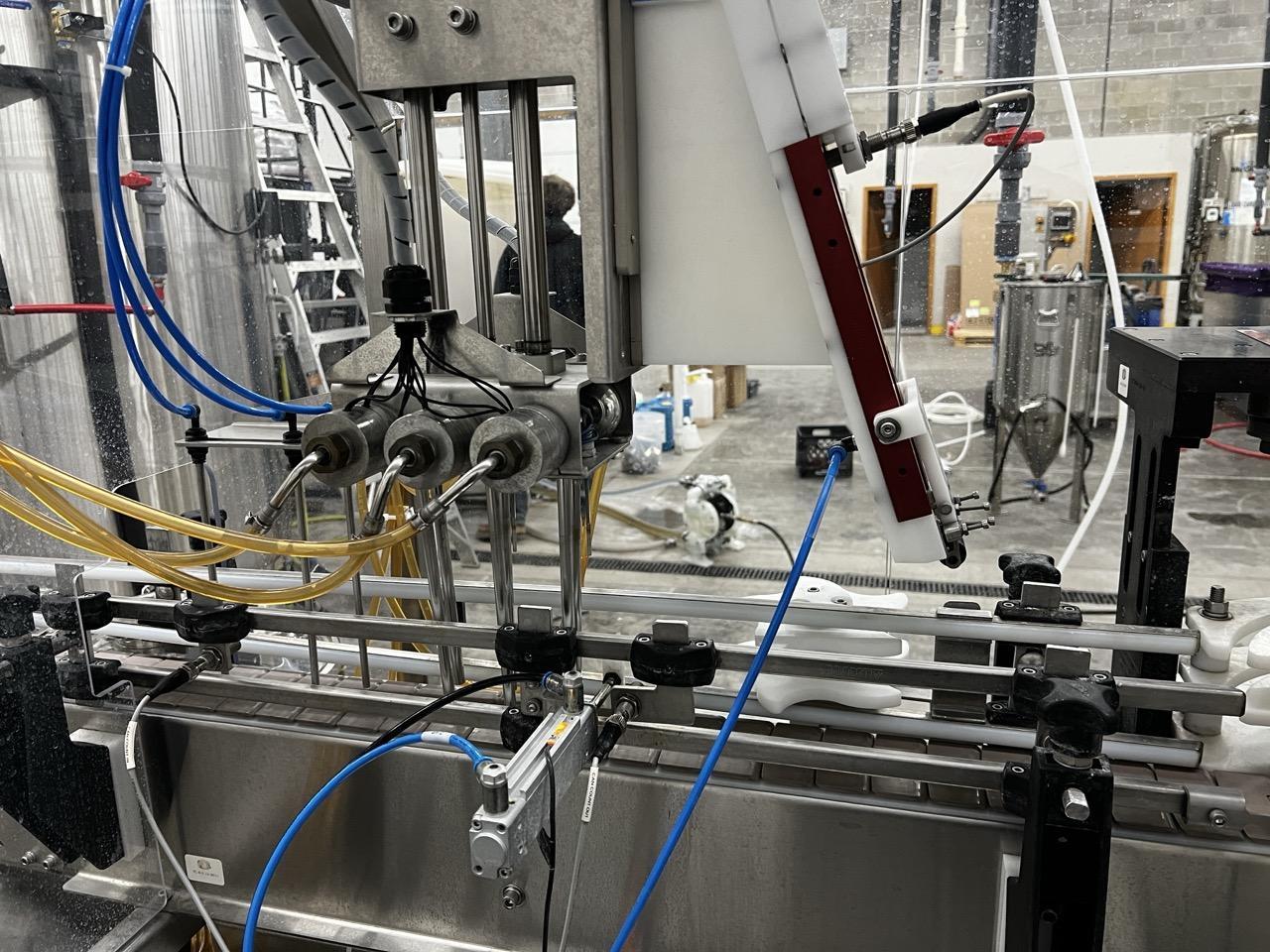

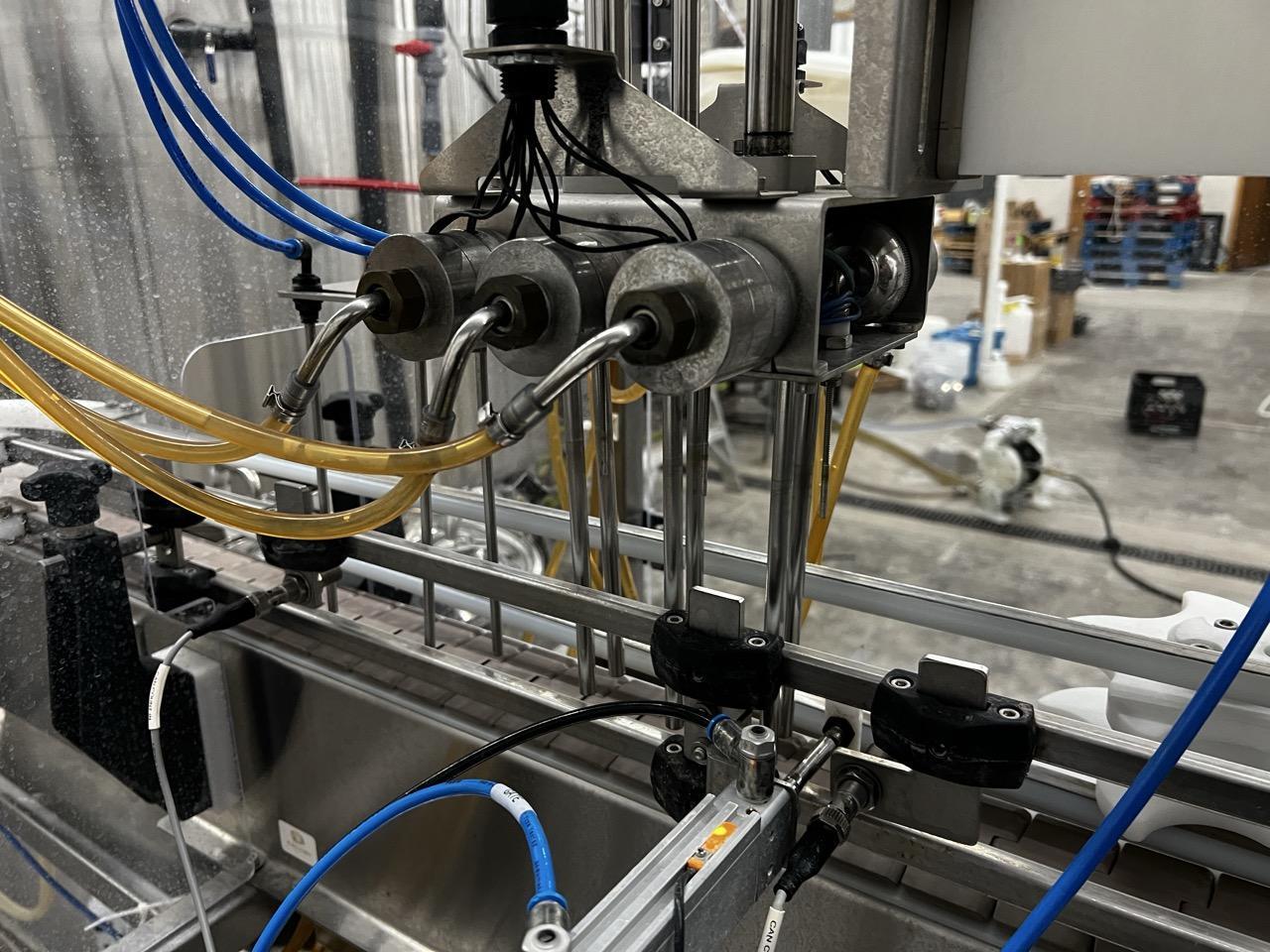

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,KEY FEATURES & SPECIFICATIONS -PRODUCTION SPEED: 15–20 CANS PER MINUTE -FILL HEADS: 3-NOZZLE CONFIGURATION -SEAMING: INTEGRATED AUTOMATIC TURRET-STYLE -TOUCHSCREEN CONTROLS: FESTO HMI WITH AUTO/ESTOP/FOAM CONTROL -CAN SIZE COMPATIBILITY: 12–16 OZ STANDARD (CHANGE PARTS REQUIRED) -ENCLOSURE: FULL SAFETY GUARDING WITH LID DROPPER MODULE -FRAME: STAINLESS STEEL WITH DRAIN BASIN AND LOCKABLE CASTERS -ROTARY ACCUMULATION TABLE: INCLUDED WITH STAINLESS TOP AND MOTOR DRIVE -POWER REQUIREMENTS: 120V OR 220V -AIR REQUIREMENTS: DRY COMPRESSED AIR REQUIRED CO2 INPUT: REQUIRED FOR DEFOAM/TOP-OFF MODULES

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
