York YCUL0072EE 72-Ton Rooftop Air-Cooled Unit – Dual-Circuit R-410A Chiller (460V, 3-Phase, 2019)

Equipment Overview

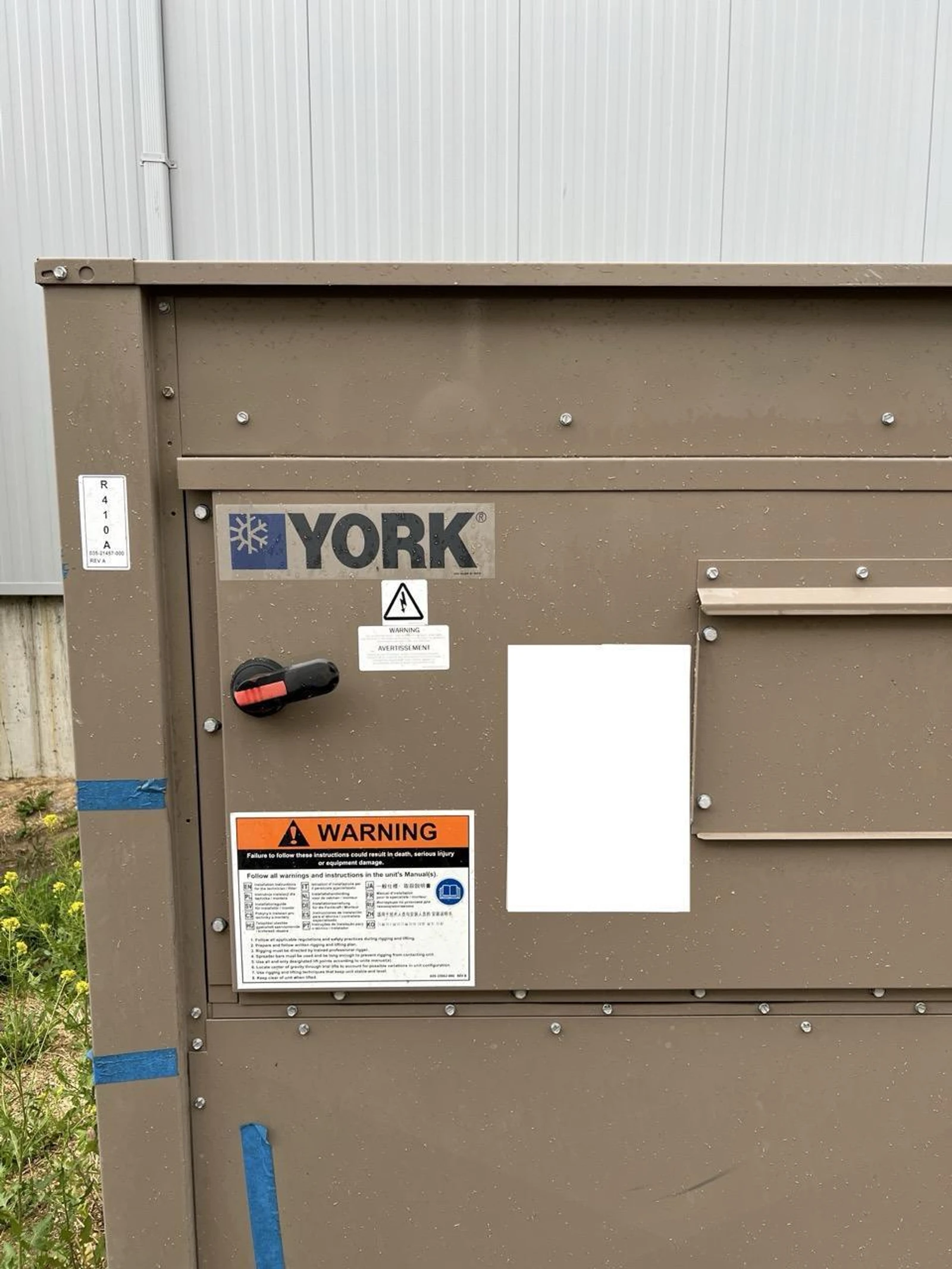

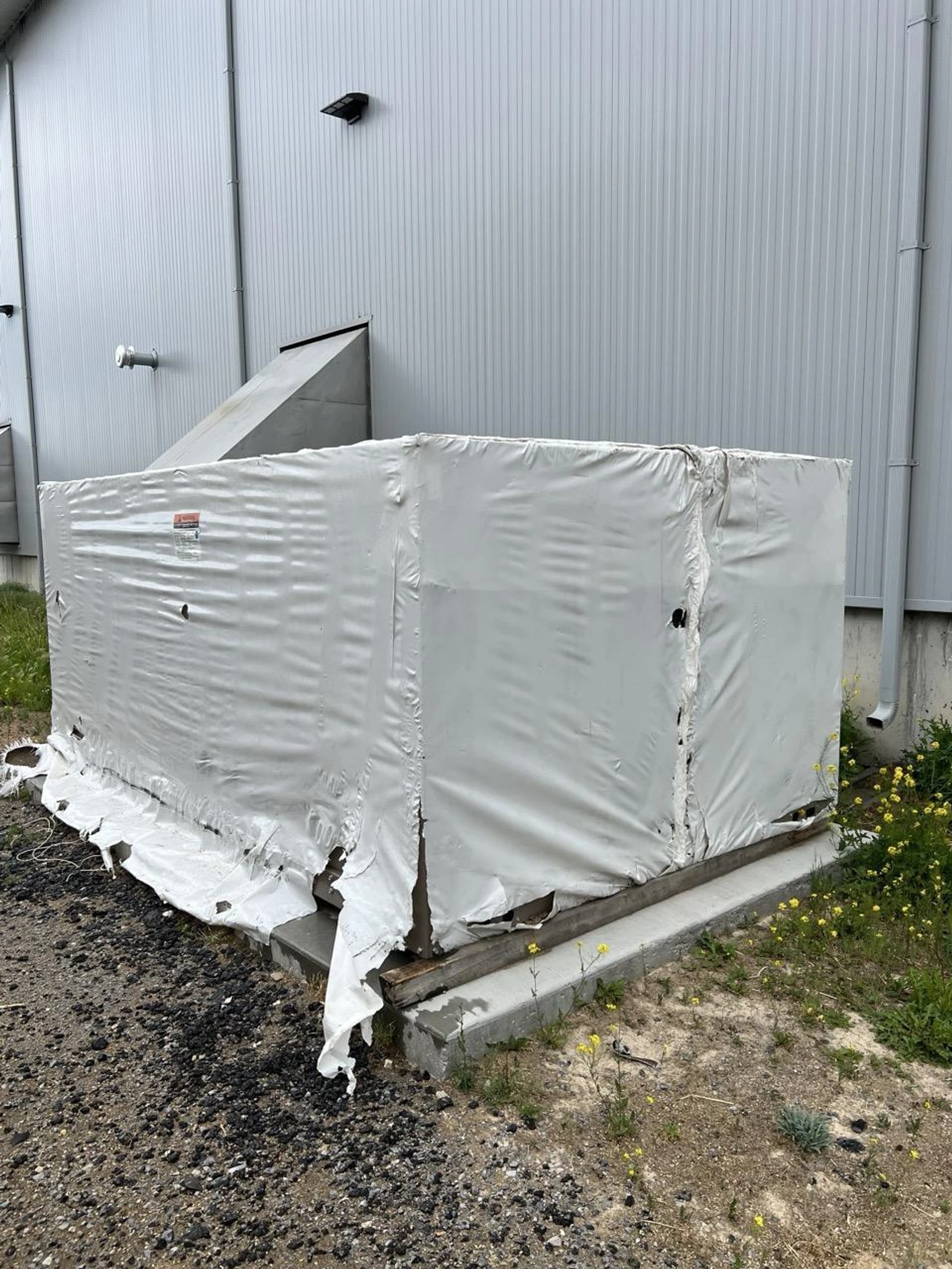

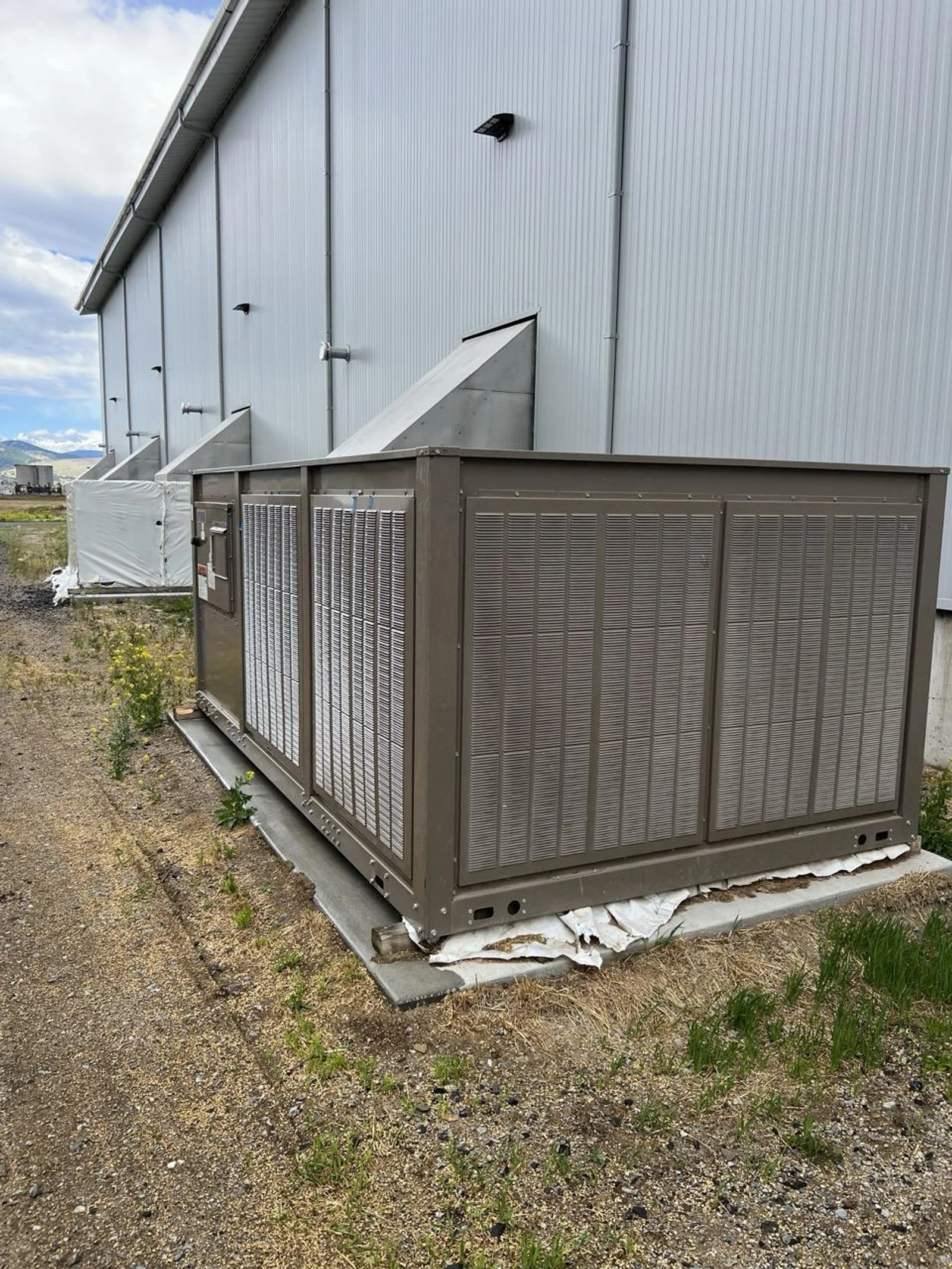

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The York YCUL0072EE is a 72-ton commercial rooftop air-cooled chiller designed for high-capacity HVAC applications in light industrial and commercial environments. The unit features dual refrigeration circuits for staging and redundancy, runs on R-410A, and is ASHRAE 90.1 compliant. This 2019 unit includes a factory-installed fused disconnect and appears to have been outdoor-stored on pad mounts, with fair external condition.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications Tonnage: 72 tons Refrigerant: R-410A Electrical: 460V / 3 PH / 60 Hz Compressor system: Dual-circuit Compressors: (2) 17.5 A / 187 LRA Full load amps: 34 A Max overcurrent protection: 146 A Control power: 115V internal transformer Disconnect: Fused handle installed Construction: Outdoor enclosure, panel access, top-discharge fans Compliance: ETL listed, ASHRAE 90.1 Unit weight: 4,002 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
