3″ Davis-Standard Super Blue 75MM Extruder with BPM Bay Plastics Machinery WBX1210-15 Water Bath, EVAK-06 Vacuum Air Knives, and SB 100 Pelletizer, 2014

Used 3″ Davis-Standard Super Blue 75MM Extruder with BPM Bay Plastics Machinery WBX1210-15 Water Bath, EVAK-06 Vacuum Air Knives, and SB 100 Pelletizer, 2014:

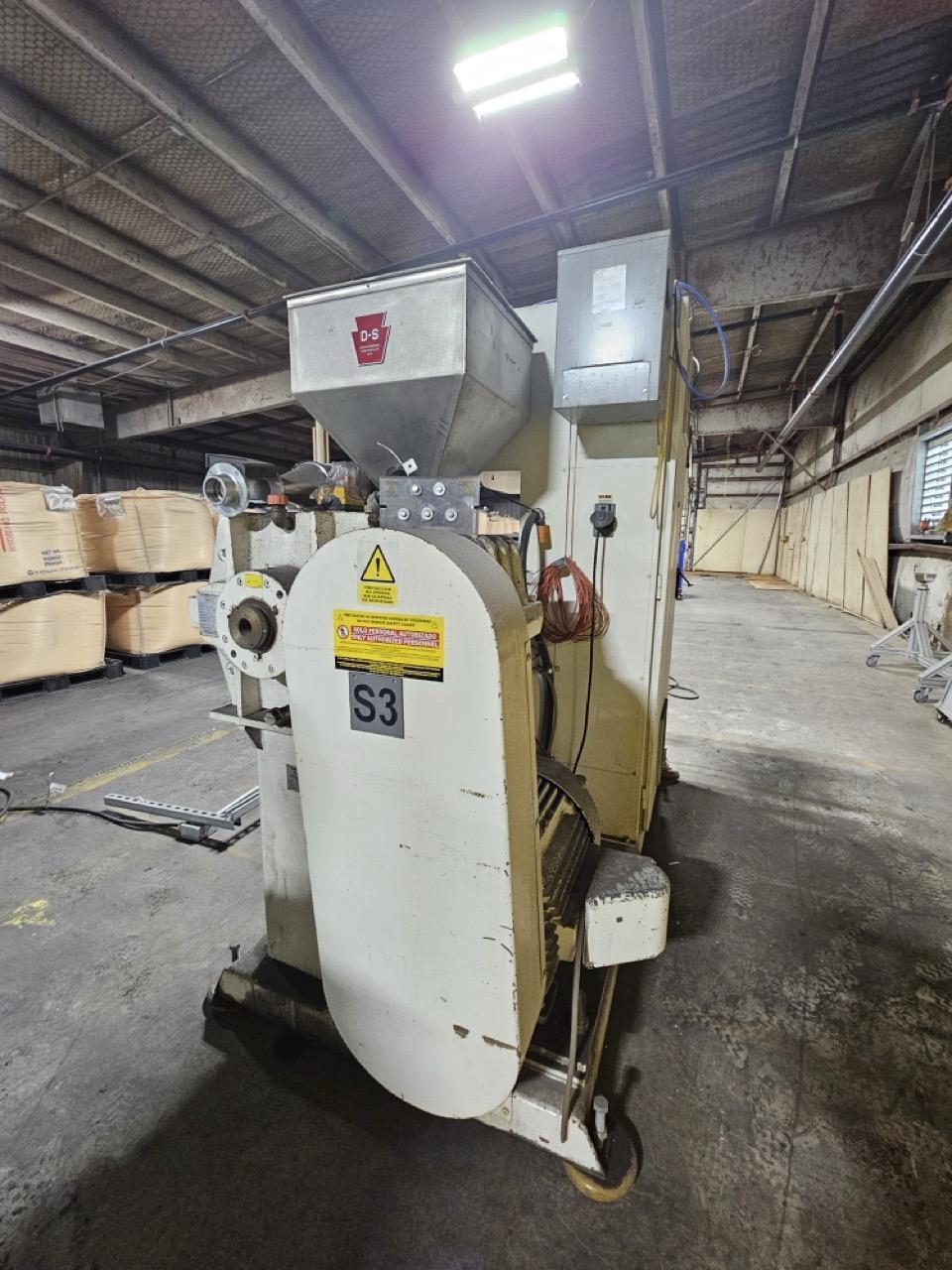

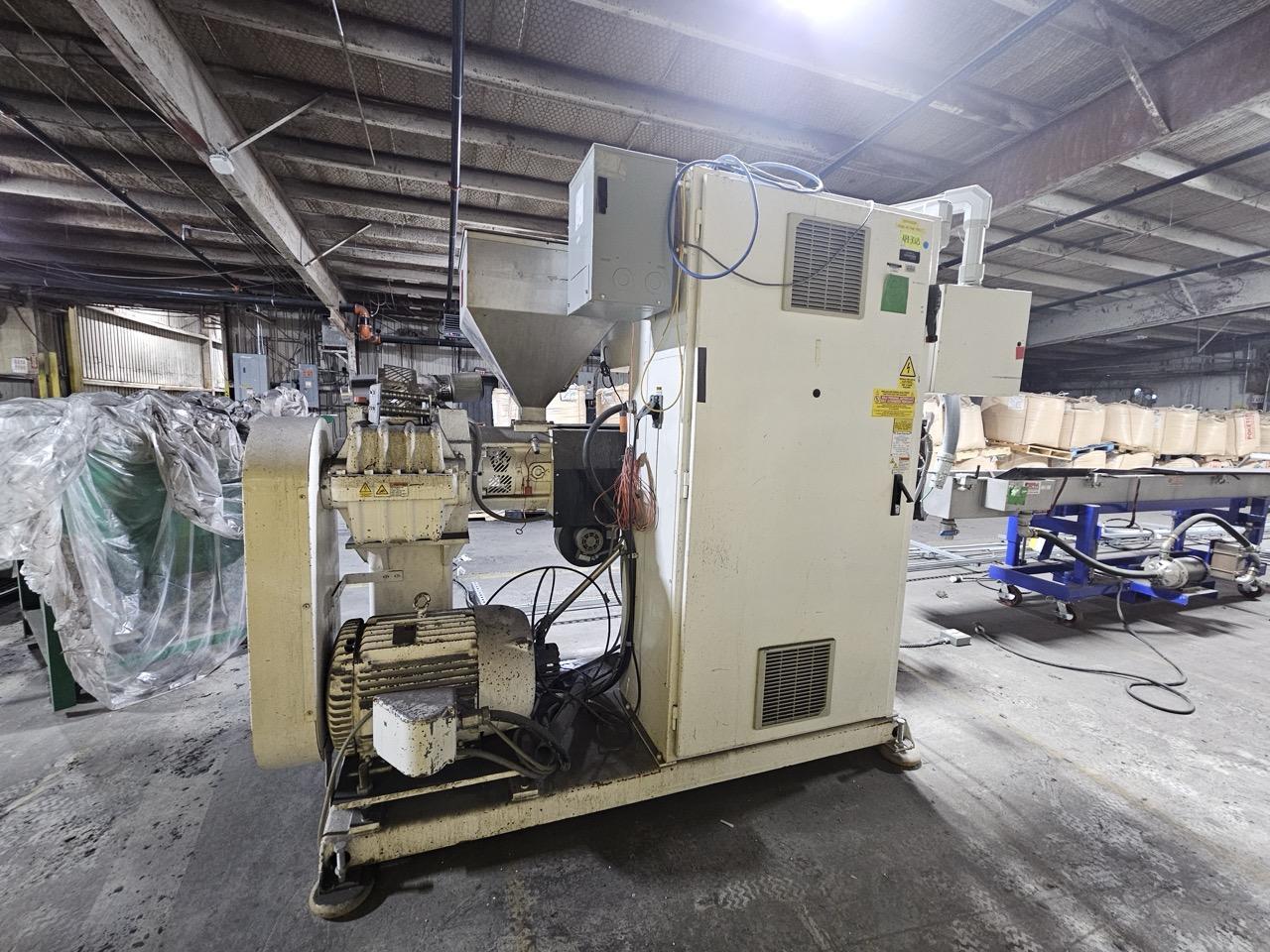

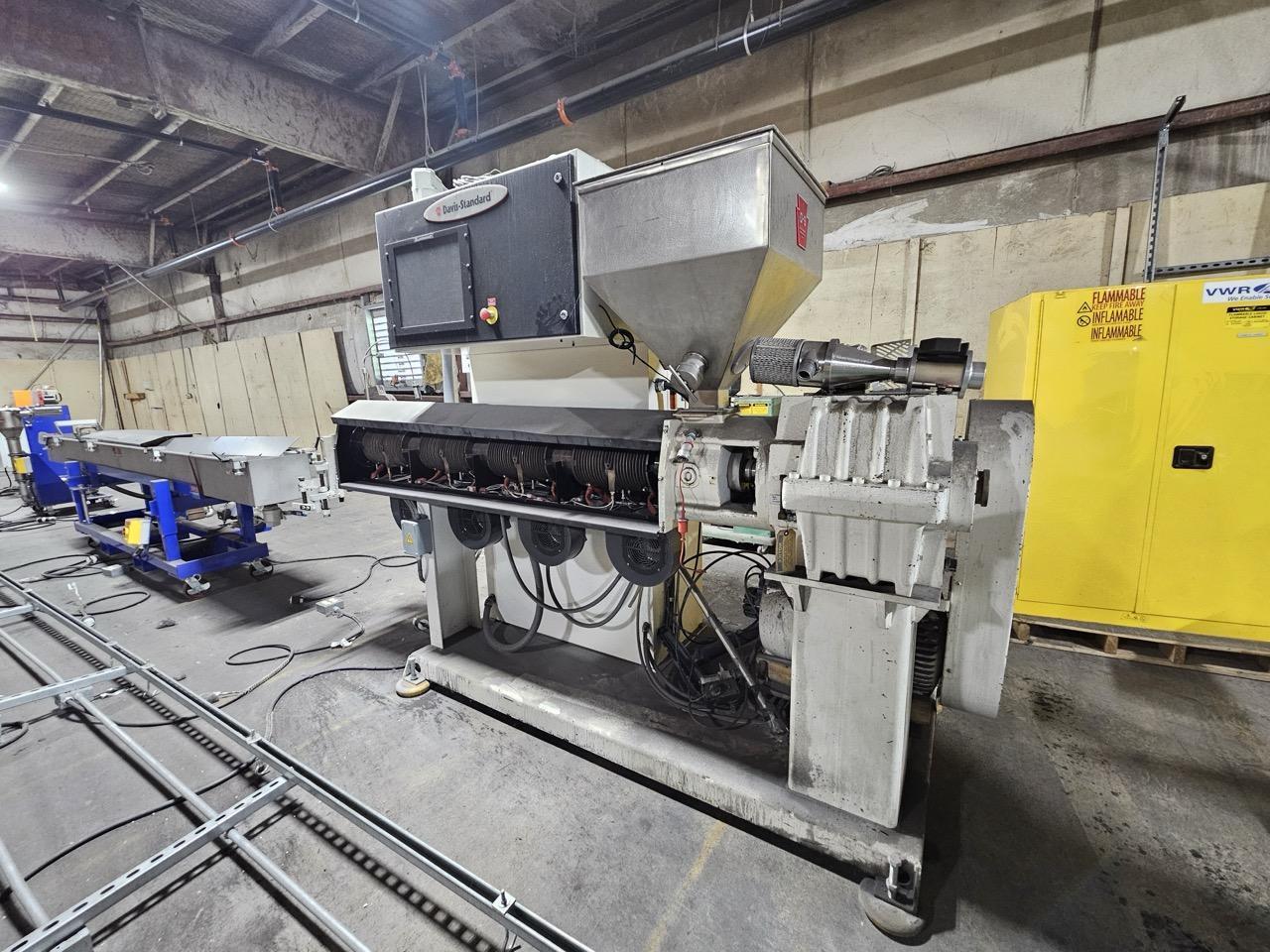

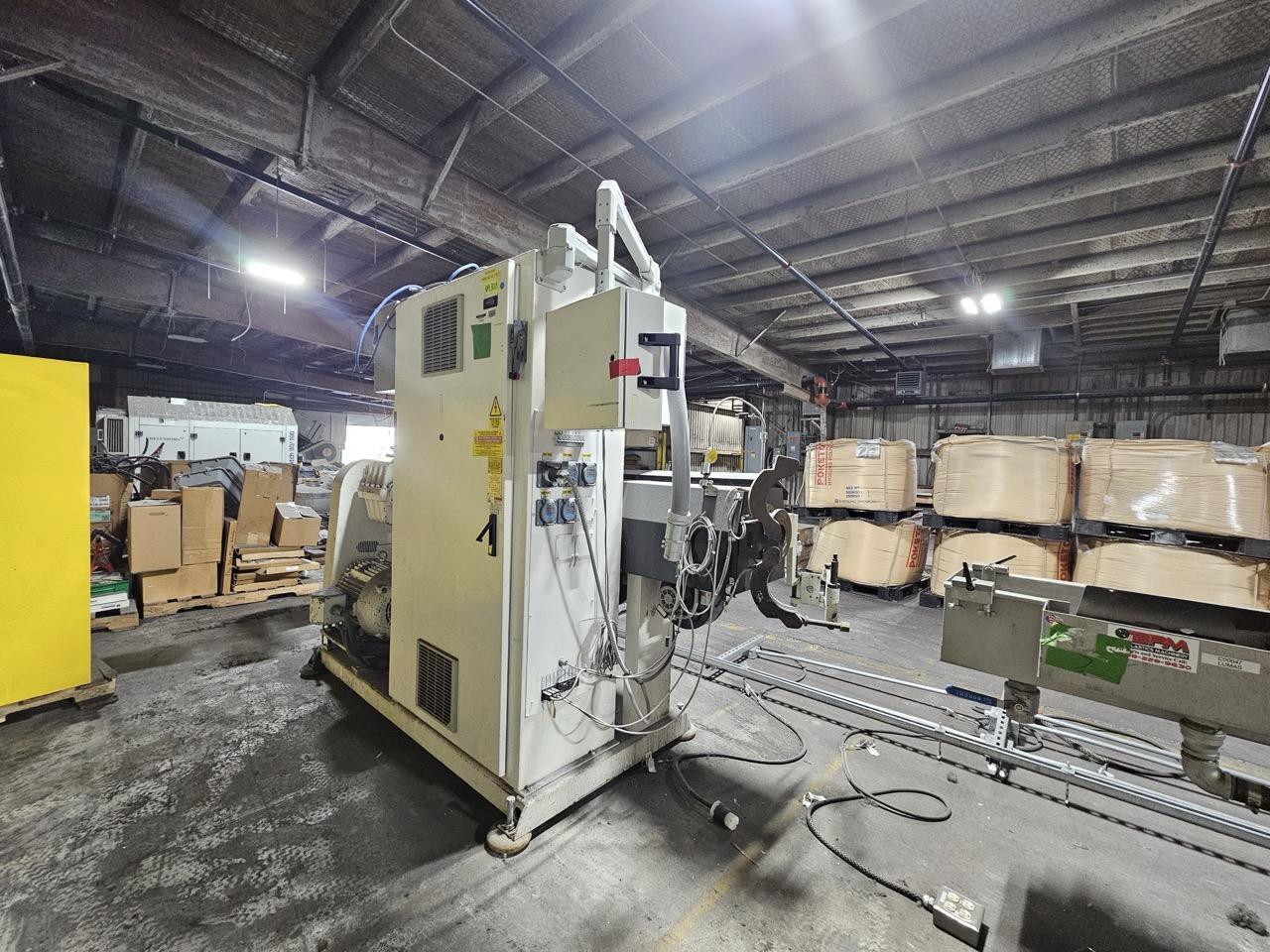

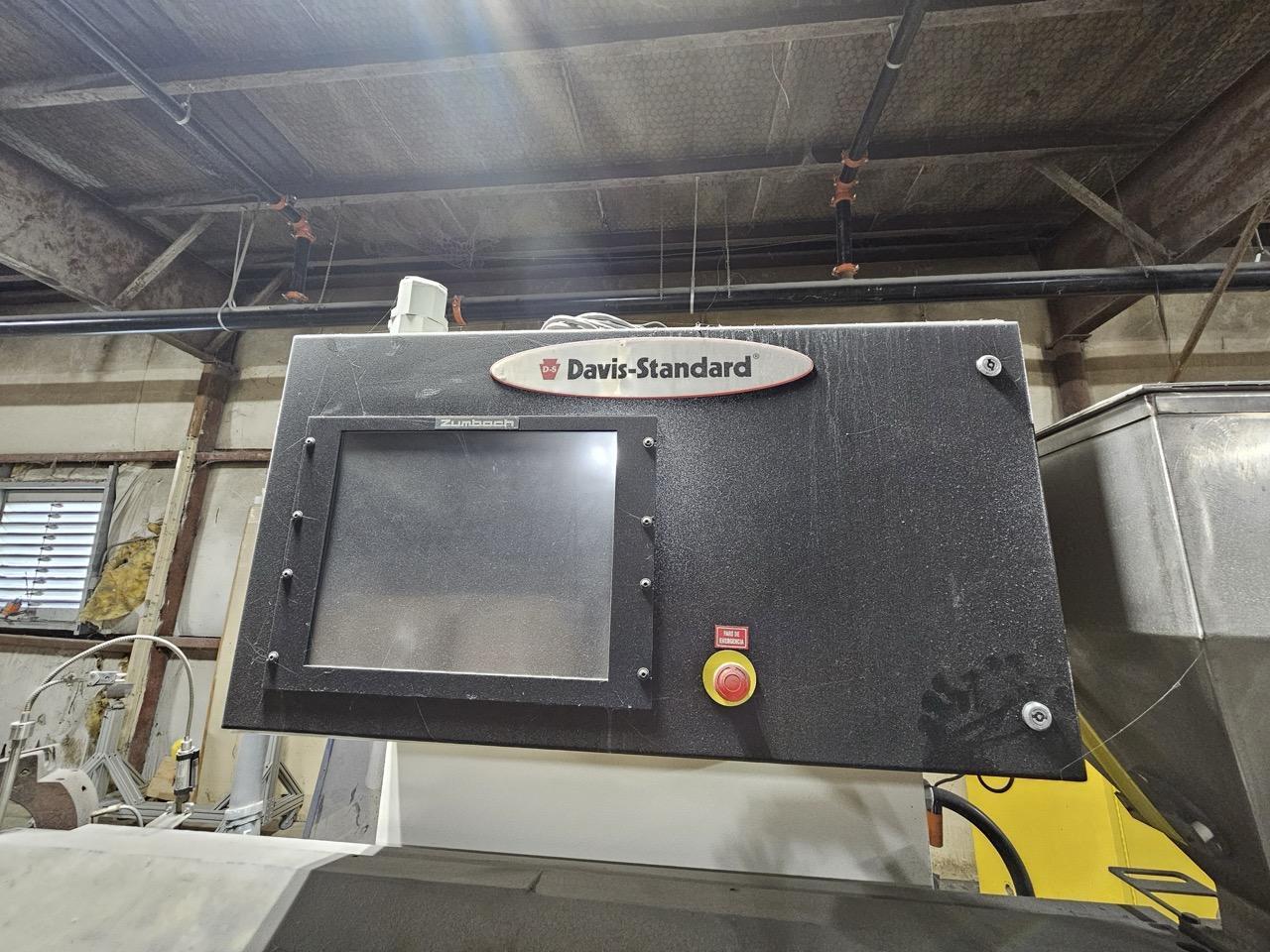

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,DS Super Blue Single Screw Extruder: – 3″ (75MM) – double reduction gearbox – Air cooled – Control panel mounted on base – Electrical requirements: 460V, 3Ph, 60Hz – Barrel heaters: 460V, 1 Ph, 7,000 Watts – Barrel blowers: 230V, 1 Ph, 60 Hz – Head heater zones: 230V, 1 Ph – Maximum safe operating pressure: 10,000 – PSI, 700 KG/CM2 – Maximum safe operating temperature: 600F

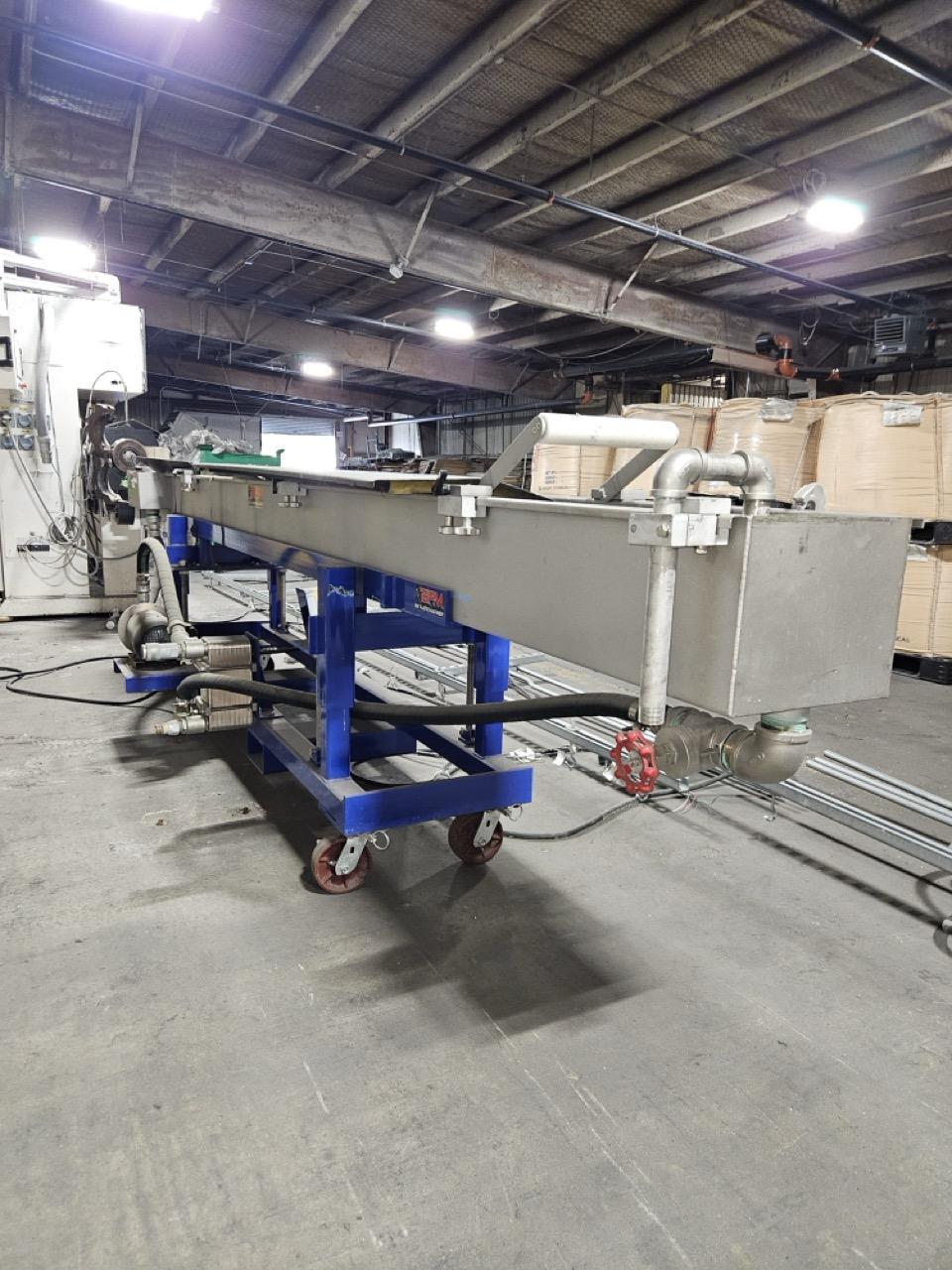

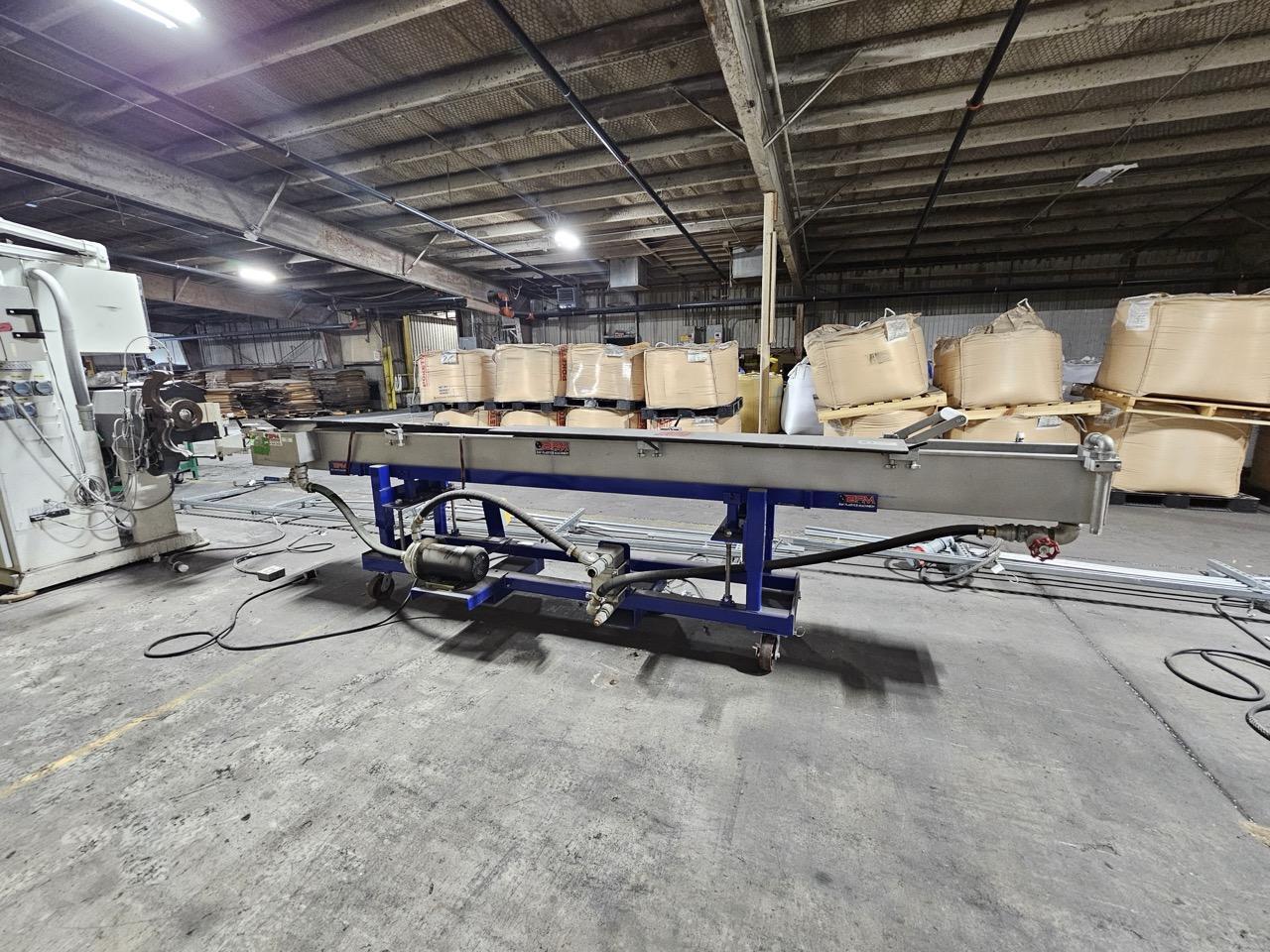

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BPM Bay Plastics Machinery WBX1210-15 Waterbath:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical requirements: 460V, 3Ph, 60Hz Full load amp: 3.67 Dimensions: 12” W x 10” D x 15’ L Hold down bars: 4

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The water baths are specifically designed for stand pelletizing also include locking quick-releasing hold-down bars to keep your strands running straight and even. The 2” diameter rollers on these bars are grooved to keep the strands aligned, and are made of UHMWPE (Ultra-High-Molecular-Weight PolyEthylene), which reduces friction between the roller and the strands.

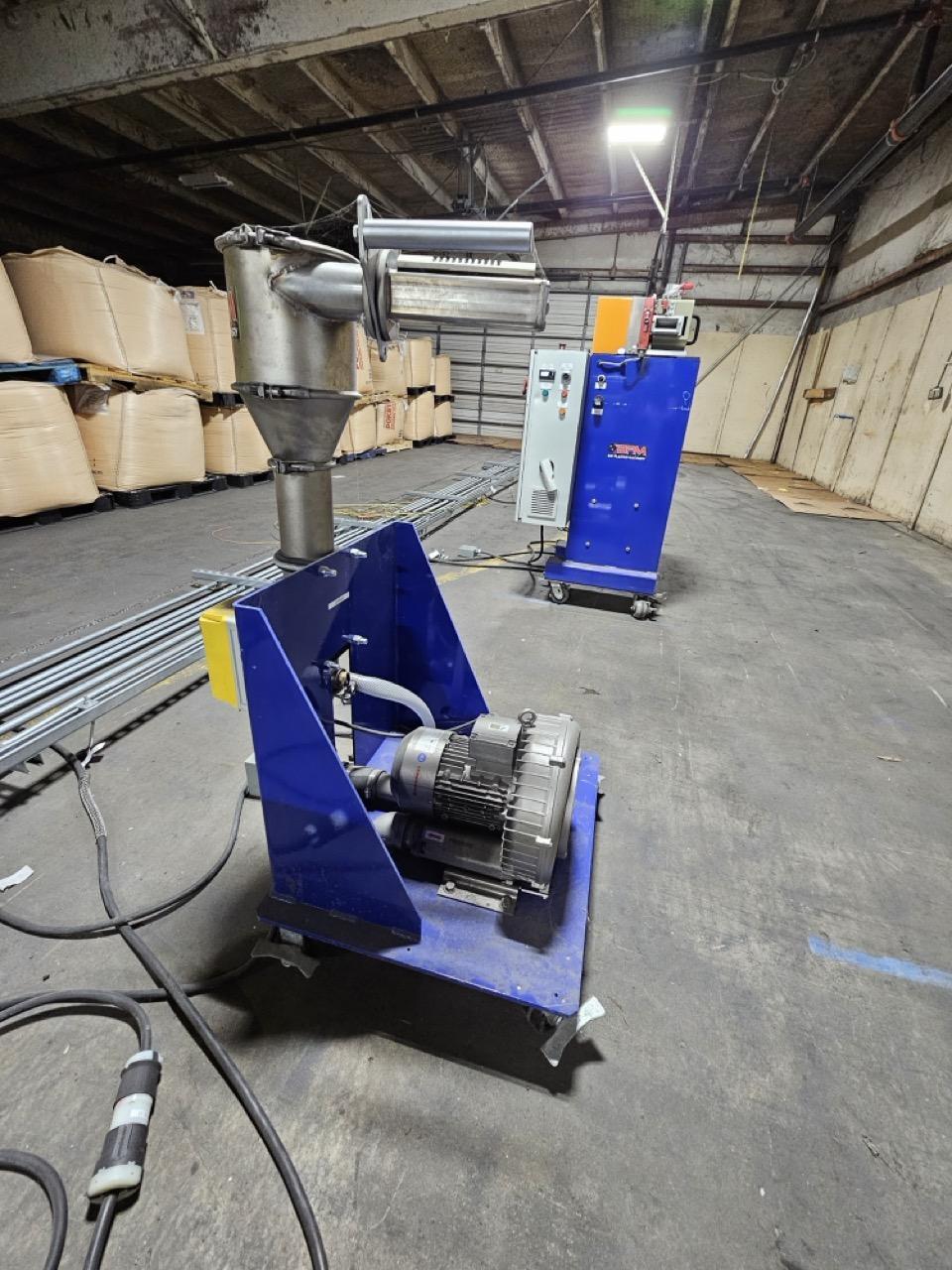

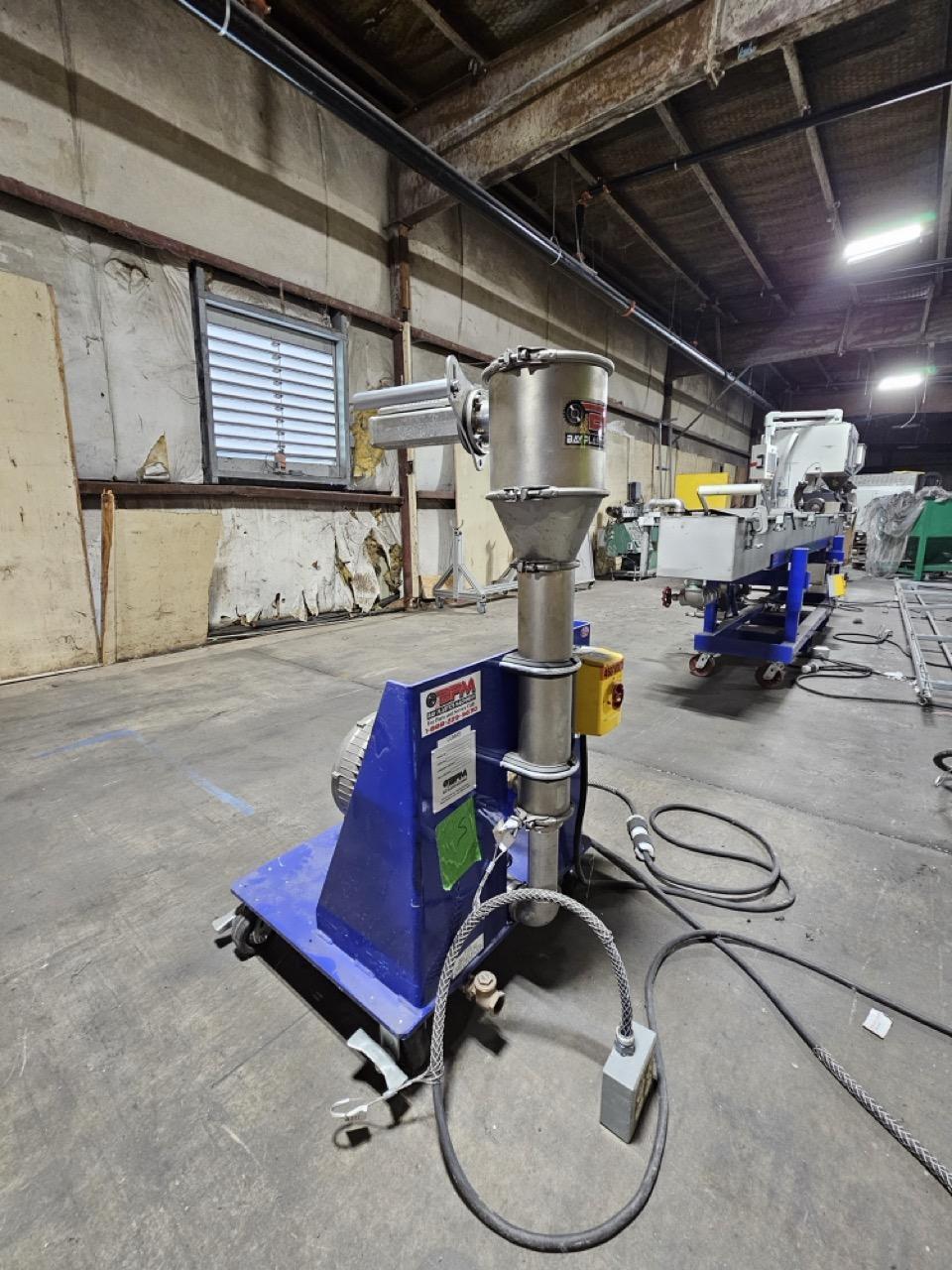

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BPM Bay Plastics Machinery EVAK-06 Vacuum Air Knife:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The EVAK series vacuum air knife is not only designed to remove water from the strands, but control the water after it has been removed. A conventional air knife only blows the water off the strands, whereas the EVAK uses vacuum induced airflow to aid this removal. The specially designed cyclone separation system removes the water from the air and collects it before draining the water through a check valve. This water can then be reclaimed and re-used in the system.

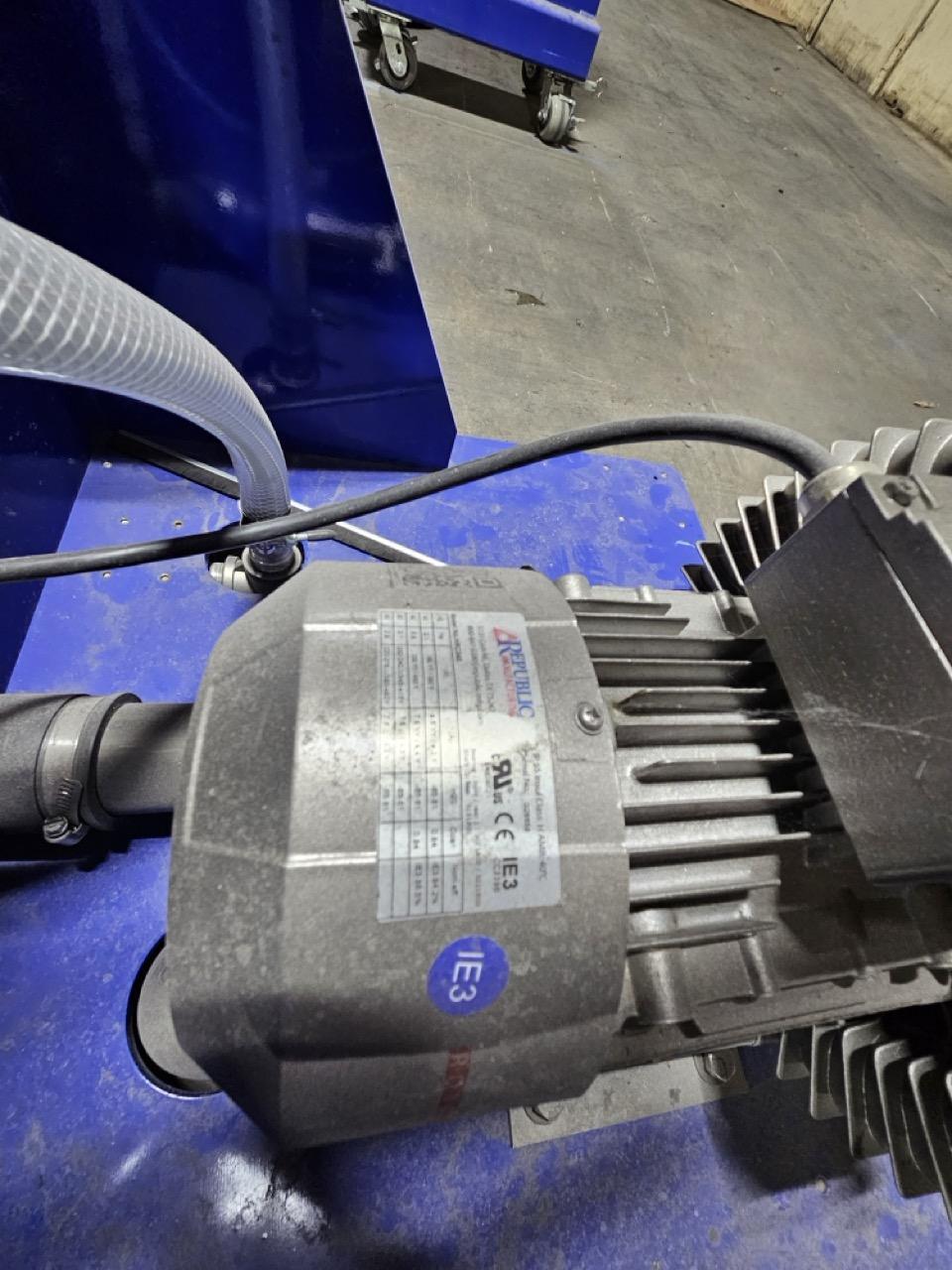

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Operating voltage: 460V/3Ph/60Hz – Useable Nozzle Width: 5 inches (127mm) – Max strang count: 16 (Max Strand Count For 1/8″ (3mm] Diameter Strands, Count May Vary w/ Strand Diameter) – Standard strand centerline spacing: 0.375 inches (9.5mm) – Rated strand velocity: 200 ft/min (60 m/min) – Tilting vacuum head range (+/-): 22.5 degrees – Blower connection: direct coupled – Vacuum rating: 28 in-H2O (70 mbar) – Airflow at vacuum rating: 194 CFM (230 – Blower power: 2.7 HP (2.05 kW)

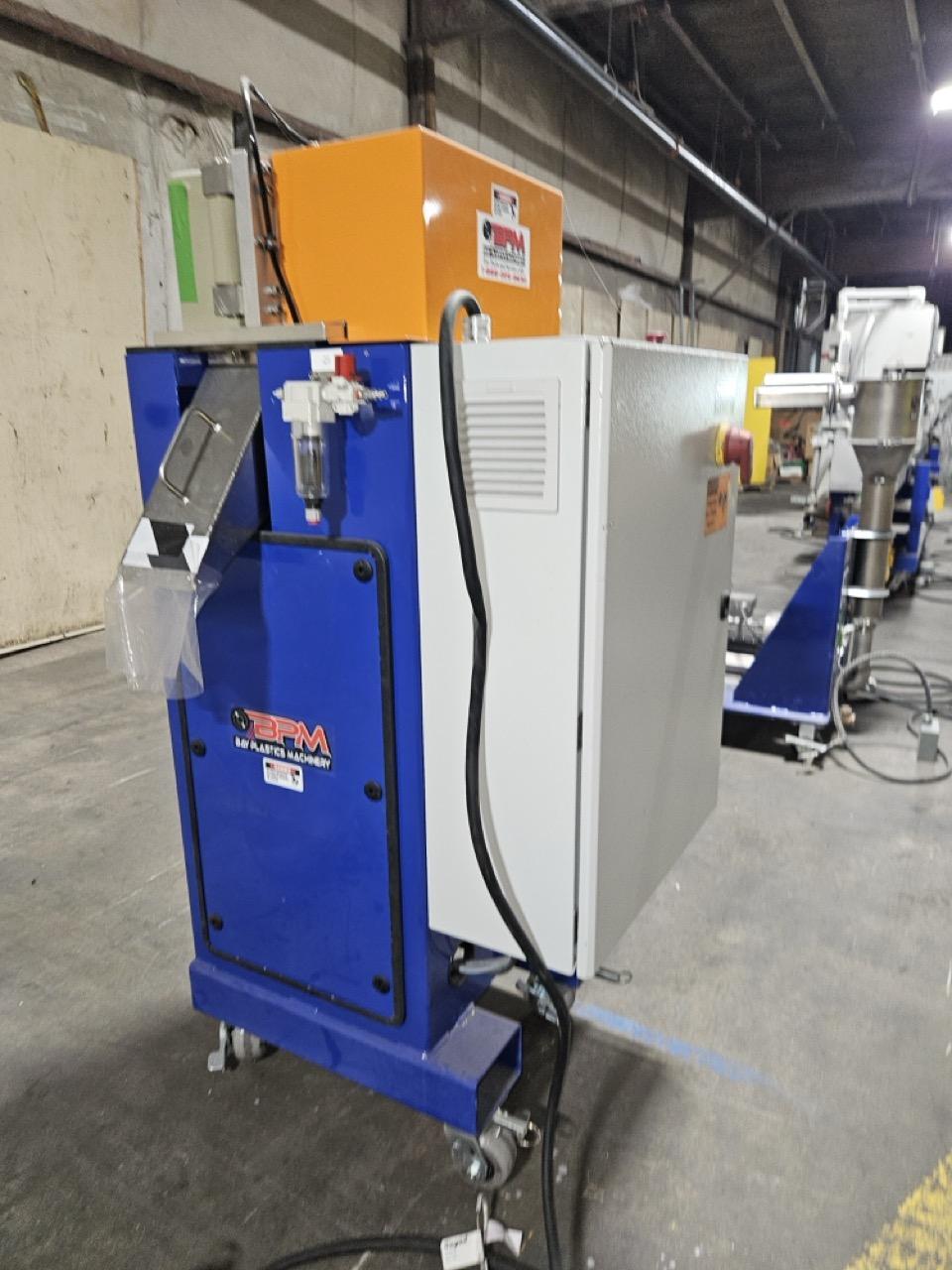

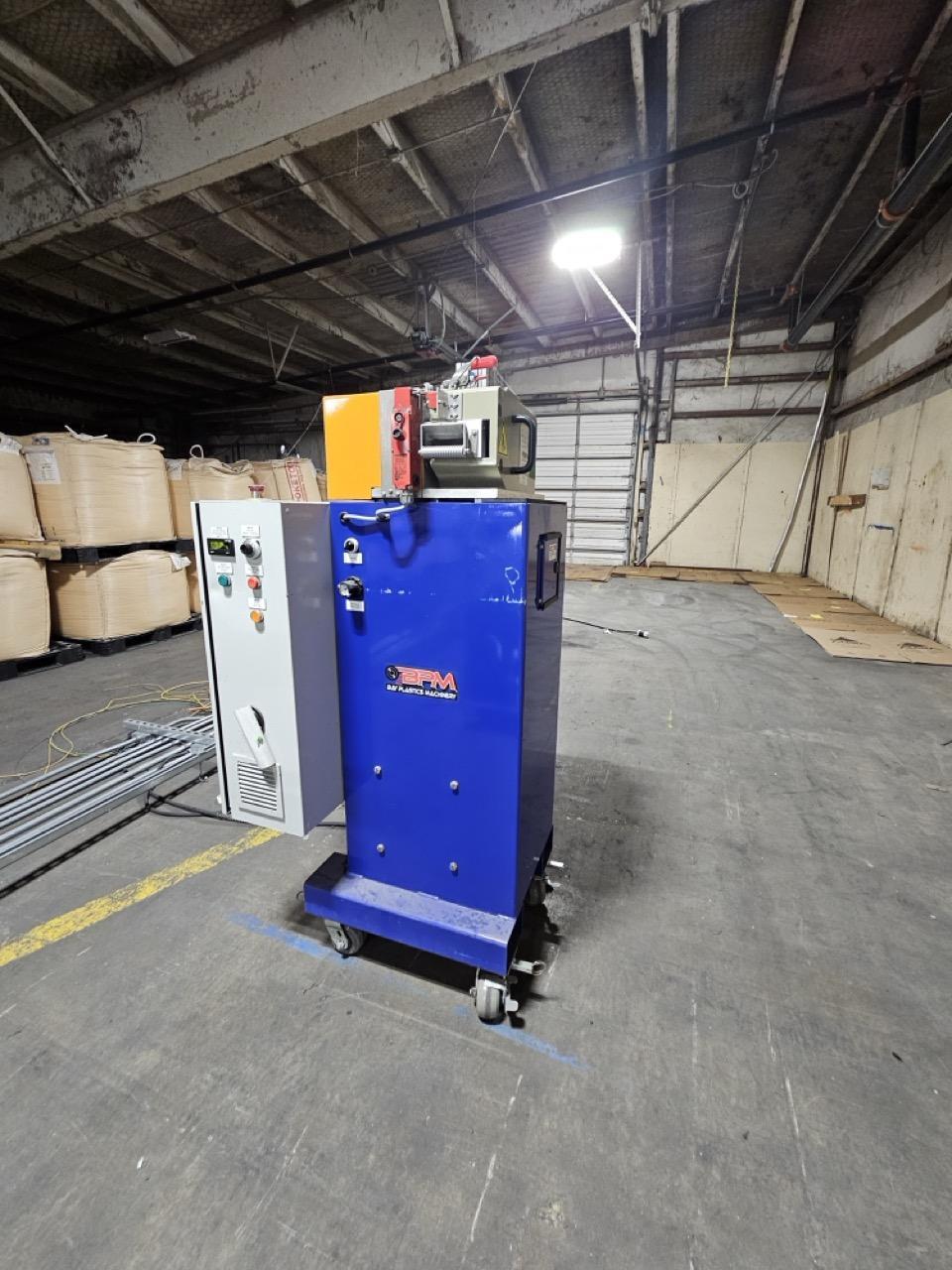

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,BPM Bay Plastics Machinery SB100 pelletizer:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Designed for a larger lab or small production line, the SB Series of strand pelletizers is capable of running constantly and consistently, yet is also suitable for less intensive lab trials.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Easy Access: No tools required to open the exterior cutting chamber cover. – Safety: A unique interlock system prevents one’s ability to bypass the switch with a simple bolt or pen. – Maintainability: Our design is rugged and easy to clean. – Feed Table: This machine is supplied with removable feed table assembly. – Upper Feedroll: With a simple design, the upper roll remains parallel to the lower feedroll while multiple strands are being processed, resulting in a uniform pulling force on all strands – Pulling Force: Large pneumatic cylinder and upper roll design this unit out performs all others in its class. – Pneumatic Cylinder: This cylinder is a large 2 1/2” bore and located on the cover for optimal pulling force and conveniently swings away for cleaning. – Push-Pull bed knife adjustment – Eccentric mounted bearings for lower feed roll gap control – Four-edged, solid tungsten-carbide bed knife – Stellite-tipped rotor – Diamond-knurled lower feedroll – Hypalon-covered upper feedroll – AC variable frequency drive – Stainless steel cutting chamber – Aluminum cover assembly and aluminum top plate – Removable Discharge Chute & Push-Pull Bed – Knife Gap Adjustment – Clean & Simple design – Easily removable infeed chute for thorough cleaning
