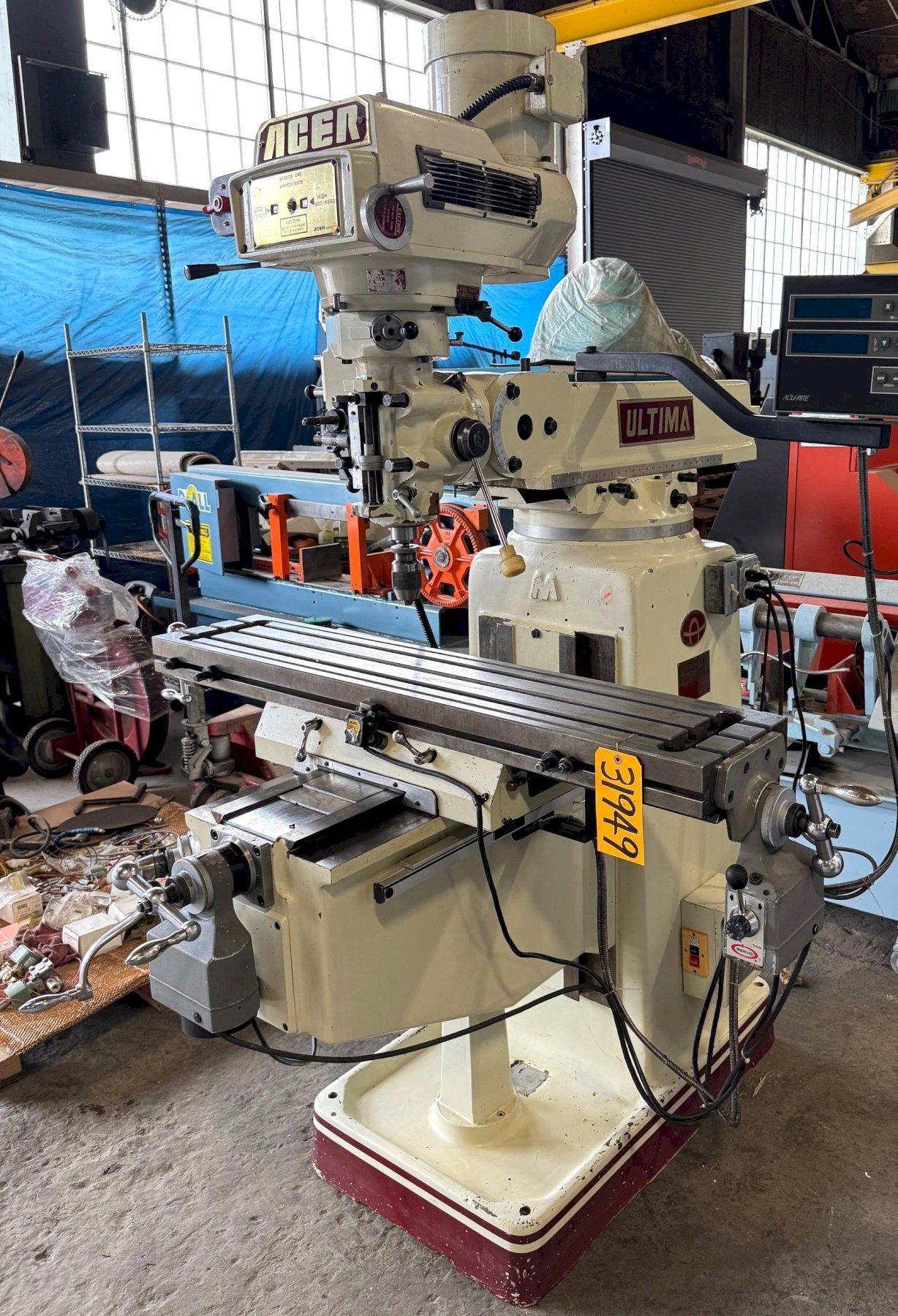

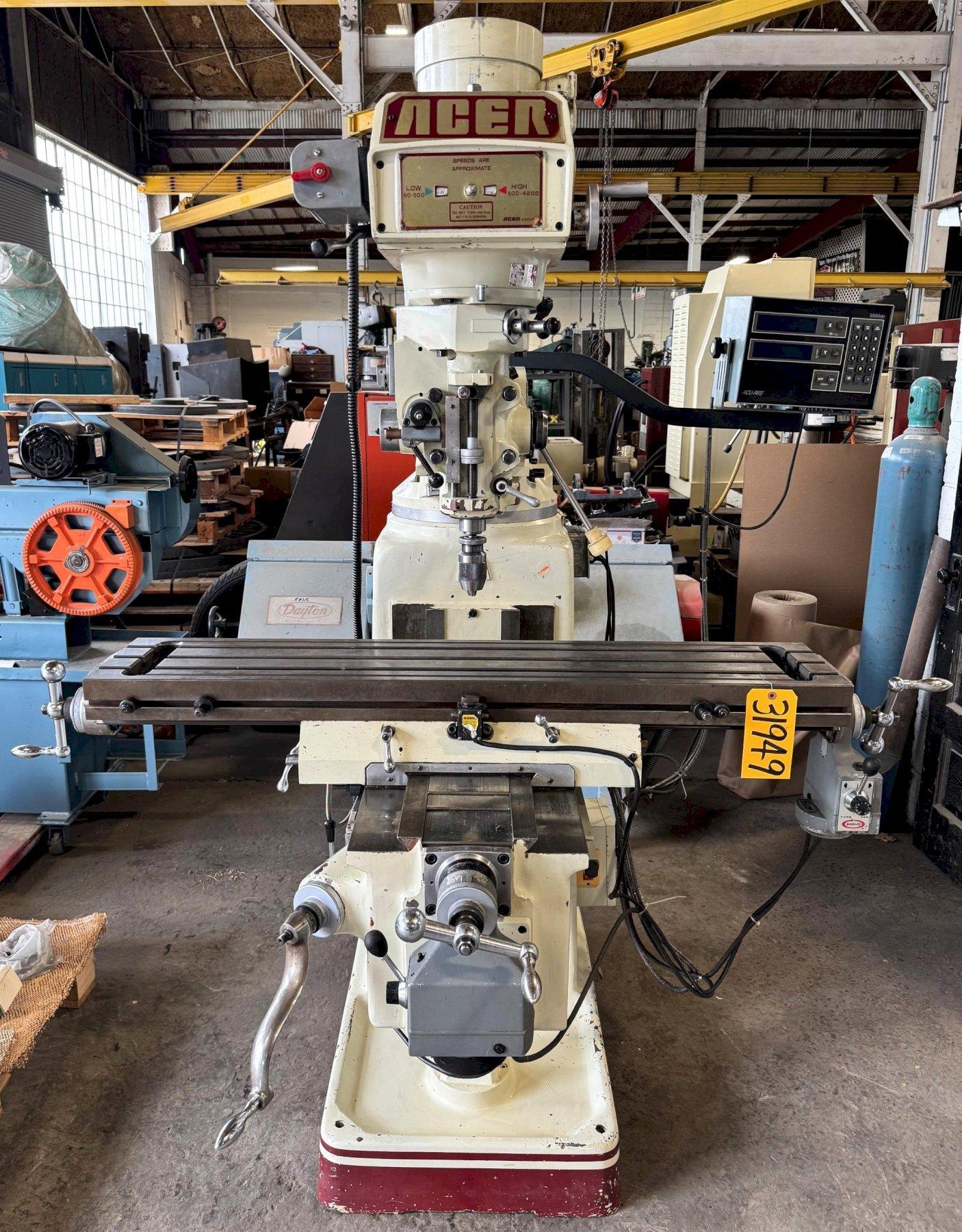

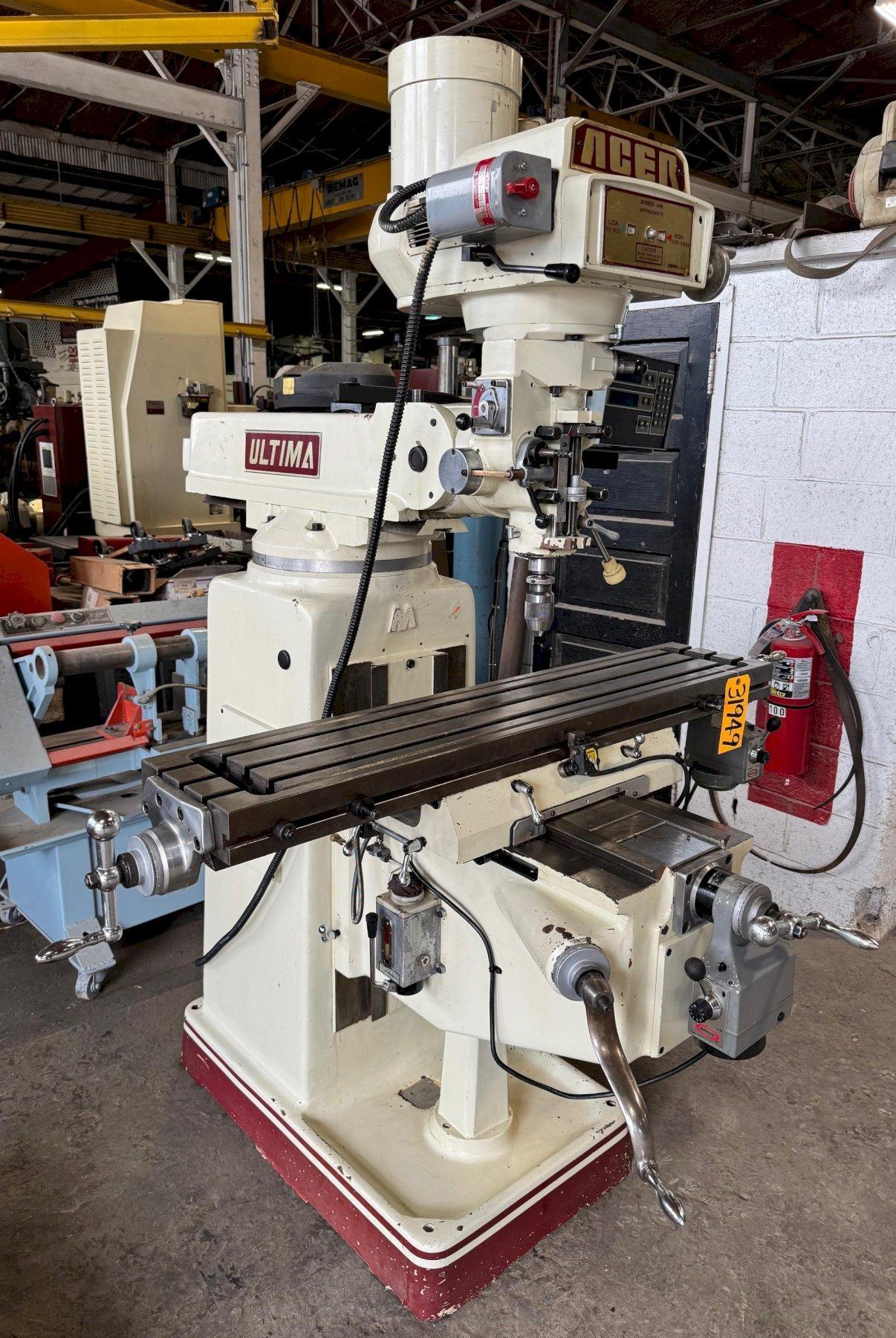

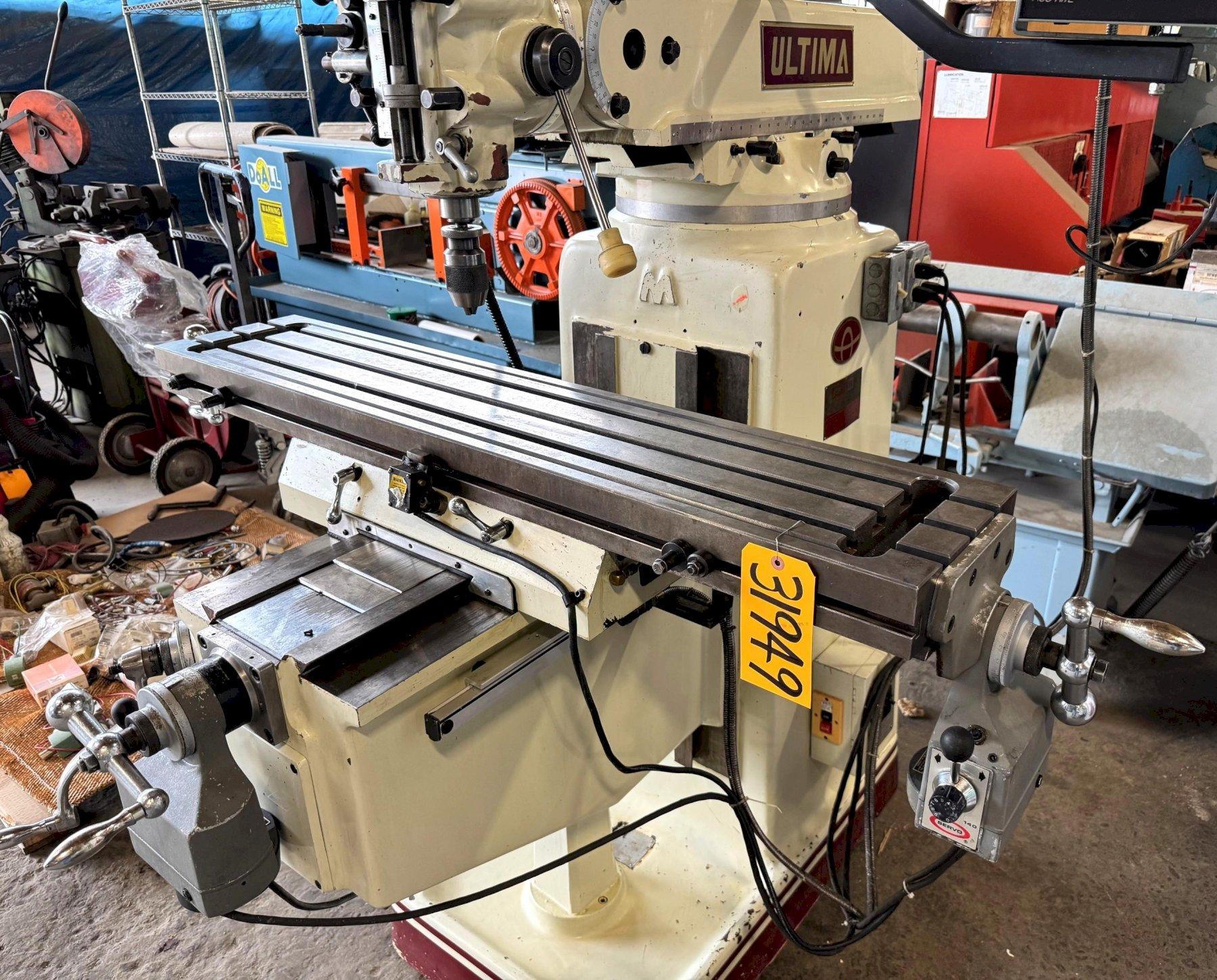

Acer Vertical Mill Ultima 3VK, 3 HP V-Speed, 10" x 50" P.F. Table, DRO, Nice
Brand
Category
Type
Model
Ultima 3VK
Stock #
31949
Year
1995
Condition
Used
Location
Ohio

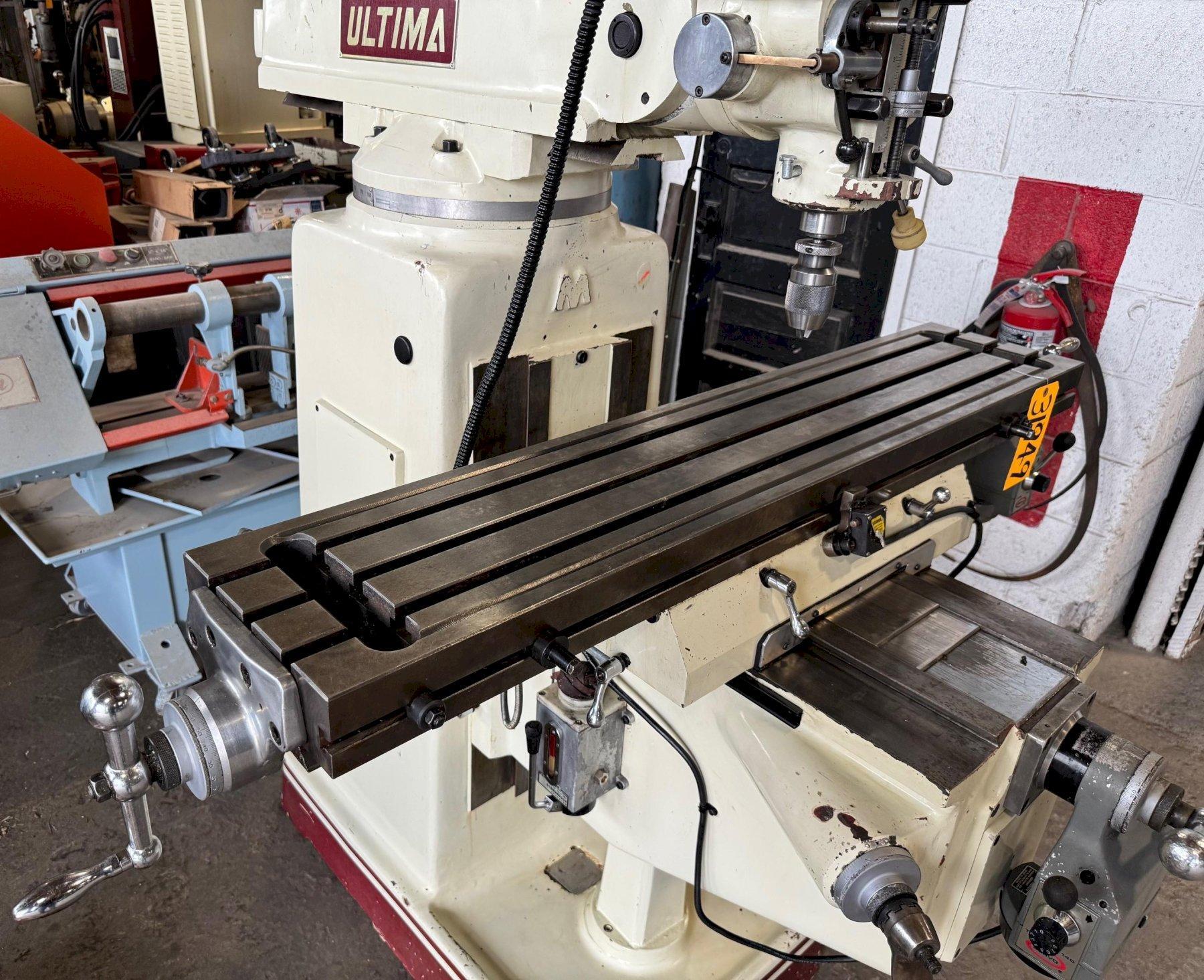

| Table-W | 10 inches |
| Table-L | 50 inches |
| Travel-Long | 34 inches |
| Travel-Cross | 16 inches |
| Power | 3 horsepower |
| RPM | 4200 |
| Taper | R-8 |
| Weight | 3500 pounds |
|
ACER VERTICAL MILLING MACHINE

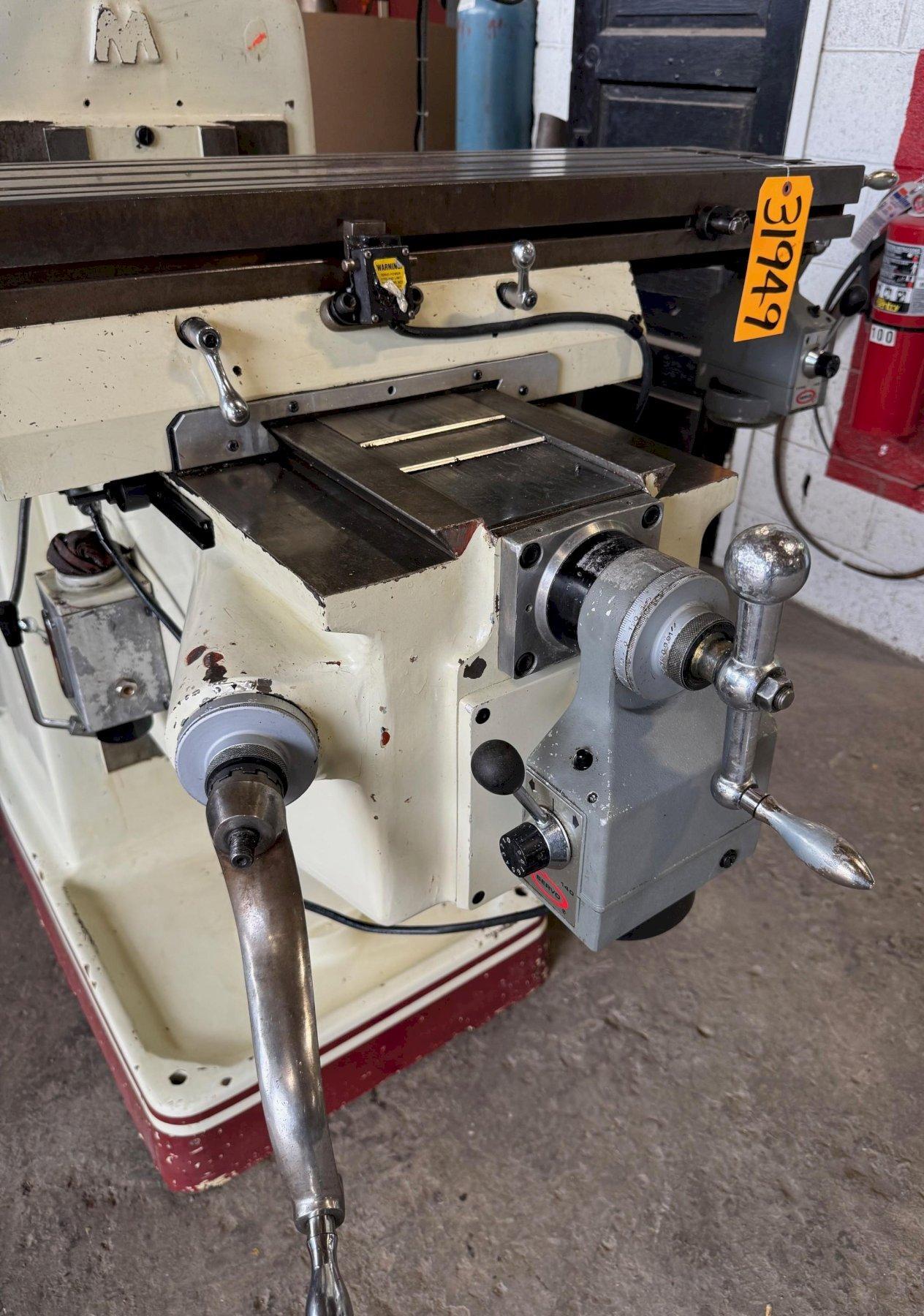

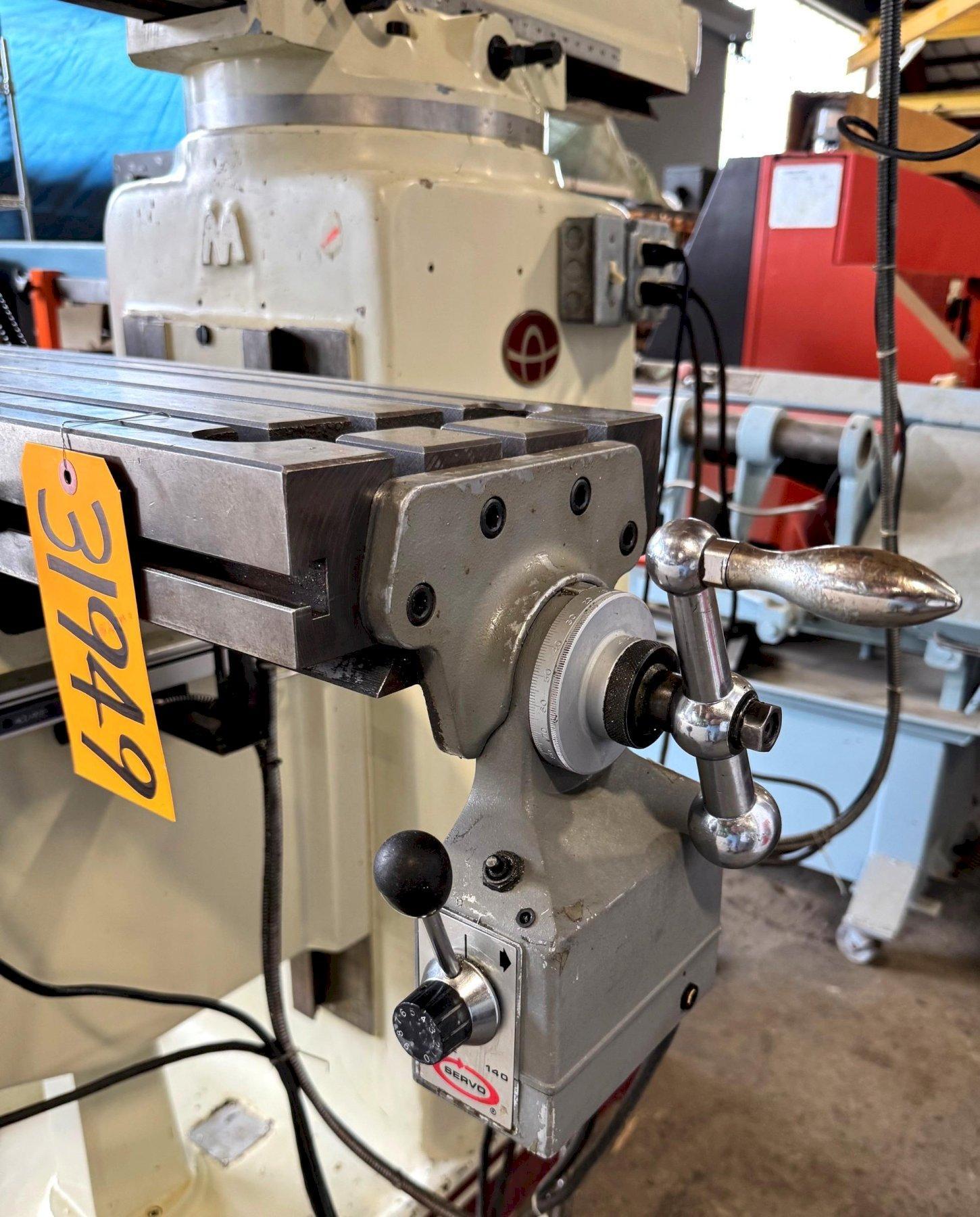

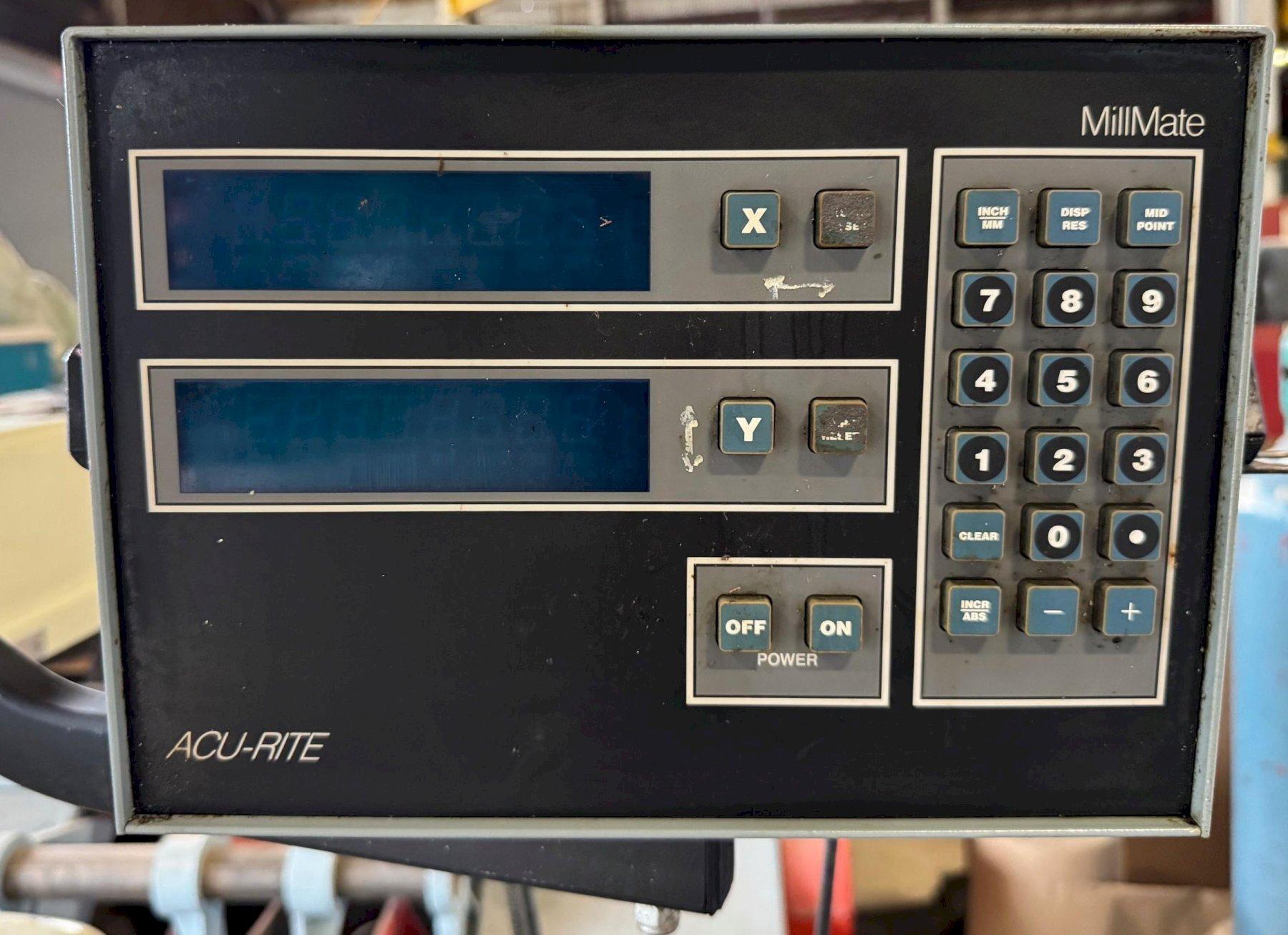

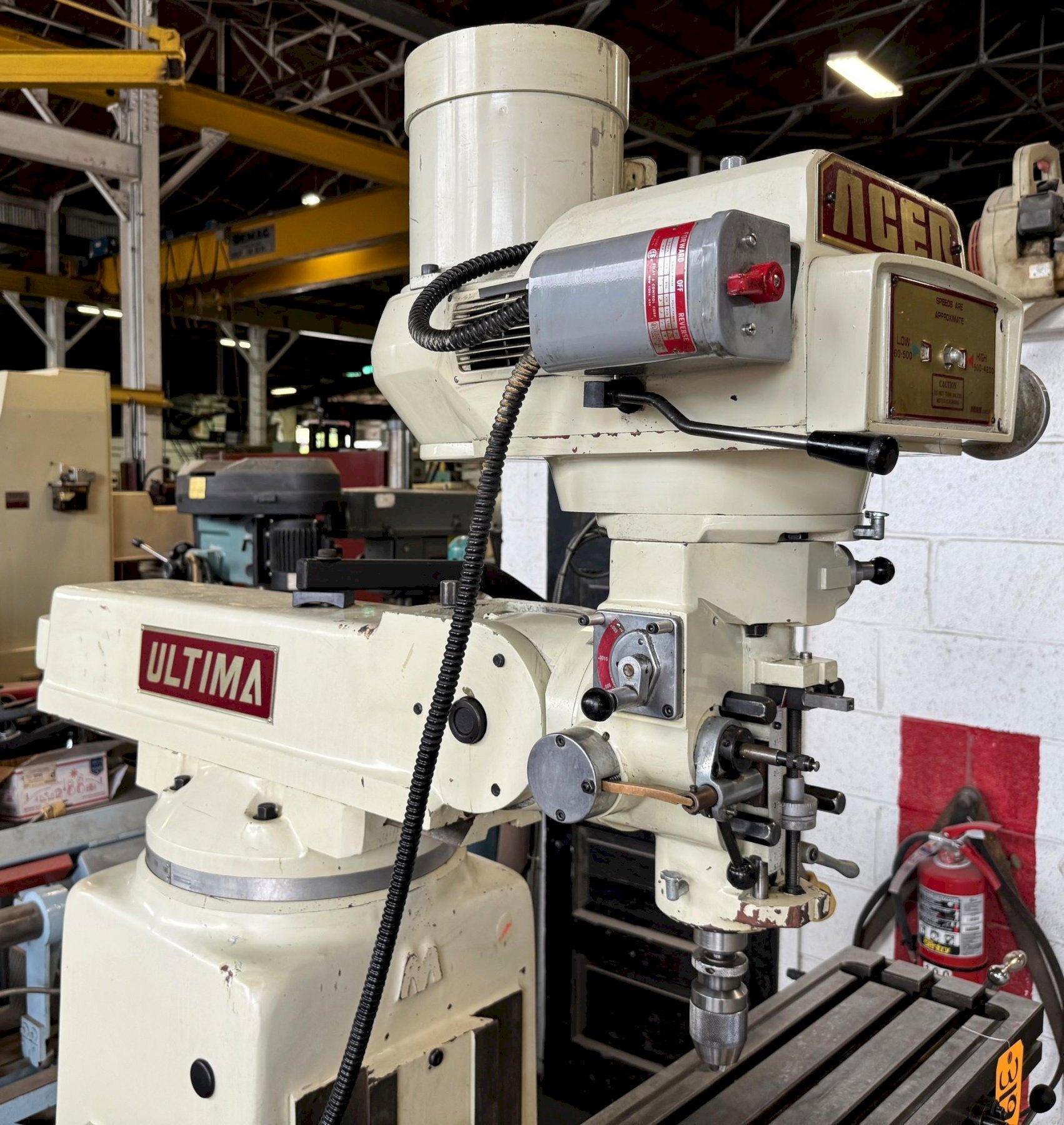

MODEL: Ultima 3VK SERIAL NUMBER: 950706 GENERAL SPECIFICATIONS Table Size: 10" x 50" Longitudinal Travel: 34" Cross Travel: 16" Vertical Knee Travel: 16" Ram Travel: 20" Maximum Weight Of Workpiece: 850 Lbs. Turret Rotation: 360 Degrees Spindle Speeds, Variable: 60 to 4200 RPM Spindle Taper: R-8 Quill Travel: 5" Power Quill Feeds: (3) .0015, .003, .006 EQUIPPED WITH 3 HP Spindle Motor ACU-RITE MillMate Two Axis Digital Readout Servo Type 140 Power Feeds On X and Y Axis One-Shot Lubrication Approximate Weight: 3500 Lbs. Shipping Dimensions: 60" x 69" x 7'H F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
|
