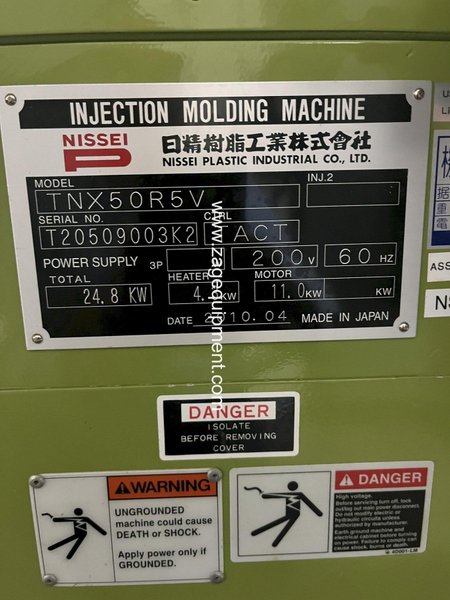

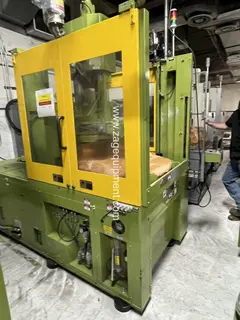

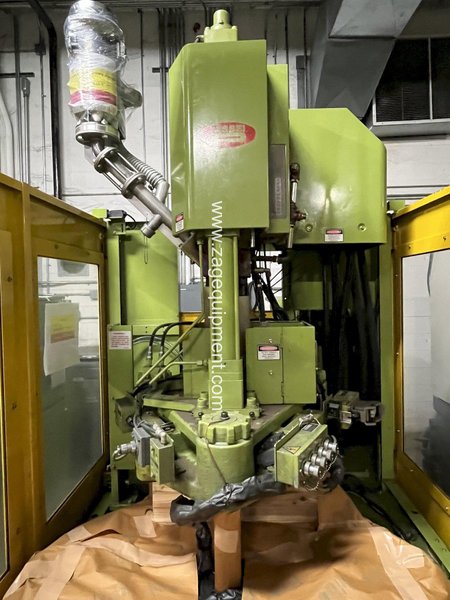

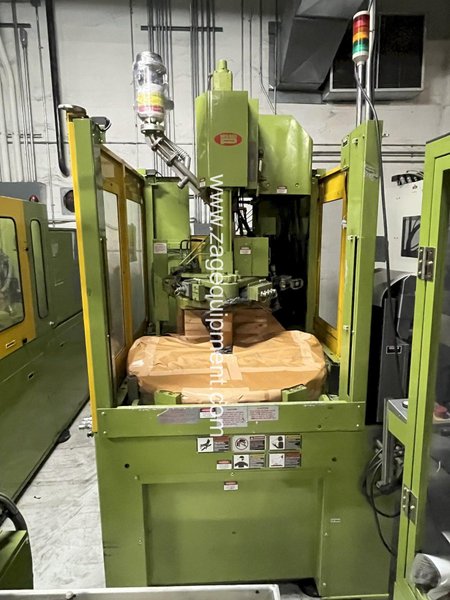

Nissei Used TNX50R5V Vertical Injection Molding Machine, Rotary Table, 53 US Ton, 1.66 oz., Yr 2010

Brand
NISSEI
Category
Plastics Machinery
Type
Injection Molding Machines, Vertical
Model
TNX50R5V
Stock #
10837
Year
2010
Condition
Used

Location

Not specified
REQUEST FINANCING
Manufacturer Nissei
Year 2010
Model TNX50R5V
Clamping Force 53 US Ton
Screw diameter: 26mm
Shot size: 1.66 oz.
Screw stroke: 3.6"
Clamp stroke: 9.84"
Min mold thickness: 6.7"
Daylight opening: 16.54"
Platen size: 21.7" x 15.7"
Ejector stroke: 1.97"

Rotary table

Machine dimensions: 8.7' x 5.2' x 9.6'
Weight: 7,600 lbs.
