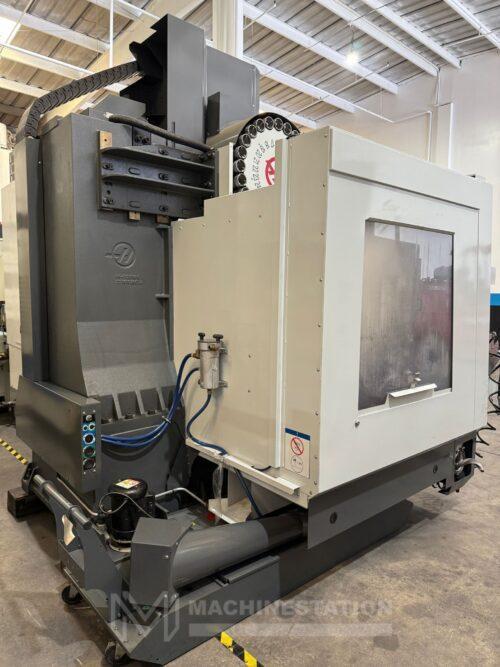

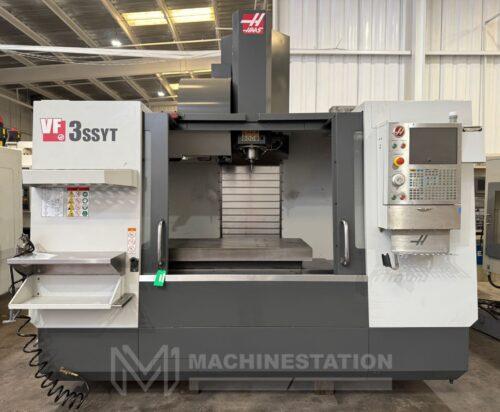

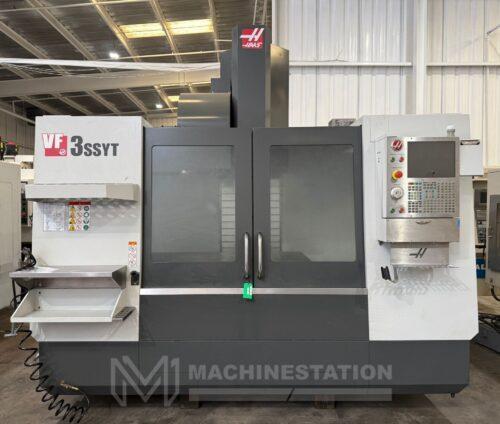

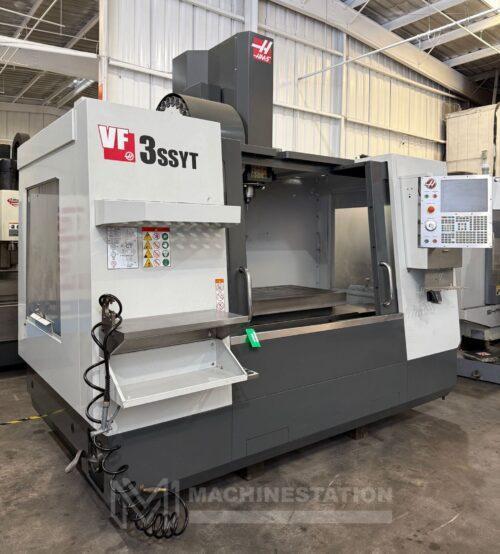

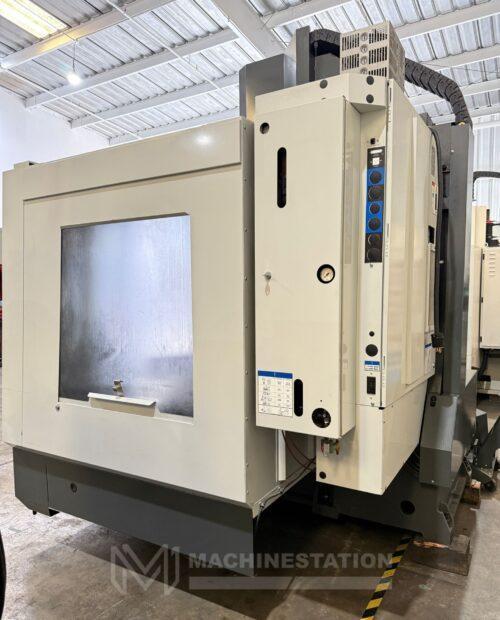

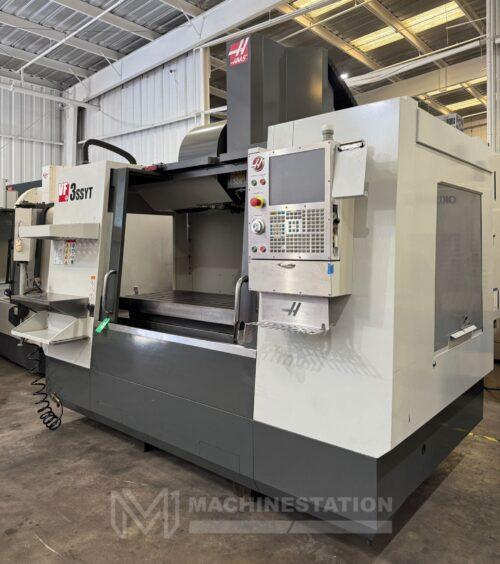

Haas VF-3SSYT CNC Vertical Machining Center – Mill

Haas VF-3SSYT CNC Vertical Machining Center – Mill

Name: Used HAAS VF-3SSYT For Sale 112611
Brand: HAAS
SKU: 112611

Brand

HAAS

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	HAAS
Model:	VF-3SSYT
Year:	2016
Condition:	Used – Good

Key Features of the Haas VF-3SSYT

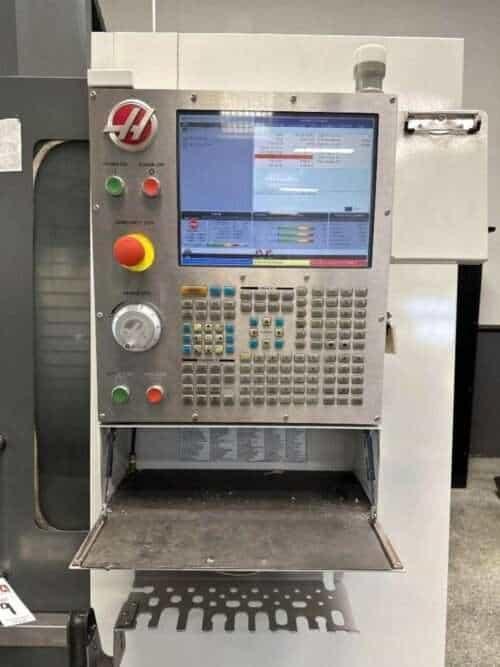

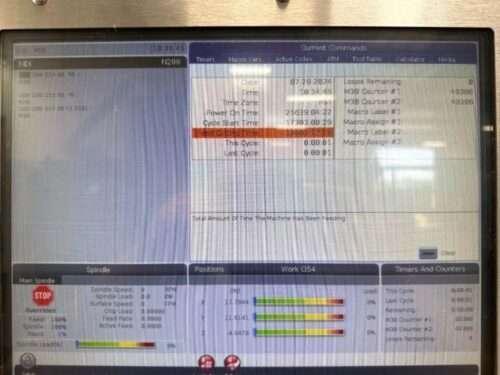

Haas CNC Control
12,000 RPM High-Speed Spindle
24 Station High-Speed Tool Changer
30 HP High Torque Spindle
Y Axis Extended Travel
1400 IPM Fast Rapid Traverse
MPG Control
USB Port
Rigid Tapping
Coolant System
Chip Auger (Upgraded $3695 value Included)

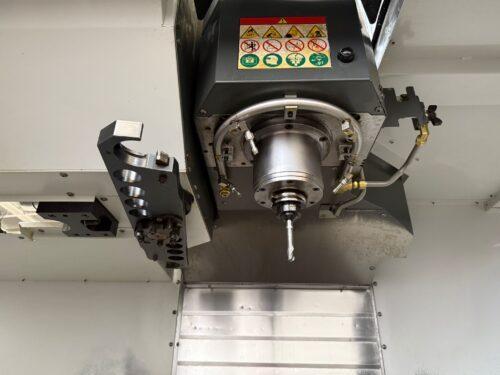

(1) Too Holder Mounted on Spindle (As shown in the image)

Travel:

X-Axis: 40″
Y-Axis: 26″
Z-Axis: 25″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″

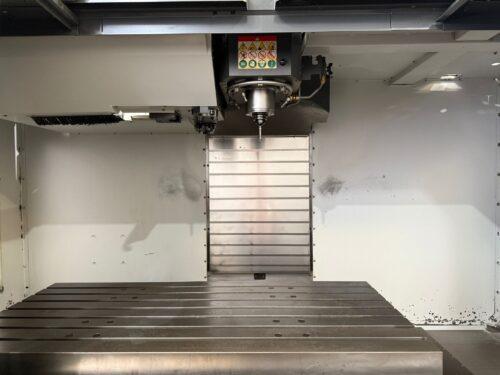

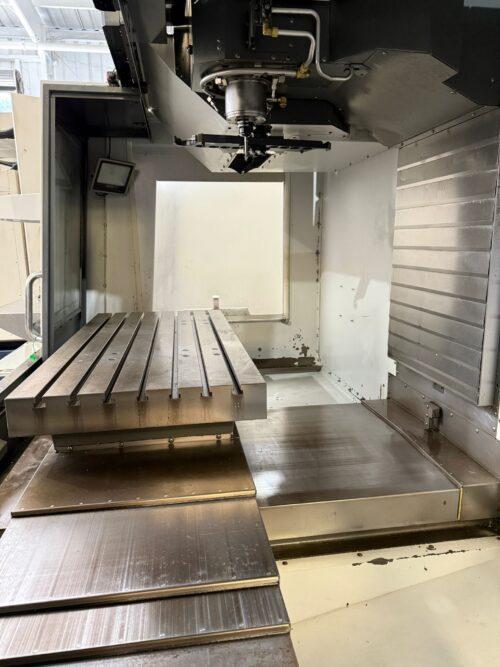

Table:

Length: 54″
Width: 24″
Number of Std T-Slots: 7
T-Slot Width: 5/8″
Max Weight on Table: 1750 lbs

Spindle:

Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:

Capacity: 24 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13″
Tool Changing Time: 1.80 Seconds

General:

Air Required: 100 psi 4 scfm

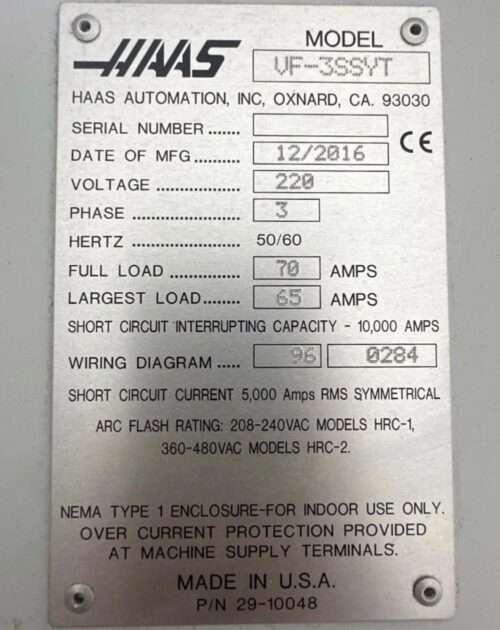

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 102″ x 109″ High
Weight: 15,000 lbs Approx.
