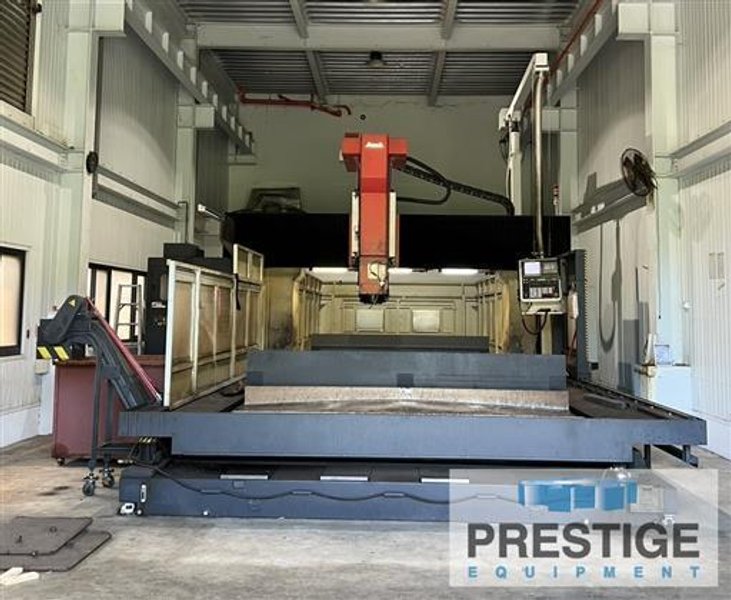

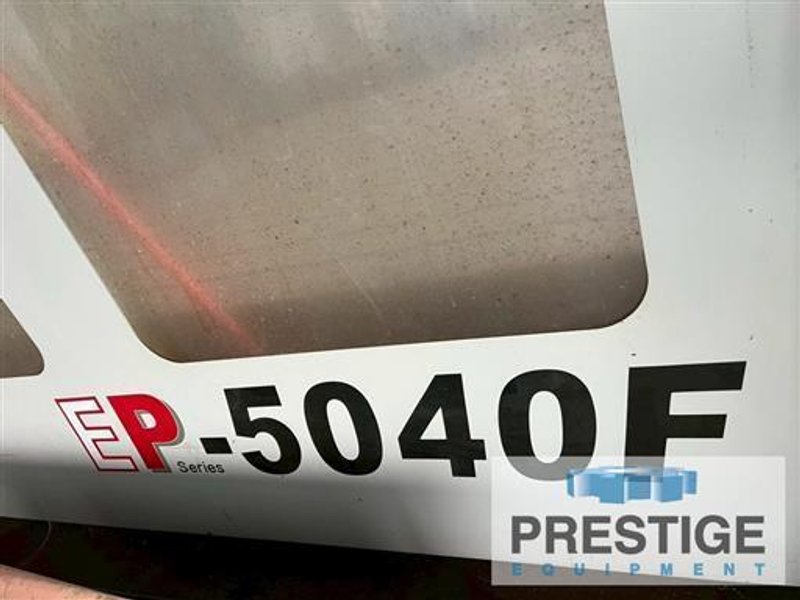

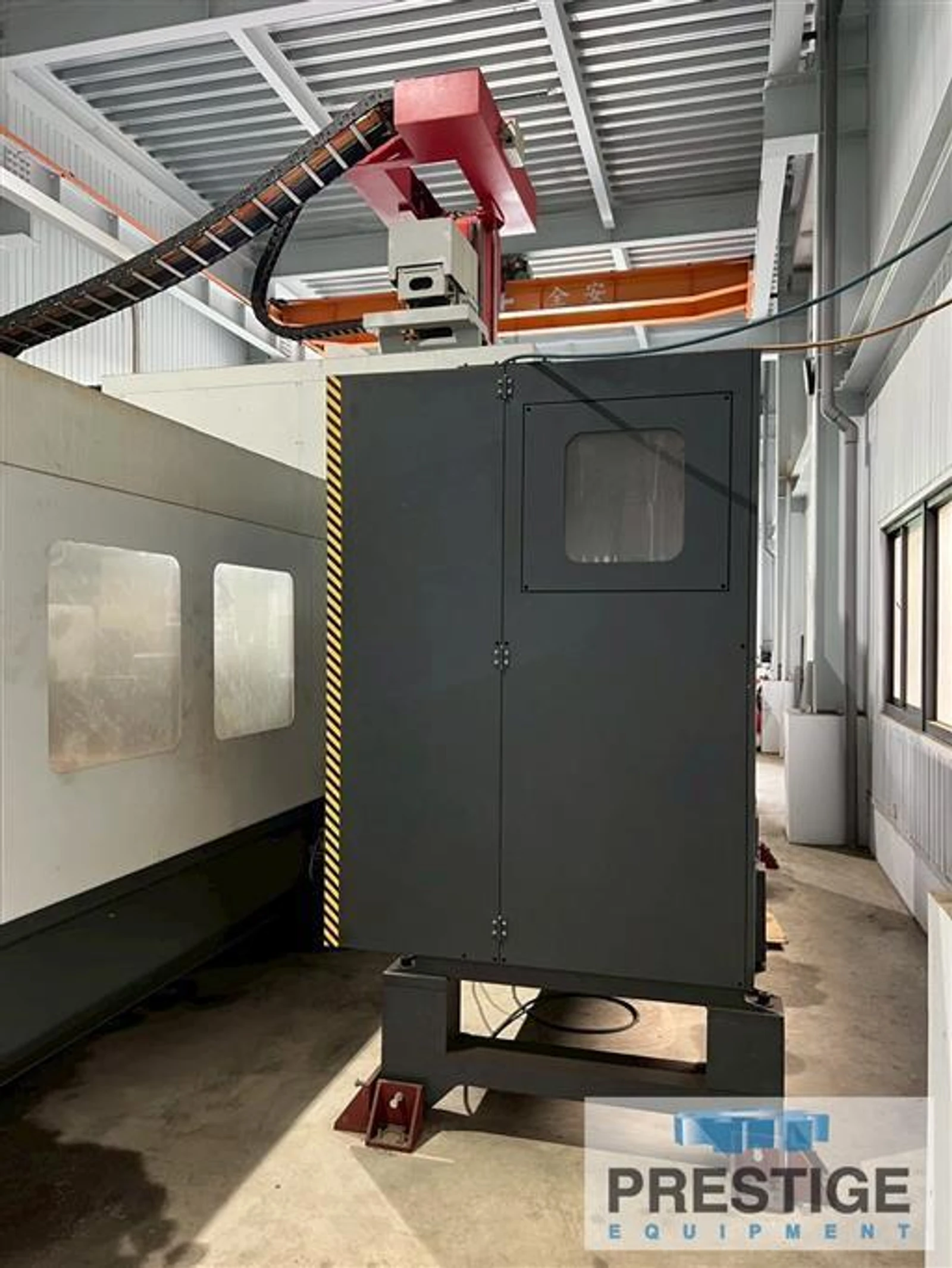

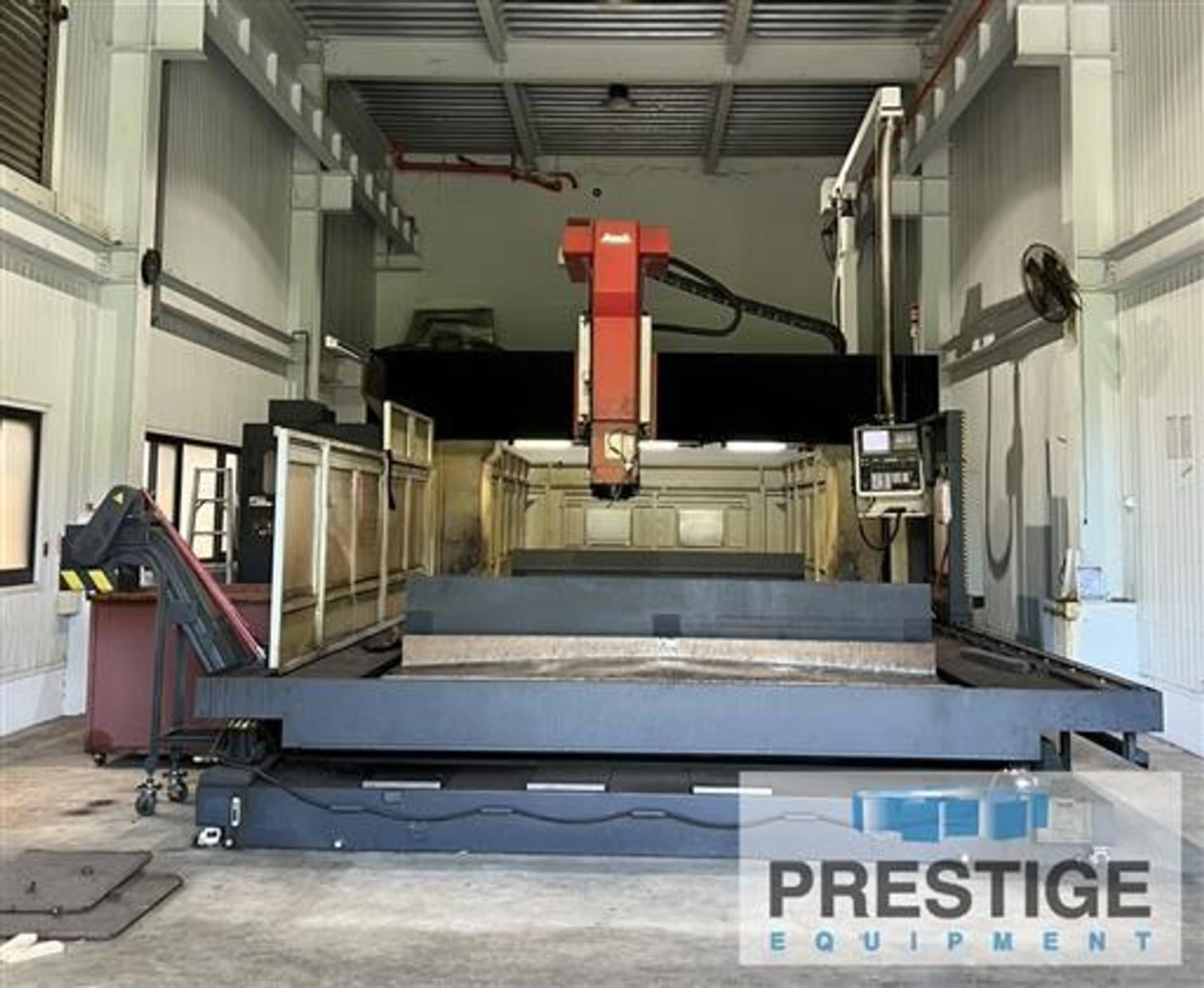

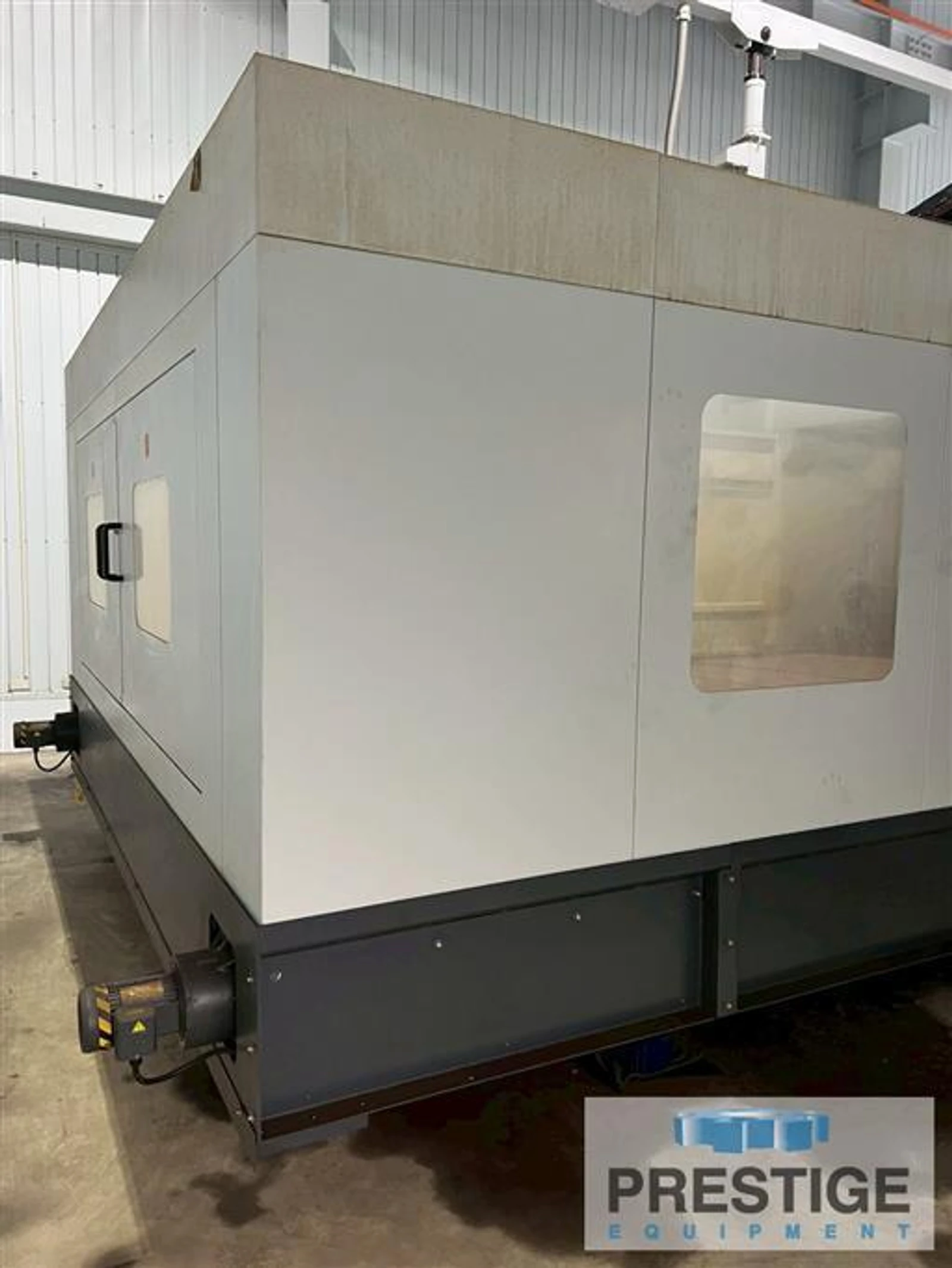

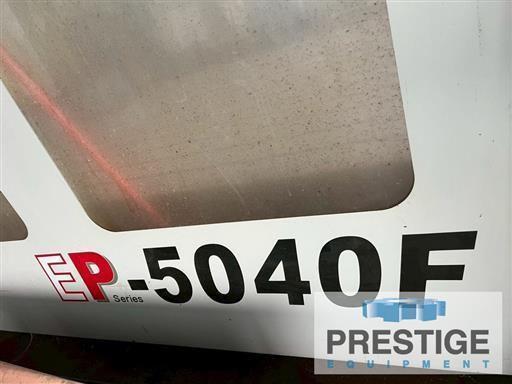

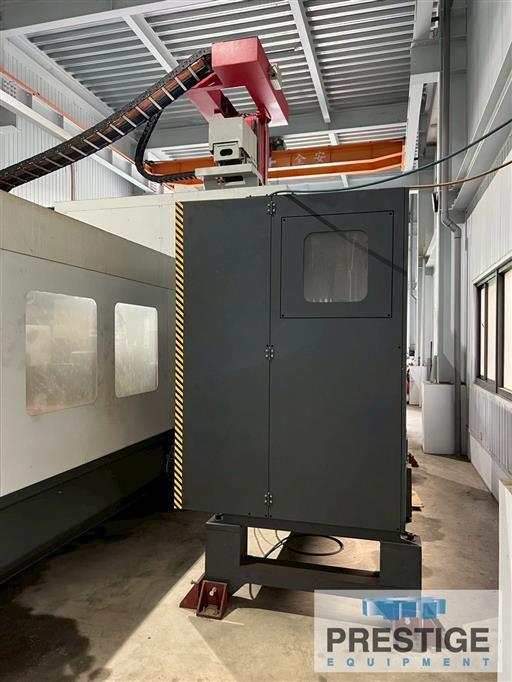

AWEA EP-5040F CNC Double Column Vertical Machining Center

Brand
AWEA
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
EP-5040F
Stock #
44299
Year
2020
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
X-Axis Travel 196.85"
Y-Axis Travel 157.48"
Z-Axis Travel 39.37"
Distance Between Columns 137.79"
Distance from Spindle Nose to Table 15.74"-55.11"
Table Size 197.63" x 118.11"
Table Capacity 35,200 Lbs.
Spindle Speeds 6,000 RPM
Spindle Drive Motor 34.6 HP / 29.3 HP
Spindle Taper BT #50



Equipped With:

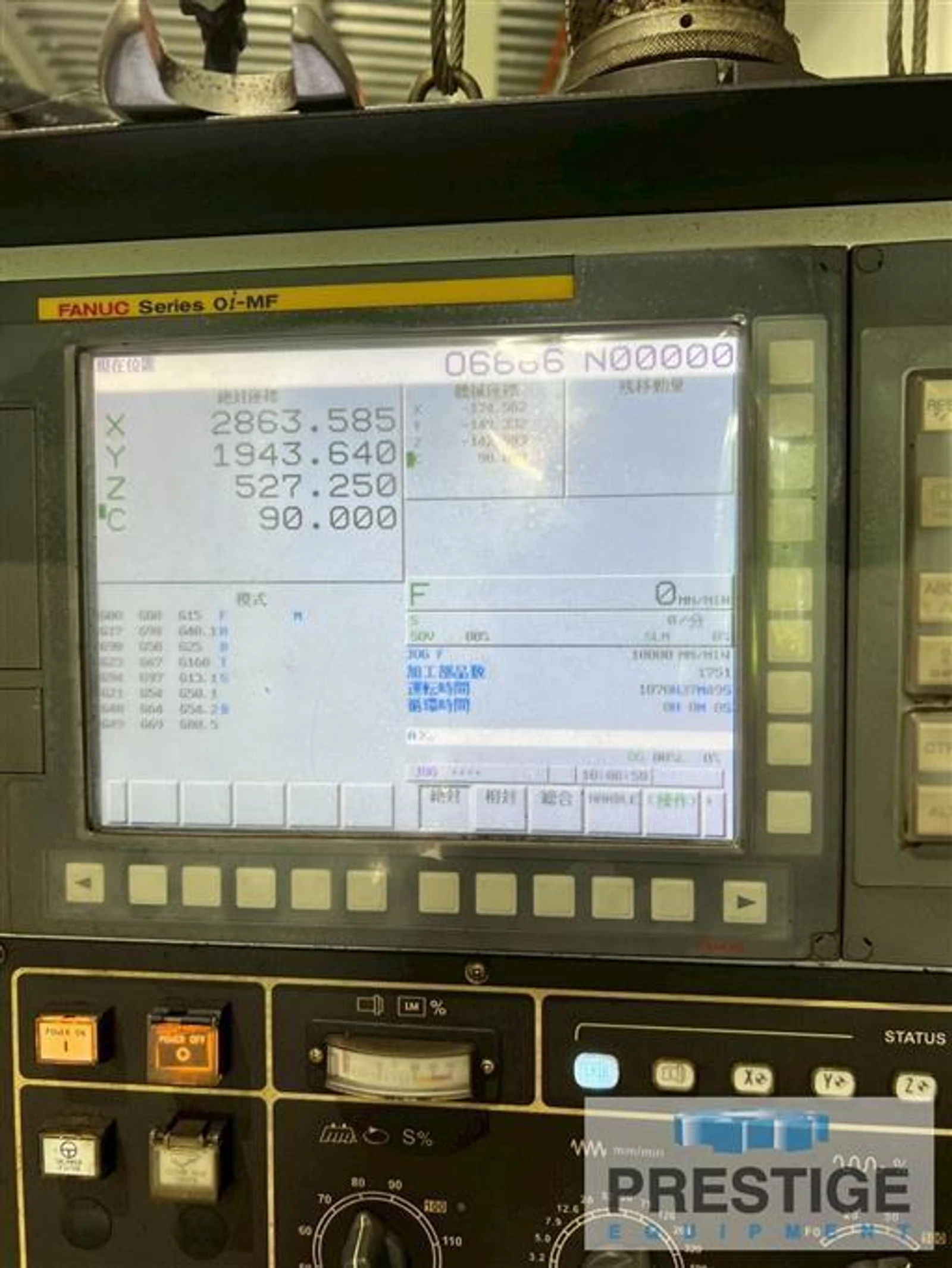

Fanuc Oi-MF CNC Control with 10.4" LCD

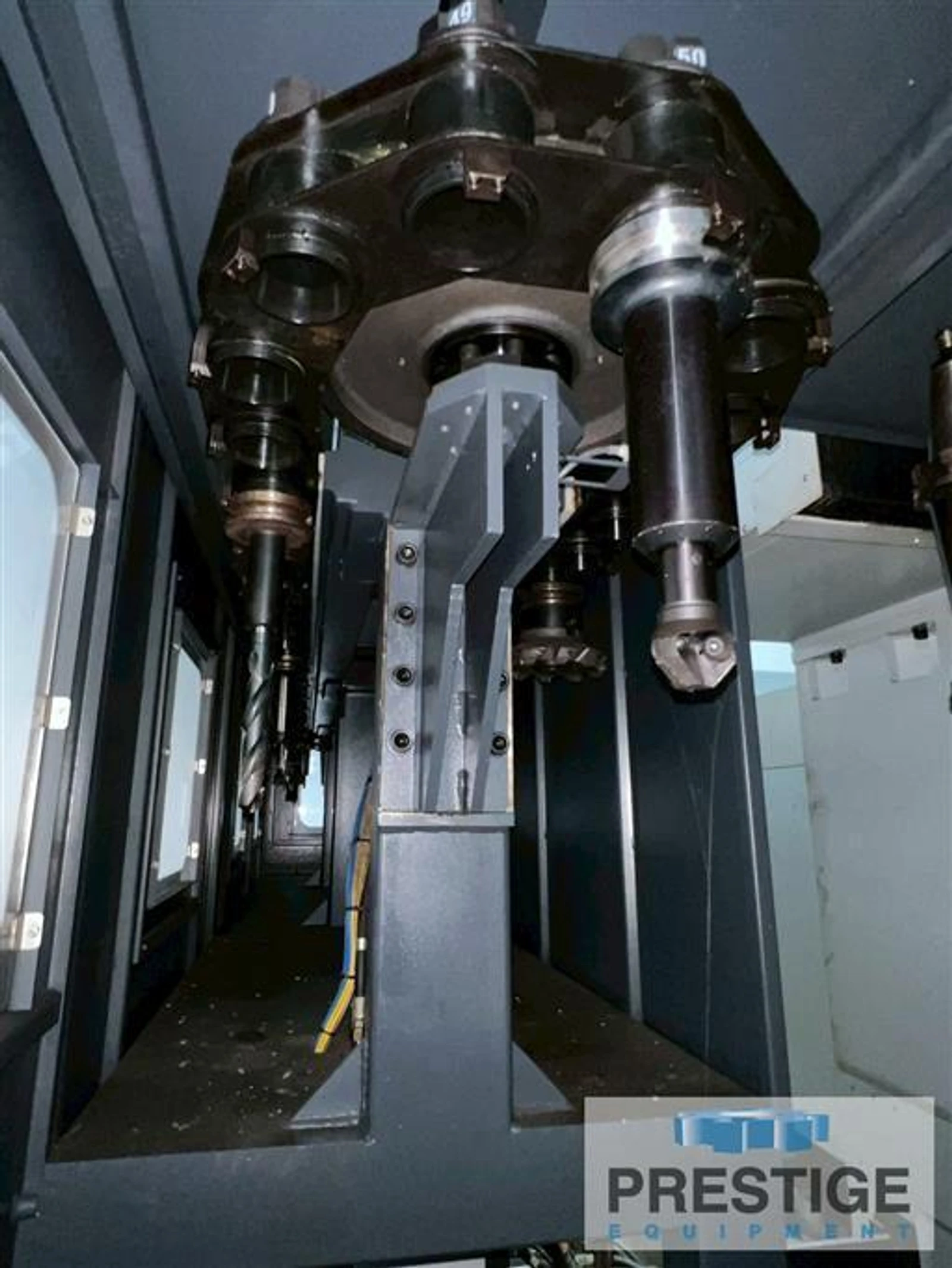

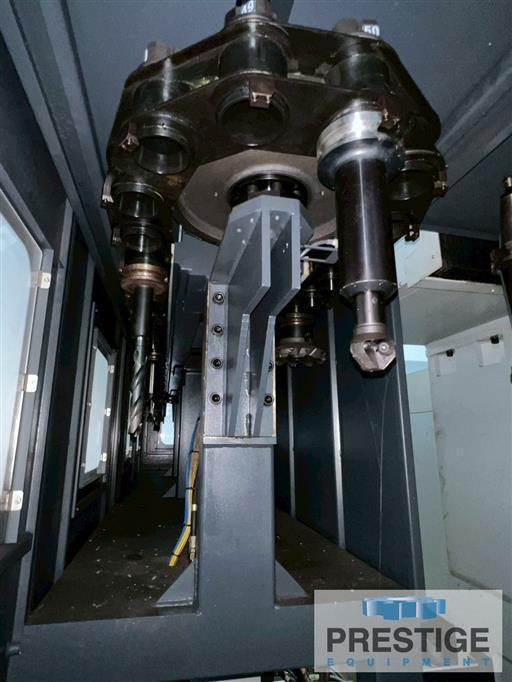

60-Position Automatic Tool Changer
X/Y/Z Axis Linear Guide Ways

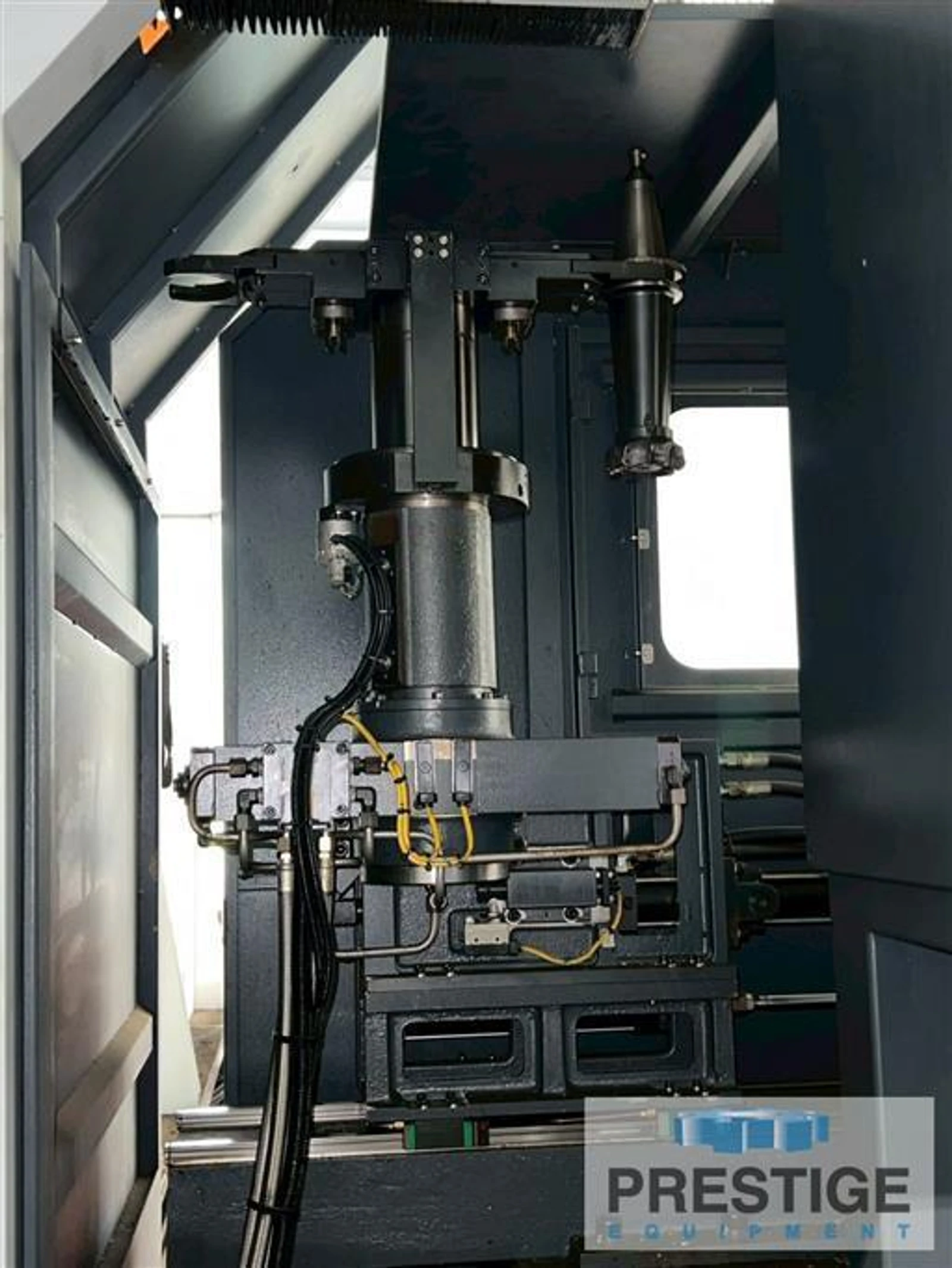

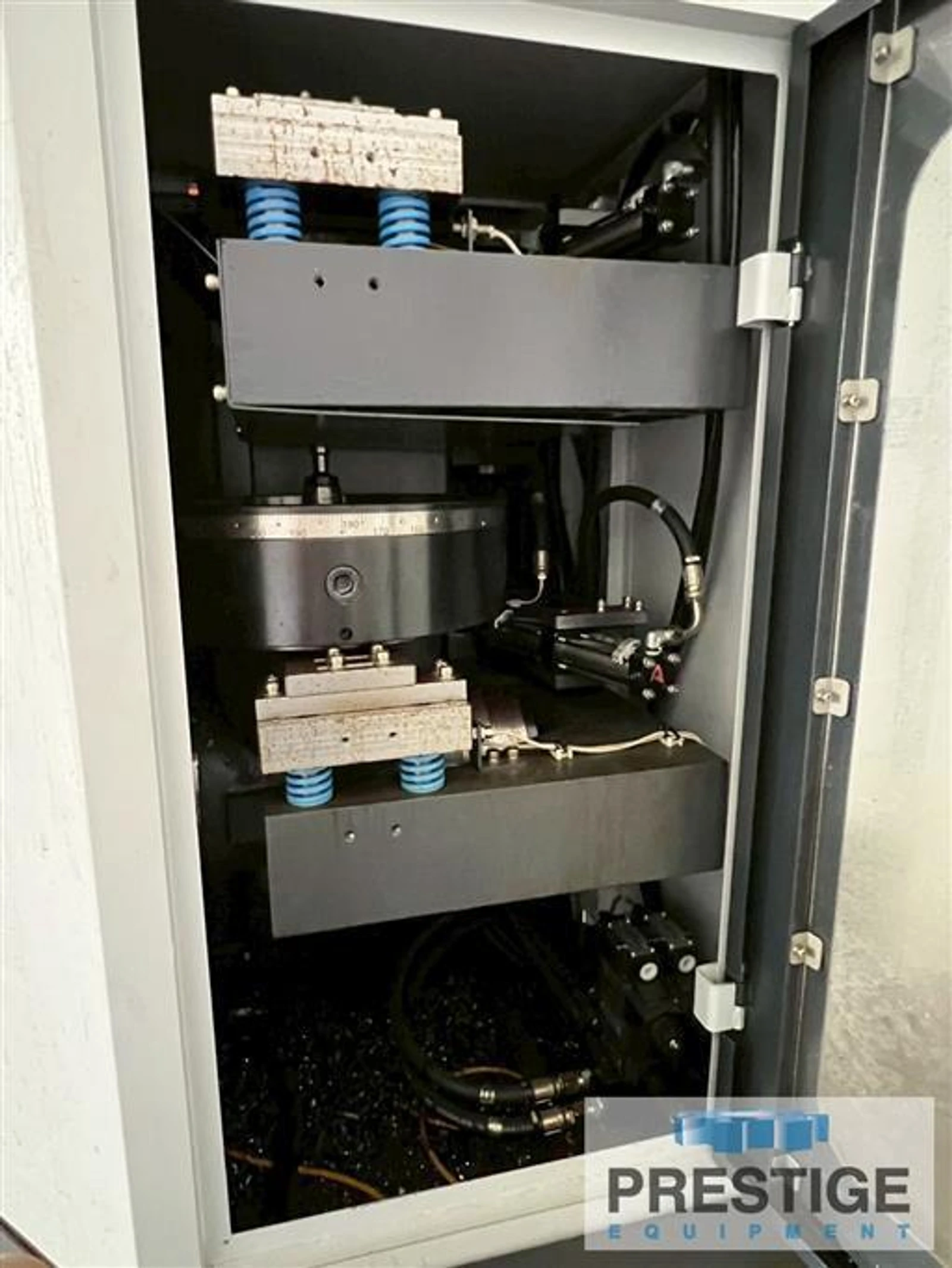

Auto Head Storage: 90 Degree Head (Austo 5 Degree Indexing)
Coolant Thru Spindle
Extension Head
Air Conditioner

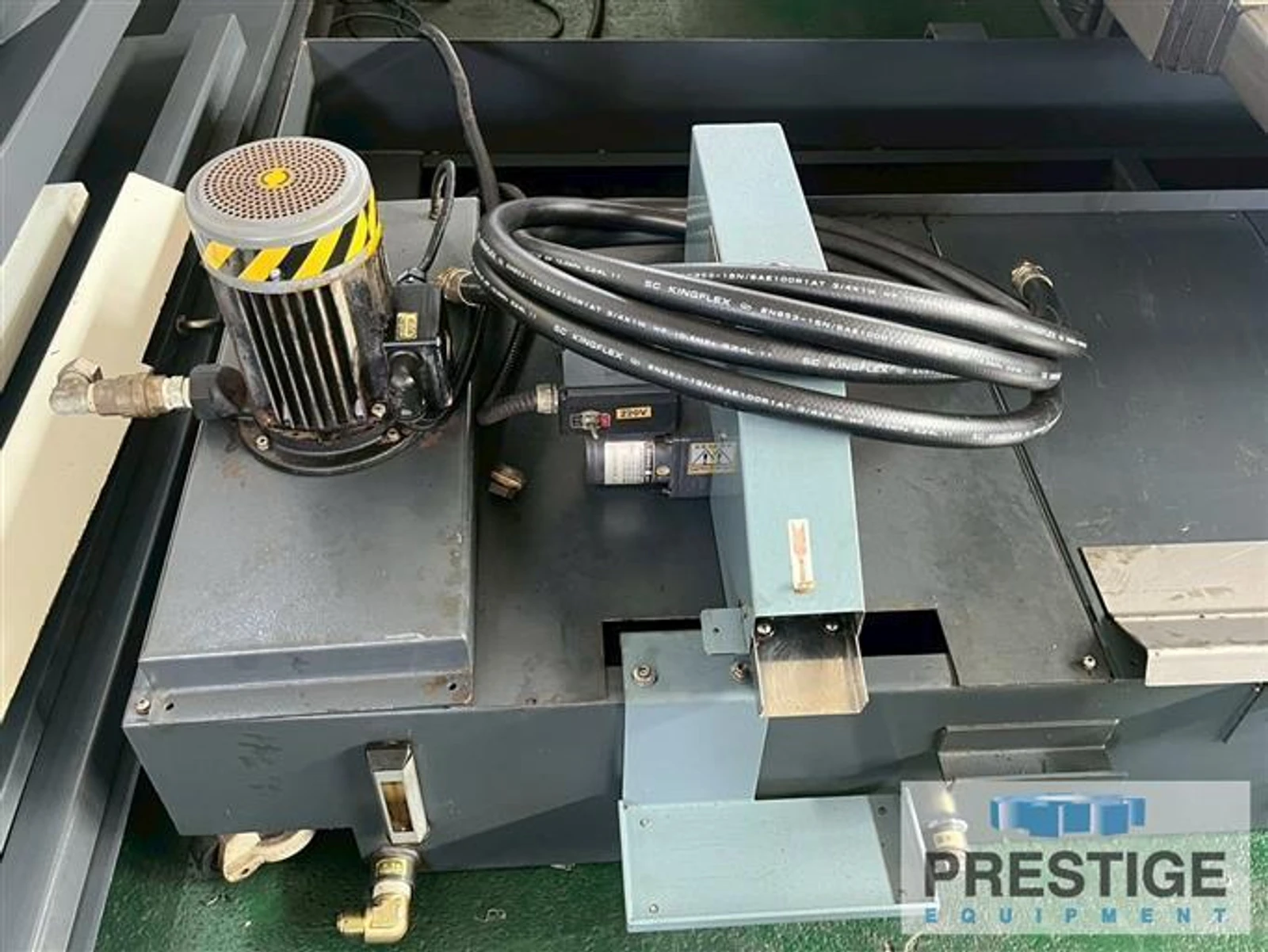

Oil Skimmmer
Chip Conveyor
