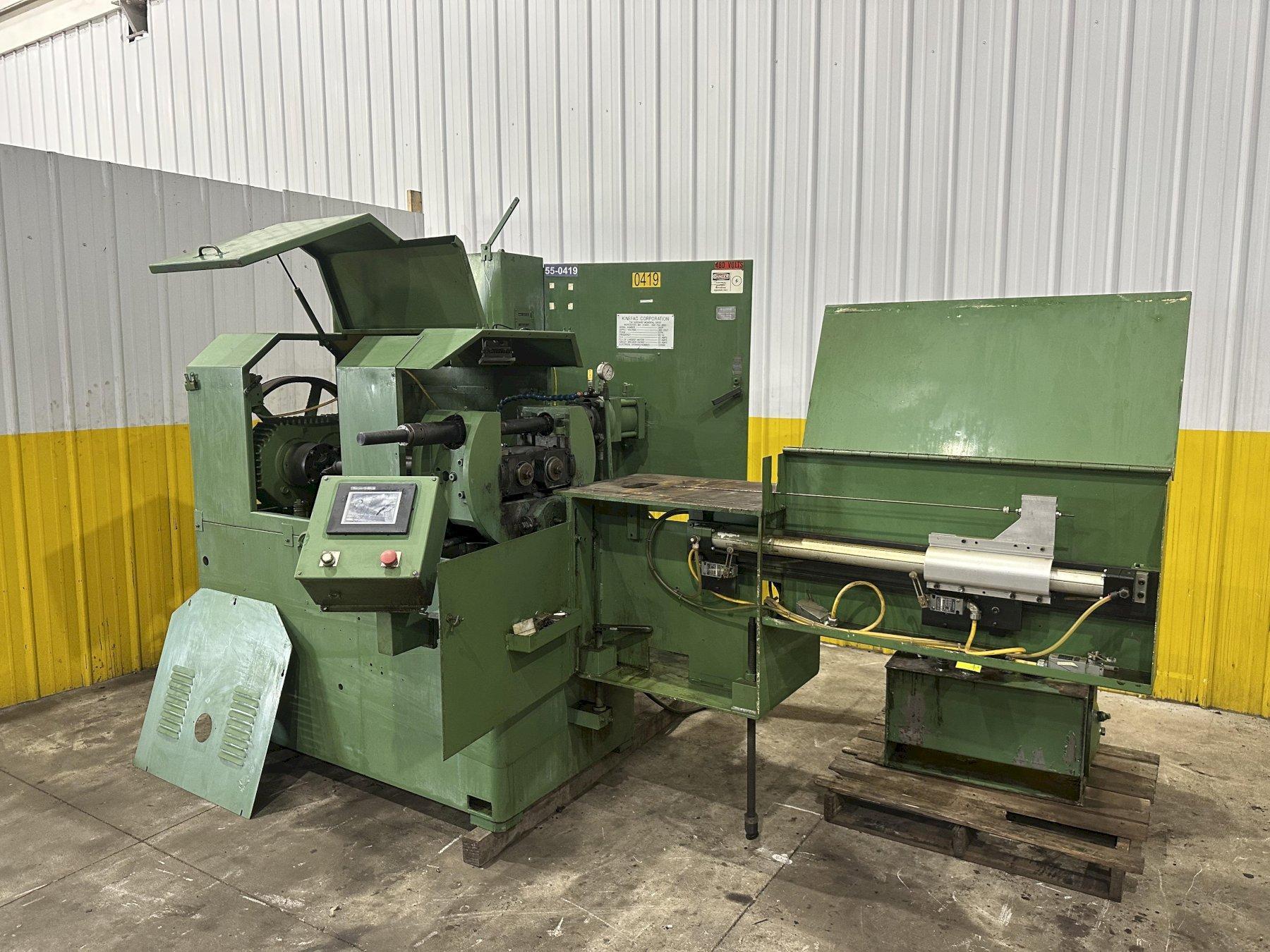

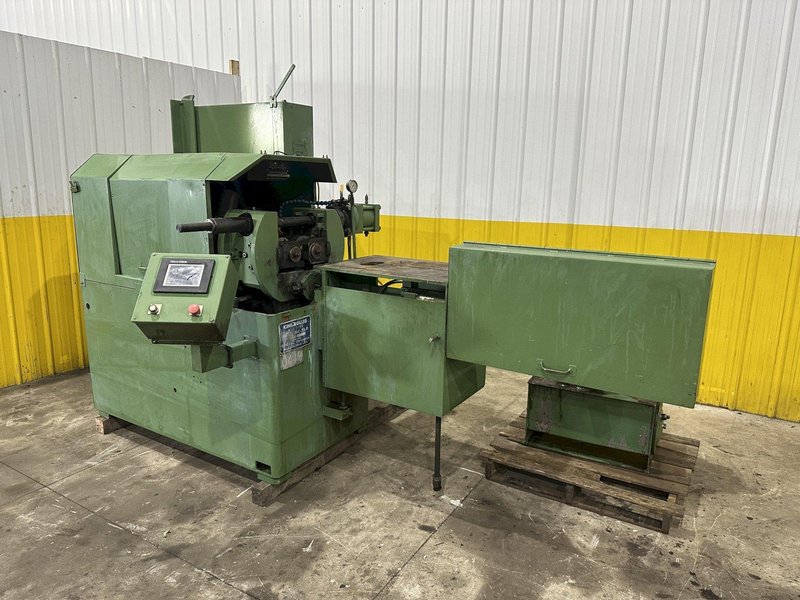

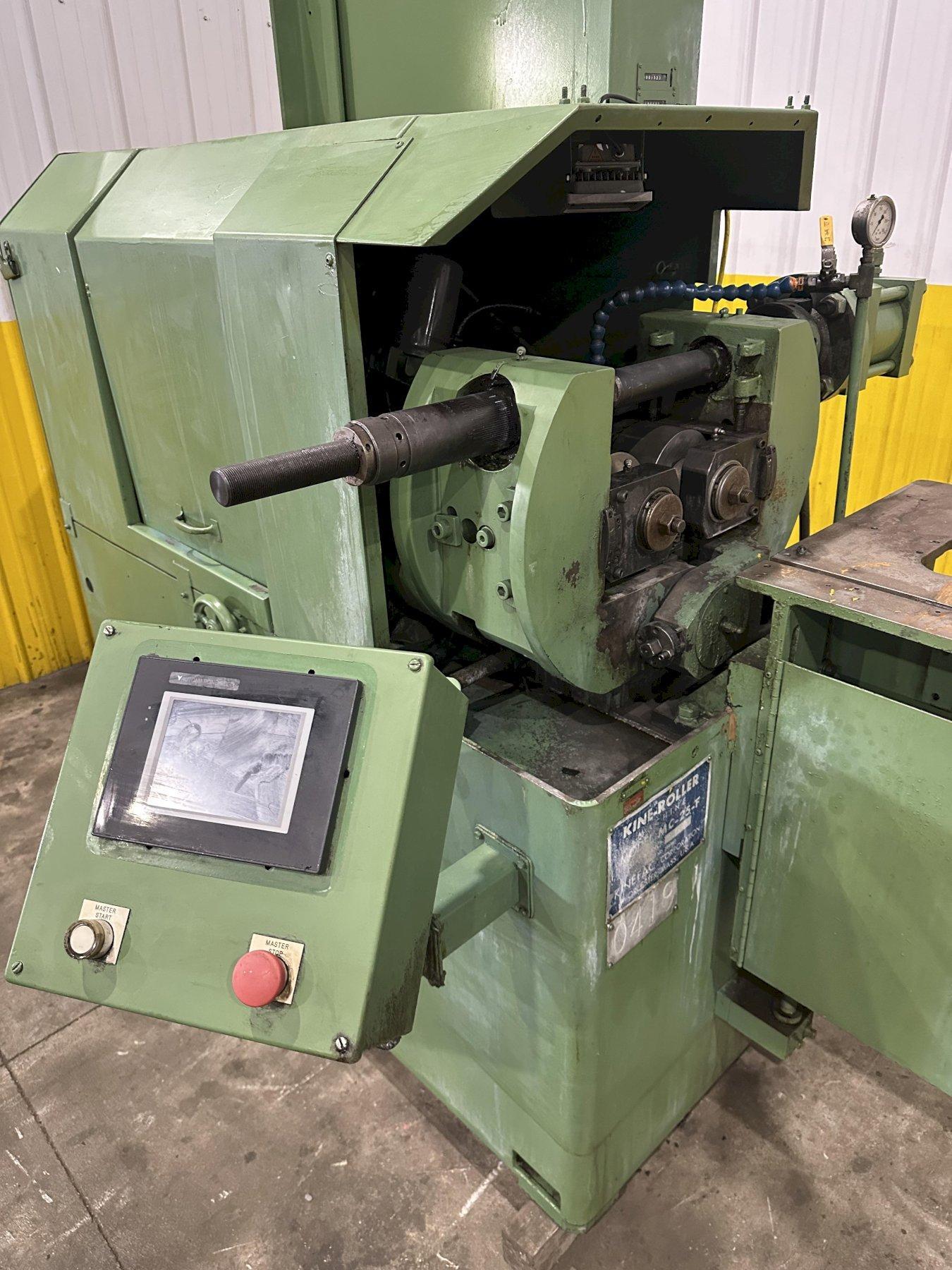

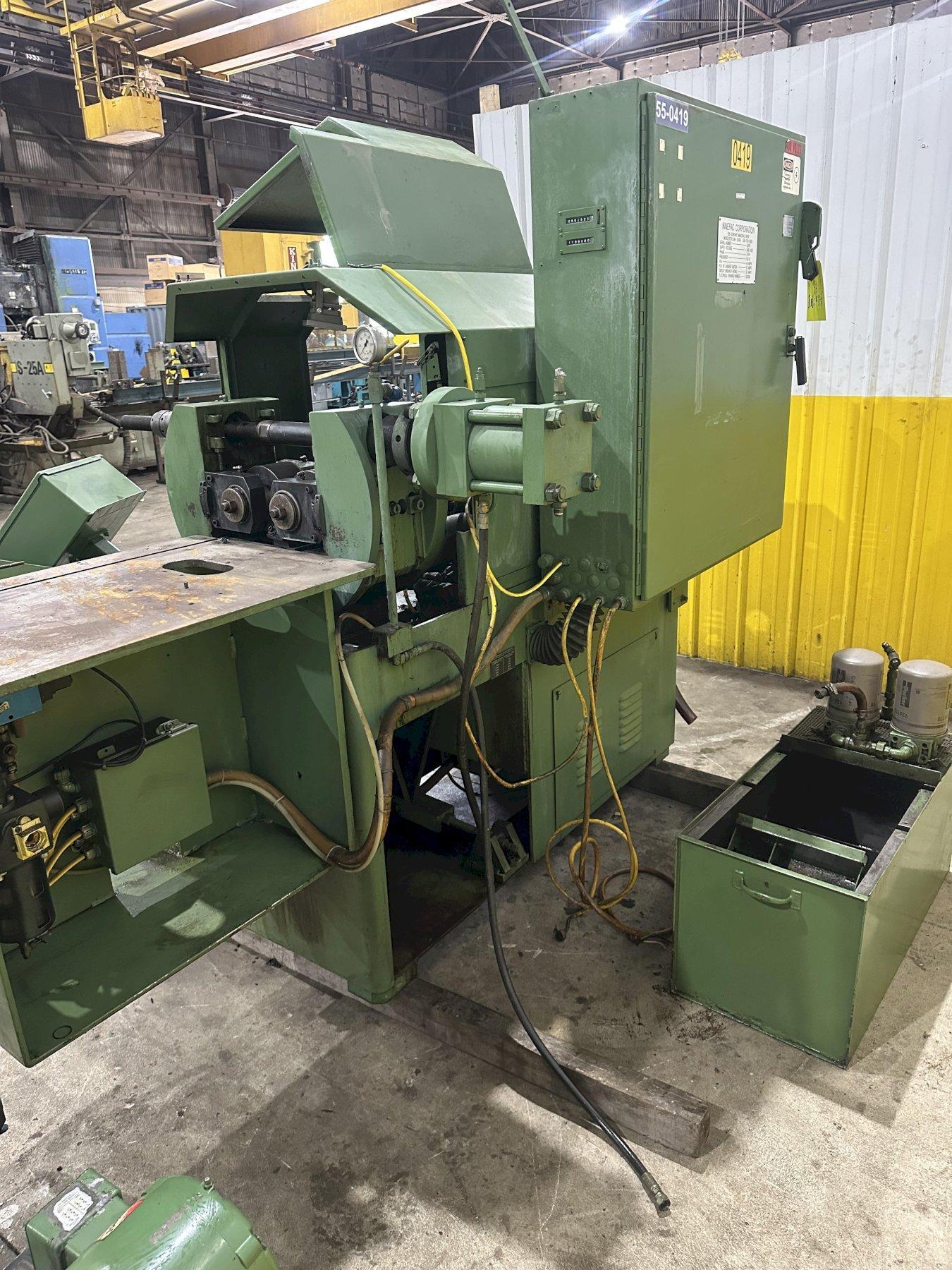

4"" KINEFAC MODEL #MC-25 KINE-ROLLER 2-DIE THREAD ROLLING MACHINE: STOCK #23765

Brand
KINEFAC
Category
Fastener Equipment
Type
Thread Rollers
Model
MC-25-F
Stock #
23765
Year
Not specified
Condition
Not specified

Location

Ohio
REQUEST FINANCING

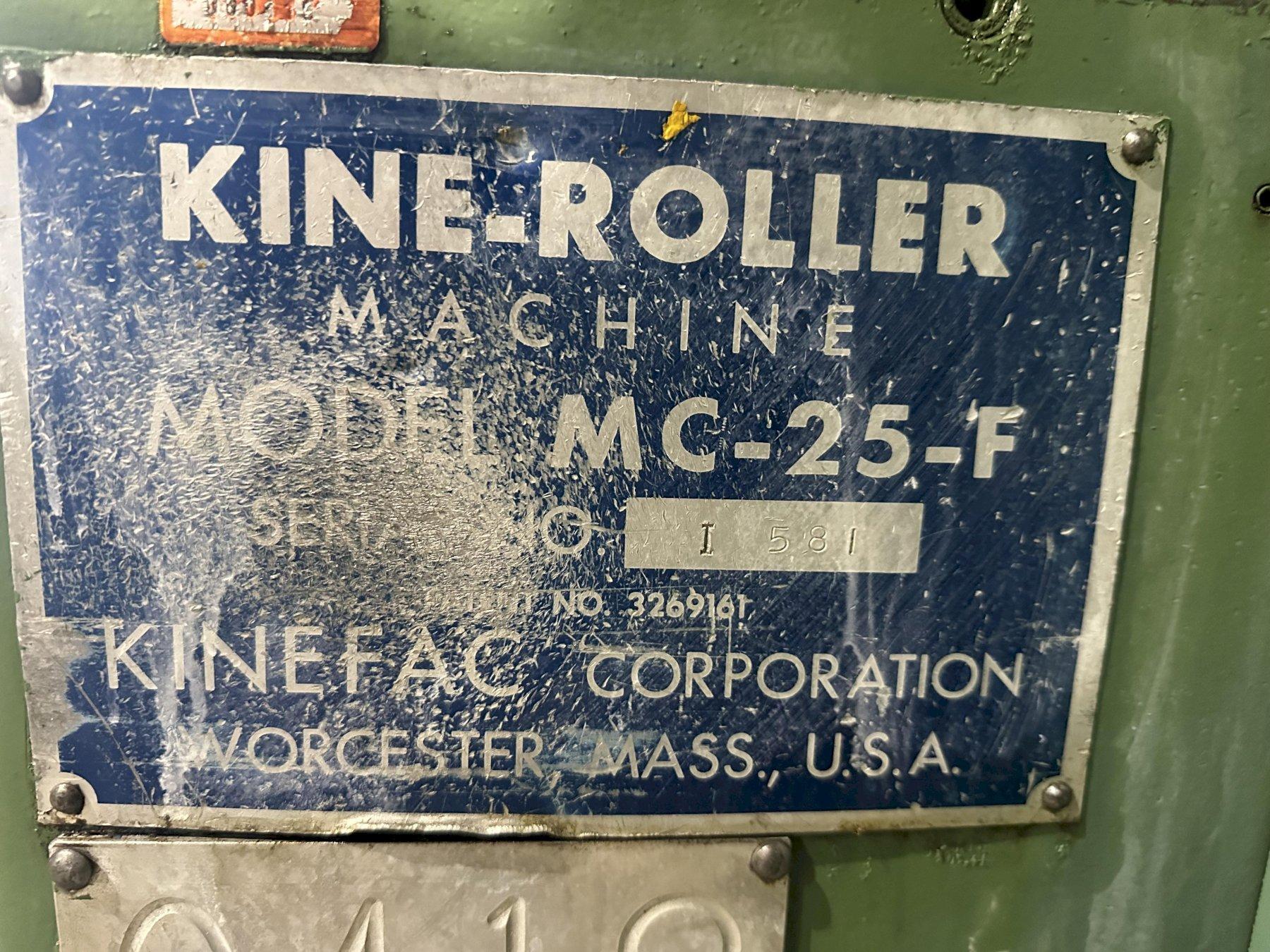

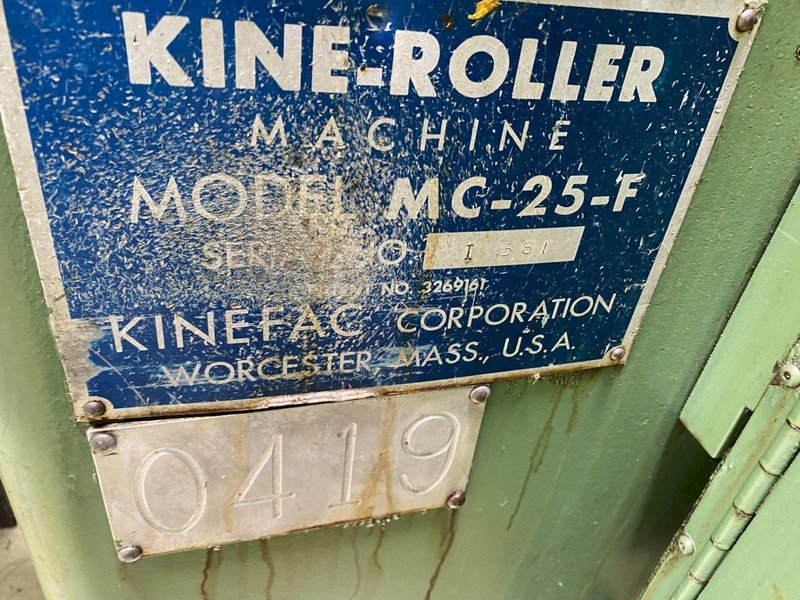

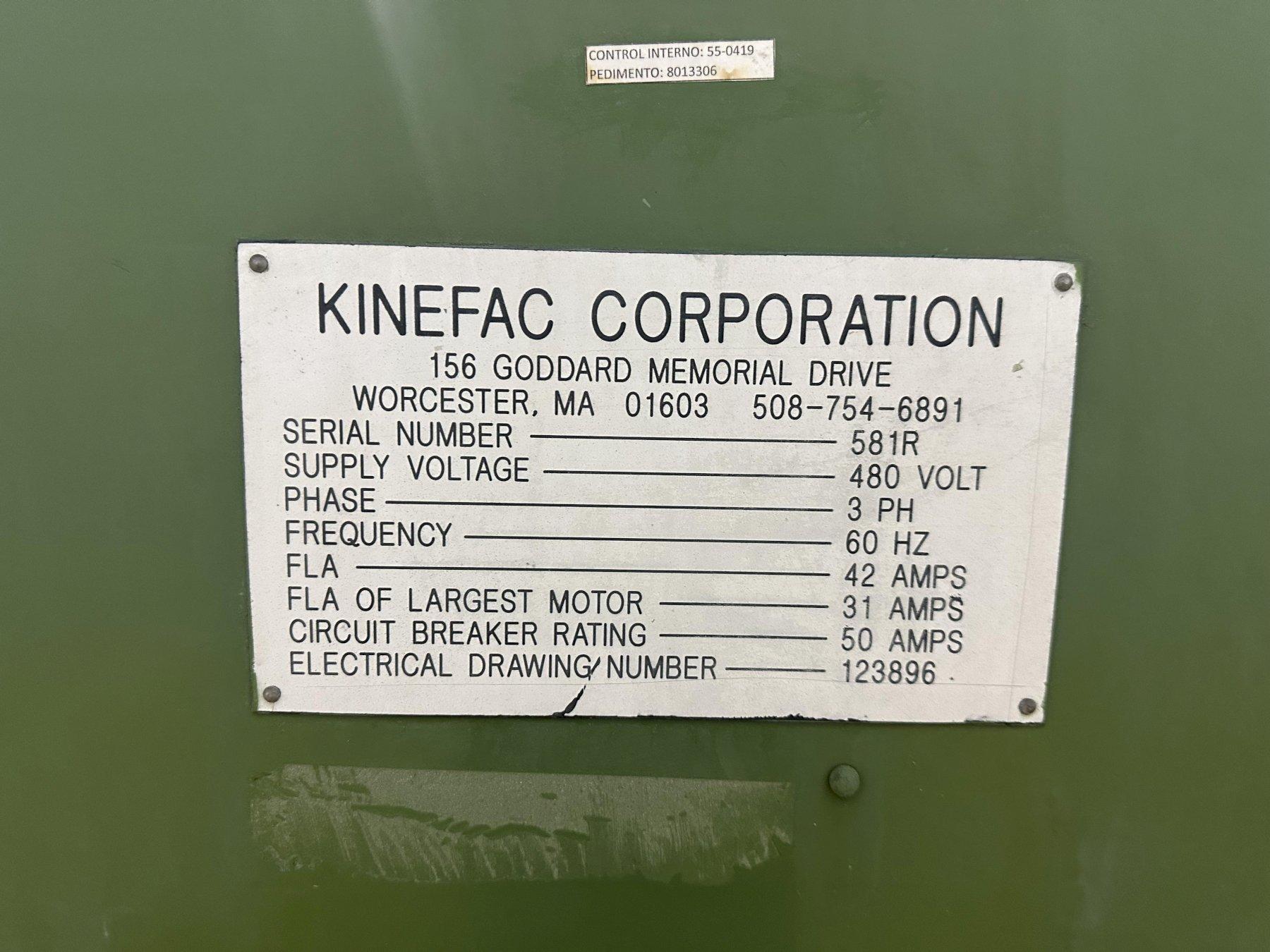

SERIAL .......... I581
MODEL ........... MC-25-F

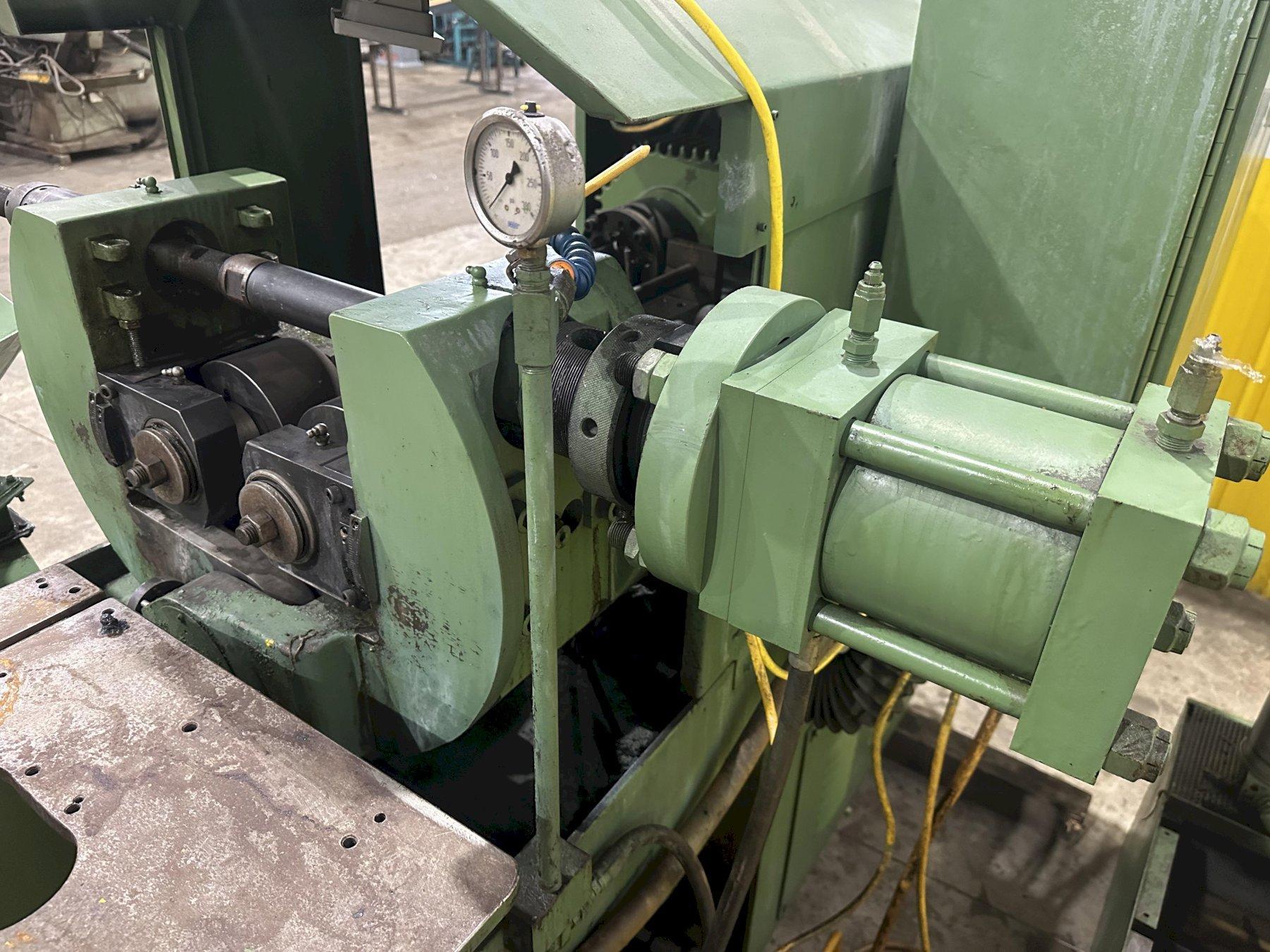

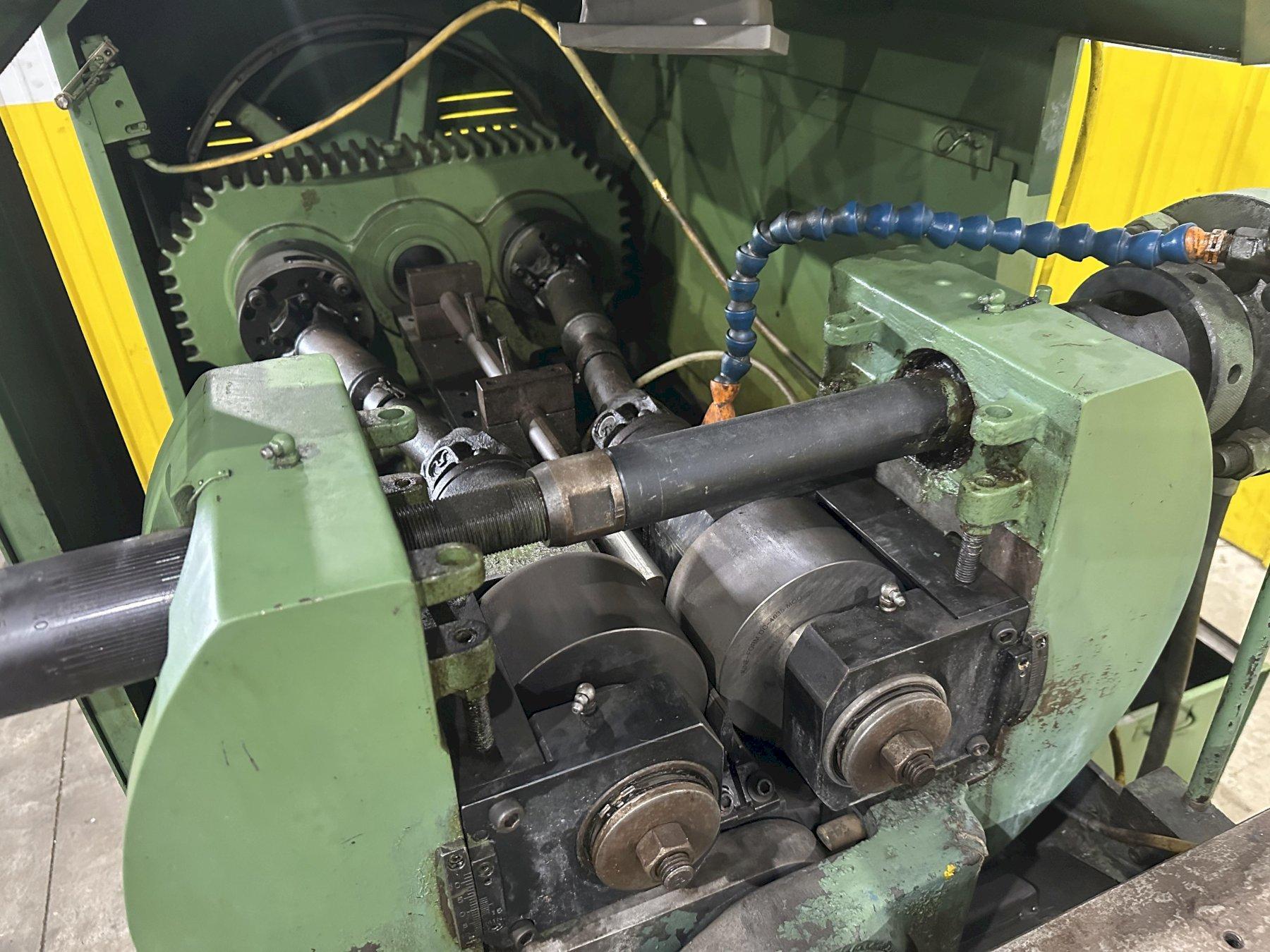

The Kinefac MC-25-F is a 2-die cylindrical thread rolling machine with a ~2.5" maximum spindle diameter and 25 HP motor, designed for high-precision threading and form rolling of shafts and pins, with capacities including: a 2.5" maximum diameter for various components like threaded rod, ball blanks, and shallow forms; a 2.5" diameter for long thrufeed roll finishing; and a ~4.5" max die length.
Key Specifications

  • Model: Kinefac MC-25-F
  • Type: 2-Die Cylindrical Thread Roller

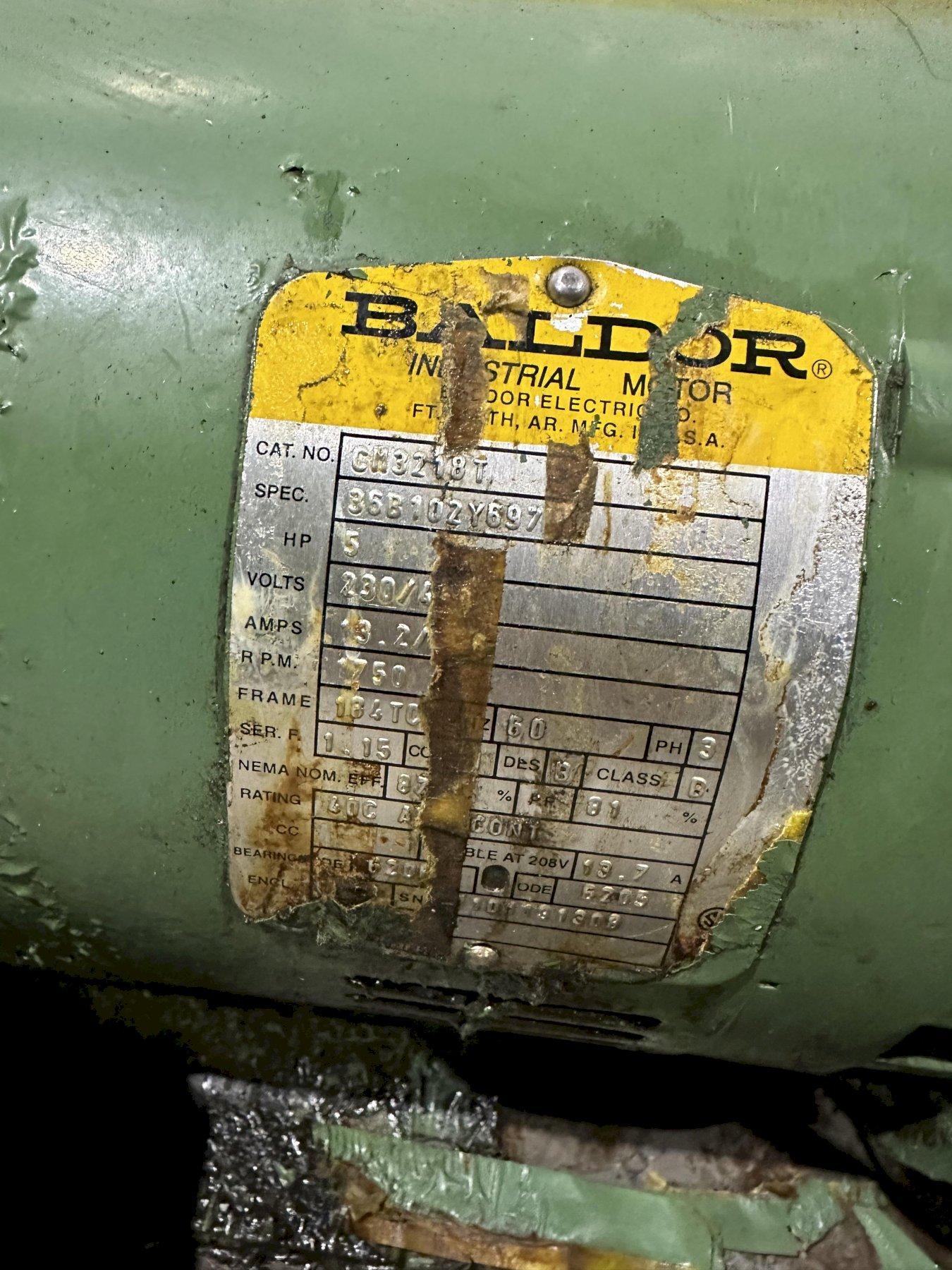

  • Motor: 25 HP
  • Spindle Diameter: ~2.5"
  • Max Die Length: ~4.5"
  • Throughfeed Capacity: Up to 2.5" diameter
  • Infeed Capacity: Up to 3" diameter for secondary rolling operations (e.g., UNC threads)

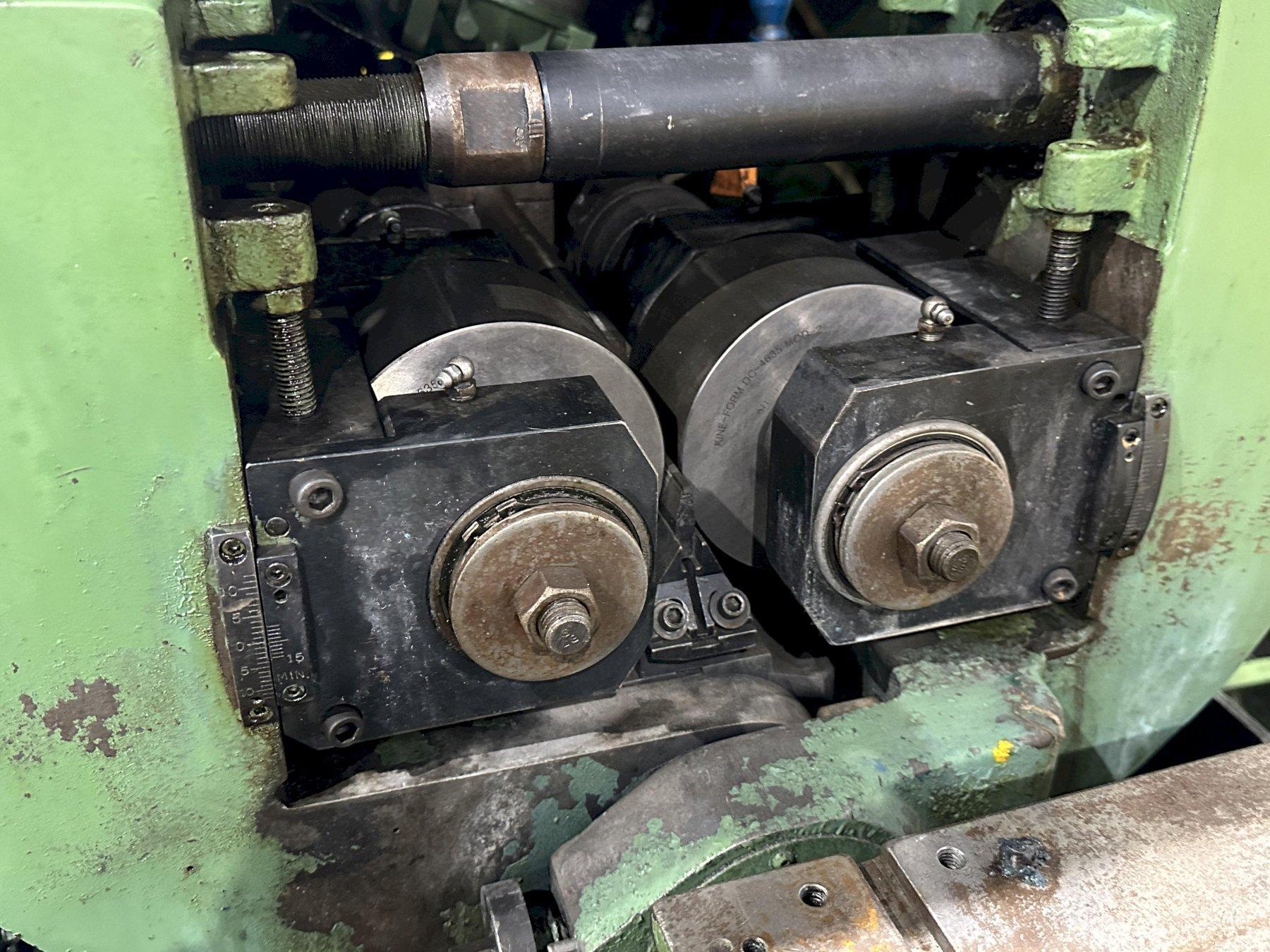

  • Die Diameter Range: 4.5" to 6"
  • Spindle Skew Range: 0-12 degrees
Functional Capabilities

  • Thrufeed and Cutoff Rolling: For simple shafts, pins, ball blanks, and roller blanks.
  • Bar Processing: For threaded rod and warm rolling.
  • Shallow Forms: Can produce shallow involute forms, knurls, and fins.
  • Worm Rolling: Capable of producing worms on parts up to 2" diameter.
  • Roll Finishing: Used for finishing and denicking on parts up to 2.5" diameter.
  • Roll Straightening: For parts up to 1.5" diameter.
Features

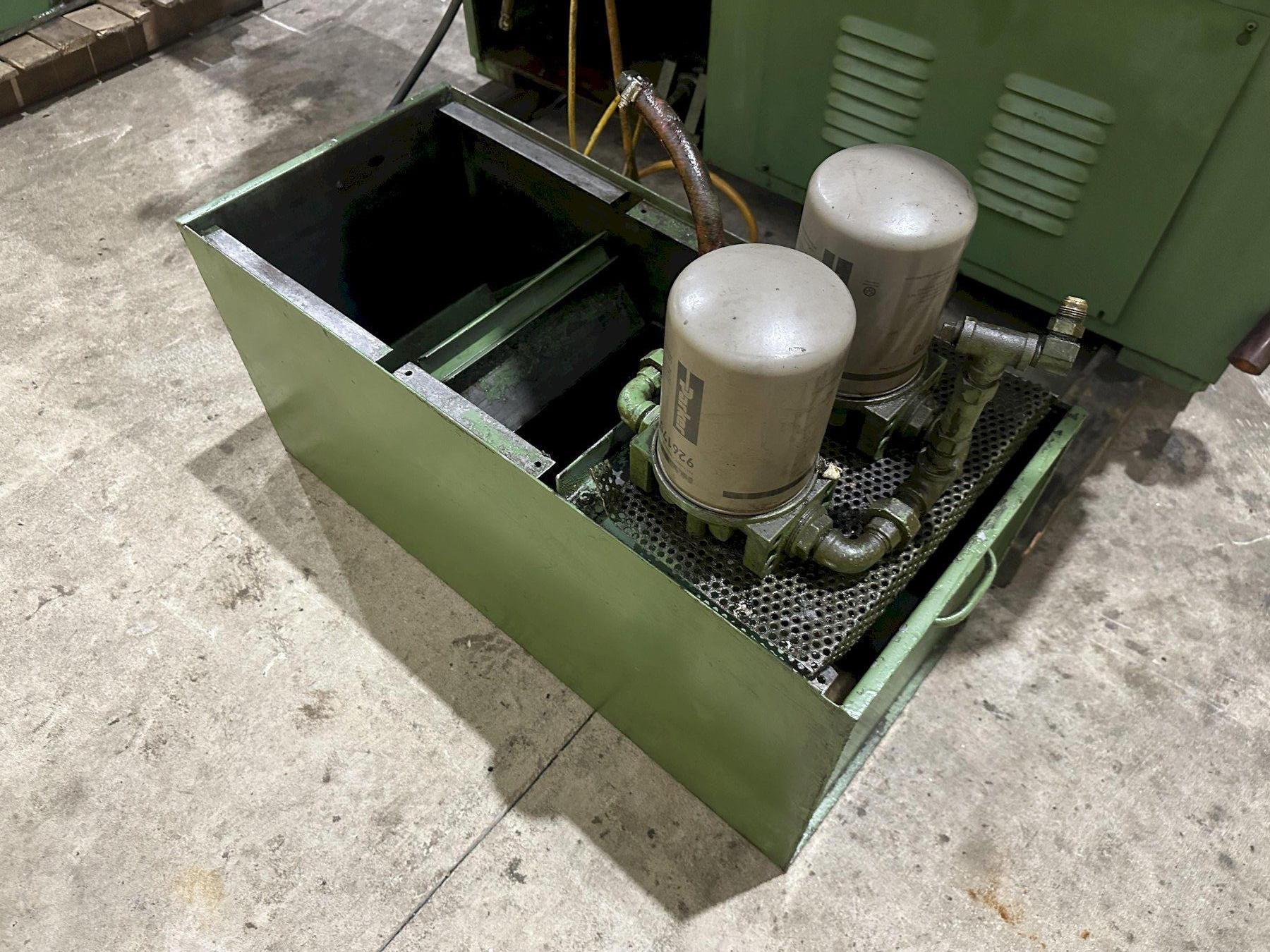

  • Self-contained oil bath lubrication for the gearbox.
  • Precision size adjustment.
  • Adjustable die clearance.

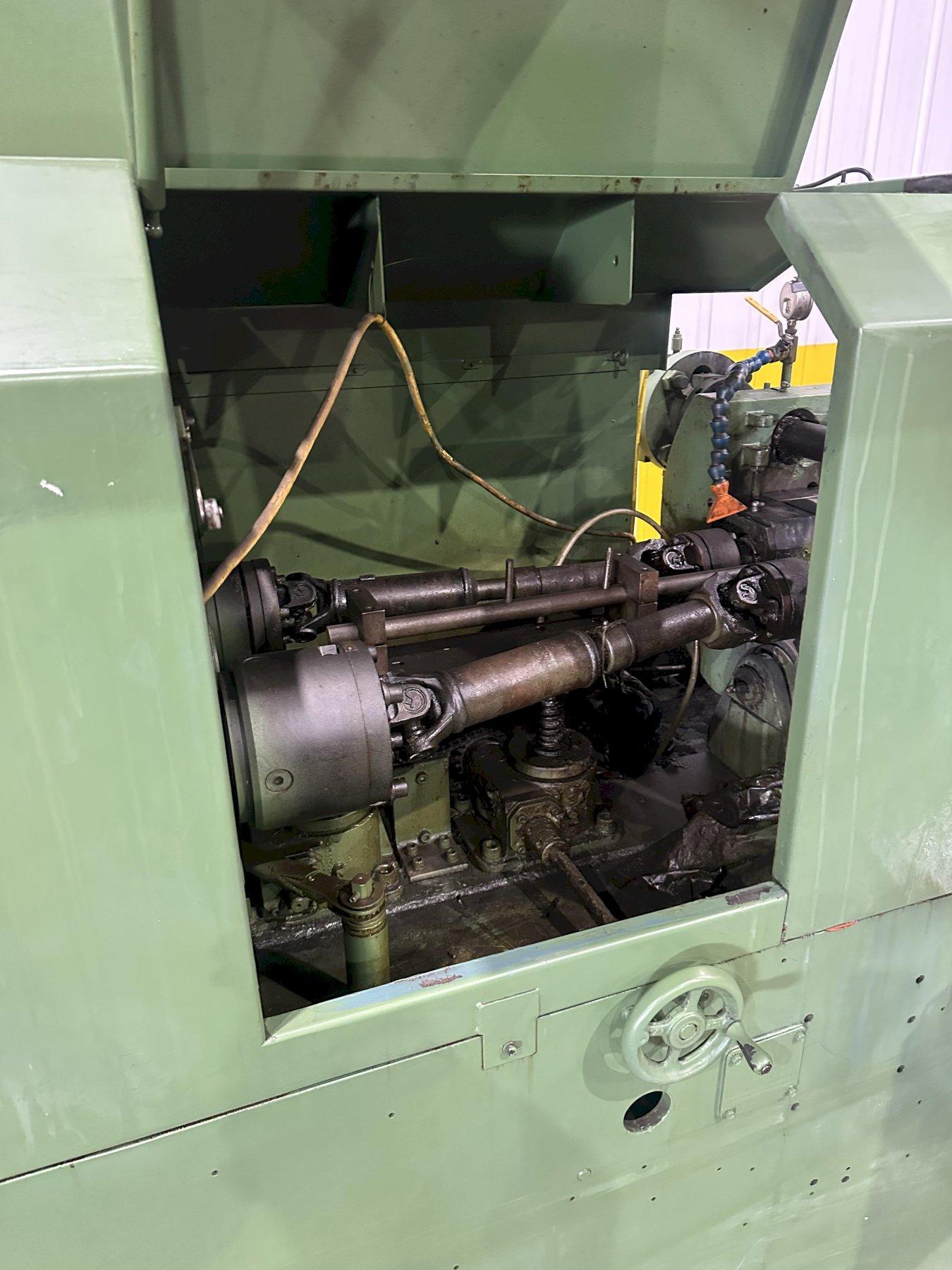

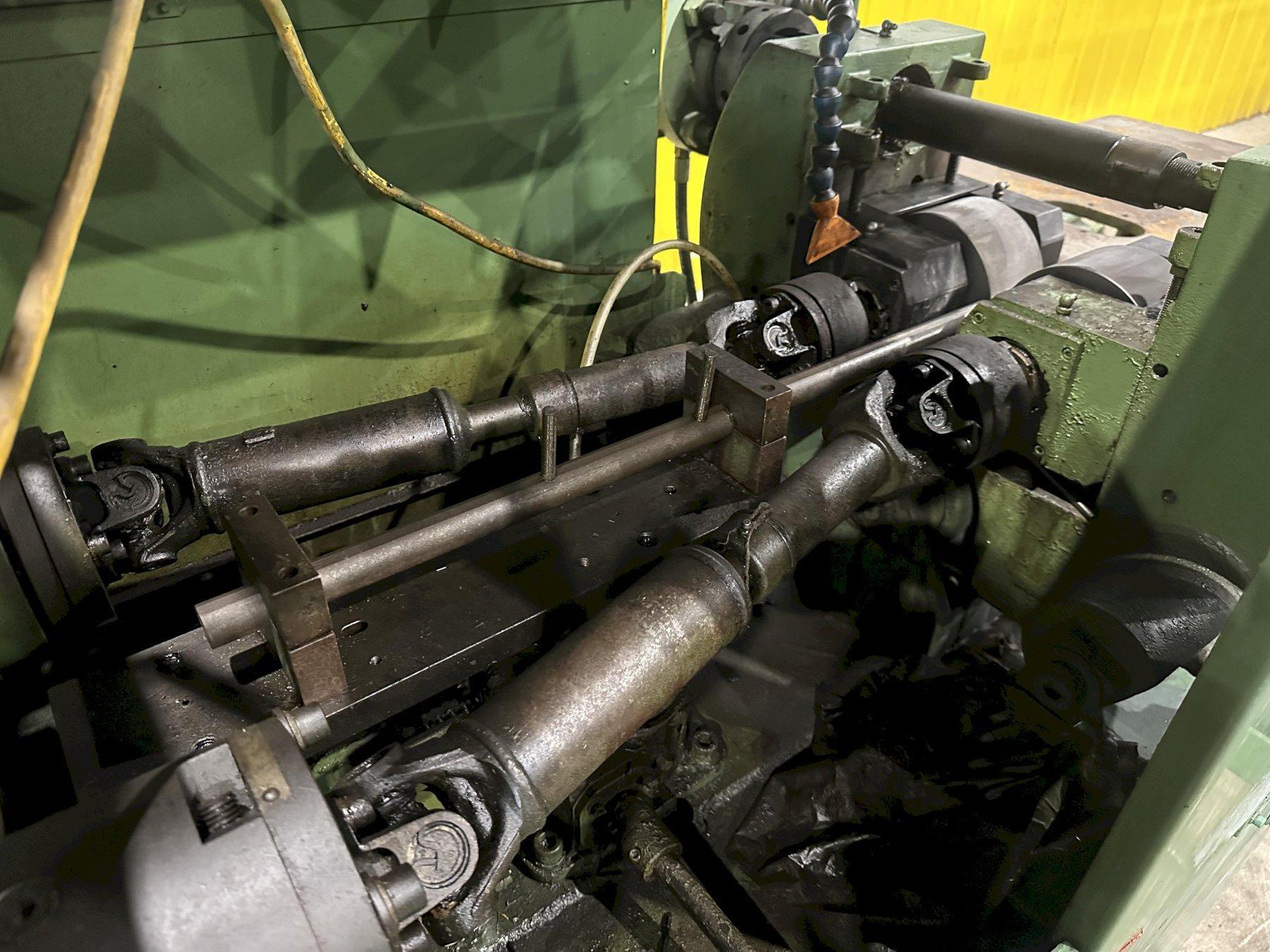

  • 25 HP motor with a 3" diameter pass-through hole for the die drive system.
  • Designed for precision and high-quality thread rolling.
No files or videos to display
