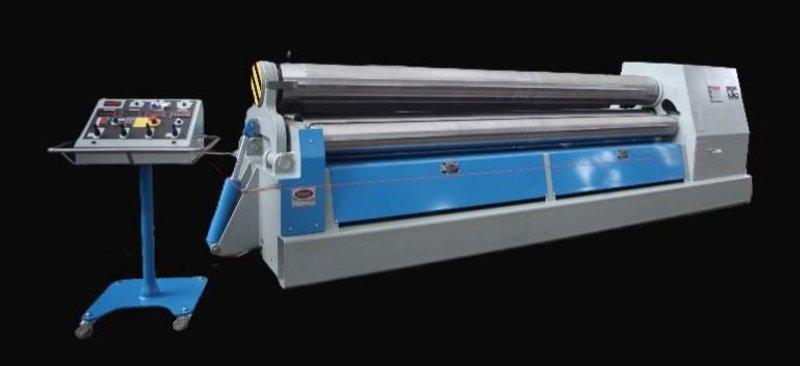

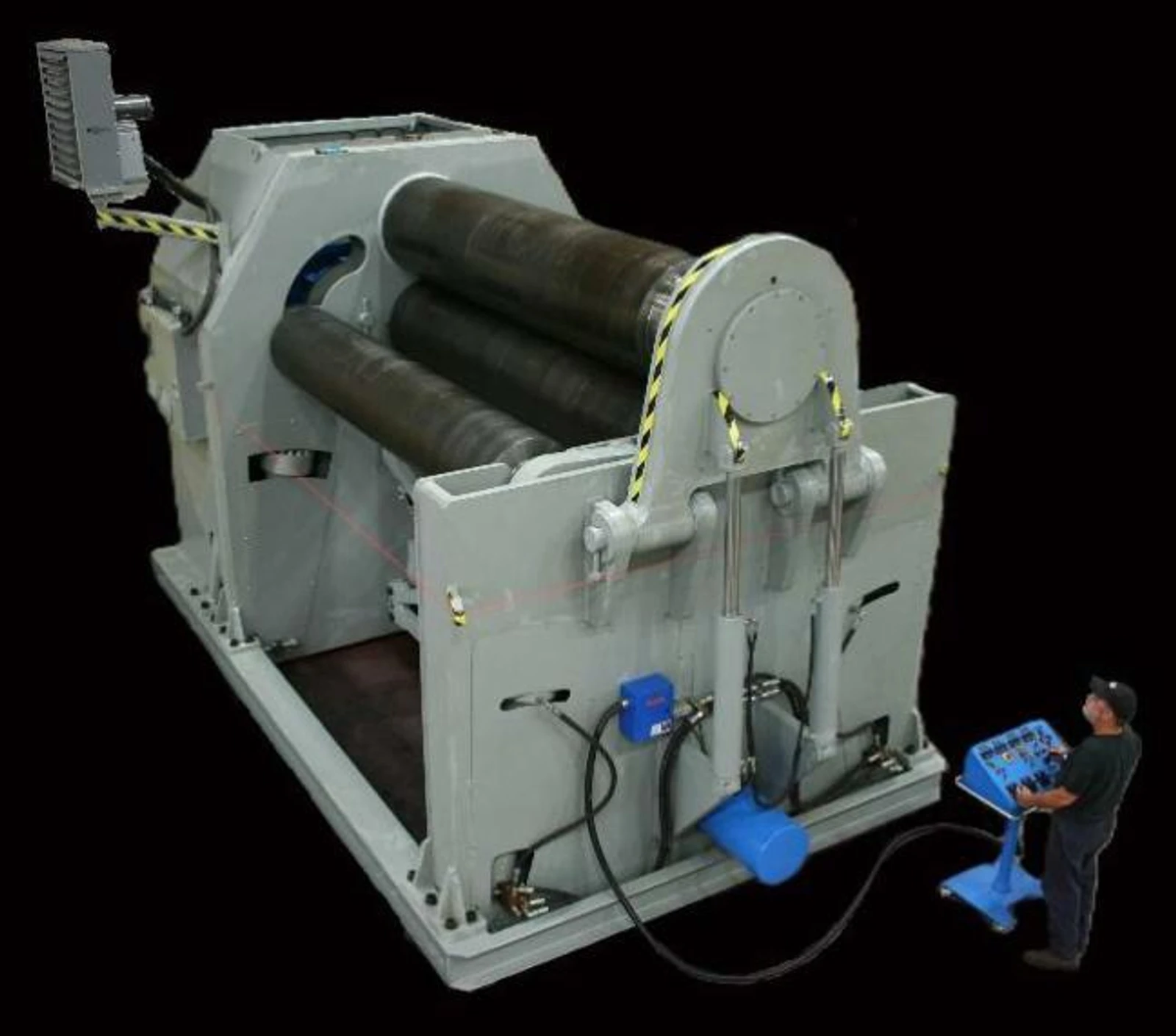

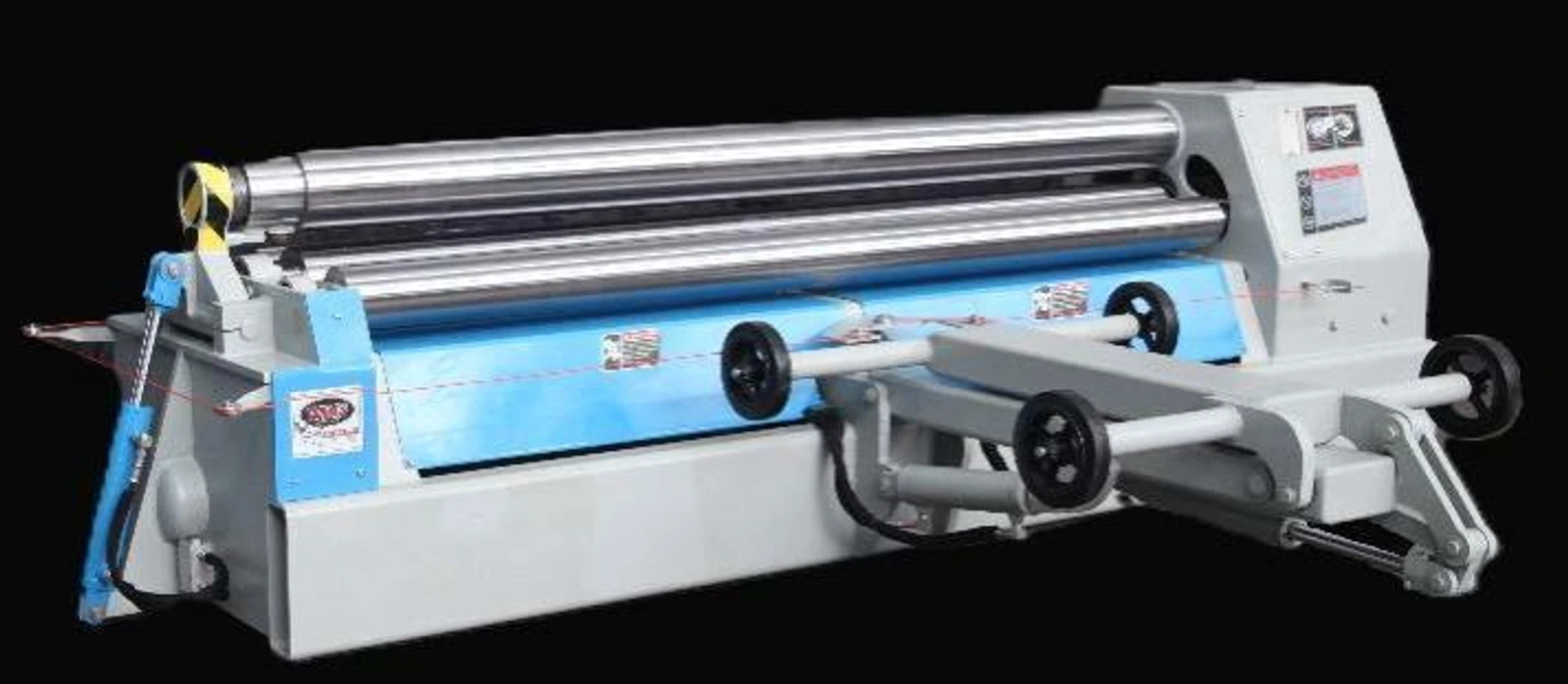

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 404-24-10

Brand

WDM

Category

Bending & Forming Equipment

Type

Rolls, Plate Bending (incld Pinch)

Model

404-24-10

Stock #

86976

Year

Not specified

Condition

New

Location

West Virginia

REQUEST FINANCING

Specifications
Files & Videos

SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 24"
RATED ROLLING CAP. (MILD STEEL) ---------- 2 3/8” mild steel plate to 96” diameter x 10' wide
APPROXIMATE WEIGHT ----------------------- 93,500 LBS
FEATURES:

• 4140 Pre HT steel rolls

• Electric gear motor driven rolls which provides fast start, stop, and reverse

• NEMA 12 control cabinet with fused power supply

• Electrics meet NFPA 79 specifications

• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)

• Variable frequency drive providing electronic overload protection and infinitely variable

speed from 0-22 FPM.

• Two roll drive

• SKF spherical roller bearings on all main bearings

• Safety cable around perimeter of machine

• Beta 4.2 rolling console control. Push button control of main functions and 3 digital

readouts to show the position of the 3 lower rolls.

• Rolls driven through helical gear electric motors with brakes

• Machine sets directly on level floor

• Ability to roll symmetrical steel sections without additional attachments

• Hydraulic operated drop end support

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:

• Heavy Duty Cone Attachment - $22,950
• Side Support Each - $51,800

• Overhead Support 12' Max - $56,200
• Pre 4.2 Control - $12,650

• 4R-AP Control - $29,100

DELIVERY:
34-38 Weeks
