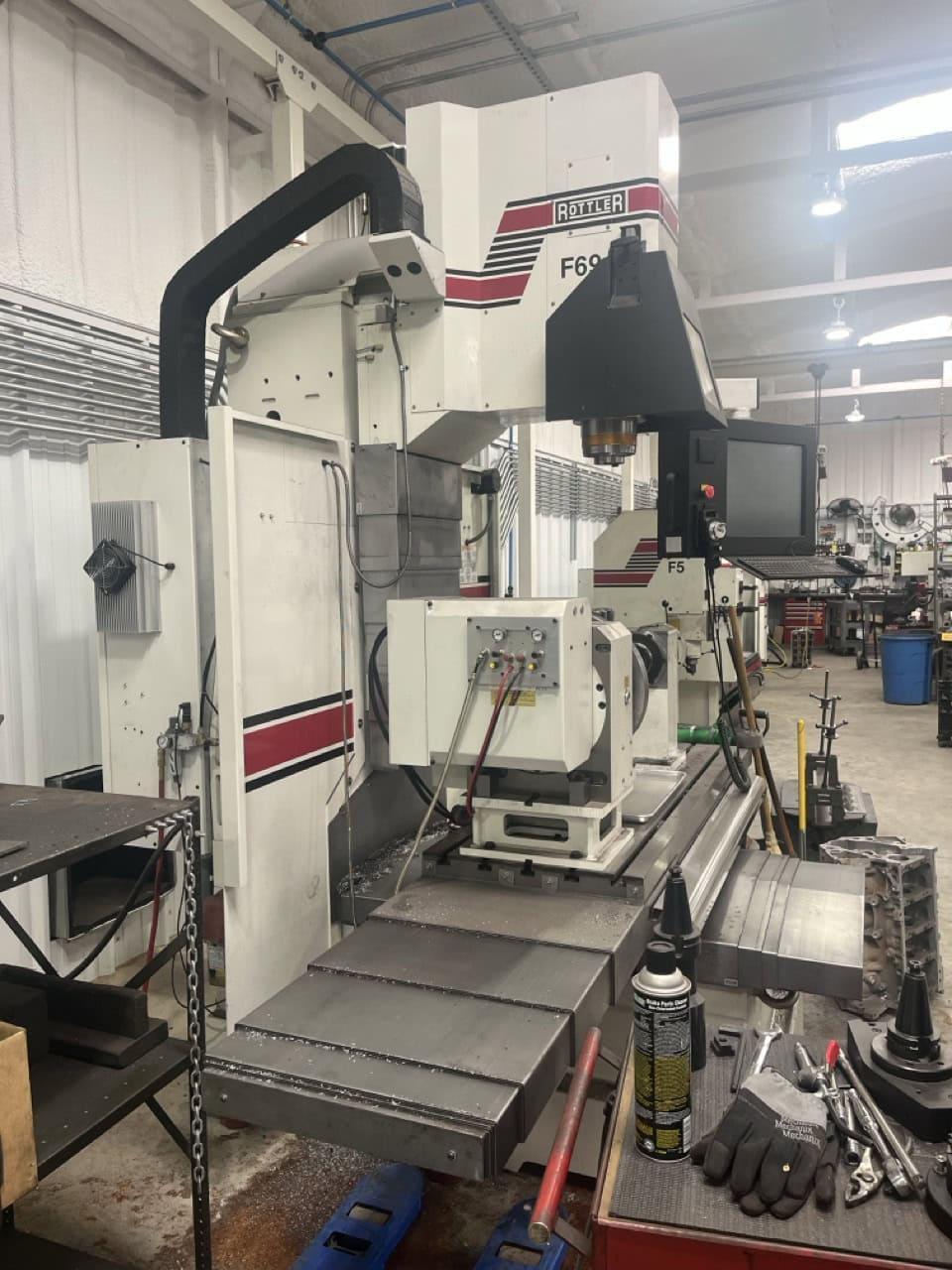

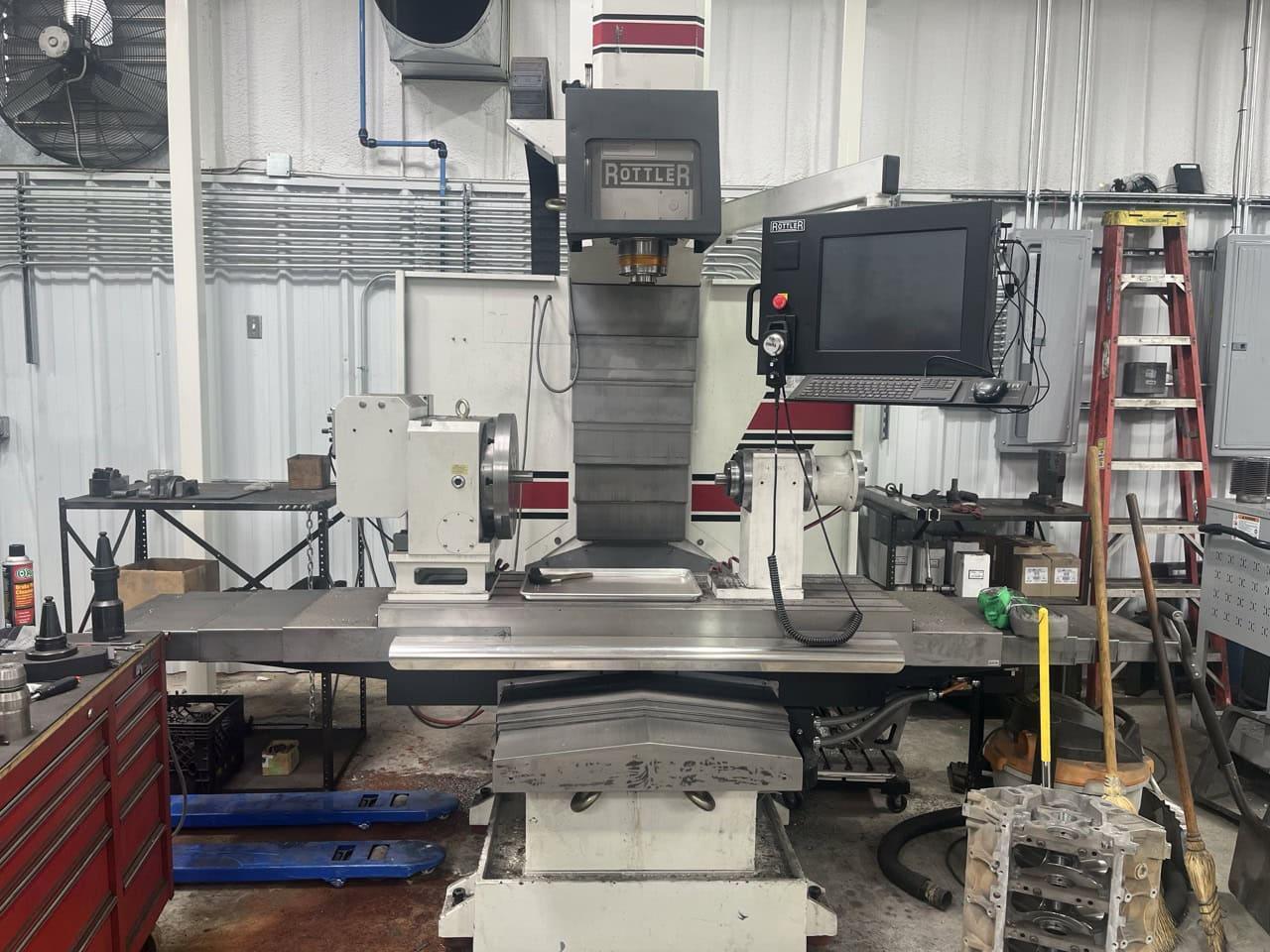

Rottler F69A Automatic Machining Center, 2023 – 4th Axis, Probe

Table Size: 59″ x 20″ Table – T Slots: 5 T Slot Spacing: 3.939″ T Slot Upper Width: 0.632″ T Slot Lower Width: 1.29″ T Slot Depth: 1.034″ X Axis Travel: 40.5″ Y Axis Travel: 20.5″ Z Axis Travel: 30.5″ Travel – Spindle Nose to Table: 10″ Travel – Spindle Center to Column: 20.9″ Spindle Taper: CAT 40 Spindle Speed: 4,000 RPM Spindle Motor: 6 HP

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cylinder Bore Range (with Optional Cutterheads): 2″ – 5″ Line Bore Range (with Optional Cutterheads): 1.9″ – 5.6″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions – Shipping: 90″ D x 132″ W x 106″ H Machine Weight: 9000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

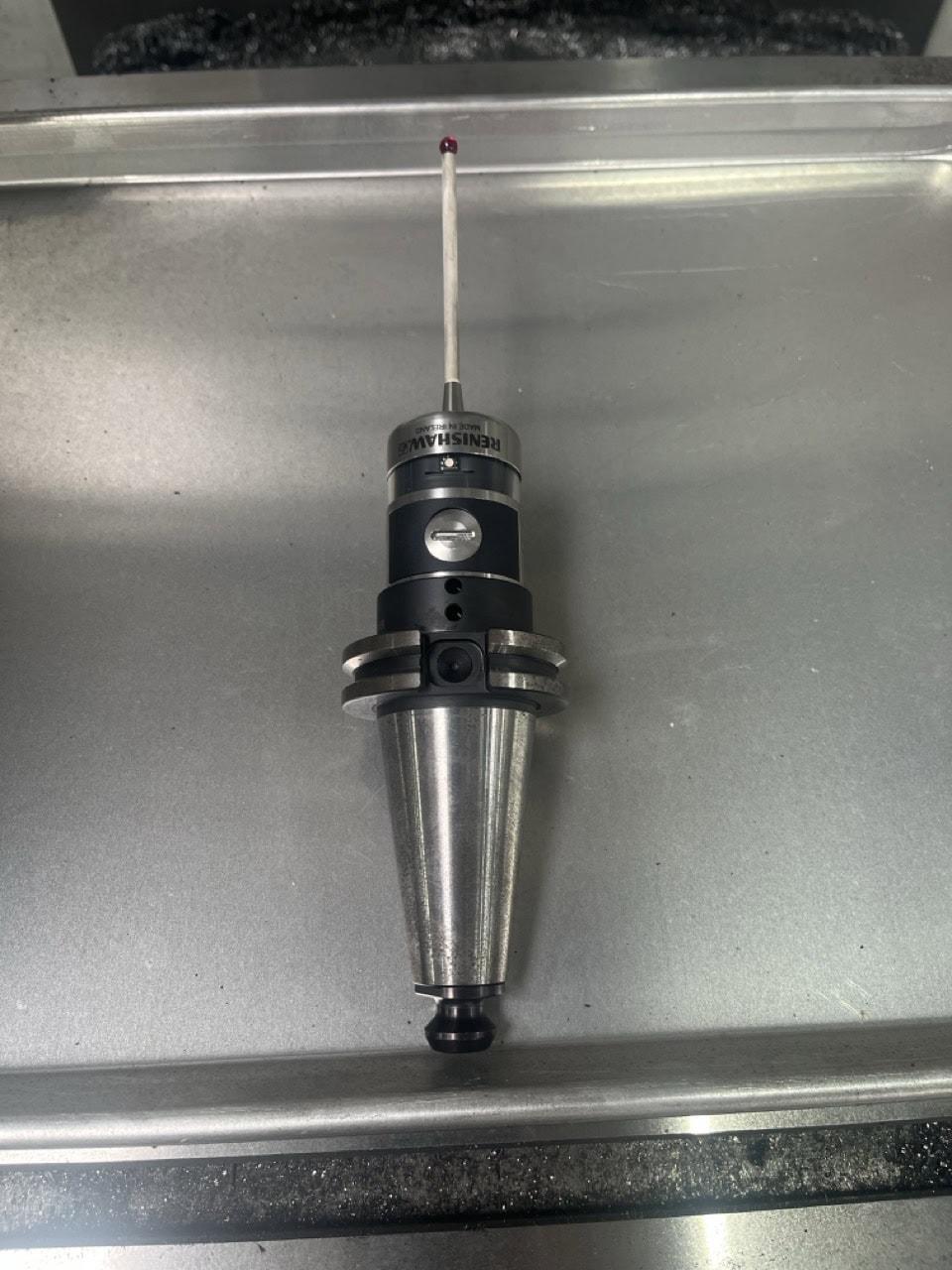

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rottler CNC Control Windows Touch Screen Operating System Power Drawbar 4th Axis Rotary Tailstock Renishaw Probe

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
